Quickship

On Sale

SKU: KMR13543G | UPC: 4002516537113

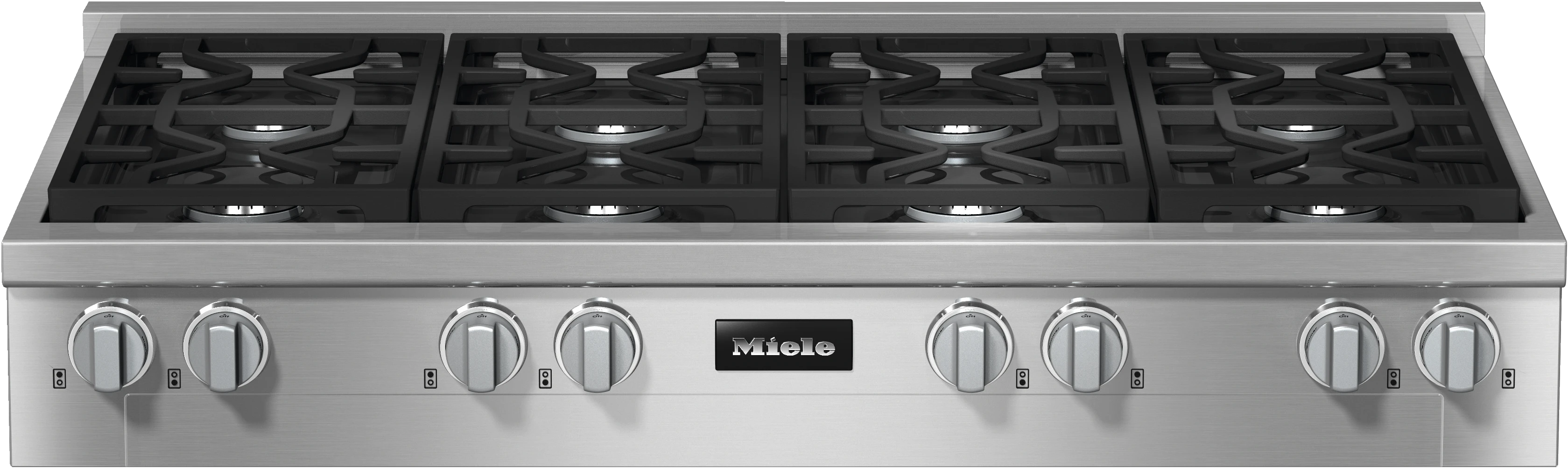

Miele KMR13543G 48" Rangetop 8 Burner Nat Gas DirectSelect Clean Touch Steel

Quick Specification More details

Width:
47.99"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
Continuous simmer

Quickship

On Sale

SKU: KMR13543G | UPC: 4002516537113

Miele KMR13543G 48" Rangetop 8 Burner Nat Gas DirectSelect Clean Touch Steel

$6,799.00 ~~$7,706.97~~ Save $907.97 / 11% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$123.99
2-Year Extended Protection
$215.99
3-Year Extended Protection
$334.99
5-Year Extended Protection
$489.99
Manufacturer Warranty Only

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
47.99"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
Continuous simmer

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$6,799.00 ~~$7,706.97~~ Save $907.97 / 11% OFF

Product Details for Miele KMR13543G

Technical Details

General information

Model number	KMR 1354-3 G EDST/CLST
Manufacturer material number	11852560
EAN number	4002516537113

Heating type

Fuel type

Gas

Design

Rangetop	TRUE
Casing	Stainless steel
Front panel	CleanSteel
Genuine metal knobs	TRUE
Cast iron pot rests (matte black enameled)	TRUE

Cooking zone details

Number of gas burners

8

1st cooking zone/cooking area

Position	front left
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700

2nd cooking zone/cooking area

Position	rear left
Type	High-speed burner
Minimum power output in BTU/hr	1200
Maximum power output in BTU/hr	12500
Max. rating in W	2900

3rd cooking zone/cooking area

Position	Rear center left
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	4000

4th cooking zone/cooking area

Position	Rear center right
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	4000

5th cooking zone/cooking area

Position	rear right
Type	High-speed burner
Minimum power output in BTU/hr	1200
Maximum power output in BTU/hr	12500
Max. rating in W	2900

6th cooking zone/cooking area

Position	front right
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700

7th cooking zone/cooking area

Position	Center right front
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700

8th cooking zone/cooking area

Position	Center left front
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700
True Simmer function	TRUE

User convenience

Operation via genuine metal knobs with backlit

TRUE

Cleaning convenience

Dishwasher-safe trivets	TRUE
Single-piece cooktop surround	TRUE

Safety

Automatic re-ignition

TRUE

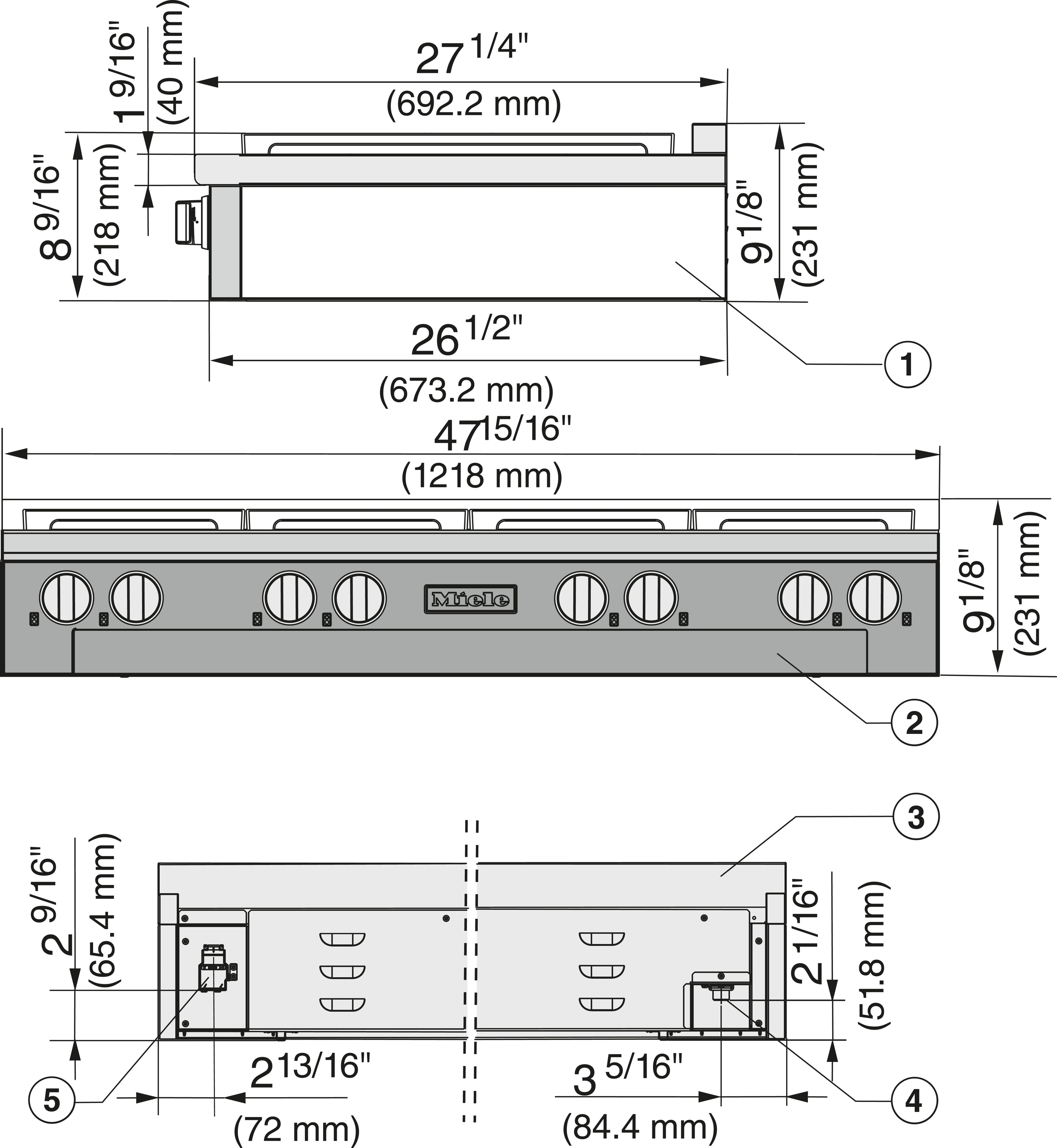

Technical data

Dimensions (width) in in. (mm)	48 (1219)
Dimensions (height) in in. (mm)	7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose	27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose	25 5/8 (650)
Weight in lbs. (kg)	149 (68)
Total output in BTU/hr	142000
Total connected load in kW	41.600
Voltage in V	120
Fuse rating in A	10
Number of phases	1
Power cord length in in. (m)	3 (1.2)

Dimensions & weight

Width	47.99 in.
Height	7.52 in.
Length	24.13 in.
Weight	330.5 lbs.
Gross Weight	165.35 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	54.49 in.
Shipping Height	14.92 in.
Shipping Length	33.62 in.
Shipping Weight	370.5 lbs.
Source	Manufacturer
Total of Shipping Weight	370.50 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	15.82 ft³
Cubic Feet Measurement	5.04 ft³
Dimensional Weight	62.65 lbs.
Total of Cubes	5.04 ft³
Total of Dimensional Weight	62.65 lbs.

Description

The brand Miele KMR13543G delivers exceptional performance and refined craftsmanship in this 48-inch dual fuel range, combining a gas cooktop with an electric convection oven for optimal cooking results. Equipped with six powerful sealed burners and a built-in infrared griddle, this range provides versatility for gourmet cooking. The MasterChef automatic programs simplify complex dishes with precision temperature control and pre-set modes. Featuring backlit precision knobs and ComfortClean dishwasher-safe grates, the range offers an intuitive and low-maintenance cooking experience. The Rapid PreHeat and Moisture Plus functions ensure efficient oven performance, while the Clean Touch Steel™ finish maintains a fingerprint-resistant, professional appearance. This premium appliance is the centerpiece of any high-end kitchen.

Manuals & Guides

Key Features

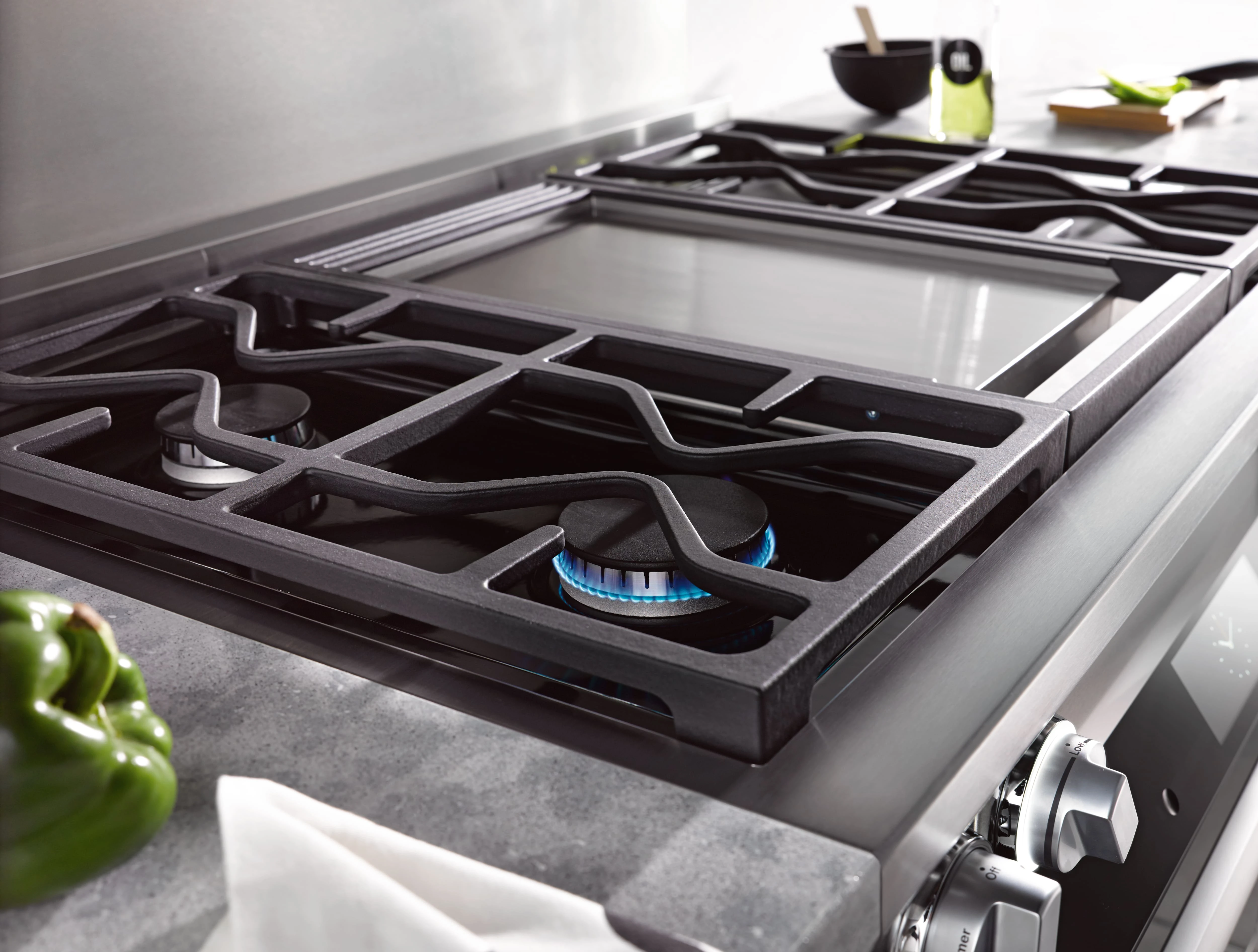

ComfortClean Dishwasher-Safe Grates

When it’s time for clean-up, simply place the dishwasher-safe grates in your dishwasher.

Clean Touch Steel™Front

This innovative finish resists fingerprints, scratches and smudges. A special treatment stands up to aggressive handling – keeping the exterior cleaner and easier to maintain.

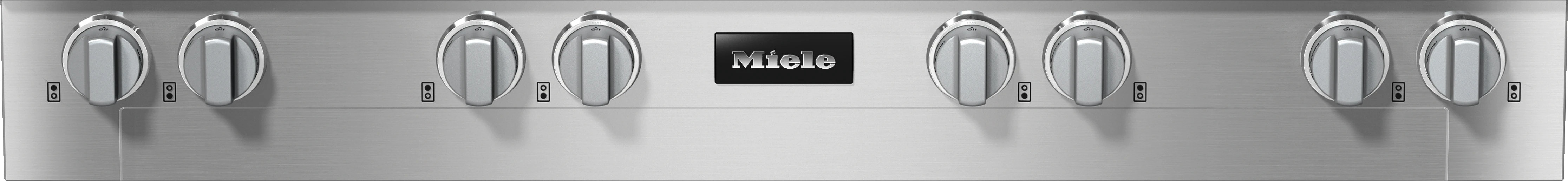

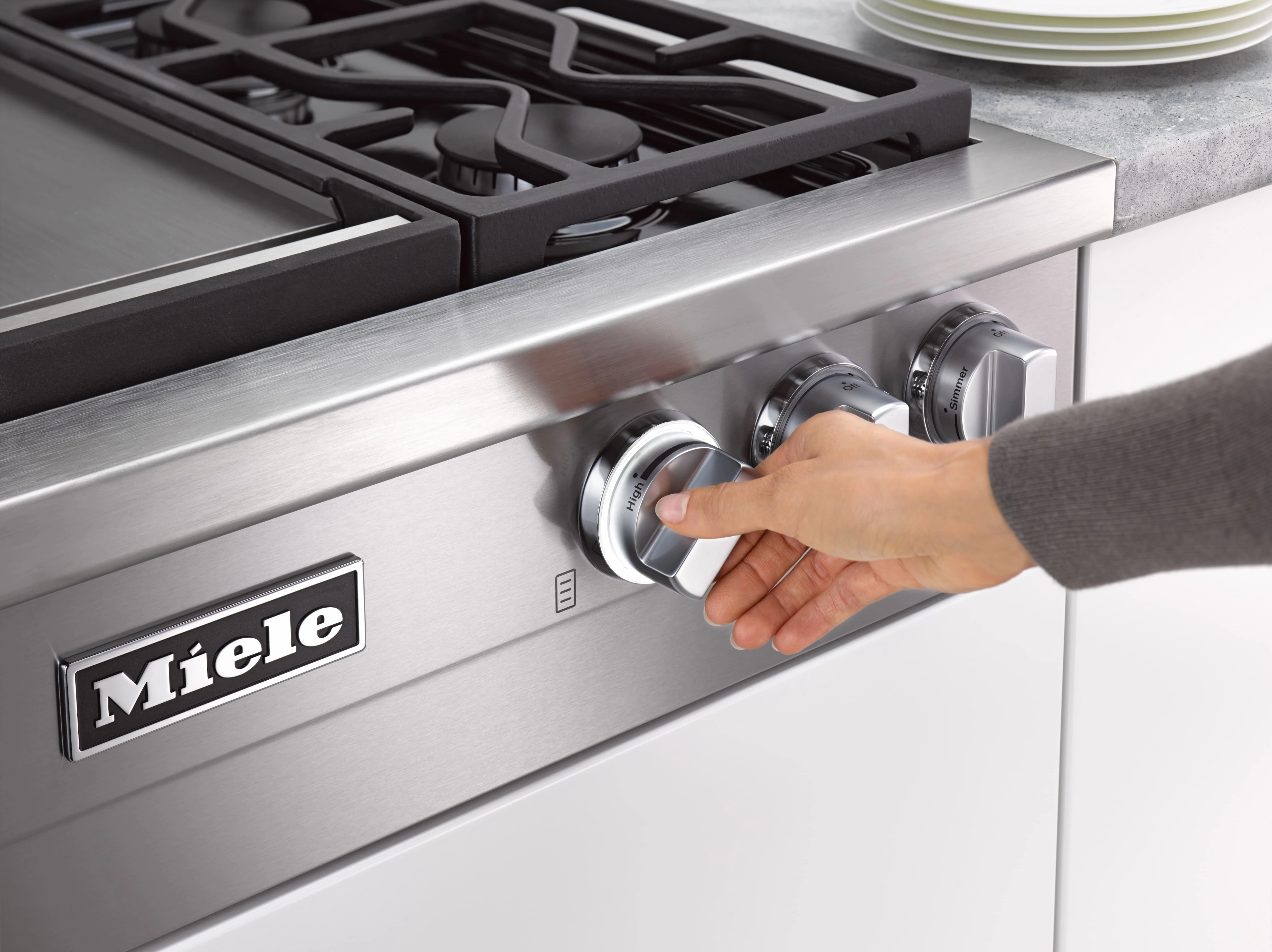

Backlit Precision Knobs

This elegant design feature is not only a useful visual cue for a burner-in-use, but also a design element that sets Miele apart - and with QuickStart, there’s no need to press or hold the control in order to switch the burners on.

Continuous simmer

Achieving the perfect temperature and even heat for simmering is easy with Miele TrueSimmer function. Whether you are melting chocolate or thickening a sauce, this feature offers precise results.
