SKU: KMR11343LP | UPC: 4002516537106

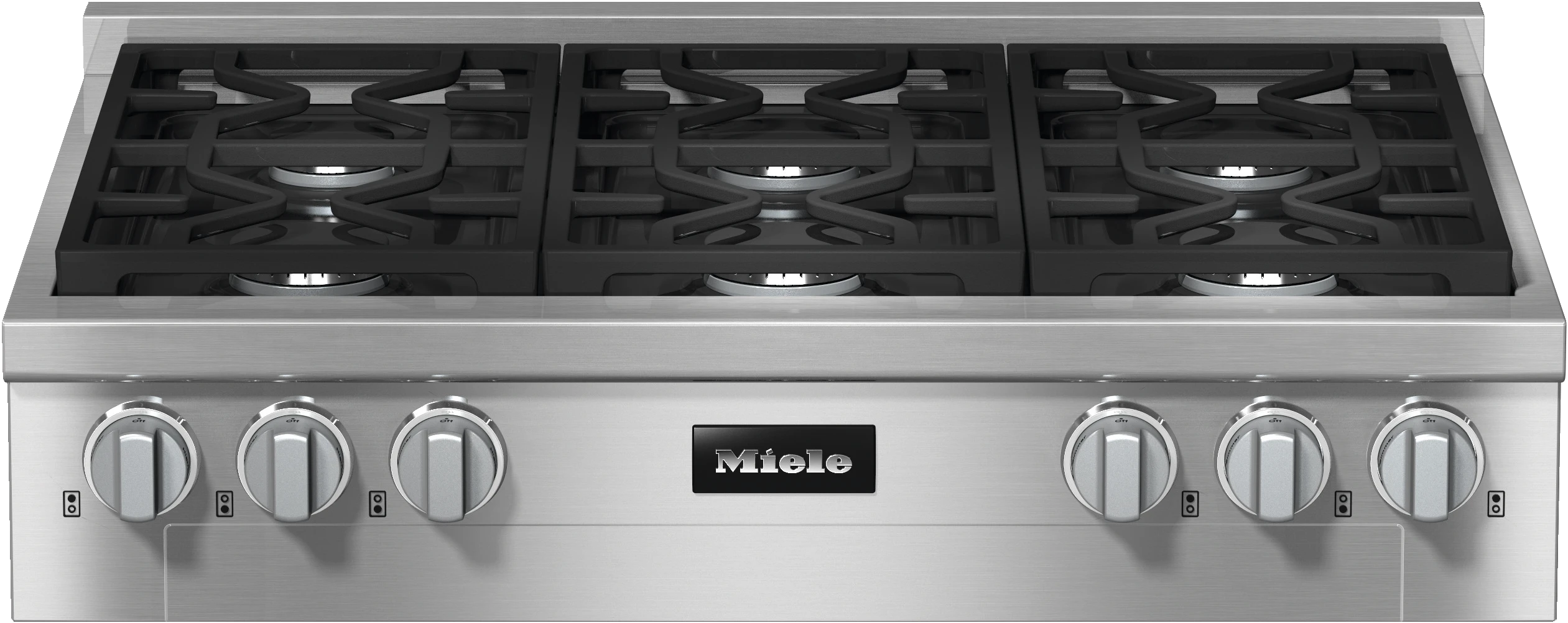

Miele KMR11343LP 36" Rangetop 6 Burner LP DirectSelect Clean Touch Steel

Quick Specification More details

Width:
35.98"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
Continuous simmer

SKU: KMR11343LP | UPC: 4002516537106

Miele KMR11343LP 36" Rangetop 6 Burner LP DirectSelect Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.98"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
Continuous simmer

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele KMR11343LP

Technical Details

General information

Model number	KMR 1134-3 LP EDST/CLST
Manufacturer material number	11852370
EAN number	4002516537106

Heating type

Fuel type

Gas

Design

Rangetop	TRUE
Casing	Stainless steel
Front panel	CleanSteel
Genuine metal knobs	TRUE
Cast iron pot rests (matte black enameled)	TRUE

Cooking zone details

Number of gas burners

1st cooking zone/cooking area

Position	front left
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	5700

2nd cooking zone/cooking area

Position	rear left
Type	High-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	12500
Max. rating in W	3700

3rd cooking zone/cooking area

Position	rear center
Type	High-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	13000
Max. rating in W	3800

4th cooking zone/cooking area

Position	rear right
Type	High-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	13000
Max. rating in W	3800

5th cooking zone/cooking area

Position	front right
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	5700

6th cooking zone/cooking area

Position	front center
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	5700

8th cooking zone/cooking area

True Simmer function

TRUE

User convenience

Operation via genuine metal knobs with backlit

TRUE

Cleaning convenience

Dishwasher-safe trivets	TRUE
Single-piece cooktop surround	TRUE

Safety

Automatic re-ignition

TRUE

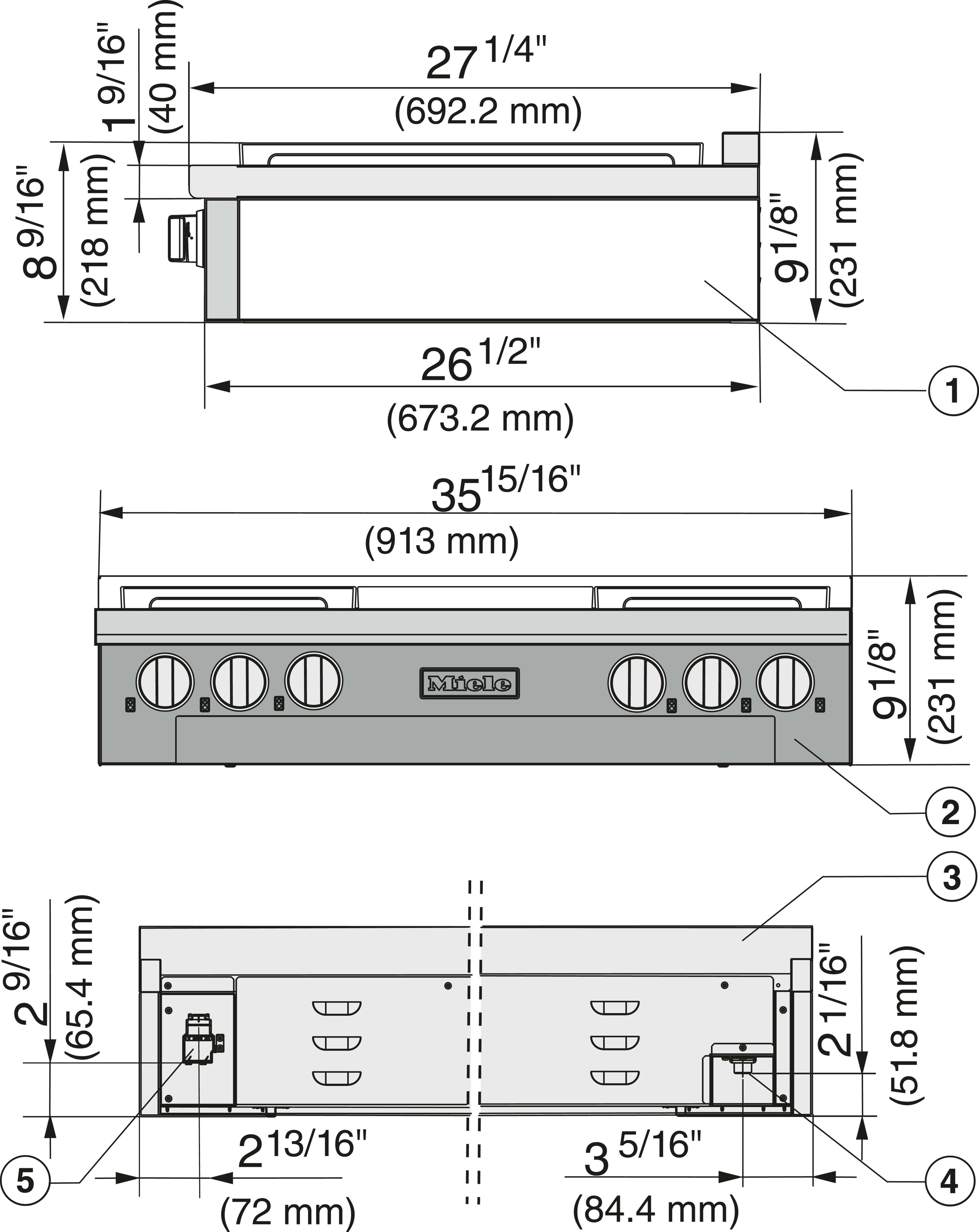

Technical data

Dimensions (width) in in. (mm)	36 (914)
Dimensions (height) in in. (mm)	7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose	27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose	25 5/8 (650)
Weight in lbs. (kg)	121 (55)
Total output in BTU/hr	97000
Voltage in V	127
Fuse rating in A	16
Number of phases	1
Power cord length in in. (m)	3 (1.2)

Dimensions & weight

Width	35.98 in.
Height	7.52 in.
Length	24.13 in.
Weight	267.32 lbs.
Gross Weight	134.48 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	42.52 in.
Shipping Height	14.92 in.
Shipping Length	33.62 in.
Shipping Weight	307.32 lbs.
Source	Manufacturer
Total of Shipping Weight	307.32 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	12.35 ft³
Cubic Feet Measurement	3.78 ft³
Dimensional Weight	46.97 lbs.
Total of Cubes	3.78 ft³
Total of Dimensional Weight	46.97 lbs.

Description

KMR 1134-3 LP EDST/CLST - 36-inch Range Top with 6 burners for professional applications

Manuals & Guides

Key Features

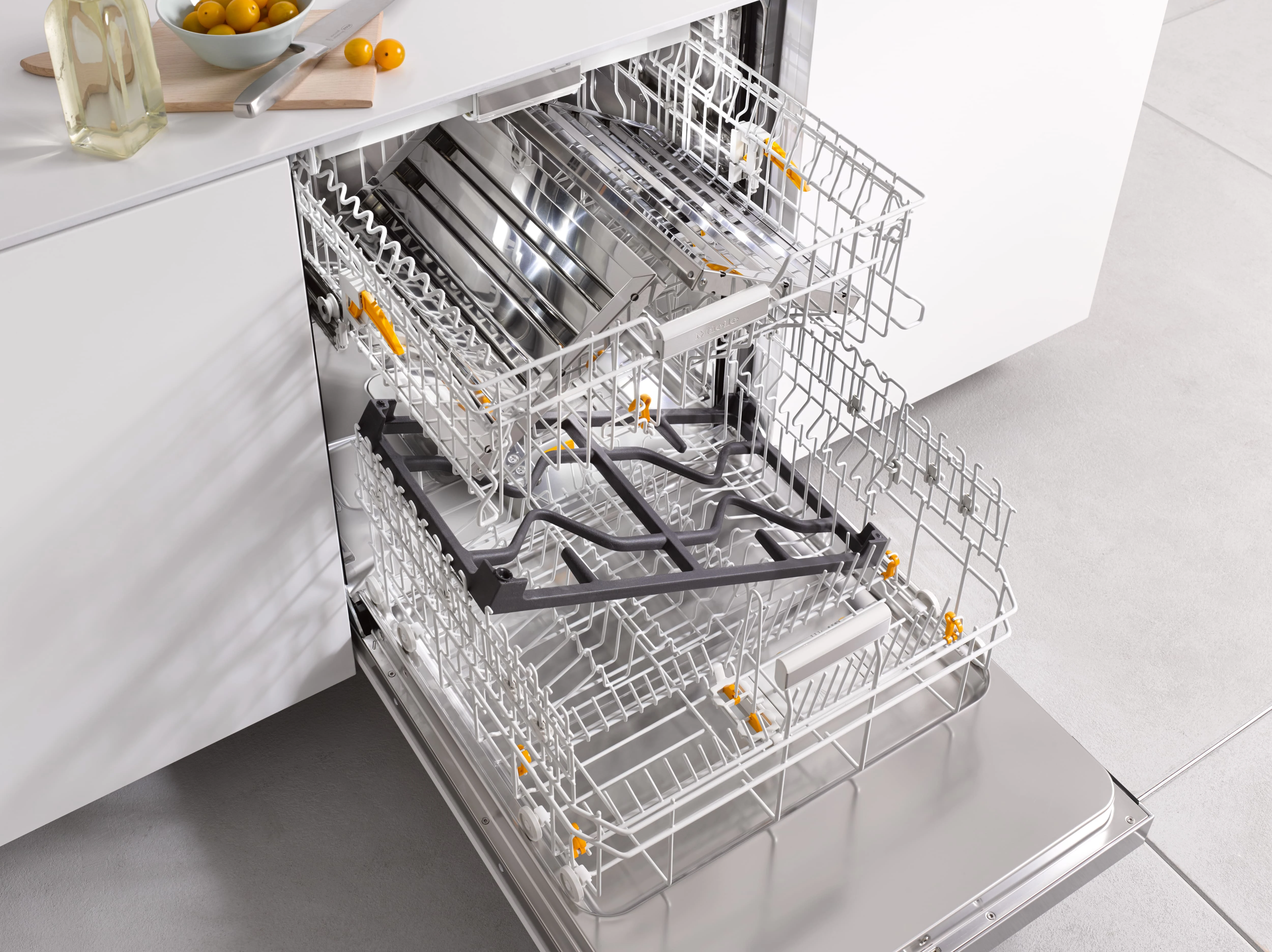

ComfortClean Dishwasher-Safe Grates

When it’s time for clean-up, simply place the dishwasher-safe grates in your dishwasher.

Clean Touch Steel™Front

This innovative finish resists fingerprints, scratches and smudges. A special treatment stands up to aggressive handling – keeping the exterior cleaner and easier to maintain.

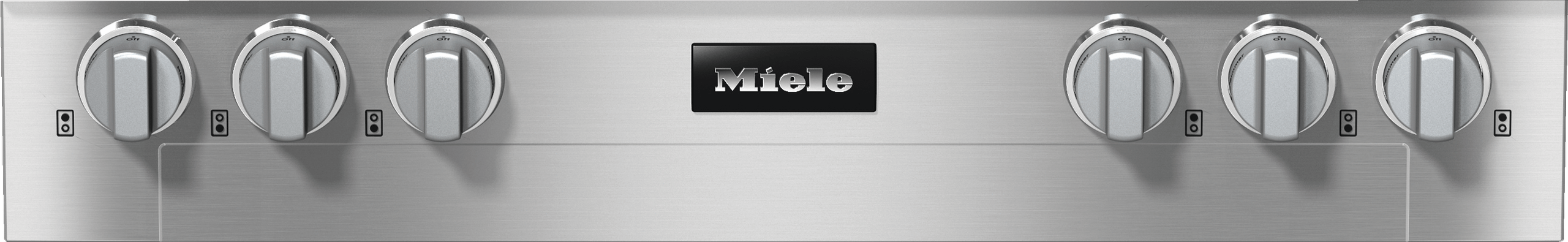

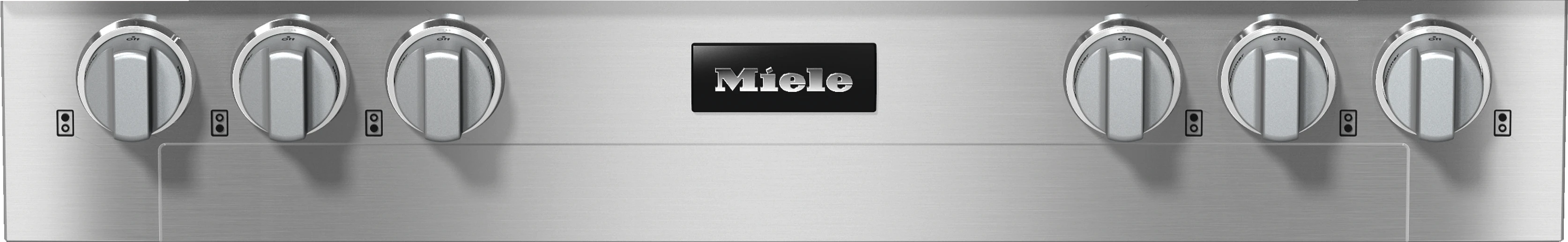

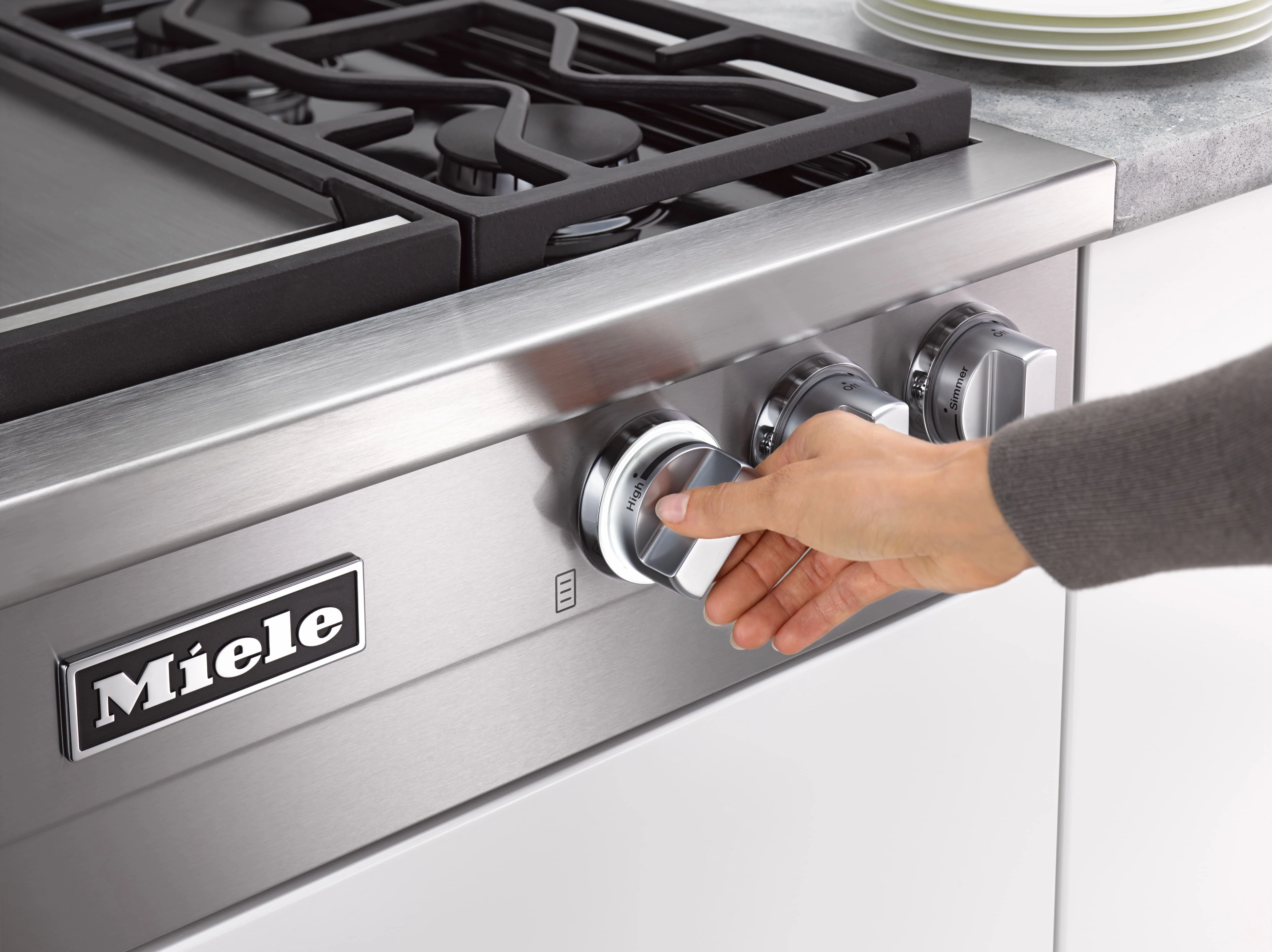

Backlit Precision Knobs

This elegant design feature is not only a useful visual cue for a burner-in-use, but also a design element that sets Miele apart - and with QuickStart, there’s no need to press or hold the control in order to switch the burners on.

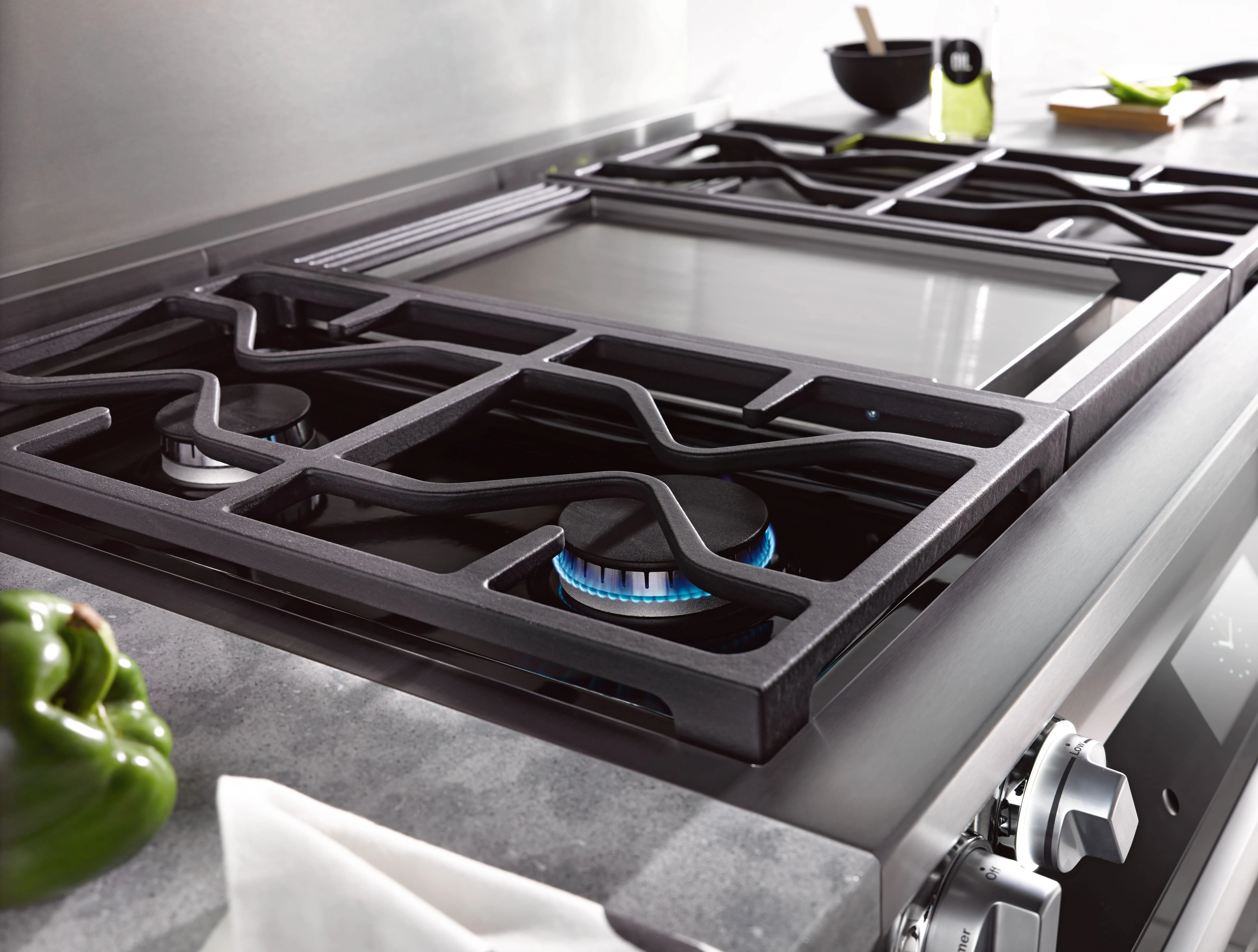

Continuous simmer

Achieving the perfect temperature and even heat for simmering is easy with Miele TrueSimmer function. Whether you are melting chocolate or thickening a sauce, this feature offers precise results.
