SKU: KMR11343G | UPC: 4002516534969

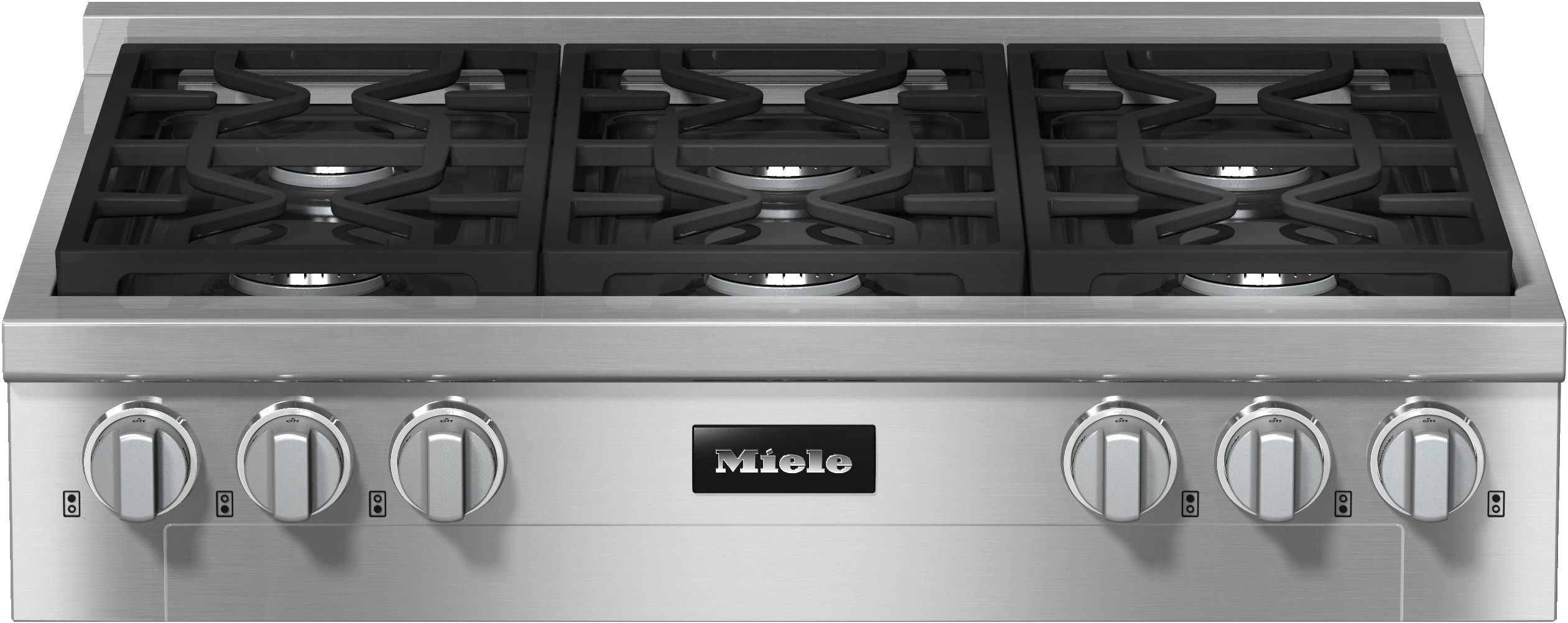

Miele KMR11343G 36" Rangetop 6 Burner Nat Gas DirectSelect Clean Touch Steel

Quick Specification More details

Width:
36"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
Continuous simmer

SKU: KMR11343G | UPC: 4002516534969

Miele KMR11343G 36" Rangetop 6 Burner Nat Gas DirectSelect Clean Touch Steel

$5,399.00 ~~$7,140.97~~ Save $1,741.97 / 24% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
Continuous simmer

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$5,399.00 ~~$7,140.97~~ Save $1,741.97 / 24% OFF

Product Details for Miele KMR11343G

Technical Details

General information

Model number	KMR 1134-3 G EDST/CLST
Manufacturer material number	11852340
EAN number	4002516534969

Heating type

Fuel type

Gas

Design

Rangetop	TRUE
Casing	Stainless steel
Front panel	CleanSteel
Genuine metal knobs	TRUE
Cast iron pot rests (matte black enameled)	TRUE

Cooking zone details

Number of gas burners

1st cooking zone/cooking area

Position	front left
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700

2nd cooking zone/cooking area

Position	rear left
Type	High-speed burner
Minimum power output in BTU/hr	1200
Maximum power output in BTU/hr	12500
Max. rating in W	3700

3rd cooking zone/cooking area

Position	rear right
Type	High-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	13600
Max. rating in W	4000

4th cooking zone/cooking area

Position	rear right
Type	High-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	13600
Max. rating in W	4000

5th cooking zone/cooking area

Position	front right
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700

6th cooking zone/cooking area

Position	front center
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1700
Maximum power output in BTU/hr	19500
Max. rating in W	5700

8th cooking zone/cooking area

True Simmer function

TRUE

User convenience

Operation via genuine metal knobs with backlit

TRUE

Cleaning convenience

Dishwasher-safe trivets	TRUE
Single-piece cooktop surround	TRUE

Safety

Automatic re-ignition

TRUE

Technical data

Dimensions (width) in in. (mm)	36 (914)
Dimensions (height) in in. (mm)	7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose	27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose	25 5/8 (650)
Weight in lbs. (kg)	121 (55)
Total output in BTU/hr	98200
Total connected load in kW	32.200
Voltage in V	120
Fuse rating in A	10
Number of phases	1
Power cord length in in. (m)	3 (1.2)

Dimensions & weight

Width	36 in.
Height	7.52 in.
Length	24.13 in.
Weight	267.32 lbs.
Gross Weight	134.48 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	42.52 in.
Shipping Height	14.92 in.
Shipping Length	33.62 in.
Shipping Weight	307.32 lbs.
Source	Manufacturer
Total of Shipping Weight	307.32 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	12.35 ft³
Cubic Feet Measurement	3.78 ft³
Dimensional Weight	47.00 lbs.
Total of Cubes	3.78 ft³
Total of Dimensional Weight	47.00 lbs.

Description

The Miele KMR11343G delivers robust performance and refined craftsmanship in a 36-inch gas rangetop designed for serious home chefs. Featuring 6 sealed burners including a powerful 19,500 BTU Dual Wok Burner, it provides maximum cooking flexibility for everything from rapid searing to delicate simmering. Backlit precision control knobs ensure intuitive operation and enhance visibility, while the continuous enamel cast-iron grates support heavy cookware and easy maneuvering across burners. Engineered for performance and elegance, the stainless steel finish blends seamlessly into modern and professional-style kitchens. The Clean Touch Steel™ surface resists fingerprints for a polished look, and automatic re-ignition provides added safety and convenience. Whether installed in a custom countertop or as part of a built-in cooking suite, the KMR11343G brings German-engineered precision and power to your kitchen.

Manuals & Guides

Key Features

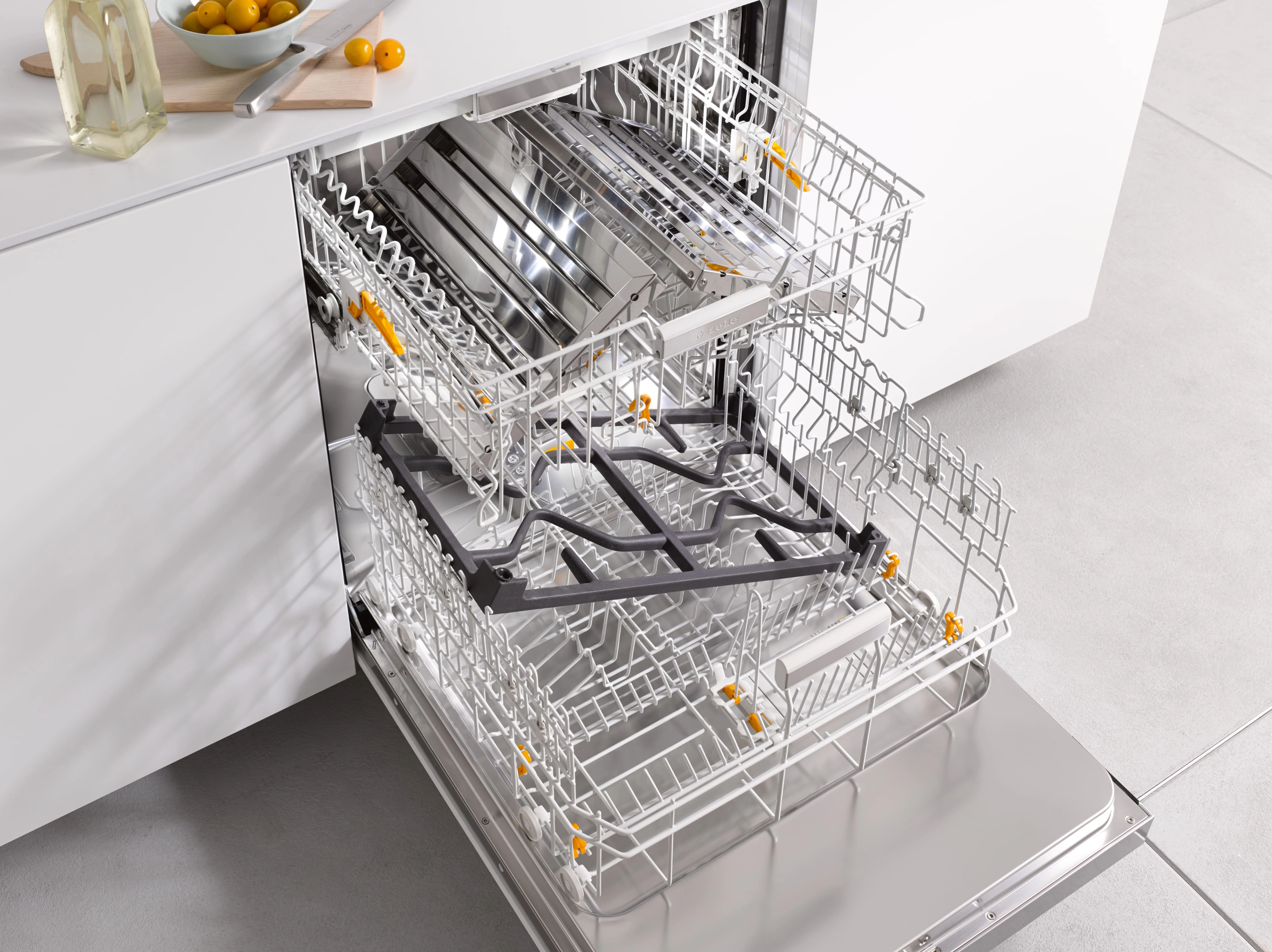

ComfortClean Dishwasher-Safe Grates

When it’s time for clean-up, simply place the dishwasher-safe grates in your dishwasher.

Clean Touch Steel™Front

This innovative finish resists fingerprints, scratches and smudges. A special treatment stands up to aggressive handling – keeping the exterior cleaner and easier to maintain.

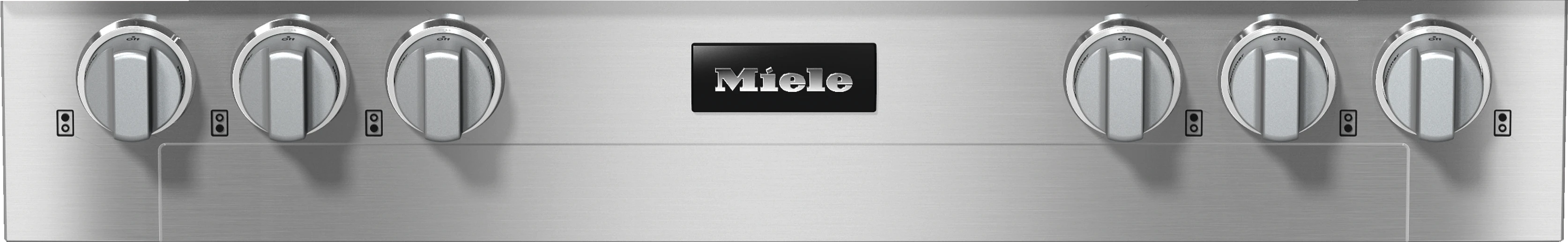

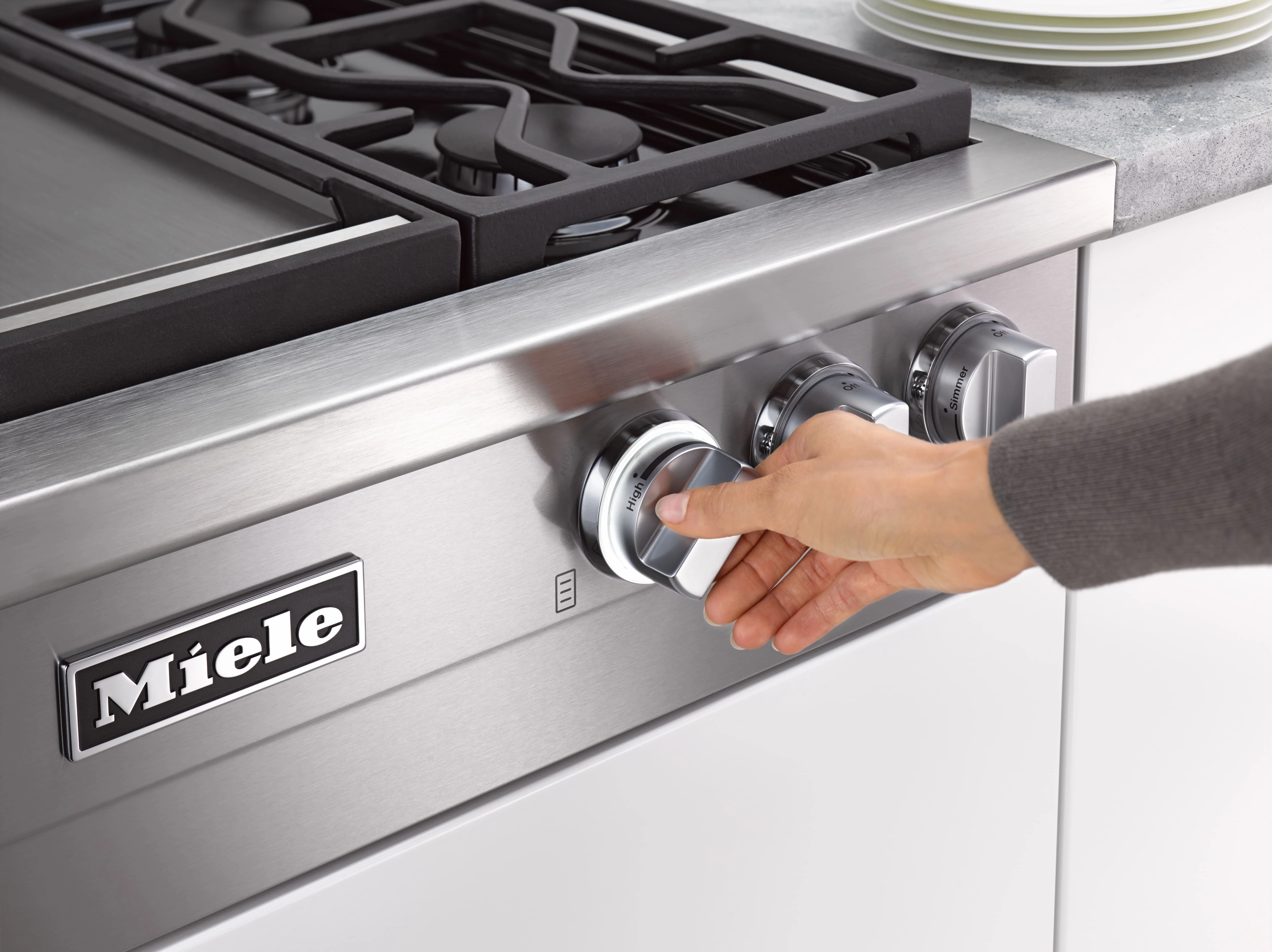

Backlit Precision Knobs

This elegant design feature is not only a useful visual cue for a burner-in-use, but also a design element that sets Miele apart - and with QuickStart, there’s no need to press or hold the control in order to switch the burners on.

Continuous simmer

Achieving the perfect temperature and even heat for simmering is easy with Miele TrueSimmer function. Whether you are melting chocolate or thickening a sauce, this feature offers precise results.
