SKU: KM5840240V | UPC: 4002514866673

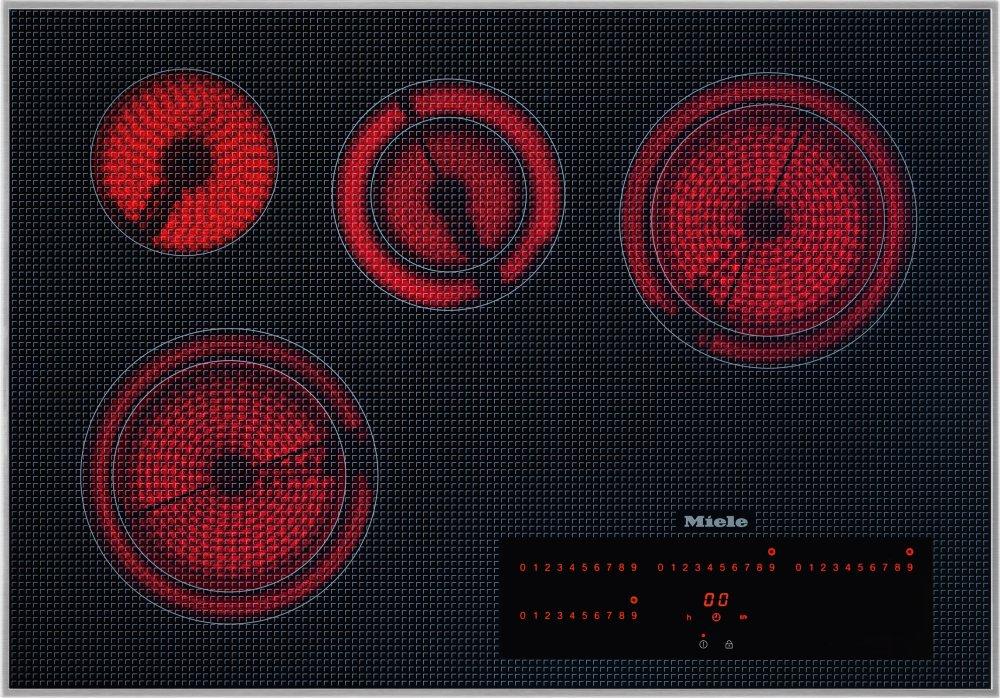

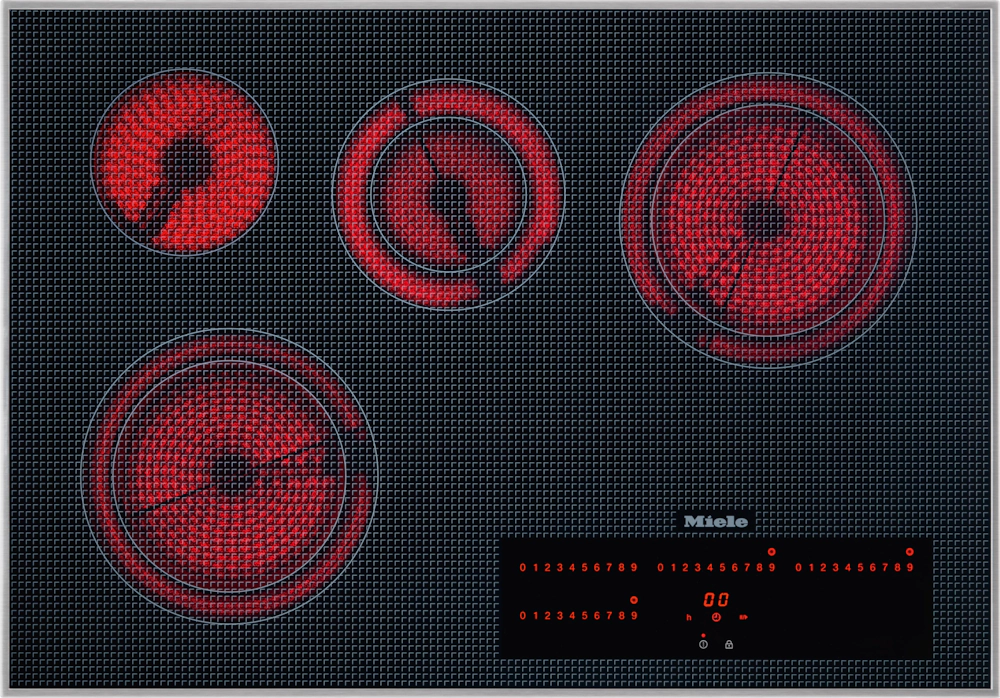

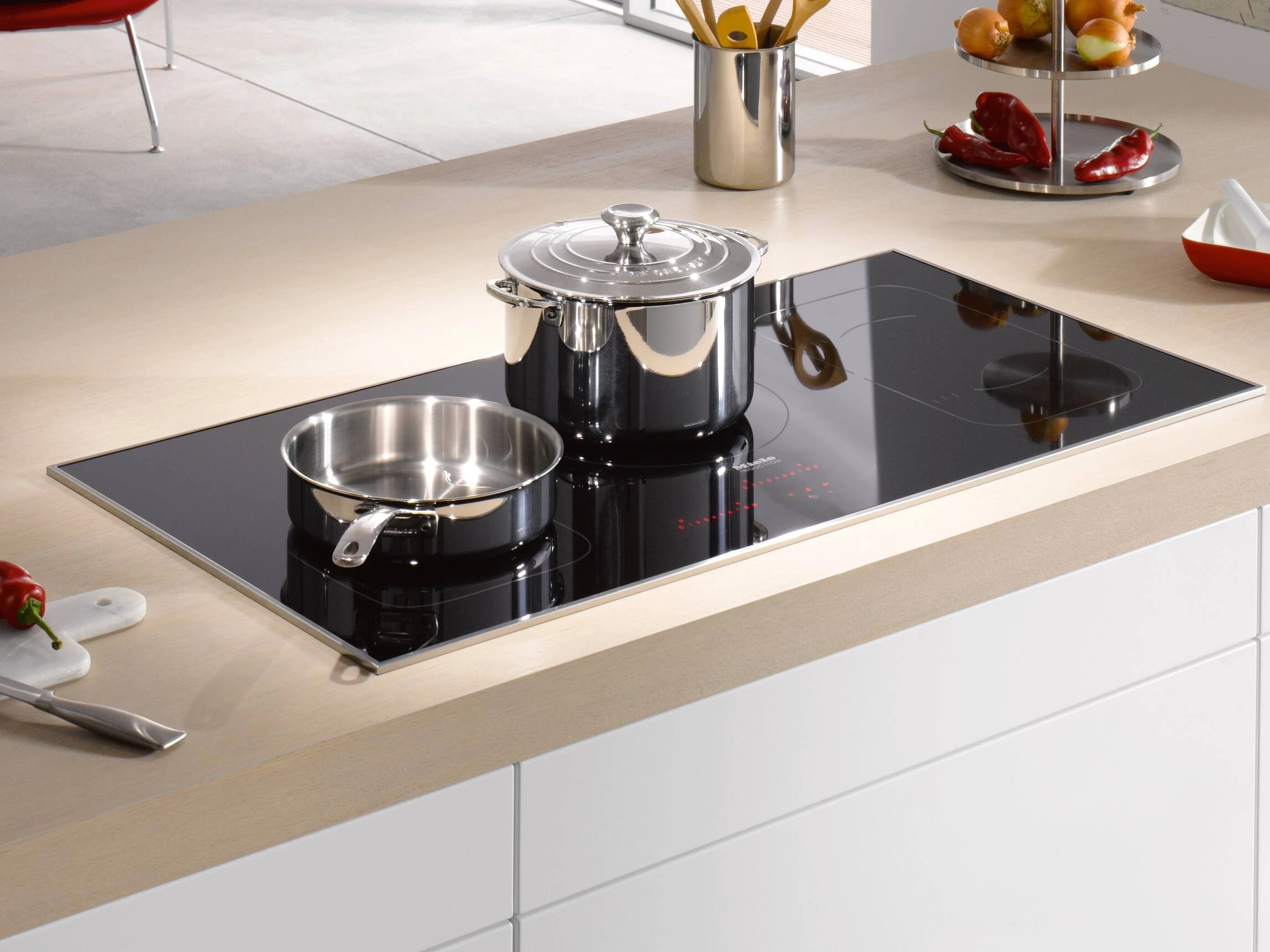

Miele KM5840240V 30-inch electric cooktop, operated with its own controls Stainless steel

Quick Specification More details

Width:
1.21"
Depth:
0.85"
Height:
0.1"
Type:
Electric Cooktops

About this product

A safety plus
Makes cooking easier
Saves not just energy

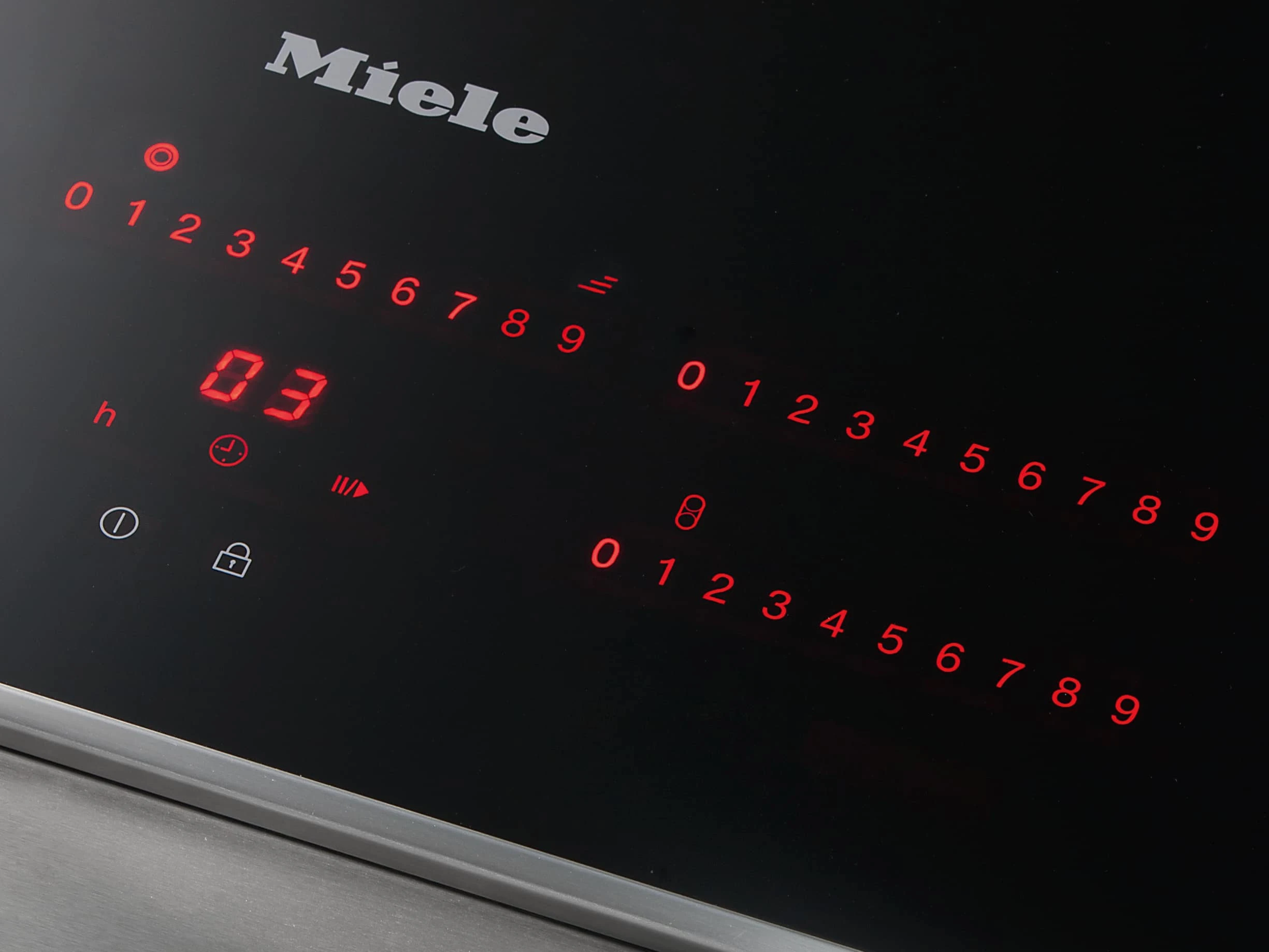

Intuitive operation - a Miele exclusive

Summer Sale

SKU: KM5840240V | UPC: 4002514866673

Miele KM5840240V 30-inch electric cooktop, operated with its own controls Stainless steel

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
1.21"
Depth:
0.85"
Height:
0.1"
Type:
Electric Cooktops

About this product

A safety plus
Makes cooking easier
Saves not just energy
Intuitive operation - a Miele exclusive

Product Details for Miele KM5840240V

Technical Details

Heating type

Fuel type

Electric

Design

Independent of oven	Yes
Elegant glass ceramic surface	Yes
Ceramic surface color	Black
Print design	Basalt grey decor
All-round stainless-steel frame	Yes
Proud installation	Yes

Cooking zone details

No. of rings

1st cooking zone/cooking area

Position	front left
Type	Variable cooking zone
Size in mm	Ø 180 / Ø 230
Max. rating in W	1600/2500

2nd cooking zone/cooking area

Position	rear left
Type	Single-circuit ring
Size in mm	Ø 145
Max. rating in W	1200

3rd cooking zone/cooking area

Position	rear center
Type	Variable cooking zone
Size in mm	Ø 120 / Ø 180
Max. rating in W	700/1800

4th cooking zone/cooking area

Type	Variable cooking zone
Size in mm	Ø 180 / Ø 230
Max. rating in W	1600/2500
Position	front right

User convenience

Display color	Red
Stop & Go function	Yes
Extended ring area	Yes
Minute minder	Yes

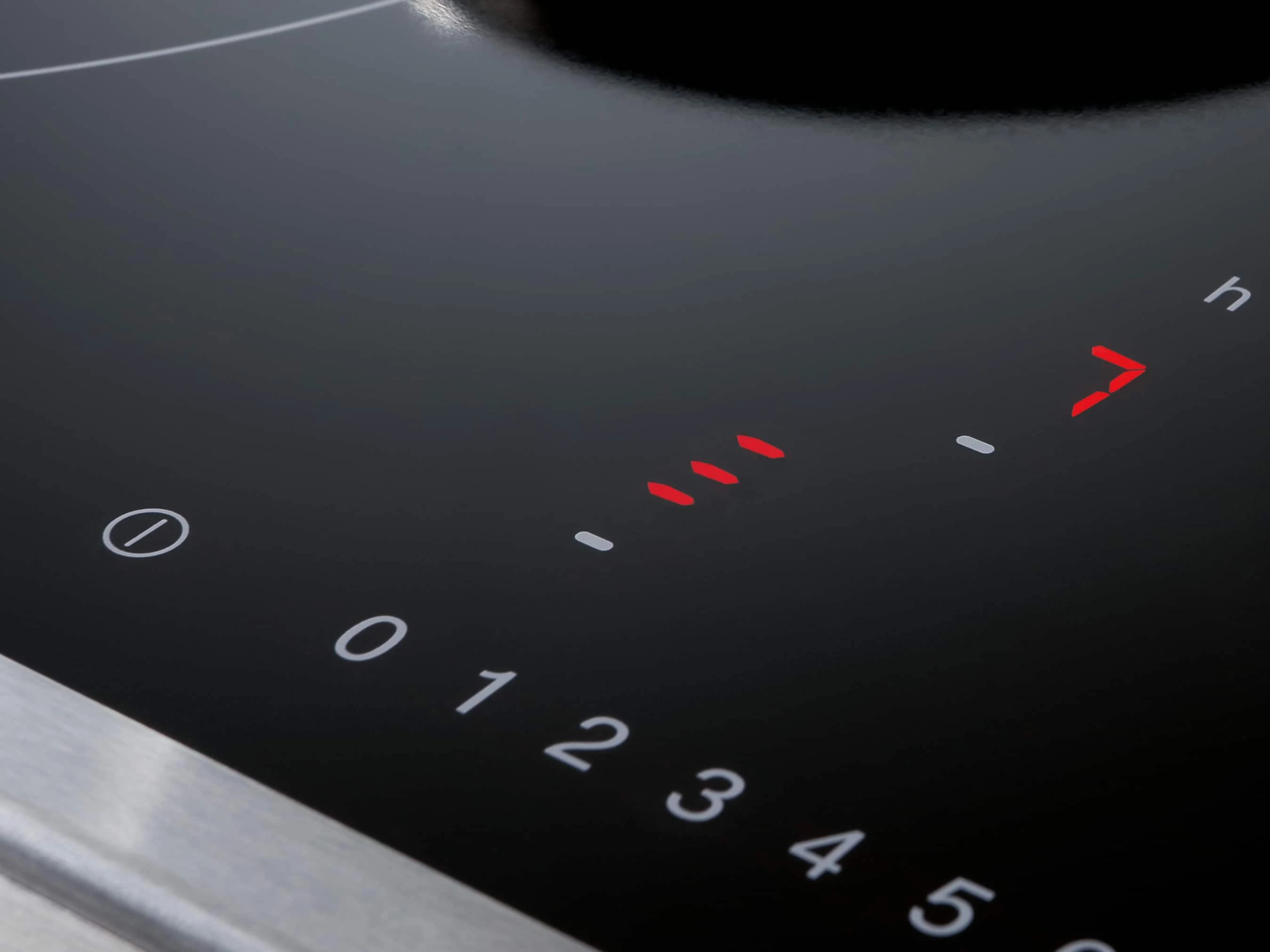

Operation via touchpad sensors	Direct Control Plus
Automatic switch-off for all rings	Yes
AutoBoost	Yes

Cleaning convenience

Easy to clean ceramic glass

Yes

Safety

Safety cut-out	Yes
Lock function	Yes
System lock	Yes
Overheating protection	Yes
Residual heat indicator	Yes

Technical data

Width in in. (mm)	30 5/8 (775)
Height in in. (mm)	2 1/2 (62)
Built-in height with mains connection box in in. (mm)	2 3/4 (67)
Depth in in. (mm)	21 1/2 (544)
Weight in lbs. (kg)	35 (16)
Total connected load in kW	8
Voltage in V	240
Frequency in Hz	60
Power cord length in ft. (m)	4 (1.4)
Dimensions (H x W x D) in mm	2 1/2 (62) x 30 5/8 (775) x 21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)	28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation	28 5/8 in (724 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation	20 1/2 in (518 mm)

Standard accessories

Razor-blade scraper	Yes
Connection wire	Yes

Other

Total connected load in kW	8
Voltage in V	240
Frequency in Hz	60

Dimensions & weight

Width	1.21 in.
Height	0.1 in.
Length	0.85 in.
Weight	77 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	6.21 in.
Shipping Height	5.1 in.
Shipping Length	5.85 in.
Shipping Weight	117 lbs.
Total of Shipping Weight	117 lbs.
Source	Calculation
