SKU: KM5820240V | UPC: 4002514866659

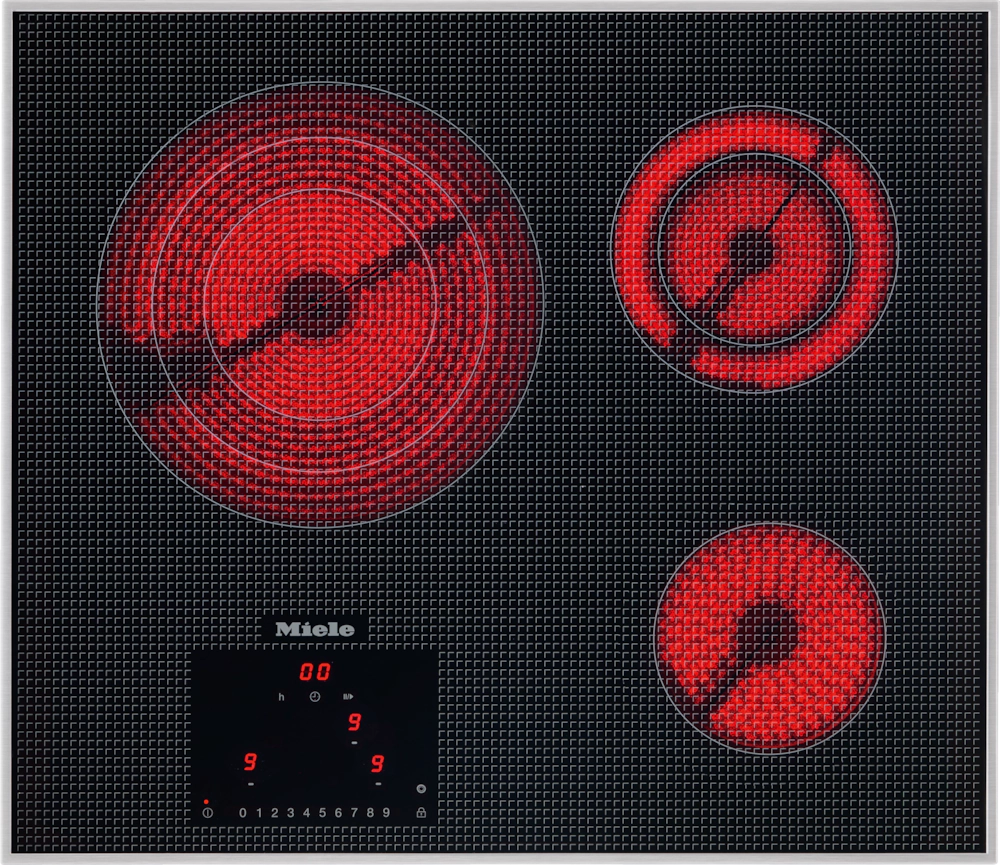

Miele KM5820240V 24-inch electric cooktop, operated with its own controls Stainless steel

Quick Specification More details

Width:
0.97"
Depth:
0.85"
Height:
0.1"
Type:
Electric Cooktops

About this product

Makes cooking easier
A safety plus

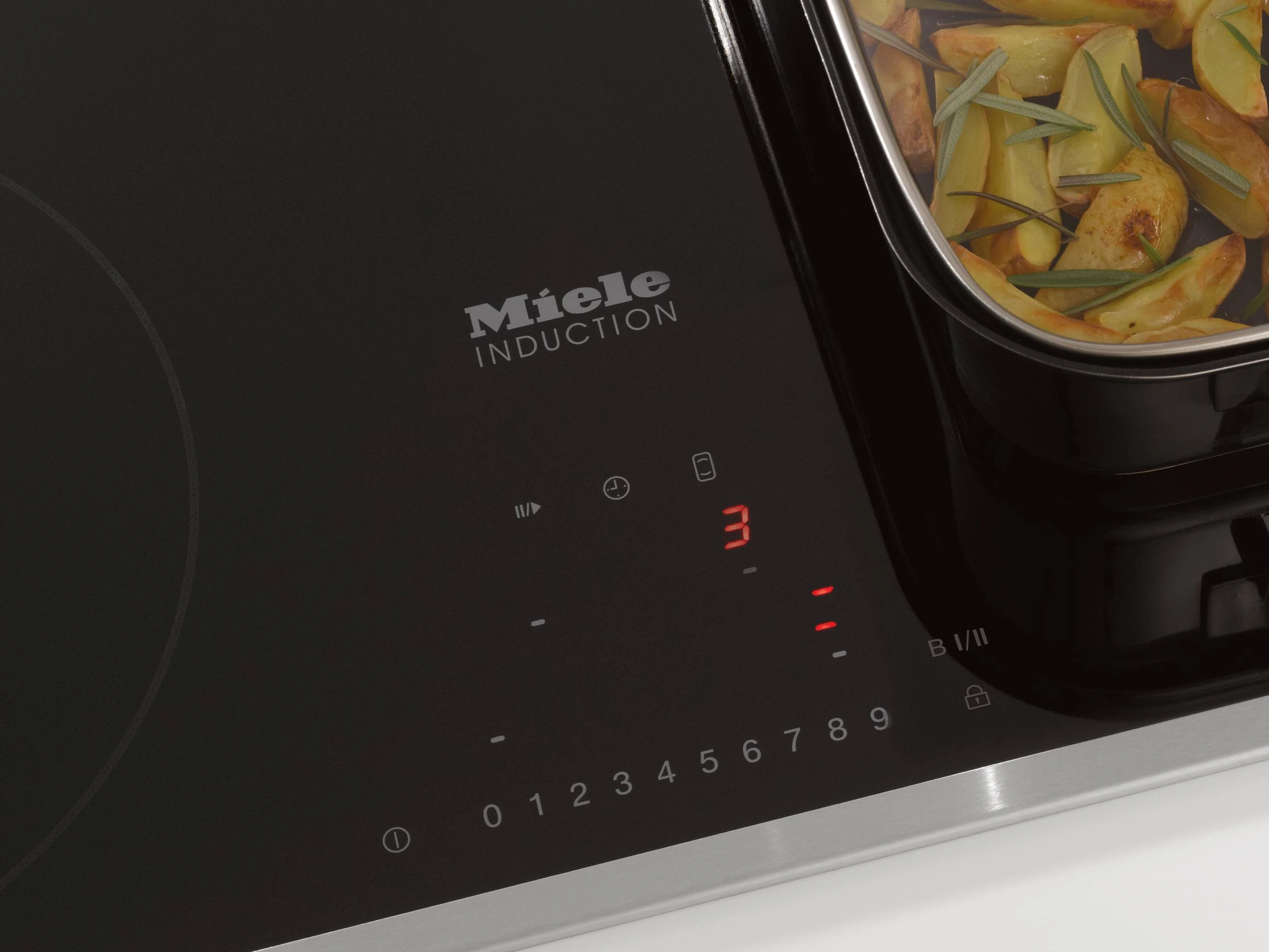

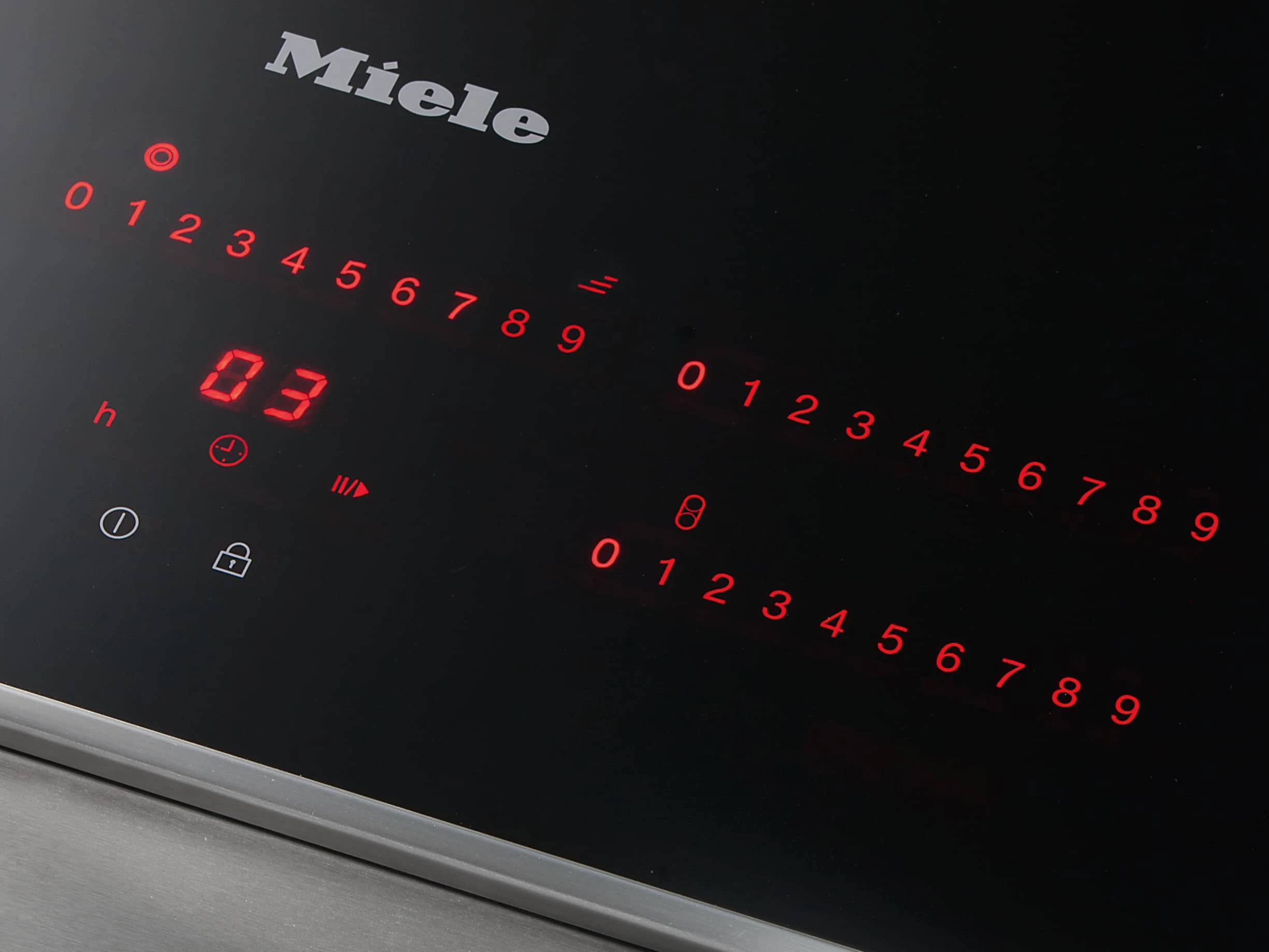

Quick selection via a central numerical keybank
Absolutely safe

SKU: KM5820240V | UPC: 4002514866659

Miele KM5820240V 24-inch electric cooktop, operated with its own controls Stainless steel

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
0.97"
Depth:
0.85"
Height:
0.1"
Type:
Electric Cooktops

About this product

Makes cooking easier
A safety plus

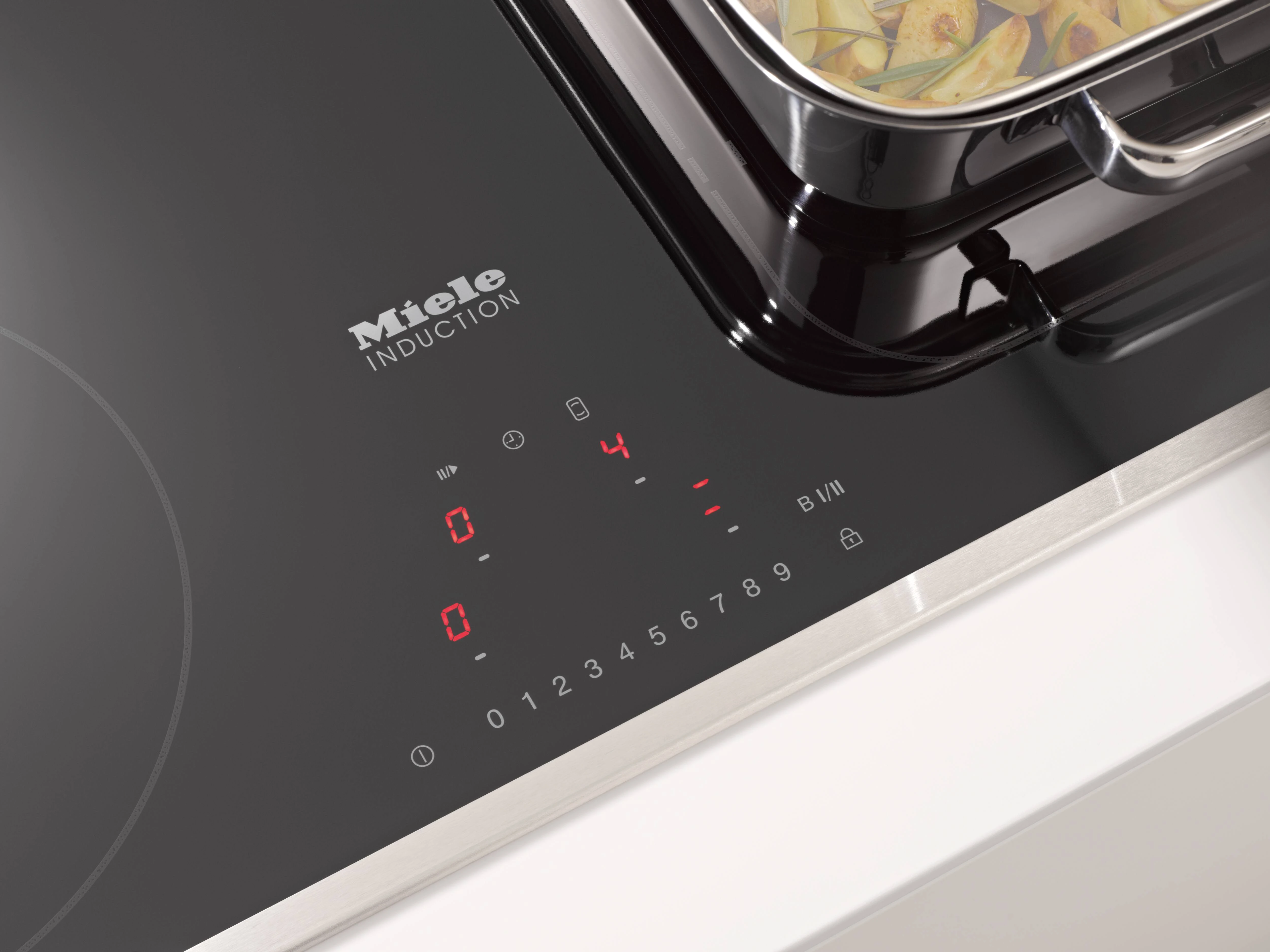

Quick selection via a central numerical keybank
Absolutely safe

Product Details for Miele KM5820240V

Technical Details

Heating type

Fuel type

Electric

Design

Independent of oven	Yes
Print design	Basalt grey decor
All-round stainless-steel frame	Yes
Elegant glass ceramic surface	Yes
Ceramic surface color	Black
Proud installation	Yes

Cooking zone details

No. of rings

1st cooking zone/cooking area

Position	left center
Type	Variable cooking zone
Size in mm	Ø 145 / Ø 210 / Ø 270
Max. rating in W	1100/2150/3100

2nd cooking zone/cooking area

Position	rear right
Type	Variable cooking zone
Size in mm	Ø 120 / Ø 180
Max. rating in W	700/1800

3rd cooking zone/cooking area

Position	front right
Type	Single-circuit ring
Size in mm	Ø 145
Max. rating in W	1200

User convenience

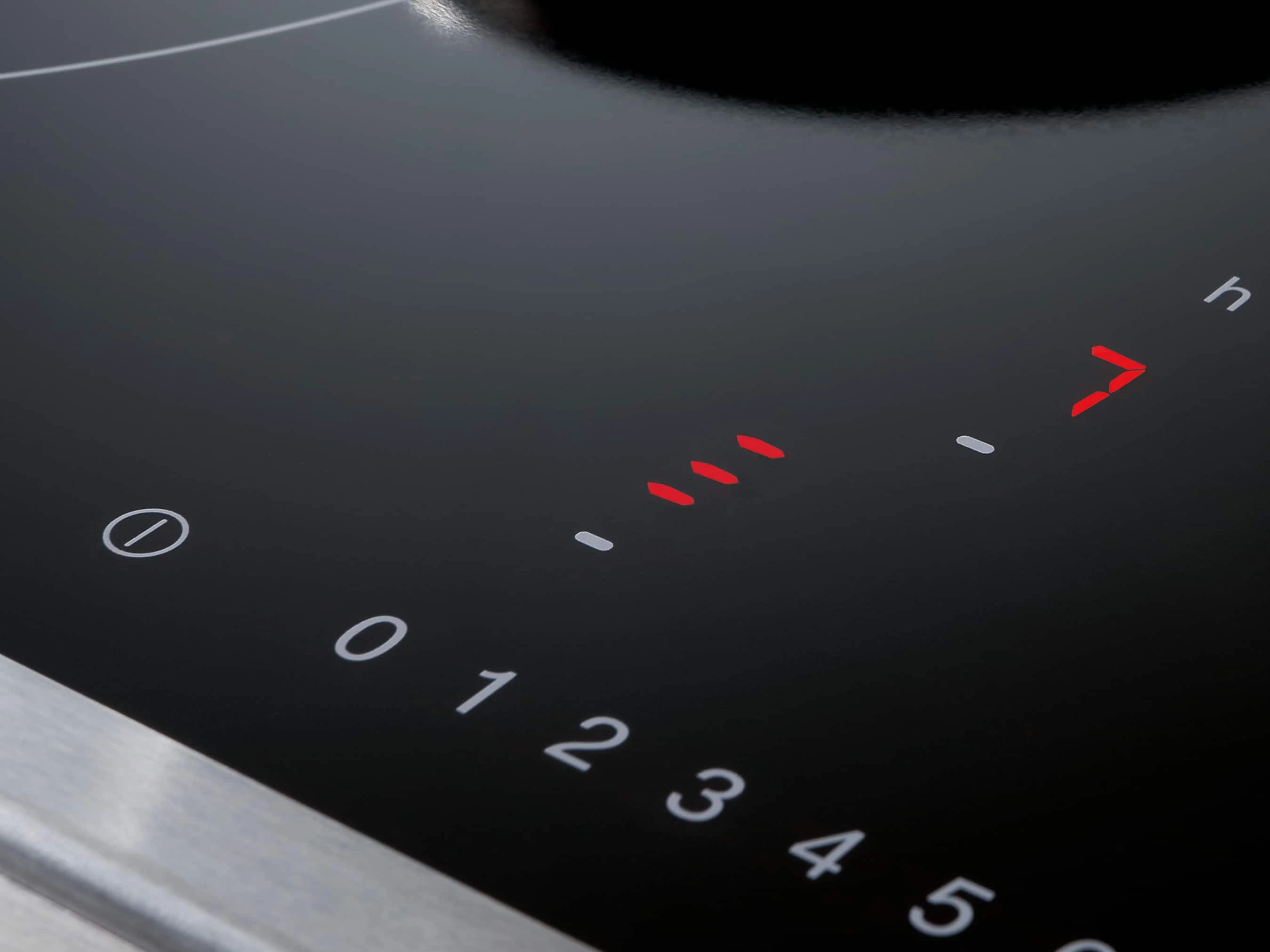

Operation via touchpad sensors	Direct selection
Display color	Red
Stop & Go function	Yes
Extended ring area	Yes
Minute minder	Yes
Automatic switch-off for all rings	Yes
AutoBoost	Yes

Cleaning convenience

Easy to clean ceramic glass

Yes

Safety

Safety cut-out	Yes
Lock function	Yes
System lock	Yes
Overheating protection	Yes
Residual heat indicator	Yes

Technical data

Width in in. (mm)	24 3/4 (626)
Height in in. (mm)	2 1/2 (62)
Built-in height with mains connection box in in. (mm)	2 3/4 (67)
Depth in in. (mm)	21 1/2 (544)
Weight in lbs. (kg)	26 (12)
Voltage in V	240
Frequency in Hz	60
Power cord length in ft. (m)	4 (1.4)
Dimensions (H x W x D) in mm	2 1/2 (62) x 24 3/4 (626) x 21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)	22 3/8 in (567 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation	22 3/8 in (567 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation	20 1/2 in (518 mm)
Total connected load in kW	6.100

Standard accessories

Razor-blade scraper	Yes
Connection wire	Yes

Other

Total connected load in kW	6.10
Voltage in V	240
Frequency in Hz	60

Dimensions & weight

Width	0.97 in.
Height	0.1 in.
Length	0.85 in.
Weight	57.2 lbs.
Width	24.65 in.
Height	2.42 in.
Length	21.42 in.
Weight	58.32 lbs.
Gross Weight	32.85 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	5.97 in.
Shipping Height	5.1 in.
Shipping Length	5.85 in.
Shipping Weight	97.2 lbs.
Total of Shipping Weight	97.2 lbs.
Source	Calculation
Shipping Width	29.13 in.
Shipping Height	6.3 in.
Shipping Length	25.98 in.
Shipping Weight	98.32 lbs.
Source	Manufacturer
Total of Shipping Weight	98.32 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0 ft³
Dimensional Weight	0 lbs.
Total of Cubes	0 ft³
Total of Dimensional Weight	0 lbs.
Cubic Feet Measurement	2.76 ft³
Cubic Feet Measurement	0.74 ft³
Dimensional Weight	7.70 lbs.
Total of Cubes	0.74 ft³
Total of Dimensional Weight	7.70 lbs.
