SKU: DAR12303 | UPC: 4002516546948

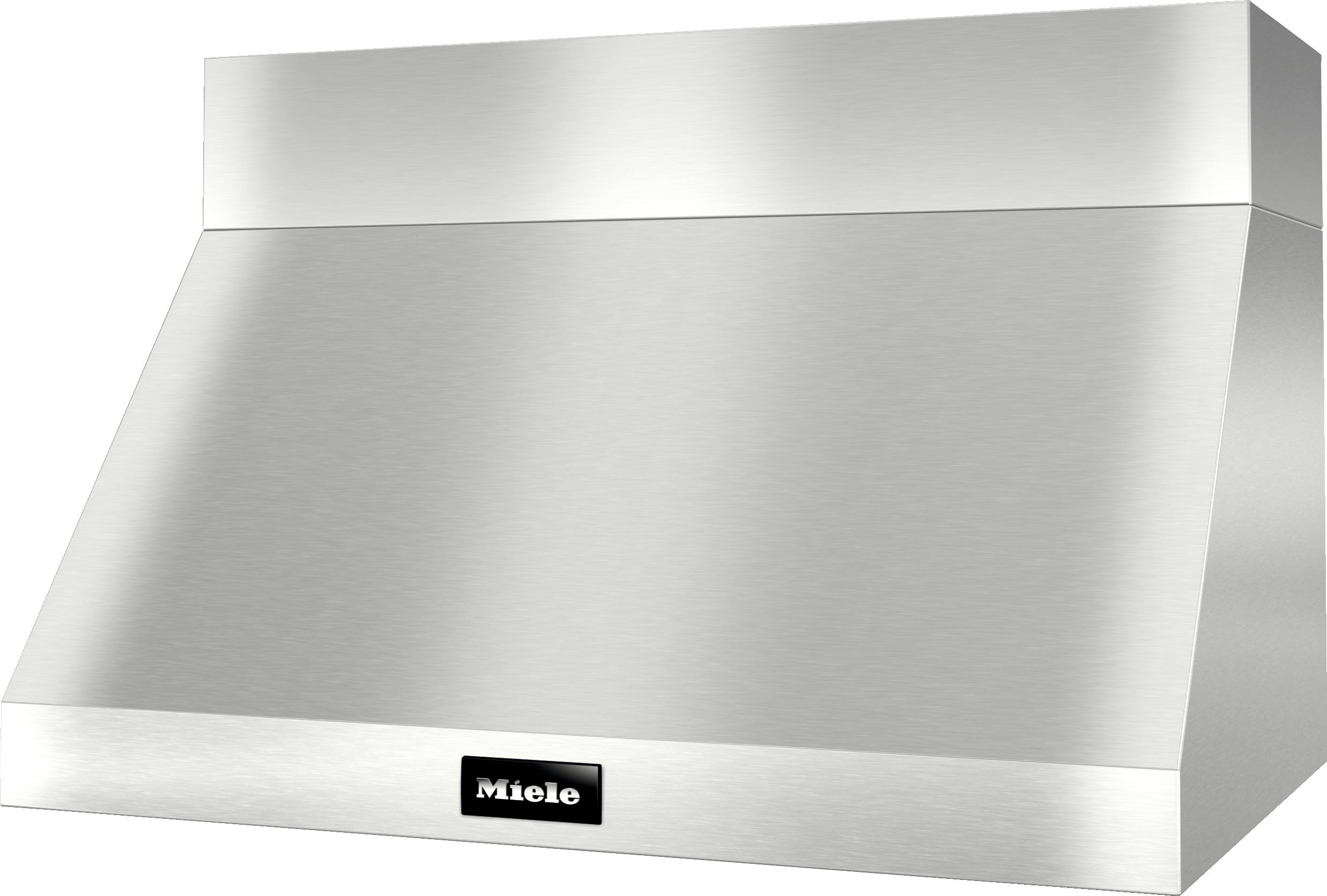

MIELE DAR12303 DAR 1230-3 Stainless steel - 36-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops. in Stainless Steel

Quick Specification More details

Width:
30.0 Inch
Type:
Ducted Mount Hoods

About this product

Professional design - stainless steel hood, 36 (913) in (mm) wide
Knob controls
Perfect illumination - LED ClearView lighting
LED ClearView lighting

SKU: DAR12303 | UPC: 4002516546948

MIELE DAR12303 DAR 1230-3 Stainless steel - 36-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops. in Stainless Steel

$2,799.00 ~~$3,082.97~~ Save $283.97 / 9% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

MIELE DREBXL Blower - External blower

Quickship

On Sale

Quick Specification More details

Width:
30.0 Inch
Type:
Ducted Mount Hoods

About this product

Professional design - stainless steel hood, 36 (913) in (mm) wide
Knob controls
Perfect illumination - LED ClearView lighting
LED ClearView lighting

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

$2,799.00 ~~$3,082.97~~ Save $283.97 / 9% OFF

Product Details for MIELE DAR12303

Technical Details

General information

Model number	DAR 1230-3
Manufacturer material number	11898170
EAN number	4002516546948

Required accessories

Blower	Yes
Duct cover	Yes

Operating modes

Recirculated mode	Can be retrofitted
External operation possible	Yes

User convenience

Rotary knob	Yes
Power levels (number excl. Intensive)	3
Temperature sensor	Yes

Cleaning convenience

Easy to clean canopy interior CleanCover	Yes
Dishwasher-safe grease collection channel	Yes

Fan option (buy separately)

DRIB XL internal blower in CFM (m (h)	1189
DRIB XXL internal blower in CFM (m /h)	1869
DREB XL external blower in CFM (m /h)	1189
DREB XXL external blower in CFM (m /h)	1869

Technical data

Canopy width in in.(mm)	36
Canopy width in inches	35 15/16
Canopy height in in.(mm)	18
Canopy depth in in.(mm)	24 1/8 (611)
Net weight in lbs. (kg)	73
Length of electrical wire in ft (m)	2
Standard plug fitted	Yes
Total connected load in kW	0.809
Voltage in V	120
Fuse rating in A	15
Number of phases	1

Installation note

Vent connection at top	Yes
Diameter of vent connection in in.(mm)	9 7/8 (250)

Features

Professional design - stainless steel hood, 36 (913) in (mm) wide
Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Perfect illumination - LED ClearView lighting
LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Dishwasher-safe - 3 high-quality stainless steel grease filters
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Safe and easy to clean - Miele CleanCover
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Auto-vent safety sensor - protects against overheating
Manufactured with great care by Miele & Cie. KG
View manufacturer details: Miele & Cie. KG
Safety information

Description

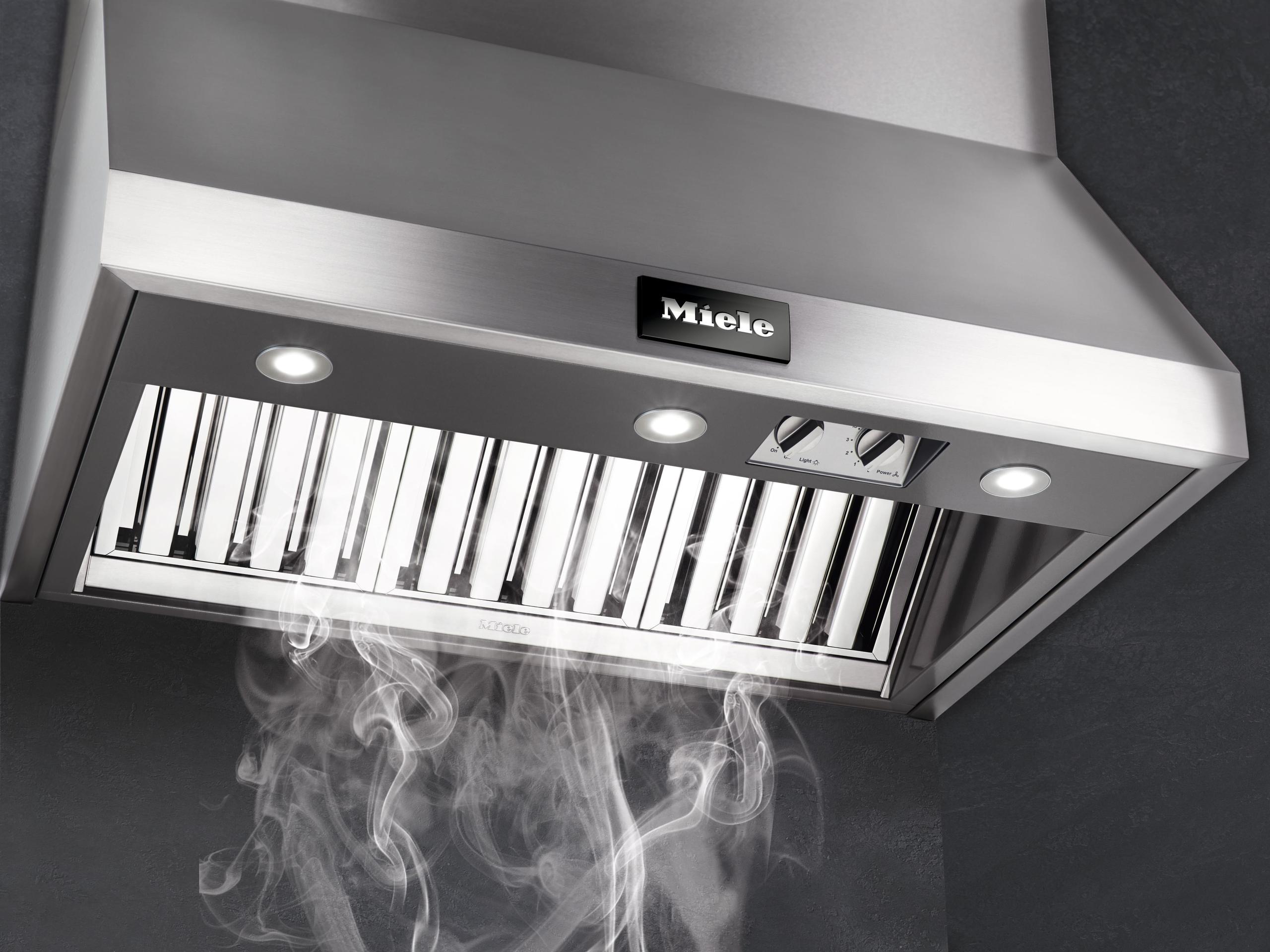

The brand Miele DAR12303 delivers exceptional ventilation with a refined, professional-grade design. Crafted with a premium stainless steel canopy and intuitive recessed knob controls, this 36″ wall-mount range hood offers 4-speed fan operation for customized airflow. The built-in LED ClearView lighting brightly illuminates your cooking surface, while the smooth CleanCover interior simplifies cleaning. Three stainless steel baffle filters effectively capture grease and are dishwasher-safe for easy upkeep. With convertible venting capabilities and compatibility with internal or external blowers, the Miele DAR12303 offers both power and design flexibility, making it an ideal choice for modern kitchens.
