| Parts | 1 Year |
| Labor | 1 Year |
| Cooktop Control Knob Color | Stainless Steel |
| Cooktop Control Knob Type | Weighted-Plastic |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black on Stainless |
| Ignition Type | Electronic |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Griddle Included | No |
| ADA Compliant | No |
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Lower Oven Capacity (Cu Ft.) | 3.9 |
| Upper Oven Capacity (Cu Ft.) | 2.1 |

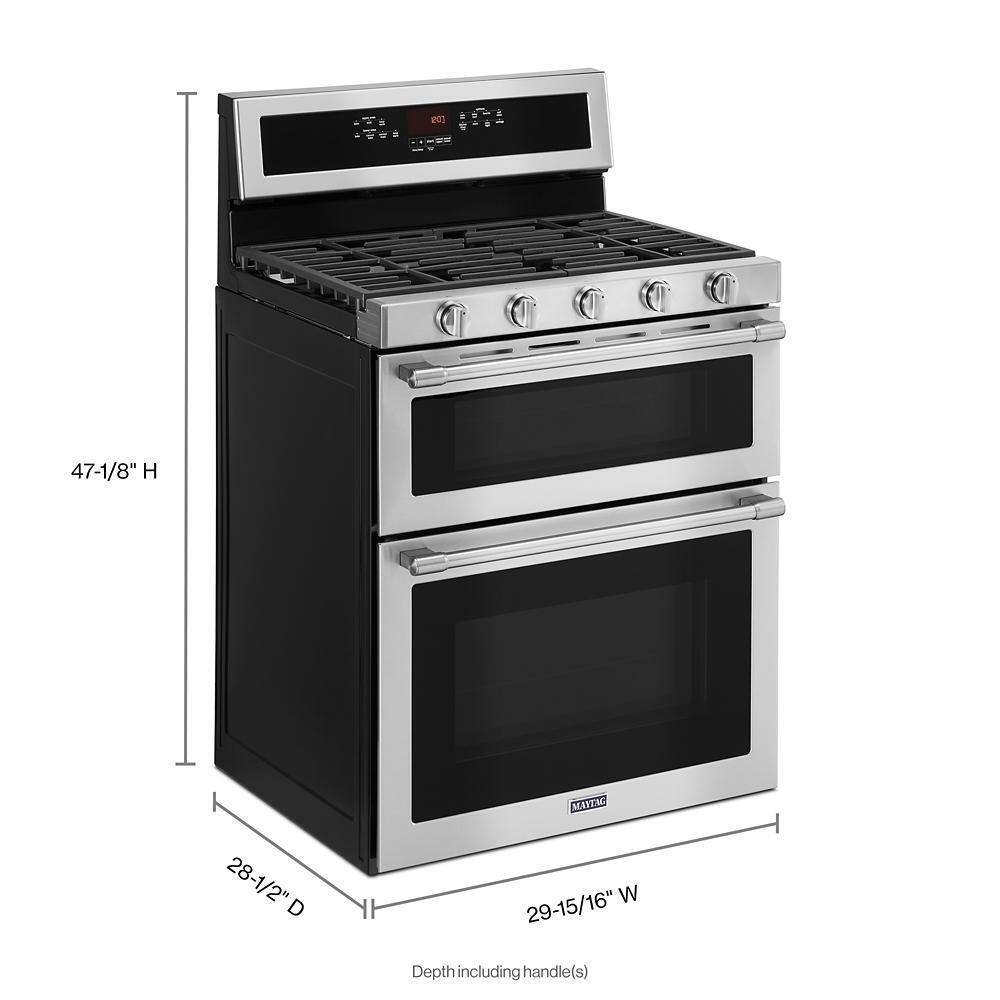

| Width | 29.94 in. |
| Height | 47.13 in. |
| Length | 28.5 in. |
| Weight | 270 lbs. |
| Carton Depth | 30 1/4 |
| Carton Height | 49 1/2 |
| Carton Width | 30 3/4 |
| Cutout Height (in) | 36 |
| Cutout Width (in) | 30 1/8 |
| Depth Closed Excluding Handles | 27 1/4 |
| Depth With Door Open 90 Degree | 46 |
| Gross Weight | 270 |
| Net Weight | 265.0 |
| Cutout Height(IN,inches) | 36.0000 |
| Cutout Width(IN,inches) | 30.1250 |
| Depth Closed Excluding Handles(IN,inches) | 27.2500 |
| Depth With Door Open 90 Degree(IN,inches) | 46.0000 |
| Depth(IN,inches) | 28.5000 |
| Net Weight(LB,pounds) | 265 |
| Carton Depth(IN,inches) | 30.2500 |
| Carton Height(IN,inches) | 49.5000 |
| Carton Width(IN,inches) | 30.7500 |
| Cutout Depth Max(IN,inches) | 24.0000 |
| Cutout Height Min(IN,inches) | 36.0000 |
| Gross Weight(LB,pounds) | 270 |
| Width | 30.75 in. |
| Height | 49.5 in. |
| Length | 30.25 in. |
| Gross Weight | 270 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.94 in. |
| Shipping Height | 52.13 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 310 lbs. |
| Total of Shipping Weight | 310 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 23.27 ft³ |
| Dimensional Weight | 289.32 lbs. |
| Total of Cubes | 23.27 ft³ |
| Total of Dimensional Weight | 289.32 lbs. |
| Fuel Type | Gas |
| LP Convertible | Yes |

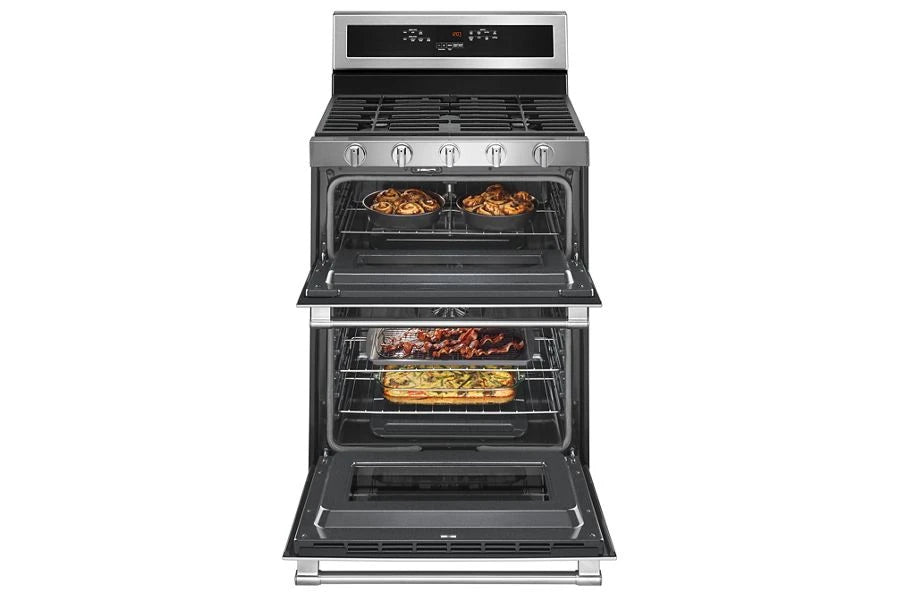

| Oven Configuration | Double Oven |
| Power On Indicator Light | No |
| Power Outage Compatible | No |
| Range Configuration | Double Oven |

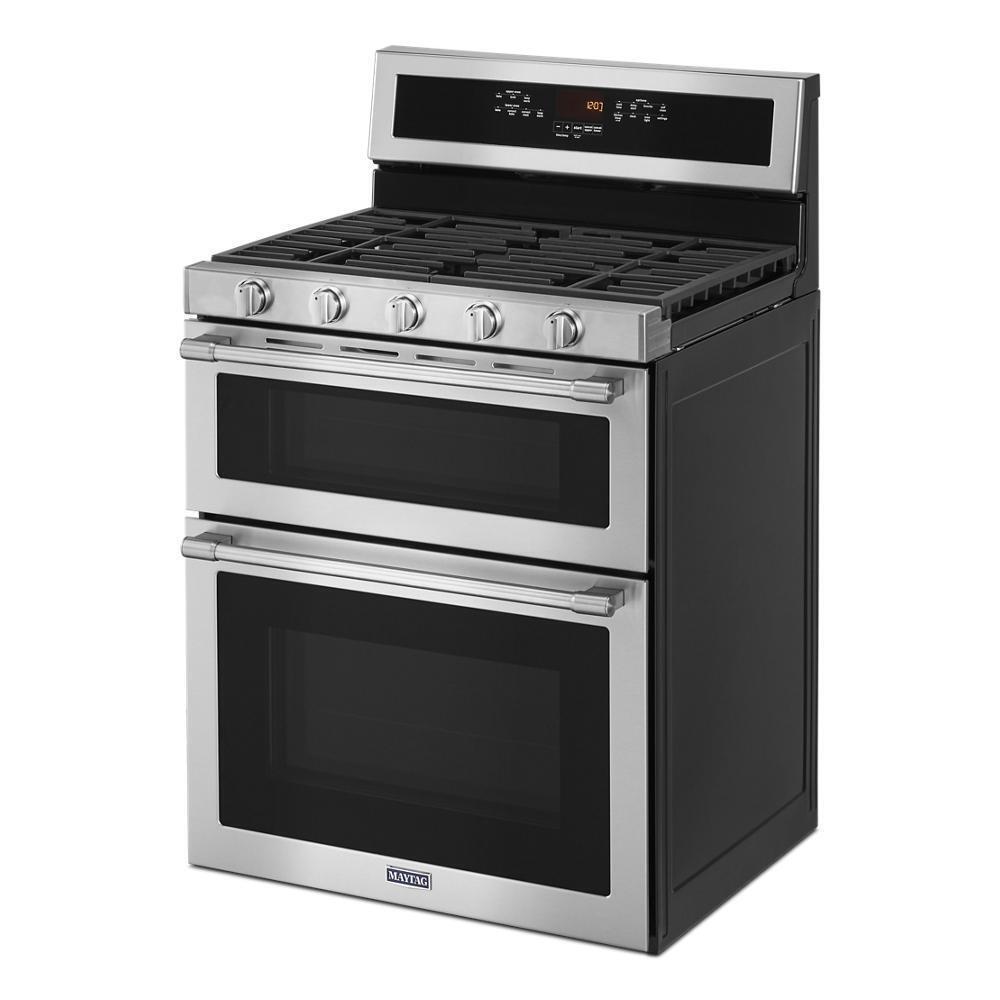

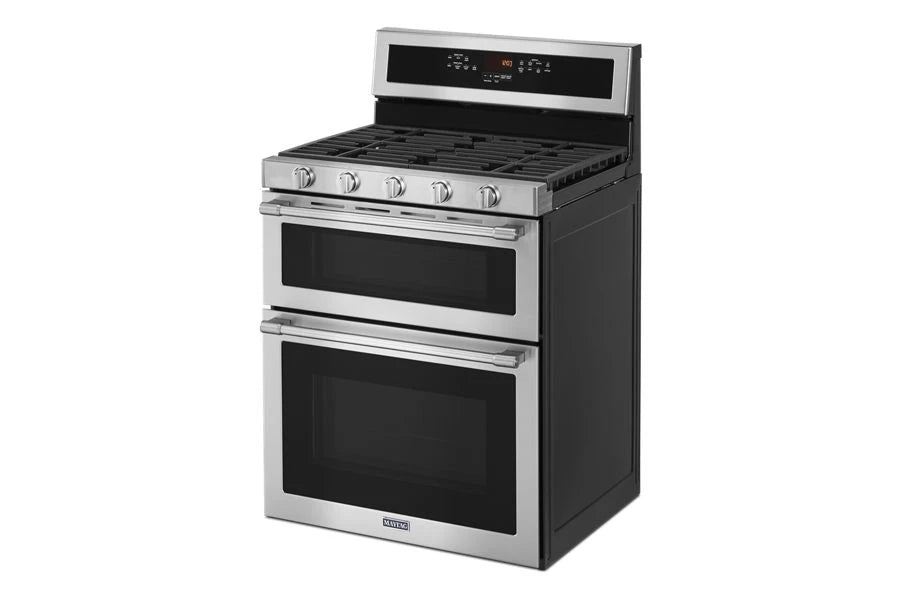

| Range Type | Freestanding Double Oven |
| Oven Selections | Audible Signal, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Favorites, Language Conversion, Reheat, Sabbath Mode, Start Time, Timer, Warm Hold |

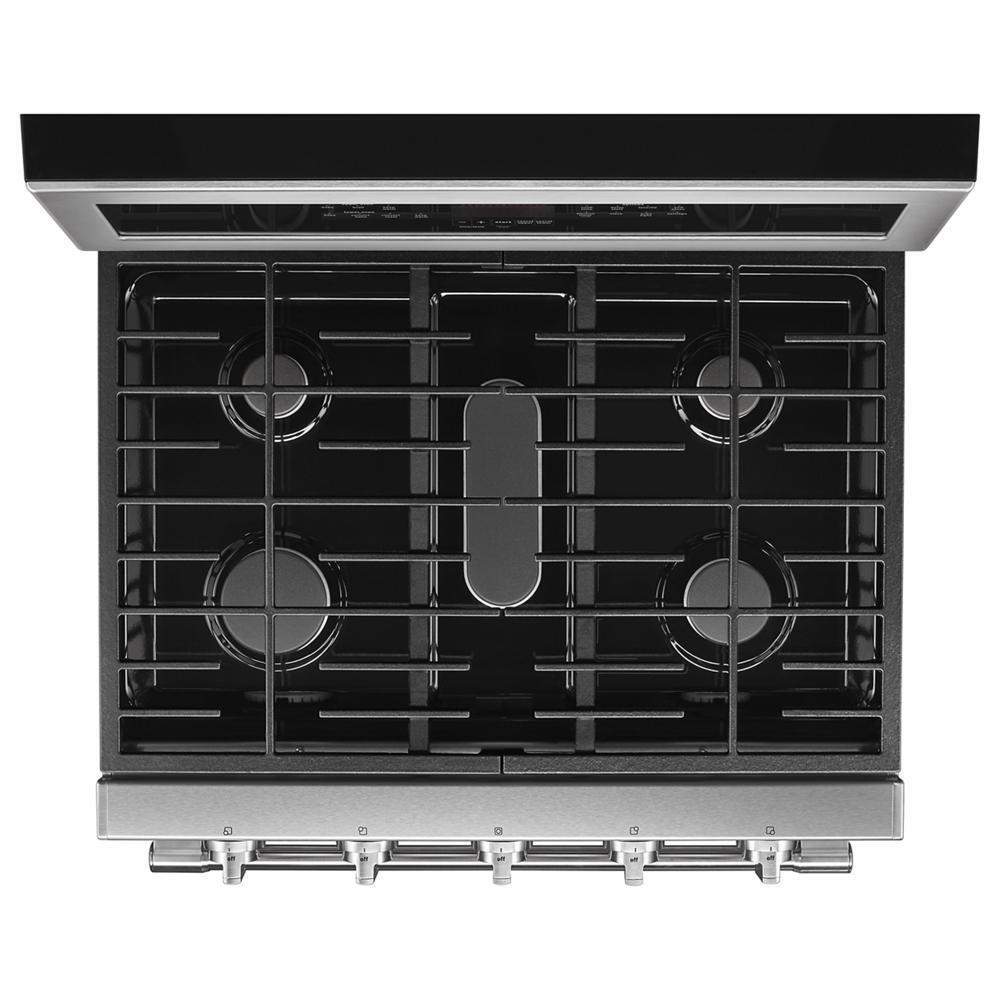

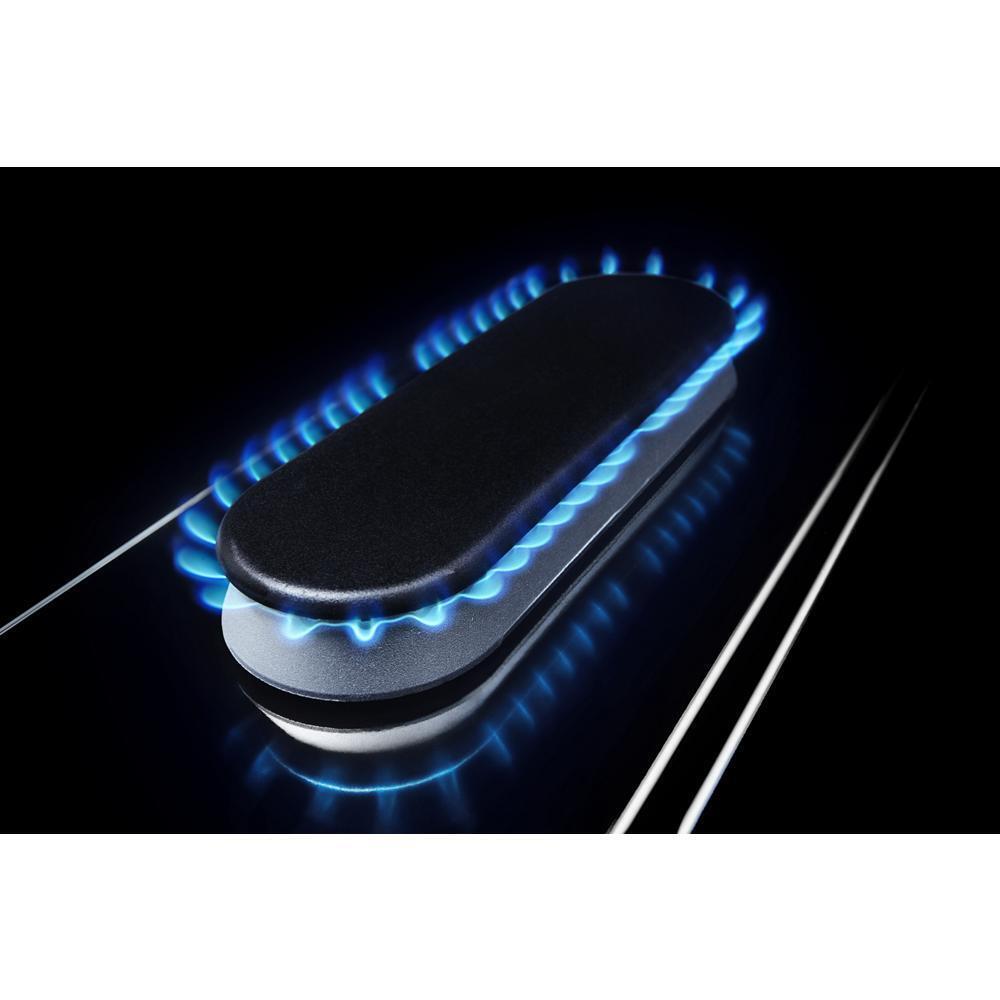

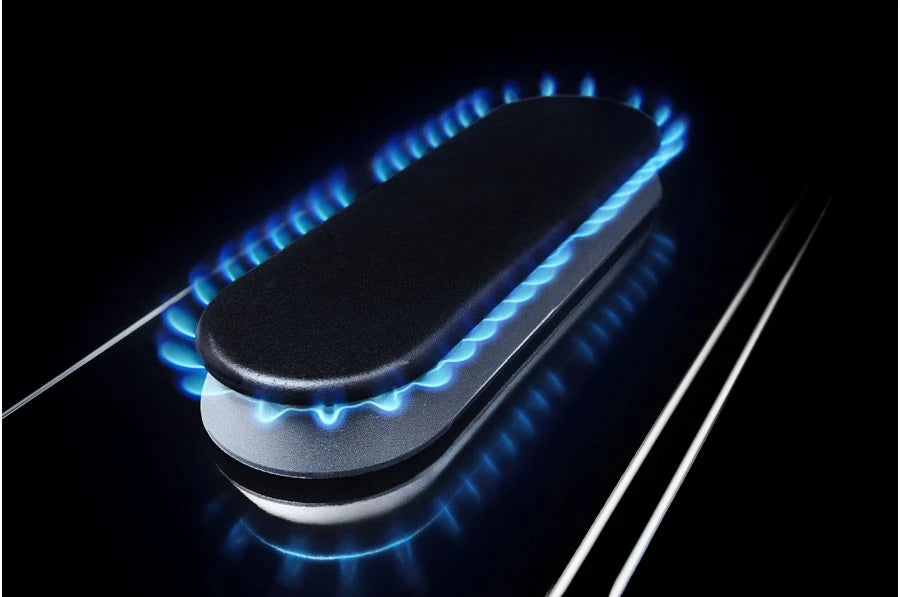

| Center Rear Element-Burner Type | Oval Burner |
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Type | Power™ Burner |
| Left Rear Element-Burner Type | Burner |

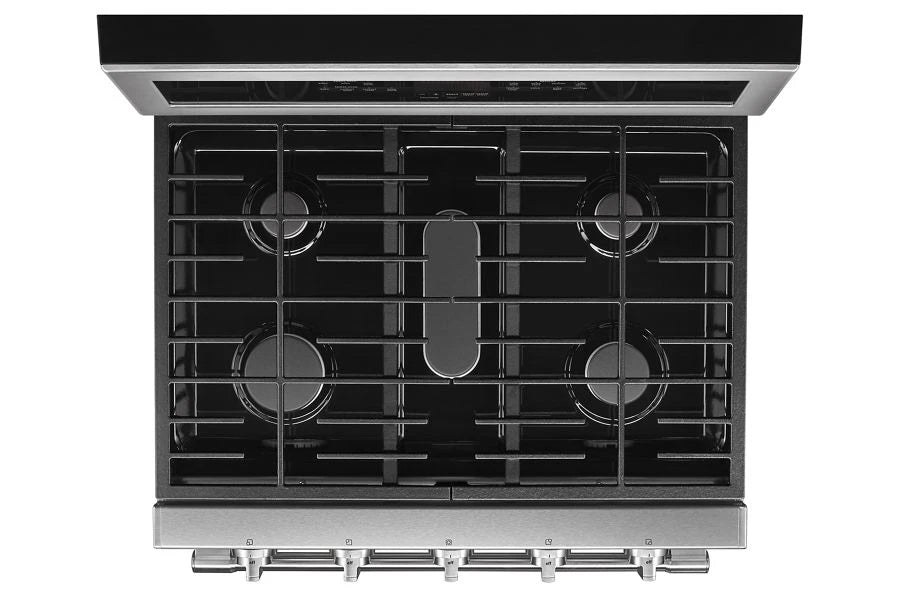

| Number of Cooking Element-Burners | 5 |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Type | Burner |
| Center Rear Element-Burner Power | 7,350 BTU |
| Left Front Element-Burner Power | 16,000 BTU |
| Left Rear Element-Burner Power | 5,000 BTU |
| Number of Grates | 3 |
| Right Front Element-Burner Power | 10,000 BTU |
| Right Rear Element-Burner Power | 5,000 BTU |
| Door Type | Metal & Glass |

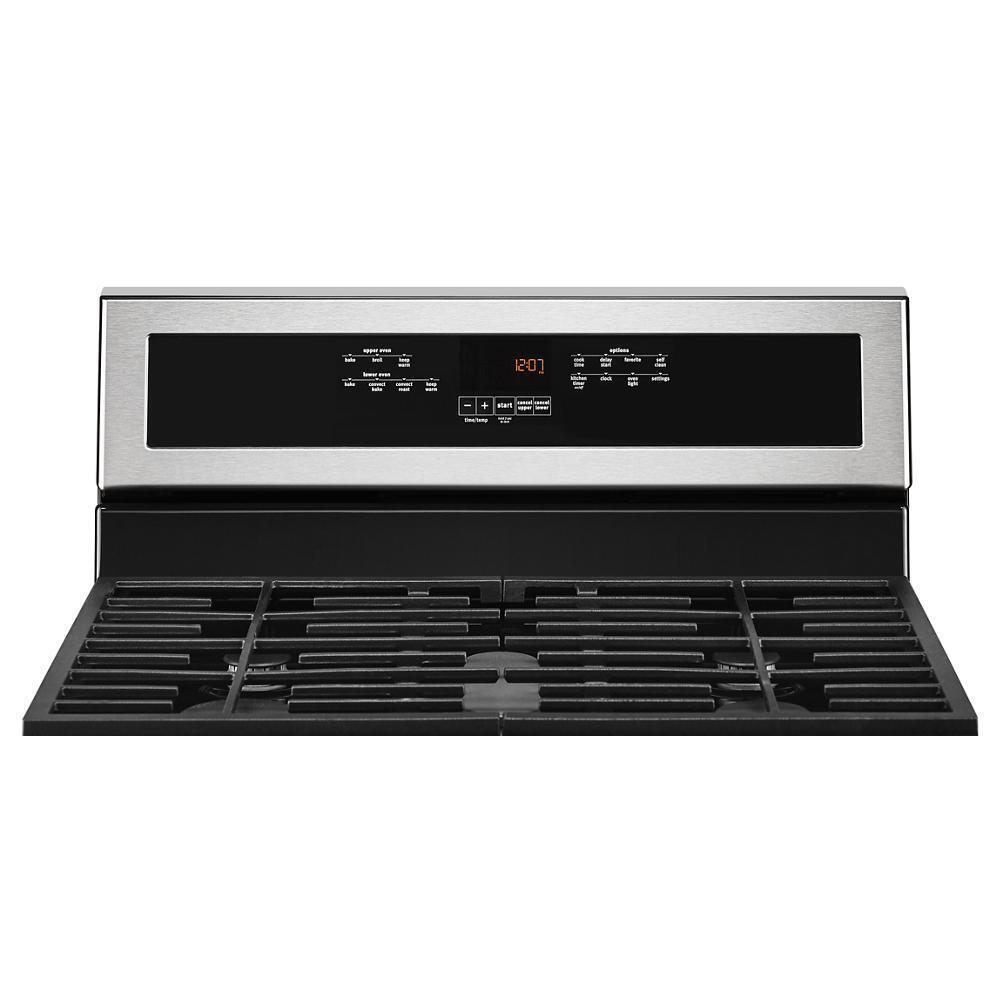

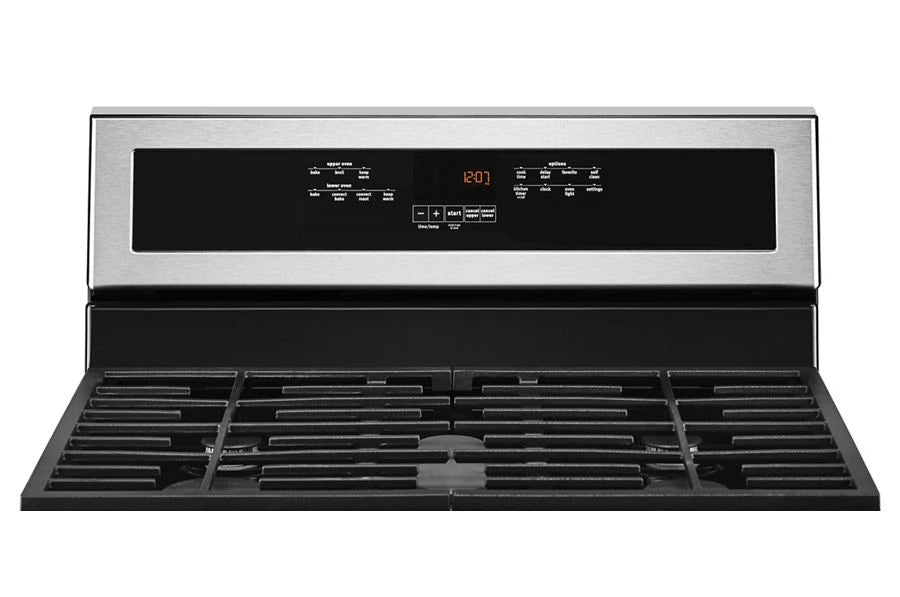

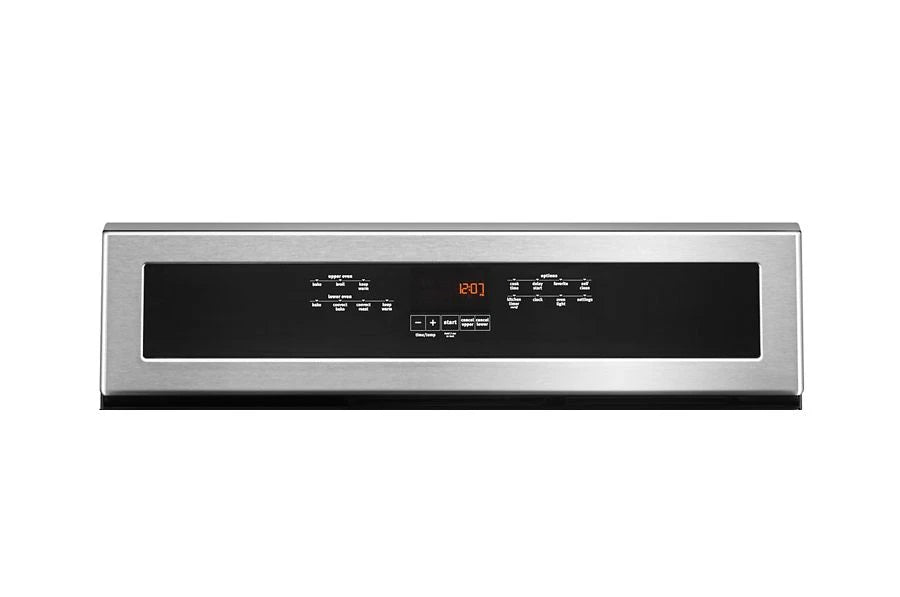

| Oven Control Location | Backguard |

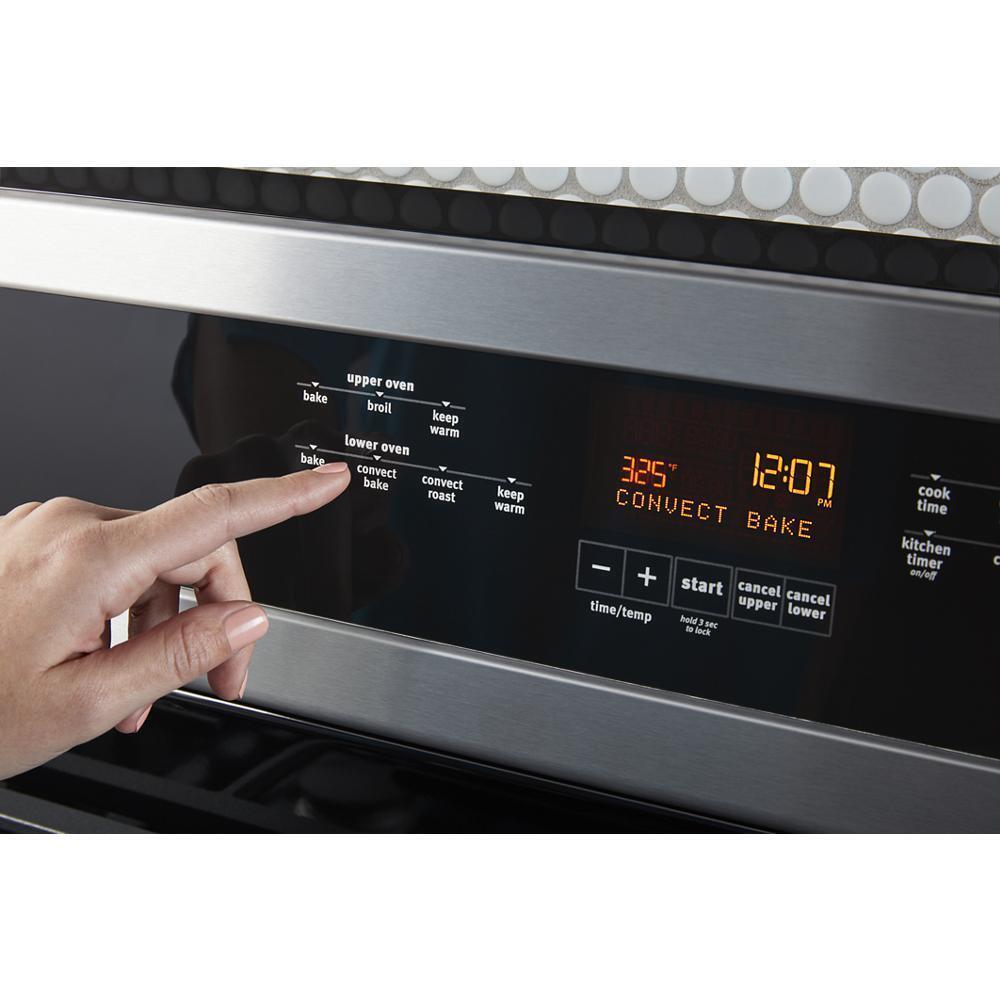

| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large Lower Large Upper |
| Handle Color | Stainless Steel |
| Handle Material | Stainless Steel |
| Handle Type | Reach Through Handle |
| Knob Color | Stainless Steel |
| Knob Type | Weighted-Plastic |
| Number of Grates | 3 |
| Grate Details | Locking Full Width Cast Iron, Matte Finish, Porcelain Coated Cast Grates |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 17,000 BTU Main Oven 13,000 BTU Small Oven |
| Broiler Location | Top of Oven |

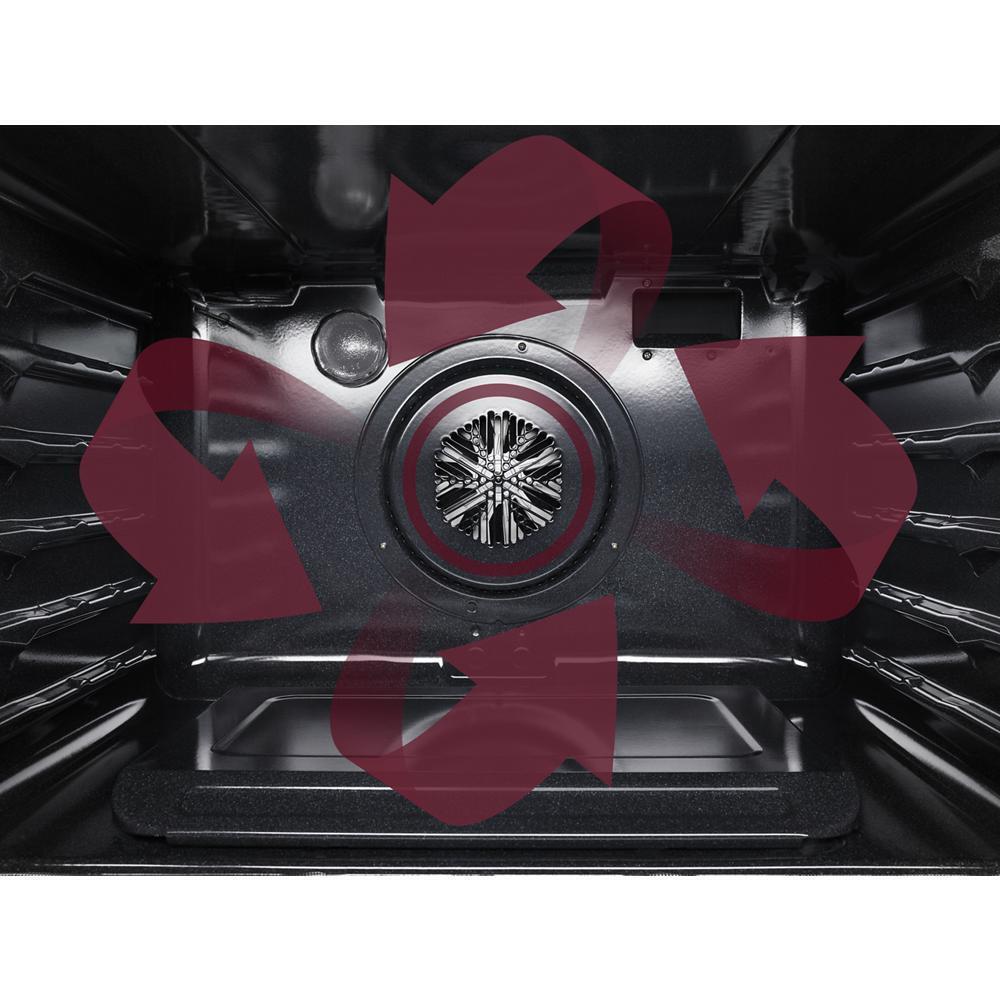

| Convection Element Type | True |
| Convection Functions | Bake Lower, Roast Lower |
| Interior Color | Grey |
| Lower Oven Capacity | 3.9 cu. ft. |
| Number of Oven Lights | 1 |

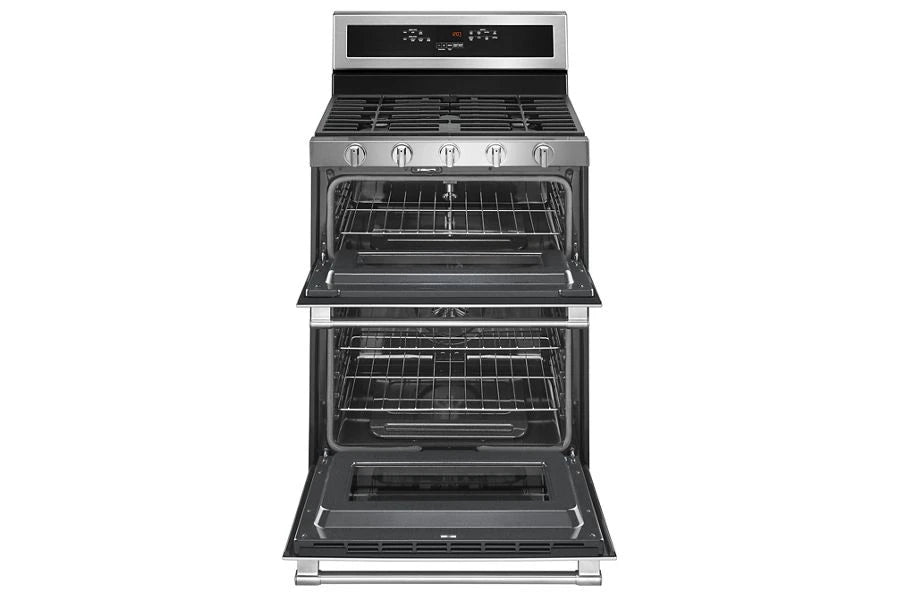

| Number of Oven Racks | 1 Upper-2 Lower |
| Number of Rack Guides | 2 Upper-5 Lower |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
| Upper Oven Capacity | 2.1 cu. ft. |
| Common Size | 30 in |
| Cutout Height | 36 in |
| Depth With Door Open 90 Degree | 46 in |
| Gross Weight | 270 lbs |
| Net Weight | 265 lbs |
| Oven Interior Width | 25 in |
| Upper Oven Interior Width | 25 in |
| Cutout Width | 30.125 in |
| Depth | 28.5 in |
| Depth Closed Excluding Handles | 27.25 in |
| Height | 47.125 in |
| Oven Interior Depth | 18.125 in |
| Oven Interior Height | 14.8 in |
| Upper Oven Interior Depth | 18.625 in |
| Upper Oven Interior Height | 7.925 in |
| Width | 29.9375 in |
| Features | Oval Burner |
| Volume | 26.646 Cu.Ft. |
