| Cubic Feet Measurement | 23.18 ft³ |
| Dimensional Weight | 288.14 lbs. |
| Total of Cubes | 23.18 ft³ |
| Total of Dimensional Weight | 288.14 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52.88 in. |
| Shipping Length | 33 in. |
| Shipping Weight | 235 lbs. |
| Total of Shipping Weight | 235 lbs. |
| Source | Calculation |
| Width | 29.88 in. |
| Height | 47.88 in. |
| Length | 28 in. |
| Weight | 195 lbs. |
| Adjustable Height | No |
| Cutout Depth | 24 in |
| Cutout Width | 30 in |
| Cutout Height | 36 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth Closed Including Handles | 28 in |
| Depth With Door Open 90 Degree | 46-86/125 in |
| Gross Weight | 195 lbs |
| Net Weight | 179 lbs |
| Oven Interior Depth | 19 in |
| Oven Interior Height | 18-5/8 in |
| Oven Interior Width | 24-1/4 in |
| Center Front Element-Burner Power | 10000 BTU |
| Center Front Element-Burner Size | N/A |
| Center Front Element-Burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burners |
| Left Front Element-Burner Power | 12000 BTU |
| Left Front Element-Burner Type | Griddle |
| Left Rear Element-Burner Type | Griddle |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Type | Power |
| Right Rear Element-Burner Power | 5000 BTU |
| Right Rear Element-Burner Type | Simmer |
| Left Rear Element-Burner Power | 12,000 BTU |
| Right Front Element-Burner Power | 18,000 BTU |
| Automatic Convection Conversion Temperature Adjust | No |
| Broiler Element Power | 1300W |
| Broiler Location | Top Center |
| Convection Element Type | None |
| Convection Functions | Bake, Broil |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Steam Clean |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | 2 Standard |
| Temperature Probe | No |
| Temperature Sensor | No |
| Ada Compliant | No |
| Cul | Yes |
| Prop65 | CA |
| Star K Certified | Kosher Consumer Friendly |
| Ul | Yes |
| ADA Compliant | No |
| CUL | Yes |
| UL | Yes |
| Prop 65 | Standard |
| Auto Re-ignition | No |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Total Gas BTUs - Cooktop | 5 |
| Cooktop Control Knob Color | Stainless Steel |
| Automatic Convection Conversion Temperature Adjust | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| Installation Configuration | Freestanding |
| Lp Convertible | Yes - Kit Included |
| Oven Automatic Shut-off | Yes |
| Oven Configuration | Single Oven |
| Oven Light Switch Location | Oven Control |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Drawer Type | Storage Drawer |
| Range Type | Freestanding |
| LP Convertible | Yes - Kit Included |
| Oven Automatic Shut-Off | Yes |
| Natural Gas Convertible | Yes |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Sabbath Mode, Start Time, Stop Time, Timer |
| Range Configuration | Freestanding |
| Temperature Probe | No |
| Product Height | 47.88 |
| Carton Height | 49.0 |
| Carton Width | 32.0 |
| Product Depth | 28.0 |
| Adjustable Height | No |
| Carton Depth | 29.0 |
| Product Width | 29.88 |
| Cutout Depth | 24 in |
| Cutout Width | 30 in |
| Cutout Height | 36 in |
| Depth | 28 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth Closed Including Handles | 28 in |
| Depth With Door Open 90 Degree | 46-86/125 in |
| Gross Weight | 195 lbs |
| Height | 47-7/8 in |
| Net Weight | 179 lbs |
| Oven Interior Depth | 19 in |
| Oven Interior Height | 18-5/8 in |
| Oven Interior Width | 24-1/4 in |
| Width | 29-7/8 in |
| Capacity | 5 cu. ft. |
| Maximum Height | 47-7/8 in |
| Minimum Height | 46-1/2 in |
| Power Cord Included | Yes |
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
| Watts | 1 |
| Center Front Element-burner Power | 10000 |
| Center Front Element-burner Size | N/A |
| Center Front Element-burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burners |
| Left Front Element-burner Power | 12000 |
| Left Front Element-burner Type | Griddle |
| Left Rear Element-burner Power | 12 |
| Left Rear Element-burner Type | Griddle |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 18 |
| Right Front Element-burner Type | Power |
| Right Rear Element-burner Power | 5000 |
| Right Rear Element-burner Type | Simmer |
| Door Type | Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Knob Color | Stainless Steel |
| Knob Type | Plastic |
| Oven Control Knob Type | N/A |
| Oven Control Location | Backguard |

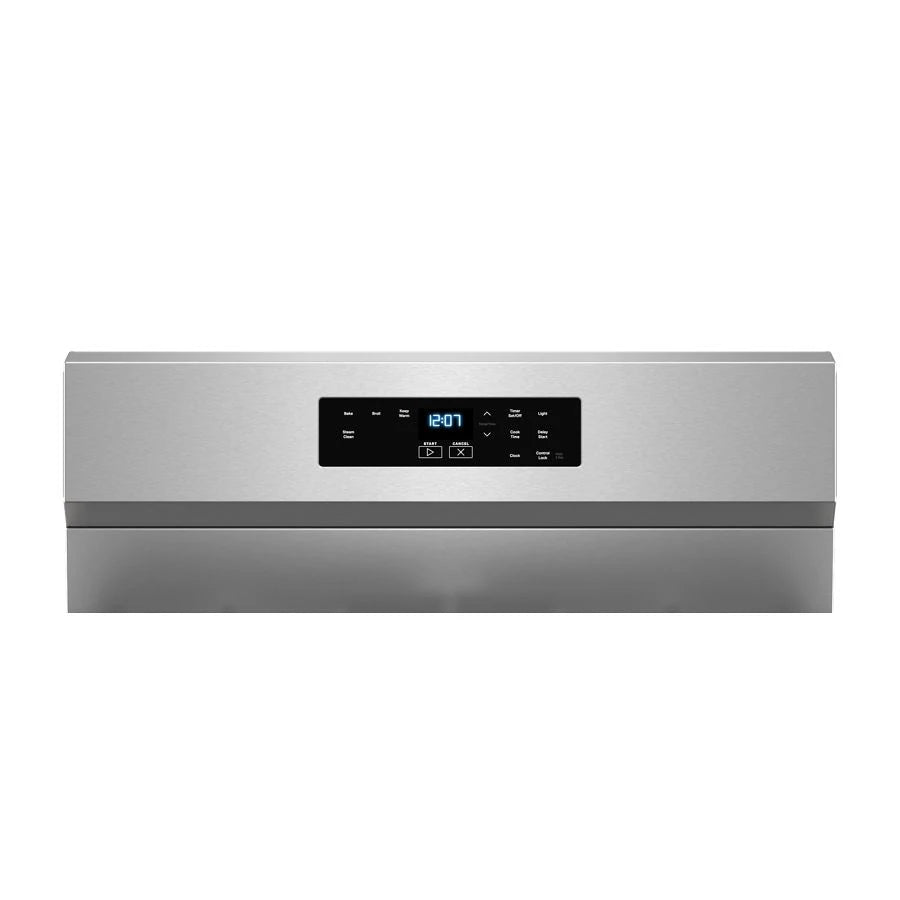

| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
| Number of Grates | 2 |
| Grate Details | Continuous, Matte Finish, Porcelain Coated Steel Grates |
| Broiler Element Power | 1300 |
| Broiler Location | Top Center |
| Convection Element Type | None |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Natural Gas Convertible | Yes |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Steam Clean |
| Oven Cooking System | Thermal |
| Oven Light Type | Incandescent |
| Oven Rack Type | 2 |
| Temperature Probe | No |
| Temperature Sensor | No |
| Total Gas BTUs - Ovens | 16 |
| Connectivity | No |
| Works With | No |

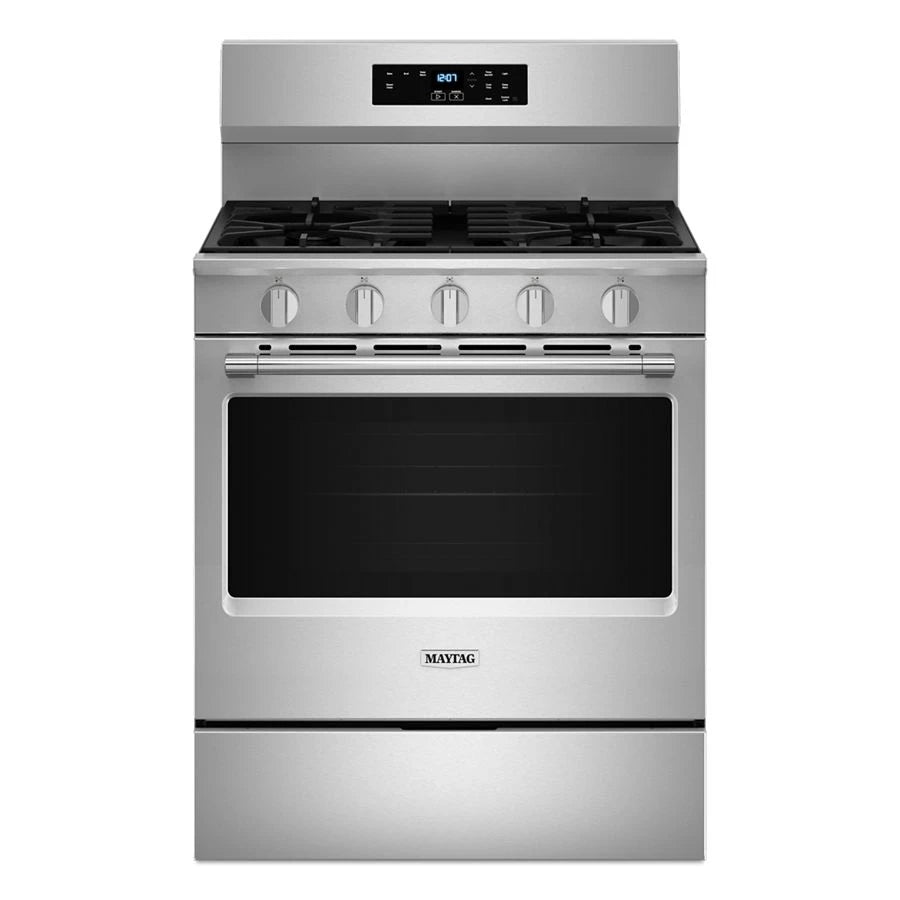

Introducing our 30-inch gas range, engineered to streamline your cleanup routine. Featuring a Steam Clean cycle to tackle light soils and Dishwasher-Safe Grates for easy stovetop maintenance. With its powerful 18,000 BTU Power(TM) Burner, enjoy swift searing and boiling. And for added peace of mind, enjoy a 10-year limited parts warranty.* Simplify your cooking experience today! *See product warranty for details.
With a 10-year limited parts warranty* on the cooktop burners, oven burners, cast-iron metal grates and cavity, we built these ranges tough enough to keep cooking for years.(BR)*See product warranty for details.
The Hidden Bake Element is sealed under the oven floor to protect it from spills and drips.
With the capacity to prepare meals using oversized pots and pans, the 10,000-BTU Oval Burner heats dishes with the toughest demands.

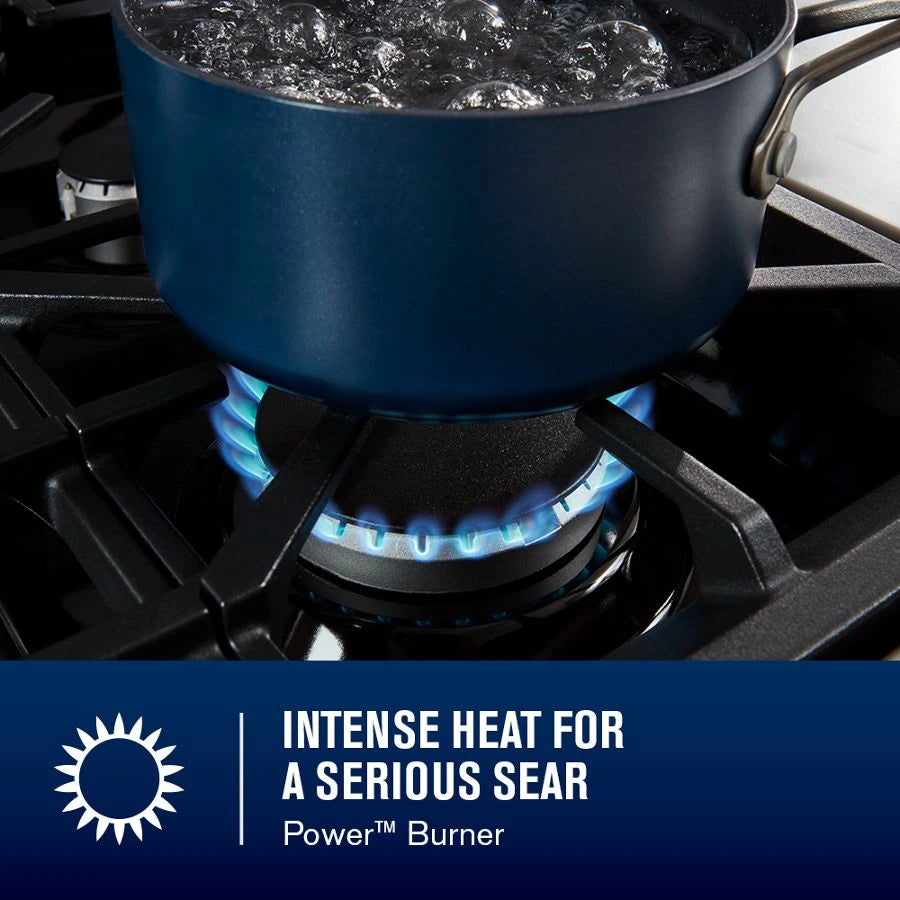

Get boiling faster* with Power(TM) Burner. With power up to 18,000 BTUs, it allows for a slow, even saute and intense heat for a seared, juicy steak.(BR)*Compared to Maytag standard 12K burner on the same model.
The Simmer Burner provides 800 to 5,000 BTUs of precise, adjustable heat to give your gas range both a full-power Simmer Burner and warming etting all in one.

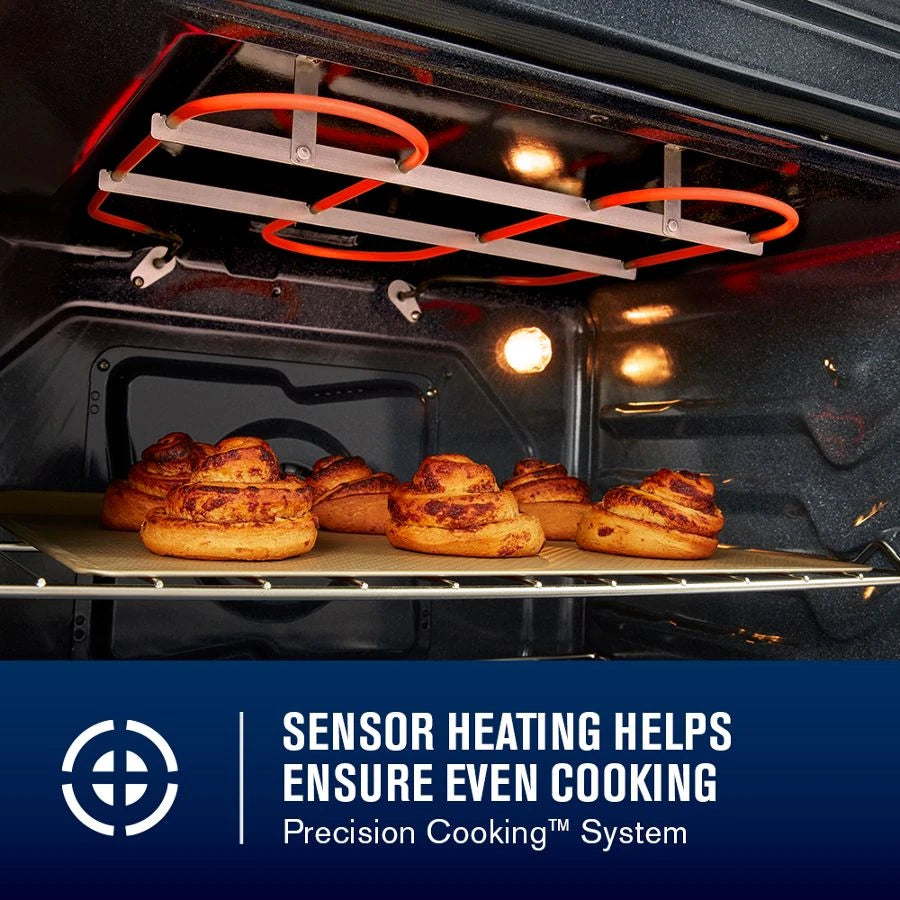

Variable Broil delivers the temperatures you need for fast cooking. Set the oven between 350(degree)F and 500(degree)F to get the results you want on meat, sweet peppers and more.
Whirlpool Corporation started in 1911 in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Get boiling faster* with Power™ Burner. With power up to 18,000 BTUs, it allows for a slow, even sauté and intense heat for a seared, juicy steak.*Compared to Maytag standard 12K burner on the same model.
Tackle oven mess in an hour or less with Steam Clean self-cleaning technology. To lift light soils in less than an hour, simply add water, run the cycle and wipe with a wet sponge when the cycle is finished.

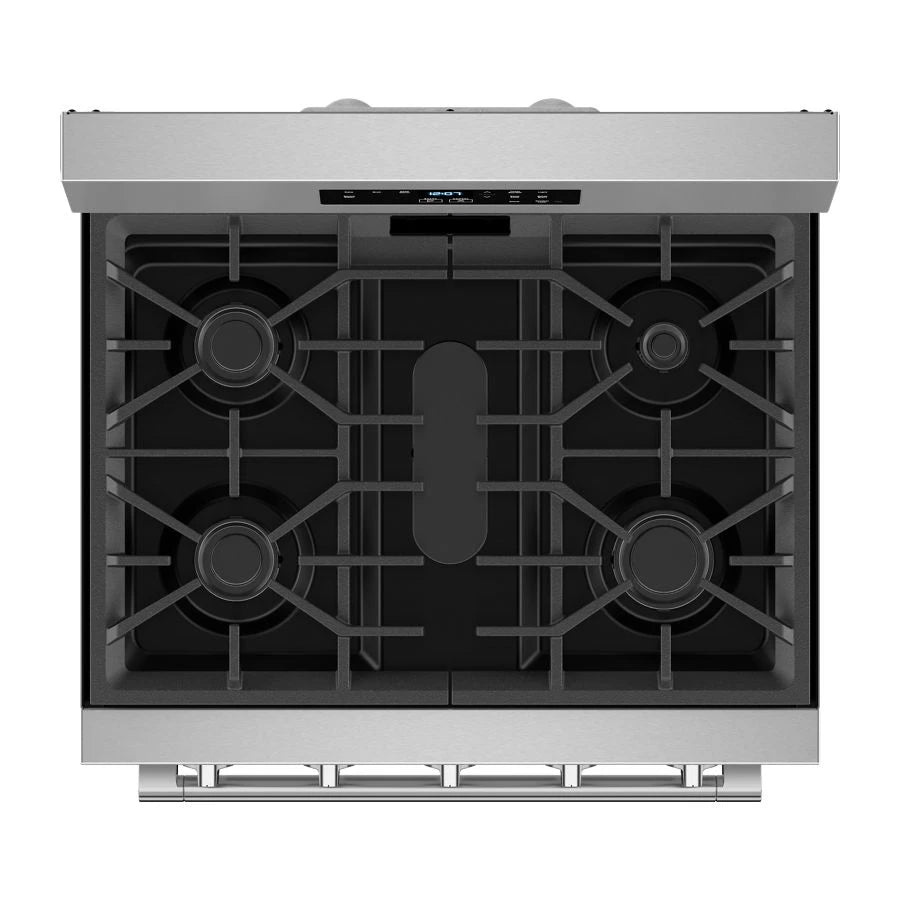

Utilize your cooktop space with edge-to-edge cast-iron grates, giving you the flexibility to easily shift your pots and pans as needed. Then toss into the dishwasher for hassle-free cleanup.
With the Delay Bake setting, you can place your dishes inside the oven and schedule when you want the baking to begin so your food is ready when you are.

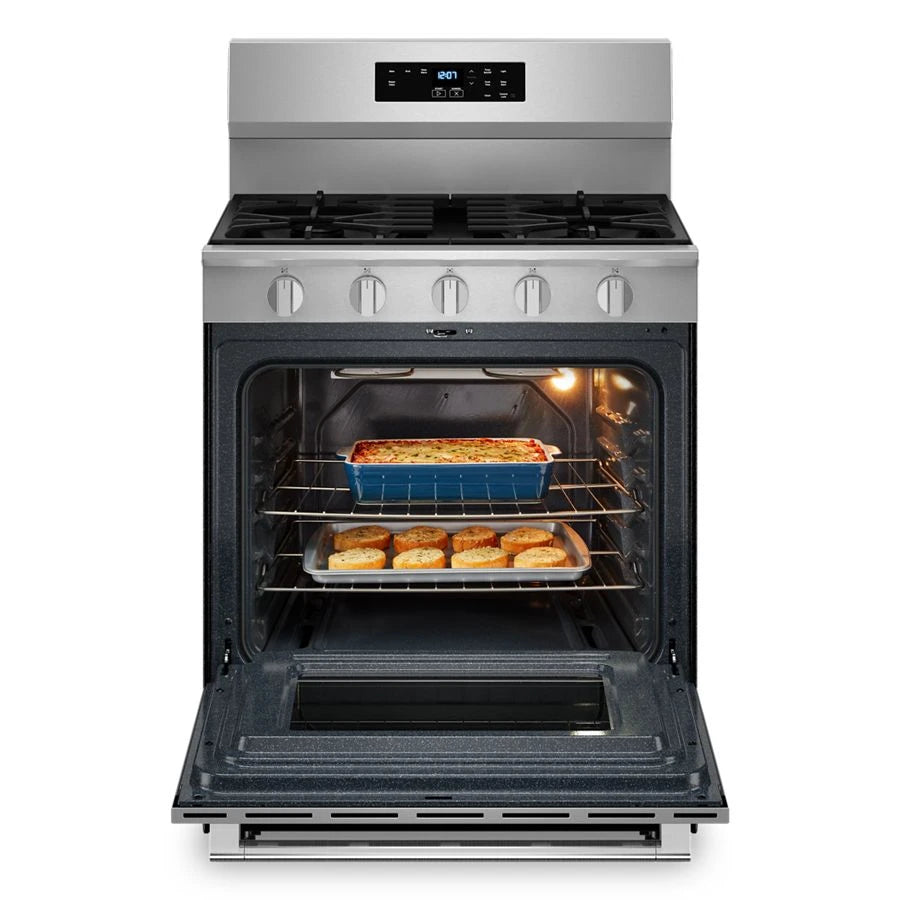

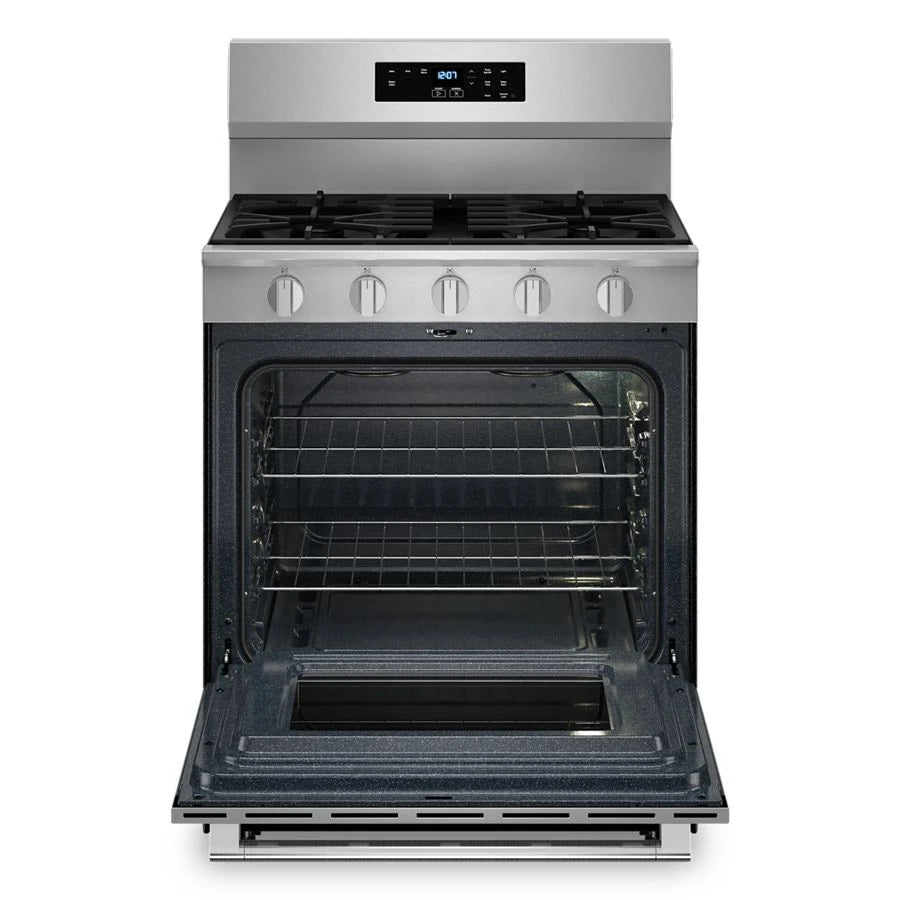

Cook the whole meal with plenty of space in this 5.0 cu. ft. large capacity gas range.
We take pride in building strong, reliable appliances for your home. These ranges are proudly assembled by hard-working employees in Tulsa, Oklahoma.
The dishwasher-safe cast-iron grates and sturdy door hinges on this Maytag® gas range are built for dependability, while the fingerprint resistant stainless finish helps make cleaning easy.
