| Parts | 5 Year |
| Labor | 5 Year |
| Control Location | Front |
| Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |

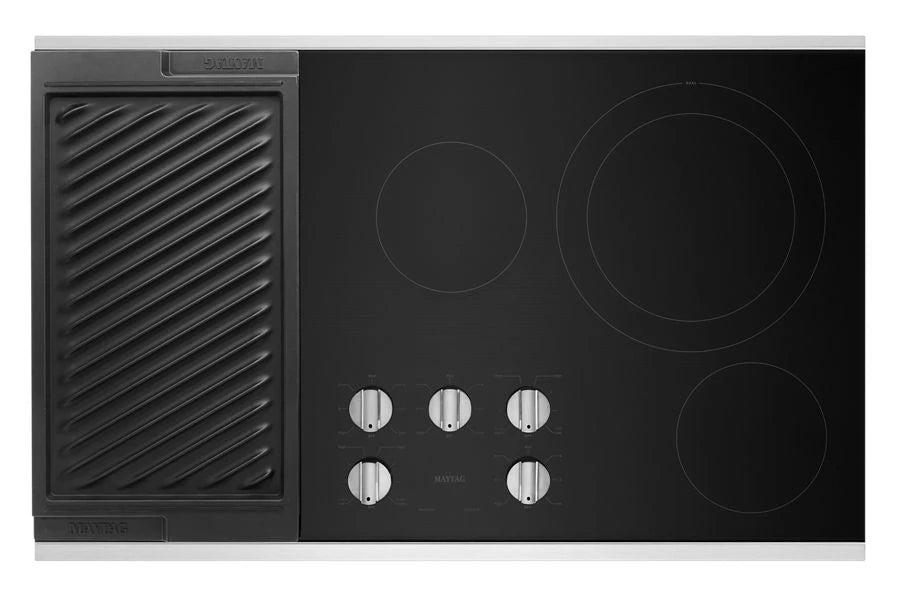

| Griddle Included | Included |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Combination Match with Oven | MEW9527, MEW9530 |
| Installs Over Built-In Oven | Yes |
| ADA Compliant | ADA Height and Operation Compliant |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Energy Rating (kWh/year) | 195 null |
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| 208V Compatible | Yes |
| Width | 36.06 in. |
| Height | 5.25 in. |
| Length | 22.88 in. |
| Weight | 54 lbs. |
| Carton Depth | 25 |
| Carton Height | 9 1/4 |
| Carton Width | 40 3/4 |
| Cutout Depth (in) | 20 3/8 |
| Cutout Width (in) | 34 9/16 |
| Gross Weight | 54 |
| Maximum Height | 5 1/4 |
| Net Weight | 48.0 |
| Cutout Depth Max(IN,inches) | 20.5625 |
| Cutout Depth Min(IN,inches) | 20.3750 |
| Cutout Depth(IN,inches) | 20.3750 |
| Cutout Width Max(IN,inches) | 35.5625 |
| Cutout Width Min(IN,inches) | 34.5625 |
| Cutout Width(IN,inches) | 34.5625 |
| Depth(IN,inches) | 22.8750 |
| Maximum Height(IN,inches) | 5.2500 |
| Net Weight(LB,pounds) | 48 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 9.2500 |
| Carton Width(IN,inches) | 40.7500 |
| Gross Weight(LB,pounds) | 54 |
| Width | 40.75 in. |
| Height | 9.25 in. |
| Length | 25 in. |
| Gross Weight | 54 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 41.06 in. |
| Shipping Height | 10.25 in. |
| Shipping Length | 27.88 in. |
| Shipping Weight | 94 lbs. |
| Total of Shipping Weight | 94 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 2.51 ft³ |
| Dimensional Weight | 31.16 lbs. |
| Total of Cubes | 2.51 ft³ |
| Total of Dimensional Weight | 31.16 lbs. |
| Cooktop Configuration | Burners with Integrated Grill and Griddle |
| Fuel Type | Electric |
| LP Convertible | No |
| Power Outage Compatible | No |
| Digital Display | No |
| Center Rear Element-Burner Size | 6in. |
| Center Rear Element-Burner Type | Standard |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-Burner Size | 8in. |

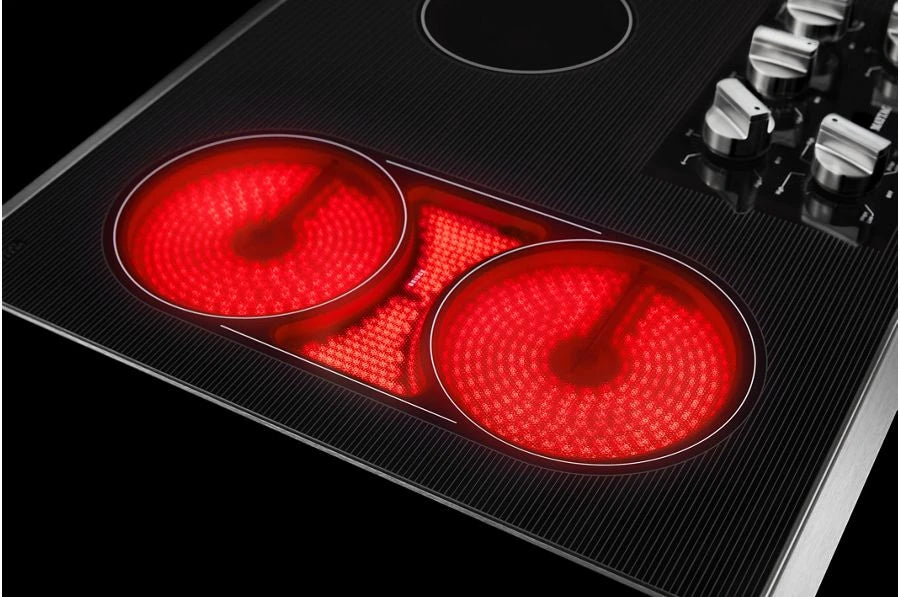

| Left Front Element-Burner Type | Bridge |
| Left Rear Element-Burner Size | 8in. |
| Left Rear Element-Burner Type | Bridge |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Simmer |
| Right Rear Element-Burner Power | 3000W/1900W |
| Right Rear Element-Burner Size | 12in./9in. |
| Right Rear Element-Burner Type | Dual-Stacked Burner |
| Automatic Pan Detection | No |
| Center Rear Element-Burner Power | 1,200W |
| Left Front Element-Burner Power | 1,800W |
| Left Rear Element-Burner Power | 1,800W |
| Right Front Element-Burner Power | 1,300W |
| Downdraft Vent | No |

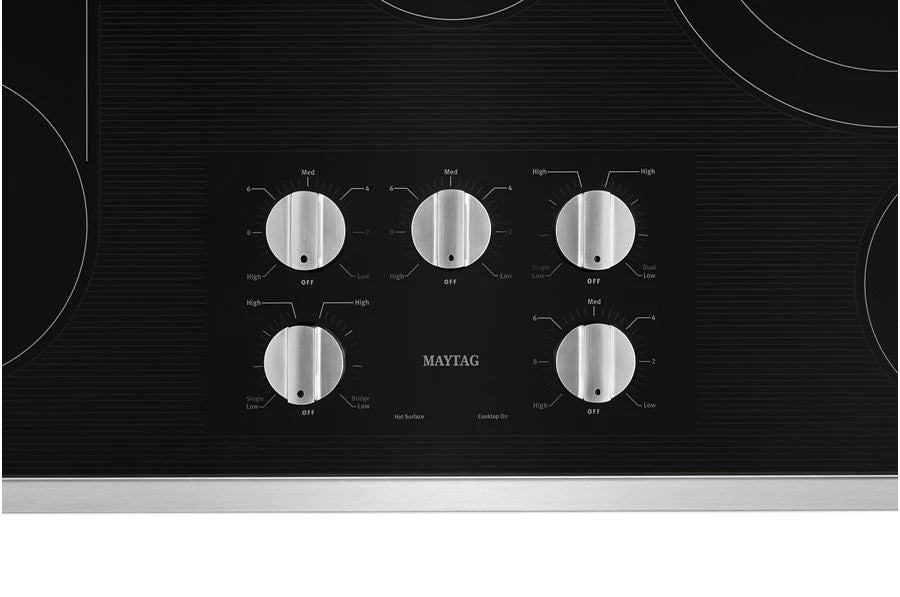

| Knob Type | Metal |
| Common Size | 36 in |
| Gross Weight | 54 lbs |
| Net Weight | 48 lbs |
| Cutout Depth | 20.375 in |
| Cutout Depth Max | 20.563 in |
| Cutout Width | 34.563 in |
| Depth | 5.25 in |
| Height | 5.25 in |
| Maximum Height | 5.25 in |
| Width | 36.0625 in |
| Features | ADA Compliant |
| Cooktop Features | ADA Compliant |
| Volume | 5.453 Cu.Ft. |
