SKU: WDES9428F
In stock - Quickship
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
Now you can check on food in an instant with two quick knocks. The InstaView(R) window lets you see inside your oven without ever opening the door and letting heat escape - and it's extra wide to see even more.

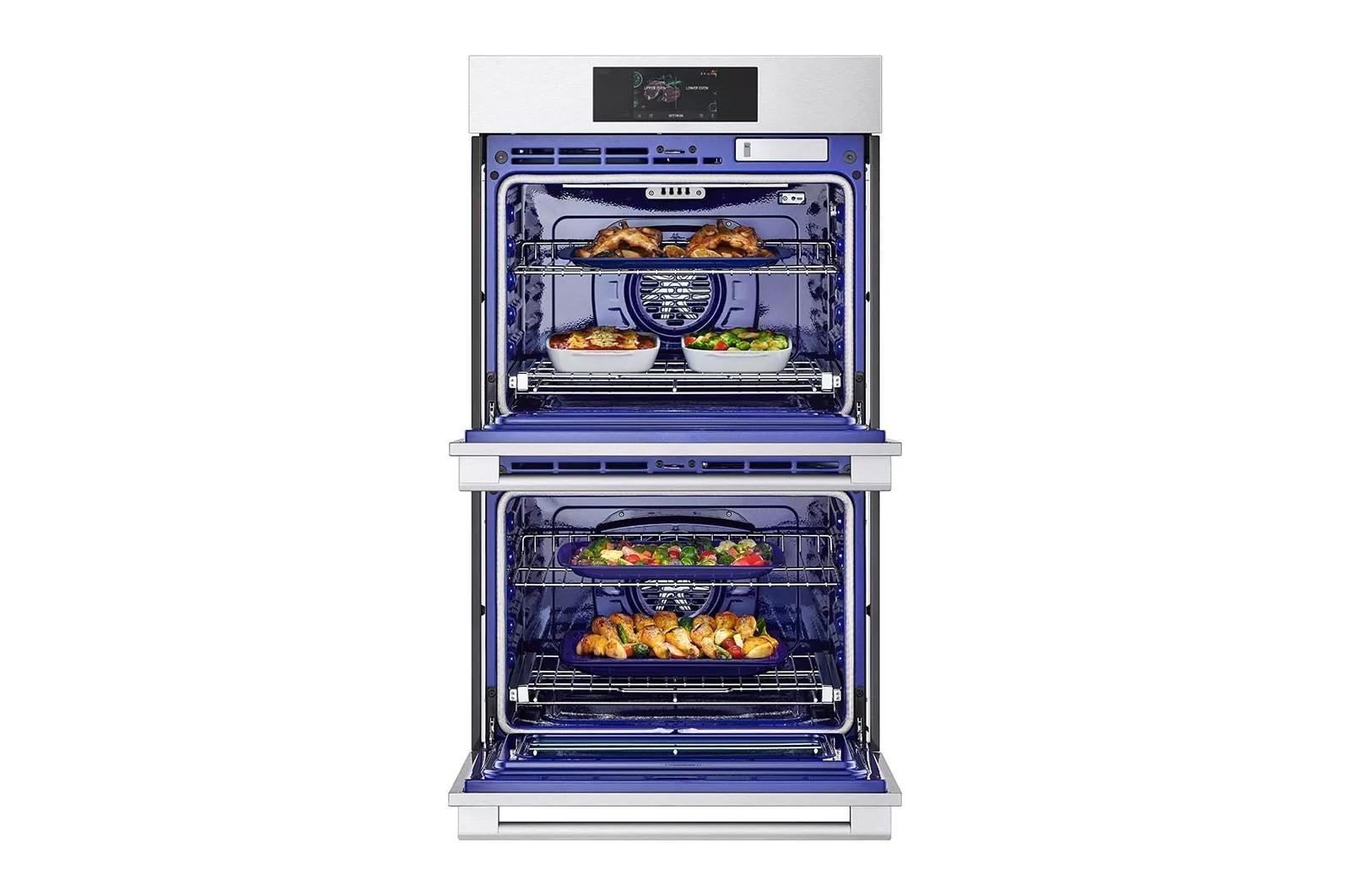

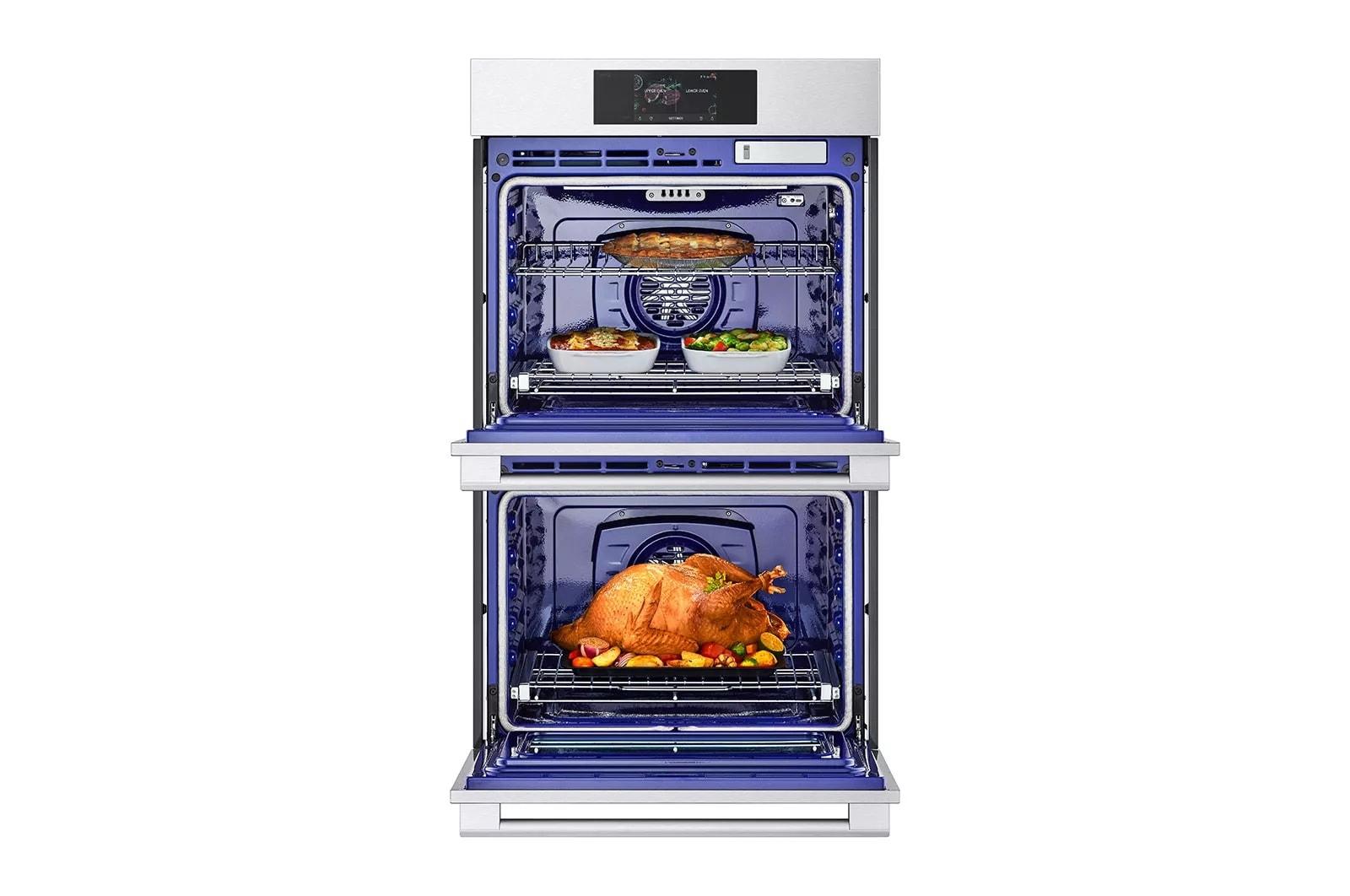

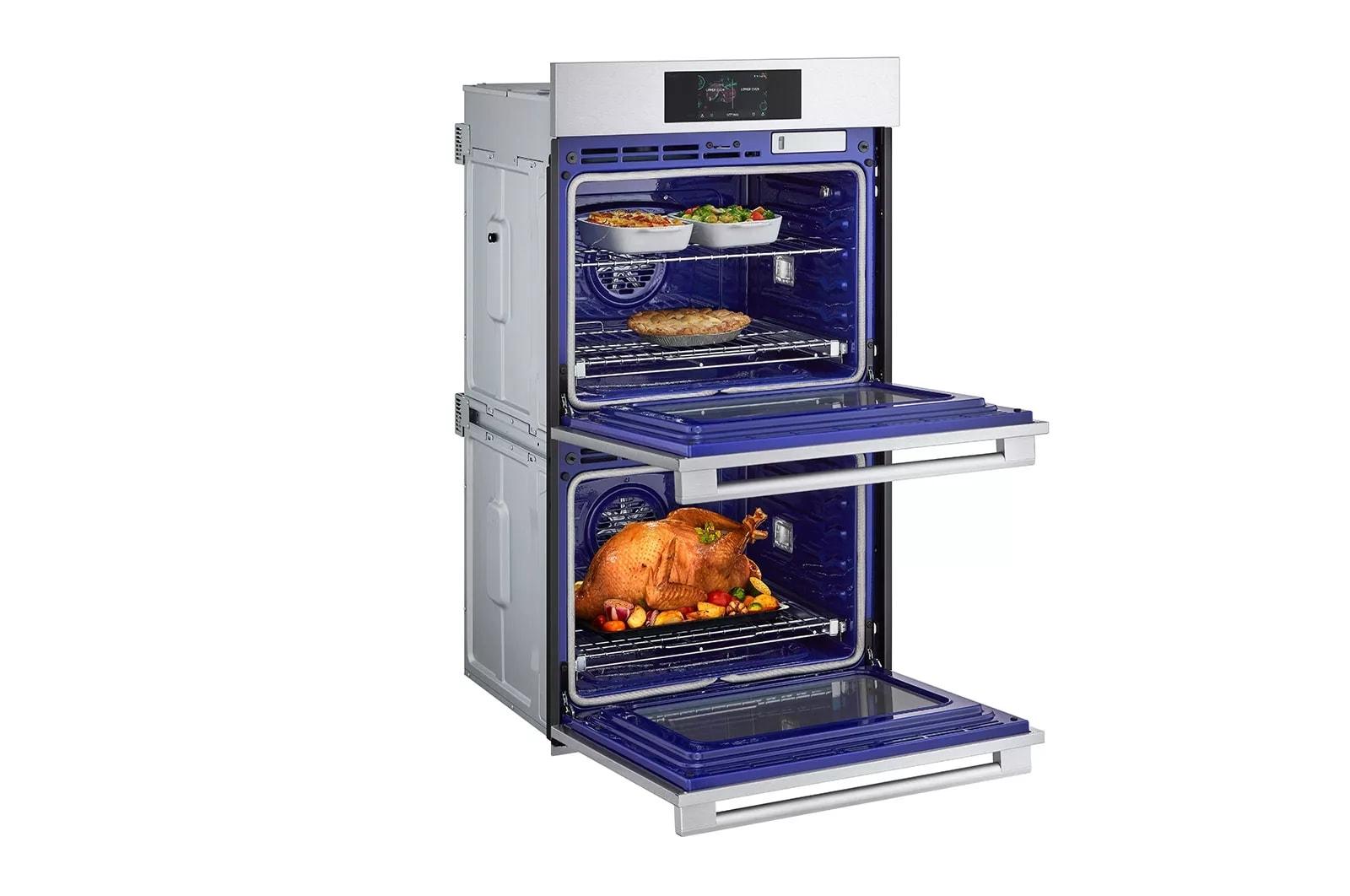

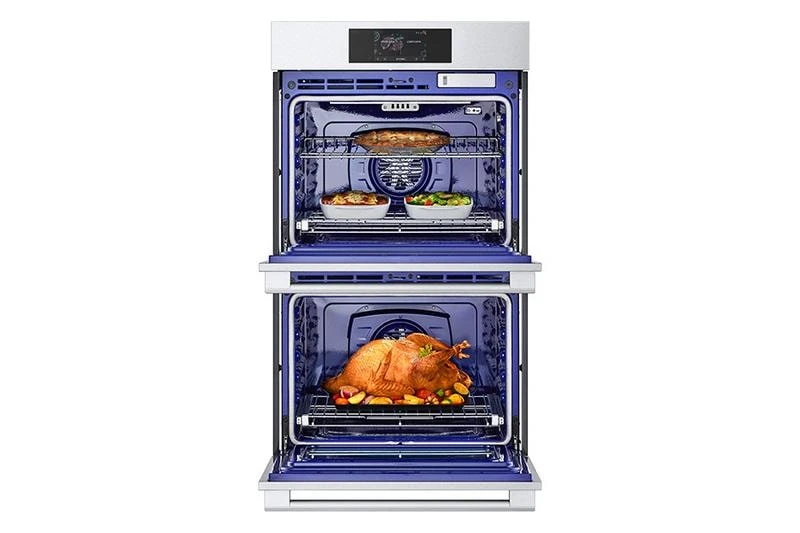

With LG's large capacity oven, you can handle all of your family's cooking needs. Whether you're baking large batches of cookies or a roast for the holidays, this oven can fit it all.
Air Fry delivers crispy flavor fast with no preheating and make enough to feed a...
Now you can check on food in an instant with two quick knocks. The InstaView(R) window lets you see inside your oven without ever opening the door and letting heat escape - and it's extra wide to see even more.
With LG's large capacity oven, you can handle all of your family's cooking needs. Whether you're baking large batches of cookies or a roast for the holidays, this oven can fit it all.

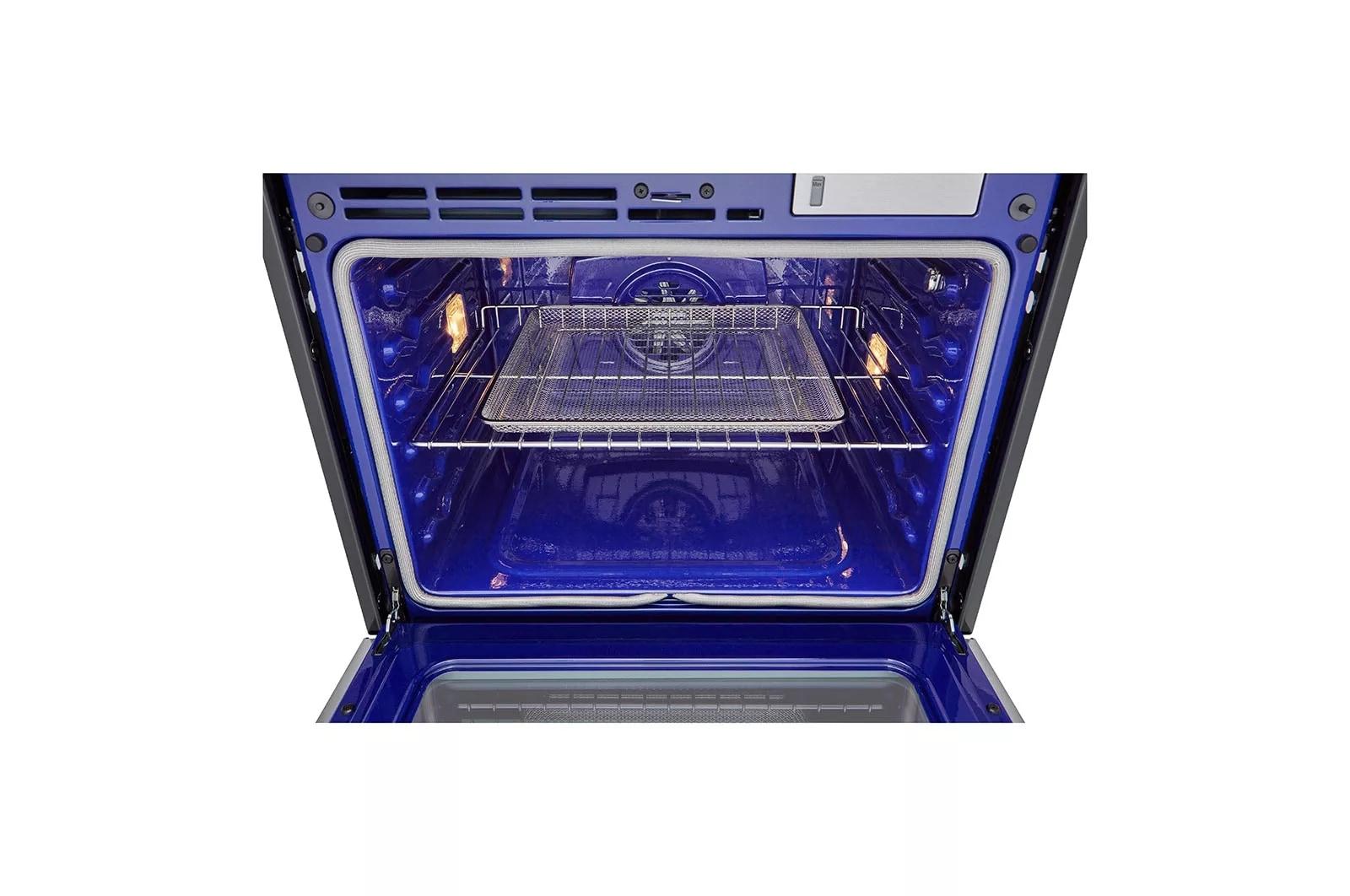

Air Fry delivers crispy flavor fast with no preheating and make enough to feed a crowd, with no need to buy yet another gadget that takes up counter space. Just press Air Fry to prepare favorite snacks like French fries, hot wings and more. High temperatures and the convection fan work together to deliver the flavor and crunch you crave without the oil-or the guilt.

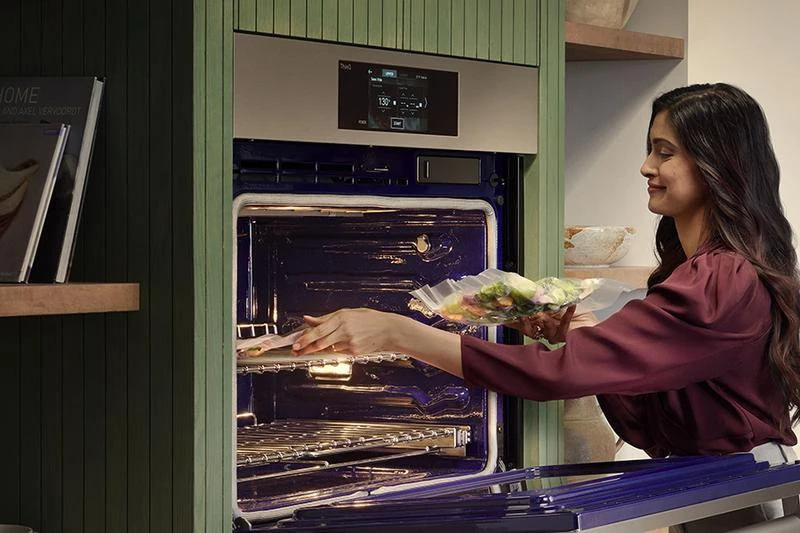

LG STUDIO combines moisture-rich steam cooking with the low-and-slow sous vide method for restaurant-quality meals at home. Vacuum seals meats, fish and even vegetables are juicy, tender and consistently delicious*. Cook like a pro with removable water reservoir that is easy to refill even mid-cooking.

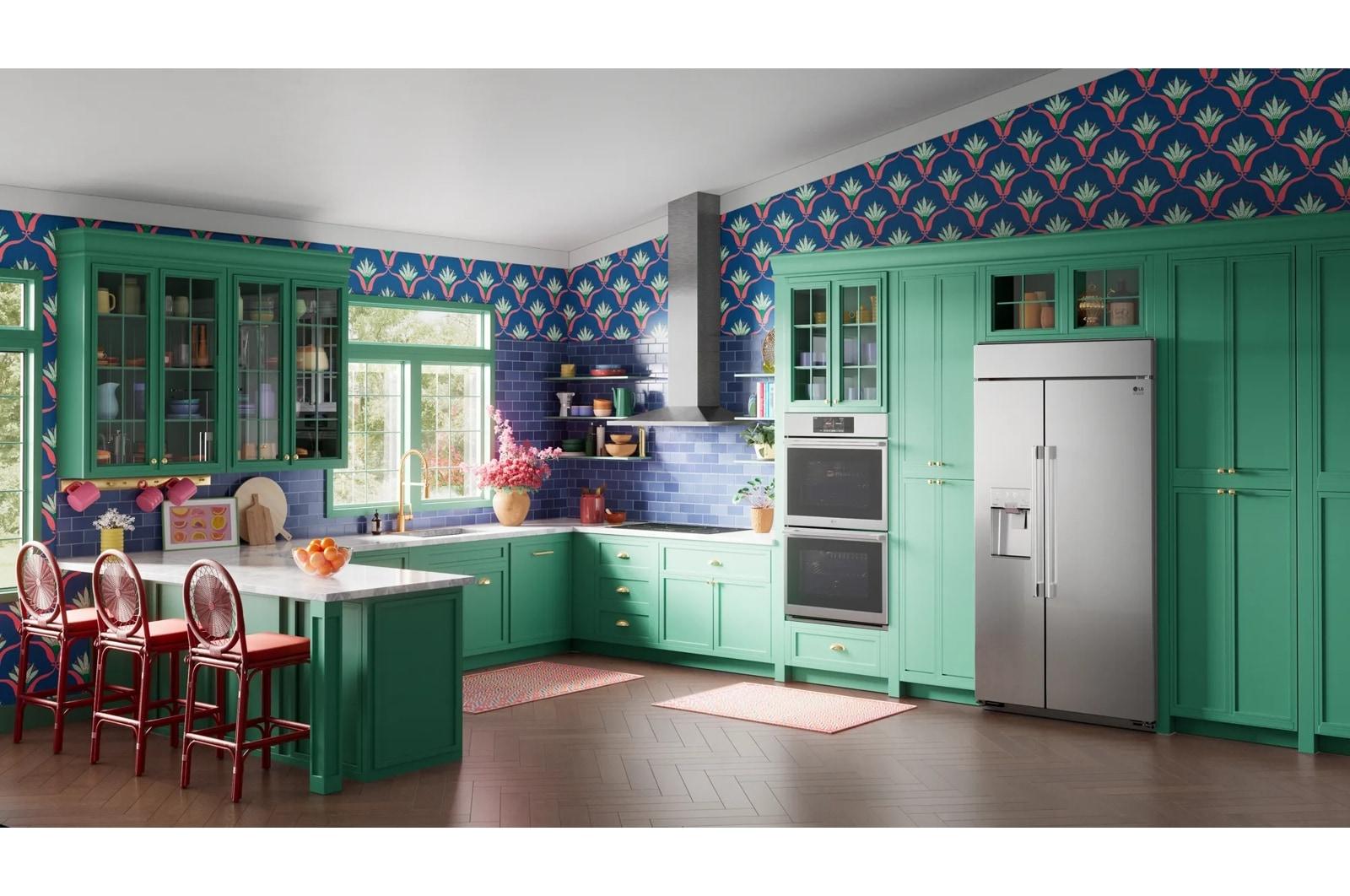

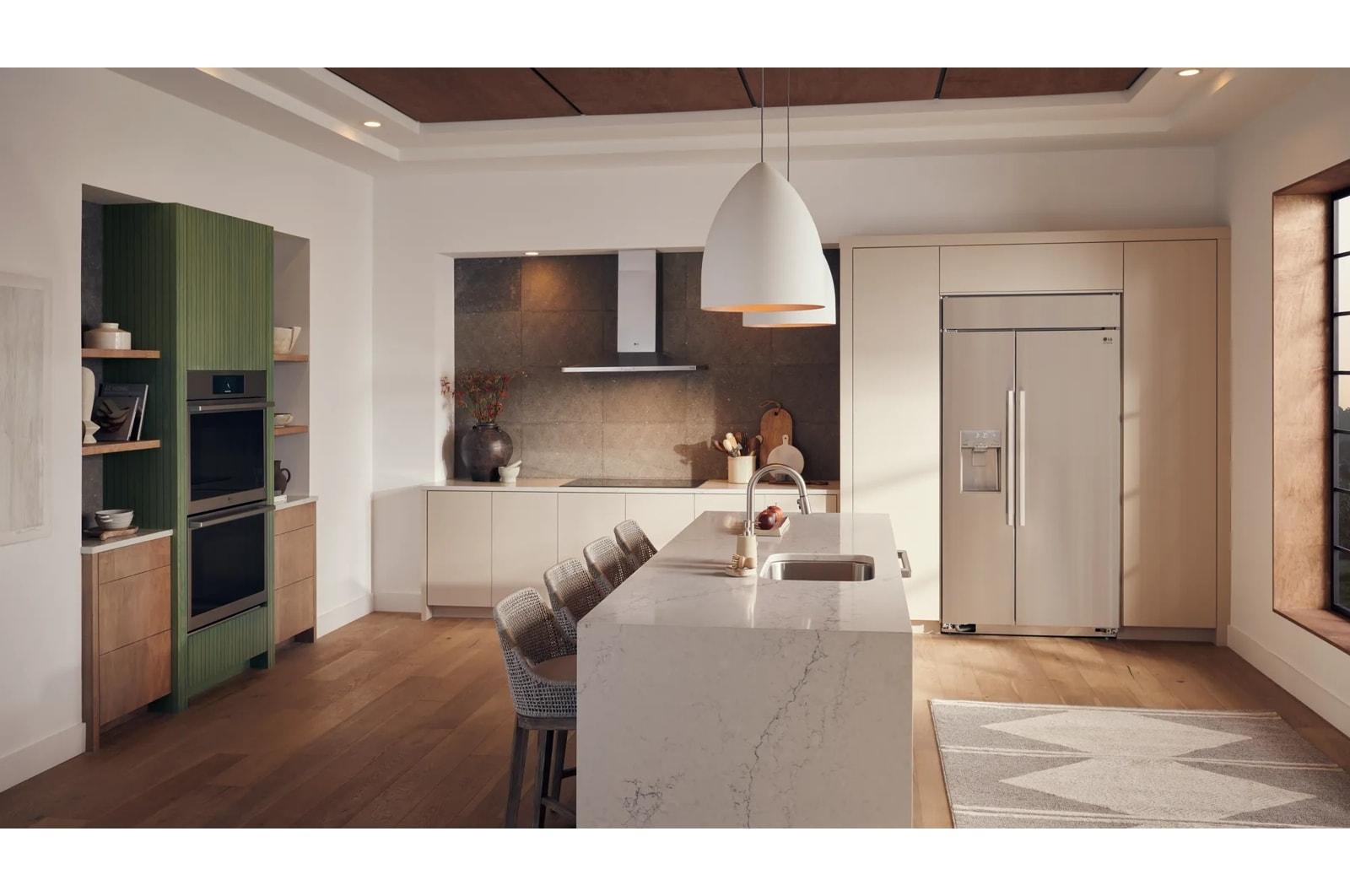

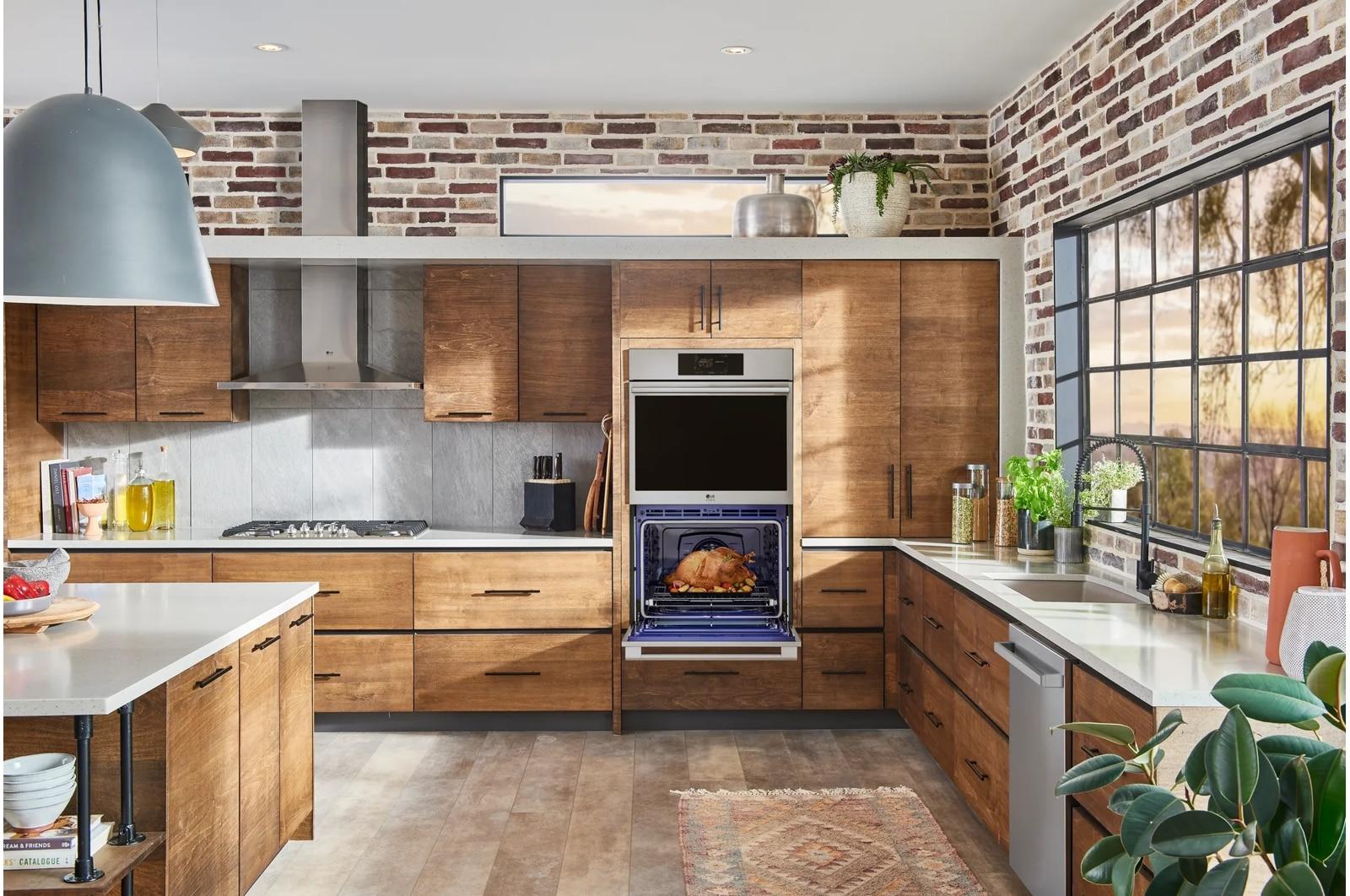

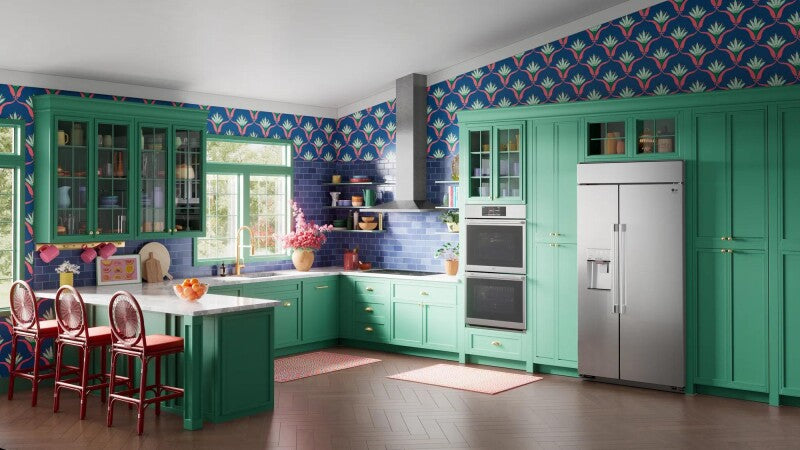

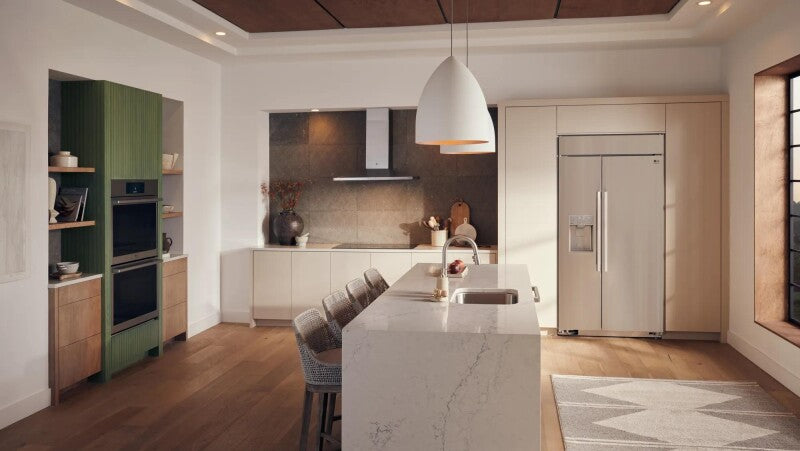

LG STUDIO wall ovens give you the option of a sleek, flush installation or traditional depth.

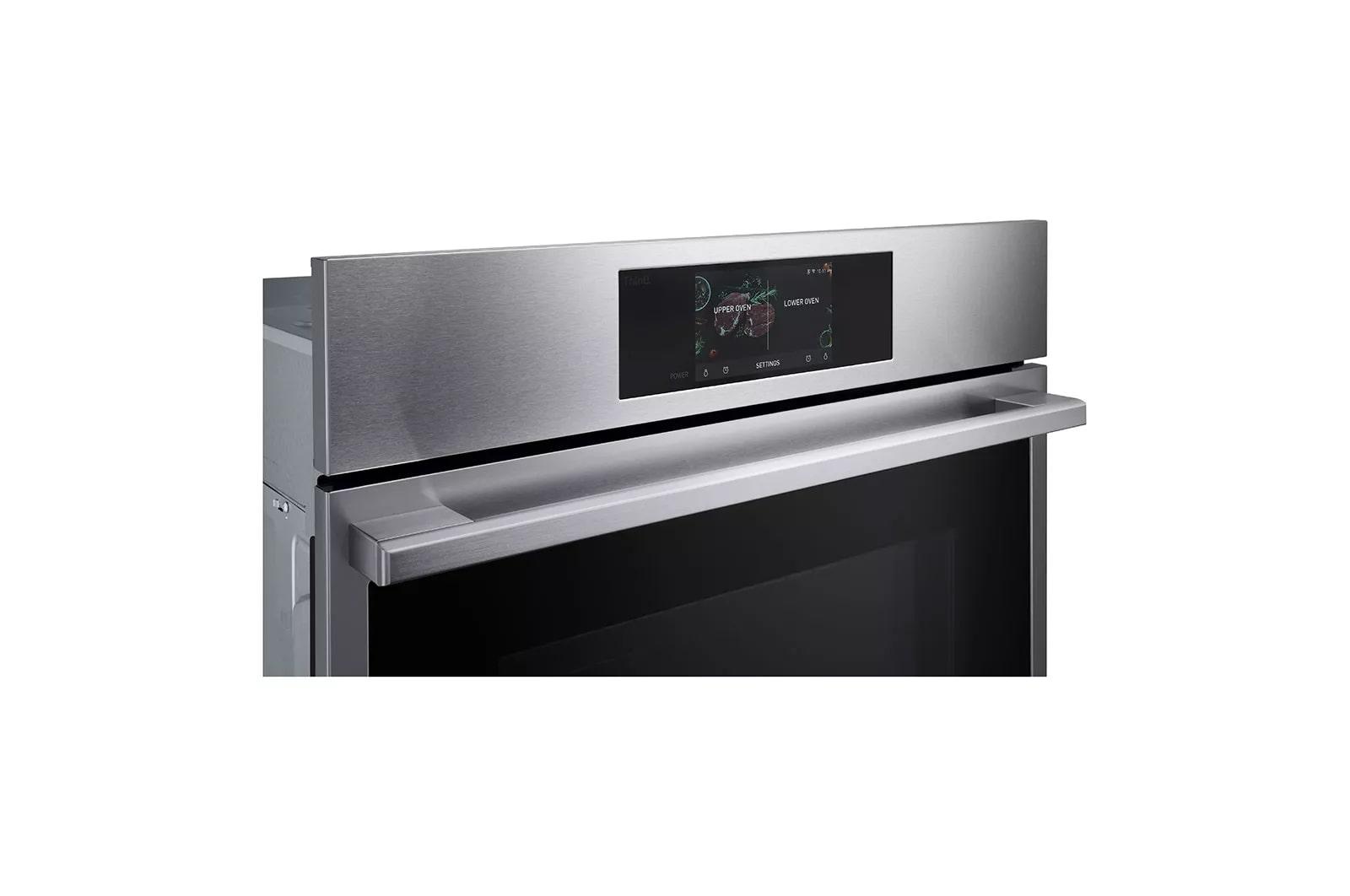

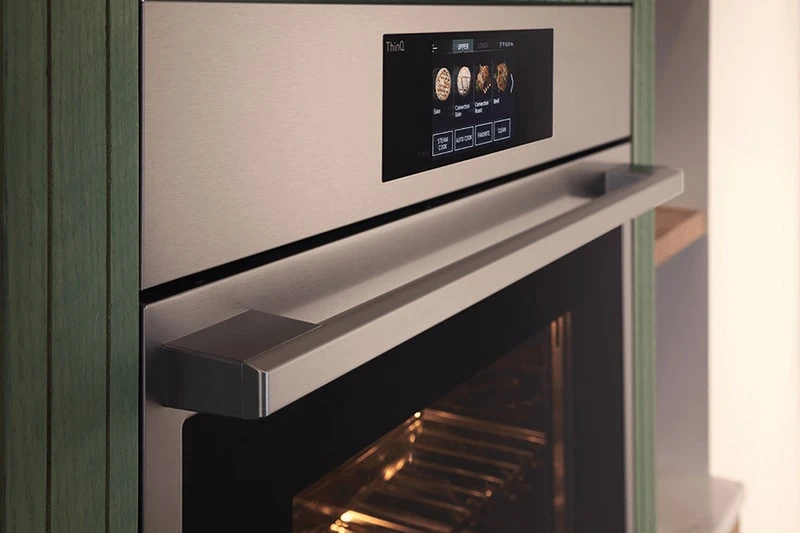

See your options in full color on 7" LCD. More than 40 auto-cook recipes in each oven from Banana Bread to London Broil with the impressive LCD display. The look is sleek and contemporary- and it's even easy to clean.
SUMMARY | |
Series | LG STUDIO |
Type | Double Wall Oven |
Total Oven Capacity (cu. ft.) | 9.4 (Upper & Lower) |
Color | Stainless Steel |
CONTROL FEATURES | |
Oven Control Type | Glass Touch |
Knob | No |
Display | 7" TFT LCD |
Language | English / Spanish / French |
Clock | 12 hr or 24 hr (option) |
Kitchen Timer | Yes |
Timed Cook | Yes |
Temperature Unit of Measure | Fahrenheit / Celsius |
Cooking Complete Reminder Volume | Beeper (Hi, Lo, Off) |
Certified Sabbath mode | Yes |
UPPER OVEN FEATURES | |
Capacity (cu.ft) | 4.7 |
EasyClean® | Yes |
EasyClean(SpeedClean) time | 10mins |
Self Clean | Yes |
Variable cleaning time | Yes |
Steam Assist | Yes |
Steam Element | True Convection |
Convection element | 2,000 watts (Sheath heater) |
Convection Fan | Single Speed |
Convection conversion | Yes |
Bake element | 2,500 watts |
Bake element type | Hidden (8 pass) |
Broil element | 2,500 watts inner / 1,500 watts outer |
Broil element pass | 8 |
Variable broil | Yes( Full,Center / High,Med,Low) |
Oven Cooking Modes | "Bake / Conv. Bake / Conv. Roast / Broil / Air Fry / Warm / Proof / Steam Cook(Steam Bake, Sous-Vide) / Auto Cook / Favorite / Clean(Self Clean, Easy Clean, Steam Mainenance)" |
No of Auto cook | Upper (45EA), Lower (39EA) except Miscellaneous |
No of Favorite | 40EA |
No. of Rack Positions | 5 |
No of light | 2 (Halogen Lamp) |
Proof | Yes |
Drying / Dehydrating | Yes |
Temp probe | Yes |
12 hrs. shut-off | Yes |
Variable warm | Yes (High,Med,Low) |
LOWER OVEN FEATURES | |
Capacity (cu.ft) | 4.7 |
EasyClean® | Yes |
EasyClean(SpeedClean) time | 10min |
Self Clean | Yes |
Variable cleaning time | Yes |
Steam Assist | No |
Steam element | No |
Convection element | 2,000 watts (Sheath heater) |
Convection Type | True Convection |
Convection Fan | Single Speed |
Convection Conversion | Yes |
Bake element | 2,500 watts |
Bake element type | Hidden (8 pass) |
Broil element | 2,500 watts inner / 1,500 watts outer |
Broil element pass | 8 |
Variable broil | Yes( Full,Center / High,Med,Low) |
Oven Cooking Modes | "Bake / Conv. Bake / Conv. Roast / Broil / Roast / Warm / Proof / Auto Cook / Favorite / Clean(Self Clean, Easy Clean)" |
No of Auto cook | 44EA (Except Miscellaneous) |
No of Favorite | 40EA |
No. of Rack Positions | 5 |
No of light | 2 (Halogen Lamp) |
Proof | Yes |
Drying / Dehydrating | Yes |
Temp probe | Yes |
12 hrs. shut-off | Yes |
Variable warm | Yes (High,Med,Low) |
APPEARANCE | |
All Available Colors | Stainless Steel |
Handle | Stainless Steel |
Knobs | No |
PrintProof™ Finish | Yes |
Oven Door Feature | WideView™ Window |
InstaView® | Yes |
SMART FEATURES | |

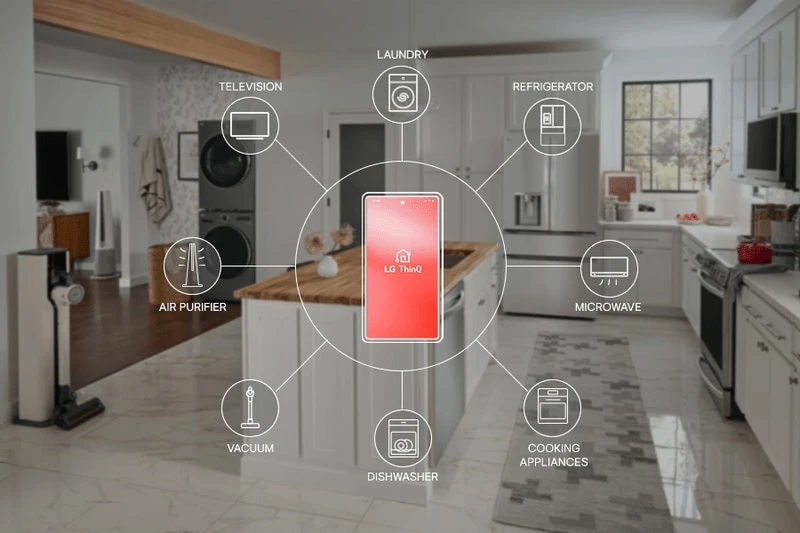

ThinQ® (Wifi Enabled) | Yes |
Check & Control | Yes |
Voice Control | Yes |
Smart Recipe (3rd Party Recipe App) | Sidechef |
Proactive Customer Care | No |
Smart Diagnosis™ | Yes |
NFC Tag On | No |
ACCESSORIES | |
Broiler pan | 1EA |
Griddle | 1EA |
Temp Probe | 1EA |
Heavy Duty Rack | 4EA |
Gliding Rack | 2EA |
Spray Bottle | 1EA |
Air Fry Rack | 1EA |
DIMENSIONS/CLEARANCES/WEIGHT | |
Product (W x H x D) : Including Door | |
Product (W x H x D) : Including Handle | |
Product (W x H x D) : Opening Door | |
Cut-out (W x H x D) : Standard | |
Cut-out (W x H x D) : Flush | |
Packing (W x H x D) | |
Product Weight (lbs) | 238 |
Shipping Weight (lbs) | 302 |
POWER/RATINGS | |
Amp at 240V | 42.5 A |
kW at 240V | 10.2 kW |
Requirements | 60 Hz / 240 V, 208 V |
LIMITED WARRANTY | |
Parts & Labor | 2 Year |
