| Drum Volume - cu.ft (l) | 9.0 (254) |
| Diameter - in. (mm) | 28.2 (716) |
| Depth - in. (mm) | 24.2 (614) |
| Product (WxHxD) - in | 29 x 40.2 x 42.9 |
| Product (WxHxD) - mm | 737 x 1,022 x 1,090 |

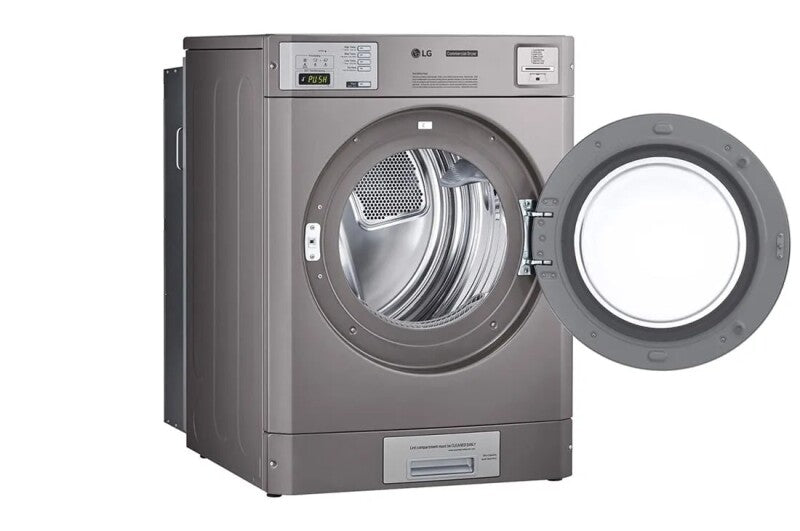

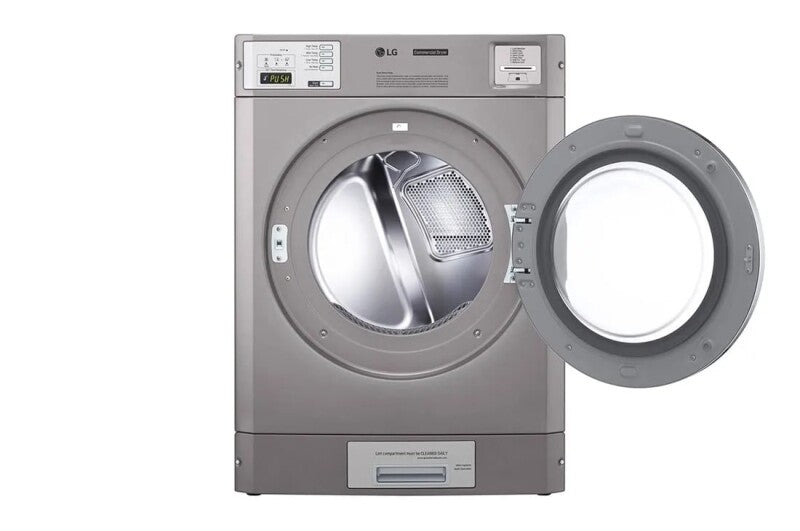

| With Door Open - in. (mm) | 65.1 (1,655) |
| Carton (WxHxD) - in | Single : 30.7 x 44.7 x 44.4, Stack : 30.7 x 83.1 x 44.4 |
| Carton (WxHxD) - mm | Single : 781 x 1,137 x 1,128, Stack : 781 x 2,110 x 1,128 |
| Weight (Product/Carton) - lb (kg) | 220 (100)/240 (108.8) |
| Electric Ratings - V/Hz/A | 120/60/10 |
| Gas | 15kWh |
| Electricity | 920W |
| Heating Type | Gas (Default LNG) |
| Air Flow - CFM | 350 |
| Type of Drying | Ventilation |
| Drum Motor - KW | 0.5 (120V/60Hz) |
| Fan Motor - KW | 0.3 |
| Gas Ratings - KW/BTU | 16.1/55,000 |
| Air Outlet Diameter - in. (mm) | 6 (154) |
| Exhaust Airflow Diameter - in. (mm) | 6 (154) |

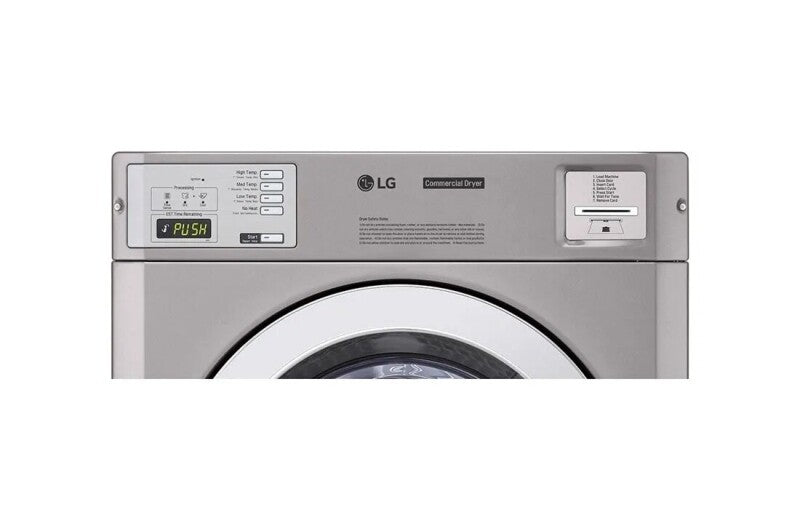

| Program List | High Temp, Med Temp, Low Temp, No Heat |

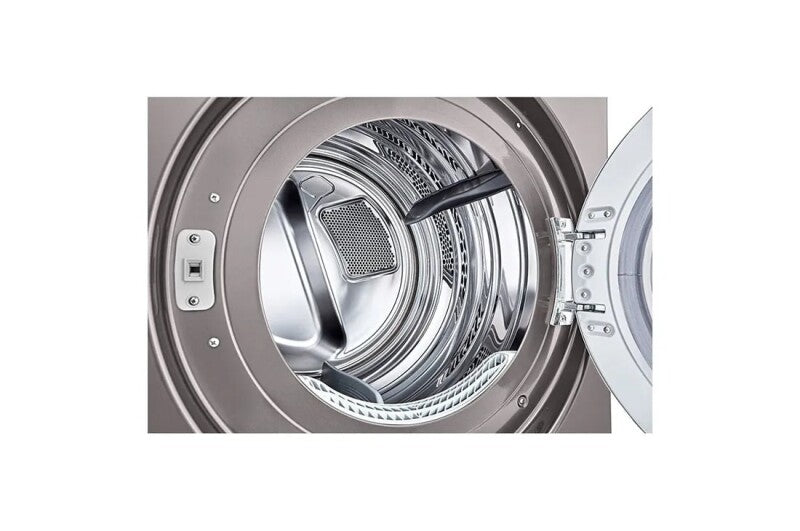

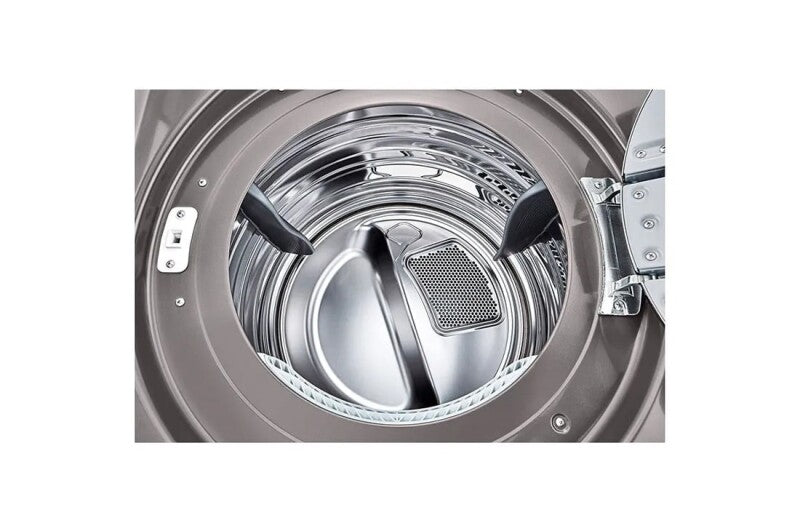

| Drum | Stainless Steel |
| Length | 24.2 in. |
| Weight | 220 lbs. |
| Number of Boxes | 1 |
| Shipping Length | 29.2 in. |
| Shipping Weight | 260 lbs. |
| Total of Shipping Weight | 260 lbs. |
| Source | Calculation |

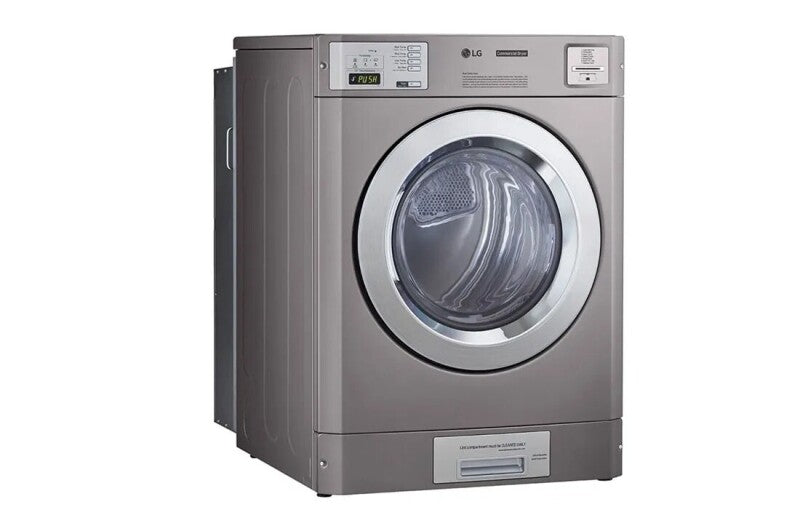

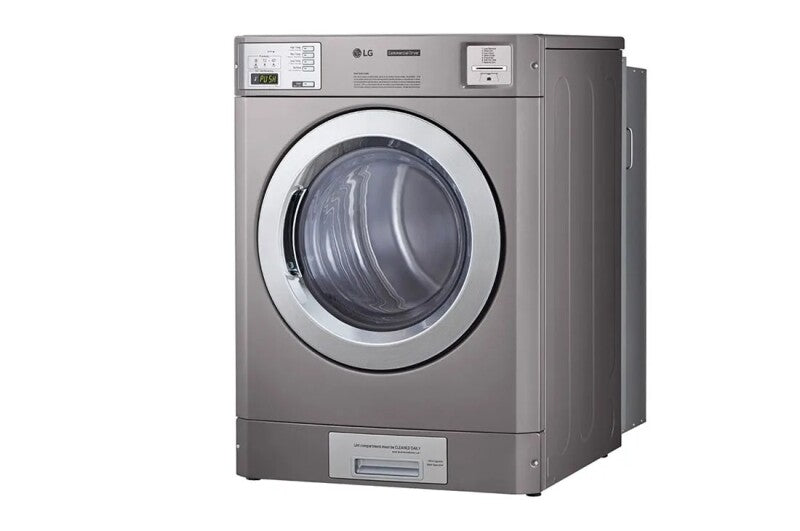

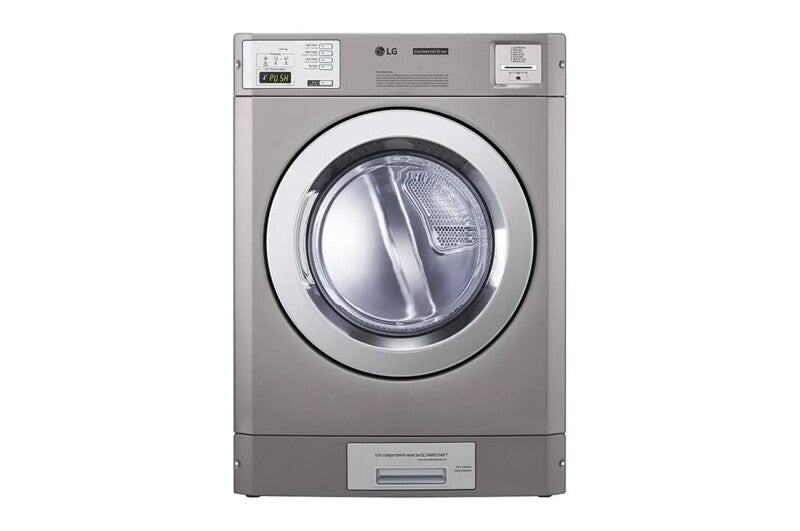

9.0 cu.ft Large Capacity Dryer
