More Cookware options
LG offers versatile elements that fit different sized cookware for convenient - even your largest saut(eback) pan.
STYLE AND DESIGN
LG's premium 30" & 36" cooktops offers the perfect harmony between style and convenience

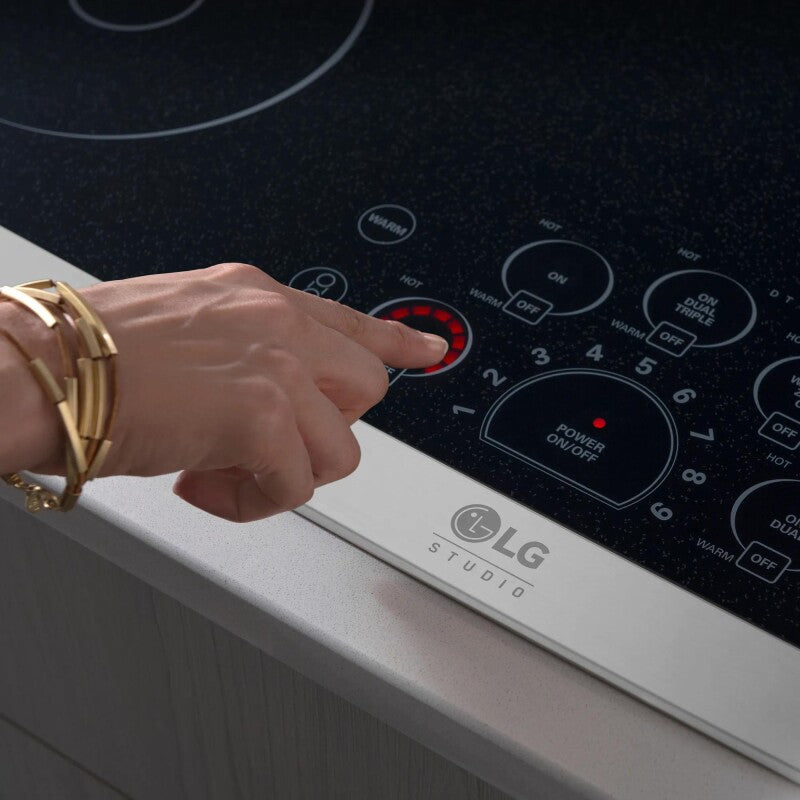

Intuitive
Easy to use with just a touch. At a quick glance of the centralized electronic controls users can see which heating element is activated and the smooth surface easily wipes clean.
ADA - Compliant Electric Cooktop*
To be considered ADA-compliant, an electric cooktop must have a maximum high forward reach for controls and operating mechanisms is 48", maximum low forward reach is 15".
| SUMMARY | |
| LG STUDIO | Yes |
| Element Size and Wattage | 9", 6" / 3.0, 1.4kW (Dual)6" / 0.1kW (Warm)8", 5" / 1.9, 0.95kW (Dual)6" / 1.2kW7" / 1.5kW |
| Surface Width | 30" |
| Number of Elements | 5 |
| SmoothTouch™ Controls | yes |
| Steady Heat Technology | yes |
| Elements Material | Ceramic Glass |
| Hot Surface Indicator | yes |
| Warm Function | yes |
| Auto Shut Off | yes |
| Child Lock | Yes |
| Color/Trim | Black |
| ADA Compliant | Yes |
| Fuel Type | Electric |
| COOKTOP | |
| Fuel Type | Electric |
| DIMENSIONS/CLEARANCES/WEIGHT | |
| Weight (Product) | 34.2 lbs. |
| Depth | 21 47/64" |
| Height | 4" |
| Width | 30 27/32" |
| Cutout | 29 3/8" x 20 1/4" |
| CONTROLS | |
| Control Type | SmoothTouch™ |
| Control Location | Front Center |
| Control Material | Ceramic Glass |
| POWER/RATINGS | |
| Electric Supply | 240V/208V, 60Hz AC |
| Max. Amp Load | 240V 40 Amp, 208V 30 Amp |
| Power Cable Location | Right Rear |
| Total Connected Load | 7.7kW @ 240V, 5.8kW @ 208V |
| MATERIALS/FINSHES | |
| Available Colors | Black |
| CONVENIENCE FEATURES | |
| ADA Compliant | Yes |
| SAFETY FEATURES | |
| Child Lock | Yes |
| WARRANTY/UPC | |
| Limited Warranty | 2 Years Parts and Labor, 5 Years Parts on Cooktop and Coils |
| UPC | 048231316620 |
- Dual Cooktop Elements
- SmoothTouch Controls
- Warming Zone
- Stylish Design
