| Gas Ratings - V/Hz/A | 120/60/5, 220~240/50/2.4, 220/60/3 |
| Electric Ratings - V/Hz/A | 120 (240)/60/26, 220~240/50/22.5, 220/60/21, 240/50/19.5¹⁾ |
| Gas | 5,810W |
| Electricity | 350W |
| Heating Type | Gas (LNG/LPG)²⁾ |
| Type of Drying | Ventilation |
| Air Flow - CFM | 160 |
| Motor - kW | 0.3 (220~240V/50Hz) |
| Gas Ratings - KW/BTU | 5.8/20,000 |
| Program Duratin in Minutes (Default) - min | 45 (NA)/50 (EU)/45 (Australia) |
| Air Outlet Diameter - in. (mm) | 4 (100) |
| Exhaust Airflow Diameter - in. (mm) | 4 (100) |
| Program List | High Temp, Med Temp, Low Temp, No Heat |
| Drum | Alcosta |
| Length | 22.5 in. |
| Weight | 130 lbs. |
| Number of Boxes | 1 |
| Shipping Length | 27.5 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |

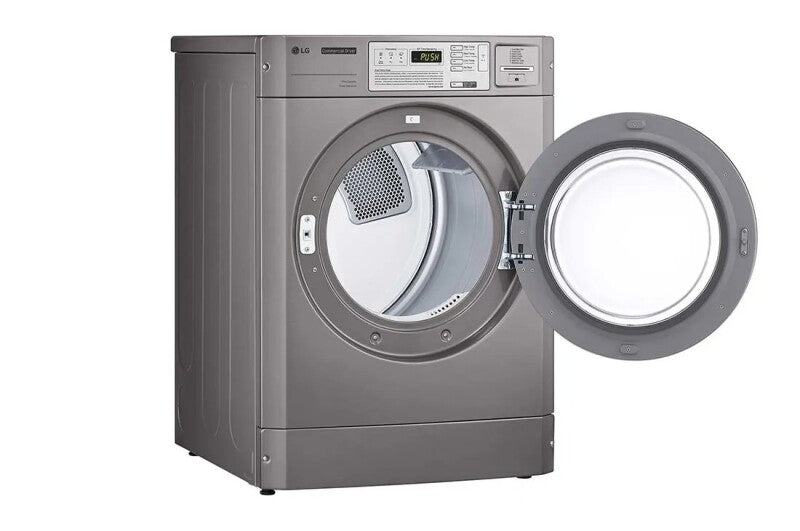

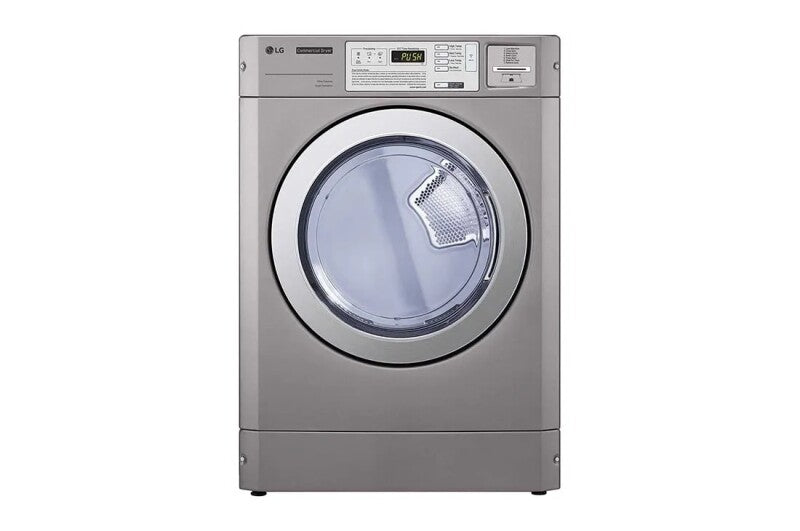

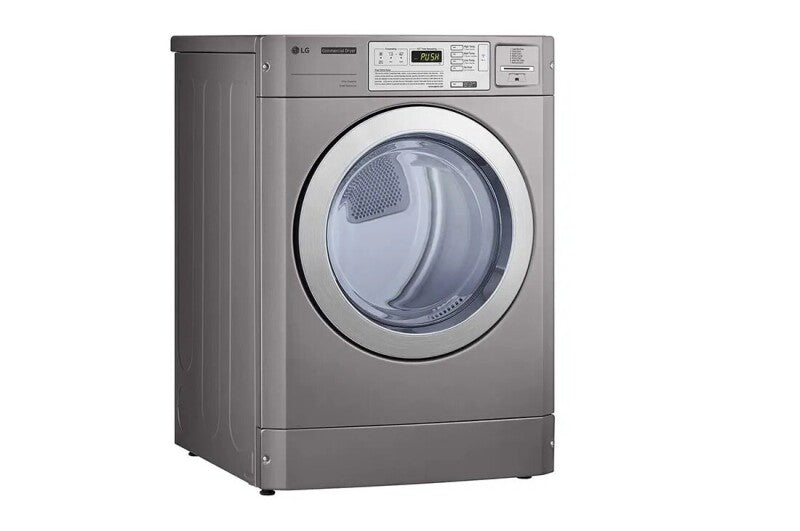

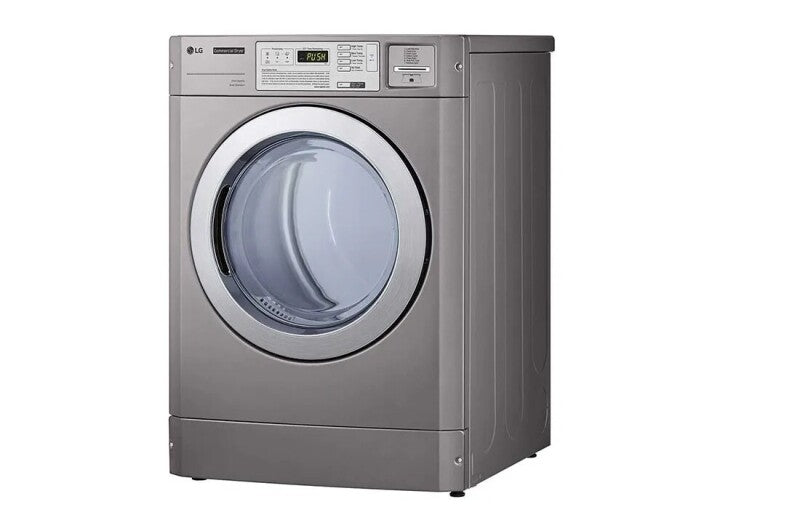

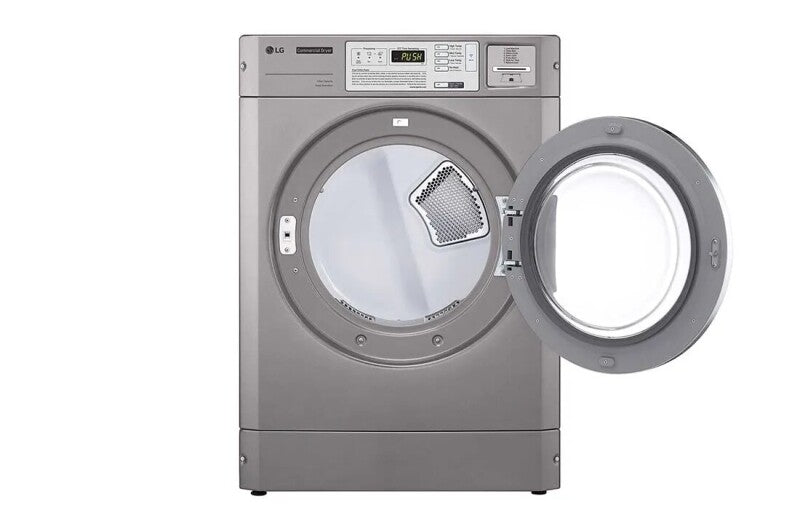

7.3 cu.ft Standard Capacity Dryer
