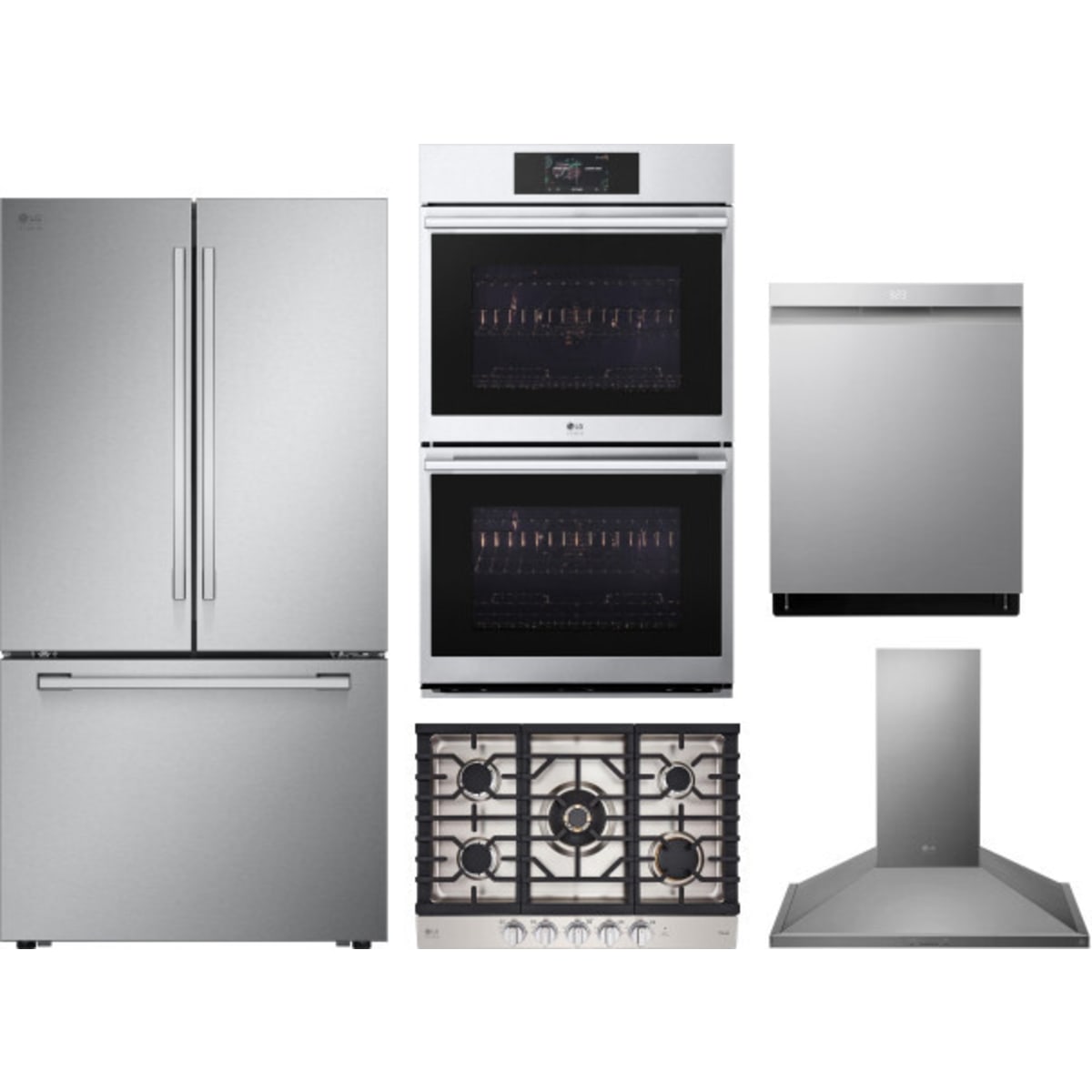

LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and CBGS3028S 30 Cooktop and LDPH7972S 24 Integrated Dishwasher and WDES9428F 30 Wall Oven and LSHD3080ST 30 Hood

Name: LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and CBGS3028S 30 Cooktop and LDPH7972S 24 Integrated Dishwasher and WDES9428F 30 Wall Oven and LSHD3080ST 30 Hood
Brand: LG
SKU: Lg-SRFB27S3-CBGS3028S-LDPH7972S-WDES9428F-LSHD3080ST
Price: 9773.22 USD
Availability: OutOfStock

LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and CBGS3028S 30 Cooktop and LDPH7972S 24 Integrated Dishwasher and WDES9428F 30 Wall Oven and LSHD3080ST 30 Hood

27 Cu. Ft. Smart Counter-depth Max™ French Door Refrigerator

30 Inch Ultraheat™ Gas Cooktop With Easyclean®

24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™

9.4 Cu. Ft. Smart Instaview® Electric Double Built-in Wall Oven With Air Fry & Steam Sous Vide

LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and CBGS3028S 30 Cooktop and LDPH7972S 24 Integrated Dishwasher and WDES9428F 30 Wall Oven and LSHD3080ST 30 Hood

$9,773.22 ~~$15,491.99~~ Save $5,718.77 / 36% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Additional Services Available:

LG Studio SRFB27S3 27 Cu. Ft. Smart Counter-depth Max™ French Door Refrigerator Print Proof Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$57.99
2-Year Extended Protection
$91.99
3-Year Extended Protection
$151.99
5-Year Extended Protection
$239.95
Manufacturer Warranty Only

Refrigerator Installation — Existing Water Line only (No Mods; No Copper lines)
$110.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG Studio CBGS3028S 30 Inch Ultraheat™ Gas Cooktop With Easyclean® Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$49.99
2-Year Extended Protection
$83.99
3-Year Extended Protection
$131.99
5-Year Extended Protection
$195.99
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG LDPH7972S 24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™ Print Proof Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

Dishwasher Install — Hardwire; Existing Non-Copper Line Only (No Panel Installation)
$220.00
Dishwasher Installation Kit - Complete with Cord
$29.95
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG Studio WDES9428F 9.4 Cu. Ft. Smart Instaview® Electric Double Built-in Wall Oven With Air Fry & Steam Sous Vide Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$57.99
2-Year Extended Protection
$91.99
3-Year Extended Protection
$151.99
5-Year Extended Protection
$239.95
Manufacturer Warranty Only

Wall oven double electric install
$290.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99
Wall oven electric cord
$40.00

LG Studio LSHD3080ST 30 Inch Wall Mount Chimney Hood Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

What's included: 5 items

LG Studio SRFB27S3 27 Cu. Ft. Smart Counter-depth Max™ French Door Refrigerator Print Proof Stainless Steel
- SKU SKU: SRFB27S3 UPC: 195174054215
- Type French Door Refrigerators
LG Studio CBGS3028S 30 Inch Ultraheat™ Gas Cooktop With Easyclean® Stainless Steel
- SKU SKU: CBGS3028S UPC: 195174040973
- Type Gas Cooktops
LG LDPH7972S 24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™ Print Proof Stainless Steel
- SKU SKU: LDPH7972S UPC: 48231344586
- Type Built-In Dishwashers

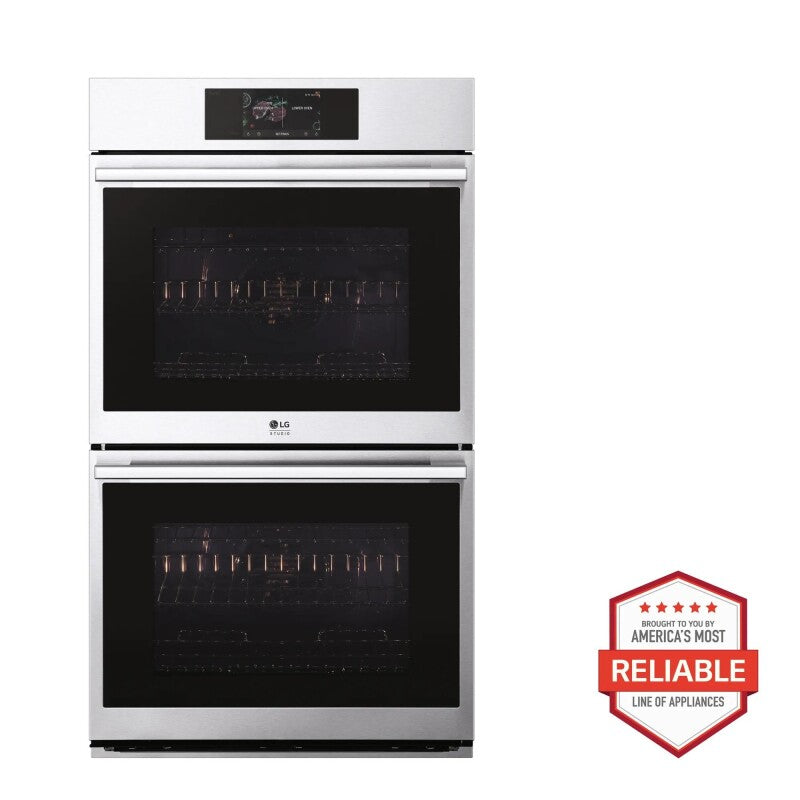

LG Studio WDES9428F 9.4 Cu. Ft. Smart Instaview® Electric Double Built-in Wall Oven With Air Fry & Steam Sous Vide Stainless Steel
- SKU SKU: WDES9428F UPC: 195174022825
- Type Double Wall Ovens
LG Studio LSHD3080ST 30 Inch Wall Mount Chimney Hood Stainless Steel
- SKU SKU: LSHD3080ST UPC: 48231339841
- Type Wall & Chimney Hoods

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$9,773.22 ~~$15,491.99~~ Save $5,718.77 / 36% OFF

Product Details for LG SRFB27S3

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Other

Carton Dimensions (WxHxD)	38" x 73" x 32"
Counter Depth	Yes
Door Edge Clearance with Handle	4.25"
Door Edge Clearance without Handle	2.25"
Installation Clearance	Sides 1/8", Top 1", Back 2"

Capacity

Freezer (cu.ft.)	8.6 cu.ft.
Refrigerator (cu.ft.)	17.9 cu.ft.
Total Capacity (cu.ft.)	26.5 cu.ft.

Convenience

ADA Compliant	No
Auto Closing Door Hinge	Yes
Child Lock	Yes
Door Alarm	Yes
Proactive Customer Care	Yes
Sabbath Mode	Yes
Temperature Controls	Electronic/Digital

Cooling

Door Cooling+

Yes

Energy

Energy Consumption (kWh/Year)	632
ENERGY STAR® Qualified	Yes

Freezer

Door Type	Pull Drawer
Drawer Divider	Yes
Drawers	2-Tier Organization
Freezer Handle	LG Studio Handle
Freezer Light	Premium LED
Ice Bin / In-Door Ice	Icemaker & Ice bin in the freezer

Limited warranty & upc

Compressor (Parts & Labor)	5 Years
Limited Warranty	6-10 Years on Linear / Inverter Compressor (Parts Only)
Parts & Labor	2 Year
Sealed System (Parts & Labor)	5 Years
UPC	195174054215

Materials and finishes

Handle Finish	Light Bronze
Handle Material	Stainless Steel
All Available Colors	PrintProof™ Stainless Steel
Fingerprint & Smudge Resistant Exterior	Yes
Handles	LG Studio Handle
Hidden Hinges	Yes
Surface	Smooth

Refrigerator

Cool Guard	Yes
Crisper Bins	2
Door Bin Construction	1 Piece (Clear)
Glide N’ Serve™ Drawer	Yes
No. of Bins	8
No. of Shelves	4 Split (4 Fixed)
Shelf Construction	Spill Protector™ Tempered Glass

Summary

Display Type	Tact Control / White LED
LG STUDIO	Yes

Refrigerator thinq® smart features

SmartDiagnosis™	Yes
ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
ThinQ UP™	Yes

Water & ice system

Daily Ice Production (lbs)	2.5 lbs
Ice & Water Dispenser	Yes
Ice Storage Capacity (lbs)	4.0 lbs
Water Filter	LT1000P
Water Filtration System	1 Stage

Dimensions & weight

Width	35.75 in.
Height	70.25 in.
Weight	291 lbs.
Carton Dimensions (WxHxD)	38" x 73" x 32"
Depth (Total with Door Open)	43.63"
Depth with Handles	31.63"
Depth without Door	24.88"
Depth without Handles	29.25"
Height to Top of Case	68.88"
Height to Top of Door Hinge	70.25"
Standard Depth	No
Width (Door Open 90˚ with Handle)	44.88"
Width (Door Open 90˚ without Handle)	40"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.75 in.
Shipping Height	75.25 in.
Shipping Weight	331 lbs.
Total of Shipping Weight	331 lbs.
Source	Calculation

Description

The brand LG SRFB27S3 offers superior storage capacity and stylish functionality in a large 27 cu. ft. side-by-side refrigerator. Designed with a contemporary PrintProof™ stainless steel finish, this refrigerator features an intuitive Smooth Touch external dispenser for filtered water and ice, while the Multi-Air Flow cooling system ensures even temperature distribution throughout both compartments. LED lighting brightens the interior for better visibility, and adjustable glass shelves and clear door bins provide versatile storage options. A Door Alarm helps prevent energy loss, and the Smart Diagnosis™ system supports fast troubleshooting if issues arise. With its high capacity and smart design, the LG SRFB27S3 is ideal for busy households that need both convenience and efficiency.

Product Features

Clean Lines for Brilliant Design
A counter-depth design delivers a sleek, built-in look that elevates any space, without sacrificing storage. The ultra-large 27 cu. ft. interior is LG’s largest counter-depth fridge capacity—perfect for holding the charcuterie board for your next dinner party.

Manuals & Guides

Spec Sheet

Key Features

Express Yourself At Home

Upgrade your kitchen with design-led appliances that offer personalized finish options, upscale design details and innovative features that make your space feel good.

Unique Water Dispenser Design

Experience the simple convenience of fresh filtered water without compromising your design vision, thanks to a hidden internal water dispenser.

Keep Food as Fresh as You Are

You keep it creative in the kitchen, and LG Linear Cooling™ makes sure your food stays cool, too. The Linear Compressor reacts quickly to maintain temperatures within 1°F of the setting to help keep produce fresher longer and to help preserve all foods fresh and flavorful.¹

Stay Cool with Door Cooling+

The Door Cooling+ vent extends the reach of LG STUDIO’s Smart Cooling system. Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures from top to bottom. It helps keep all foods fresh and flavorful and keeps produce fresh longer.

Unique Color. Extra Cool.

A Cool Guard metal interior panel wall helps maintain cold air while adding a premium look, thanks to LG STUDIO’S unique charcoal gray interior.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home.2 Manage and monitor your refrigerator remotely, track energy and filter usage, use with Google or Alexa voice assistants, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to notify you of potential issues like temperature changes. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Effortless Beauty

Keep your kitchen looking gorgeous—LG STUDIO’s PrintProof™ fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth.

Always Ready With Ice

A built-in icemaker automatically makes ice cubes, so you’ll always have ice on hand for iced coffees, smoothies or your next big dinner party.

Videos

Reviews

Product Details
From The Manufacturer
Videos
Reviews

$9,773.22 ~~$15,491.99~~ Save $5,718.77 / 36% OFF

Product Details for LG CBGS3028S

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Dimensions/clearances/weight

Carton Dimensions (in) (W x H x D)	33 15/16 x 9 3/4 x 25 3/8
Cut-Out (WxHxD)	28 1/2" x 19 5/8"
Product (WxHxD)	30" x 3 3/4" x 21"
Shipping Weight (lbs)	68.3 lbs
Product Weight (lbs)	48.5 lbs

Dimensions & weight

Width	30 in.
Height	3.75 in.
Length	21 in.
Weight	48.5 lbs.
Carton Dimensions (in) (W x H x D)	33 15/16 x 9 3/4 x 25 3/8
Shipping Weight (lbs)	68.3 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	8.75 in.
Shipping Length	26 in.
Shipping Weight	88.5 lbs.
Total of Shipping Weight	88.5 lbs.
Source	Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.37 ft³
Dimensional Weight	17 lbs.
Total of Cubes	1.37 ft³
Total of Dimensional Weight	17 lbs.

Accessories

Conversion Kit	Yes
Griddle Plate	Yes
Spray Water Tank	6250049000

Appearance

All Available Colors	Stainless Steel
Cooktop Finish	EasyClean® Stainless Steel
Handle/Knobs	Stainless Steel
Knobs	Aluminum (Metal)

Cooktop

Burner Simmer / BTU - Center	650
Burner Simmer / BTU - Left Front	1270
Burner Simmer / BTU - Left Rear	1270
Burner Simmer / BTU - Right Front	1300
Burner Simmer / BTU - Right Rear	670
Burner/BTU - Center (LNG/LPG)	24000/16000 (LNG/LPG) (Dual, Brass)
Burner/BTU - Left Front	10000/7500 (LNG/LPG)
Burner/BTU - Left Rear	10000/7500 (LNG/LPG)
Burner/BTU - Right Front	13500/14000 (LNG/LPG) (Brass)
Burner/BTU - Right Rear	5000/4000 (LNG/LPG)

Controls

Control Location	Front Center
Cooktop Control Type	Knob
Display	No

Features

Auto Reheat

1270

Lighting

White LED Indicator

Power/ratings

kW at 120V	120v 60hz / 0.12a
Energy Requirements	120 V / 60Hz AC

Summary

LG STUDIO	Yes
Series	LG STUDIO
Type	30" Gas Cooktop

Cooking appliance thinq® smart features

ThinQ® Smart Technology	Yes
Wi-Fi Connectivity	Yes

Venting system

Vent Air Flow (CFM)

Warranty/upc

Parts and Labor	2 Year Parts and Labor
UPC	195174037560

Description

The brand LG STUDIO 30" Smart Built‑In Gas Cooktop CBGS3028S combines professional-grade power with smart convenience. Equipped with five sealed burners — including a high-output 24,000 BTU UltraHeat™ dual burner, two standard brass burners, and dedicated simmer and medium burners — it delivers versatile heat control. The cooktop features a durable EasyClean® PrintProof™ stainless steel surface for effortless cleaning, and sturdy continuous cast iron grates that provide stability and even heat distribution. Innovative LED-backlit metal knobs clearly indicate when burners are active, while Wi‑Fi ThinQ® compatibility enables remote monitoring and smart integration. Additional conveniences include a griddle plate, child/gas lock safety, front-center metal knobs, and a conversion kit for LP or NG. Designed for seamless built‑in installation, this cooktop delivers power, safety, and sophistication for modern home chefs.

Product Features

LG STUDIO ThinQ Offer: Limited warranty extension to 3 years with eligible appliances (up to $185 value) through 12/31/25. Terms applyᶲ
UltraHeat™ Dual Burner lets you elevate your cooking
5 sealed burners, including 2 in solid brass
LG STUDIO 2-year limited limited warranty gives you extra peace of mind
EasyClean® makes it easy to keep your kitchen looking its best
White LED backlit knobs add a little bit of wow with every turn
Beautiful and durable cast iron grates
LG STUDIO 2-year limited warranty gives you extra peace of mind

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$9,773.22 ~~$15,491.99~~ Save $5,718.77 / 36% OFF

Product Details for LG LDPH7972S

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Other

Carton Dimensions (in) (W x H x D)

28" x 34 7/10" x 29 3/5"

Capacity

Lower Rack Dish Height Limit	12.5"
Total Place Settings	15
Upper Rack Dish Height Limit	9"

Certifications

NSF

Yes

Features

Hidden Count Down Timer	Yes
Heated Dry Option	Yes
QuadWash® Pro	Yes
3-Stage Filtration System	Yes
ADA Compliant	No
Detergent and Rinse-Aid Dispenser	Yes
Drying System	Dynamic Heat Dry
End of Cycle Indicator	Beeper + END Indication on Display
Hidden Water Heater	Yes
Hybrid Condensing Drying System	Yes
Inverter Direct Drive Motor	Yes
LoDecibel™ Quiet Operation	42 dBA
Multi-Level (5) Water Direction	No
Number of Options	8(Flex Zone,Steam,High temp,Dry Boost,Delay Start-Up to 12 hours,Control Lock,Night Dry,Remote Start)
Number of Spray Arms	3 (Top, Upper, Lower)
Number of Wash Cycles	10(Auto,Heavy,Delicate,Refresh,Normal,1-Hour,Download Cycle,)
Leak Detection	Yes
Rinse-Aid Indicator	Yes
Safety Float Switch (Leaks)	Yes
SenseClean™ Wash System	Yes
Soil (Turbidity) Sensor	Yes
Time Remaining Indicator	Yes
TrueSteam®	Yes
Variable Spray Intensities	Yes
Vario Wash	Yes
Dynamic Heat Dry™	Yes
1-Hour Wash & Dry	Yes

Limited warranty

Control Board and Rack Parts	2 Years
Direct Drive Motor	10 Years
Labor	1 Year
Parts	1 Year
Stainless Steel Door Liner or Tub	2 Years
UPC	48231344586

Power ratings

CEE Tier	1
ENERGY STAR® Qualified	Yes
Energy Use (kWh/Year)	238
Water Factor (WF)	2.9

Racks and baskets

3rd Rack (Fixed)	No
BPA-Free Nylon Coated Racks and Tines	Yes
Cup Rack	Yes
Cutlery Baskets	Yes
EasyRack™ Plus System	Yes
Fold Down Tines	Yes (Fully Fold on Upper & Fully (Smart) on Lower)
Glide Rail	Yes
Height Adjustable Middle Rack	Yes
Height Adjustable Upper Rack	Yes
Height-Adjustable 3rd Rack	Yes
Rack Handle	Yes
Stemware Holder	Yes
Wheel Bearing	Yes

Style and design

All Available Colors	PrintProof™ Black Stainless Steel
Control Panel Location	Top Control
Electronic Controls	Fully Integrated Control Panel
Fingerprint Resistant	Yes
Handle	Pocket
LED Tub Light	Yes
PrintProof™ Finish	Yes
Tub Light	Yes
Tub Material	NeveRust™ Stainless Steel

Summary

Series

Dishwasher thinq® smart features

Monitor Cycle Time	Yes
NFC Tag On	No
Remote Control	No
Remote Monitoring	Yes
SmartDiagnosis™	Yes
SmartThinQ®	No
ThinQ® Smart Technology	Yes
wi-fi Enabled	Yes
ThinQ UP™	Yes

Dimensions & weight

Width	23.75 in.
Height	33.63 in.
Length	24.63 in.
Weight	92.15 lbs.
Carton Dimensions (in) (W x H x D)	28" x 34 7/10" x 29 3/5"
Depth with Door Closed with Handle (in)	26.81"
Depth with Door Open (in)	49.25"
Shipping Weight with Carton (lbs)	104.27 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.75 in.
Shipping Height	38.63 in.
Shipping Length	29.63 in.
Shipping Weight	132.15 lbs.
Total of Shipping Weight	132.15 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.38 ft³
Dimensional Weight	141.48 lbs.
Total of Cubes	11.38 ft³
Total of Dimensional Weight	141.48 lbs.

Description

Ready to de-stress with a high performance dishwasher? Look no further than the LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam®. With its advanced features and cutting-edge technology, this dishwasher is the perfect addition to any modern kitchen. The LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam® is a top-of-the-line dishwasher that makes cleaning dishes a breeze. With the 1-Hour Wash & Dry feature, you can say goodbye to waiting hours for your dishes to be ready. This feature allows you to have sparkling clean and dry dishes in just one hour, saving you time and hassle. The QuadWash® Pro system is designed to provide thorough cleaning with its four powerful spray arms. The arms rotate back and forth while spinning, ensuring that every dish is thoroughly cleaned. No more worrying about stubborn stains or stuck-on food. The QuadWash® Pro system will take care of it all. TrueSteam® technology is another powerful feature that sets this dishwasher apart from the rest. It uses high-temperature steam to provide powerful cleaning and sanitization. This means that your dishes will not only look clean but will also be free from harmful bacteria and germs. This dishwasher is more than just a cleaning machine. It's also designed to make your life easier with a handy slider, hidden LED display, and EasyRack® system that allows for maximum flexibility in loading dishes. Plus, the interior LED lighting makes it easy to see everything inside. You'll have plenty of room to fit everything with 15 total place settings, whether you're hosting a dinner party or just cooking for the family. Plus, with the option of PrintProof® black or classic stainless steel, this dishwasher is sure to match any kitchen décor. Don't settle for a subpar dishwasher. Upgrade to the LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam® today and enjoy clean, dry dishes with ease.

Product Features

The Industry's Leading 1-Hour Wash & Dry
LG's exclusive QuadWash® Pro and Dynamic Heat Dry™ technologies combine to deliver the industry's leading 1-hour wash and dry cycle1 for sparkling, table-ready dishes in less time. So you can spend more time on what matters.
Pro-Level Cleaning Performance
Tackle post-dinner cleanup like a pro with the enhanced cleaning power of QuadWash® Pro. High-pressure jets with 38% more cleaning power2, spray dishes from multiple angles, while soaking them with over one million microbubbles to help break down stubborn food residue and provide exceptional cleaning performance.
Drier than Ever
Our Dynamic Heat Dry™ technology circulates hot air throughout the dishwasher for faster, more complete drying3 that won't melt your plastics, delivering sparkling, table-ready dishes right off the rack.

Manuals & Guides

Key Features

Clean, Sanitize, and Reduce Water Spots

LG TrueSteam® uses the power of steam to penetrate food residue and help eliminate water spots by up to 60%4. Plus, LG dishwashers are certified by the National Sanitation Foundation to reduce bacteria on dishes by 99.999% and reach a final rinse temperature greater than 150°F when operated on the Steam cycle5 for peace of mind.

Keep an Eye on the Clock

Conveniently manage your time with a hidden LED display that counts down the remaining cycle time. When the dishwasher is not in use, the display disappears for a sleek look.

Make Room for Last-Minute Items

Use the handy slider to adjust the 3rd rack height—even when fully loaded—to make room for taller items at the last minute. Not only can you save time and wash fewer loads, it’s also a convenient spot for hard-to-fit items like flatware, long-handled utensils or small espresso cups.

Easy installation with pros and DIYers in mind

LG dishwashers are built with pros and DIYers in mind. Every dishwasher comes with a thoughtfully built base and standard hardware designs that helps save time and money. Every LG dishwasher includes features such as: Flexible Mounting, Factory-Installed 3/8" Brass Fitting and 6-Foot Drain House to help prevent leaking, Faster Leveling, Quick-Access Junction Box, No-Fuss Insulation Blanket, and Universal Installation Parts.

Brilliant Visibility

Now you can check on dishes in an instant with the help of interior LED lighting. Two integrated tub lights turn on when the dishwasher door is opened, so you can easily check on your favorite mug.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app7 offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your dishwasher remotely, track and download cycles, connect with Google or Alexa voice assistants, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to notify you of potential issues like water leakage. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Built In Leak Protection for Peace of Mind

ThinQ monitors water supply, drainage and leakage and will notify you if any issues arise after installation. Built right in for worry-free operation. Compatible models with ThinQ Care will alert you as soon as there is an issue.6

More Flexibility Means No Dish Gets Left Behind

EasyRack Plus® lets you fit more dishes, run fewer loads and make short work of after-dinner cleanup. With three height settings, the upper rack adjusts effortlessly and smoothly to make room for tall stemware on top or oversize pans below. Customizable tines offer greater flexibility for loading dishes of all shapes and sizes without compromising cleaning performance.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$9,773.22 ~~$15,491.99~~ Save $5,718.77 / 36% OFF

Product Details for LG WDES9428F

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Other

Interior (WxHxD)	24 1/2" x 17 5/8" x 18 7/8"
Shipping Dimensions (WxHxD)	34" x 57" x 30"

Accessories

Broiler pan	Yes
Gliding Rack	8
Griddle Plate	Yes
Meat Probe	Yes
Spray Bottle	No

Appearance

Handle Type	Bar
All Available Colors	Stainless Steel
Handle	Stainless Steel
Oven Door Feature	InstaView® & WideView™ Window
PrintProof™ Finish	Yes

Capacity

Lower Oven Capacity (cu. ft.)	4.7 cu.ft.
Total Capacity	9.4 cu.ft.
Upper Oven Capacity (cu. ft.)	4.7 cu.ft.

Controls

Automatic Safety Shut-Off	After 12 hours
Clock	12 hr or 24 hr (option)
Cooking Complete Reminder Volume	1. High 2. Low 3. Mute
Display	7" TFT LCD
Kitchen Timer	Yes
Language	English, French, Spanish
Oven Control Type	Glass Touch
Sabbath Mode	Yes
Temperature Unit of Measure	Celsius, Fahrenheit
Timed Cook	Yes

Features

EasyClean® Interior

Yes

Lower oven features

# of lights

Oven features

Bake Element	2,500 watts
Bake element type	Hidden (8 pass)
Broil Element	2,500W Inner / 1,500W Outer
Convection (Watt)	2,000 watts (Sheath heater)
Convection Conversion	Yes
Convection Fan	Single Speed
Oven Cleaning Type	EasyClean® + Self Clean
Oven Cooking System	True Convection
Oven Light	2 Halogen
Oven Modes	Bake, Speed Broil, Warm, Pizza, Self Clean, EasyClean, Delayed Timed Cook, Timed Cook, Conv. Bake, Conv. Roast, Speed Roast, Warm, Proof
Proof	Yes
Self Clean	Yes
Variable broil	Yes
Variable cleaning time	Yes
Variable warm	Yes

Power/ratings

Amp at 120V	42.5
KW Rating at 240V	10.2kw
Energy Requirements	60 Hz / 240 V, 208 V

Summary

LG STUDIO	Yes
Type	Double Wall Oven

Cooking appliance thinq® smart features

3rd Party Recipe App	Sidechef
Check & Control	Yes
NFC Tag On	No
SmartDiagnosis™	Yes
ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
Wi-Fi Connectivity	Yes

Upper oven features

Broil element pass

Venting system

Exhaust Grease Filter

Warranty/upc

Parts & Labor	2 Years
UPC	195174022825

Dimensions & weight

Weight	238 lbs.
Shipping Dimensions (WxHxD)	34" x 57" x 30"
Shipping Weight (lbs)	302 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	278 lbs.
Total of Shipping Weight	278 lbs.
Source	Manufacturer

Description

The brand LG WDES9428F is a high-performance 30-inch wall oven finished in premium Stainless Steel. It features ProBake Convection for even baking, a user-friendly 4.3‑inch full-color touch display, and Sabbath mode for observant families. Additional attributes include self-clean functionality, two adjustable racks with easy-grip handles, halogen oven lighting, and temperature probe support—designed for reliable and precise cooking.

Product Features

Put the Spotlight on What’s Cooking
Check on food in an instant with two quick knocks. The uniquely designed InstaView® window lets you see inside your oven without ever opening the door and letting heat escape - and it's extra wide to see even more.

Manuals & Guides

Specifications

Key Features

Even The Controls Look Good

Elevate your space with an impressive 7" LCD touch display that lets you activate your cooktop with a few simple touches. And it doesn’t just look impressive—it’s also easy to clean.

Designed for the Perfect Fit

The kitchen of your dreams is in the details. LG STUDIO wall ovens give you the option of a flush installation or the traditional position—so it looks just the way you want.

Cooking Confidence Comes Built-In

Bring on the crowd pleasers—now you can cook and bake with ease, thanks to LG’s True Convection oven that delivers precise heat for crisp, delicious results. Our convection technology evenly distributes continual precise heat so food is delicious on the inside, and crisp on the outside.

Enjoy Unique Features Like Air Fry

Air Fry delivers crispy flavor fast with no preheating required. Just press Air Fry to prepare favorite snacks like french fries, hot wings and more. High temperatures and the convection fan work together to deliver the flavor and crunch you crave without the oil—or the guilt.

Tap Into New Cooking Techniques Like Steam Sous Vide

Using low oven temperatures and airflow around vacuum sealed ingredients, Air Sous Vide locks in moisture and aroma to deliver meats, fish and poultry that are juicy, tender and consistently delicious.1

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life. Manage and monitor your oven remotely, send it cooking instructions with ThinQ Recipe or scan-to-cook², connect with Google or Alexa voice assistants, and access Smart Diagnosis, customer support, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to help them run smoothly. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Fits Your Look—and More Food

With LG STUDIO's large capacity oven, you can make enough to feed your whole family—and your friends, too. Whether you’re hosting a dinner party or making a holiday feast, this oven fits it all beautifully.

Videos

Reviews

Product Details
Key Features
From The Manufacturer
Videos
Reviews

$9,773.22 ~~$15,491.99~~ Save $5,718.77 / 36% OFF

Product Details for LG LSHD3080ST

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Appearance

All Available Colors

Black Stainless Steel (BD), Stainless Steel (ST )

Controls

5-Speed IR Touch Controls	Yes
Control Type	IR Touch

Features

Auto Delay-Off	Yes
Filters	Decorative Mesh (2) Dishwasher-Safe
RoHS Compliant	Yes

Lighting

Dual-Level Lighting	Yes
Lighting	9W LED Light Strip

Lower oven features

Broil element pass

Power/ratings

Circuit Breaker Size	15 A
Ratings/Requirements/Type	120V, 4Amps, 60Hz
UL Listed	Yes

Summary

5” Low-Profile Body	Yes
Decorative Mesh Filters	Yes
LG STUDIO	Yes

Cooking appliance thinq® smart features

ThinQ® Smart Technology	Yes
Wi-Fi Connectivity	Yes

Venting system

CFM (min-max)	200-600
Sones (min-max)	1-6
Vertical Internal Blower	6” Round

Warranty/upc

Parts and Labor	2 Year Parts and Labor
UPC	048231339841

Dimensions & weight

Width	35.44 in.
Height	27 in.
Length	22.06 in.
Carton Dimensions (in) (W x H x D)	34 1/4" x 27 3/8" x 26 5/8"
Surface Width	30"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.44 in.
Shipping Height	32 in.
Shipping Length	27.06 in.
Source	Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	12.22 ft³
Dimensional Weight	151.87 lbs.
Total of Cubes	12.22 ft³
Total of Dimensional Weight	151.87 lbs.

Description

The LG LSHD3080ST is a sophisticated 30-inch wall mount chimney range hood designed to enhance your kitchen's functionality and aesthetics. Its 600 CFM internal blower efficiently removes smoke, steam, and cooking odors, while the 5-speed IR touch controls allow for precise ventilation adjustments. The dual-level LED lighting illuminates your cooktop, providing clear visibility during meal preparation. With Wi-Fi capabilities through the ThinQ® app, you can remotely control fan speeds and lighting, adding convenience to your cooking experience. The hood's low-profile 5-inch body and fingerprint & smudge-resistant stainless steel finish offer a modern, streamlined look that complements any kitchen design. Additionally, the dishwasher-safe decorative mesh filters ensure easy maintenance, and the hood is designed to accommodate ceilings up to 9'6".

Key Features

Low Profile. Big on Design.

The streamlined look of the elevated chimney-style hood vent offers plenty of design appeal for 30” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.

Seamless Design for Effortless Control

The built-in touch pads give you complete control over 5 fan speeds, delay-off function, auto reminders and Airflow Control Technology. This LG STUDIO hood vent also illuminates your cooktop with brilliant dual-level LED lighting, so you’ll always have perfect lighting for cooking, entertaining or relaxing at home.

Keep Things Comfortable in the Kitchen

The LG STUDIO hood vent offers superior ventilation to quickly neutralize smoke, grease and cooking odors. The professional-grade blower adjusts from 200 to 600 CFM for greater ventilation, so whether you’re hosting or relaxing, you’ll have the moisture and odor removal you need.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your hood remotely, sync it with a smart LG range or cooktop to automatically activate the light and vent when the cooktop is in use, and more. Learn more.
