Sale price $1,802.50 Regular price $2,749.99 Save $947.49 / 34% OFF

Product Details for KoolMore KMPHF4C

Technical Details

Product details

Model Number KM-PHF-4C
Certifications UL Listed for Safety
Amps 2.5
Hertz 60
Phase 1
Voltage 115
Wattage 220
Plug Type NEMA 5-15P
Power Cord Length 67
Energy Consumption KWH Year 255.5 KWH/year
Electrical Installation Type Plug-in
Interior Depth 18.11
Interior Width 17.91
Interior Height 23.43
Depth Excluding Handles 23.62
Depth Including Handles 25.78
Depth Less Door 21.26
Depth With Door Open 90 Degrees 45.59
Height to Top of Door Hinge 32.07
Height To Top Of Case 32.09
Minimum Back Air Clearance 7.87 In.
Minimum Side Air Clearance 7.87 In.
Defrost Type Manual
Cooling Unit Type Static
Compressor Location Bottom
Horsepower 0.5
Control Type Digital
Door Style Swing
Number Of Doors 1
Individual Shelf Capacity 39
Shelves Adjustable No
Number Of Shelves 3
Temperature Range -13-14 F
Ambient Temperature Range 50-90 F
Installation Type Under Counter
Top Cooling Technology No
Backup Battery Hours 20
Backup Battery Type Built-in Cell Battery
Backup Battery Replaceable No
Backup Battery Rechargeable Yes
Data Logging Yes

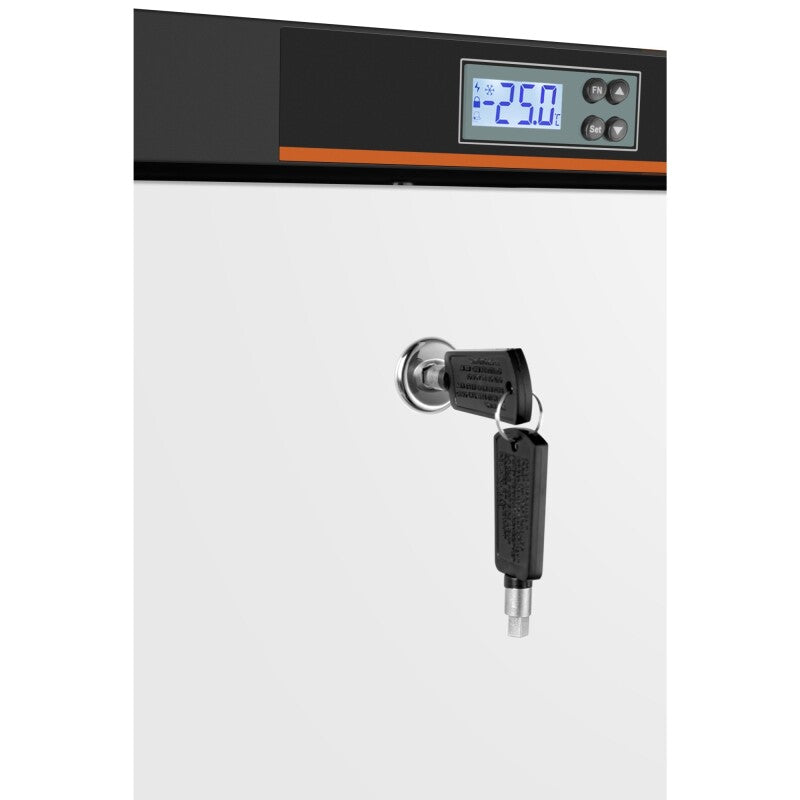

Safety Lock Yes
Low Temp Alarm Yes
High Temp Alarm Yes
Ambient Temp Alarm Yes
Power Failure Alarm Yes
Sensor Failure Alarm Yes
Door Ajar Alarm Yes
Remote Alarm Yes
Build In Air Duct No
Sensor Count 2
Color Finish White
Interior Lights No
Door Material Steel and Foam
Self Closing Door No
Temperature Pull Down Time -13 F in 57 Min.
Temperature Variation <3.9 C

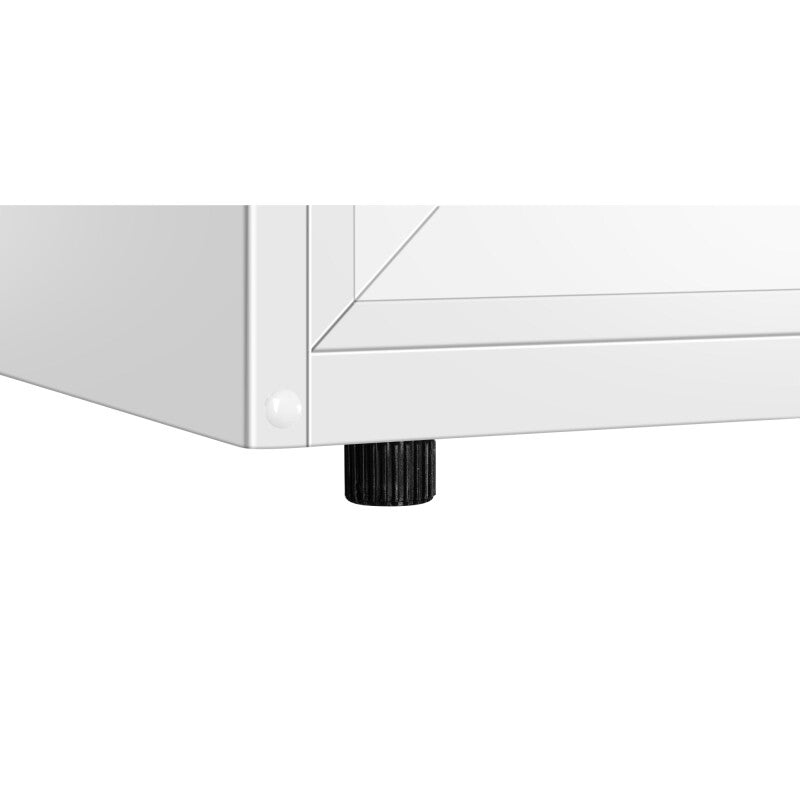

Legs Adjustable 4 Adjustable Legs, <1 in.
Warranty 1-Year Parts and Labor; 5-Year Compressor Warranty

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.62 Inch
Shipping Height 37.09 Inch
Shipping Length 29.02 Inch
Shipping Weight 134 lbs
Total of Shipping Weight 134 lbs
Source Calculation

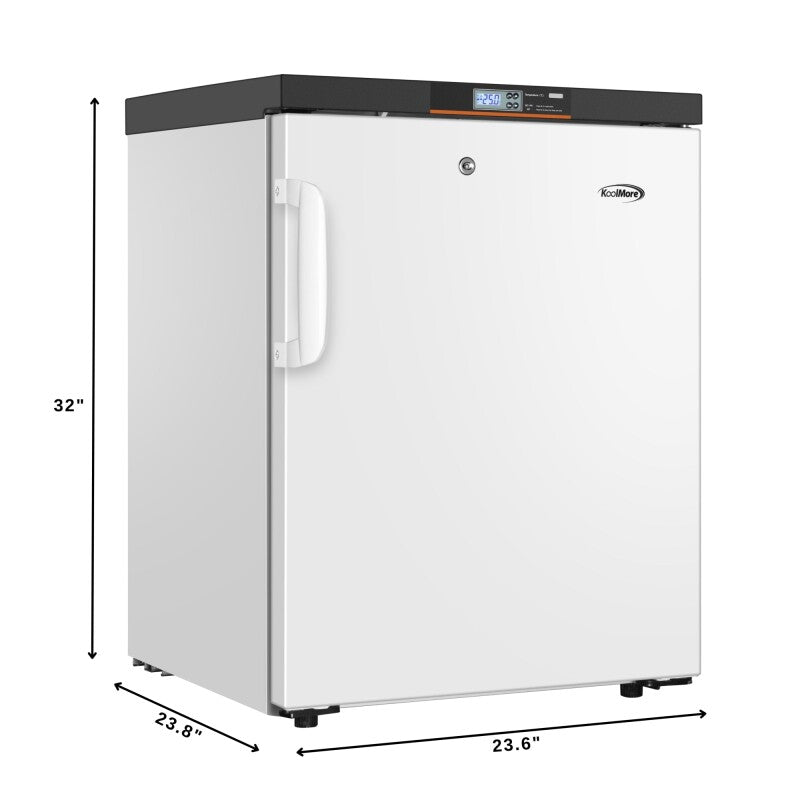

Dimensions & weight

Width 23.62 Inch
Height 32.09 Inch
Depth 24.02 Inch
Weight 94 lbs

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.54 ft³
Dimensional Weight 130.98 Ibs
Total of Cubes 10.54 ft³
Total of Dimensional Weight 130.98 Ibs

Description

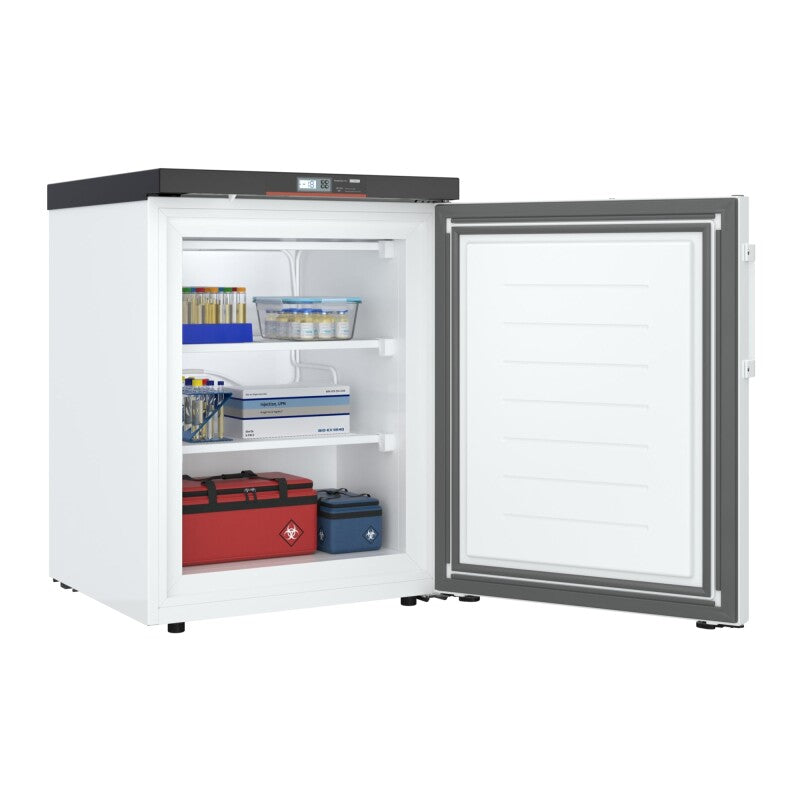

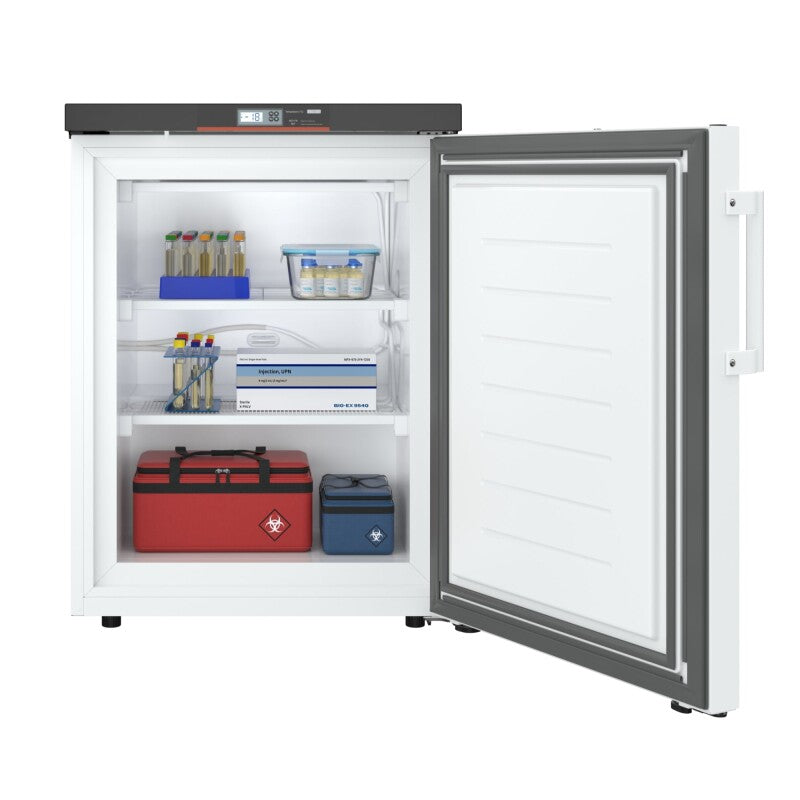

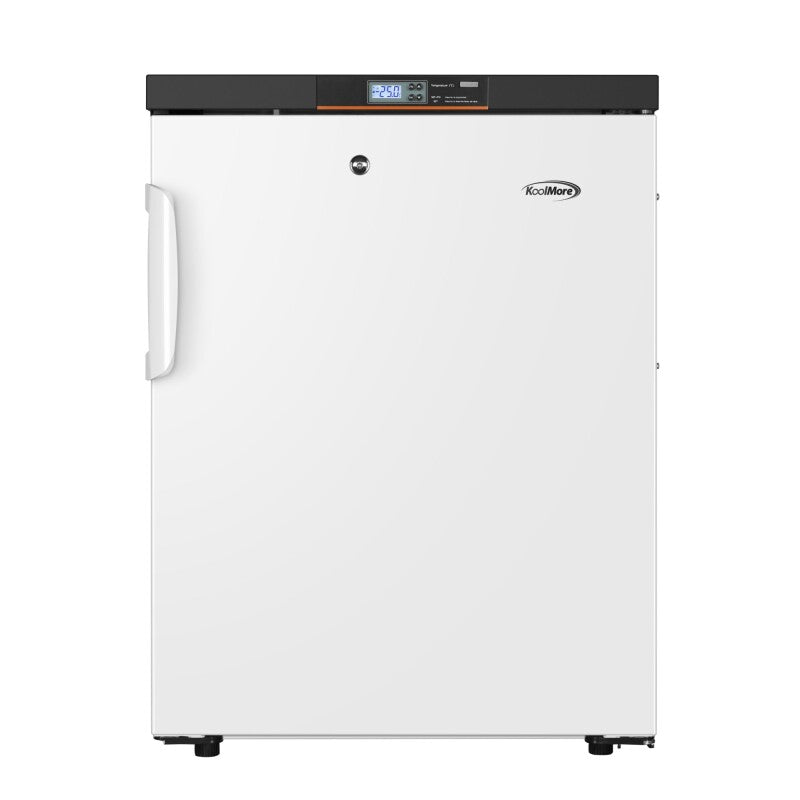

KoolMore 4 Cu. Ft. Under-Counter Medical Freezer. KoolMore 4 Cu. Ft. Under-Counter Medical Freezer. The KoolMore Under-Counter Medical Freezer is the ideal solution for optimizing space and ensuring the secure storage of sensitive materials in medical and laboratory environments. The KoolMore Under-Counter Medical Freezer is the ideal solution for optimizing space and ensuring the secure storage of sensitive materials in medical and laboratory environments. With a 4 Cu. Ft. capacity, this freezer is engineered for precision and reliability, featuring a microcontroller that maintains a stable temperature range of -25°C to -10°C with an accuracy of ±0. 1°C. With a 4 Cu. Ft. capacity, this freezer is engineered for precision and reliability, featuring a microcontroller that maintains a stable temperature range of -25°C to -10°C with an accuracy of ±0. 1°C. The unit's advanced insulation, comprising high-density foam and magnetic door closure, delivers superior energy efficiency and temperature stability. The unit's advanced insulation, comprising high-density foam and magnetic door closure, delivers superior energy efficiency and temperature stability. Equipped with a comprehensive alarm system, including alerts for temperature fluctuations, power failures, and door-ajar incidents, providing peace of mind in critical storage applications. Equipped with a comprehensive alarm system, including alerts for temperature fluctuations, power failures, and door-ajar incidents, providing peace of mind in critical storage applications. Data logging via a USB port and compatibility with remote monitoring software ensures continuous tracking of storage conditions, while a 20-hour rechargeable backup battery supports alarm and logging functions during power outages. Data logging via a USB port and compatibility with remote monitoring software ensures continuous tracking of storage conditions, while a 20-hour rechargeable backup battery supports alarm and logging functions during power outages. Built with durable steel and foam, this freezer is quiet, operating at just 50 dB, and includes a reliable small-angle door closure for consistent performance. Built with durable steel and foam, this freezer is quiet, operating at just 50 dB, and includes a reliable small-angle door closure for consistent performance. UL-certified and backed by a 1-year warranty, the KM-PHF-4C offers a complete package of advanced features and dependable support for your storage needs. UL-certified and backed by a 1-year warranty, the KM-PHF-4C offers a complete package of advanced features and dependable support for your storage needs.


Product Features

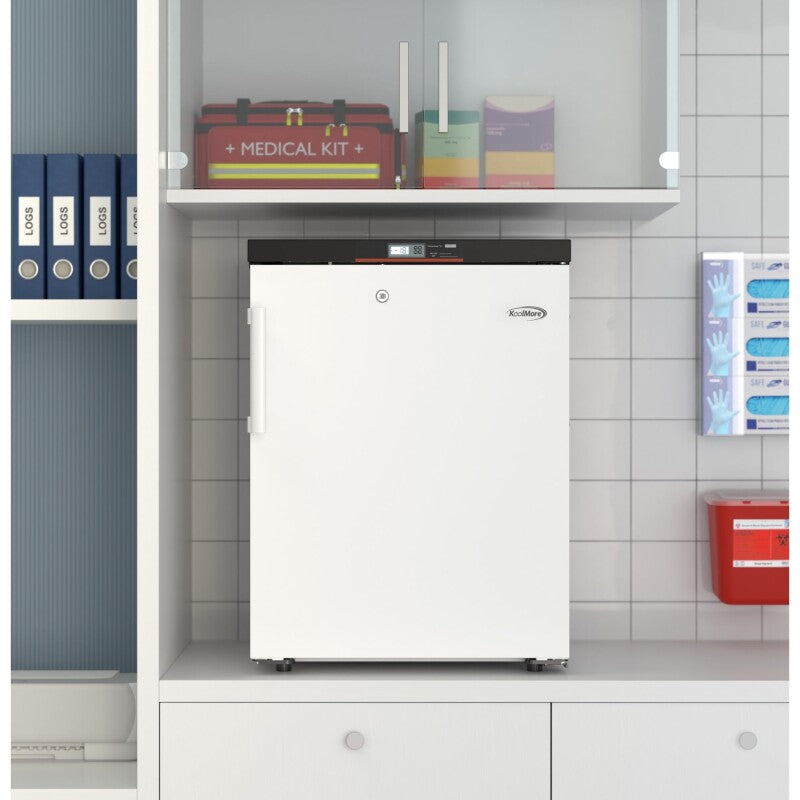

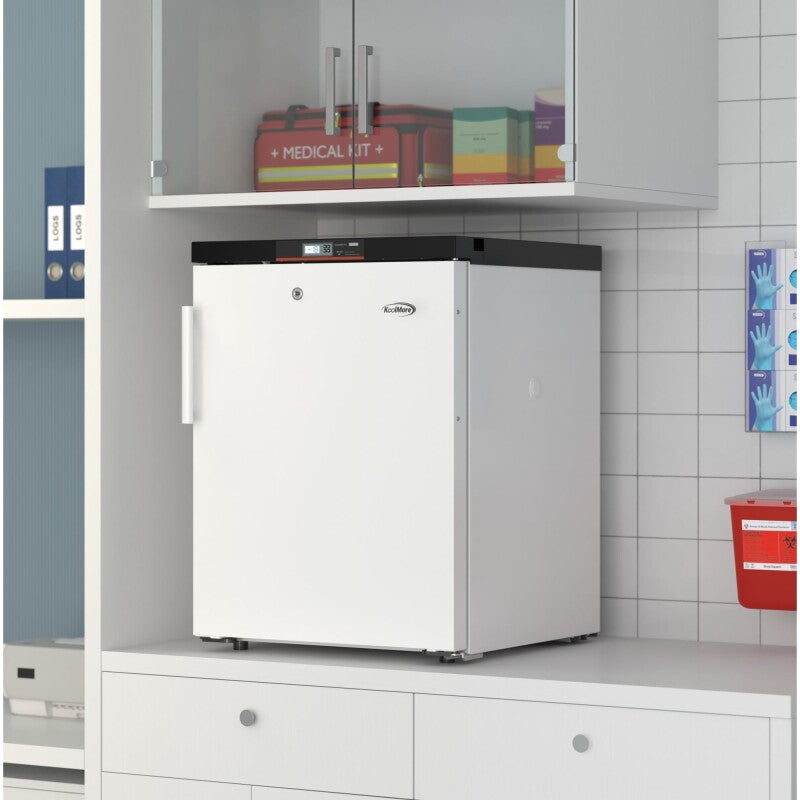

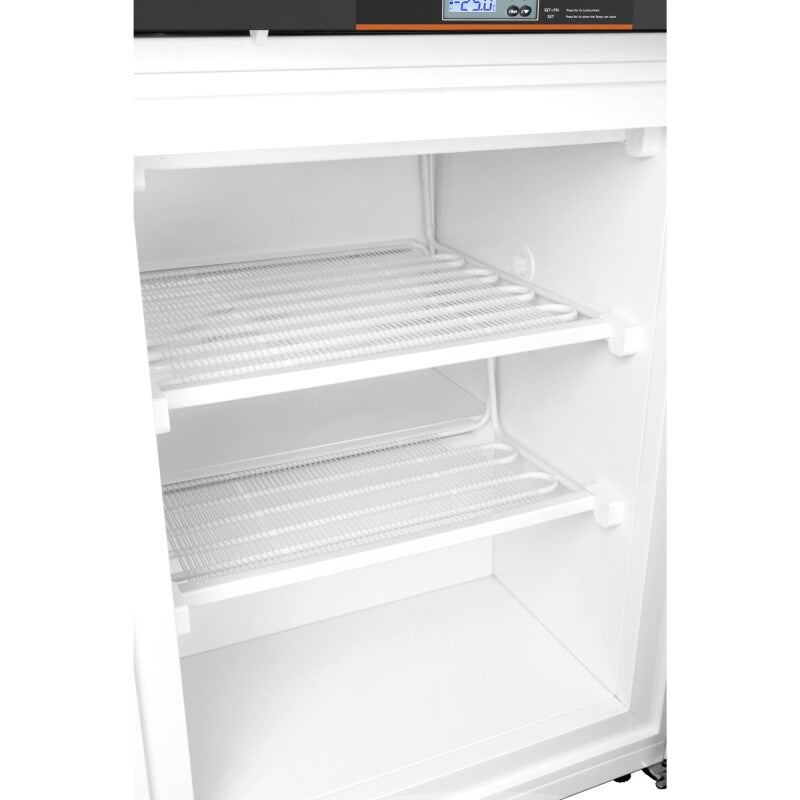

  • Under-counter Design

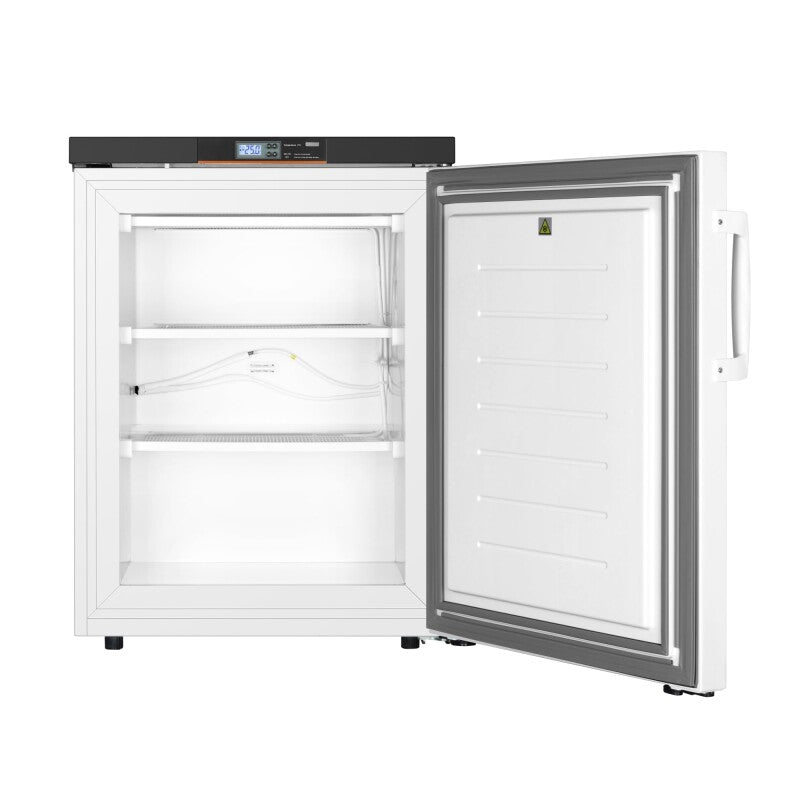

    4 Cu. Ft. capacity with 3 shelves, specially designed to fit seamlessly under counters, optimizing space in medical and laboratory environments.
  • Superior Insulation
    High-density foam and a magnetic door closure ensure excellent insulation and energy efficiency.
  • Comprehensive Alarm System
    Equipped with alarms for low/high temperature, power failure, sensor failure, door ajar, and ambient temperature changes, providing complete peace of mind.
  • Data Logging and Connectivity
    Features a USB port for easy data logging and is compatible with most remote monitoring software, ensuring continuous tracking of storage conditions.

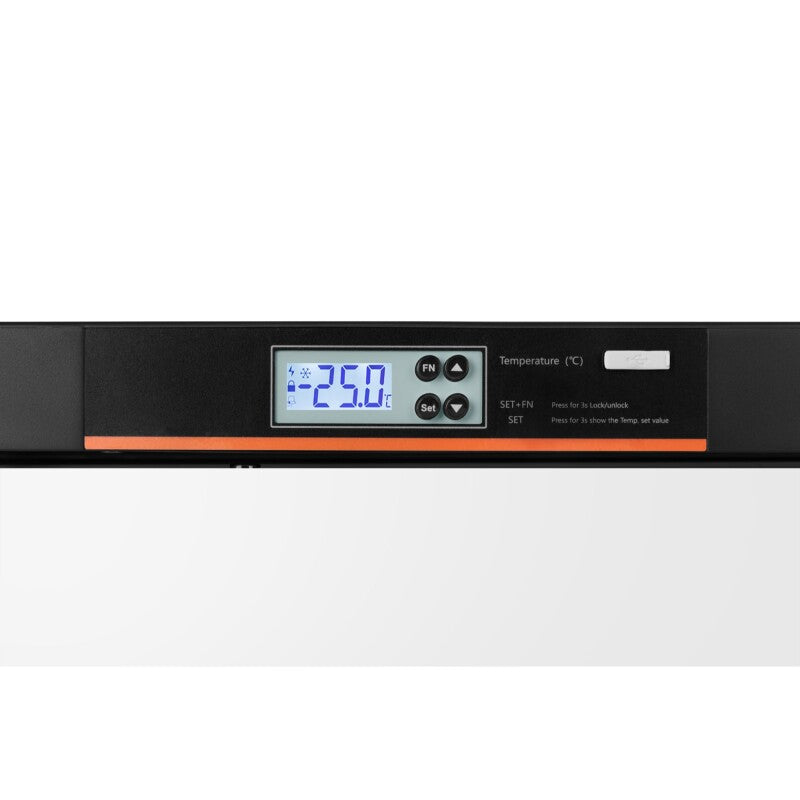

  • Precise Temperature Control
    Microcontroller provides accurate temperature control within a range of -25°C to -10°C, displayed in Celsius, with precision of ±0.1°C, maintaining uniformity and stability within the unit (Temperature is displayed in Celsius (°C) only).
  • Backup Battery System
    Includes a 20-hour built-in rechargeable battery for continuous operation of alarms and data logging during power outages.
  • Quick Temperature Pull-Down
    Achieves target temperature (-25°C) in just 57 minutes, ensuring rapid cooling when needed.
  • Robust Build Quality
    Constructed with durable steel and foam materials, designed to withstand the demands of a commercial environment.
  • Quiet Operation
    Operates at a low noise level of 50 dB, making it suitable for various professional settings.

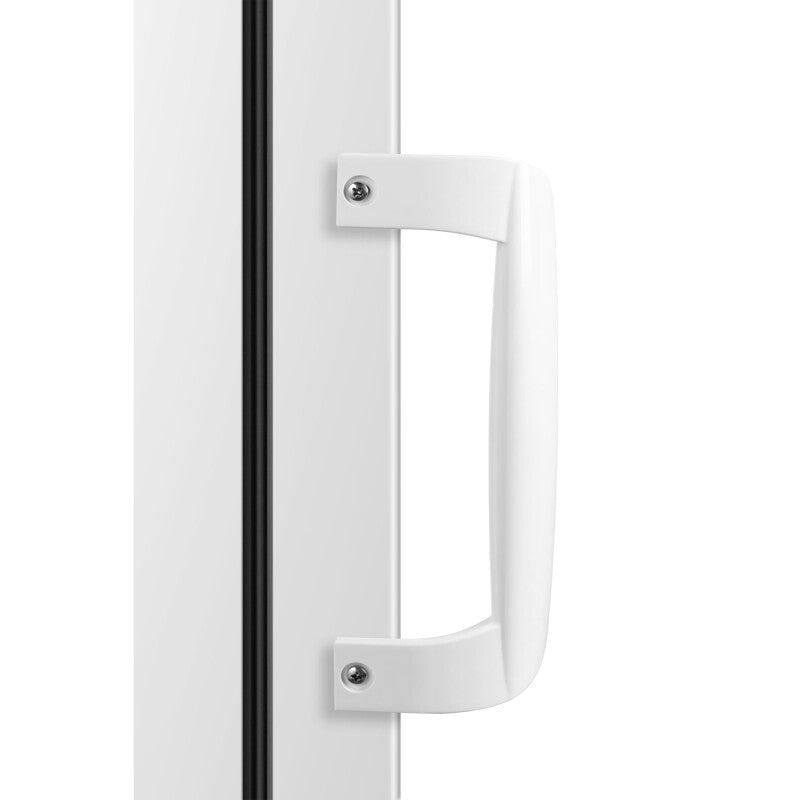

  • Reliable Door Closure
    Features a small-angle close mechanism with a magnetic door closure to maintain internal temperature and ensure energy efficiency.
  • UL Certified and 1 Year Manufacturer's Warranty
    Built to meet stringent UL safety standards, guaranteeing reliable performance, and backed by a comprehensive 1-year warranty covering parts and labor, ensuring support and service should you require assistance.
