Sale price $3,149.10 Regular price $3,498.97 Save $349.87 / 9% OFF

Product Details for KitchenAid KSDB900ESS

Technical Details

Controls

Display Color Red, White
Electronic Display Type Digital

Cooktop details

Auto Re-ignition No
Cooktop Surface Color Color Coordinated
Ignition Type Electronic
Cooktop Surface Material Stainless Steel
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Griddle Included No

Certifications

ADA Compliant ADA Height and Operation Compliant
Prop 65 Standard
UL Yes

Electrical

Amps 40
Power Cord Included No
Volts 240

Dimensions & weight

Width 29.88 in.
Height 36 in.
Length 28.88 in.
Weight 251 lbs.
Carton Depth 30 9/16
Carton Height 43 1/2
Carton Width 31 1/2
Depth Closed Excluding Handles 26 3/8
Depth Closed Including Handles 28 7/8
Depth With Door Open 90 Degree 48 3/4
Gross Weight 251
Net Weight 233.0
Depth Closed Excluding Handles(IN,inches) 26.3750
Depth Closed Including Handles(IN,inches) 28.8750
Depth With Door Open 90 Degree(IN,inches) 48.7500
Net Weight(LB,pounds) 233
Carton Depth(IN,inches) 30.5625
Carton Height(IN,inches) 43.5000
Carton Width(IN,inches) 31.5000
Gross Weight(LB,pounds) 251

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 41 in.
Shipping Length 33.88 in.
Shipping Weight 291 lbs.
Total of Shipping Weight 291 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 17.97 ft³
Dimensional Weight 223.42 lbs.
Total of Cubes 17.97 ft³
Total of Dimensional Weight 223.42 lbs.

Details

Fuel Type Dual Fuel
LP Convertible Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible No
Range Configuration Slide-In
Range Type Slide-in

Element/burner details

Center Rear Element-Burner Type Sealed Burner
Cooktop Element Style Gas Burner
Left Front Element-Burner Type Sealed Burner
Left Rear Element-Burner Type Sealed Burner
Number of Cooking Element-Burners 5
Right Front Element-Burner Type Sealed Burner
Right Rear Element-Burner Type Sealed Burner
Center Rear Element-Burner Power 8,000 BTU
Left Front Element-Burner Power 19,000 BTU
Left Rear Element-Burner Power 5,000 BTU
Number of Grates 2
Right Front Element-Burner Power 15,000 BTU
Right Rear Element-Burner Power 9,200 BTU

Exterior details

Door Type Metal & Glass
Oven Control Type Electronic Touch
Oven Window Size Large
Handle Color Stainless Steel
Handle Material Metal
Handle Type Towel Bar
Knob Color Stainless Steel
Knob Type Metal

Grate details

Number of Grates 2
Grate Details Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

Oven cavity details

Automatic Convection Conversion Temperature Adjust Yes
Bake Element Power 3,600 W
Broiler Element Power 4,000 W
Broiler Location Top of Oven
Convection Element Type Fan
Convection Functions Bake, Broil, Roast
Hidden Bake Element Yes
Interior Color Grey
Number of Oven Lights 2
Number of Rack Guides 7
Oven Cleaning Type AquaLift® Self Clean
Oven Cooking System Convection
Oven Light Type Incandescent
Convection Element Power 3,200 w
Number of Oven Racks 2
Oven Rack Type 1 Steam Rack, 1 Gliding Roll-out Rack

Features

Range Features ADA Compliant, Baking Drawer, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Clean

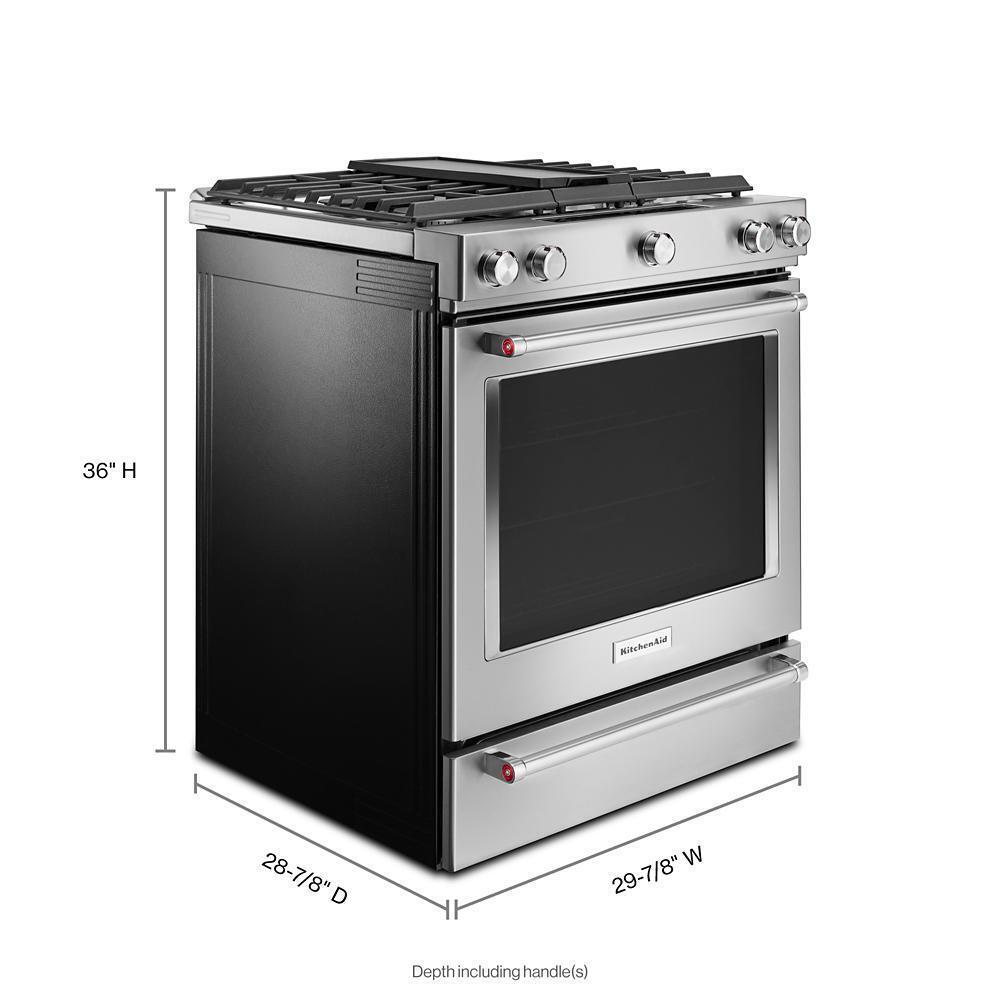

Dimensions

Capacity 7.1 cu. ft.
Common Size 30 in
Depth 28-7/8 in
Depth Closed Excluding Handles 26-3/8 in
Depth Closed Including Handles 28-7/8 in
Depth With Door Open 90 Degree 48-3/4 in
Gross Weight 251 lbs
Height 36 in
Net Weight 233 lbs
Oven Interior Depth 20-1/8 in
Oven Interior Height 22-1/8 in
Oven Interior Width 24-1/8 in
Width 29-7/8 in

Description

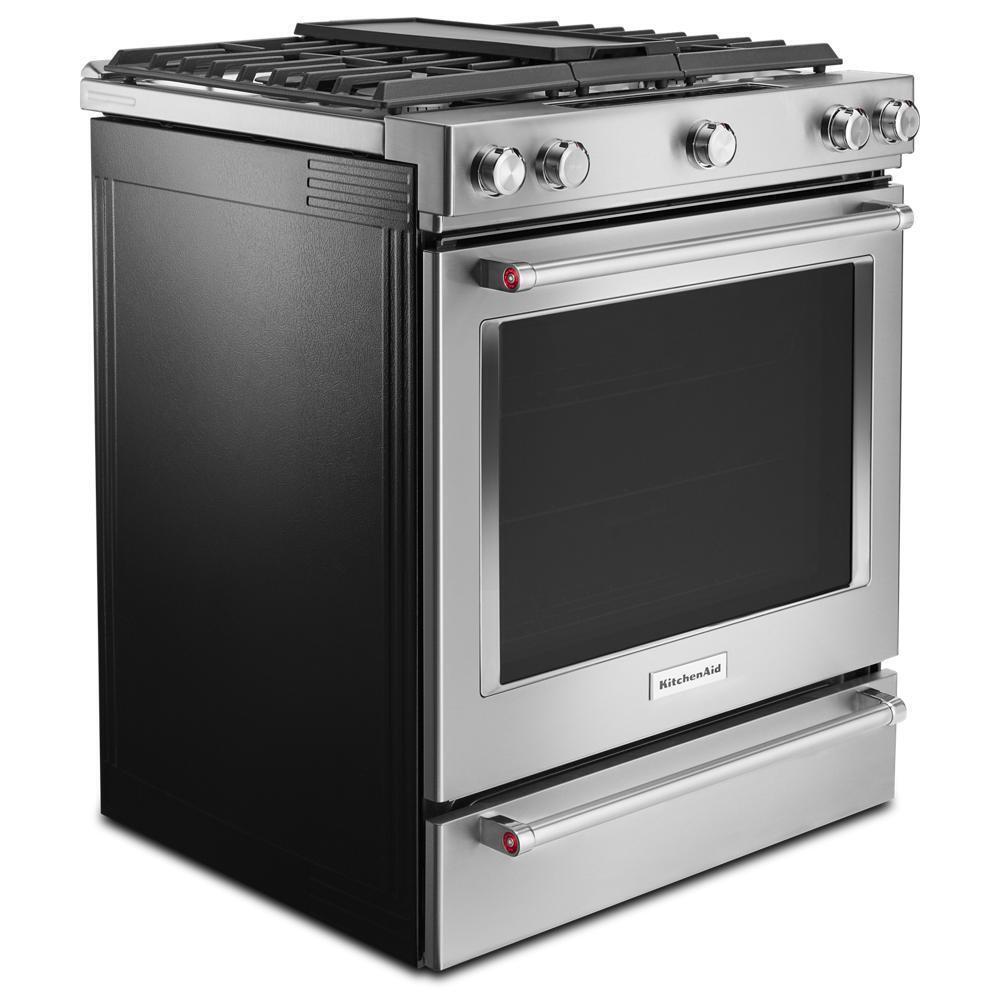

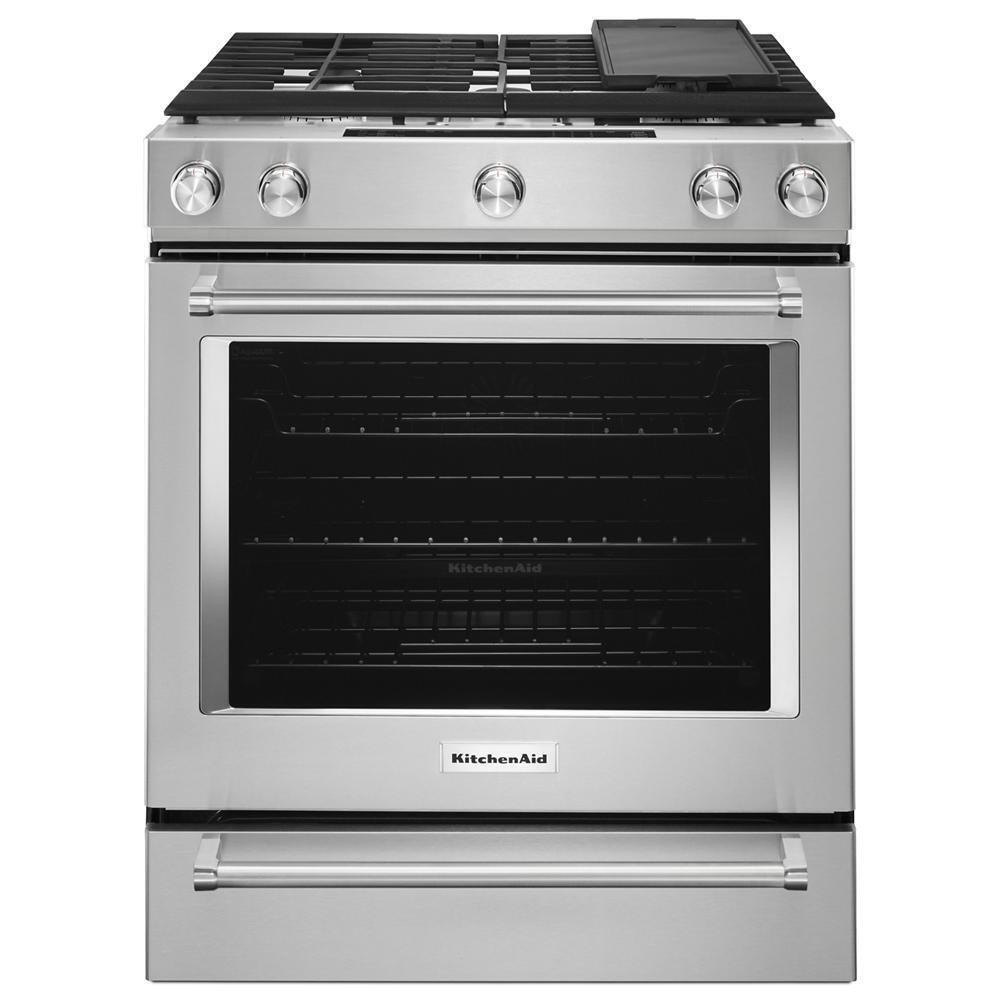

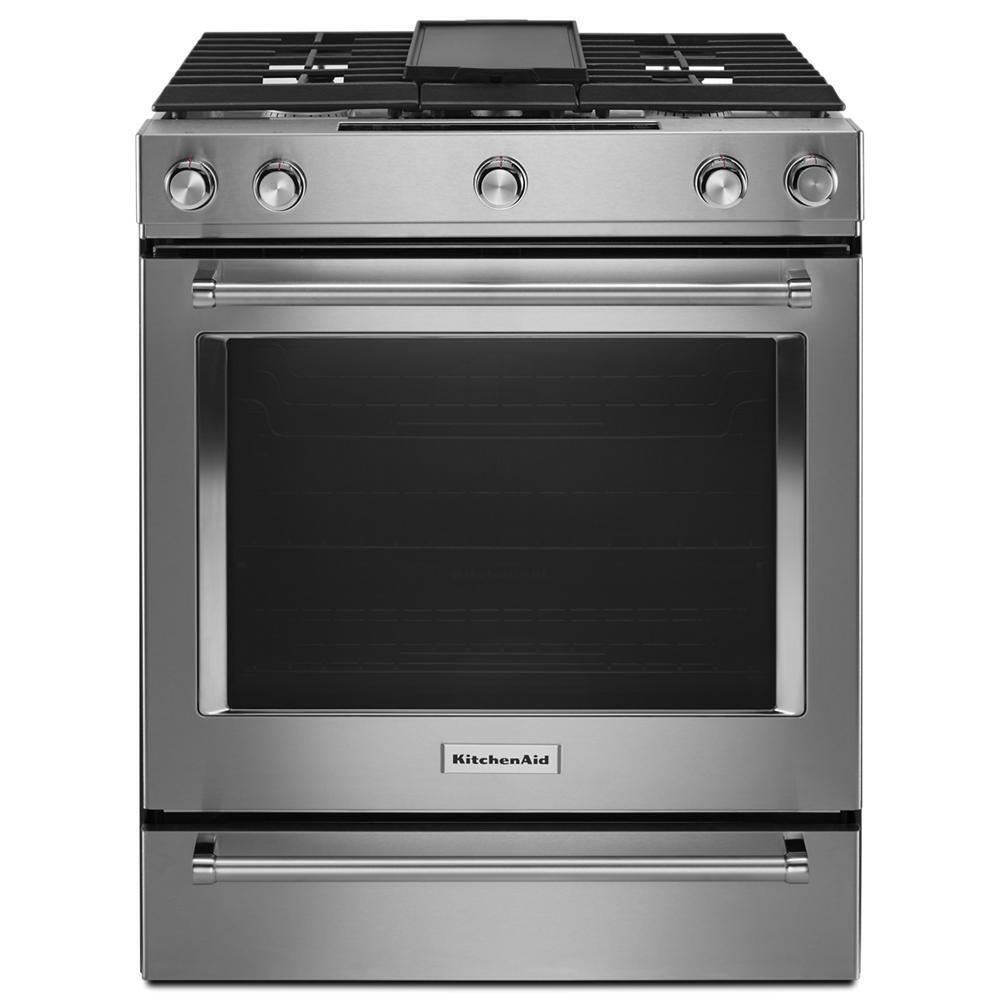

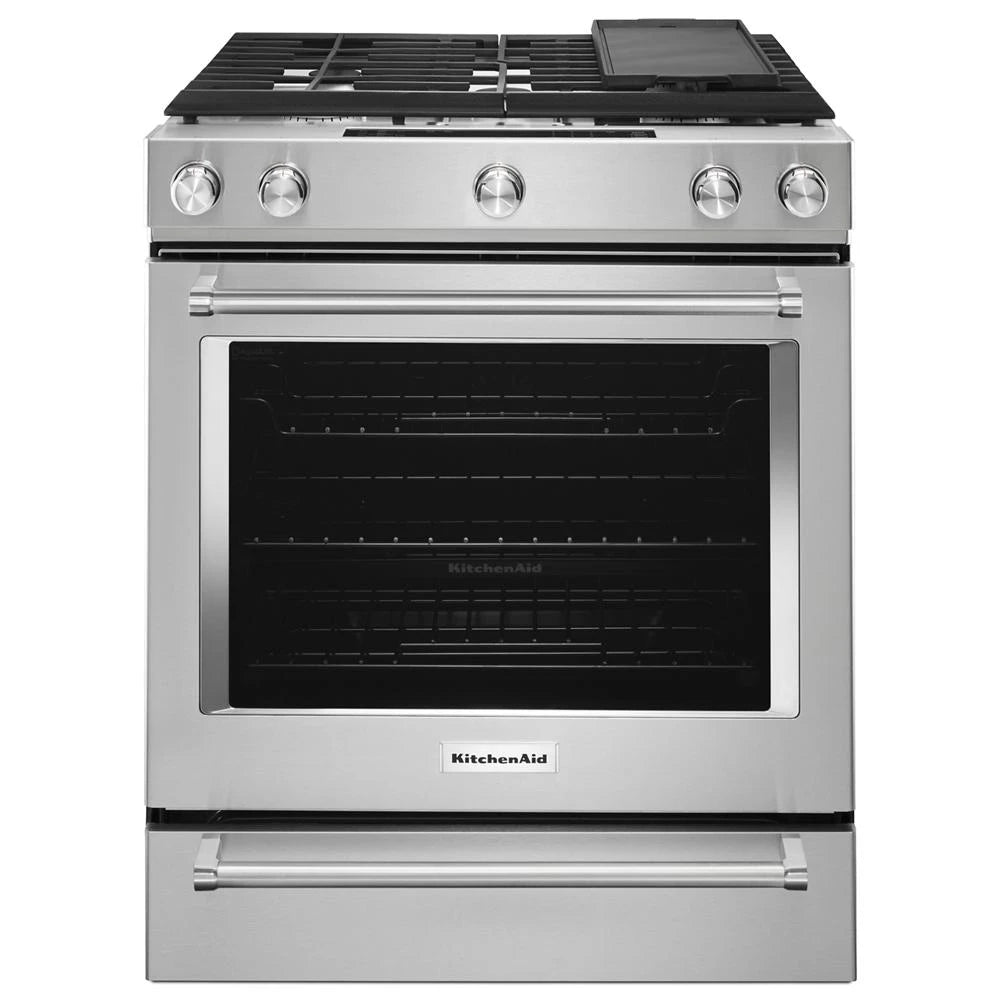

KitchenAid 30" Dual Fuel Range with Even-Heat™ True Convection 7.1 Cu. Ft. Oven and Baking Drawer


Product Features

  • Baking Drawer
    Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

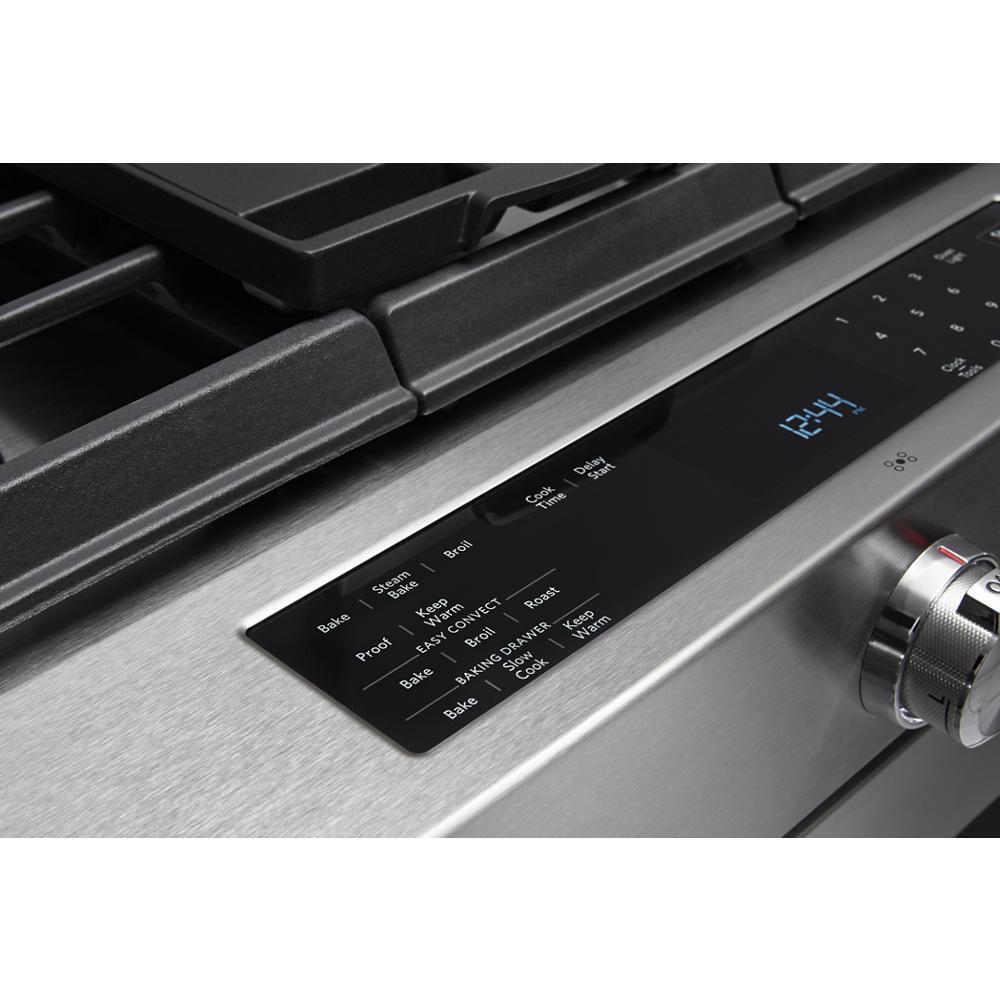

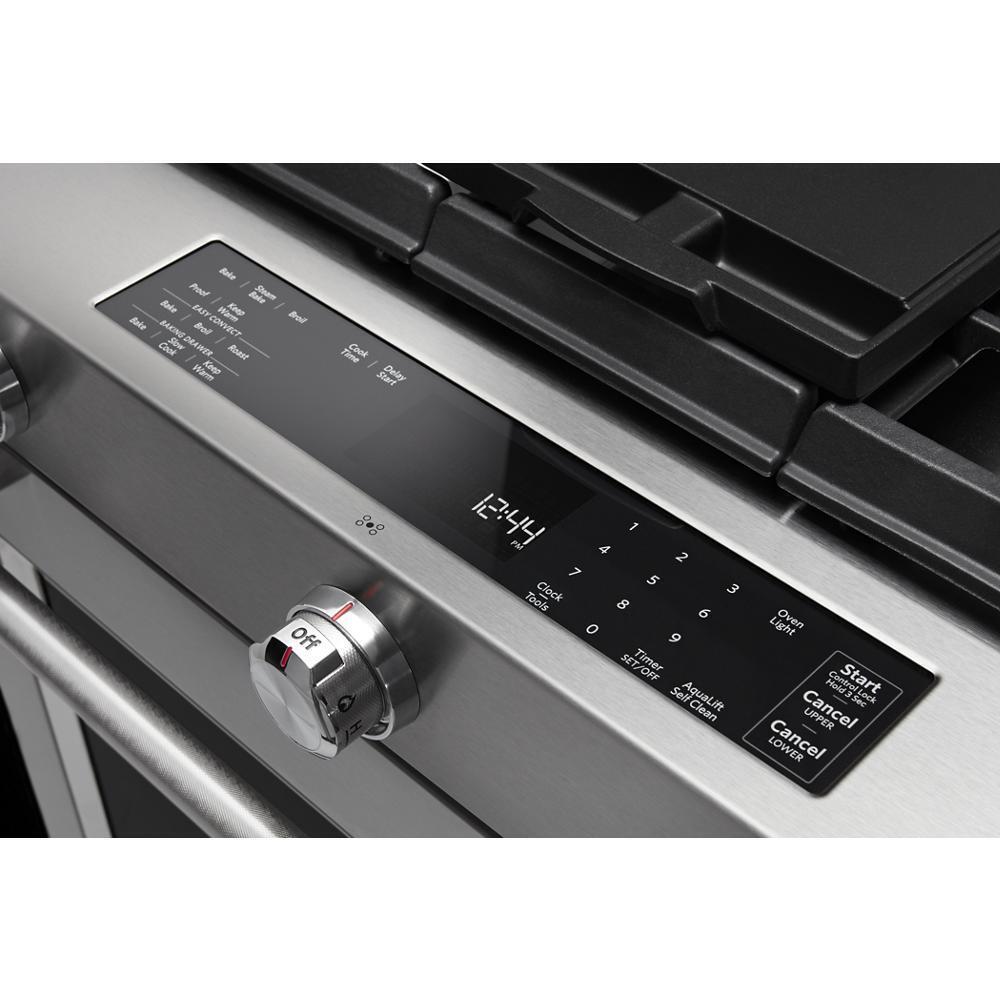

  • Glass Touch Controls
    Offer an intuitive, easy-to-use touch screen experience.
  • Side Trim Accessory Kit
    This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
  • Continuous Interlocking Grates
    Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
  • Steam Rack
    Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

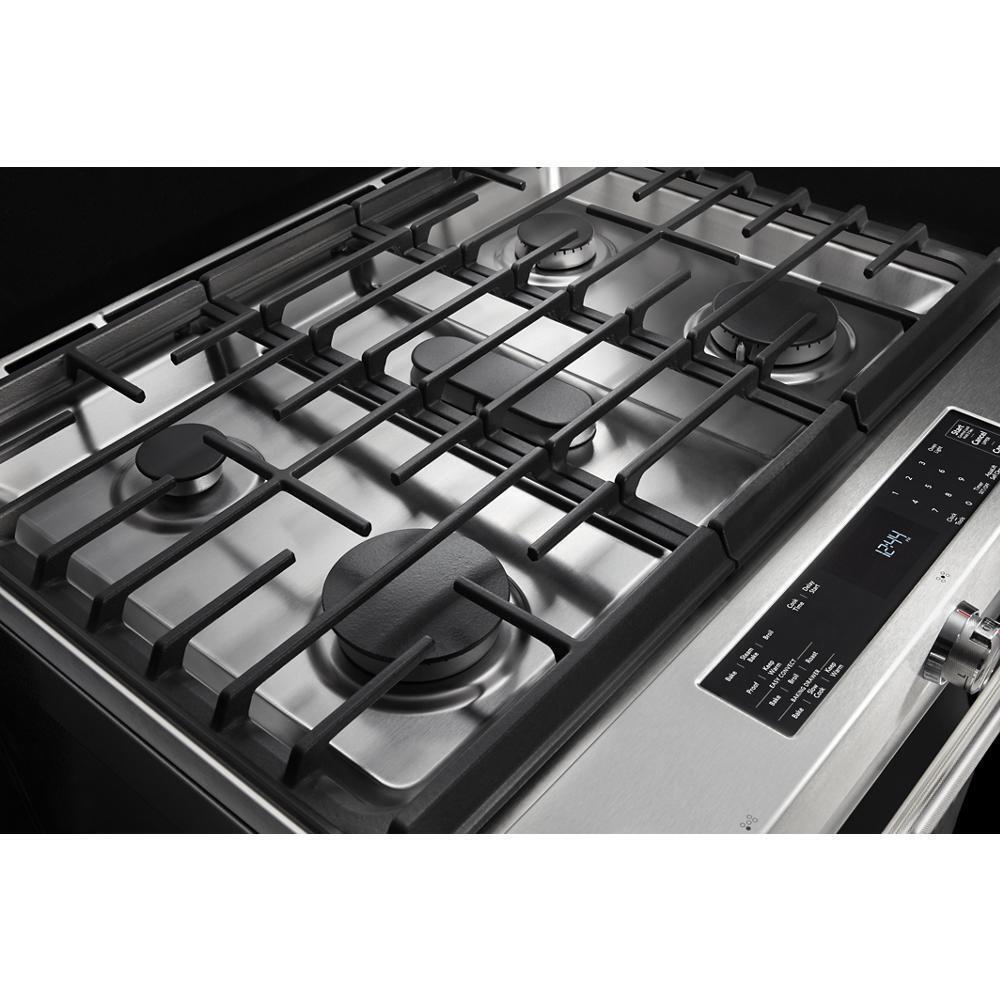

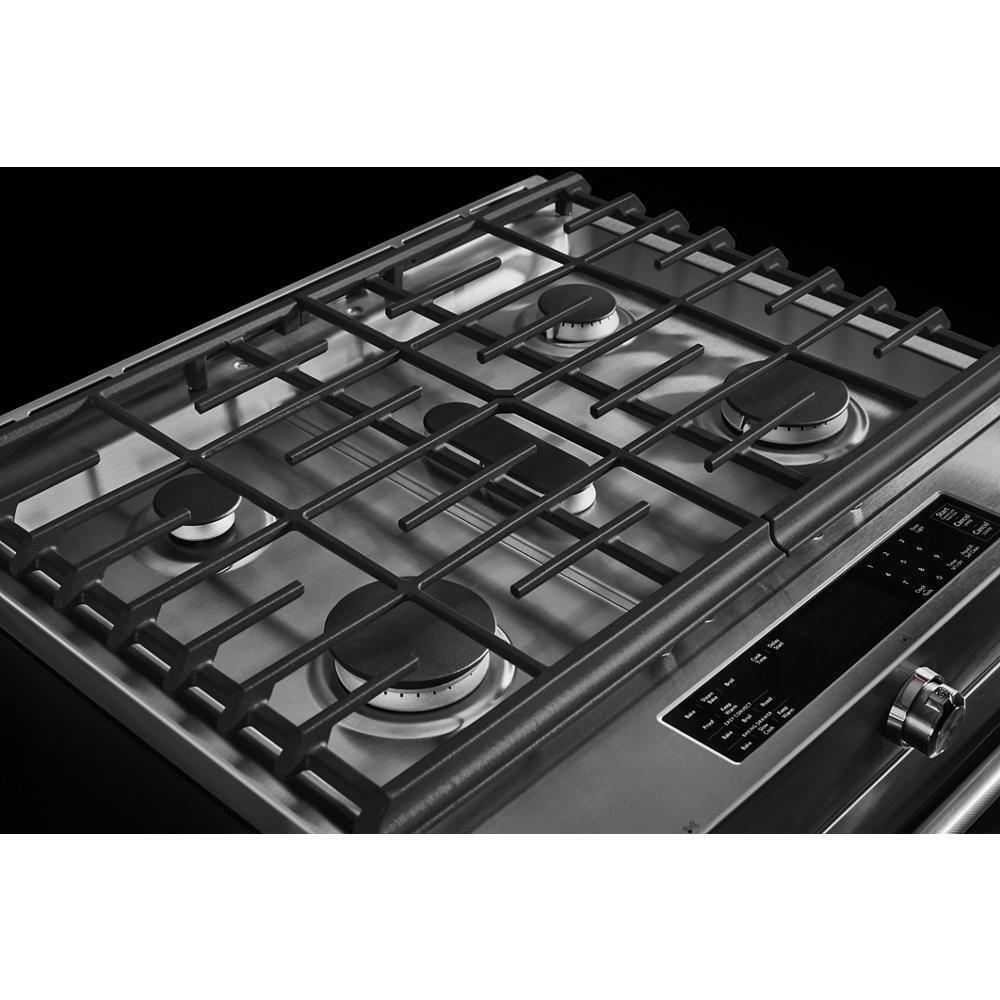

  • 5 burners (5k, 8k, 9.2k, 15k and 19k)
    Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.

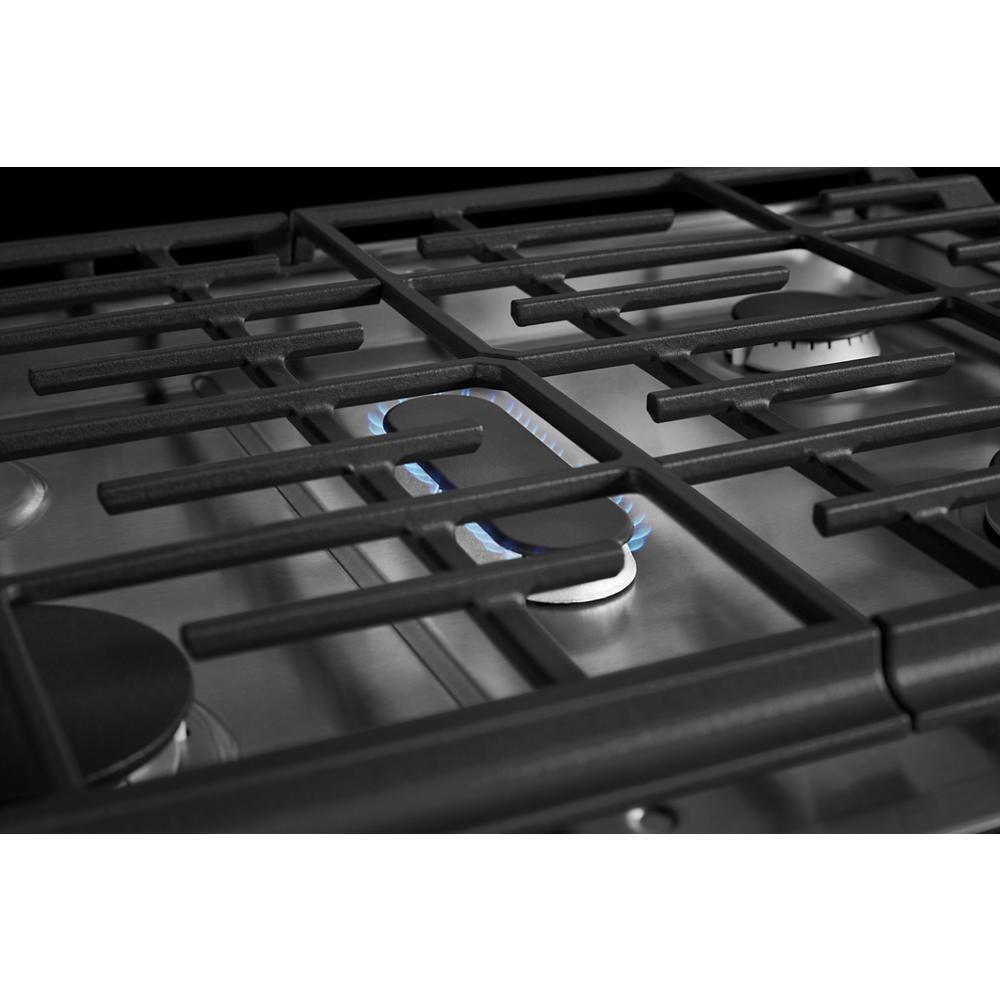

  • 8K Center Oval Burner
    Fits large griddles and other longer cookware on this 8,000 BTU fifth burner so they heat evenly on the range top.

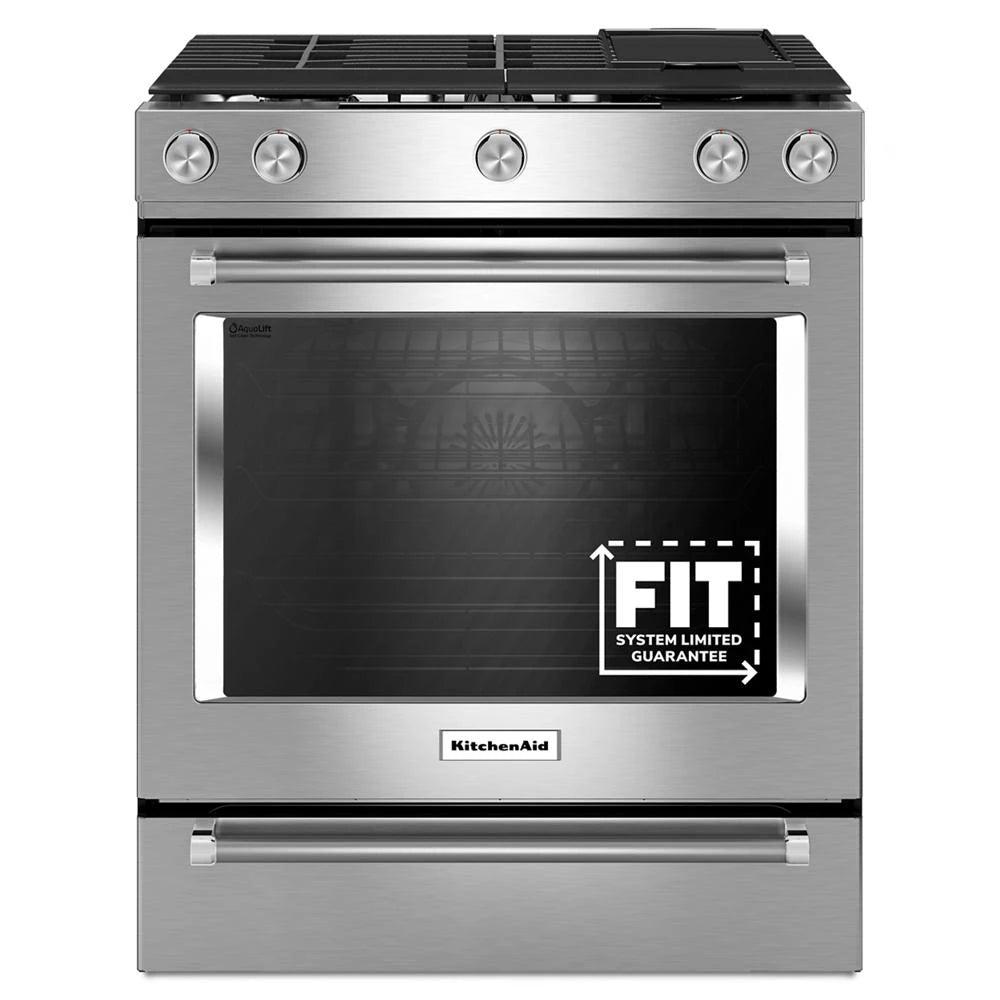

  • FIT Guarantee
    Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

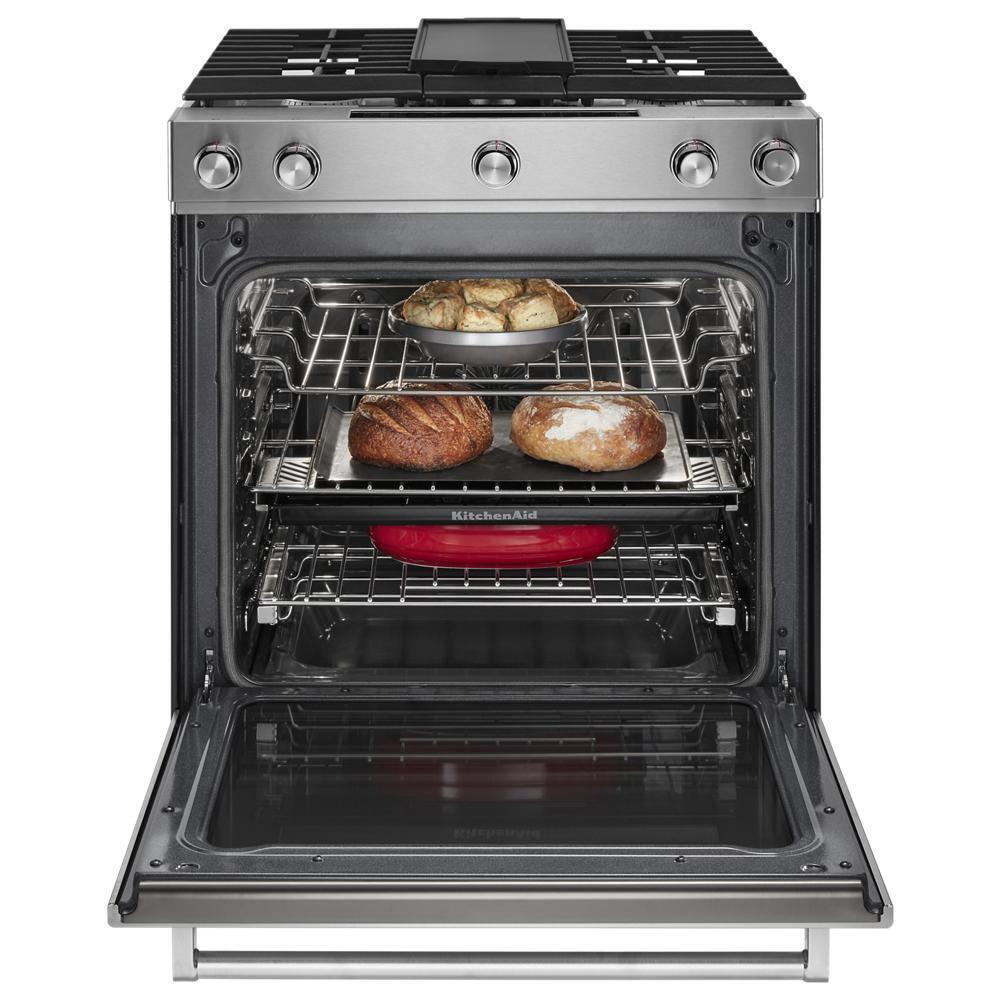

  • 7.1 Cu Ft. Total Capacity
    This slide-in range provide an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
  • Aqualift®
    Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
  • EasyConvect™ Conversion
    Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
  • Even-Heat™ True Convection
    Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.

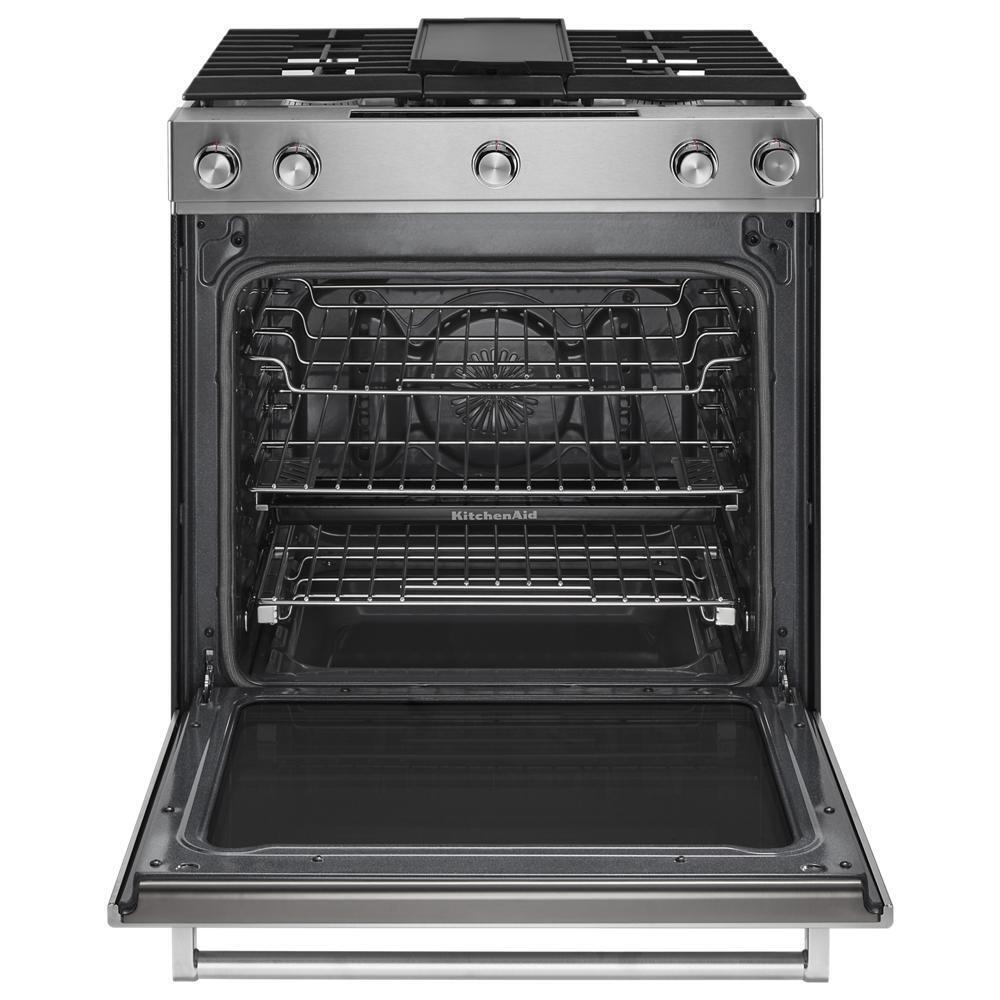

  • SatinGlide® Max Racks
    Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
  • Max Capacity Rack (Sold separately)
    The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.
