Kitchen Appliances, Kitchen & Dining, Home & Garden
Rebate Available

SKU: KRBR109ESS | UPC: 883049361024

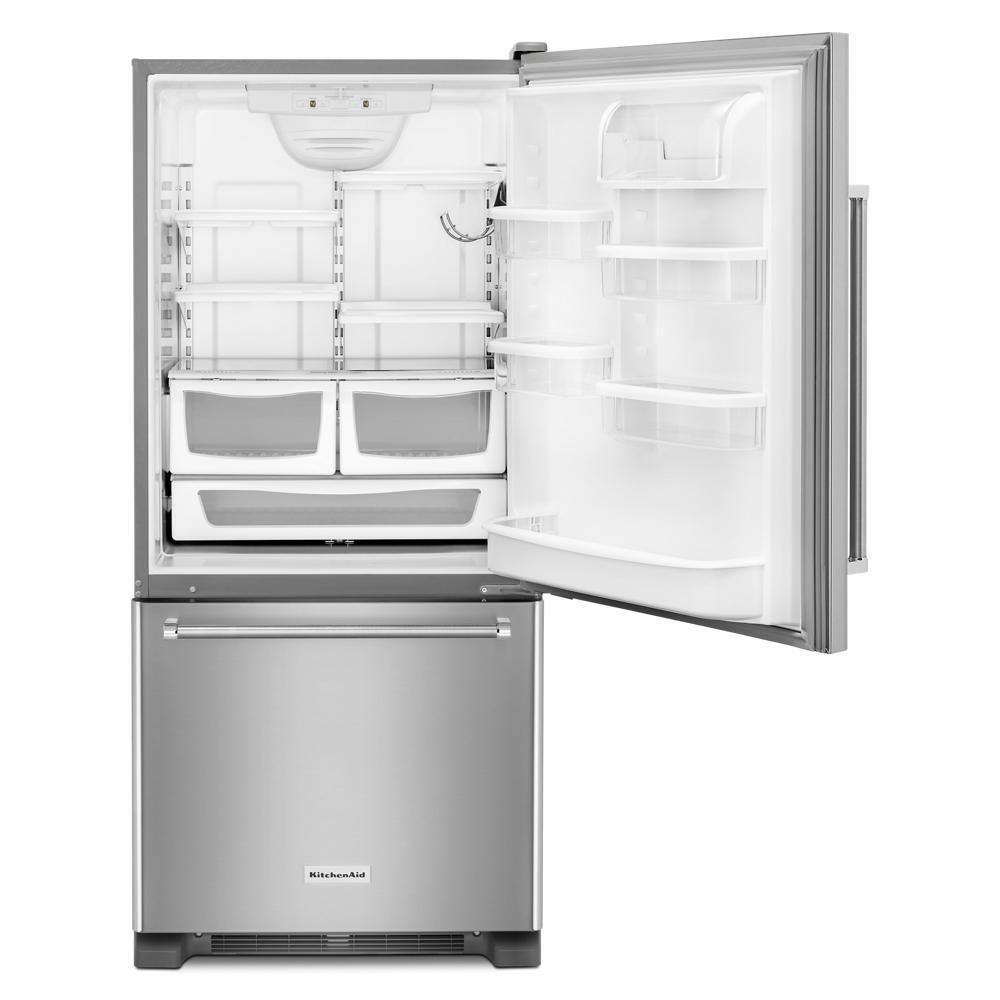

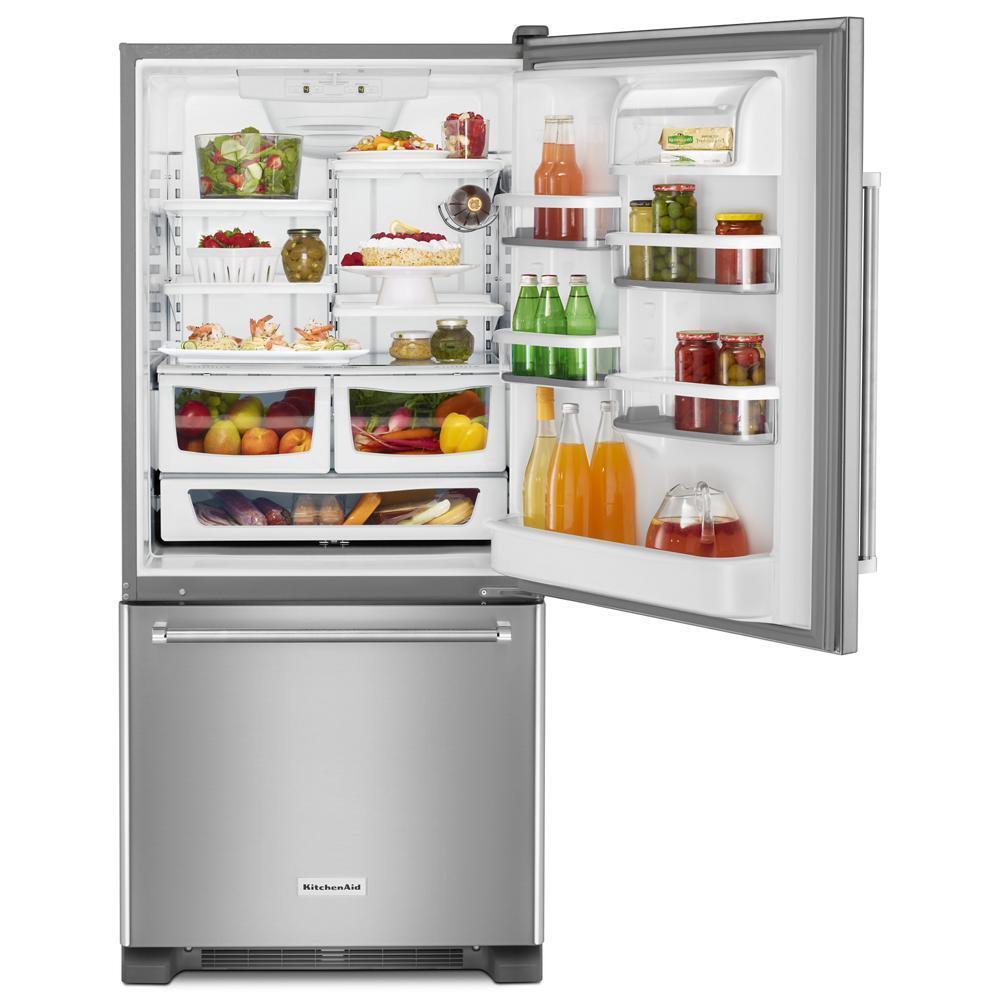

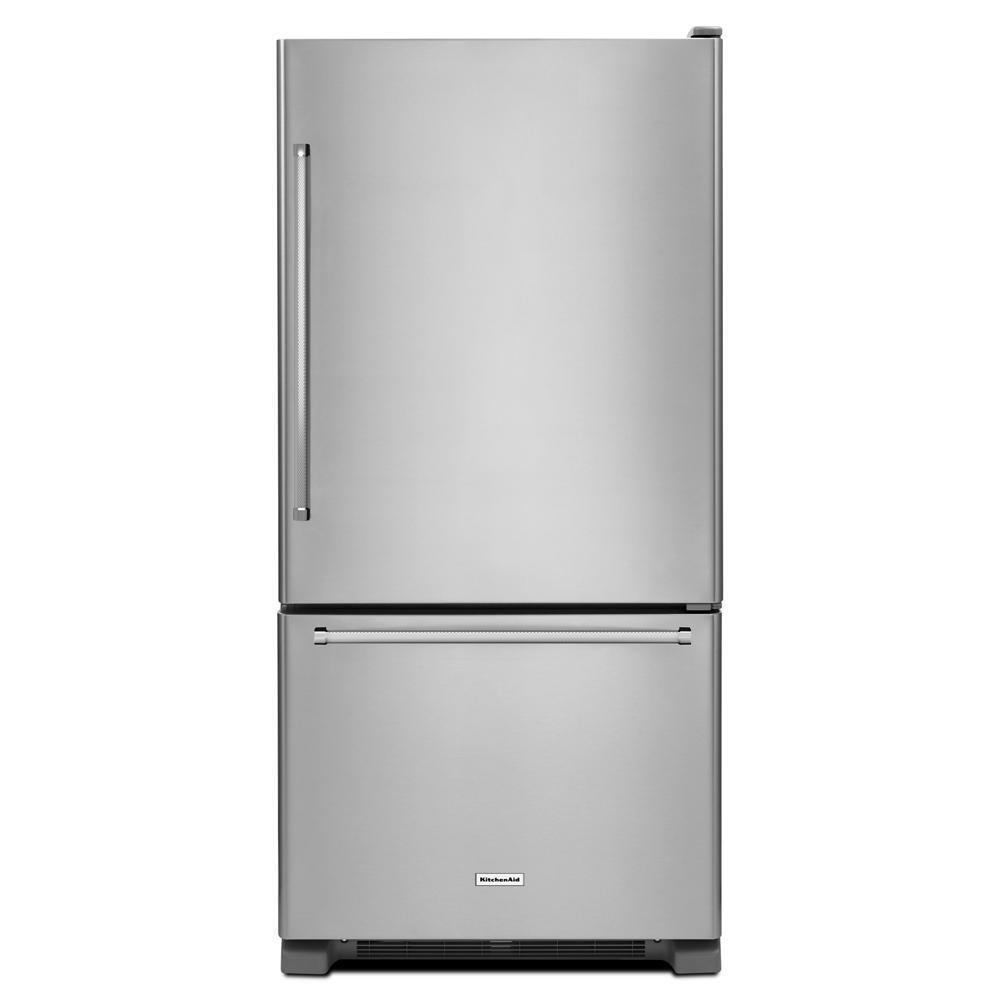

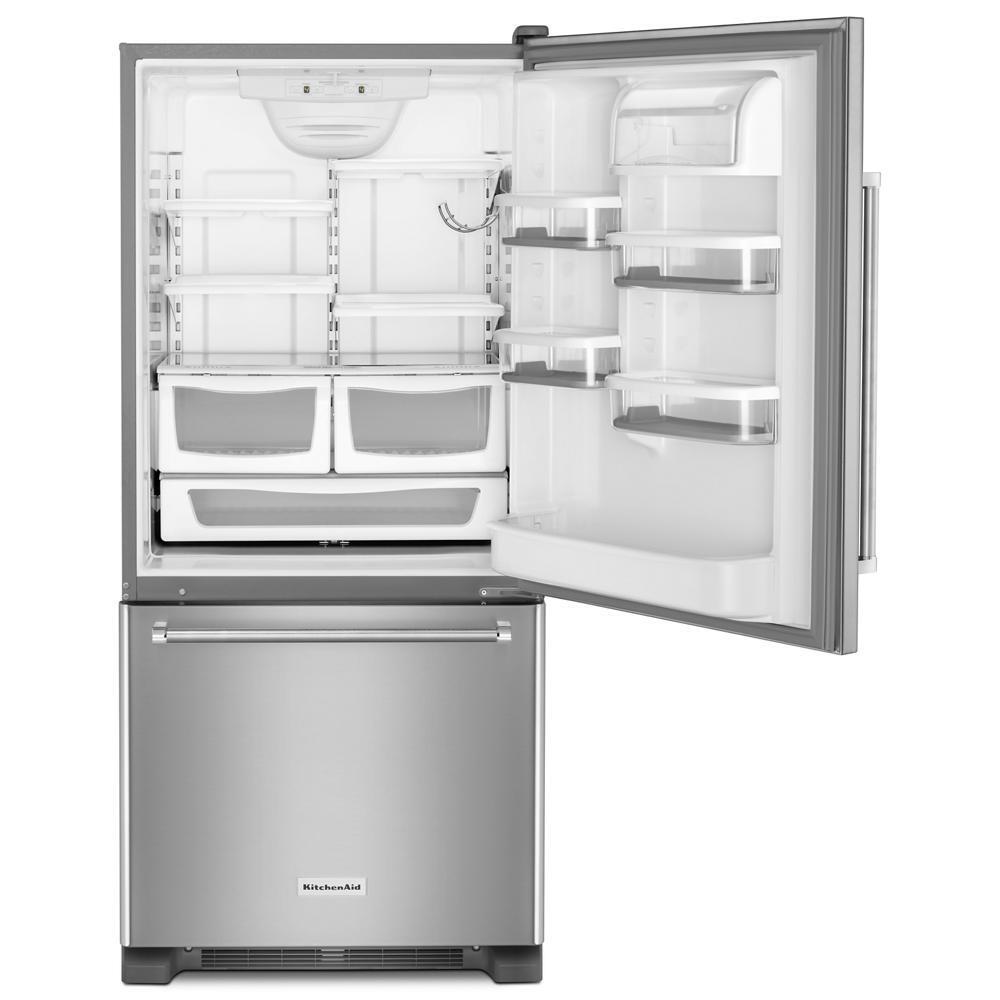

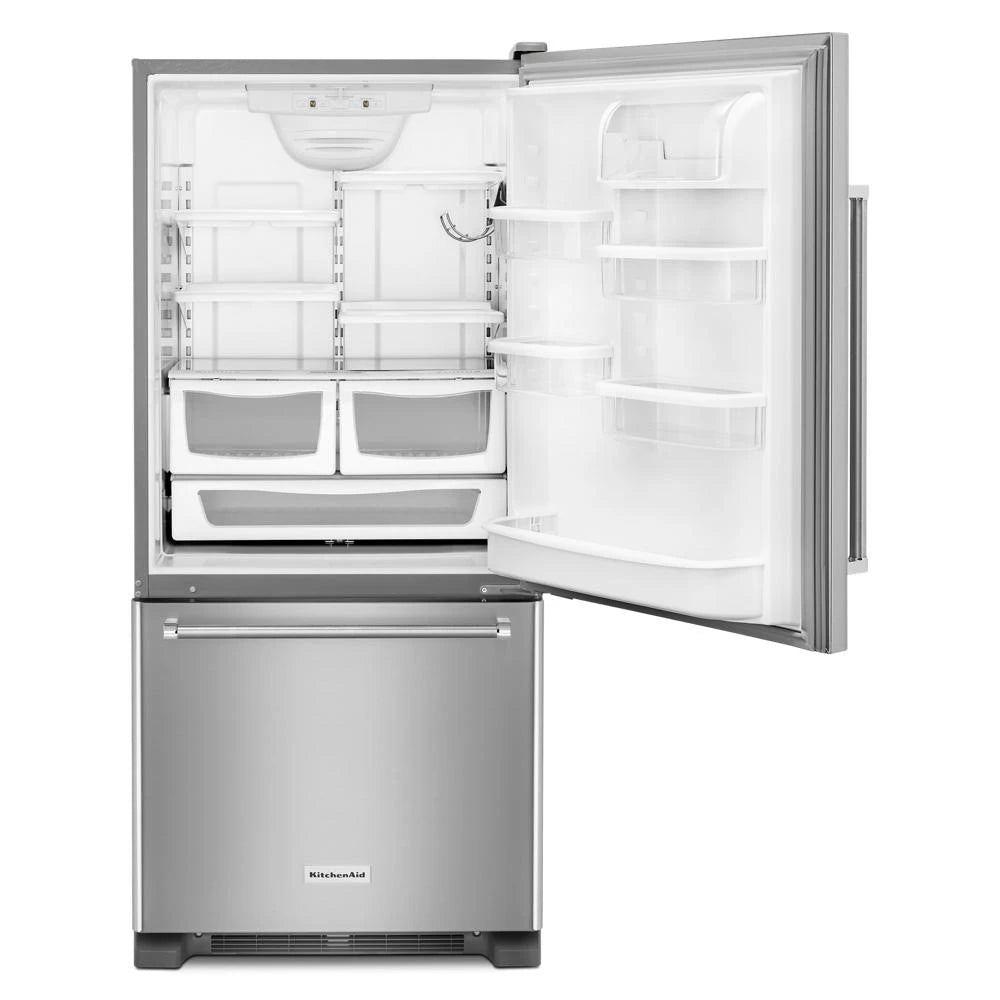

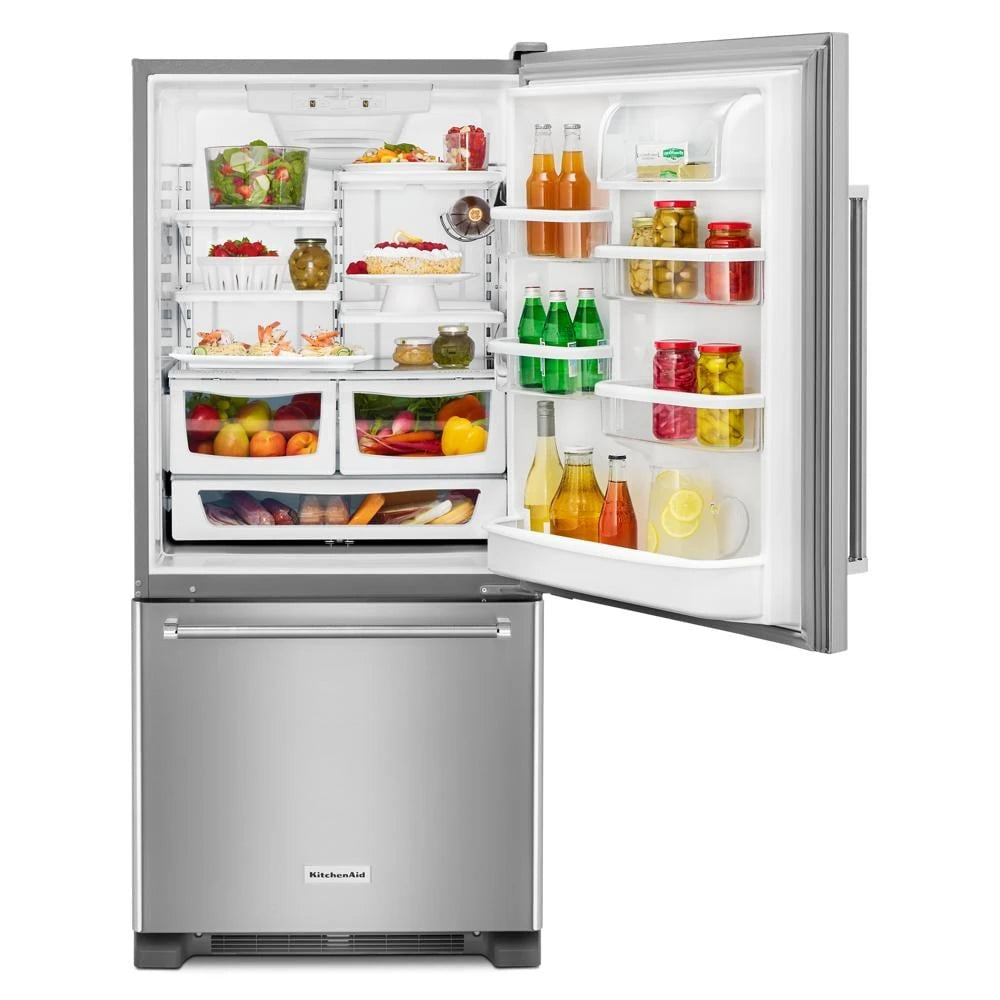

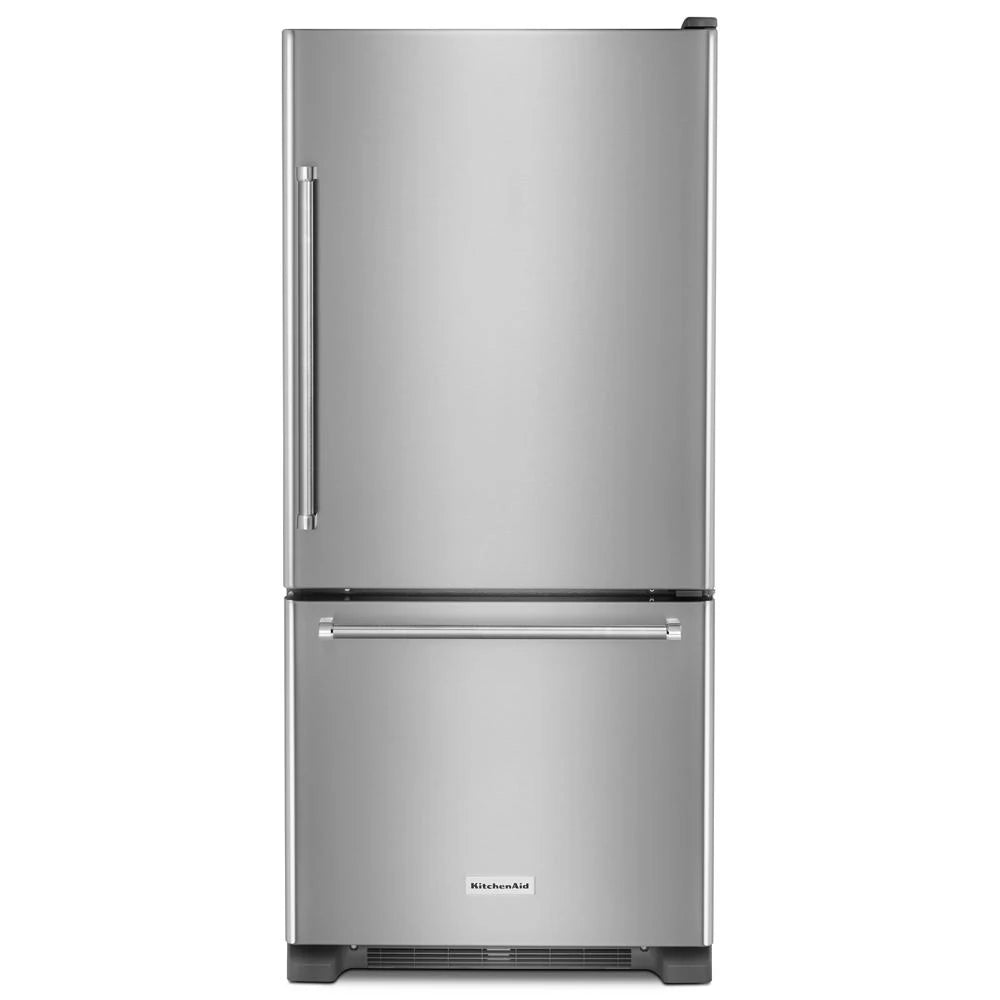

KitchenAid KRBR109ESS 19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator Stainless Steel

19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator

Quick Specification More details

  • Width:
    29.75"
  • Depth:
    33.38"
  • Height:
    67"
  • Type:
    Bottom Freezer Refrigerators

About this product

  • Produce Preserver
  • Humidity-Controlled Crispers
  • Full-Width Pantry
  • LED Lighting
Rebate Available

SKU: KRBR109ESS | UPC: 883049361024

KitchenAid KRBR109ESS 19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator Stainless Steel

Active Rebates

KitchenAid Appliance Bundle – Unlock Up to $3,000 in Rebate Savings Expires on 03/31/2026

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    29.75"
  • Depth:
    33.38"
  • Height:
    67"
  • Type:
    Bottom Freezer Refrigerators

About this product

  • Produce Preserver
  • Humidity-Controlled Crispers
  • Full-Width Pantry
  • LED Lighting

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
Contact us for Pricing

Product Details for KitchenAid KRBR109ESS

Technical Details

Controls
Automatic Defrost Yes
Control Location Interior Up Front
Control Lockout No
Door Ajar/Open Alarm No
LCD Touch Screen No
Max Cool/Fast Cool No
Cooling Type Single Evaporator

Certifications
ADA Compliant No
Energy Rating (kWh/year) 469
UL Yes
ULe Environmentally Preferred Certified Passed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
CEE Tier Rating Tier I
prop65 Standard

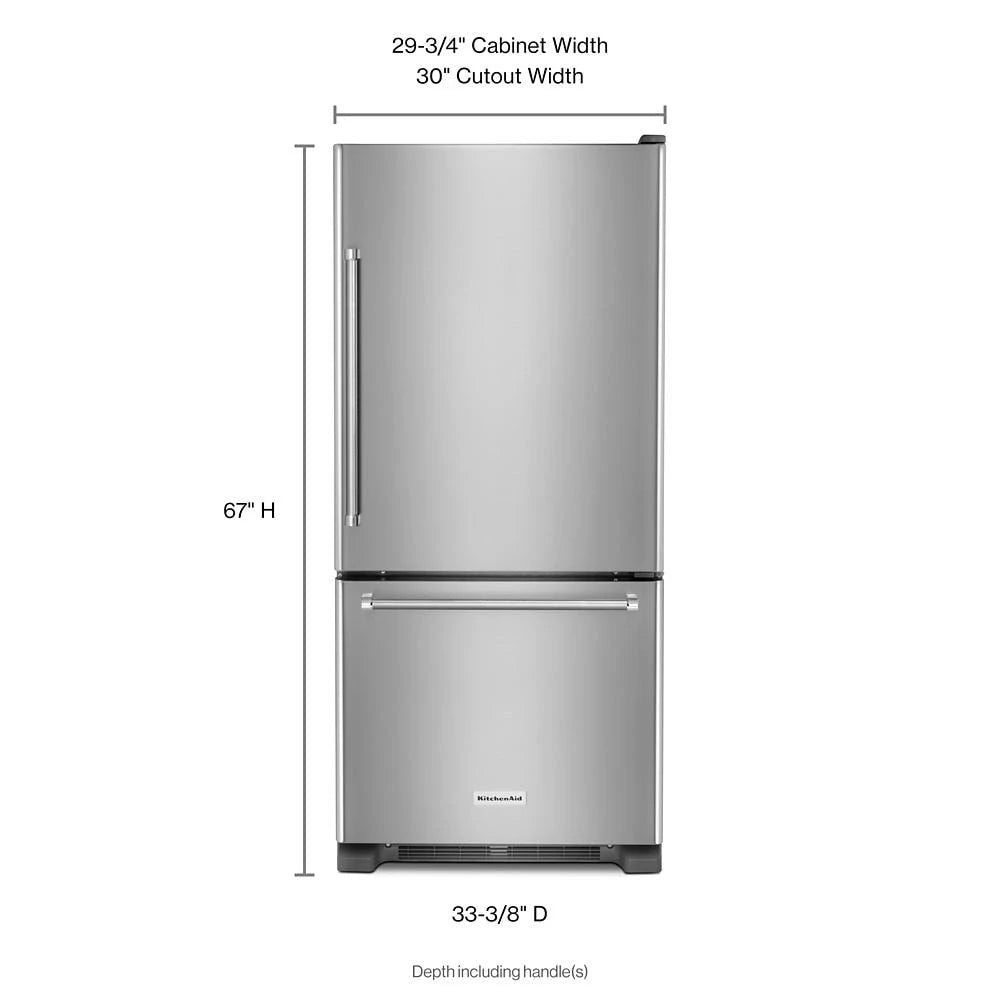

Dimensions & weight
Width 29.75 in.
Height 67 in.
Length 33.38 in.
Weight 239 lbs.
Cabinet Width (in) 29 5/8
Carton Depth 36
Carton Height 69 1/2
Carton Width 32 1/2
Depth Closed Excluding Handles 30 7/8
Depth Closed Including Handles 33 3/8
Depth Excluding Doors 28 1/8
Depth With Door Open 90 Degree 59
Gross Weight 239
Height To Top Of Cabinet 65 1/2
Height To Top Of Door Hinge 67
Net Weight 239.0
Cabinet Width (IN,inches) 29.6250
Cutout Height(IN,inches) 67.0000
Cutout Width(IN,inches) 30.0000
Depth Closed Excluding Handles(IN,inches) 30.8750
Depth Closed Including Handles(IN,inches) 33.3750
Depth Excluding Doors(IN,inches) 28.1250
Depth With Door Open 90 Degree(IN,inches) 59.0000
Height To Top Of Cabinet(IN,inches) 65.5000
Height To Top Of Door Hinge(IN,inches) 67.0000
Net Weight(LB,pounds) 239
Carton Depth(IN,inches) 36.0000
Carton Height(IN,inches) 69.5000
Carton Width(IN,inches) 32.5000
Gross Weight(LB,pounds) 239

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 72 in.
Shipping Length 38.38 in.
Shipping Weight 279 lbs.
Total of Shipping Weight 279 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 38.5 ft³
Dimensional Weight 478.6 lbs.
Total of Cubes 38.5 ft³
Total of Dimensional Weight 478.6 lbs.

Dimensions
Capacity(FT3,cubic feet) 18.67
Depth Closed Excluding Handles(IN,inches) 30.8750
Depth Excluding Doors(IN,inches) 28.1250
Depth With Door Open 90 Degree(IN,inches) 59.0000
Height To Top Of Cabinet(IN,inches) 65.5000
Cabinet Width 29.625
Cutout Height 67
Cutout Width 30
Depth Closed Excluding Handles 30.875
Depth Closed Including Handles 33.375
Depth Excluding Doors 28.125
Depth With Door Open 90 Degree 59
Dispenser Options N/A
Dispenser Type No Dispenser
Freezer Capacity Volume 5.73
Height To Top Of Cabinet 65.5
Height To Top Of Door Hinge 67
Refrigerator Capacity Volume 12.94
carton depth 36
carton height 69.5
carton width 32.5
gross weight 239
net weight 239

Dimension
Capacity (Cu Ft) 18.67
Depth Closed Excluding Handles 30 7/8
Depth Excluding Doors 28 1/8
Depth With Door Open 90 Degree 59
Height To Top Of Cabinet 65 1/2

Details
Door Opening Direction Right
Installation Configuration Freestanding
Refrigeration Configuration Refrigerator
Refrigerator Type Bottom Freezer

Exterior details
Cabinet Finish Textured
Counter Depth No
Door Style Flat
Hidden Hinge No
Reversible Door No

Filter details
Air Filter Indicator/Reset No
Fresh Flow Air Filter Included No
Water Filter Indicator/Reset No
Water Filter Location N/A

Freezer details
Freezer Compartment Type Slide-Out Door 2 Tier
Freezer Door Bins No
Freezer Door Type Pull-Out
Freezer Drawer/Basket 1 Full Width Lower Wire; 1 Full Width Upper Wire
Freezer Lighting LED
Freezer Number of Shelves 0
Freezer Shelves None

Icemaker details
Icemaker Optional
Icemaker Location Freezer
Types of Ice No
Icemaker Kit Part Number W11762633

Refrigerator details
Conventional Shelves No
Deli Drawer No
Humidity-Controlled Crispers 2 Half-Width
Non Climate Control Drawers None
Number of Interior Shelves 5
Pantry Drawer Yes
Refrigerator Door Bins 1 Dairy; 1 Fixed Full-Width; 4 Adjustable Half-Width
Refrigerator Lighting LED
Spill-Proof Glass Shelves 1 Fixed Full Width; 4 Adjustable Half Width
Supplementary Containers Yes
Temperature-Controlled Drawers 1 Full Width

Product details
Energy Star® Qualified ENERGY STAR® Qualified

Description

KitchenAid 30" Bottom-Freezer Refrigerator with 19 Cu. Ft. Capacity and Full-Width Pantry


Product Features

  • Produce Preserver
    Absorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.
  • Humidity-Controlled Crispers
    Provide a dedicated storage option with adjustable humidity levels. They let you select the high humidity that keeps romaine crisp, or the arid environment that helps figs and apricots stay fresh.
  • Full-Width Pantry
    lets you properly store everything from meats to produce in a full width compartment.
  • LED Lighting
    Uses less energy than incandescent bulbs. Multiple lights are purposefully placed throughout the refrigerator and freezer, making it easy to find items at a glance.
  • Metal Wine Rack
    provides a durable storage solution for up to four bottles of wine or 2-liter containers and can be removed for additional storage flexibility.
  • ENERGY STAR® Qualified
    products conserve energy by exceeding minimum federal energy efficiency.
  • ExtendFresh™ Temperature Management System
    Separately monitors the temperatures in the refrigerator and freezer through a sensor located in each, to help ensure fresh fruit juices don't become frozen and prawns avoid freezer burn.
