SKU: KRBL109ESS | UPC: 883049361031

KitchenAid KRBL109ESS 19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator Stainless Steel

Quick Specification More details

Width:
32.5"
Depth:
33" - 36"
Height:
69.5"
Type:
Bottom Freezer Refrigerators

About this product

Produce Preserver
ExtendFresh™ Temperature Management System

SKU: KRBL109ESS | UPC: 883049361031

KitchenAid KRBL109ESS 19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
32.5"
Depth:
33" - 36"
Height:
69.5"
Type:
Bottom Freezer Refrigerators

About this product

Produce Preserver
ExtendFresh™ Temperature Management System

Related Products

Refrigerator Handle Medallion (set Of 2) With Wrenches (1-inches 1- Metric) For Kad Models - Red

KitchenAid W10846207 Refrigerator Handle Medallion (set Of 2) With Wrenches (1-inches 1- Metric) For Kad Models - Red

Refrigerator Water Line Installation Kit, Black, With (1) 7'l Industrial Braided Flexible Hose And (1) Brass Union

Amana W10505928RP Refrigerator Water Line Installation Kit, Black, With (1) 7'l Industrial Braided Flexible Hose And (1) Brass Union

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Contact us for Pricing

Product Details for KITCHENAID KRBL109ESS

Technical Details

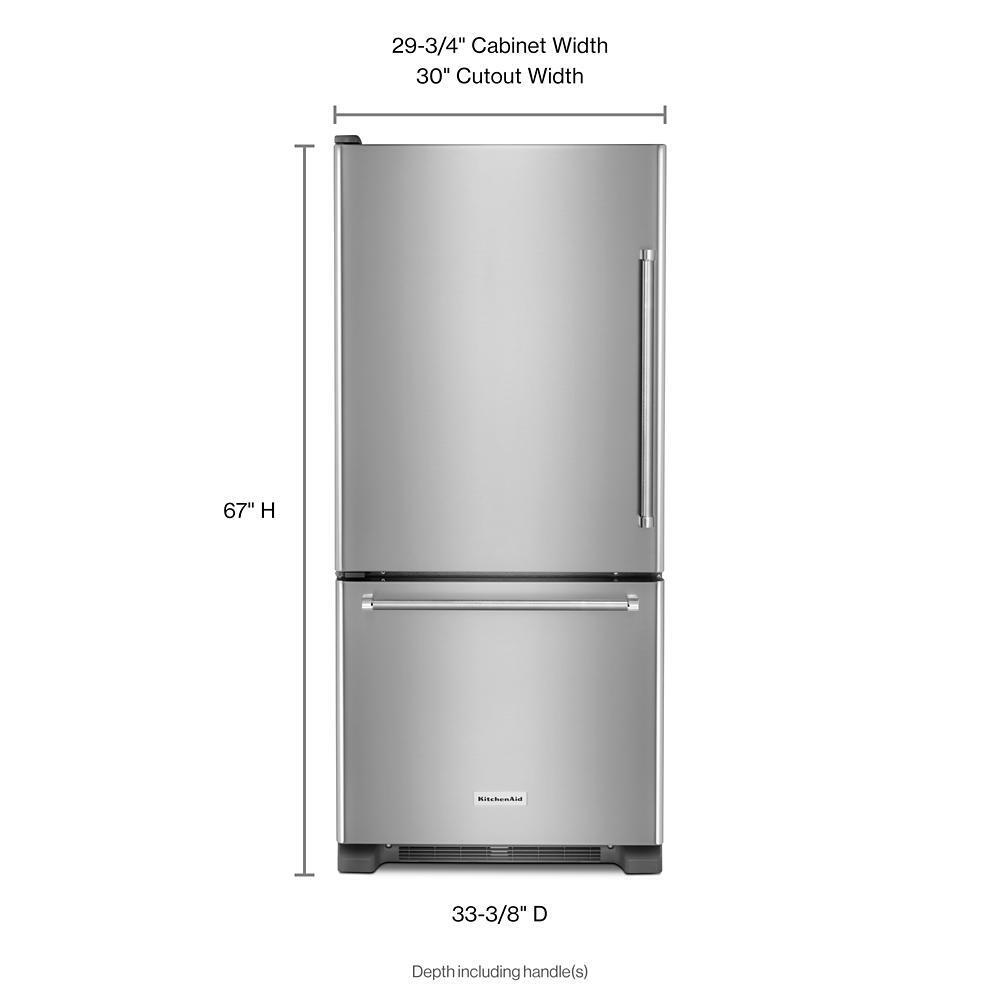

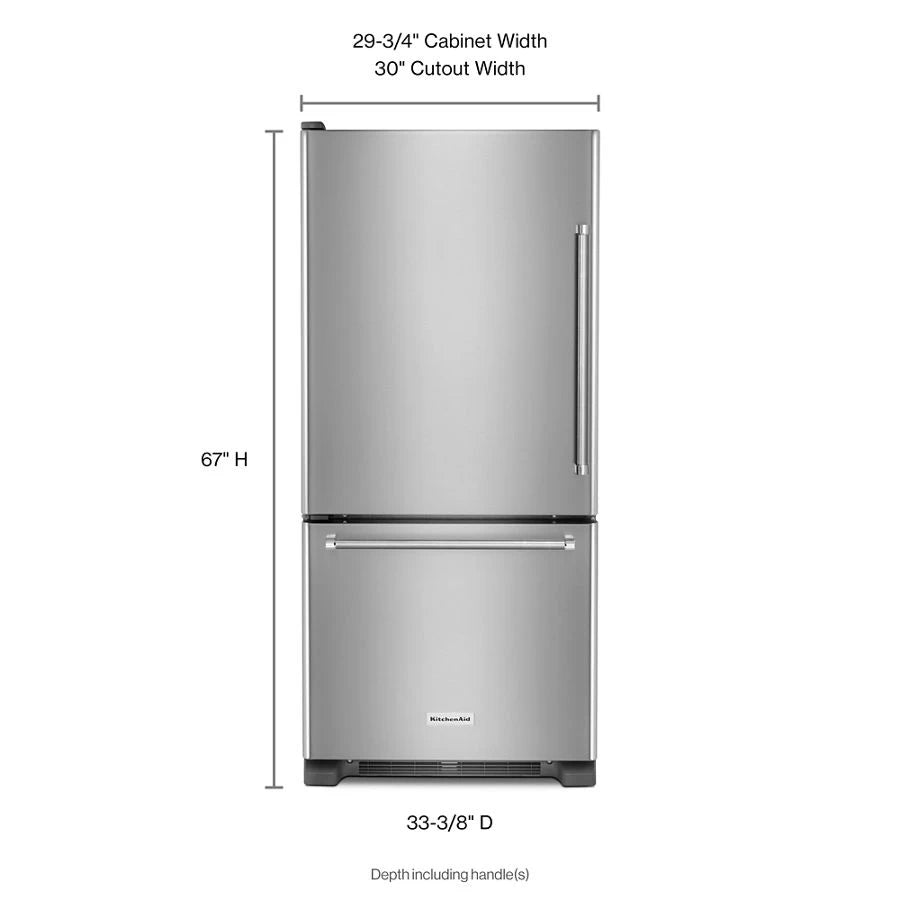

Dimensions

Capacity(FT3,cubic feet)	18.67
Depth Closed Excluding Handles(IN,inches)	30.8750
Depth Excluding Doors(IN,inches)	28.1250
Depth With Door Open 90 Degree(IN,inches)	59.0000
Height To Top Of Cabinet(IN,inches)	65.5000
Common Size	30 in
Cutout Height	67 in
Cutout Width	30 in
Depth With Door Open 90 Degree	59 in
Freezer Capacity Volume	5.73 cu. ft.
Height To Top Of Door Hinge	67 in
Net Weight	0 lbs
Cabinet Width	29.625 in
Capacity	18.67 cu. ft.
Depth	33.375 in
Depth Closed Excluding Handles	30.875 in
Depth Closed Including Handles	33.375 in
Depth Excluding Doors	28.125 in
Gross Weight	240 lbs
Height	67 in
Height To Top Of Cabinet	65.5 in
Minimum Height	65.5 in
Width	29.75 in
Refrigerator Capacity Volume	12.94, 12.94

Controls

Automatic Defrost	Yes
Control Location	Interior Up Front
Control Lockout	No
Door Ajar/Open Alarm	No
LCD Touch Screen	No
Max Cool/Fast Cool	No
Cooling Type	Single Evaporator

Certifications

ADA Compliant	No
UL	Yes
ULe Environmentally Preferred Certified	Passed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
CEE Tier Rating	Tier I
Energy Star® Qualified	ENERGY STAR® Qualified

Electrical

Amps	15
Hz	60
Volts	120

Dimension

Capacity (Cu Ft)	18.67
Depth Closed Excluding Handles	30 7/8
Depth Excluding Doors	28 1/8
Depth With Door Open 90 Degree	59
Height To Top Of Cabinet	65 1/2

Dimensions & weight

Width	32.5 in.
Height	69.5 in.
Length	36 in.
Weight	240 lbs.
Cabinet Width (in)	29 5/8
Carton Depth	36
Carton Height	69 1/2
Carton Width	32 1/2
Depth Closed Excluding Handles	30 7/8
Depth Closed Including Handles	33 3/8
Depth Excluding Doors	28 1/8
Depth With Door Open 90 Degree	59
Gross Weight	240 lbs.
Height To Top Of Cabinet	65 1/2
Height To Top Of Door Hinge	67
Net Weight	0.0
Cabinet Width (IN,inches)	29.6250
Cutout Height(IN,inches)	67.0000
Cutout Width(IN,inches)	30.0000
Depth Closed Excluding Handles(IN,inches)	30.8750
Depth Closed Including Handles(IN,inches)	33.3750
Depth Excluding Doors(IN,inches)	28.1250
Depth With Door Open 90 Degree(IN,inches)	59.0000
Height To Top Of Cabinet(IN,inches)	65.5000
Height To Top Of Door Hinge(IN,inches)	67.0000
Carton Depth(IN,inches)	36.0000
Carton Height(IN,inches)	69.5000
Carton Width(IN,inches)	32.5000
Gross Weight(LB,pounds)	240

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.75 in.
Shipping Height	72 in.
Shipping Length	38.38 in.
Shipping Weight	280 lbs.
Total of Shipping Weight	280 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	38.5 ft³
Dimensional Weight	478.6 lbs.
Total of Cubes	38.5 ft³
Total of Dimensional Weight	478.6 lbs.

Details

Installation Configuration	Freestanding
Refrigeration Configuration	Refrigerator
Refrigerator Type	Bottom Freezer
Door Style Configuration	Bottom Freezer

Exterior details

Cabinet Finish	Textured
Counter Depth	No
Door Style	Flat
Hidden Hinge	No
Reversible Door	No
Base Grille Color	Grey
Cabinet Color	Grey
Door Color	Stainless Steel
Door Finish	Smooth
Door Opening Direction	Left
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Reach Through Handle

Filter details

Air Filter Indicator/Reset	No
Fresh Flow Air Filter Included	No
Water Filter Indicator/Reset	No
Water Filter Location	N/A

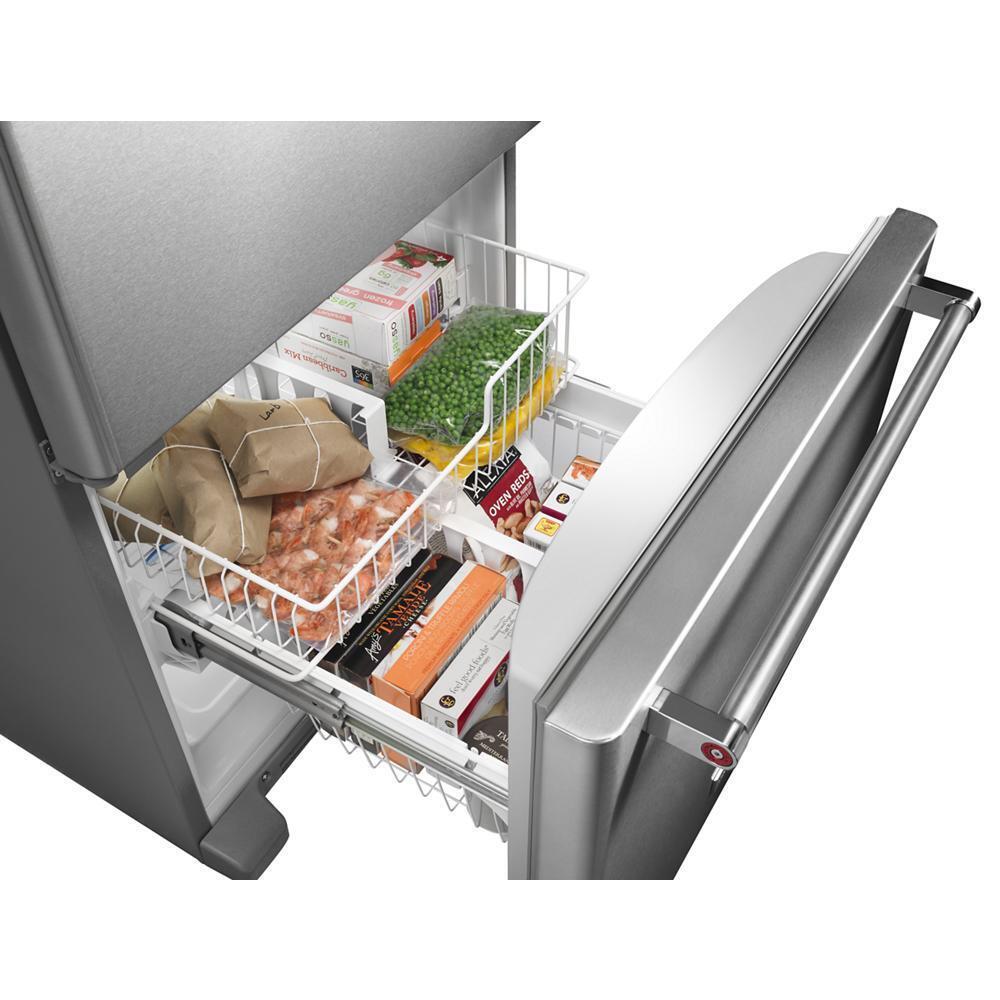

Freezer details

Freezer Door Bins	No
Freezer Door Type	Pull-Out
Freezer Lighting	LED
Freezer Number of Shelves	0
Freezer Shelves	None
Freezer Drawer/Basket	1 Full Width Lower Wire, 1 Full Width Upper Wire

Icemaker details

Icemaker	Optional
Icemaker Location	Freezer
Types of Ice	No
Icemaker Kit Part Number	W11762633

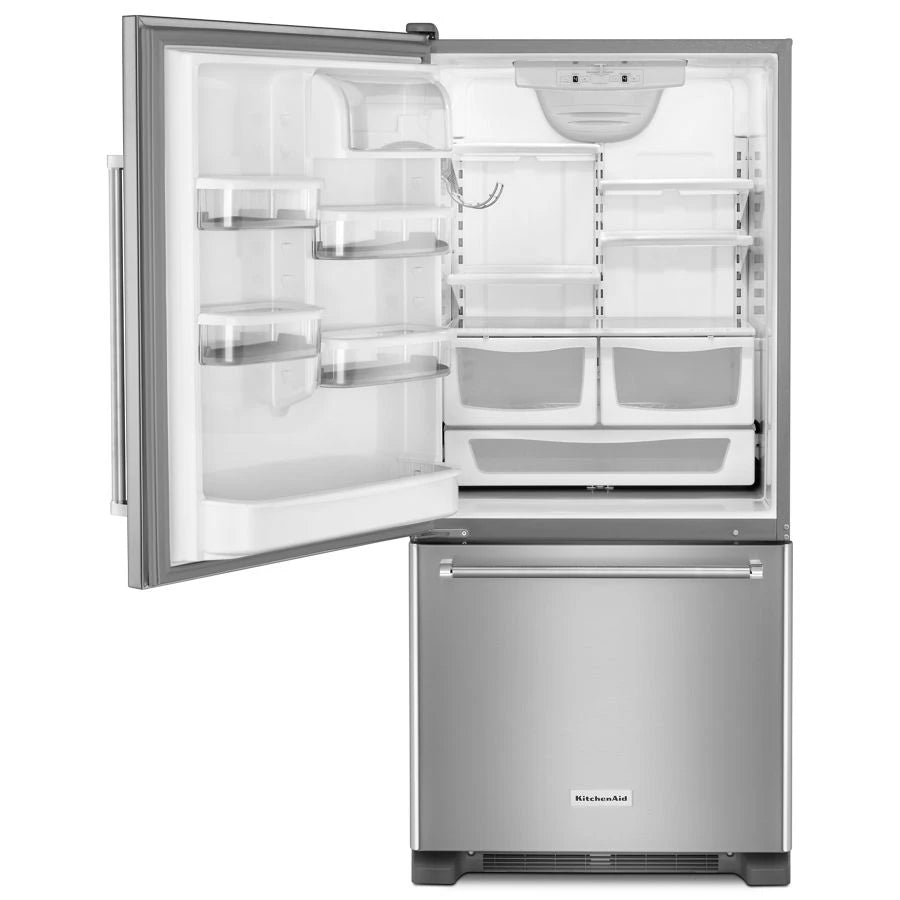

Refrigerator details

Conventional Shelves	No
Deli Drawer	No
Humidity-Controlled Crispers	2 Half-Width
Non Climate Control Drawers	None
Number of Interior Shelves	5
Pantry Drawer	Yes
Refrigerator Lighting	LED
Supplementary Containers	Yes
Temperature-Controlled Drawers	1 Full Width
Refrigerator Door Bins	1 Dairy, 1 Fixed Full-Width, 4 Adjustable Half-Width
Spill-Proof Glass Shelves	1 Fixed Full Width, 4 Adjustable Half Width

Dispenser details

Dispenser Options	N/A
Dispenser Type	No Dispenser

Features

Refrigerator Features

ExtendFresh Temperature Management System, LED Lighting, Produce Preserver

Capacity

Volume

47.057 Cu.Ft.

Description

This striking 19 cubic foot refrigerator comes with the ExtendFresh™ Temperature Management System and Produce Preserver to help maintain the taste and texture of your freshest food. LED lighting throughout the refrigerator makes food easy to find on every level.

Manuals & Guides

Key Features

Produce Preserver

Absorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.

ExtendFresh™ Temperature Management System

Separately monitors the temperatures in the refrigerator and freezer through a sensor located in each, to help ensure fresh fruit juices don't become frozen and prawns avoid freezer burn.
