Product Details for KitchenAid KOES530PWH

Technical Details

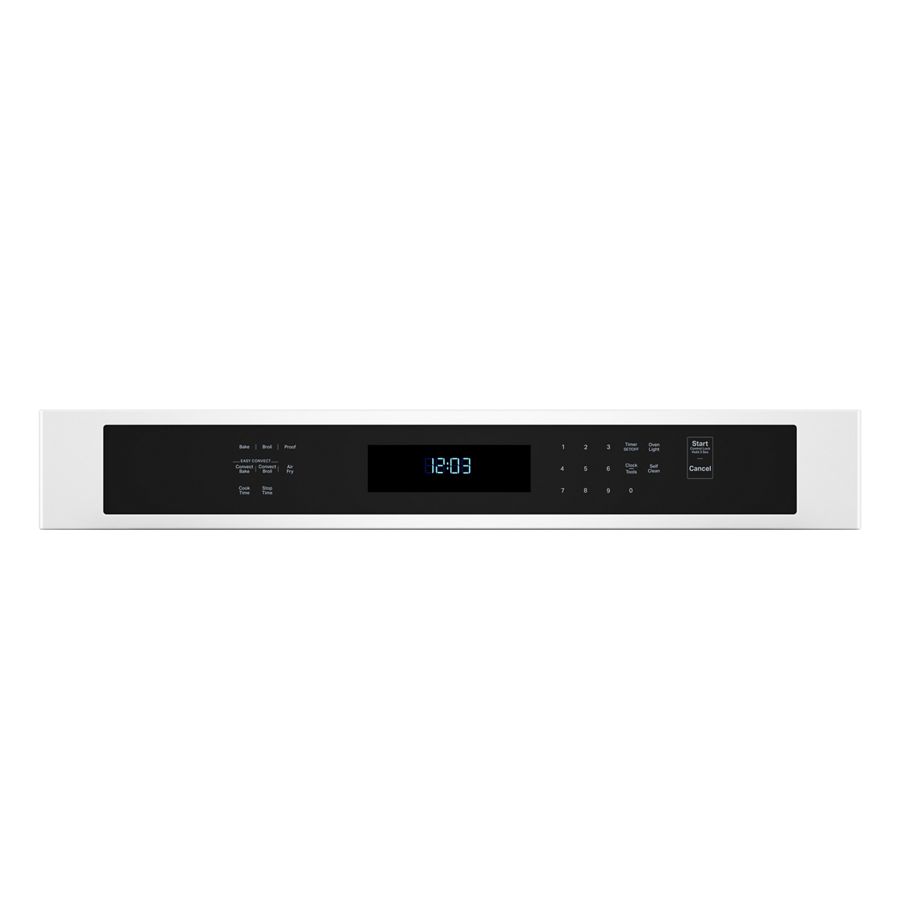

Controls

Control Type Electronic Touch
Display Color White
Electronic Display Type Digital
Language Conversion English/French/Spanish
Light Control Oven Light Touch Pad

Features

Selection Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Language Conversion, Proofing, Rapid Preheat, Sabbath Mode, Start

Details

Oven Automatic Shut-Off Yes
Delay Clean No
Flush Installation Approved Yes
Fuel Type Electric
LP Convertible No
Oven Type Single
Power On Indicator Light Yes
Cooktop Combinations KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KCIG550, KCIG556, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569

Certifications

CUL Yes
UL Yes
ADA Compliant Yes
Star K Certified Star K Certified
Prop 65 Standard - Standard

Electrical

Amps 20
Hz 60
Power Cord Included No
Volts 240

Dimensions & weight

Width 29.75 in.
Height 28.75 in.
Length 27.13 in.
Weight 160 lbs.
Carton Depth 30 13/16
Carton Height 30 3/4
Carton Width 34 13/16
Cutout Depth (in) 24
Cutout Height (in) 28
Cutout Width (in) 28 1/2
Depth Closed Excluding Handles 24 1/2
Depth Closed Including Handles 27 1/8
Depth With Door Open 90 Degree 46 3/4
Gross Weight 160
Net Weight 144.0
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 28.0000
Cutout Width(IN,inches) 28.5000
Depth Closed Excluding Handles(IN,inches) 24.5000
Depth Closed Including Handles(IN,inches) 27.1250
Depth With Door Open 90 Degree(IN,inches) 46.7500
Maximum Height(IN,inches) 28.7500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.75 in.
Shipping Length 32.13 in.
Shipping Weight 200 lbs.
Total of Shipping Weight 200 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.43 ft³
Dimensional Weight 166.91 lbs.
Total of Cubes 13.43 ft³
Total of Dimensional Weight 166.91 lbs.

Exterior details

Door Type Metal & Glass
Oven Window Size Extra Large
Door Lock Yes
Handle Color White
Handle Material Metal

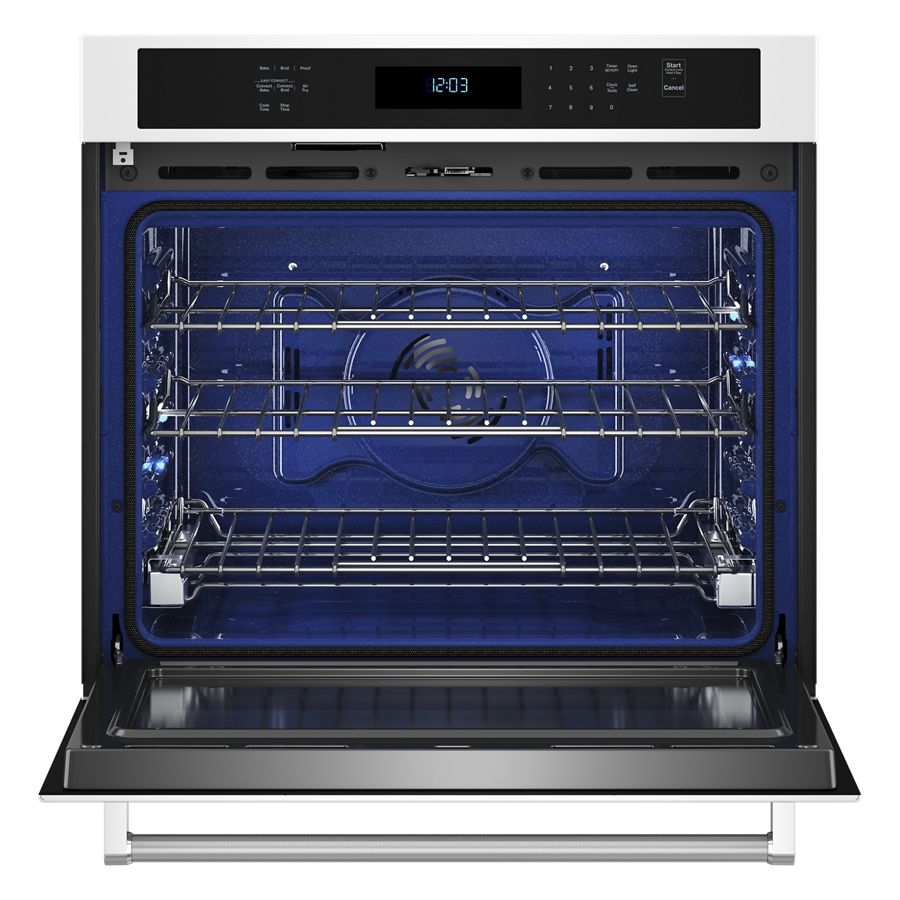

Oven cavity details

Bake Element Power 2,800 W
Broiler Element Power 4,000 W
Broiler Location Top of Oven
Convection Element Type True Convection
Convection Functions Bake, Broil, Convection Conversion
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop Yes
Installable Under Oven Yes
Interior Coating Porcelain
Interior Color Blue
Light Type Halogen
Number of Bake Elements 2
Number of Broil Elements 1
Number of Oven Lights 2
Number of Oven Racks 3
Number of Rack Guides 6
Oven Cleaning Type Self-Cleaning
Self-Cleaning Oven Racks No
Convection Element Power 3,200 w

Smart compatibility

Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

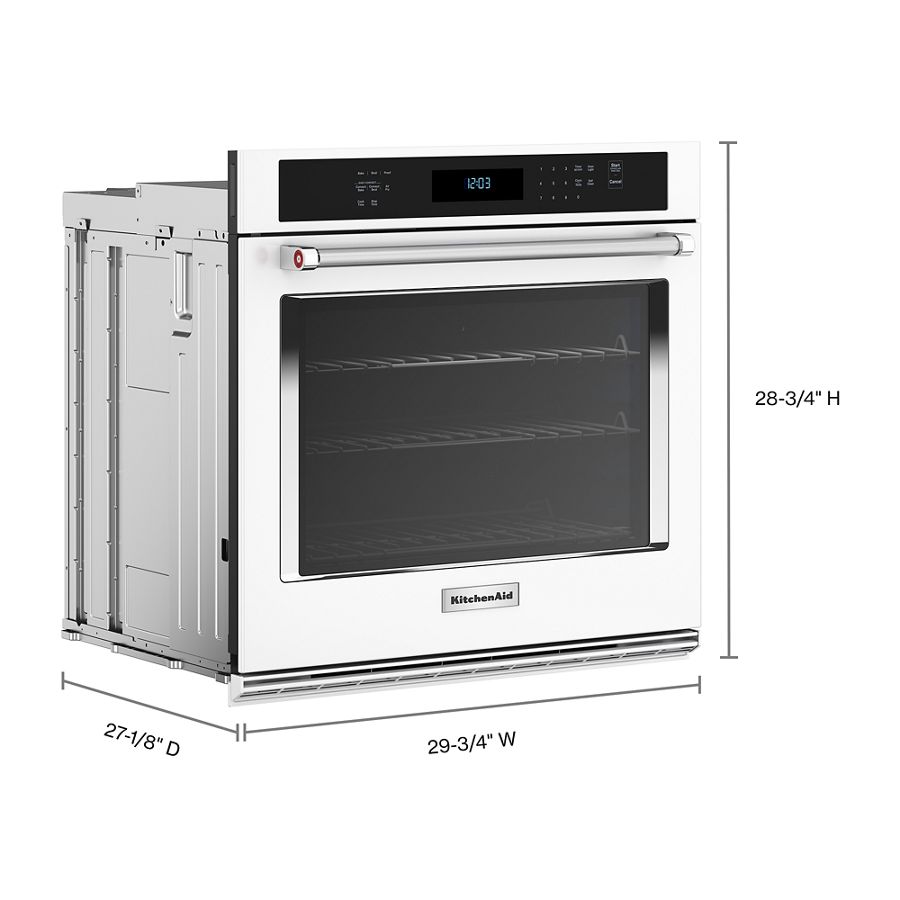

Dimensions

Capacity 5 cu. ft.
Common Size 30 in
Maximum Height 28-3/4 in
Cutout Depth 24 in
Cutout Height 28 in
Cutout Width 28-1/2 in
Depth 27-1/8 in
Depth Closed Excluding Handles 24-1/2 in
Depth Closed Including Handles 27-1/8 in
Depth With Door Open 90 Degree 46-3/4 in
Gross Weight 160 lbs, 160 lbs
Height 28-3/4 in
Net Weight 144 lbs, 144 lbs
Oven Interior Depth 19 in
Oven Interior Height 18 in
Oven Interior Width 25 in
Width 29-3/4 in

Description

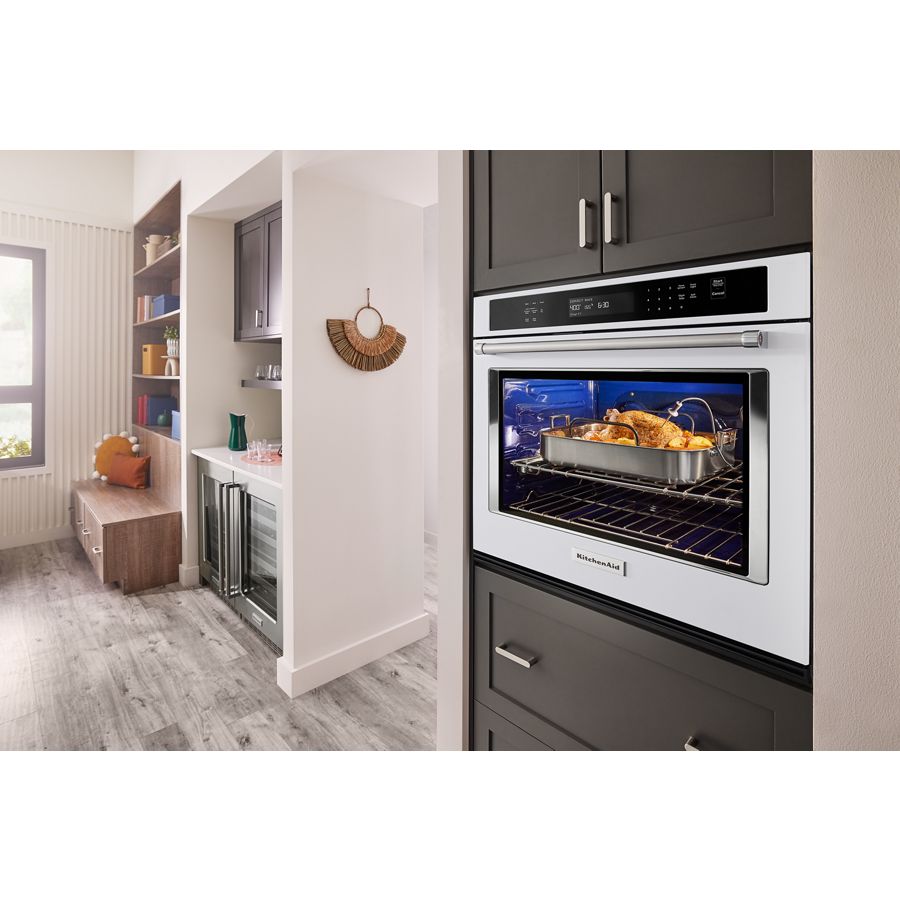

Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.

*When compared to deep frying.


Product Features

  • 4,000-Watt Broil Element
    Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
  • 5.0 Cu. Ft. Oven Capacity
    Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
  • Air Fry Mode
    Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
  • Dishwasher-Safe Air Fry Basket
    Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
  • EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
  • Even-Heat™ Preheat
    Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
  • Even-Heat™ True Convection
    Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
  • FIT System Limited Guarantee
    Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.

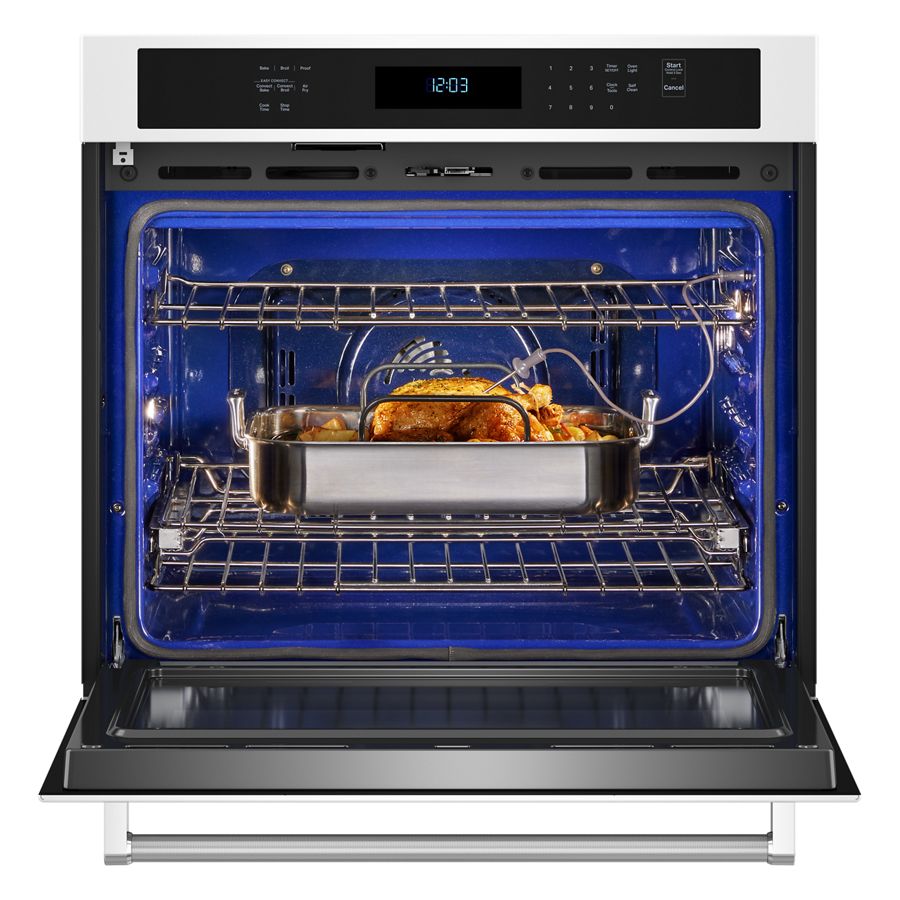

  • Integrated Meat Thermometer
    Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
  • SatinGlide™ Roll-Out Extension Rack
    features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.
  • Self-Cleaning Cycle
    Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
  • Self-Close Door
    Features specialized hinges that make it easy to shut the oven when your hands are full. Just give the door a nudge, and it will gently close itself.
  • Star-K Certified
    To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
  • What's in the box
    Single Wall Oven includes a Dishwasher-Safe Air Fry Basket and an Integrated Meat Thermometer
