SKU: KOES530PBS | UPC: 883049667492

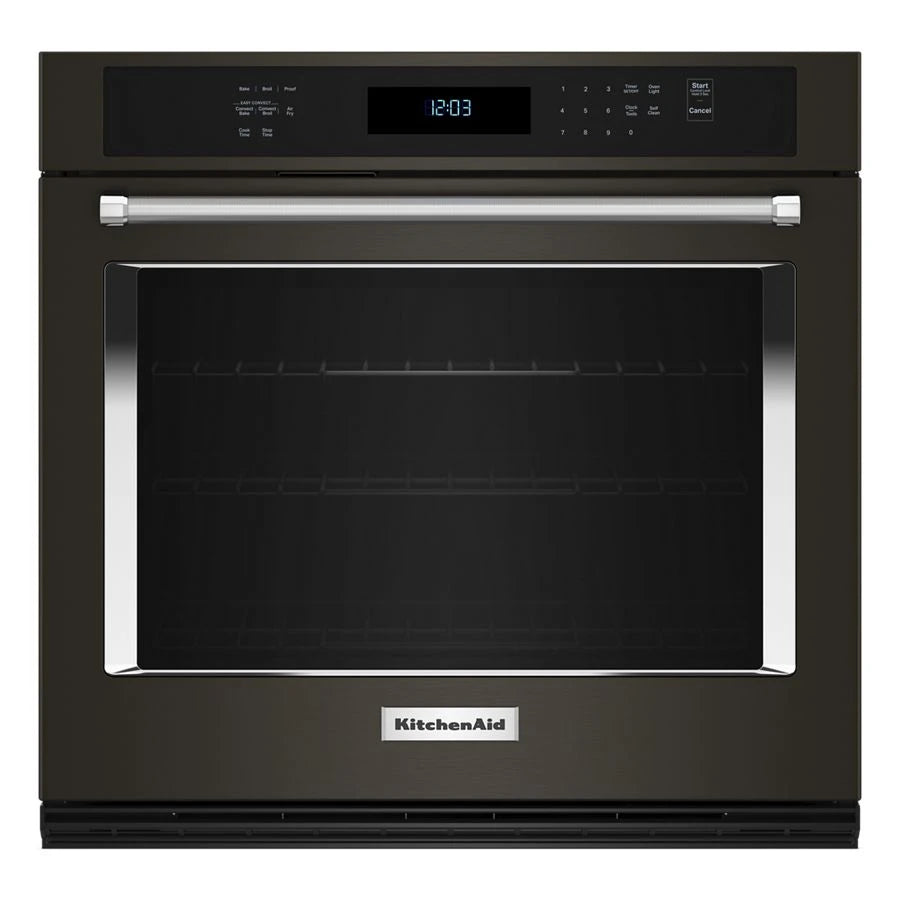

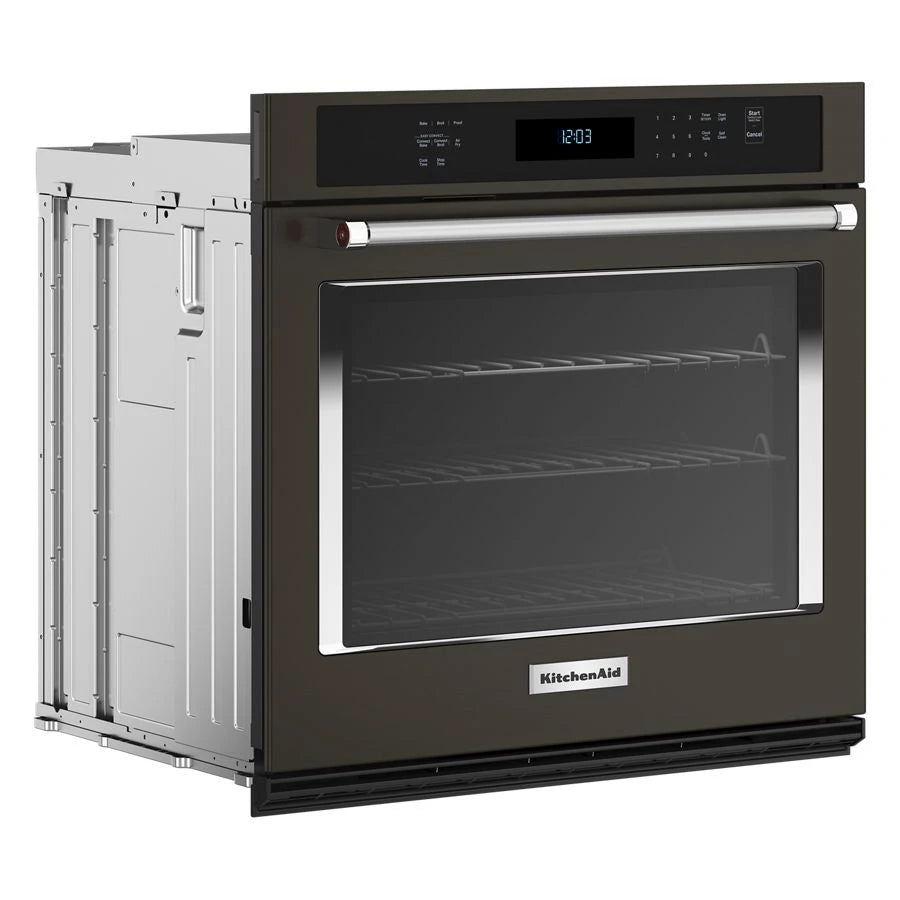

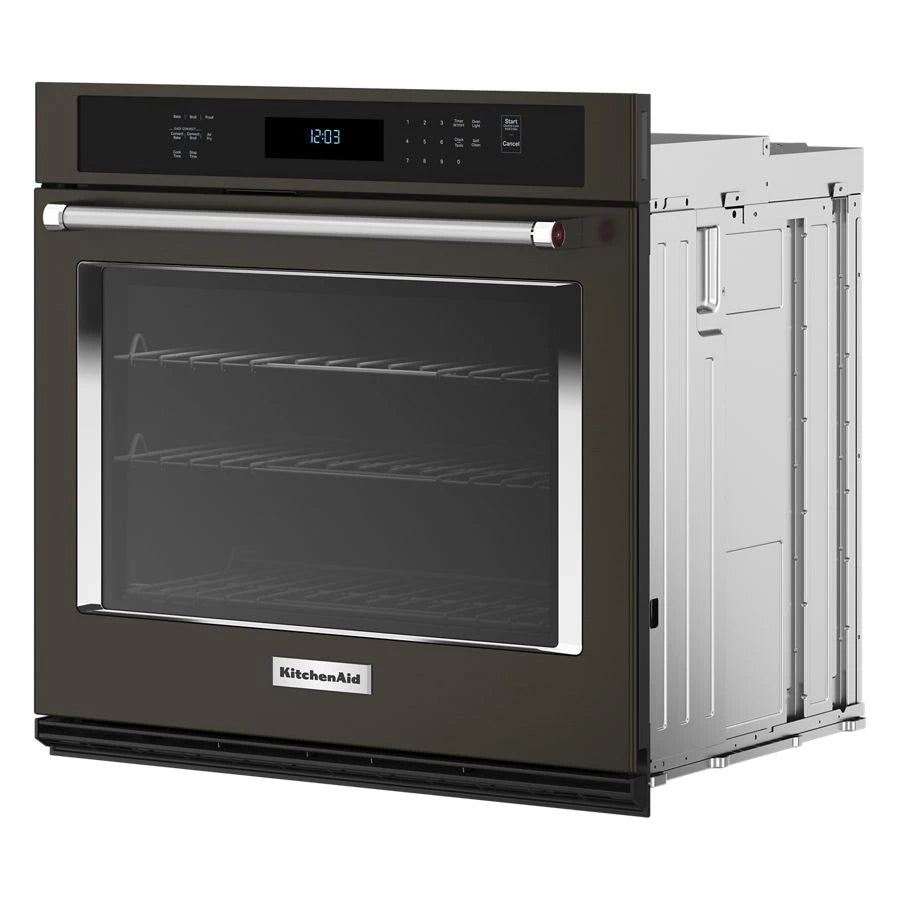

KOES530PBS Kitchenaid® 30" Single Wall Ovens With Air Fry Mode Black Stainless Steel with PrintShield™ Finish

Quick Specification More details

Width:
29.75"
Depth:
27.13"
Height:
28.75"
Type:
Single Wall Ovens

About this product

Self-Cleaning Cycle

SKU: KOES530PBS | UPC: 883049667492

KOES530PBS Kitchenaid® 30" Single Wall Ovens With Air Fry Mode Black Stainless Steel with PrintShield™ Finish

Active Rebates

Color: Black Stainless Steel

Black Stainless Steel

KOES530PBS

KOES530PSS Kitchenaid® 30" Single Wall Ovens With Air Fry Mode Stainless Steel

KOES530PSS

$2,998.80

In stock

KitchenAid KOES530PWH 30" Single Wall Ovens with Air Fry Mode White

KOES530PWH

Discontinued

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.75"
Depth:
27.13"
Height:
28.75"
Type:
Single Wall Ovens

About this product

Self-Cleaning Cycle

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Contact us for Pricing

Product Details for KitchenAid KOES530PBS

Technical Details

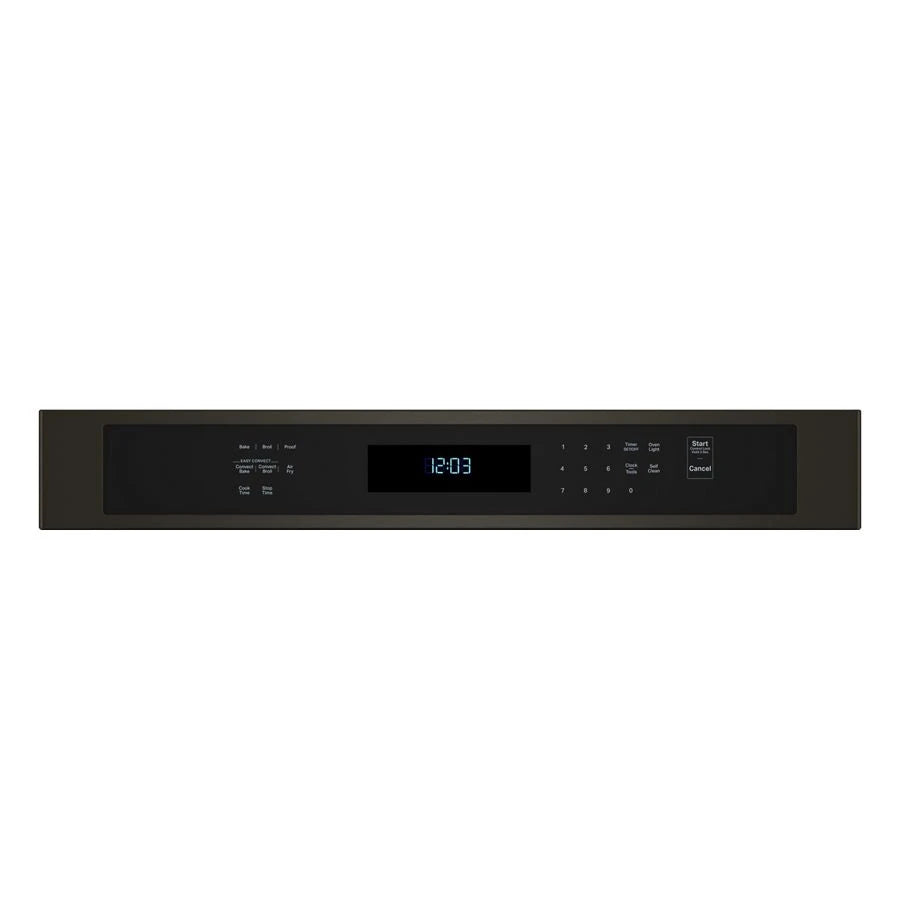

Controls

Control Type	Electronic Touch
Display Color	White
Electronic Display Type	Digital
Language Conversion	English/French/Spanish
Light Control	Oven Light Touch Pad

Details

Oven Automatic Shut-Off	Yes
Delay Clean	No
Flush Installation Approved	Yes
Fuel Type	Electric
LP Convertible	No
Oven Type	Single
Power On Indicator Light	Yes
Cooktop Combinations	KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KCIG550, KCIG556, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569

Certifications

CUL	Yes
UL	Yes
ADA Compliant	Yes
Star K Certified	Star K Certified

Electrical

Amps	20
Hz	60
Power Cord Included	No
Volts	240

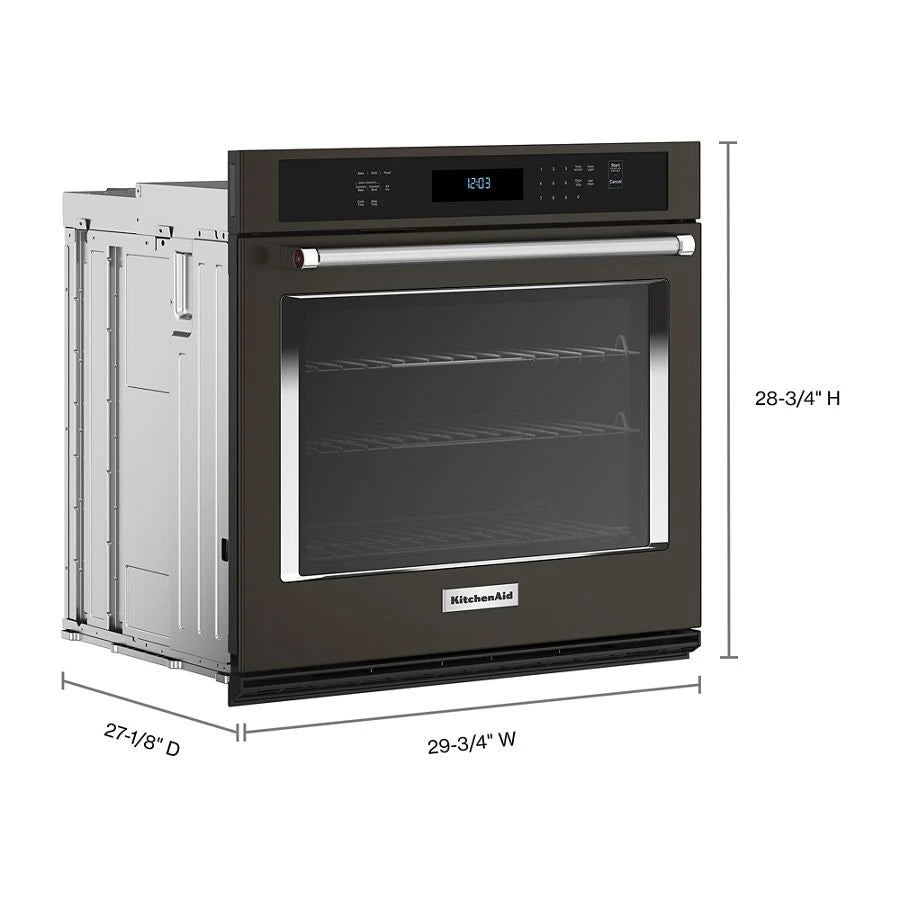

Dimensions & weight

Width	29.75 in.
Height	28.75 in.
Length	27.13 in.
Weight	167 lbs.
Carton Depth	30 13/16
Carton Height	30 3/4
Carton Width	34 13/16
Cutout Depth (in)	24
Cutout Height (in)	28
Cutout Width (in)	28 1/2
Depth Closed Excluding Handles	24 1/2
Depth Closed Including Handles	27 1/8
Depth With Door Open 90 Degree	46 3/4
Gross Weight	167
Net Weight	149.0
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	28.0000
Cutout Width(IN,inches)	28.5000
Depth Closed Excluding Handles(IN,inches)	24.5000
Depth Closed Including Handles(IN,inches)	27.1250
Depth With Door Open 90 Degree(IN,inches)	46.7500
Maximum Height(IN,inches)	28.7500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.75 in.
Shipping Height	33.75 in.
Shipping Length	32.13 in.
Shipping Weight	207 lbs.
Total of Shipping Weight	207 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	13.43 ft³
Dimensional Weight	166.91 lbs.
Total of Cubes	13.43 ft³
Total of Dimensional Weight	166.91 lbs.

Exterior details

Door Type	Metal & Glass
Oven Window Size	Extra Large
Door Lock	Yes
Handle Color	Stainless Steel
Handle Material	Metal

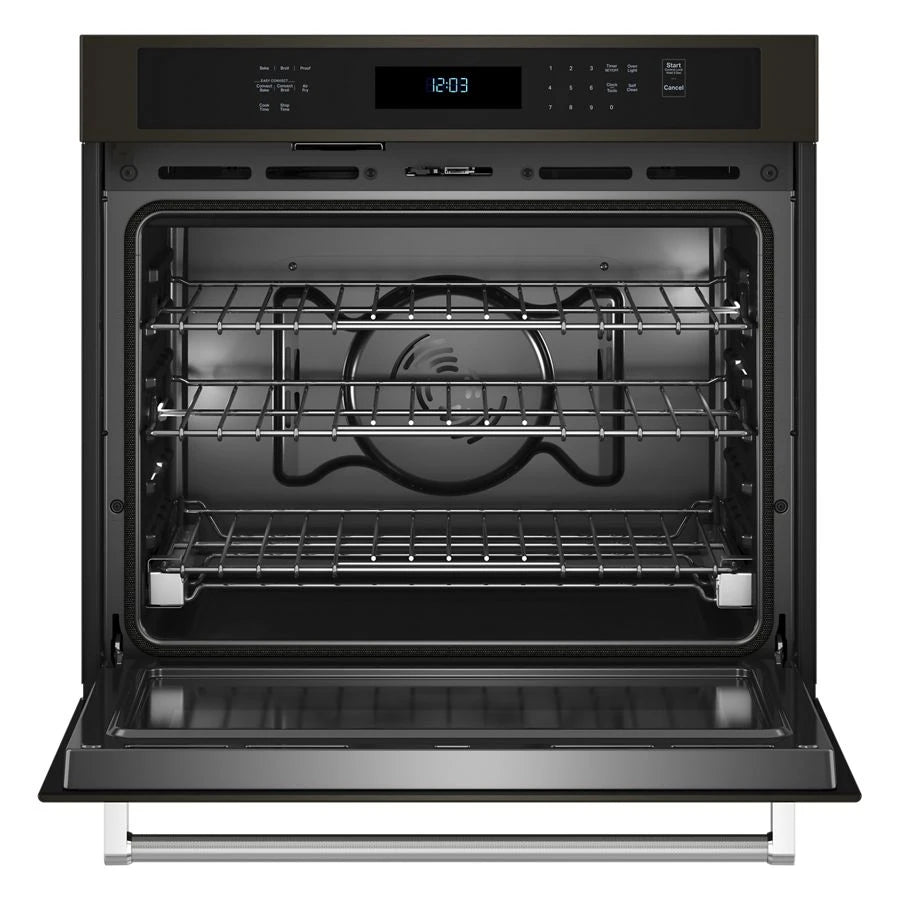

Oven cavity details

Bake Element Power	2,800 W
Broiler Element Power	4,000 W
Broiler Location	Top of Oven
Convection Element Type	True Convection
Convection Functions	Bake, Broil, Convection Conversion
Door Broil Position	Closed
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Yes
Installable Under Cooktop	Yes
Installable Under Oven	Yes
Interior Coating	Porcelain
Interior Color	Blue
Light Type	Halogen
Number of Bake Elements	2
Number of Broil Elements	1
Number of Oven Lights	2
Number of Oven Racks	3
Number of Rack Guides	6
Oven Cleaning Type	Self-Cleaning
Self-Cleaning Oven Racks	No
Convection Element Power	3,200 w

Smart compatibility

Connectivity	Amazon Alexa, Android, Google Assistant, iOS
Works With	App, Remote Access, Voice Controlled, WiFi

Dimensions

Capacity	5 cu. ft.
Common Size	30 in
Cutout Depth	24 in
Cutout Height	28 in
Gross Weight	160 lbs, 160 lbs
Net Weight	144 lbs, 144 lbs
Oven Interior Depth	19 in
Oven Interior Height	18 in
Oven Interior Width	25 in
Cutout Width	28.5 in
Depth	27.125 in
Depth Closed Excluding Handles	24.5 in
Depth Closed Including Handles	27.125 in
Depth With Door Open 90 Degree	46.75 in
Height	28.75 in
Maximum Height	28.75 in
Width	29.75 in

Description

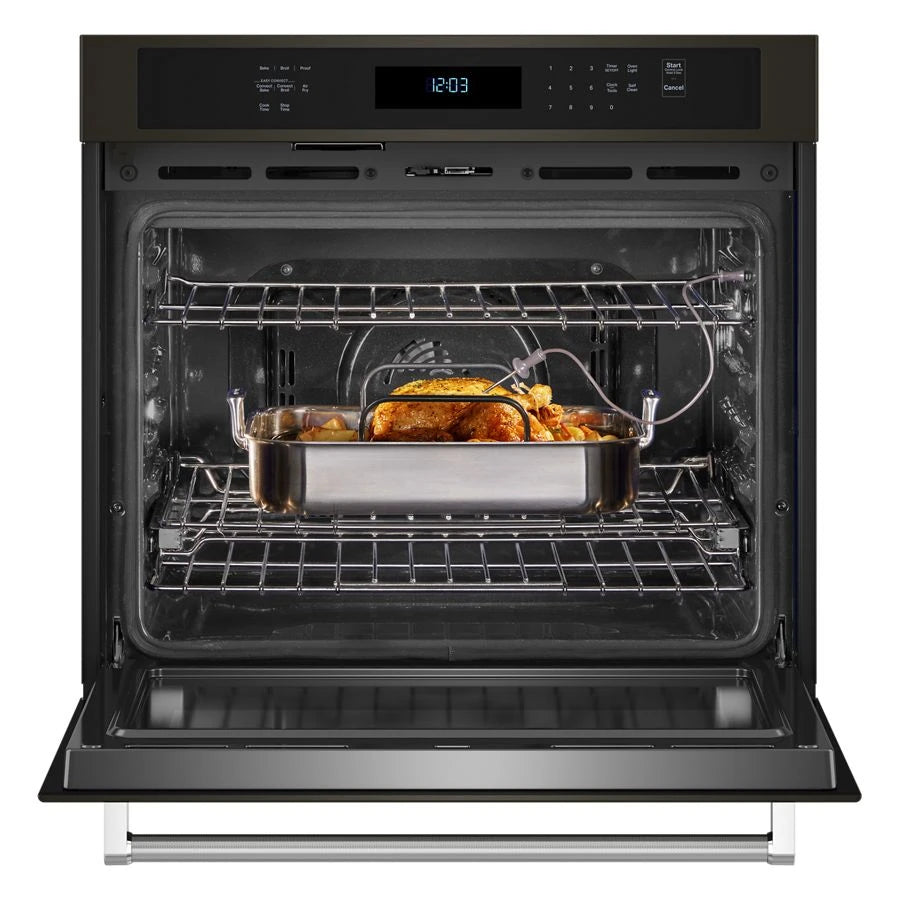

Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.

*When compared to deep frying.

Manuals & Guides

Key Features

Self-Cleaning Cycle

Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
