| Ada Compliant | No |
| Cul | Yes |
| Energy Rating | 325 |
| Prop65 | Standard |
| Star K Certified | Star K Certified |
| Ul | Yes |

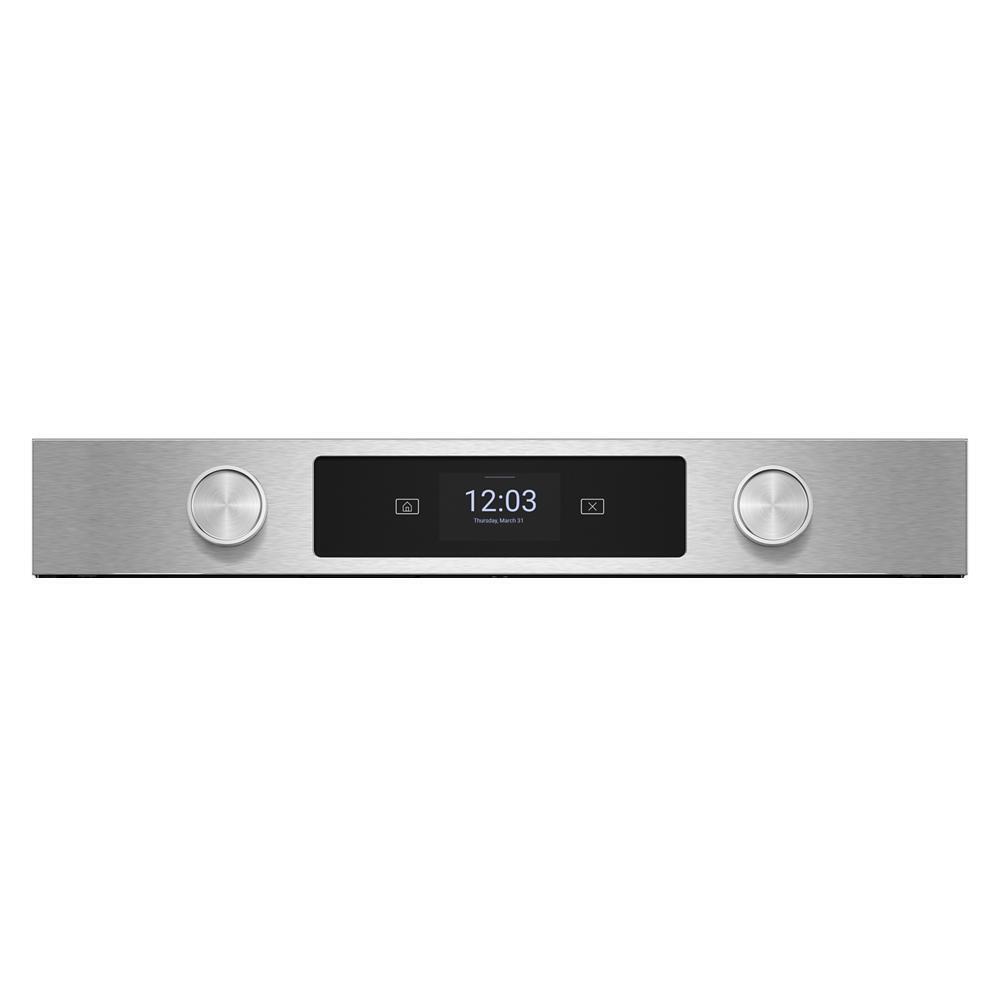

| Control Type | Full Color LCD Electronic Touch |
| Display Color | Full Color |
| Electronic Display Type | Digital |
| Air Fry | Yes |
| Delay Clean | No |

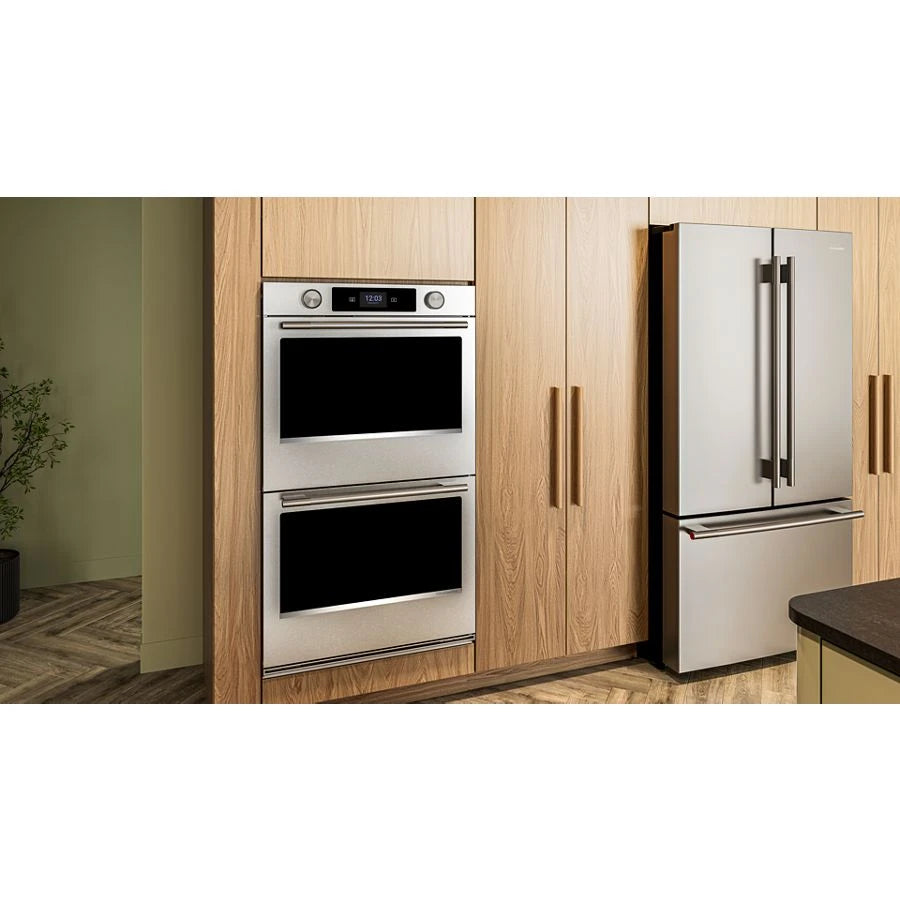

| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Light Control | Oven Light Touch Pad |
| Oven Automatic Shut-off | Yes |

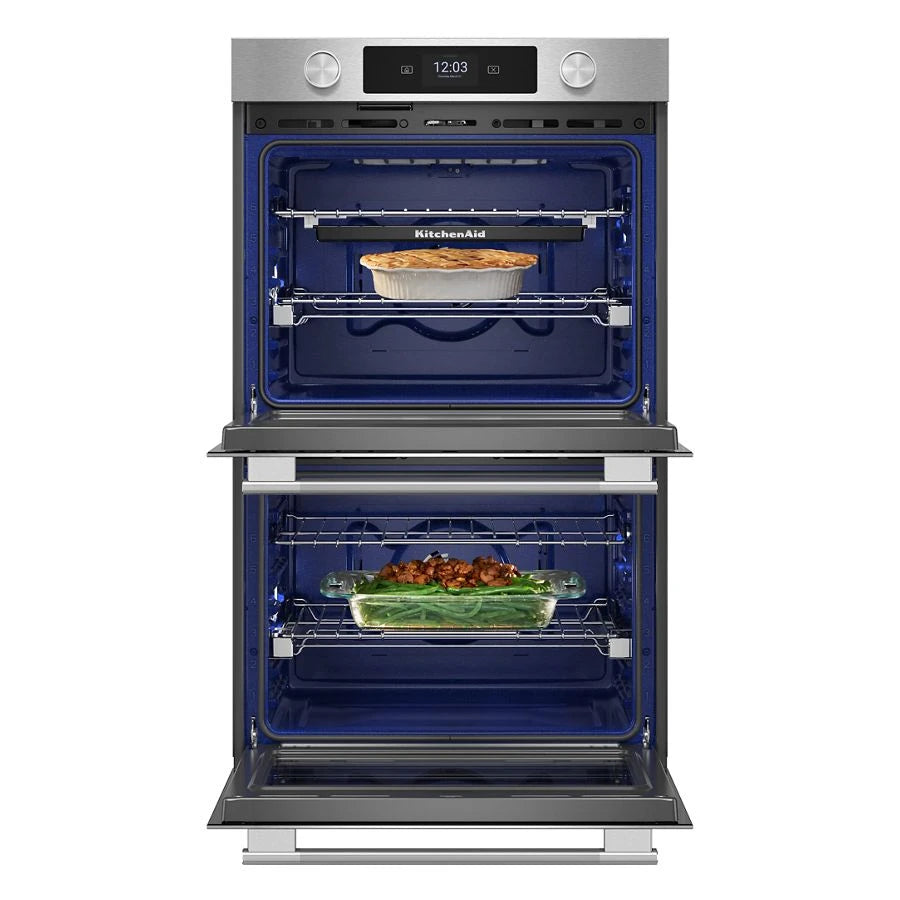

| Oven Type | Double |
| Power On Indicator Light | Yes |

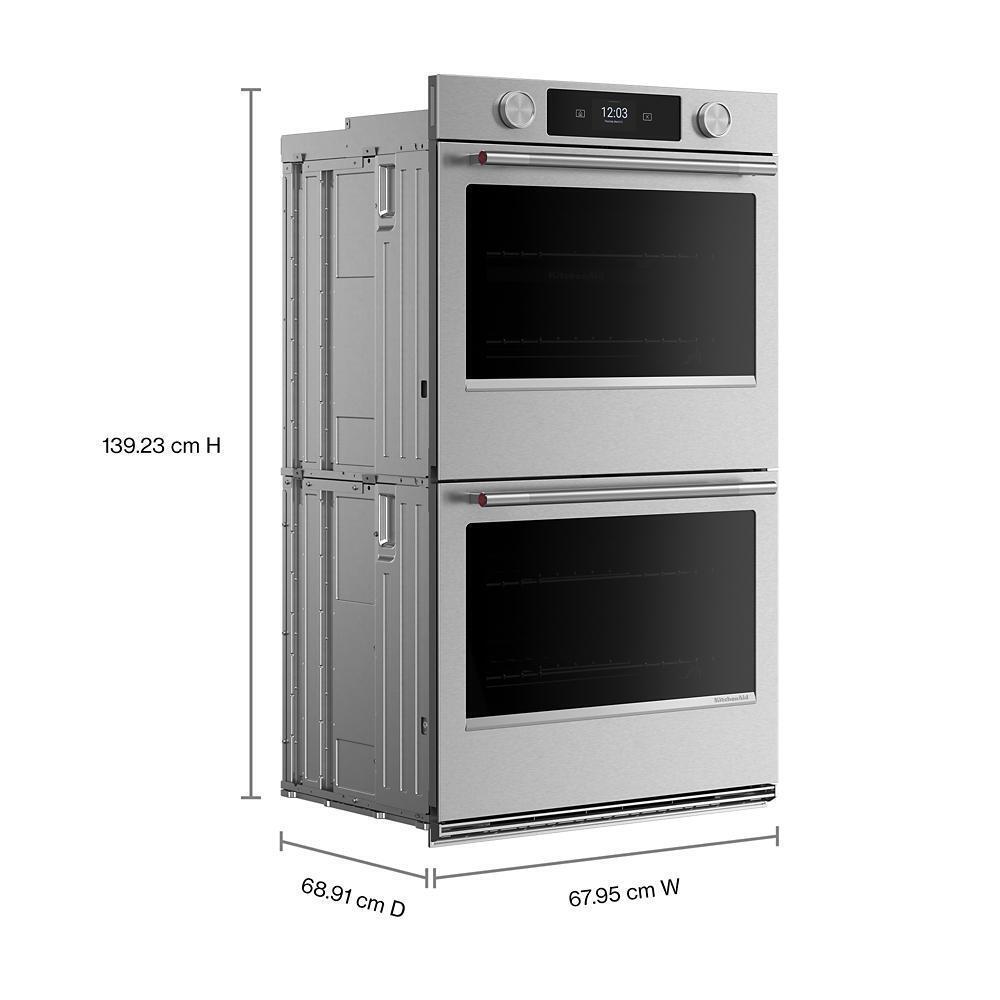

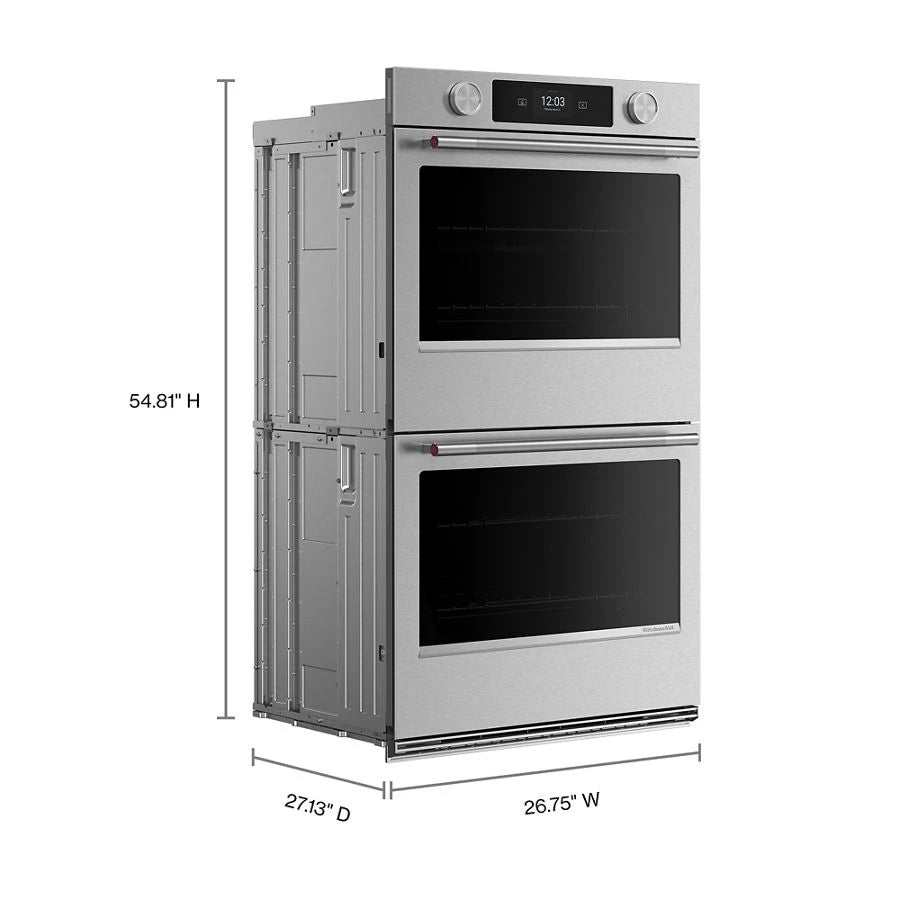

| Product Height | 50.81 |
| Carton Height | 54.0 |
| Gross Weight | 277 |
| Upper Oven Capacity | 4.3 |
| Carton Width | 32.0 |
| Lower Oven Interior Height | 18.0 |
| Upper Oven Interior Width | 22.0 |
| Product Depth | 27.13 |
| Depth With Door Open 90 Degree | 46.75 |
| Lower Oven Interior Width | 22.0 |
| Cutout Depth | 24.0 |
| Cutout Height | 50.25 |
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 27.13 |
| Lower Oven Capacity | 4.3 |
| Upper Oven Interior Depth | 19.0 |
| Carton Depth | 31.0 |
| Cutout Width | 25.5 |
| Upper Oven Interior Height | 18.0 |
| Net Weight | 271 |
| Product Width | 26.75 |
| Lower Oven Interior Depth | 19.0 |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Bake Element Power | 2800 |
| Broiler Element Power | 4000 |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil, Air Fry; Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |

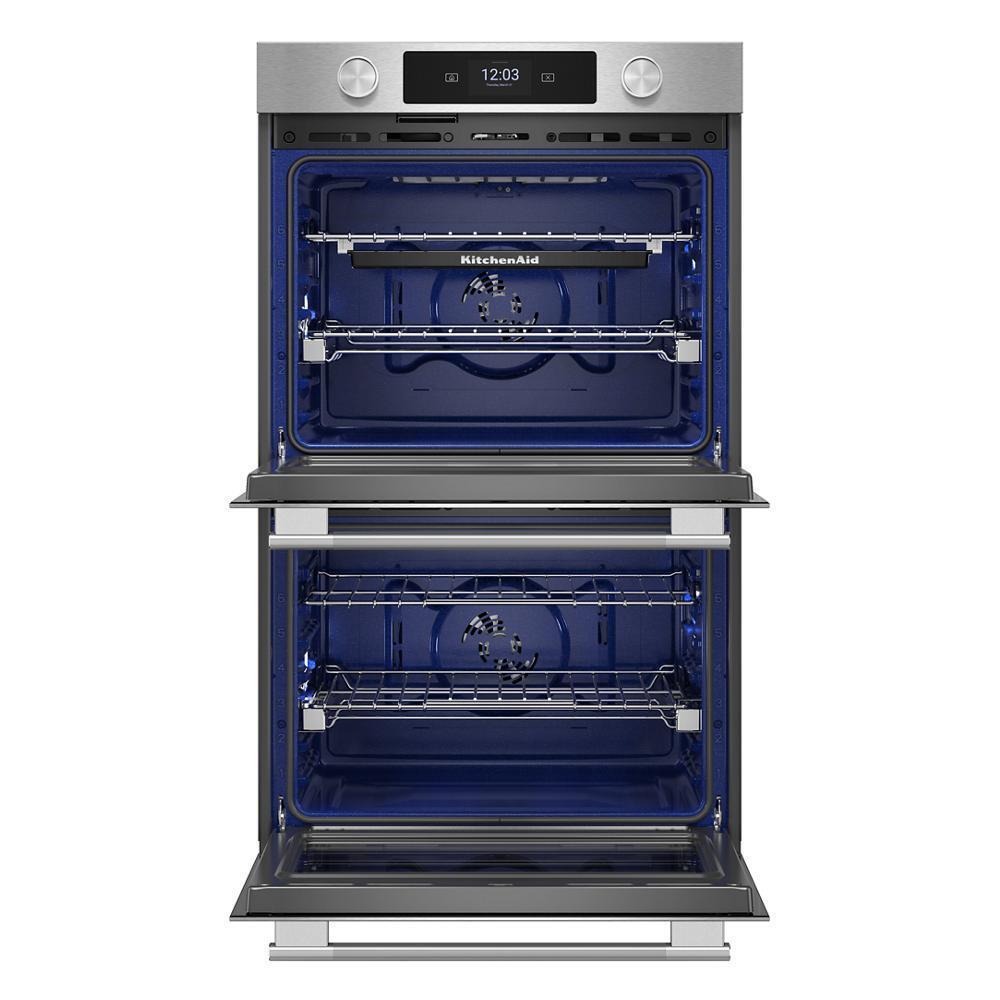

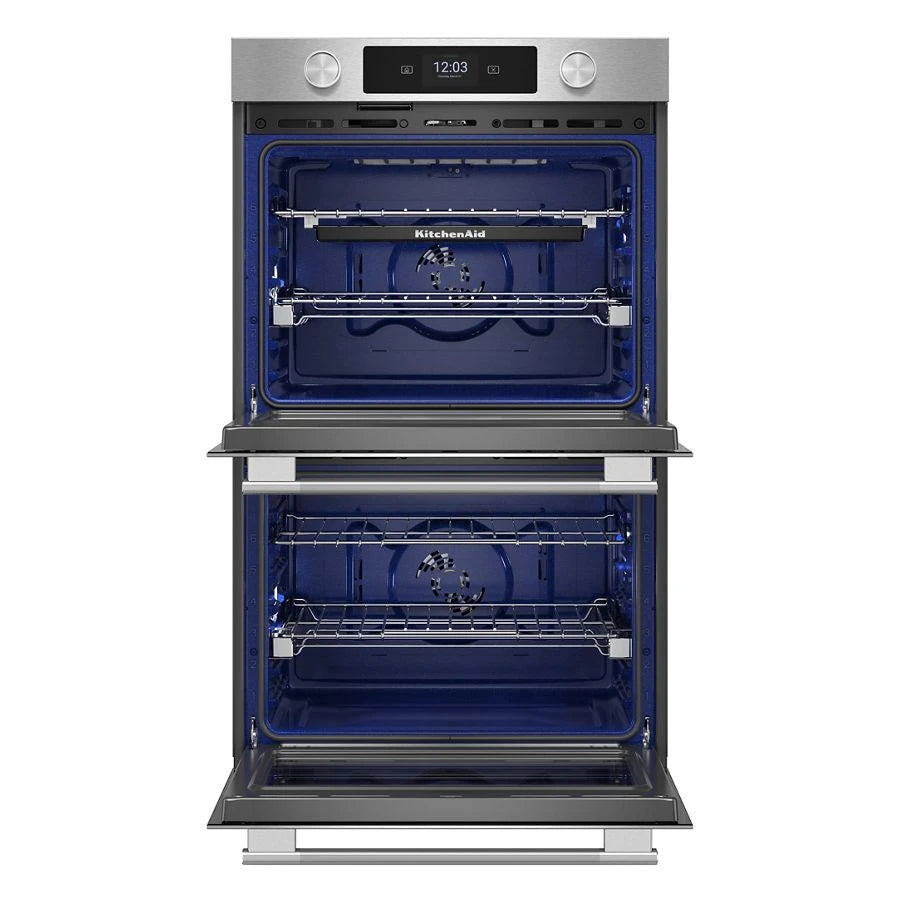

| Number of Lower Oven Racks | 2 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 6 |

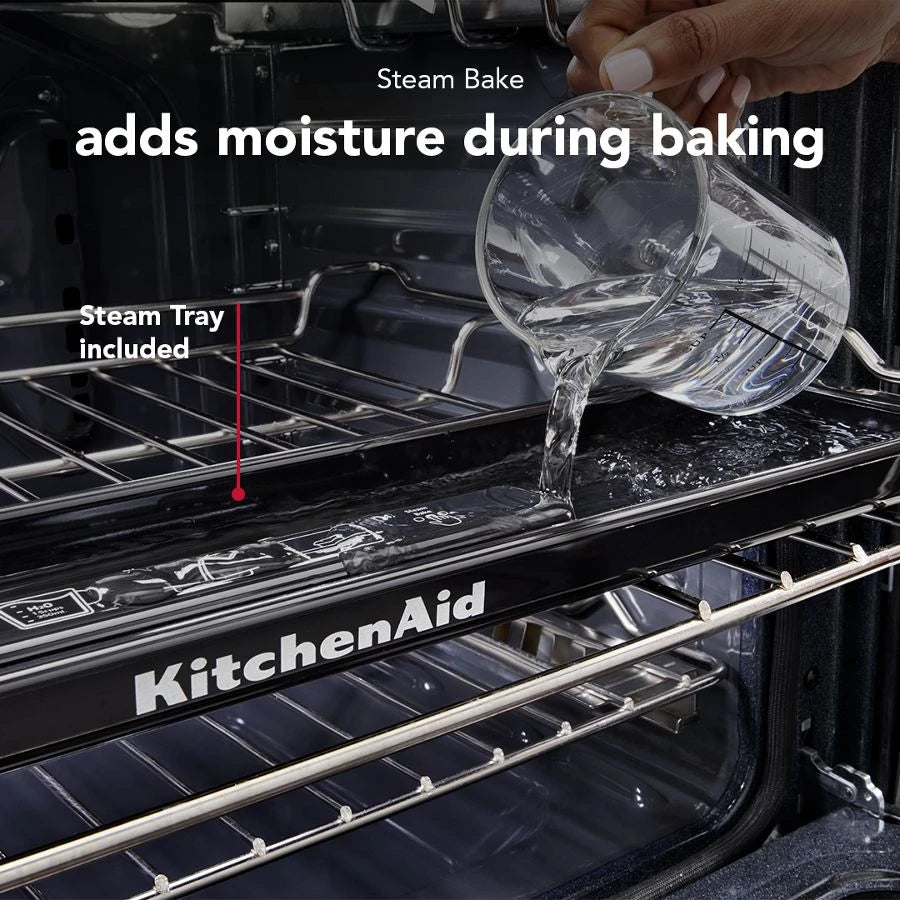

| Oven Cleaning Type | Steam Clean |
| Upper Oven Number of Oven Lights | 2 |

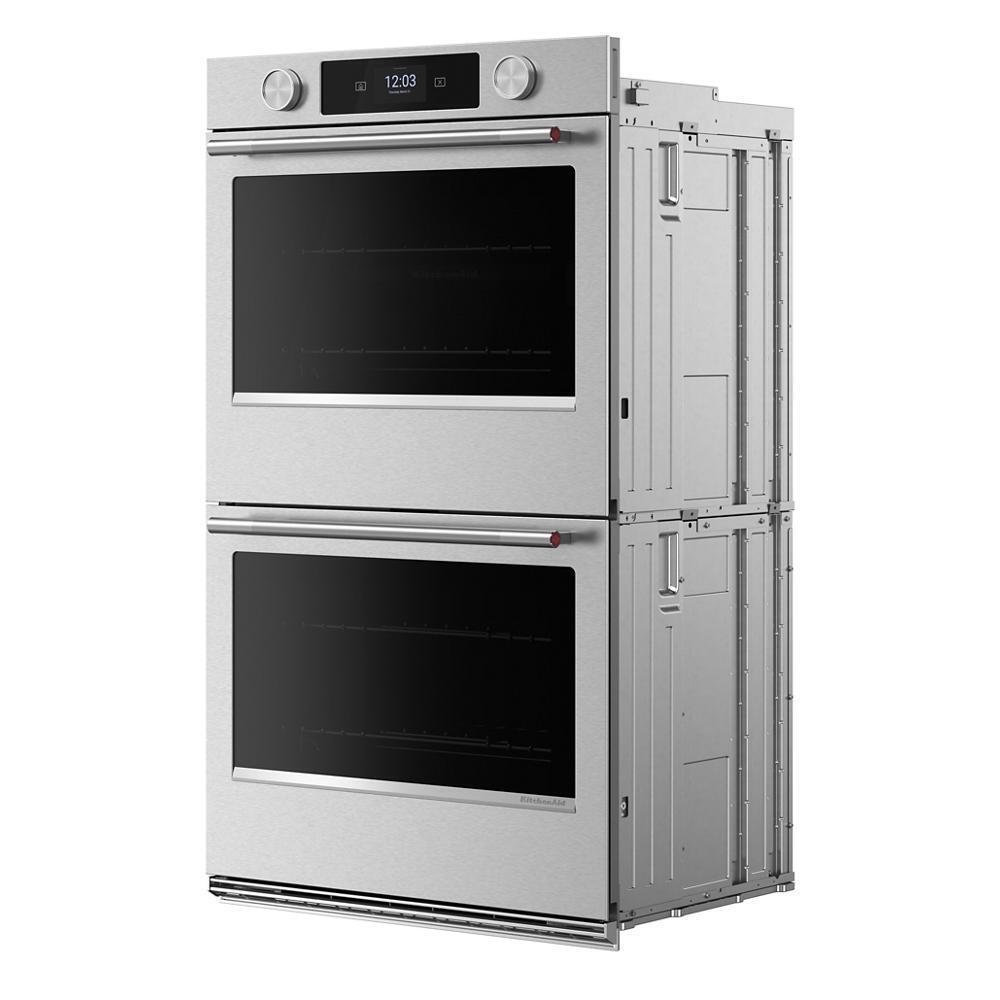

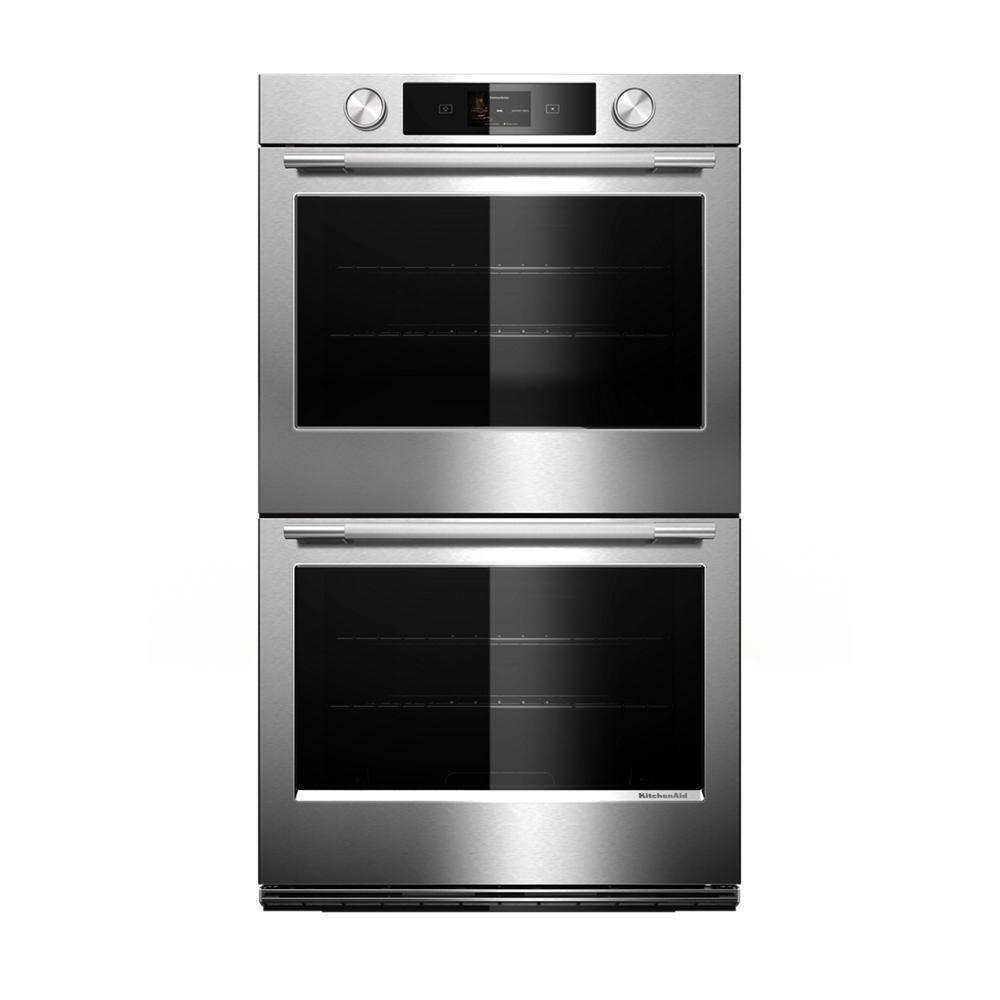

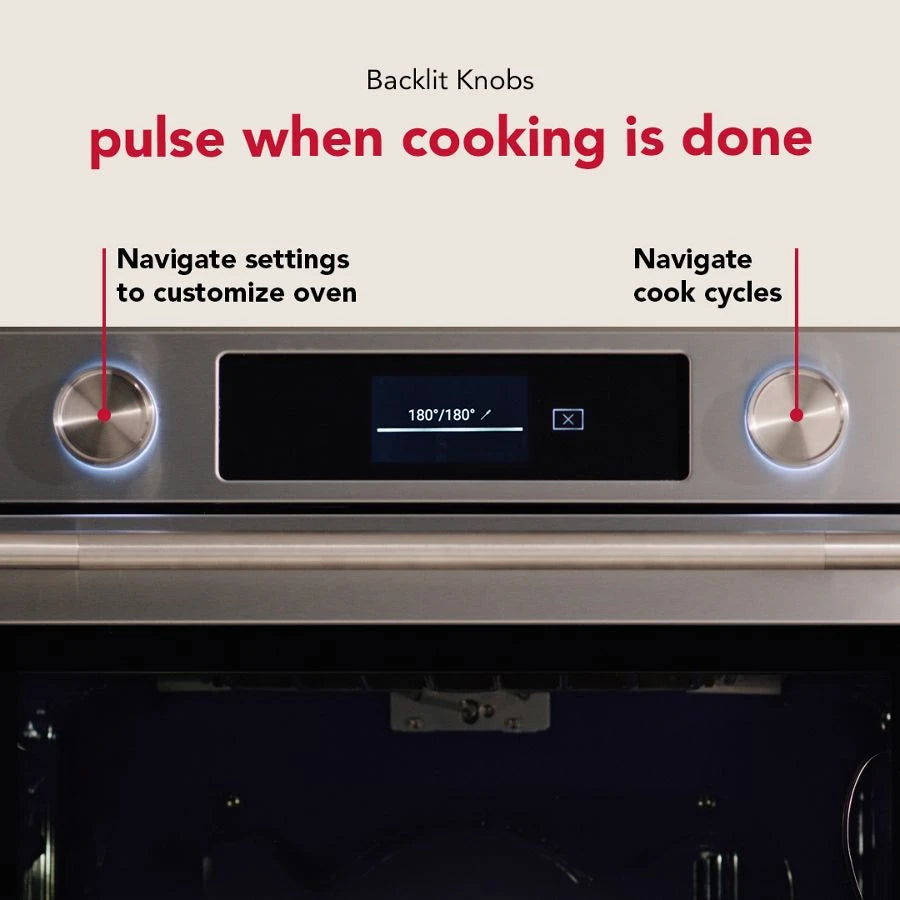

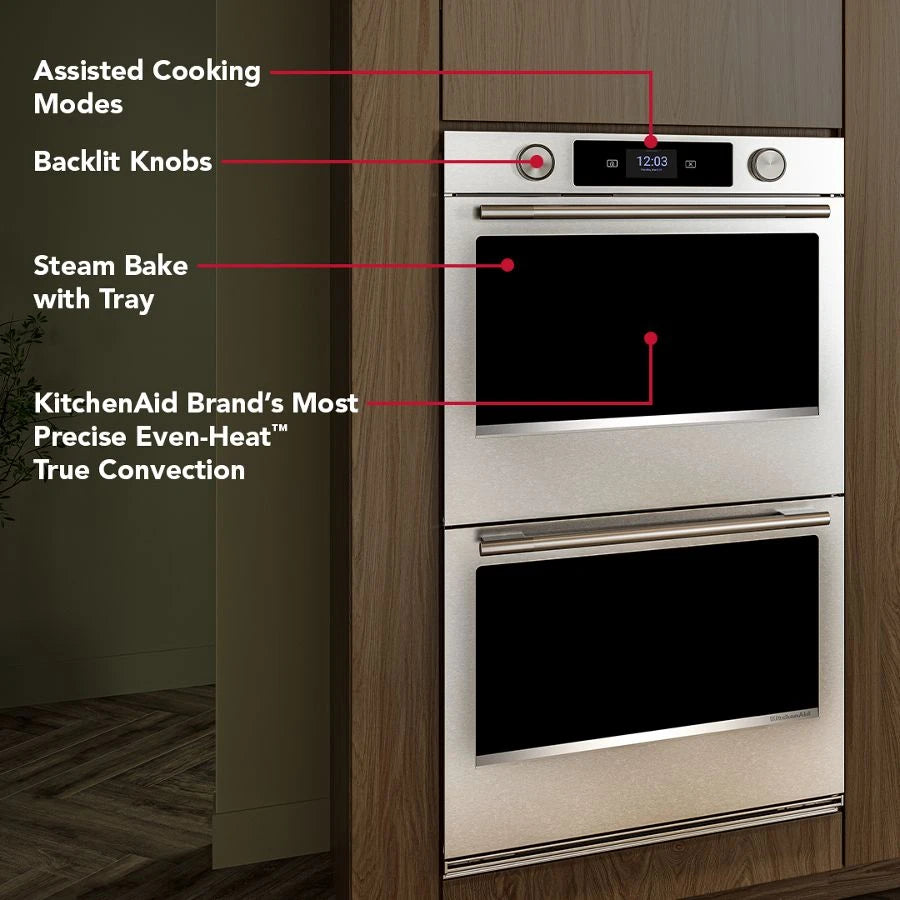

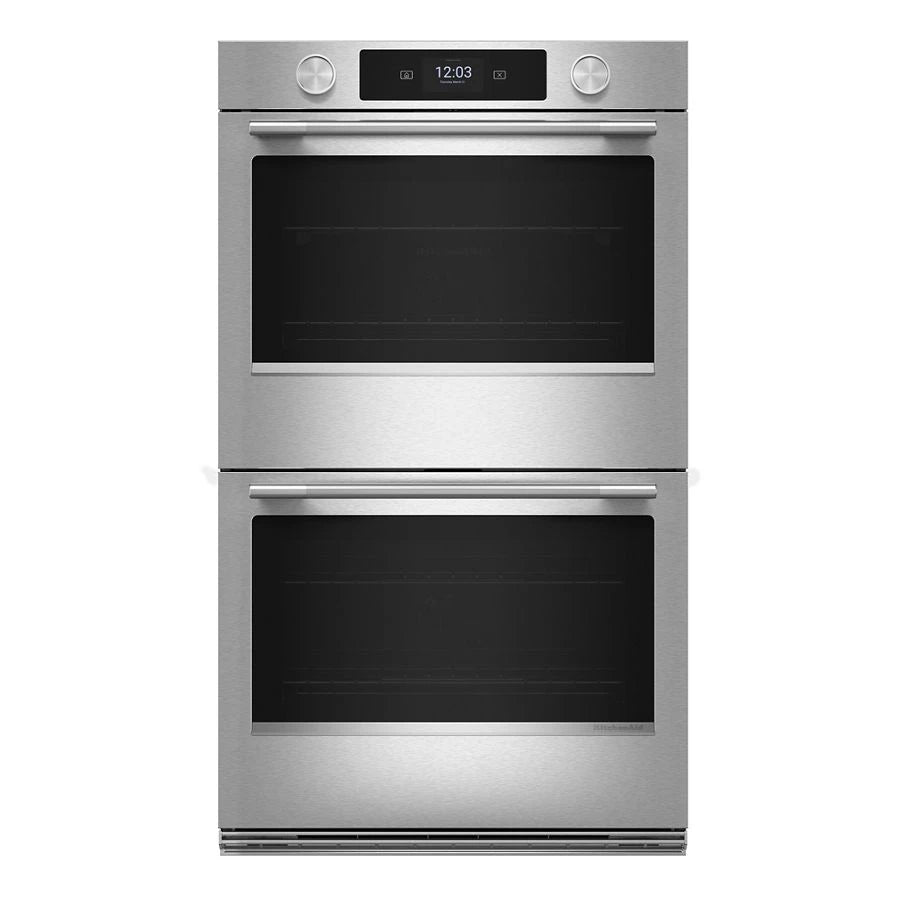

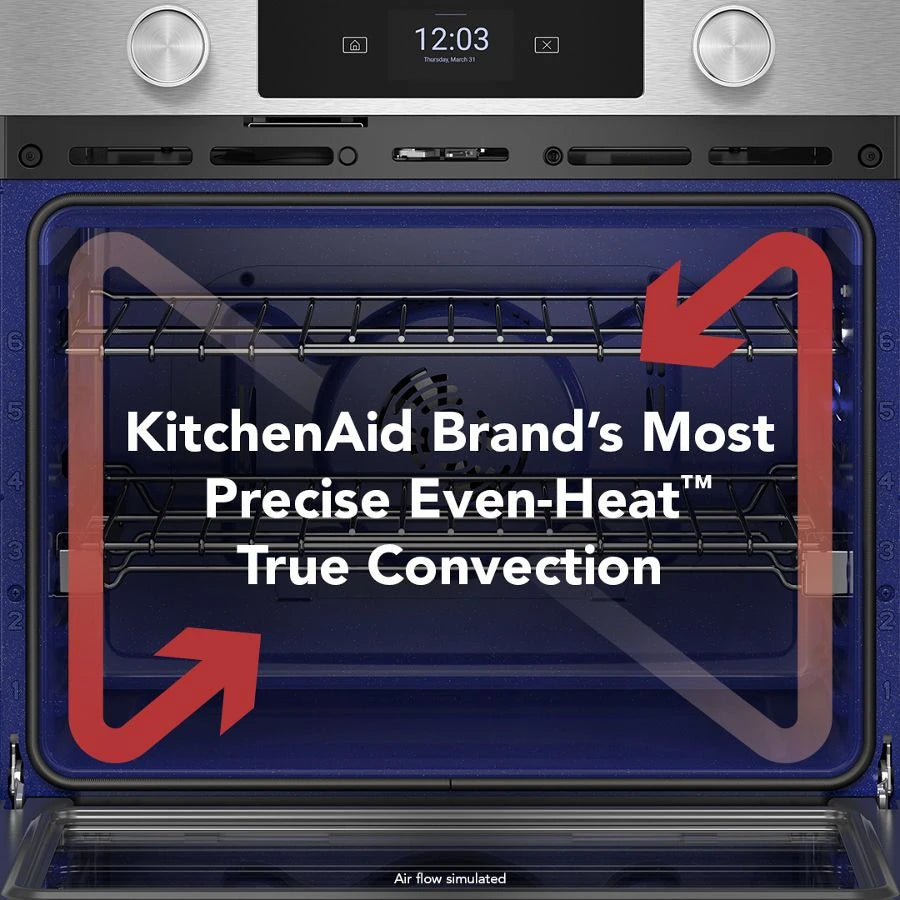

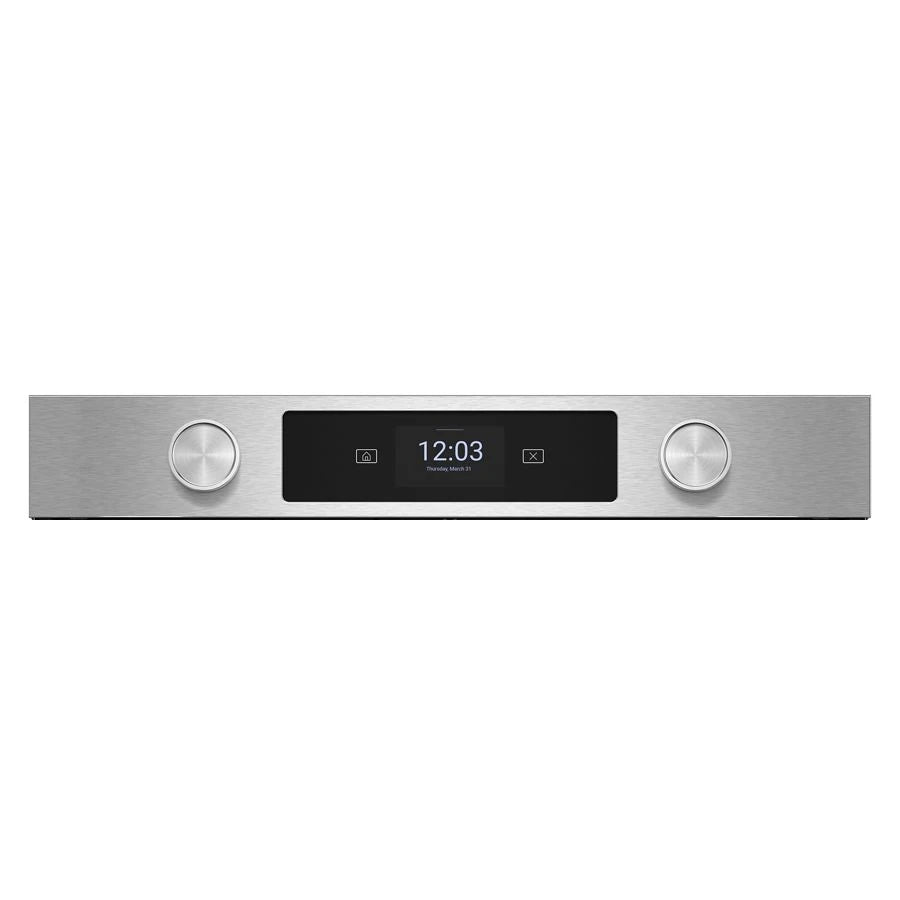

Explore new recipes with built-in tips on this KitchenAid smart wall oven, featuring our Most Precise Even-Heat(TM) True Convection and Assisted Cooking Modes. LED Touchscreen display and backlit knobs allow for tactile display navigation. The backlit knobs also provide a visual cue throughout the cooking process, illuminating when the oven is preheating and flashing when cooking is finished.
