Sale price $2,799.00 Regular price $4,398.97 Save $1,599.97 / 36% OFF

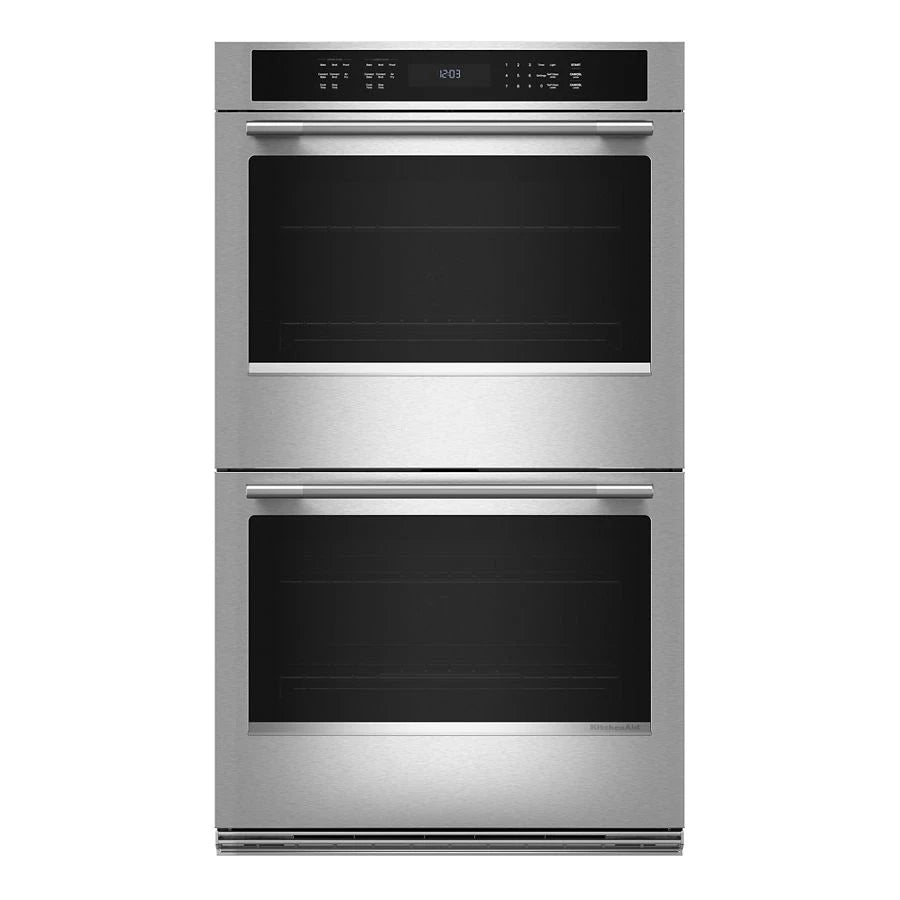

Product Details for KitchenAid KOED530SPS

Technical Details

Certifications

ADA Compliant No
CUL Yes
Star K Certified Star K Certified
UL Yes
Prop 65 Standard

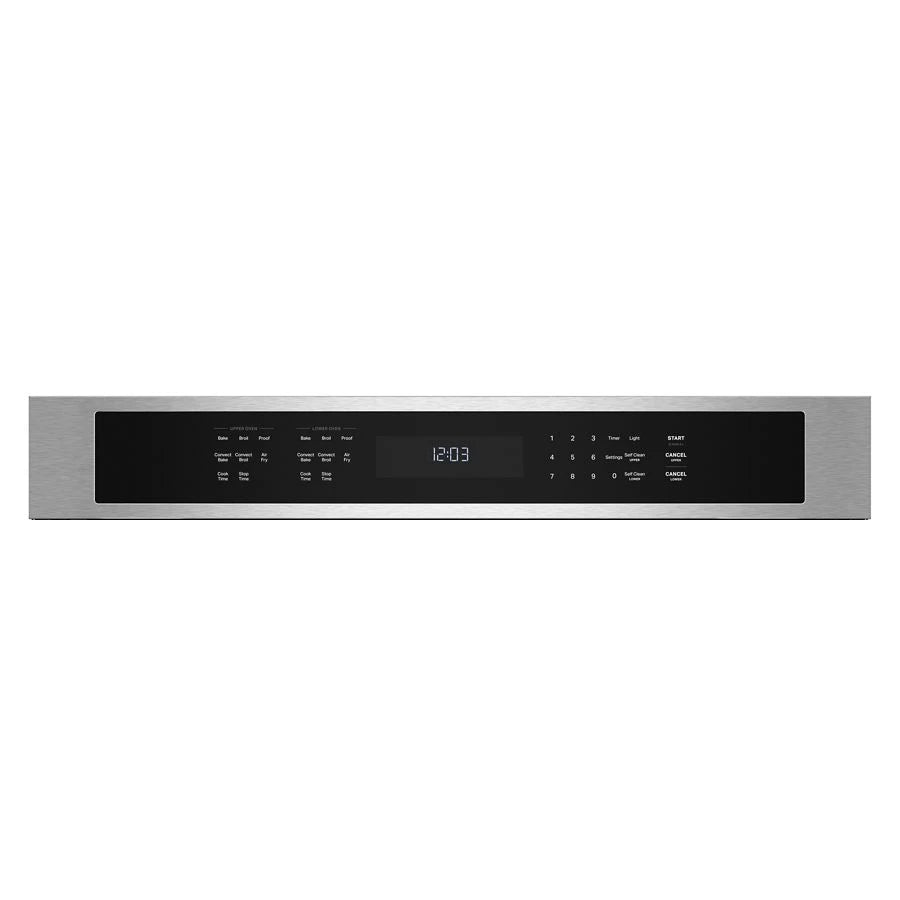

Controls

Control Type Electronic Touch
Display Color White
Electronic Display Type Digital
Language Conversion English/French/Spanish
Light Control Oven Light Touch Pad

Details

Air Fry Yes
Flush Installation Approved Yes
Fuel Type Electric
Oven Automatic Shut-Off Yes
Oven Type Double

Electrical

Power Cord Included No
Amps 40
Hz 60
Volts 240

Exterior details

Door Type Metal & Glass
Door Lock Yes

Oven details

Lower Oven Selections Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Bake; Convect Broil; Cook Time Indicator; Delay Start; Proofing; Sabbath Mode; Stop Time; Temperature Conversion

Smart compatibility

Connectivity No

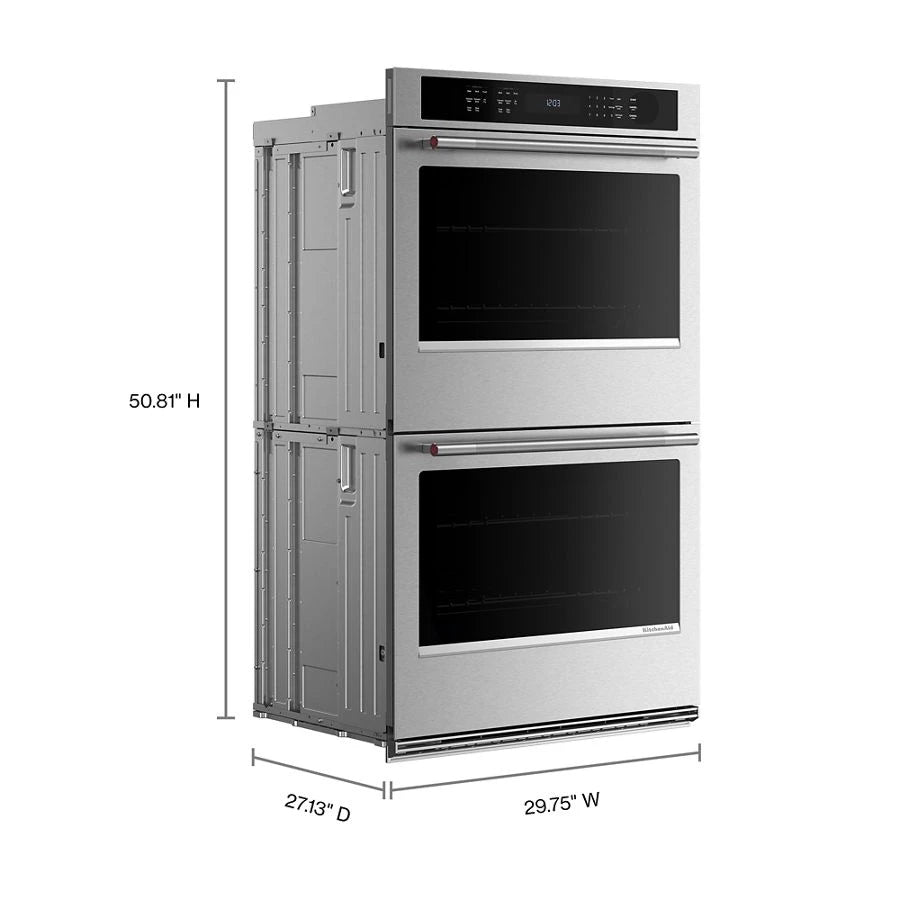

Dimensions

Capacity 10 cu. ft.
Common Size 30 in
Cutout Depth 24 in
Cutout Height 50-1/4 in
Cutout Width 28-1/2 in
Depth 27-1/8 in
Depth Closed Excluding Handles 24-1/2 in
Depth Closed Including Handles 26-469/500 in
Gross Weight 311 lbs
Height 50-13/16 in
Lower Oven Interior Depth 119 in
Lower Oven Interior Height 18 in
Lower Oven Interior Width 25 in
Maximum Height 51-1/4 in
Net Weight 305 lbs
Upper Oven Interior Depth 19 in
Upper Oven Interior Height 18 in
Upper Oven Interior Width 25 in
Width 29-3/4 in

Oven cavity details

Bake Element Power 2800W Both
Broiler Element Power 4000W Both
Broiler Location Top of Oven
Convection Element Power 3200 Both w
Convection Element Type True Convection
Convection Functions Bake, Broil, Air Fry, Convection Conversion
Door Broil Position Closed
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Light Type Halogen
Lower Oven Capacity 5 cu. ft.
Lower Oven Number of Oven Lights 2
Lower Oven Selections Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Bake, Convect Broil, Cook Time Indicator, Delay Start, Proofing, Sabbath Mode, Stop Time, Temperature Conversion
Number of Bake Elements 2
Number of Broil Elements 1
Number of Lower Oven Racks 2
Number of Upper Oven Racks 2
Number of Upper Rack Guides 6
Oven Cleaning Type Self-Cleaning
Oven Cooking System Convection Both
Temperature Conversion Yes
Temperature Probe Yes
Upper Oven Capacity 5 cu. ft.
Upper Oven Number of Oven Lights 2

Description

Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air to cook with less oil.* Even-Heat™ True Convection for consistent baking and roasting. Temperature Probe provides internal temperature updates on oven screen or your mobile device without opening the door. SatinGlide™ Roll-Out Extension Rack makes it easy to cook with large or heavy bakeware. PrintShield™ Finish coating resists fingerprints and smudges. *When compared to deep frying.

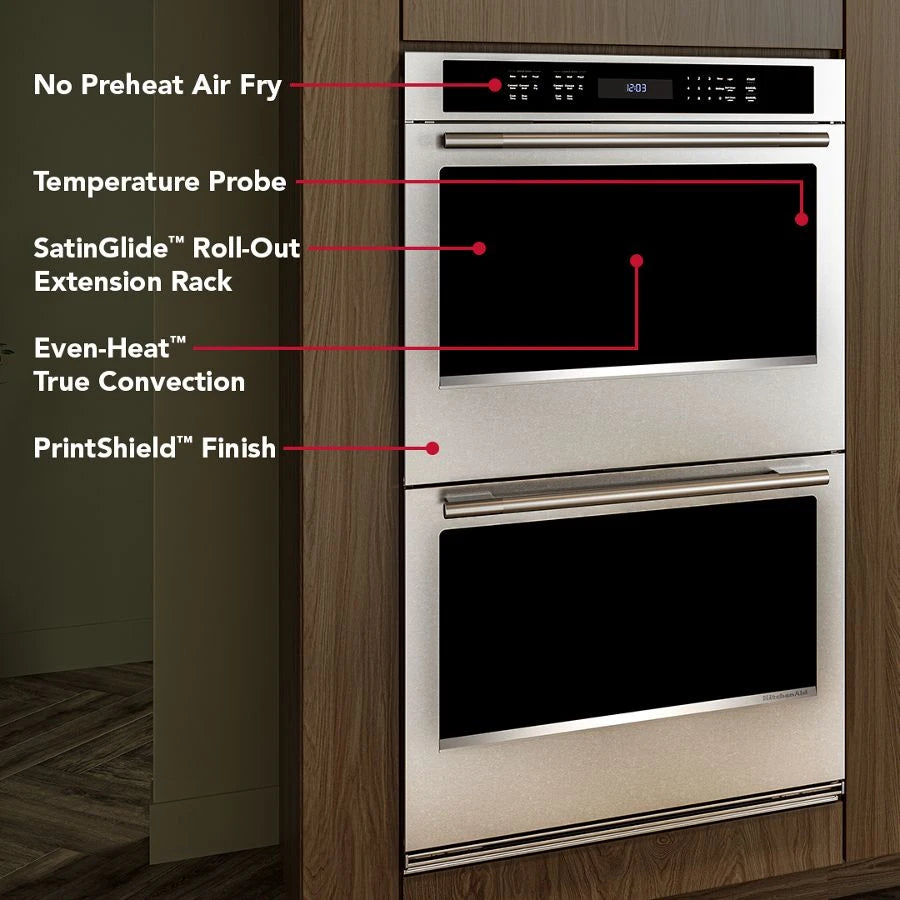

Product Features

  • EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

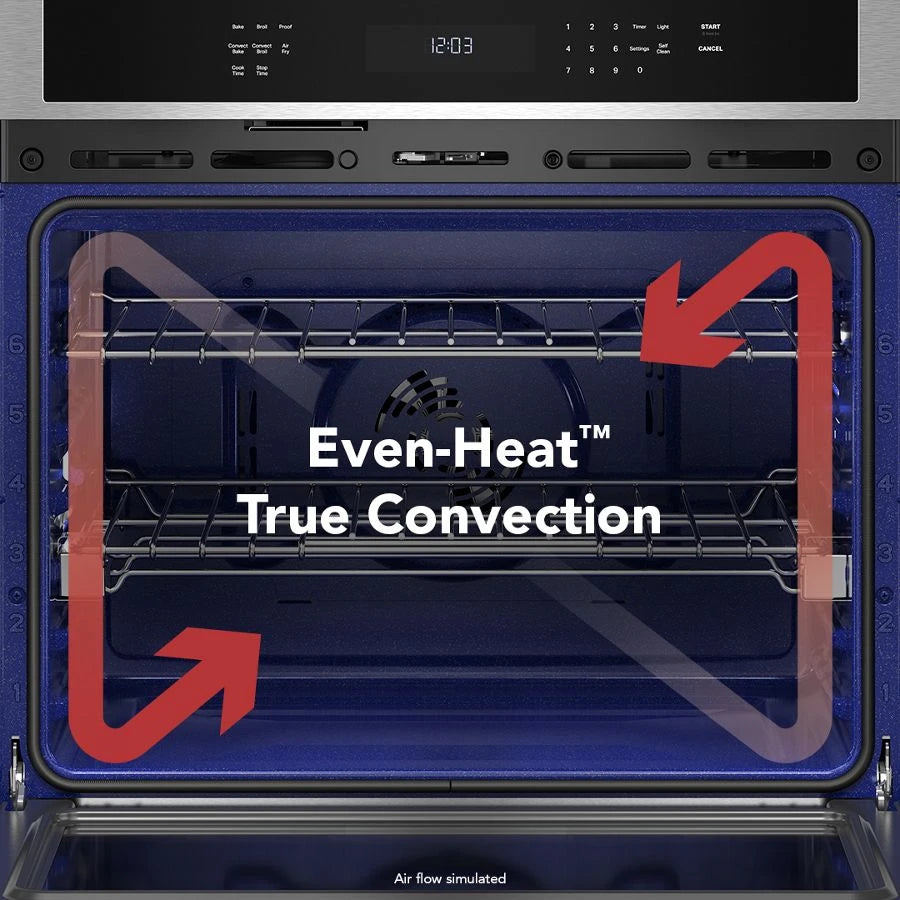

  • Even-Heat™ True Convection
    features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
  • FIT System Limited Guarantee
    If your new 27”or 30” wall oven doesn’t fit, you may get up to $300 for professional modifications. Existing cabinet modifications only. Exclusions apply. See terms.*For full terms and details, visit https://www.kitchenaid.com/promotions/promotions.html

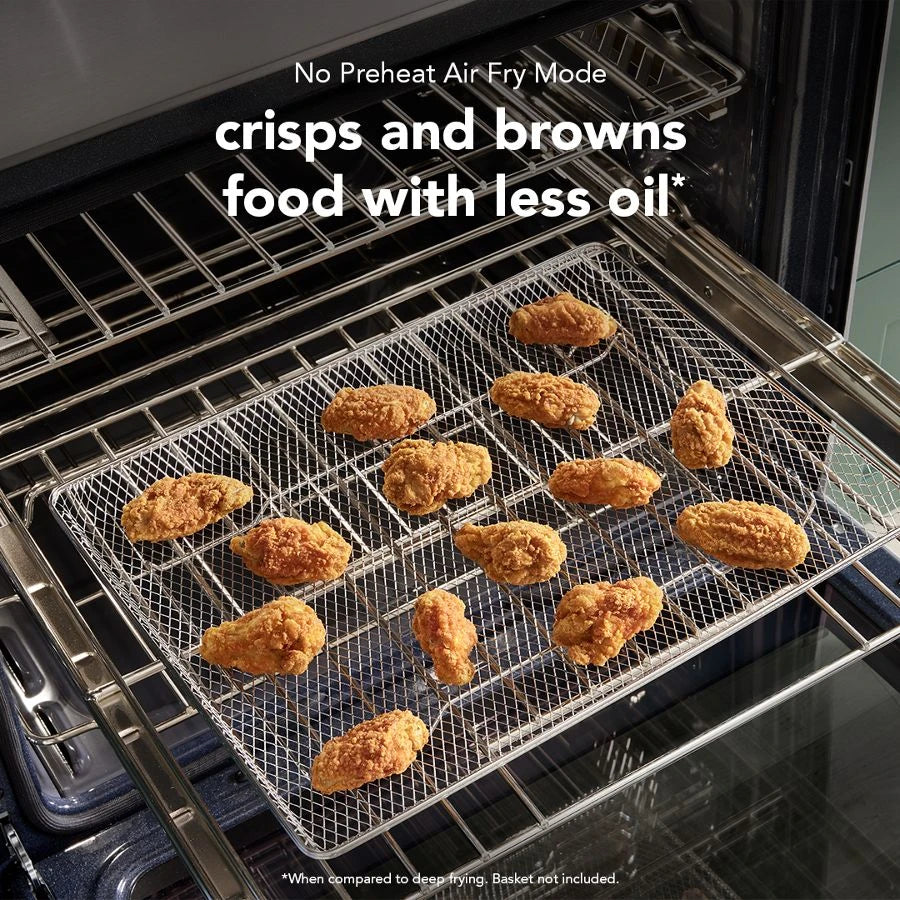

  • No Preheat Air Fry Mode
    uses heating elements and a fan to circulate hot air within the cavity, crisping and browning food with less oil.*† *When compared to deep frying. †Dishwasher-safe basket sold separately.
  • PrintShield™ Finish
    Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

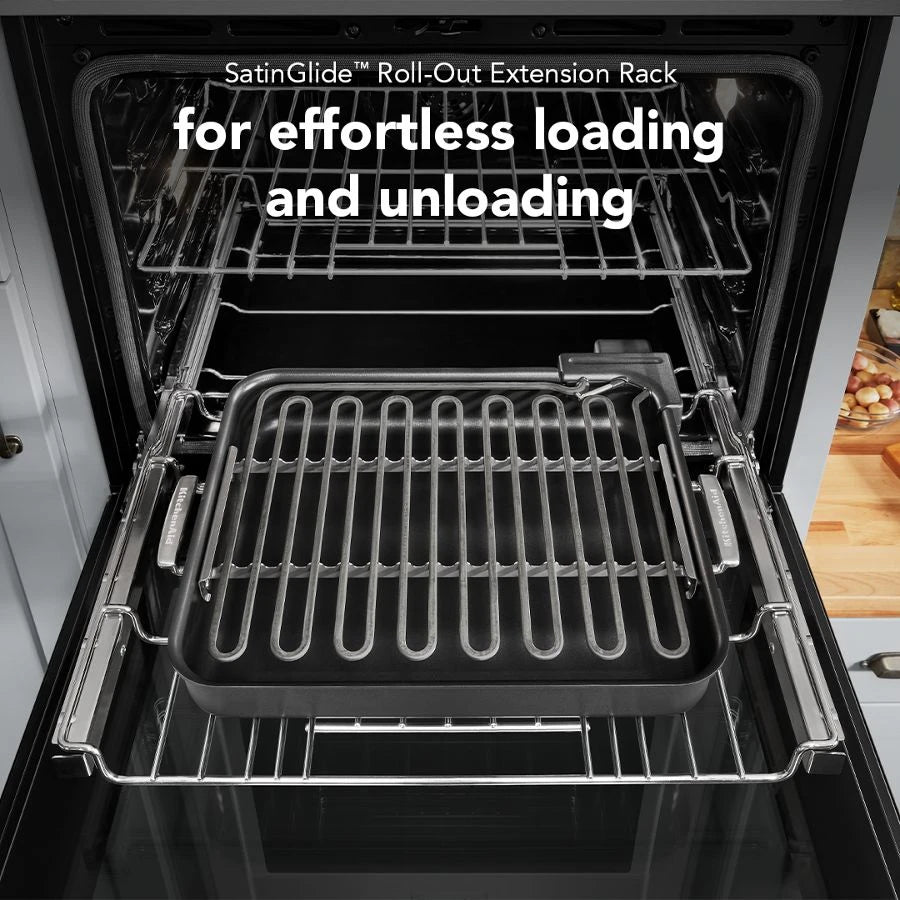

  • SatinGlide™ Roll-Out Extension Rack
    features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.

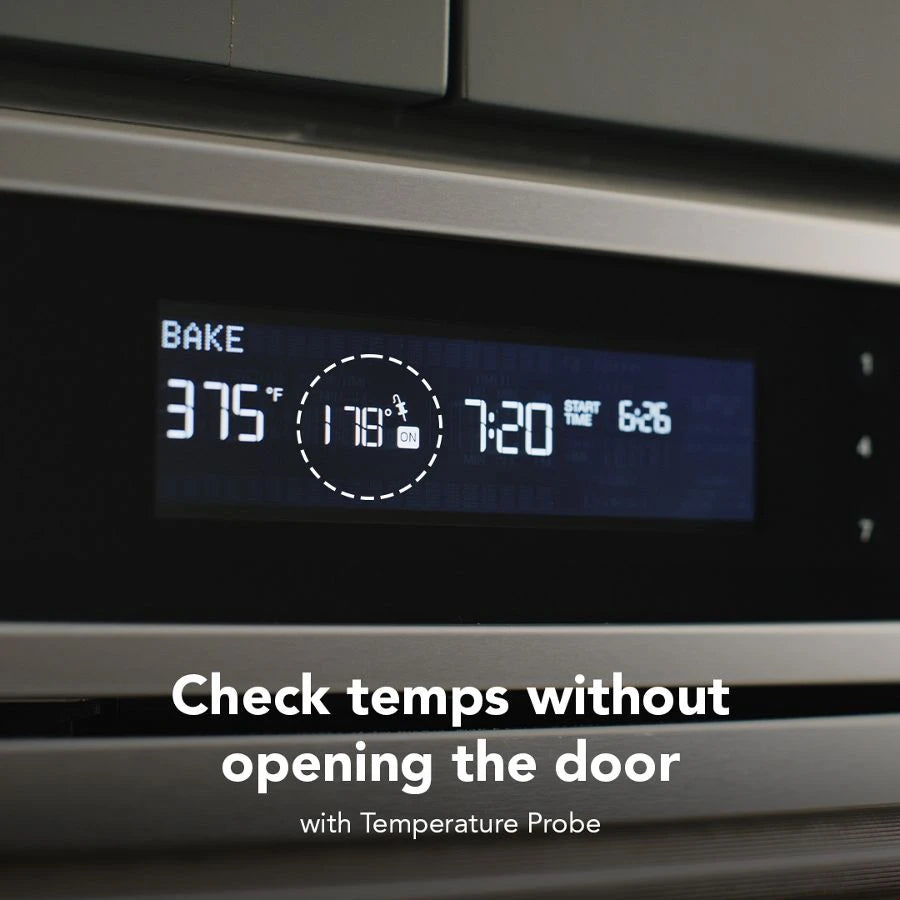

  • Temperature Probe
    provides internal temperature updates on oven screen so you can control whether your roast beef tenderloin comes out rare, medium rare, or medium without opening the door.

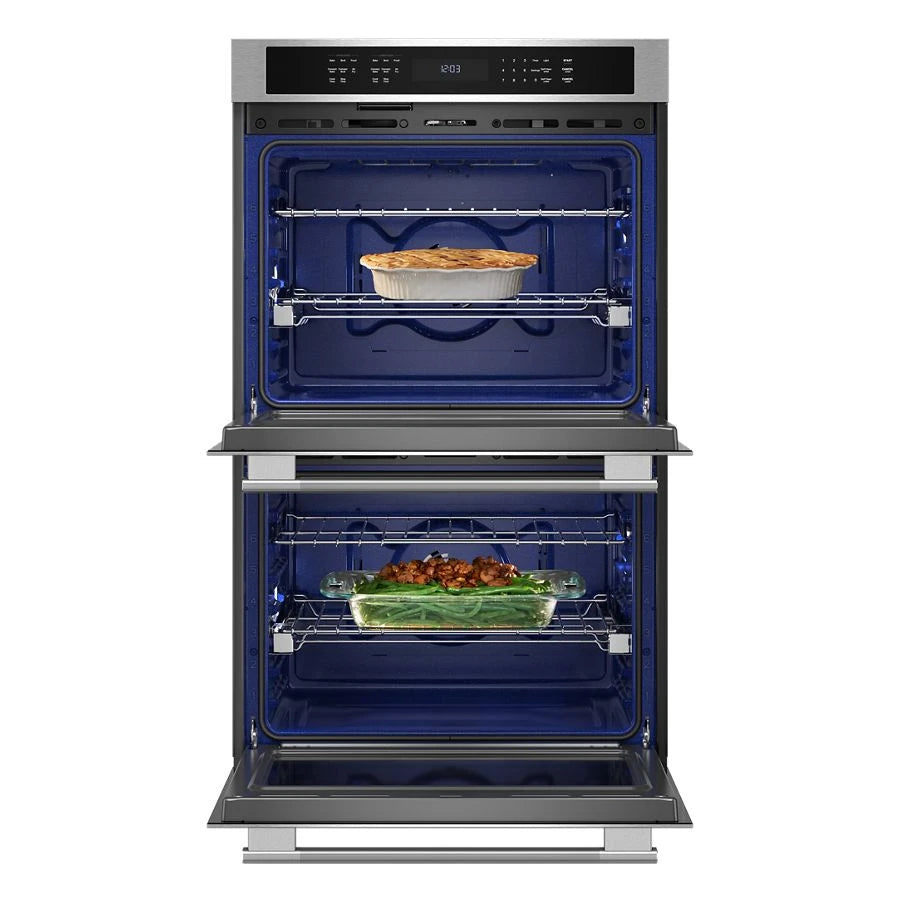

  • 5.0 Cu. Ft. Oven Capacity (both ovens)
    in both ovens provides space and flexibility to cook multiple dishes at different temperatures, so you can roast a whole turkey with sides in one, while baking dessert in the other.
  • Proudly assembled in Cleveland, Tennessee U.S.A.
    We take pride in building strong, reliable appliances for your home. These wall ovens are proudly assembled by hard-working employees in Cleveland, Tennessee.
  • Smooth-Close Doors
    makes it easy to close the oven while your hands are full with special hinges that help prevent slamming. You can just nudge the doors and it will glide to a soft, smooth close.
  • Star-K Certified Sabbath Mode
    To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
  • Steam Clean & Self-Cleaning Cycles
    keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.
