Product Details for KITCHENAID KOED530PWH

Technical Details

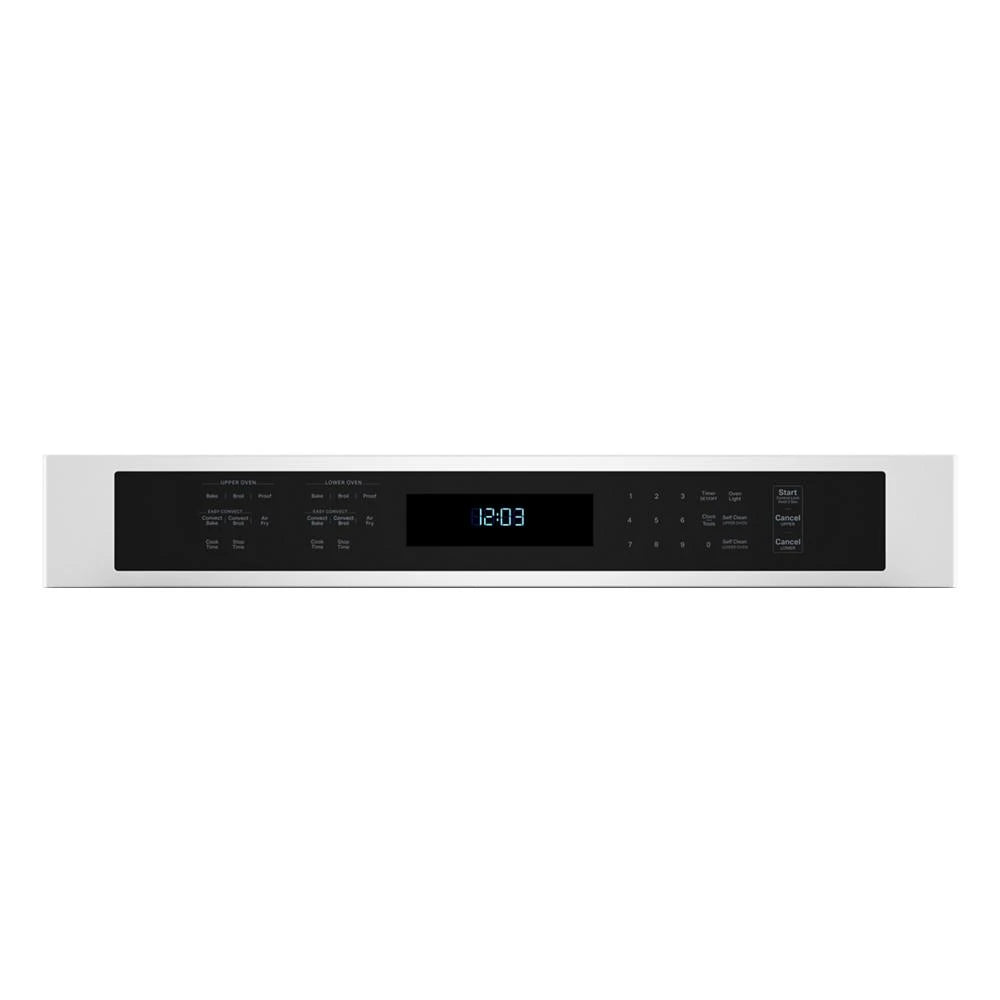

Controls

Display Color White
Electronic Display Type Digital

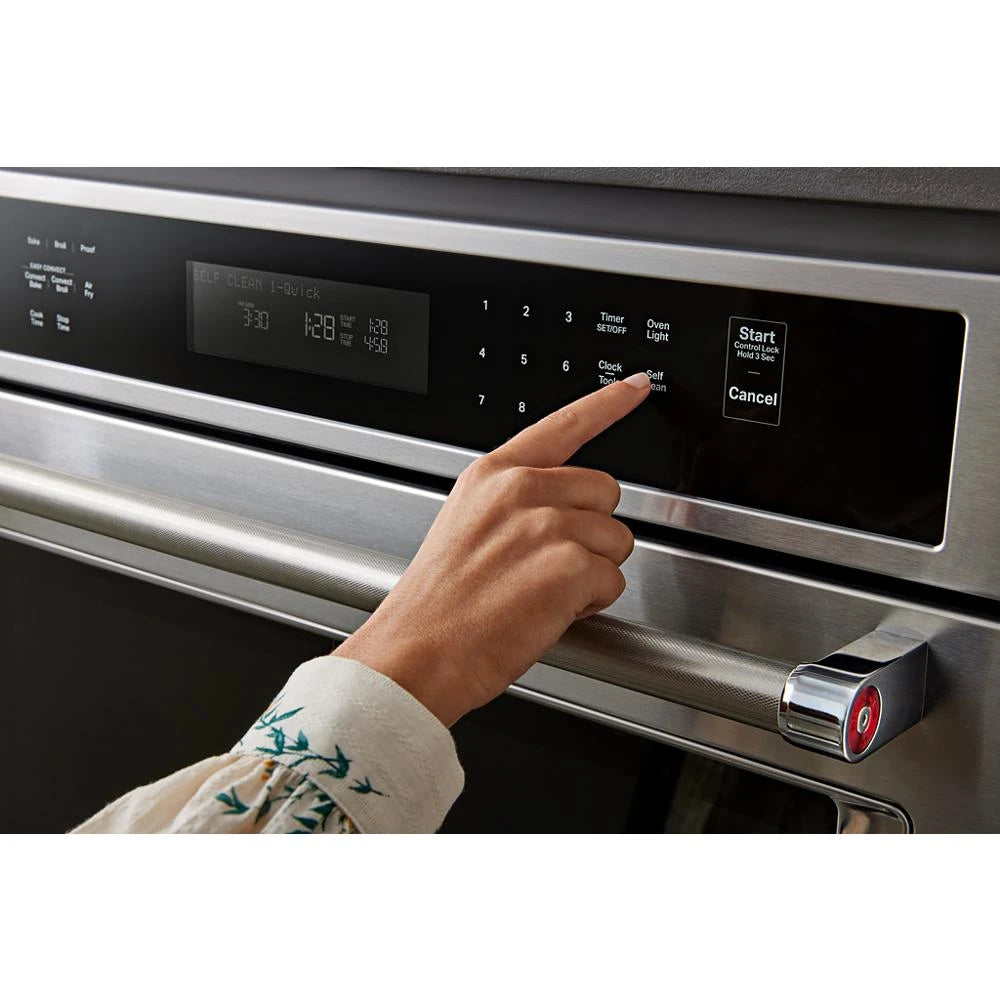

Control Type Electronic Touch

Details

Oven Automatic Shut-Off Yes
Light Control Oven Light Touch Pad
Delay Clean No
Flush Installation Approved Yes
Fuel Type Electric
Oven Type Double
Power On Indicator Light Yes

Certifications

ADA Compliant No
CUL Yes
UL Yes
Star K Certified Star K Certified
Energy Rating (kWh/year) 355
prop65 Standard - Standard

Electrical

Power Cord Included No

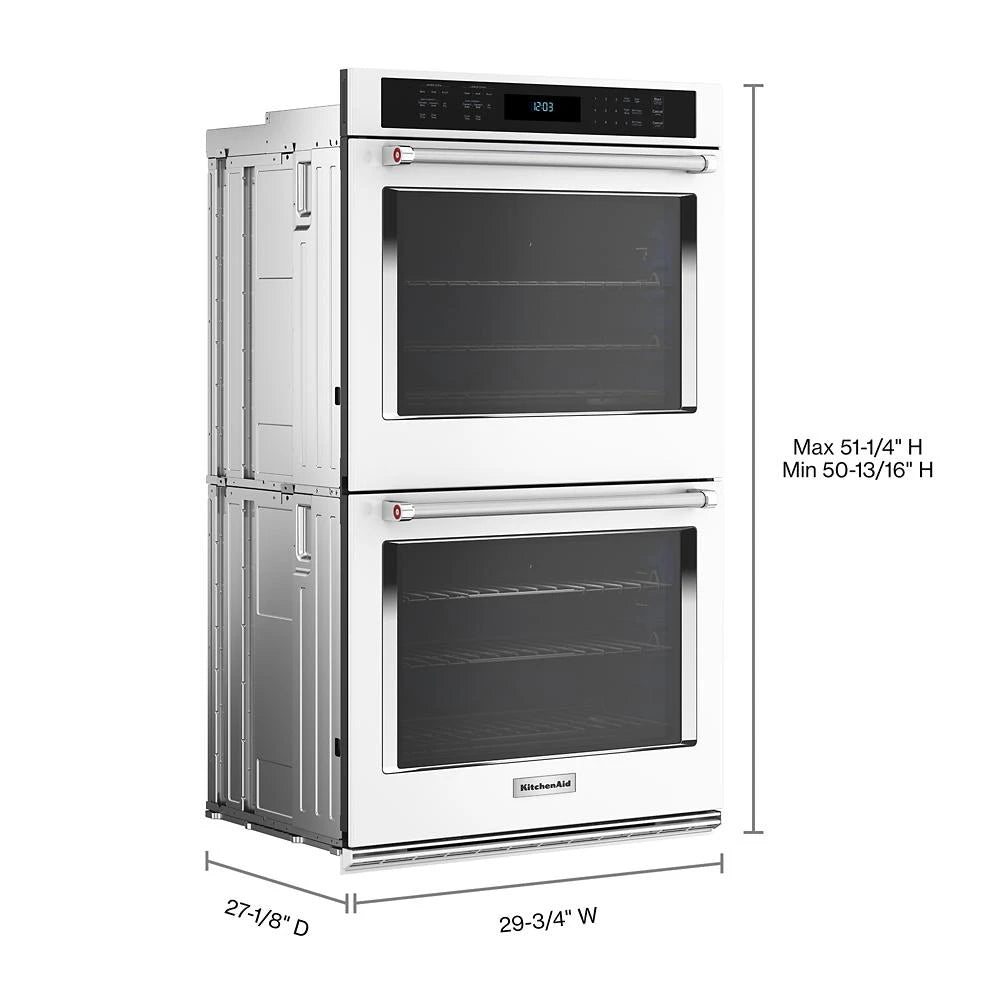

Dimensions & weight

Width 26.75 in.
Height 50.81 in.
Length 27.13 in.
Weight 280 lbs.
Carton Depth 30 13/16
Carton Height 53 1/2
Carton Width 34 13/16
Cutout Depth (in) 24
Cutout Height (in) 50 1/4
Cutout Width (in) 28 1/2
Depth Closed Excluding Handles 24 1/2
Depth Closed Including Handles 27 1/8
Depth With Door Open 90 Degree 46 3/4
Gross Weight 280
Net Weight 254.0
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 50.2500
Cutout Width(IN,inches) 28.5000
Depth Closed Excluding Handles(IN,inches) 24.5000
Depth Closed Including Handles(IN,inches) 27.1250
Depth With Door Open 90 Degree(IN,inches) 46.7500
Maximum Height(IN,inches) 51.2500
Minimum Height(IN,inches) 50.8125

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 31.75 in.
Shipping Height 55.81 in.
Shipping Length 32.13 in.
Shipping Weight 320 lbs.
Total of Shipping Weight 320 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 21.34 ft³
Dimensional Weight 265.23 lbs.
Total of Cubes 21.34 ft³
Total of Dimensional Weight 265.23 lbs.

Dimensions

Cutout Depth 24
Cutout Height 50.25
Cutout Width 28.5
Depth Closed Excluding Handles 24.5
Depth Closed Including Handles 27.125
Depth With Door Open 90 Degree 46.75
Lower Oven Interior Depth 19
Lower Oven Interior Height 18
Lower Oven Interior Width 25
Upper Oven Interior Depth 19
Upper Oven Interior Height 18
Upper Oven Interior Width 25
carton depth 30.8
carton height 53.5
carton width 34.8
gross weight 280
net weight 254

Exterior details

Door Type Metal & Glass
Oven Window Size Extra Large

Microwave details

Language Conversion English/French/Spanish

Oven details

Bake Element Power 2, 800 W Both
Broiler Element Power 4, 000 W Both
Broiler Location Top of Oven
Convection Element Power 3, 200 Both
Convection Element Type True Convection
Convection Functions Bake; Broil; Convection Conversion
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Bake Elements 2
Number of Broil Elements 1
Number of Lower Oven Racks 3
Number of Upper Oven Racks 3
Number of Upper Rack Guides 6
Oven Cleaning Type Self-Cleaning
Oven Cooking System Convection Both
Self-Cleaning Oven Racks No
Upper Oven Number of Oven Lights 2

Description

Get the crisp you crave, right from your oven. KitchenAid® Double Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.

*When compared to deep frying.


Product Features

  • 4,000-Watt Broil Element
    Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

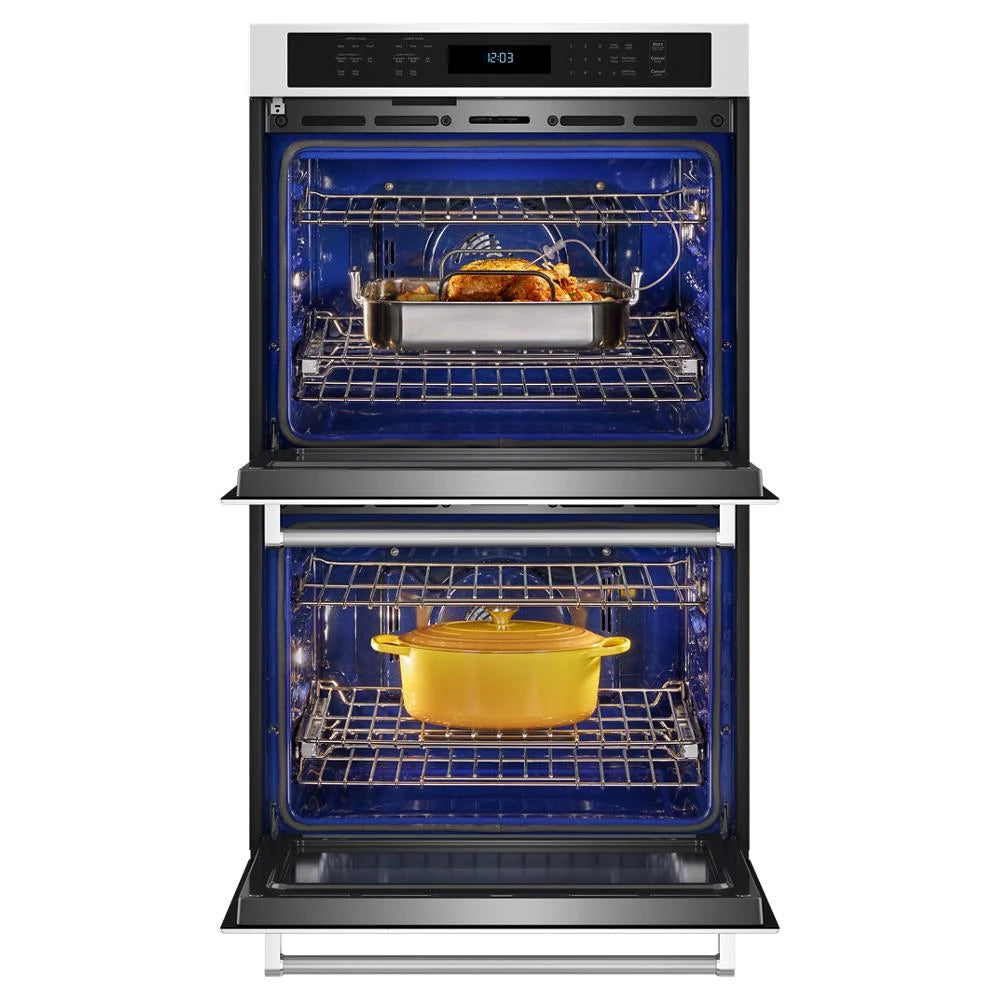

  • 5.0 Cu. Ft. Oven Capacity
    In both ovens provides space and flexibility to cook multiple dishes at different temperatures, so you can roast a whole turkey with sides in one, while baking dessert in the other.
  • Dishwasher-Safe Air Fry Basket
    Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
  • EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
  • Even-Heat™ Preheat
    Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
  • Even-Heat™ True Convection

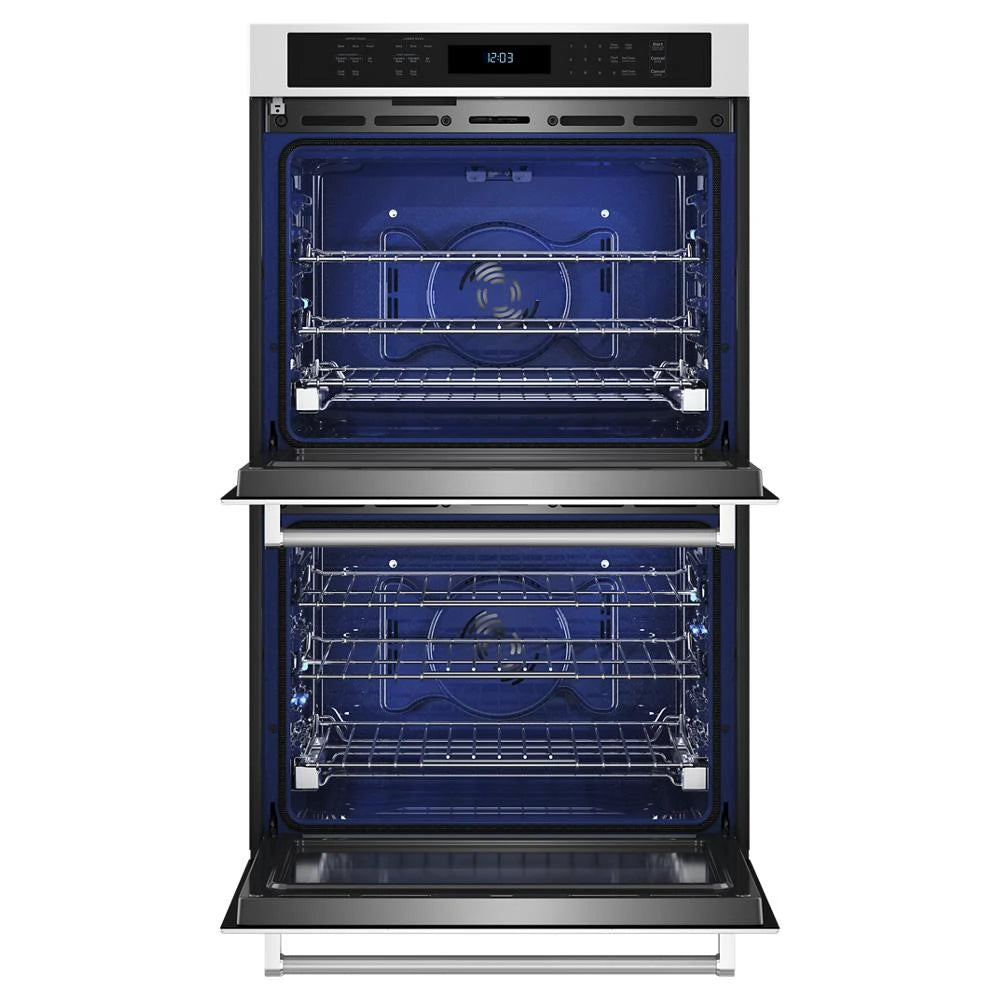

    Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
  • FIT System Limited Guarantee
    Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.
  • Integrated Meat Thermometer
    Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

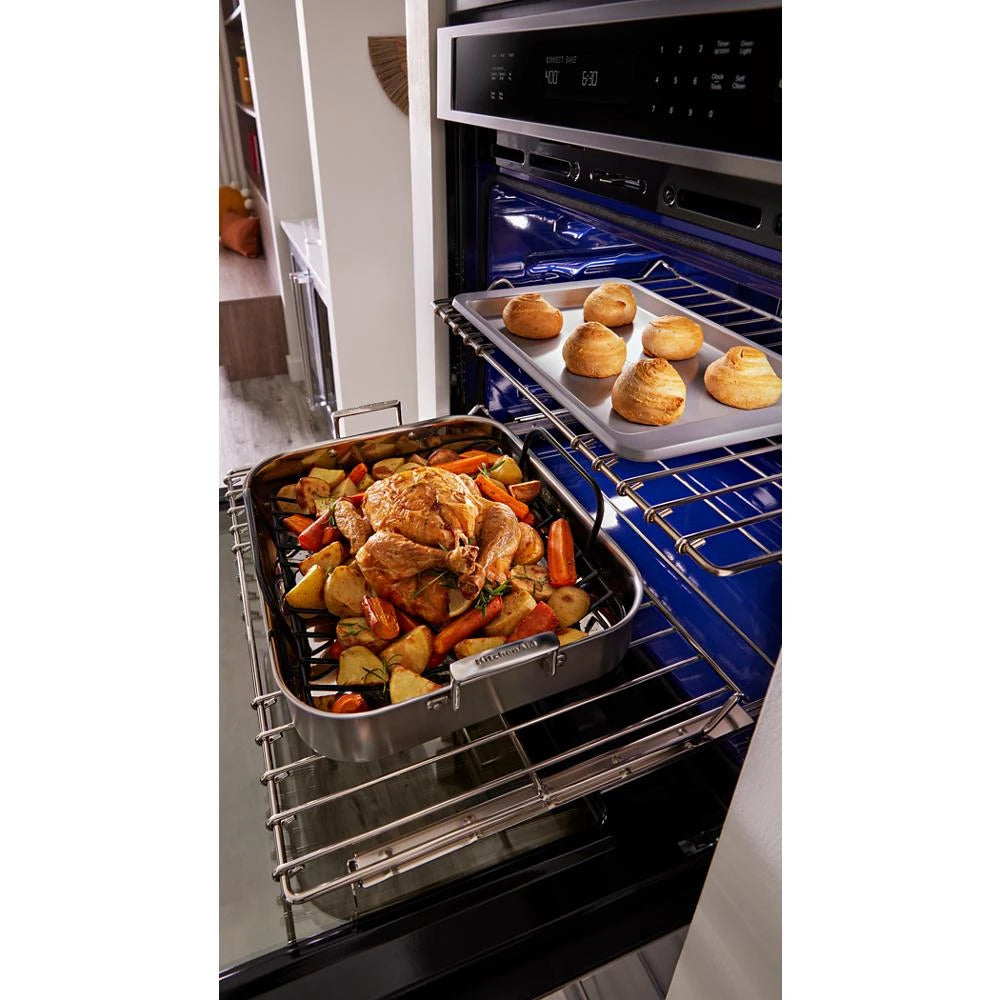

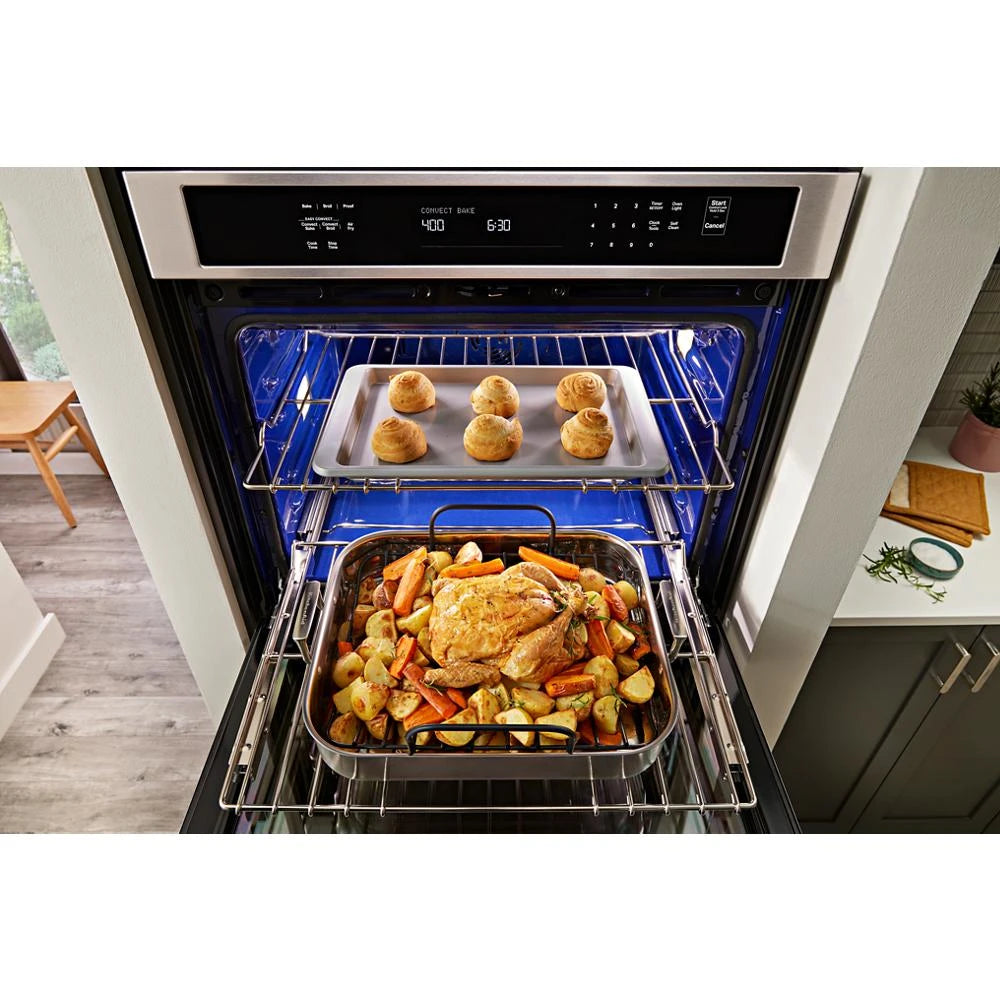

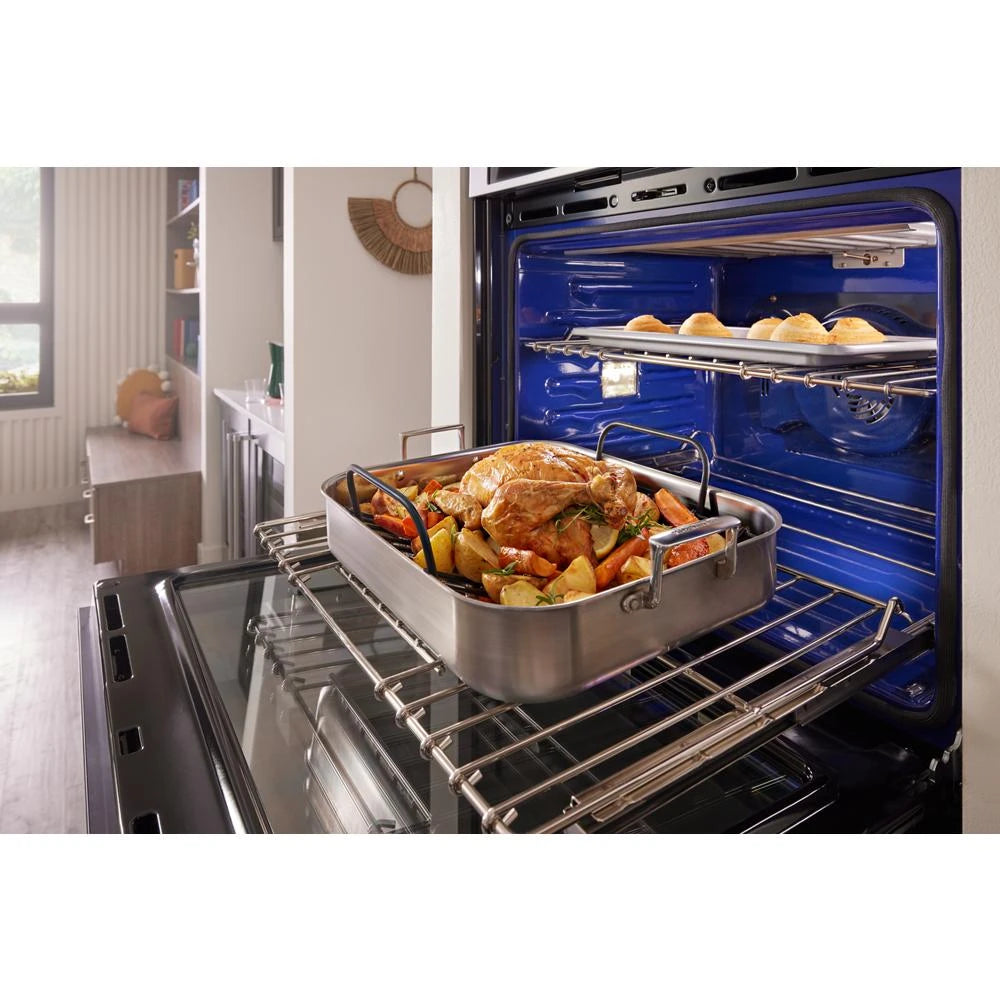

  • SatinGlide™ Roll-Out Extension Racks
    Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
  • Self-Cleaning Cycle
    Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
  • Self-Close Doors
    Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
  • What's in the box
    Double Wall Oven includes a Dishwasher-Safe Air Fry Basket and an Integrated Meat Thermometer
  • Star-K Certified Sabbath Mode
    To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.

Key Features

Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
