SKU: KODE507EBS

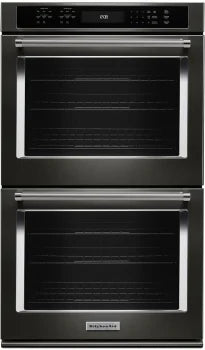

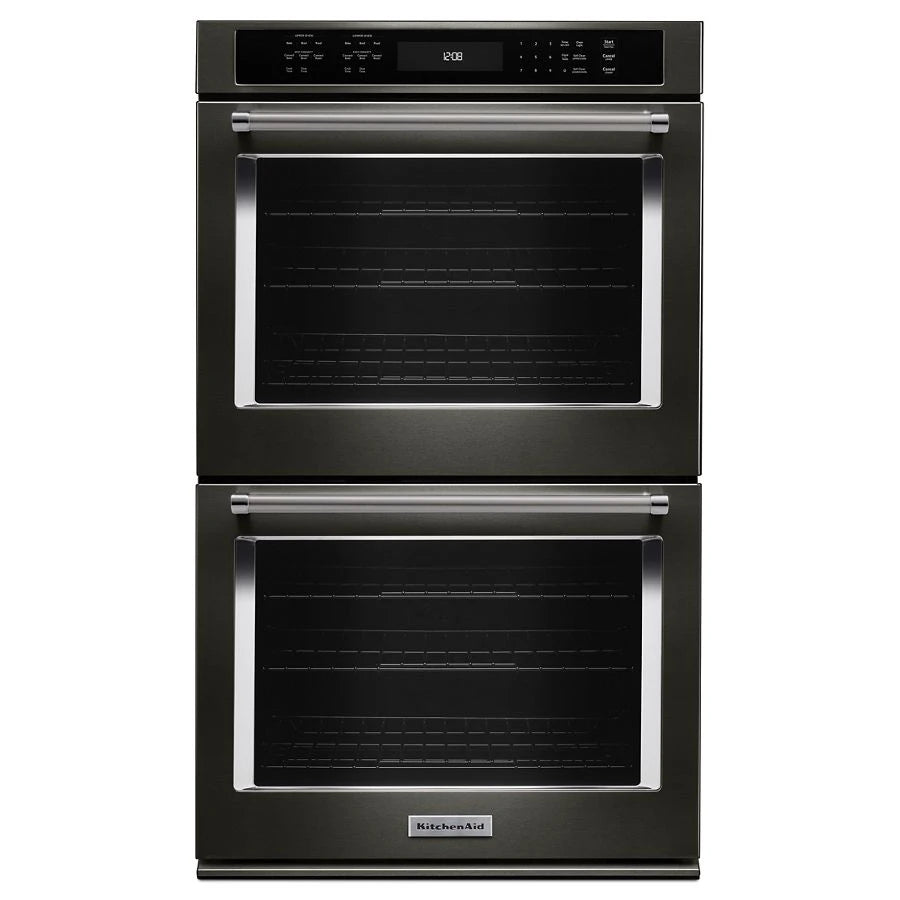

KitchenAid KODE507EBS 27" Double Wall Oven with Even-Heat™ True Convection Black Stainless Steel with PrintShield™ Finish

Quick Specification More details

Width:
27"
Depth:
27.13"
Height:
51.25"
Type:
Double Wall Ovens

SKU: KODE507EBS

KitchenAid KODE507EBS 27" Double Wall Oven with Even-Heat™ True Convection Black Stainless Steel with PrintShield™ Finish

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27"
Depth:
27.13"
Height:
51.25"
Type:
Double Wall Ovens

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for KitchenAid KODE507EBS

Technical Details

Controls

Control Type	Glass Touch Digital Display
Display Color	White
Electronic Display Type	Digital
Language Conversion	English/French
Light Control	Oven Light Touch Pad

Details

Oven Automatic Shut-Off	Yes
Delay Clean	Yes
Flush Installation Approved	Yes
Fuel Type	Electric
LP Convertible	No
Oven Configuration	Double Oven
Oven Type	Double
Power On Indicator Light	Yes
Oven Selections	Clock, Control Lock, Delay Start, Proofing, Sabbath Mode, Star K, Temperature Probe, Time Bake, Timer

Certifications

ADA Compliant

No

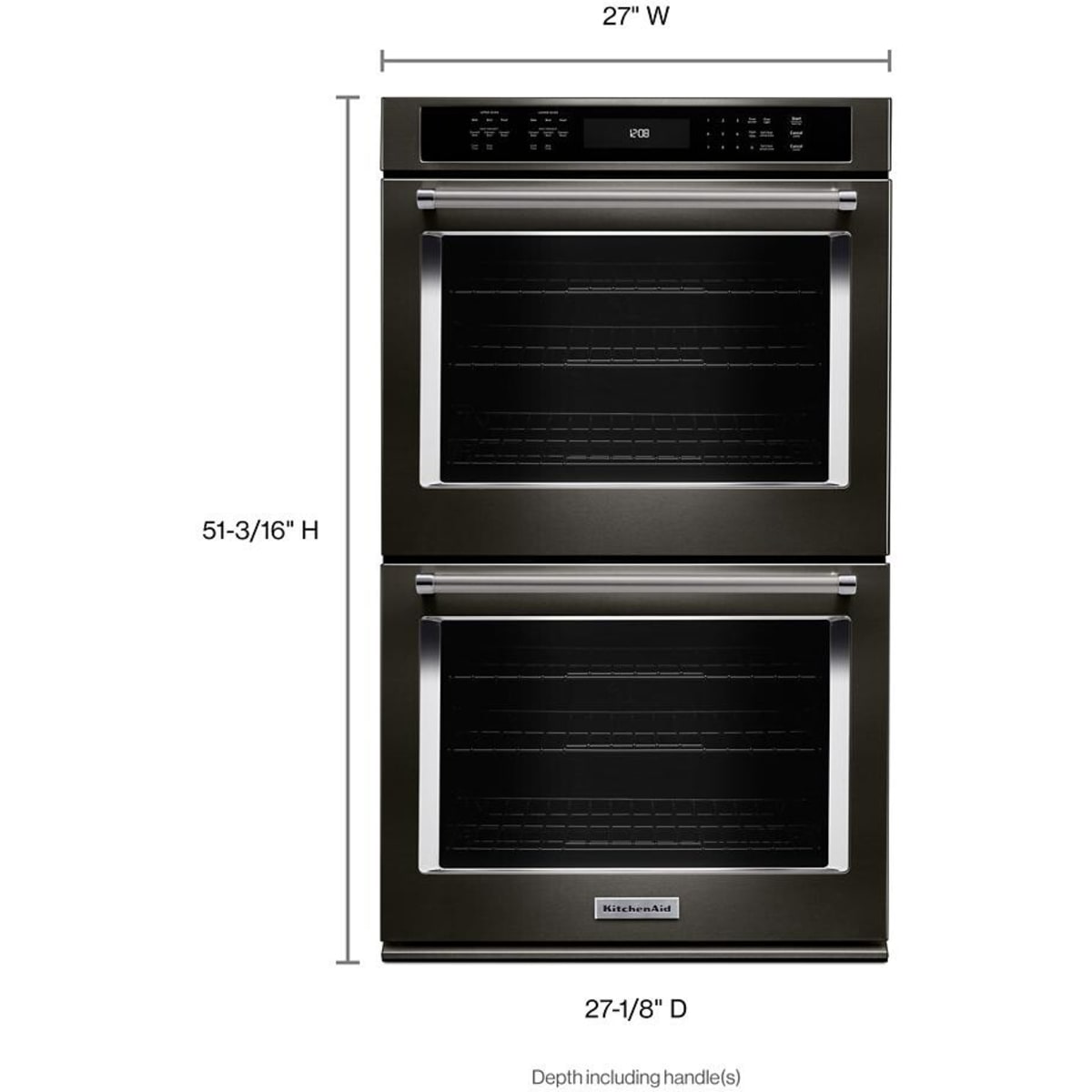

Dimensions & weight

Width	27 in.
Height	51.25 in.
Length	27.13 in.
Weight	240 lbs.
Carton Depth	31
Carton Height	53
Carton Width	31 1/2
Cutout Depth (in)	24
Cutout Height (in)	50 1/4
Cutout Width (in)	25 1/2
Depth With Door Open 90 Degree	46 3/4
Gross Weight	240
Net Weight	216.0
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	50.2500
Cutout Width(IN,inches)	25.5000
Depth With Door Open 90 Degree(IN,inches)	46.7500
Net Weight(LB,pounds)	216
Carton Depth(IN,inches)	31.0000
Carton Height(IN,inches)	53.0000
Carton Width(IN,inches)	31.5000
Cutout Height Min(IN,inches)	50.2500
Gross Weight(LB,pounds)	240

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	32 in.
Shipping Height	56.25 in.
Shipping Length	32.13 in.
Shipping Weight	280 lbs.
Total of Shipping Weight	280 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	21.72 ft³
Dimensional Weight	270.03 lbs.
Total of Cubes	21.72 ft³
Total of Dimensional Weight	270.03 lbs.

Exterior details

Door Type	Metal & Glass
Oven Window Size	Extra Large
Door Lock	Yes
Handle Color	Stainless Steel
Handle Material	Metal

Oven cavity details

Broiler Element Power	4,000 W Both
Broiler Location	Top of Oven
Convection Element Type	True
Convection Functions	Bake Broil Roast Both
Door Broil Position	Closed
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Yes
Installable Under Cooktop	No
Interior Coating	Porcelain
Interior Color	Black
Light Type	Halogen
Lower Oven Capacity	4.3 cu. ft.
Lower Oven Number of Oven Lights	2
Number of Lower Oven Racks	3
Number of Lower Rack Guides	6
Number of Upper Oven Racks	3
Number of Upper Rack Guides	6
Oven Cleaning Type	Adjustable Self Cleaning
Oven Cooking System	Convection Both
Self-Cleaning Oven Racks	No
Temperature Conversion	Yes
Upper Oven Capacity	4.3 cu. ft.
Upper Oven Number of Oven Lights	2

Dimensions

Capacity	8.6 cu. ft.
Common Size	27 in
Cutout Depth	24 in
Cutout Height	50-1/4 in
Cutout Width	25-1/2 in
Depth	27-1/8 in
Depth With Door Open 90 Degree	46-3/4 in
Gross Weight	240 lbs
Height	51-1/4 in
Lower Oven Interior Depth	19 in
Lower Oven Interior Height	18 in
Lower Oven Interior Width	22 in
Net Weight	220 lbs
Upper Oven Interior Depth	19 in
Upper Oven Interior Height	18 in
Upper Oven Interior Width	22 in
Width	27 in

Description

This 27" Double Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. The Temperature Probe delivers accurate measurement of internal temperatures of meats, poultry, and casseroles without opening the oven. Bold design details are the perfect balance of elegance and functionality.
