Product Details for KitchenAid KODC504PPS

Technical Details

Controls

Control Type Glass Touch Digital Display
Display Color Full Color
Electronic Display Type LCD Touch Screen
Language Conversion English/French
Light Control Oven Light Touch Pad

Features

Oven Selections Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Full Meal Cook, Keep Warm/Warm Hold, Language Conversion, Proofing, Sab
Wall Oven Features Smart Appliance

Details

Oven Automatic Shut-Off Yes
Delay Clean Delay Clean (Upper Oven)
Flush Installation Approved Yes
Fuel Type Electric
Oven Type Double
Power On Indicator Light Yes
Oven Selections Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Full Meal Cook, Keep Warm/Warm Hold, Language Conversion, Proofing, Sta

Certifications

CUL Yes
Prop 65 Standard
UL Yes

Electrical

Amps 40
Hz 60
Power Cord Included No
Volts 208

Dimensions & weight

Width 23.44 in.
Height 50.25 in.
Length 22.5 in.
Weight 179 lbs.
Carton Depth 27 3/16
Carton Height 61 7/16
Carton Width 25 1/4
Gross Weight 179
Net Weight 167.6
Cutout Depth(IN,inches) 23.2500
Cutout Height(IN,inches) 49.7500
Cutout Width(IN,inches) 22.6250
Depth Closed Excluding Handles(IN,inches) 22.5000
Depth Closed Including Handles(IN,inches) 24.7500
Depth With Door Open 90 Degree(IN,inches) 40.5000
Maximum Height(IN,inches) 50.2500
Carton Depth(IN,inches) 27.1875
Carton Height(IN,inches) 61.4375
Carton Width(IN,inches) 25.2500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.44 in.
Shipping Height 55.25 in.
Shipping Length 27.5 in.
Shipping Weight 219 lbs.
Total of Shipping Weight 219 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 15.34 ft³
Dimensional Weight 190.66 lbs.
Total of Cubes 15.34 ft³
Total of Dimensional Weight 190.66 lbs.

Exterior details

Door Type Metal & Glass
Door Lock Yes
Handle Color Stainless Steel
Handle Material Metal

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Oven cavity details

Bake Element Power 1,150 W
Broiler Element Power 2,045 W
Broiler Location Top of Oven
Convection Element Type True Convection
Convection Functions Bake, Broil
Door Broil Position Closed
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Interior Color Grey
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Bake Elements 1
Number of Broil Elements 1
Number of Lower Oven Racks 2
Number of Lower Rack Guides 5
Number of Upper Oven Racks 2
Number of Upper Rack Guides 5
Oven Cleaning Type Self-Cleaning Upper/Manual Clean Lower
Temperature Conversion Yes
Upper Oven Number of Oven Lights 2
Convection Element Power 2,000 w

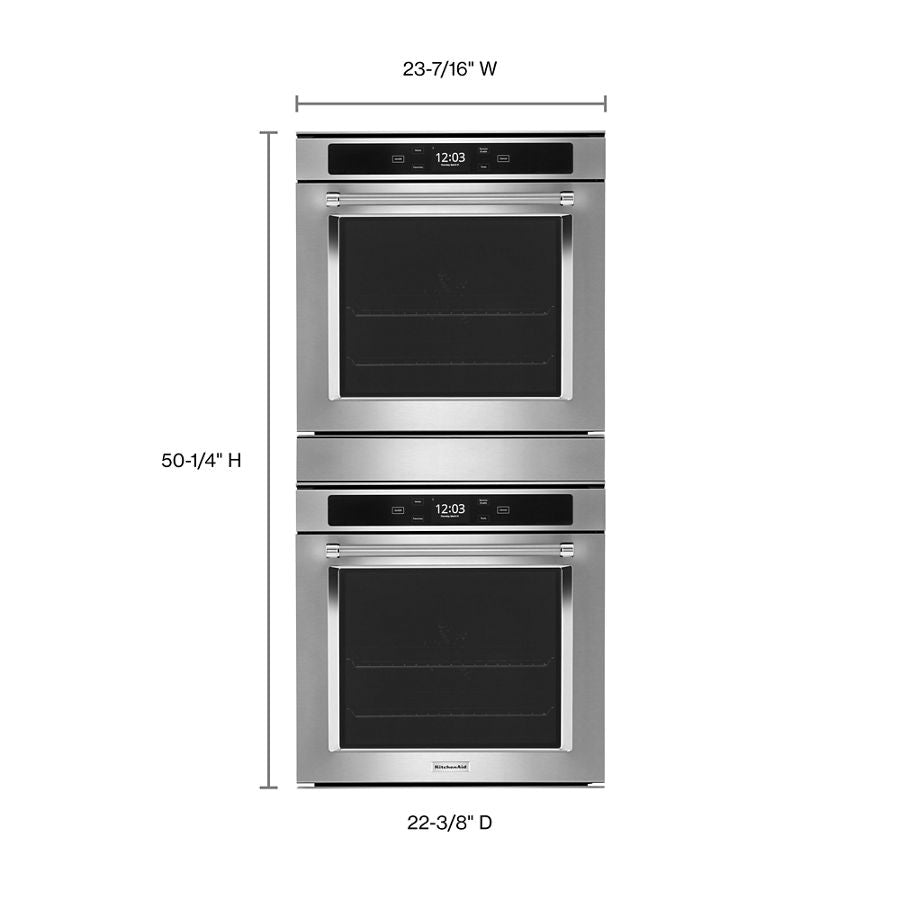

Dimensions

Capacity 5.8 cu. ft.
Common Size 24 in
Cutout Depth 23-1/4 in
Cutout Height 49-3/4 in
Cutout Width 22-5/8 in
Depth 22-1/2 in
Depth Closed Excluding Handles 22-1/2 in
Depth Closed Including Handles 24-3/4 in
Depth With Door Open 90 Degree 40-1/2 in
Gross Weight 178-3/5 lbs
Height 50-1/4 in
Lower Oven Interior Depth 17 in
Lower Oven Interior Height 14-563/1000 in
Lower Oven Interior Width 18 in
Maximum Height 50-1/4 in
Net Weight 167-3/5 lbs
Upper Oven Interior Depth 17 in
Upper Oven Interior Height 14-563/1000 in
Upper Oven Interior Width 18 in
Width 23-7/16 in

Description

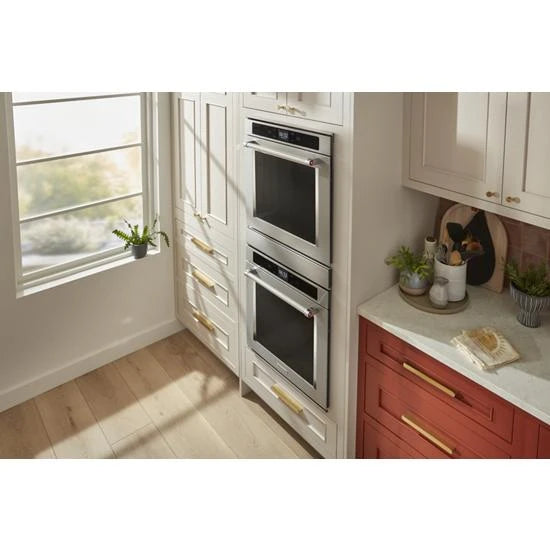

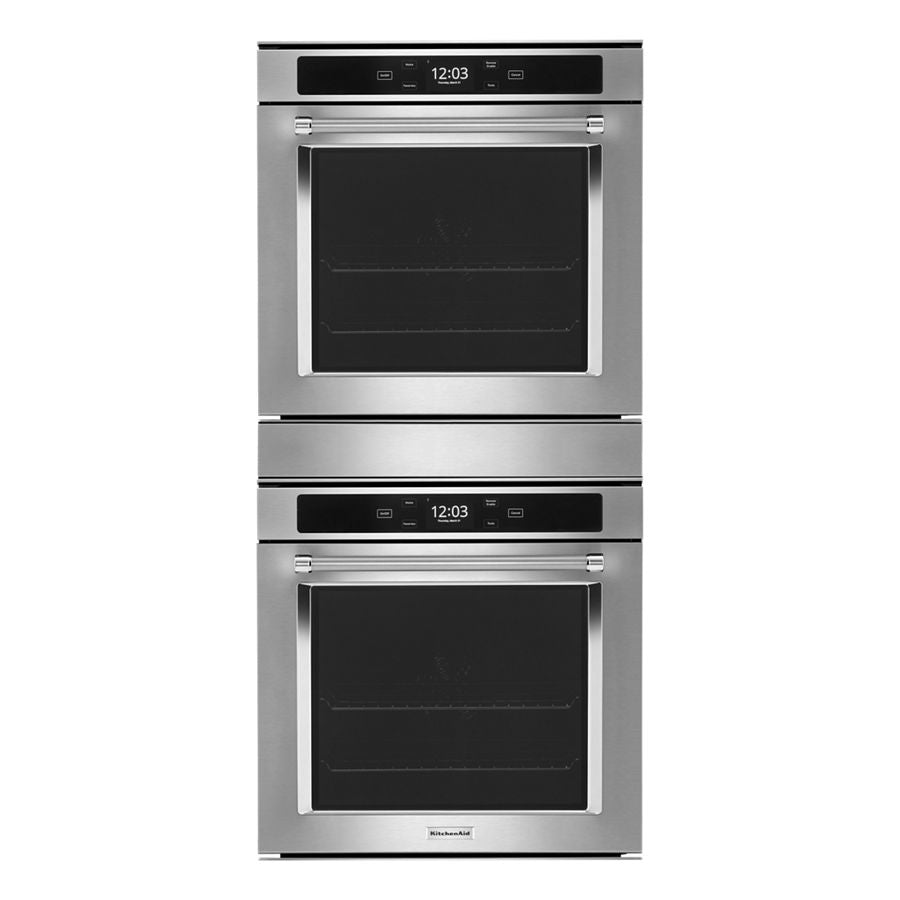

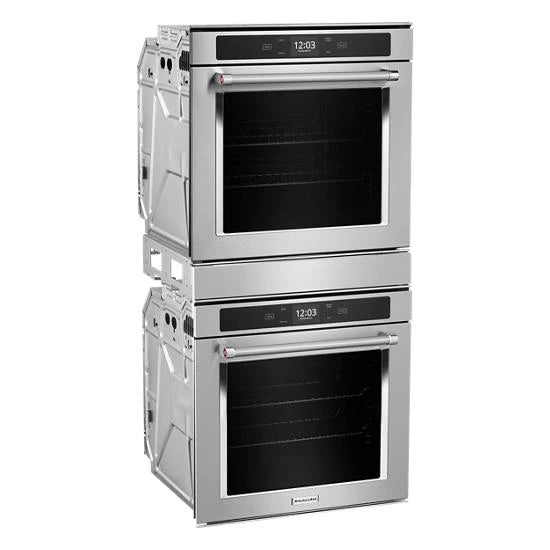

The slim design of this KitchenAid® 24" Smart Double Wall Oven helps you fit your baking, broiling and roasting in any size kitchen. The Five-Level Rack Support makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. True Convection circulates hot air throughout the entire oven, providing consistent temperatures for pastries, roasts and more.


Product Features

  • True Convection
    uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.

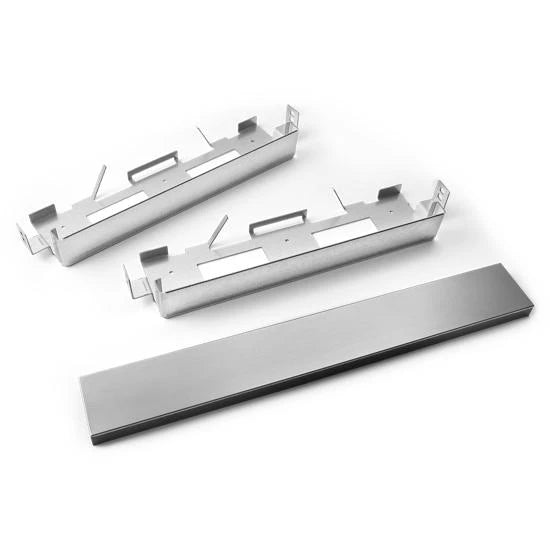

  • Trim Kit Included
    for easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.
  • 5.2 Cu. Ft. Total Capacity

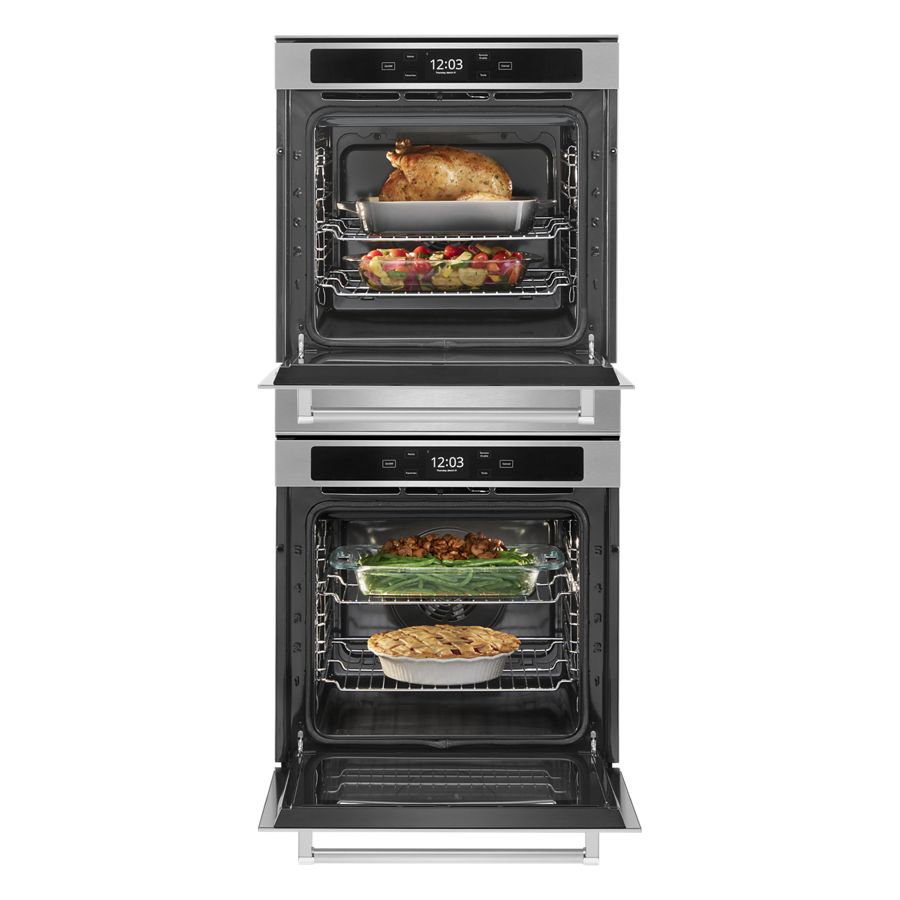

    shared between two equal-sized ovens provides extra space and the flexibility to cook multiple dishes at different temperatures. At 2.6 cu. ft. capacity each, both ovens provide plenty of room to cook a large roast.
  • Smart Appliance
    gives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.** *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).

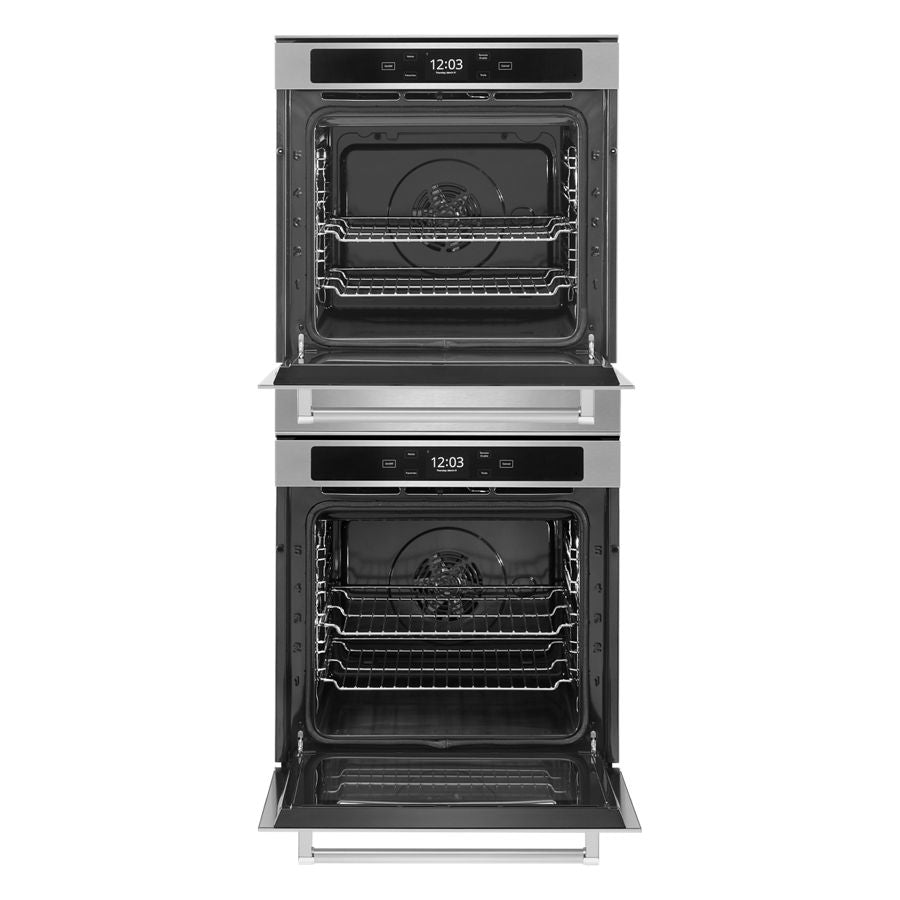

  • Five-Level Rack Support (Both Ovens)
    inside both ovens makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.

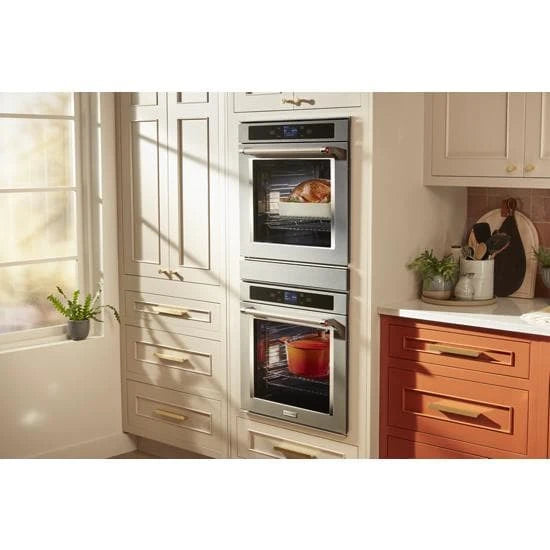

  • Flush Installation Option
    provides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.
  • Self-Cleaning Cycle (Upper Oven Only)
    uses high temperatures to loosen baked-on food residue in the upper oven cavity without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

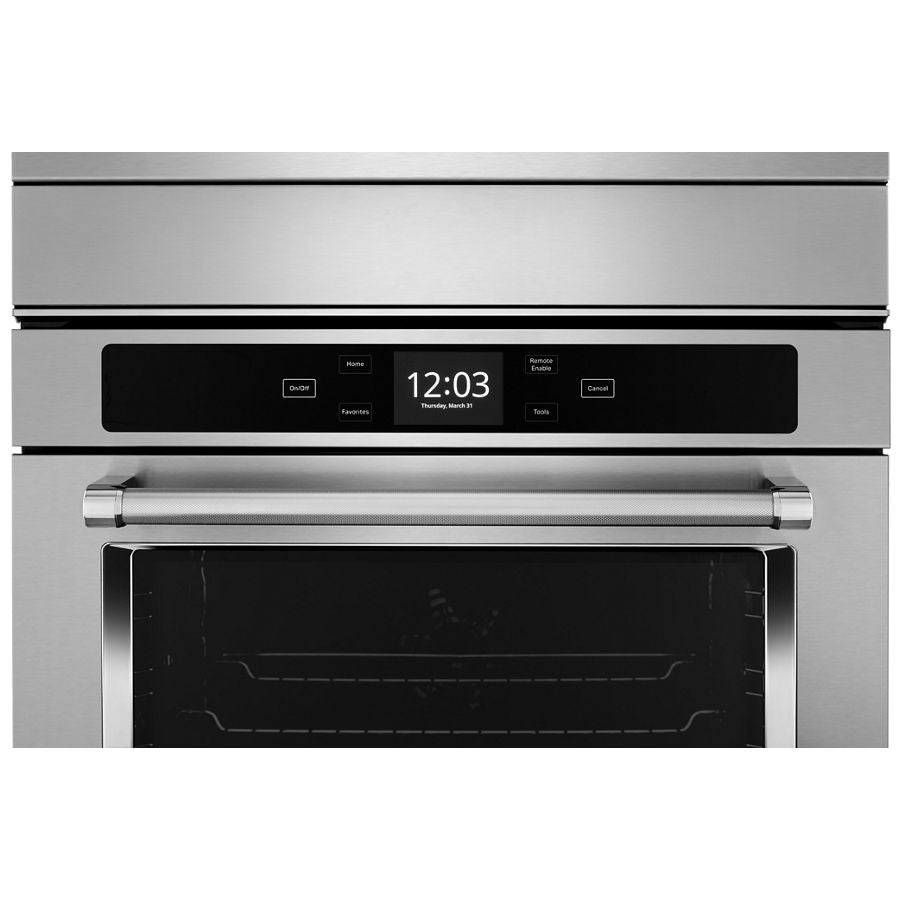

  • Touchscreen Controls
    feature a 3.5" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.* *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
  • Self-Close Doors
    feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
  • PrintShield™ Finish
    resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
