| Control Location | Front |

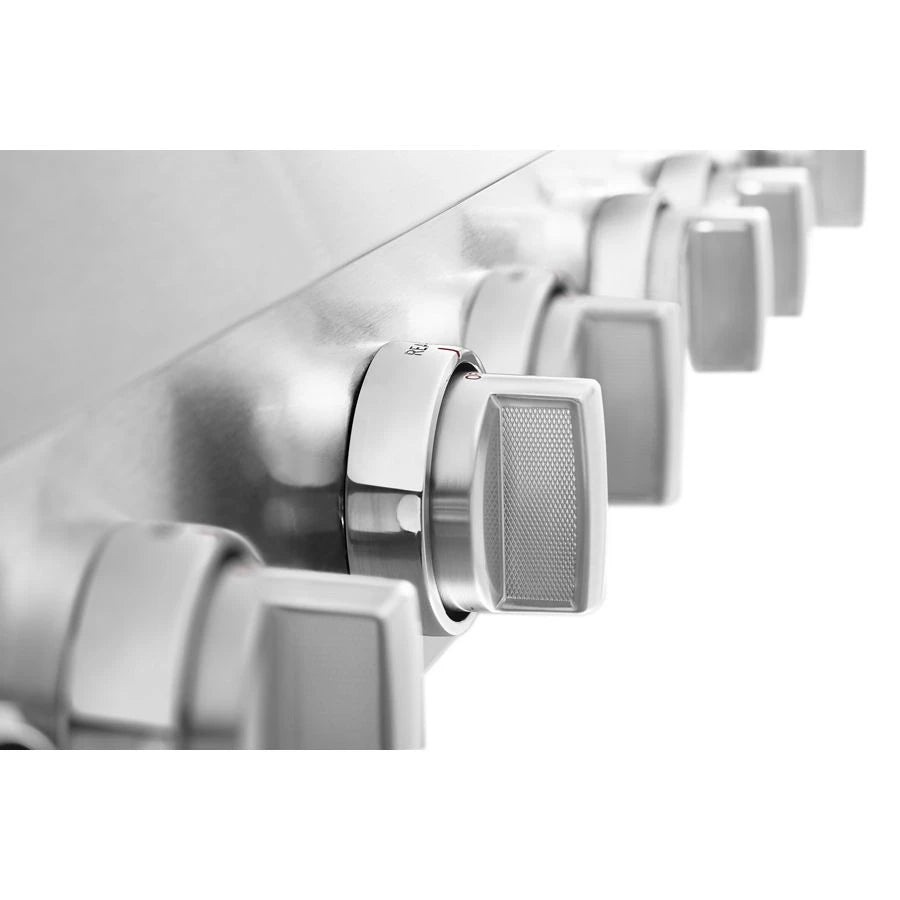

| Control Type | Knobs |
| Infinite Heat Controls | No |
| Number of Open Bays | N/A |
| Cooktop Surface Material | Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Yes, Integrated |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| ADA Compliant | No |
| CUL | Yes |
| UL | Yes |
| prop65 | Standard |
| Power Cord Included | Yes |
| 208V Compatible | No |

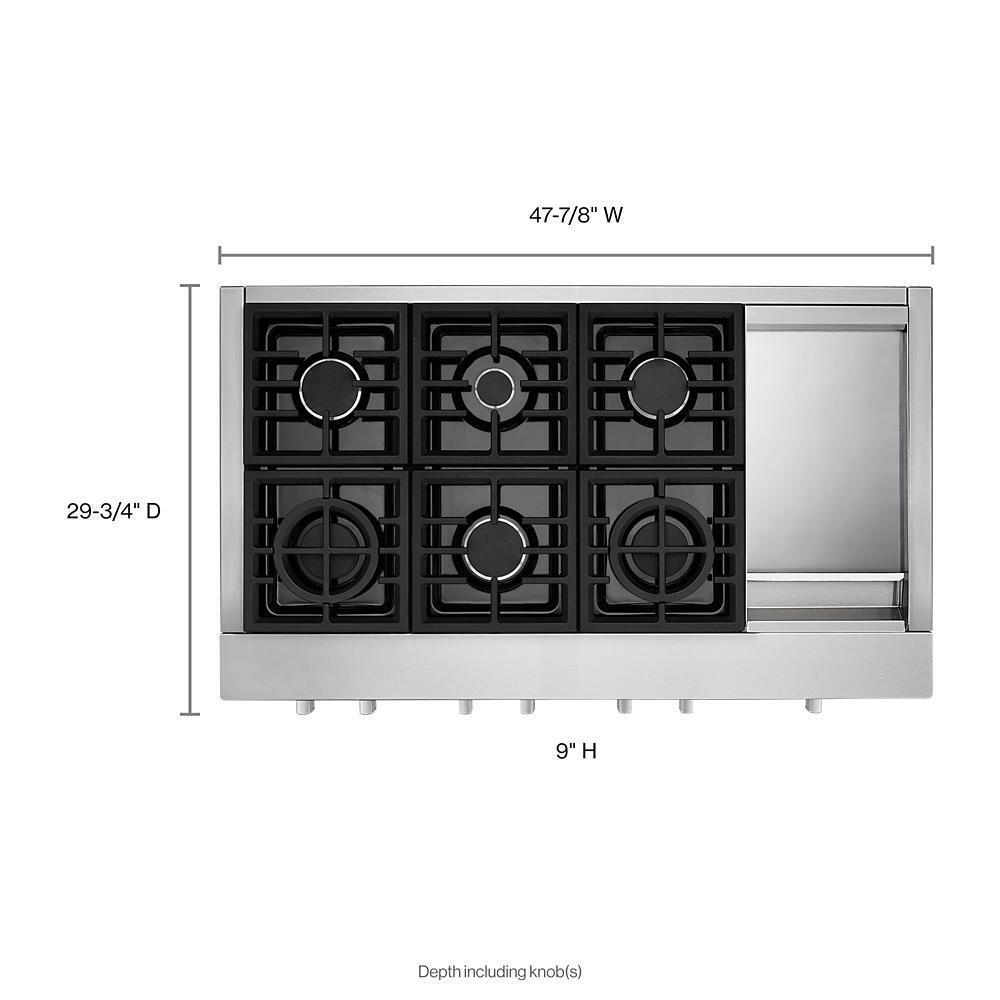

| Width | 47.88 in. |
| Height | 7.44 in. |
| Length | 27.88 in. |
| Weight | 171 lbs. |
| Carton Depth | 34 1/2 |
| Carton Height | 19 1/2 |
| Carton Width | 51 3/4 |
| Gross Weight | 171 |
| Net Weight | 166.0 |
| Cutout Depth Min(IN,inches) | 22.2500 |
| Cutout Width Max(IN,inches) | 47.8750 |
| Cutout Width Min(IN,inches) | 47.3750 |
| Net Weight(LB,pounds) | 166 |
| Carton Depth(IN,inches) | 34.5000 |
| Carton Height(IN,inches) | 19.5000 |
| Carton Width(IN,inches) | 51.7500 |
| Gross Weight(LB,pounds) | 171 |
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 12.44 in. |
| Shipping Length | 32.88 in. |
| Shipping Weight | 211 lbs. |
| Total of Shipping Weight | 211 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 5.75 ft³ |
| Dimensional Weight | 71.43 lbs. |
| Total of Cubes | 5.75 ft³ |
| Total of Dimensional Weight | 71.43 lbs. |
| Automatic Pan Detection | No |

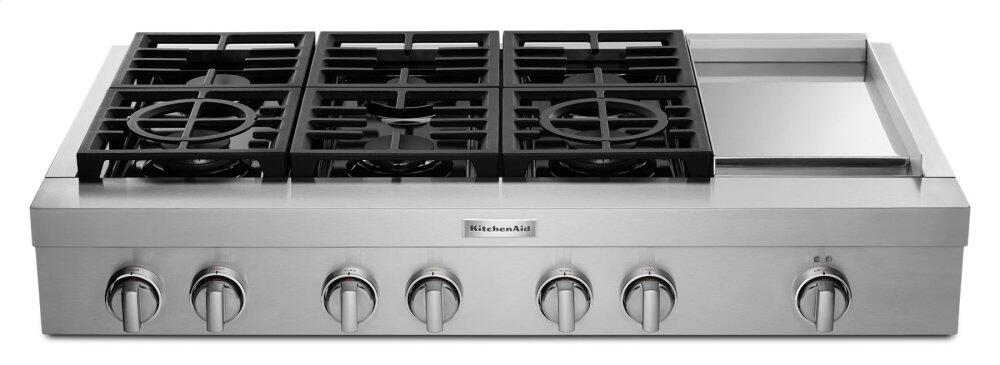

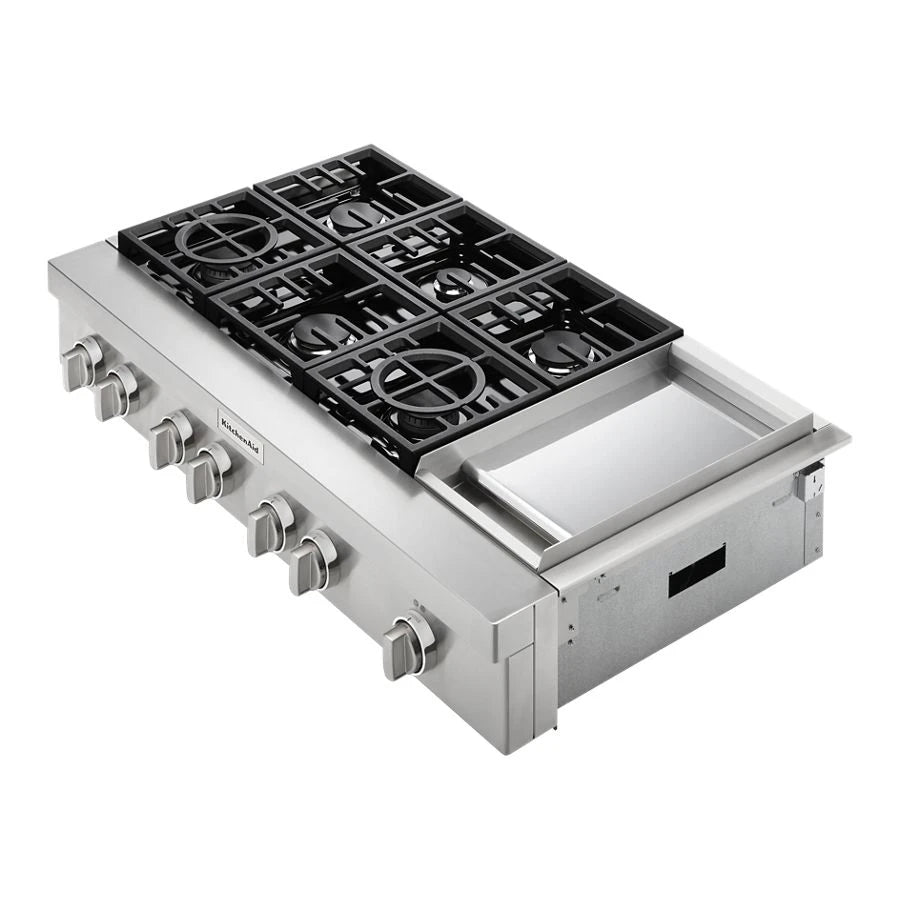

| Cooktop Configuration | Burners with Integrated Griddle |
| Fuel Type | Gas |
| Installs Over Built-In Oven | No |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Cutout Depth Min | 22.25 |
| Cutout Width Max | 47.875 |
| Cutout Width Min | 47.375 |
| carton depth | 34.5 |
| carton height | 19.5 |
| carton width | 51.75 |
| gross weight | 171 |
| net weight | 166 |
| Center Front Element-Burner Power | 15, 000 BTU |
| Center Front Element-Burner Type | Sealed Burner |
| Center Rear Element-Burner Power | 5, 000 BTU |
| Center Rear Element-Burner Type | Sealed Burner |
| Cooktop Element Style | Sealed Burners |
| Cooktop Type | Commercial Style |
| Left Front Element-Burner Power | 20, 000 BTU/14, 000 LP |
| Left Front Element-Burner Type | Dual-Stacked Burner |
| Left Rear Element-Burner Power | 15000 BTU/11000 LP |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 6 |
| Power Boost | No |
| Right Front Element-Burner Power | 15, 000 BTU/11, 000 LP |
| Right Front Element-Burner Type | Dual-Stacked Burner |
| Right Rear Element-Burner Power | 5, 000 BTU/3, 000 LP |
| Right Rear Element-Burner Type | Sealed Burner |

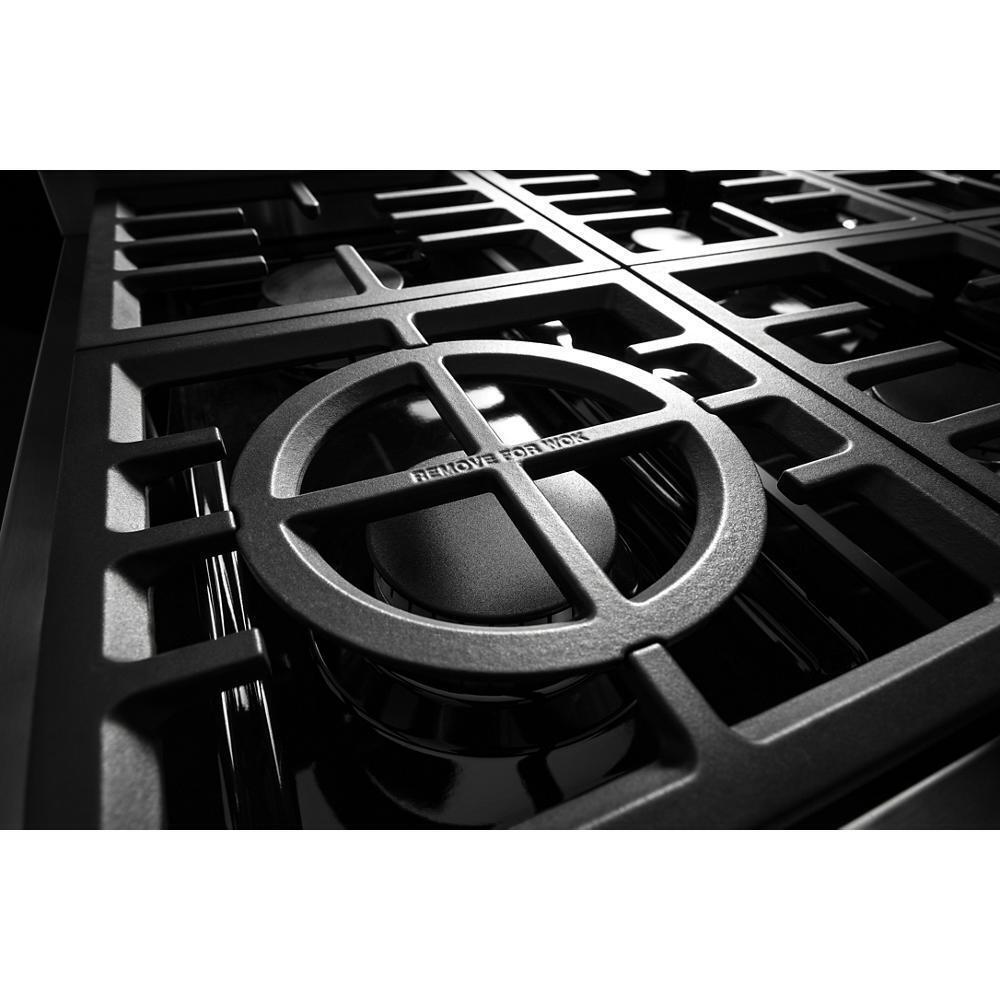

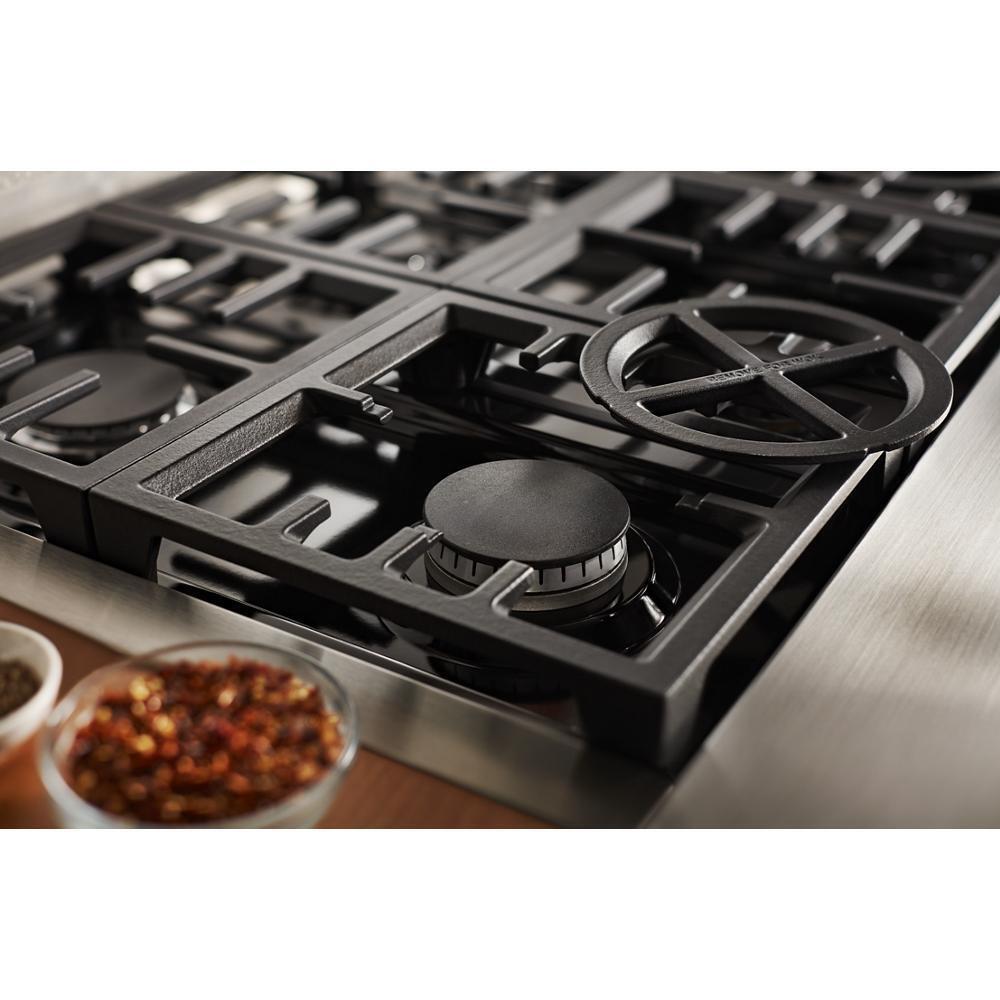

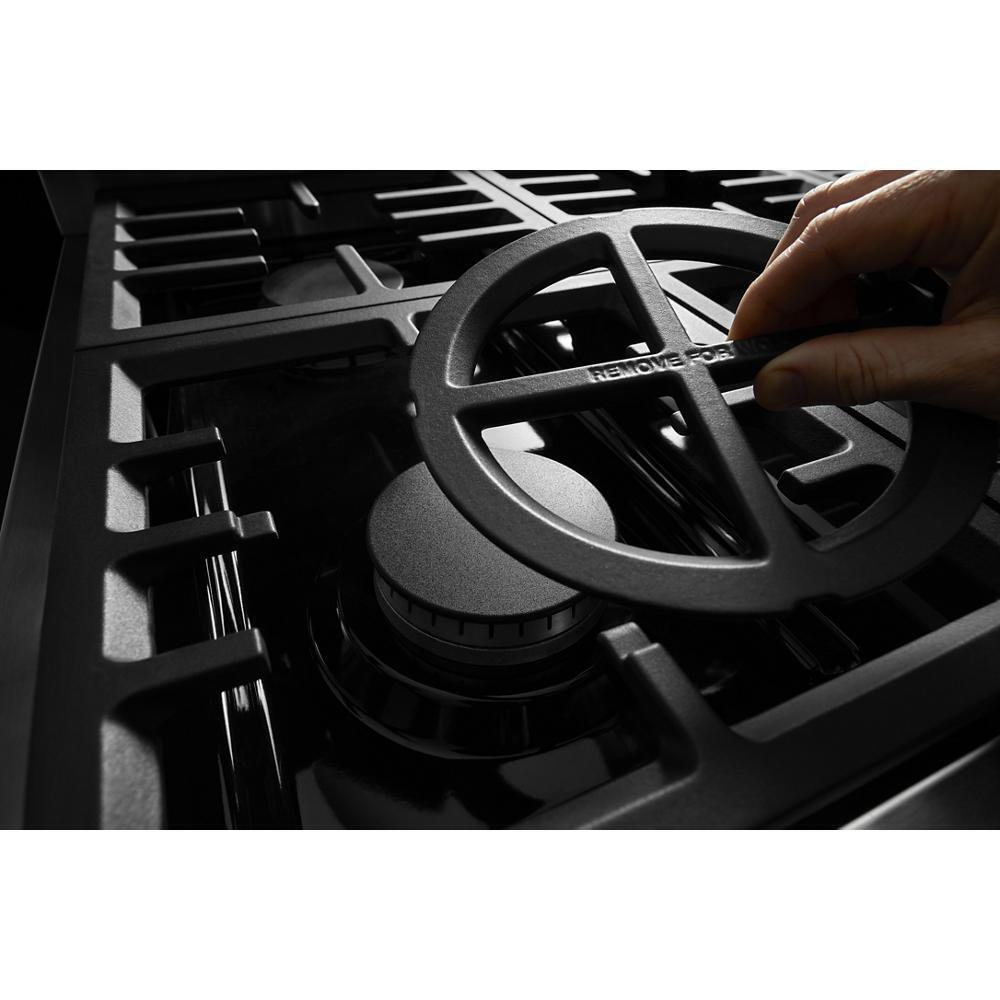

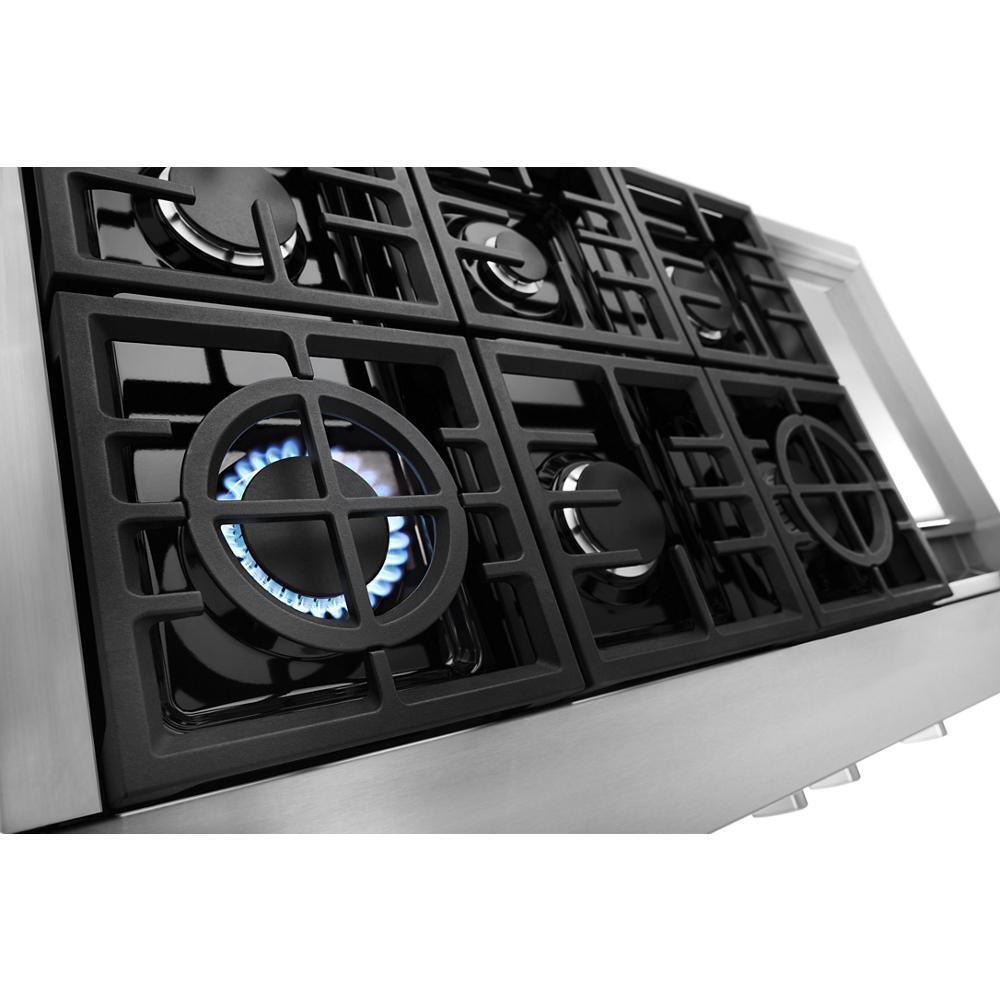

| Grate Details | Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates |
| Number of Grates | 6 |
| Downdraft Vent | No |
