SKU: KCGC500JSS | UPC: 883049528304

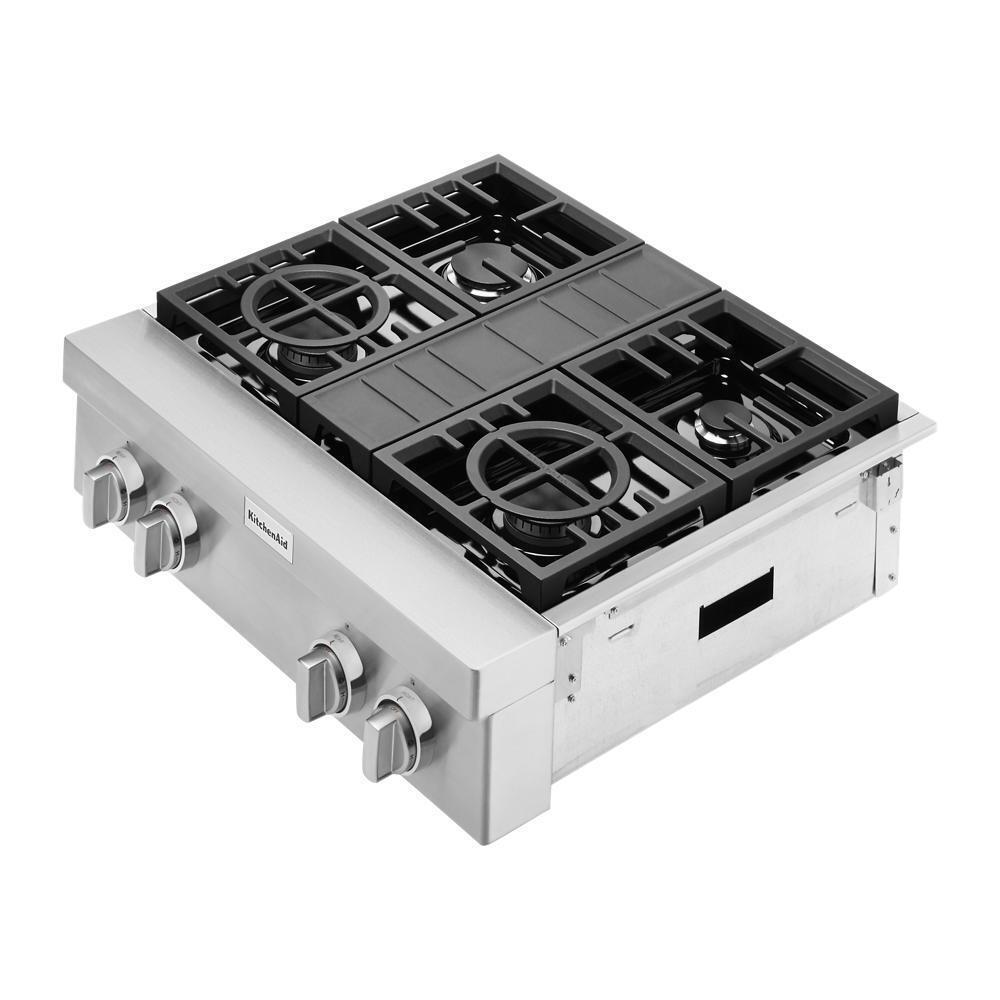

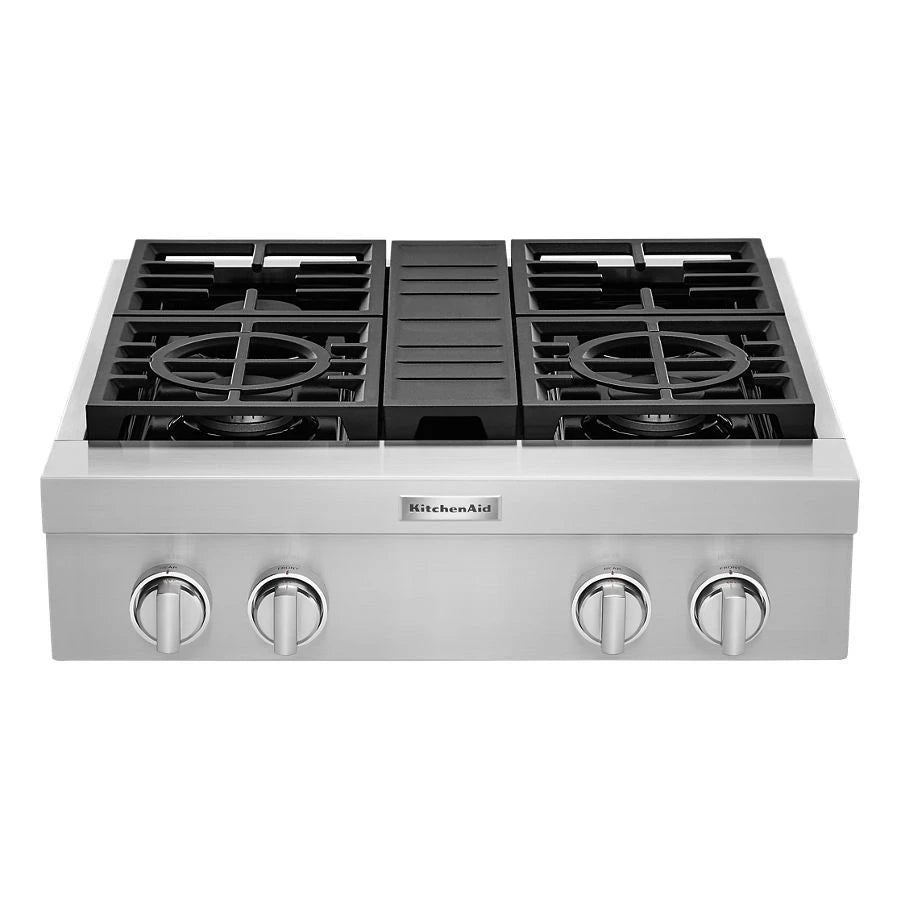

KCGC500JSS Kitchenaid® 30'' 4-burner Commercial-style Gas Rangetop Stainless Steel

Quick Specification More details

Width:
29.75"
Depth:
27.88"
Height:
7.44"
Type:
Rangetops

About this product

Two 20,000 BTU Ultra Power™ Dual-Flame Burners
Three-Level Convertible Grates
5,000 BTU Simmer & Melt Burner
One 15,000 BTU Burner

SKU: KCGC500JSS | UPC: 883049528304

KCGC500JSS Kitchenaid® 30'' 4-burner Commercial-style Gas Rangetop Stainless Steel

$3,299.00 ~~$3,751.97~~ Save $452.97 / 12% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.75"
Depth:
27.88"
Height:
7.44"
Type:
Rangetops

About this product

Two 20,000 BTU Ultra Power™ Dual-Flame Burners
Three-Level Convertible Grates
5,000 BTU Simmer & Melt Burner
One 15,000 BTU Burner

Product Details for KITCHENAID KCGC500JSS

Technical Details

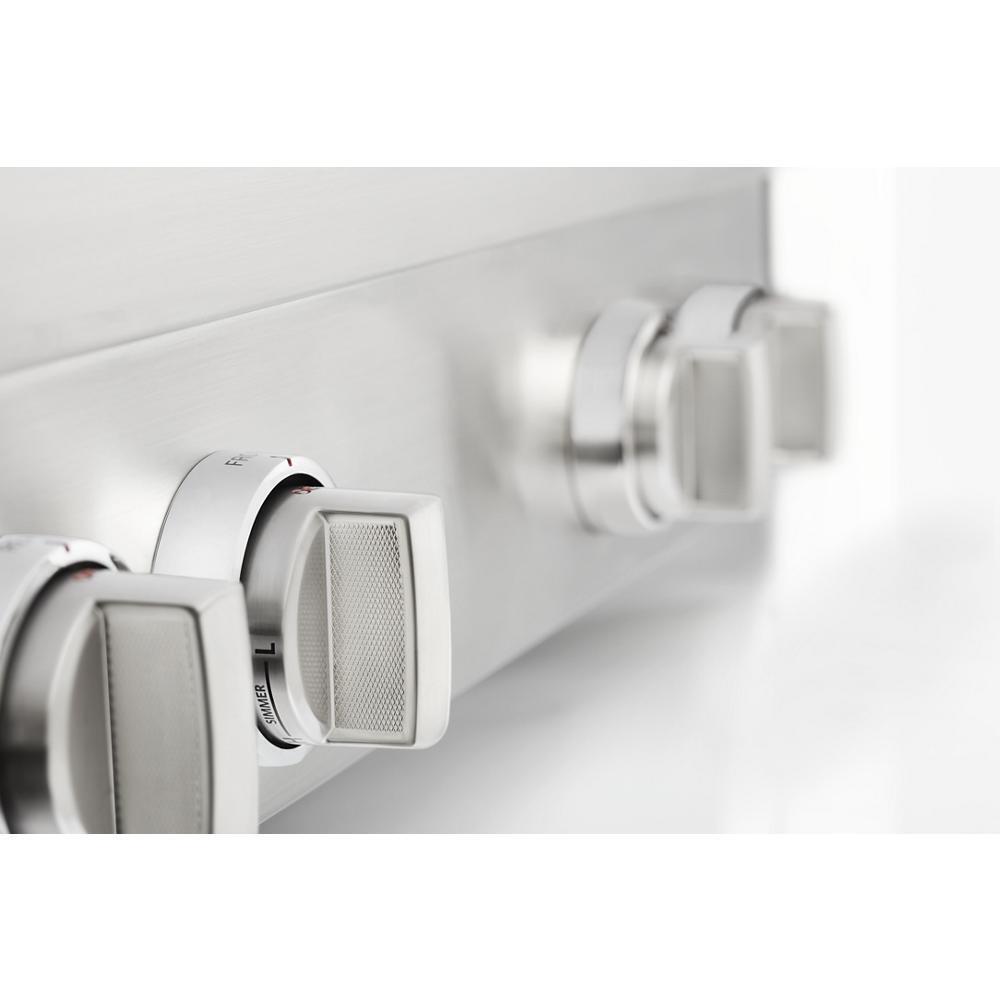

Controls

Control Location	Front
Control Type	Knobs
Infinite Heat Controls	No

Cooktop details

Number of Open Bays	N/A
Cooktop Surface Material	Porcelain Coated Steel
Digital Display	No
Griddle Included	N/A
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No

Certifications

ADA Compliant	No
CUL	Yes
UL	Yes
prop65	Standard

Electrical

Power Cord Included	Yes
208V Compatible	No

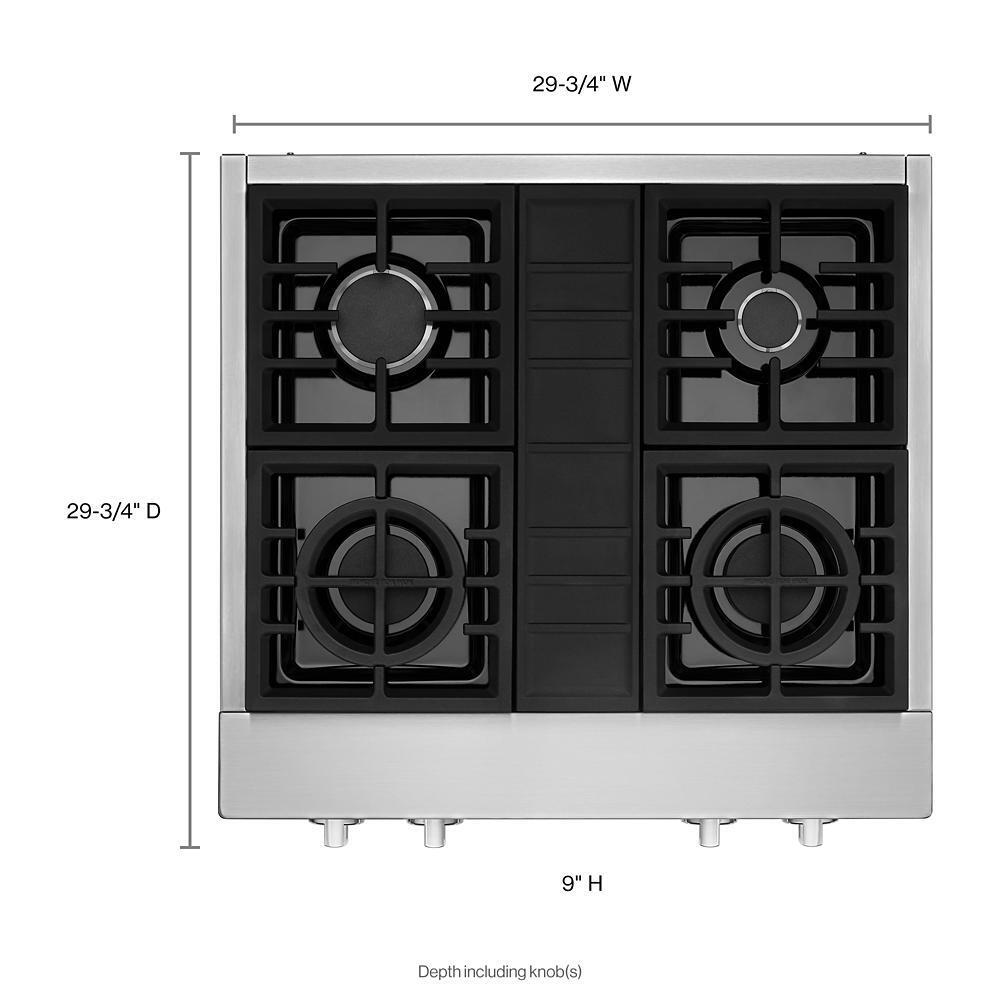

Dimensions & weight

Width	29.75 in.
Height	7.44 in.
Length	27.88 in.
Weight	113 lbs.
Carton Depth	33 3/4
Carton Height	21
Carton Width	34 1/2
Gross Weight	113
Net Weight	95.0
Cutout Depth Min(IN,inches)	22.2500
Cutout Width Max(IN,inches)	29.8750
Cutout Width Min(IN,inches)	29.2500
Cutout Width(IN,inches)	29.7500
Net Weight(LB,pounds)	95
Carton Depth(IN,inches)	33.7500
Carton Height(IN,inches)	21.0000
Carton Width(IN,inches)	34.5000
Gross Weight(LB,pounds)	113

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.75 in.
Shipping Height	12.44 in.
Shipping Length	32.88 in.
Shipping Weight	153 lbs.
Total of Shipping Weight	153 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	3.57 ft³
Dimensional Weight	44.37 lbs.
Total of Cubes	3.57 ft³
Total of Dimensional Weight	44.37 lbs.

Details

Automatic Pan Detection	No
Cooktop Configuration	All Burners
Fuel Type	Gas
Installs Over Built-In Oven	No
LP Convertible	Yes - Kit Included
Power Outage Compatible	Yes

Dimensions

Cutout Depth Min	22.25
Cutout Width	29.75
Cutout Width Max	29.875
Cutout Width Min	29.25
carton depth	33.75
carton height	21
carton width	34.5
gross weight	113
net weight	95

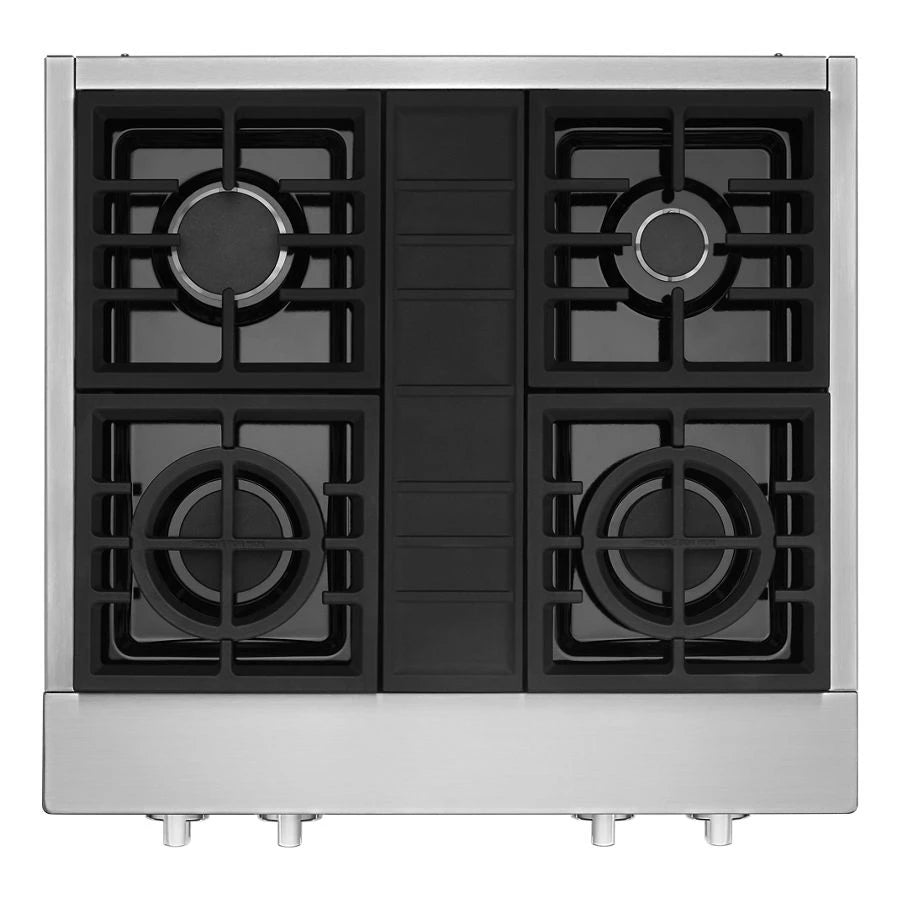

Element/burner details

Cooktop Element Style	Sealed Burner
Cooktop Type	Commercial Style
Left Front Element-Burner Power	20, 000 BTU/14, 000 LP
Left Front Element-Burner Type	Dual-Stacked Burner
Left Rear Element-Burner Power	15000 BTU/11000 LP
Left Rear Element-Burner Type	Professional
Number of Cooking Element-Burners	4
Power Boost	No
Right Front Element-Burner Power	20, 000 BTU/14, 000 LP
Right Front Element-Burner Type	Dual-Stacked Burner
Right Rear Element-Burner Power	5, 000 BTU/3, 000 LP
Right Rear Element-Burner Type	Simmer/Melt

Grate details

Grate Details	Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Number of Grates	4

Ventilation details

Downdraft Vent

Description

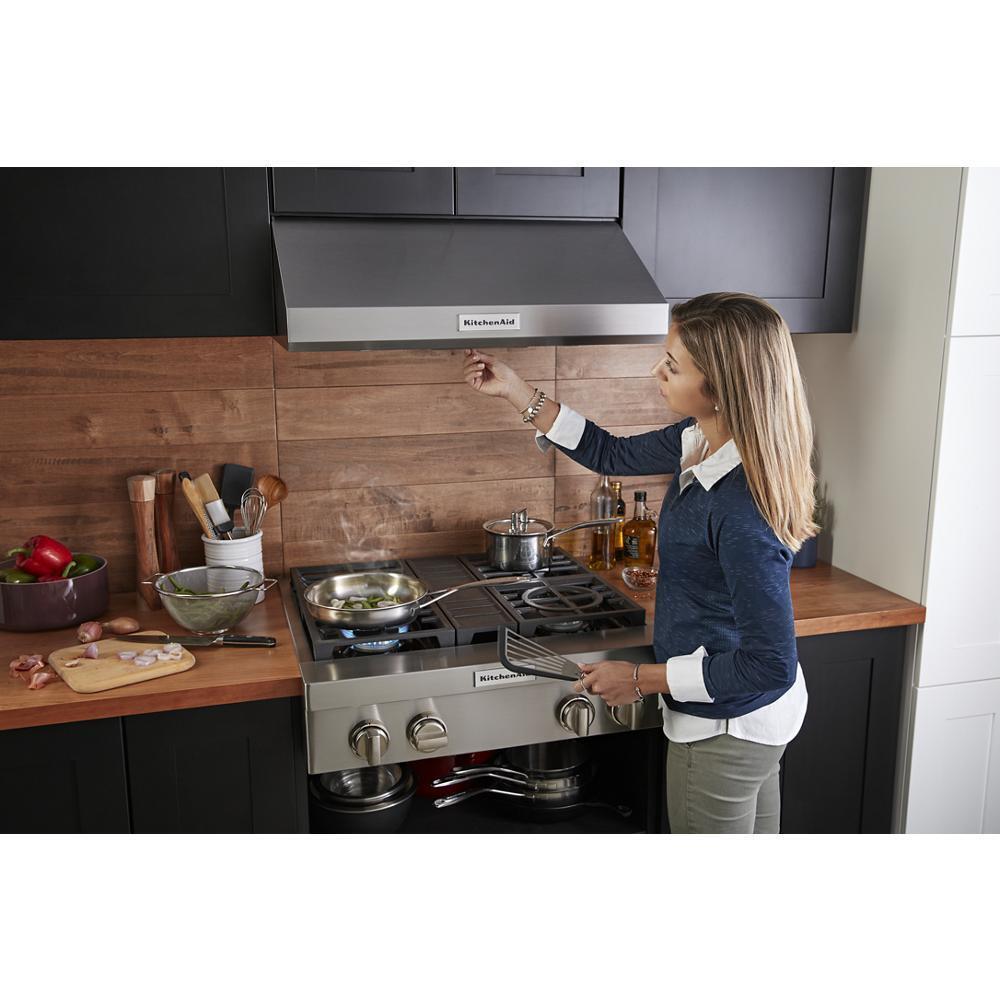

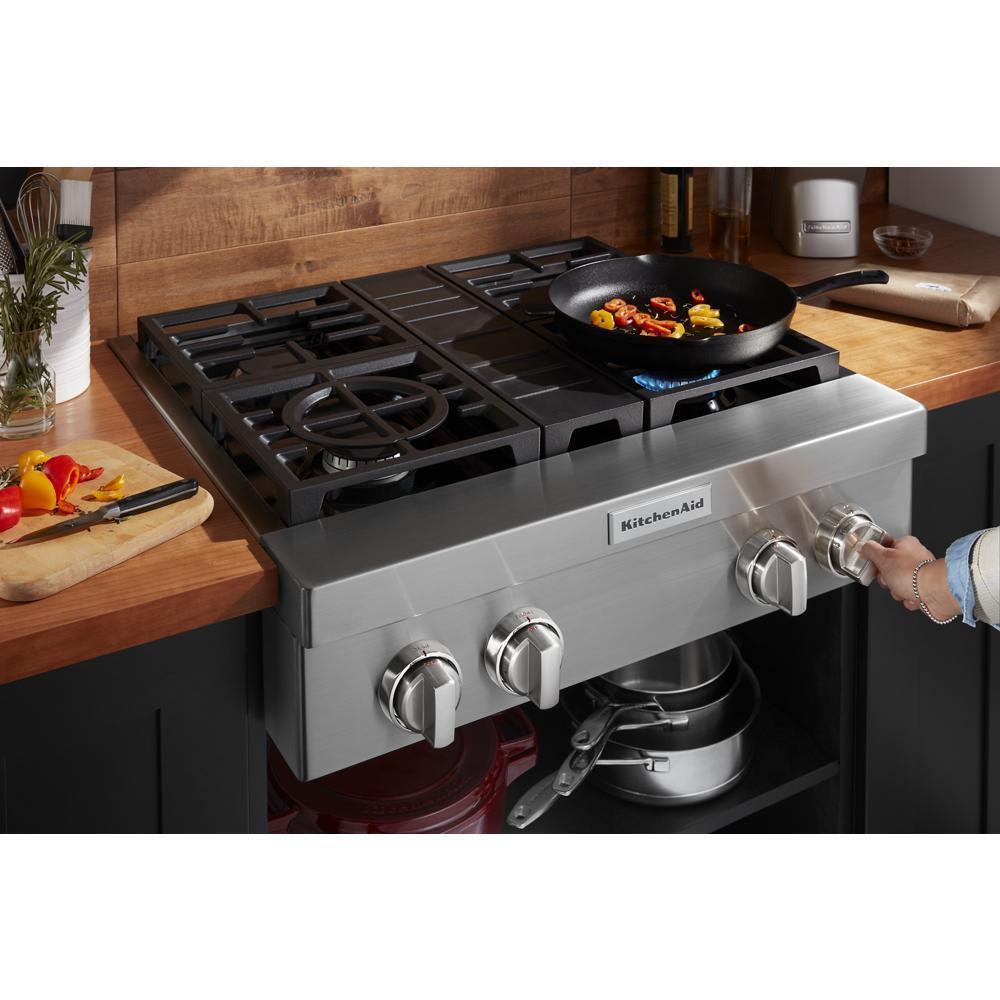

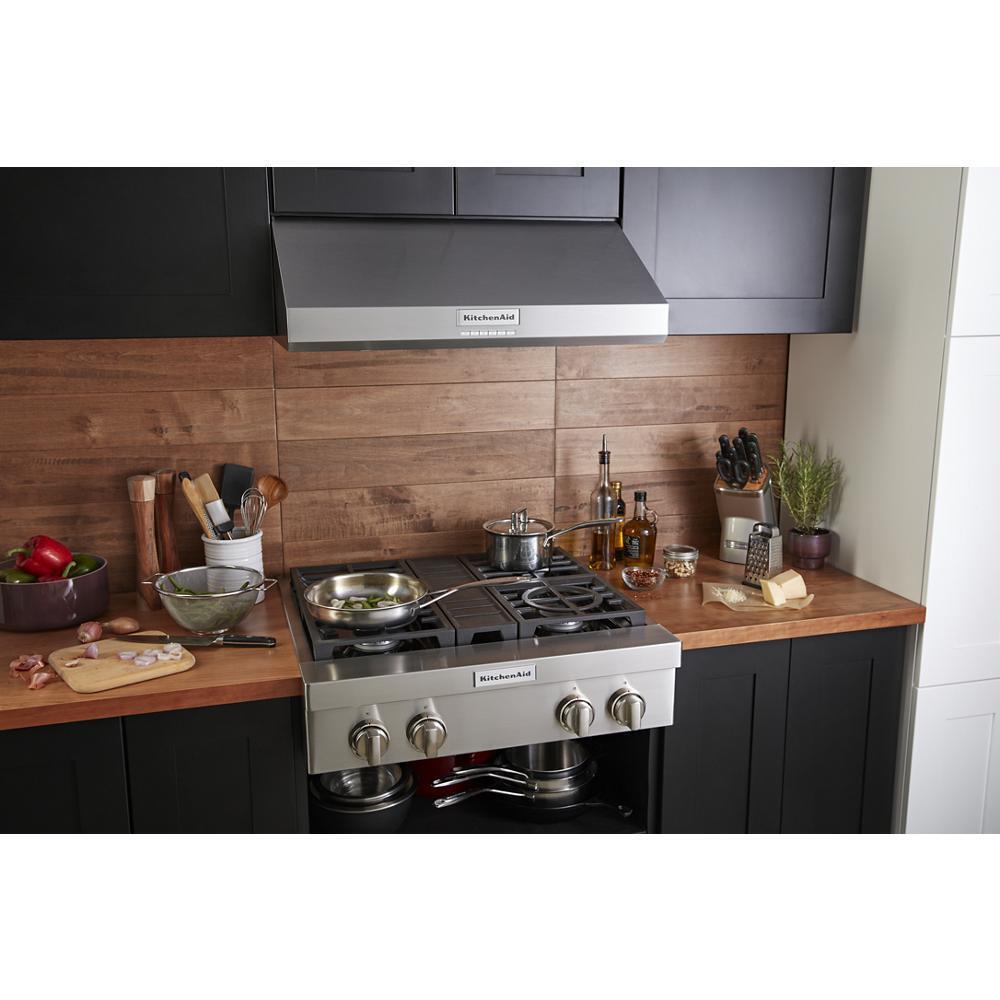

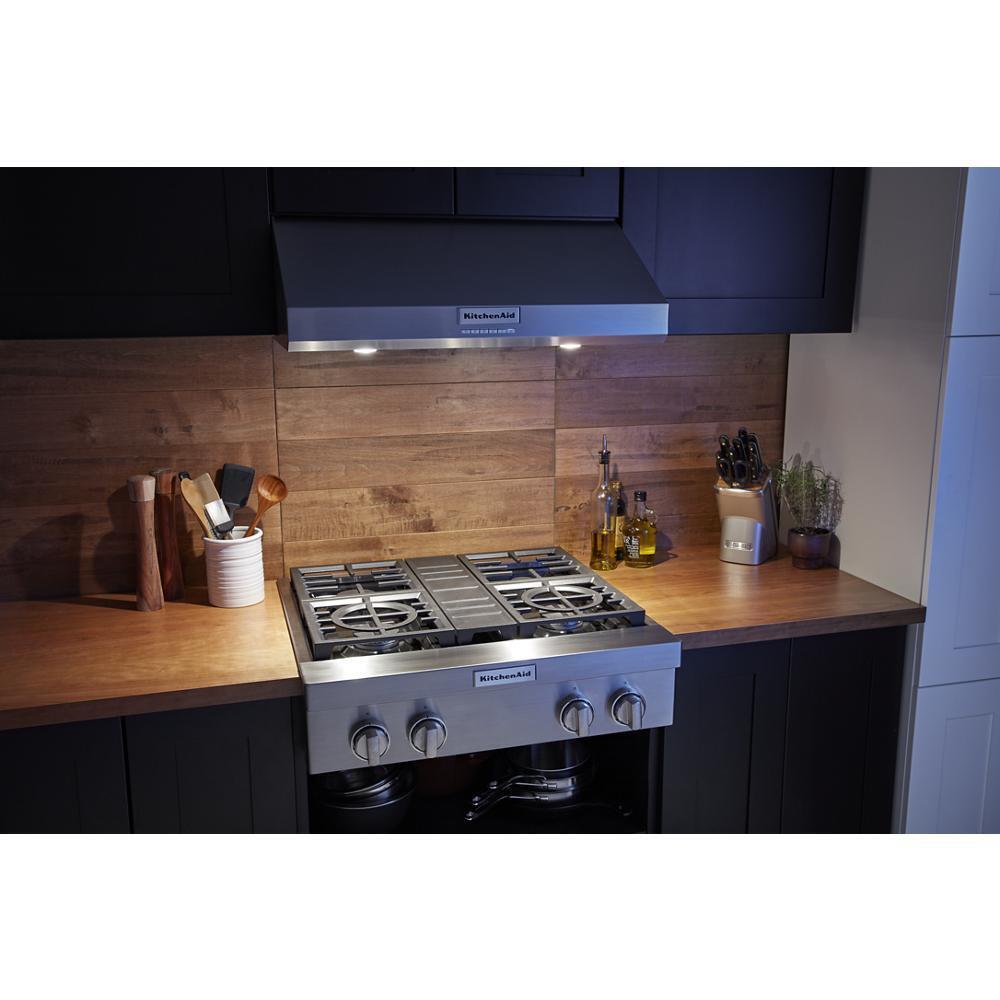

Empower your creativity with a 30-inch KitchenAid® Commercial Style Rangetop with 4 burners. This gas cooktop offers power and precision to successfully sear, simmer, stir-fry and sauté. It features two 20,000 BTU Ultra Power™ Dual-Flame Burners for high- and low-heat cooking, a 5,000 BTU Simmer & Melt Burner perfect for small saucepans and a 15,000 BTU burner.

Product Features

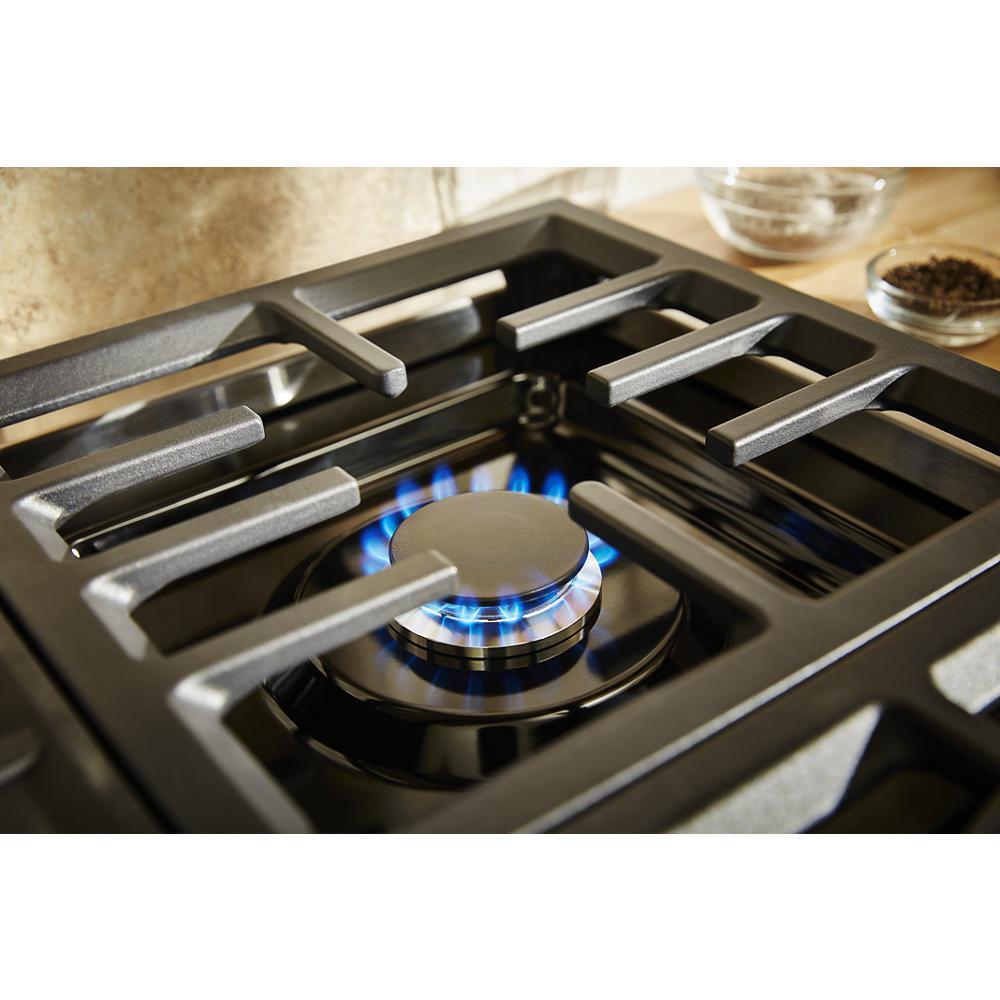

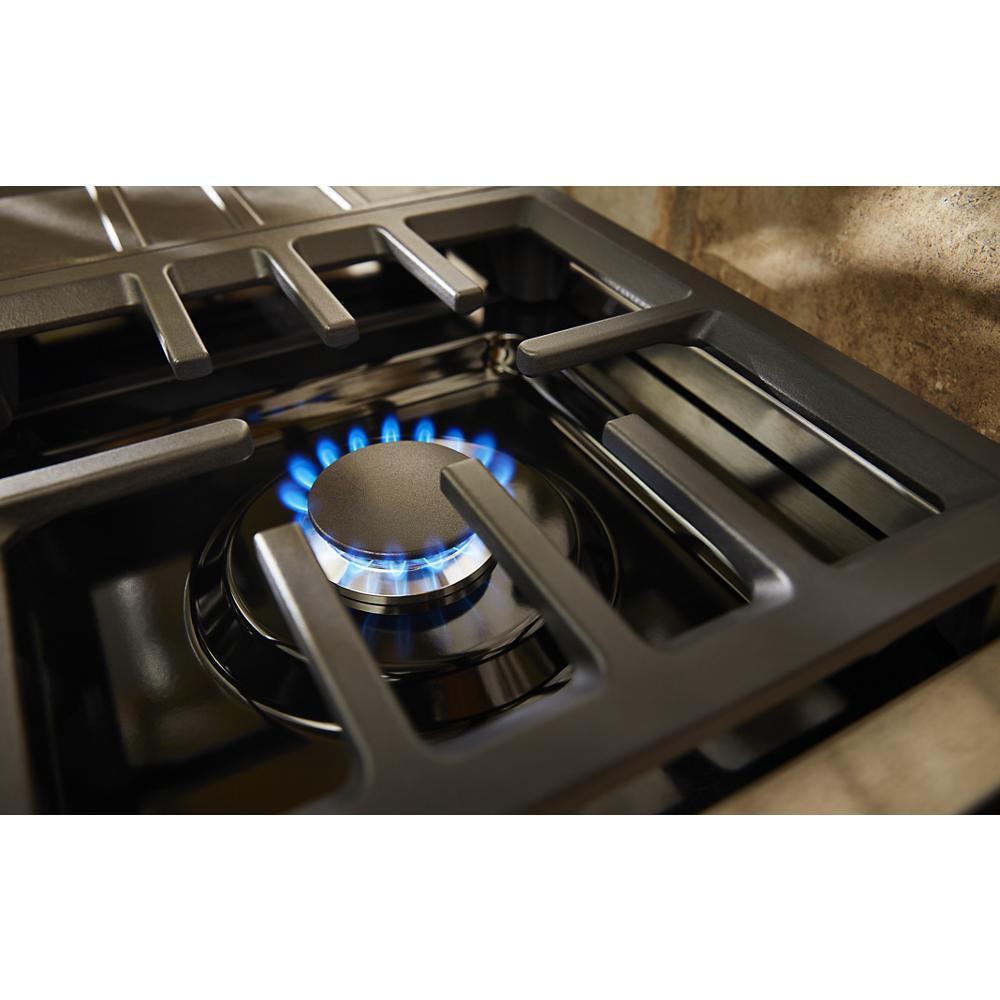

Two 20,000 BTU Ultra Power™ Dual-Flame Burners
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

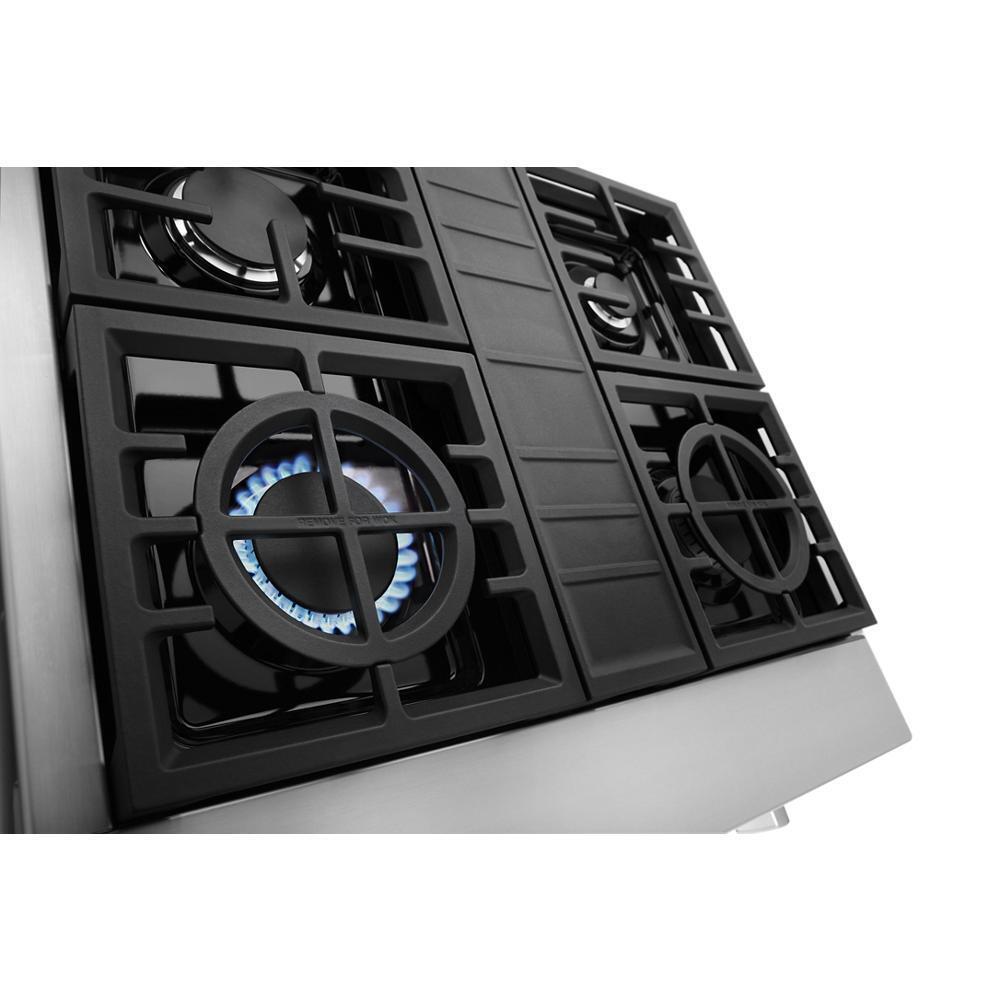

Three-Level Convertible Grates

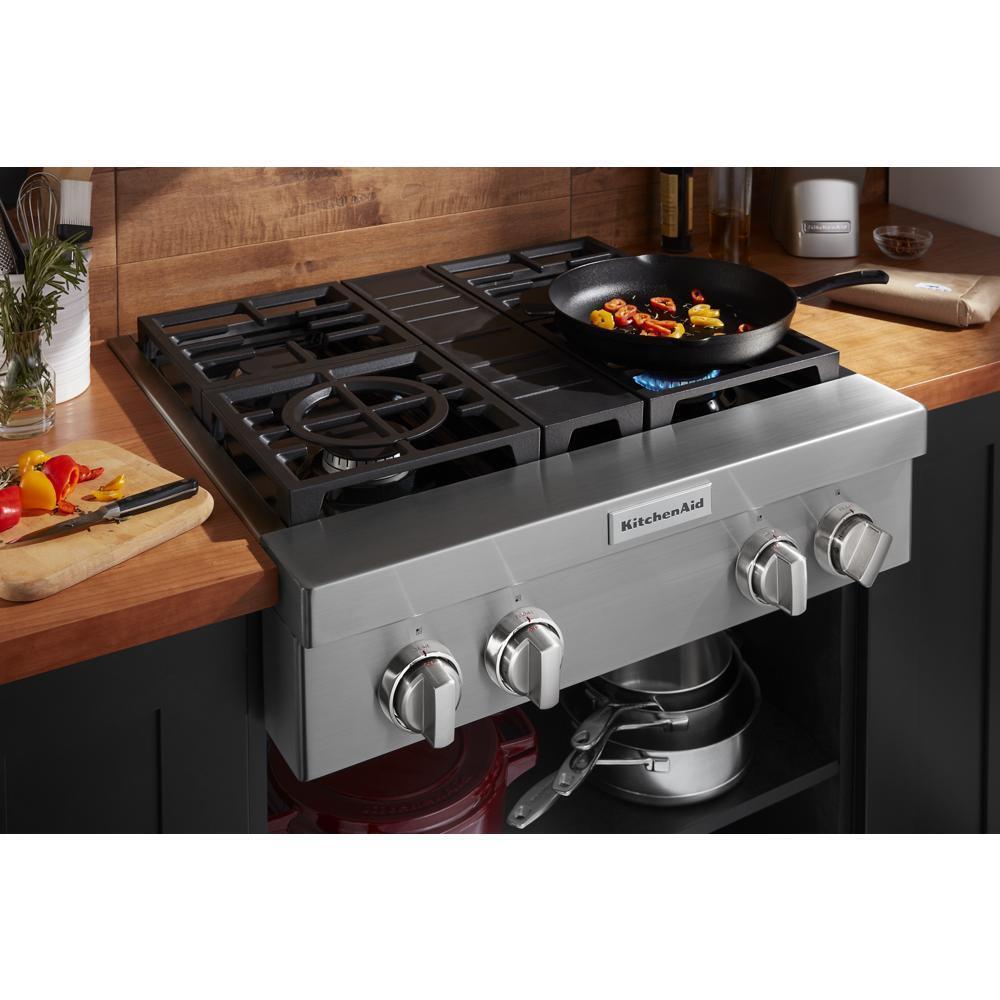

with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

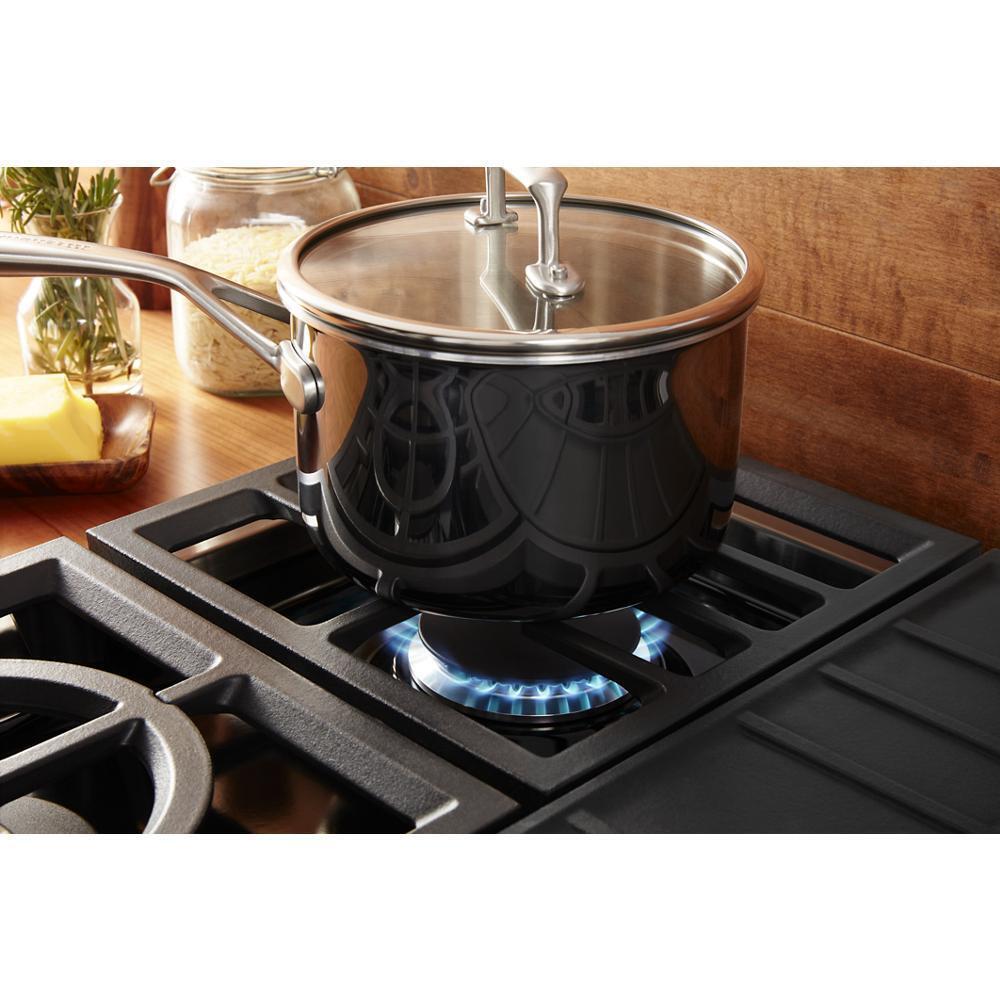

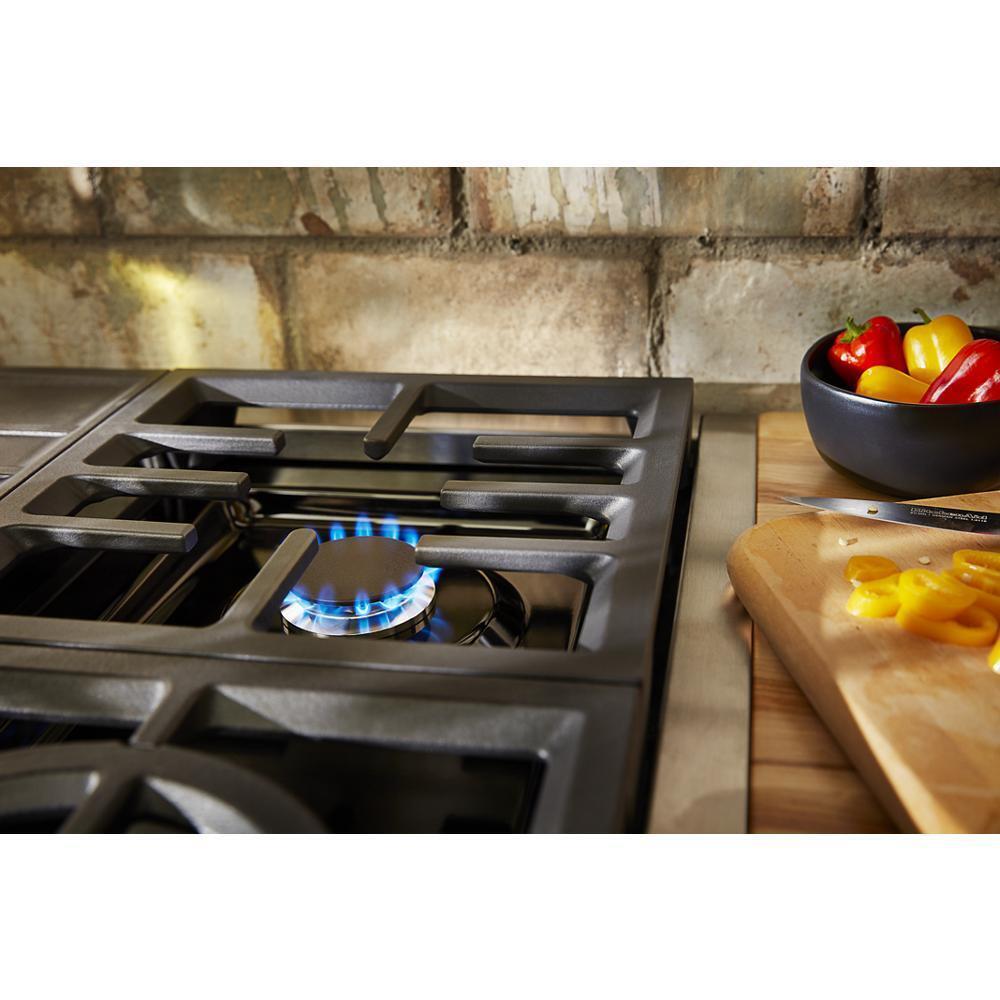

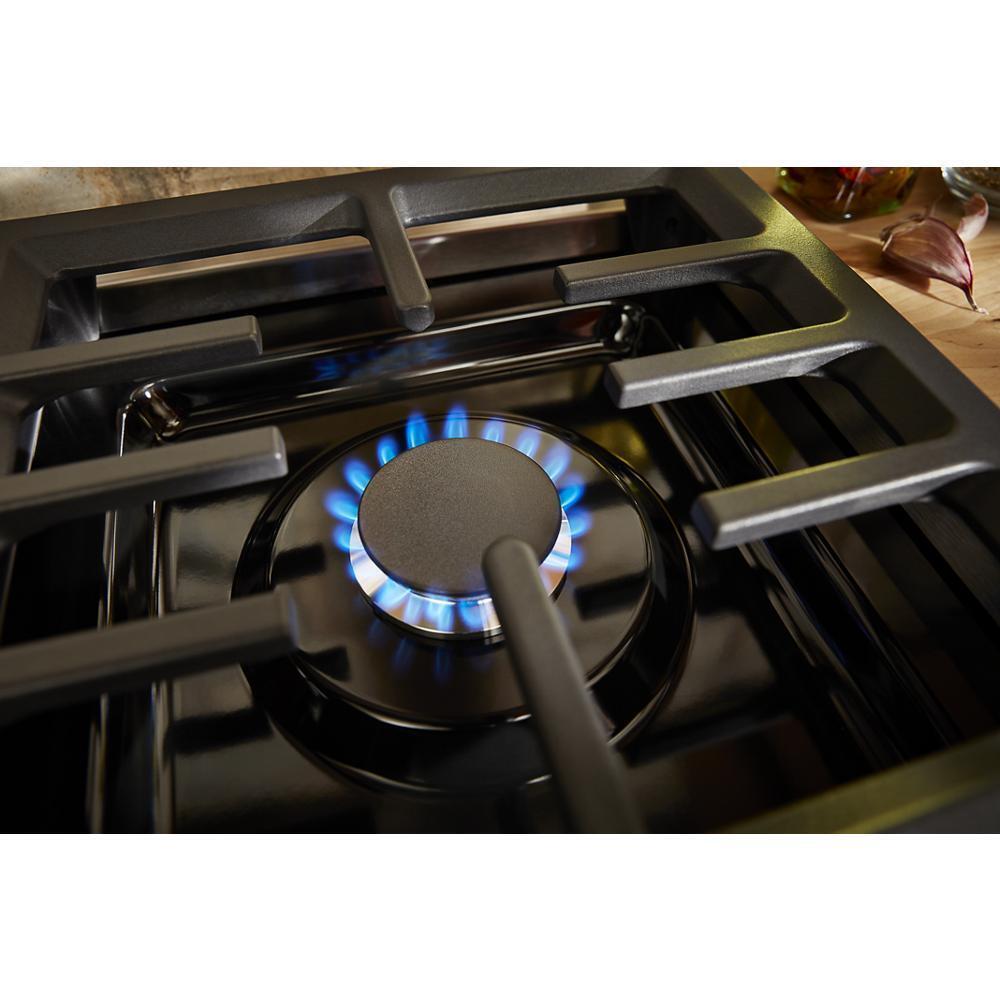

5,000 BTU Simmer & Melt Burner
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
One 15,000 BTU Burner
delivers the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.
