| Control Location | Front |

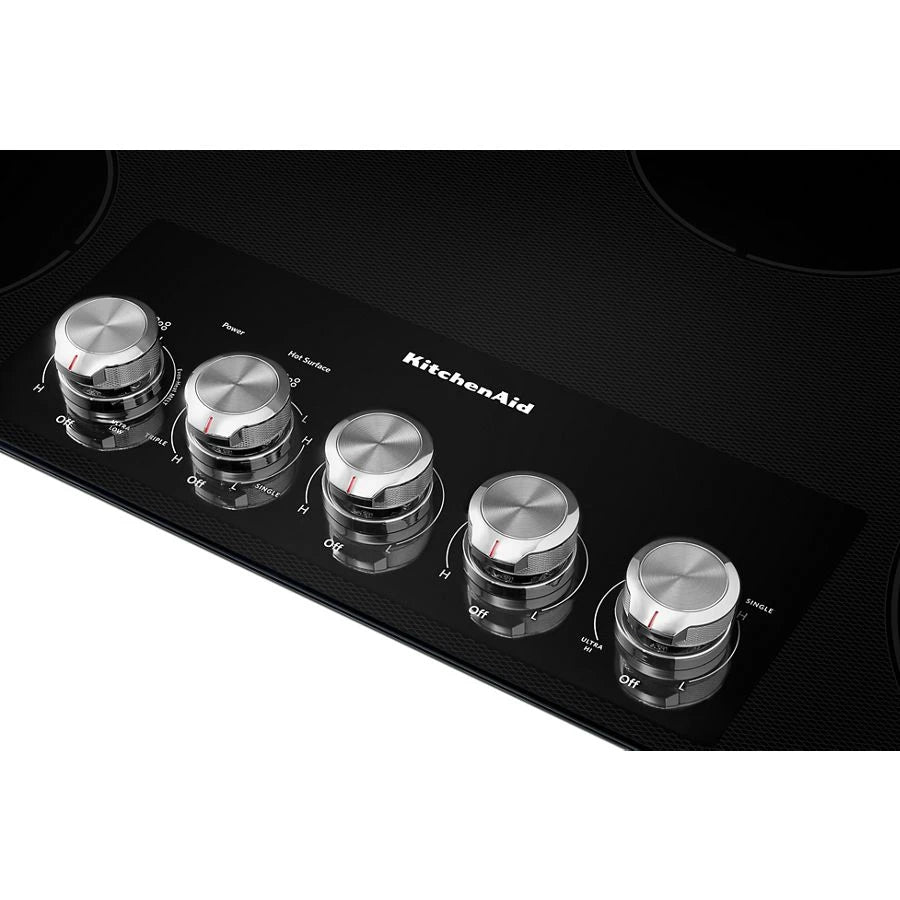

| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Number of Open Bays | N/A |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| ADA Compliant | ADA Height and Operation Compliant |
| Energy Rating (kWh/year) | 195 |
| prop65 | Standard - Standard |
| Power Cord Included | No |
| 208V Compatible | Yes |

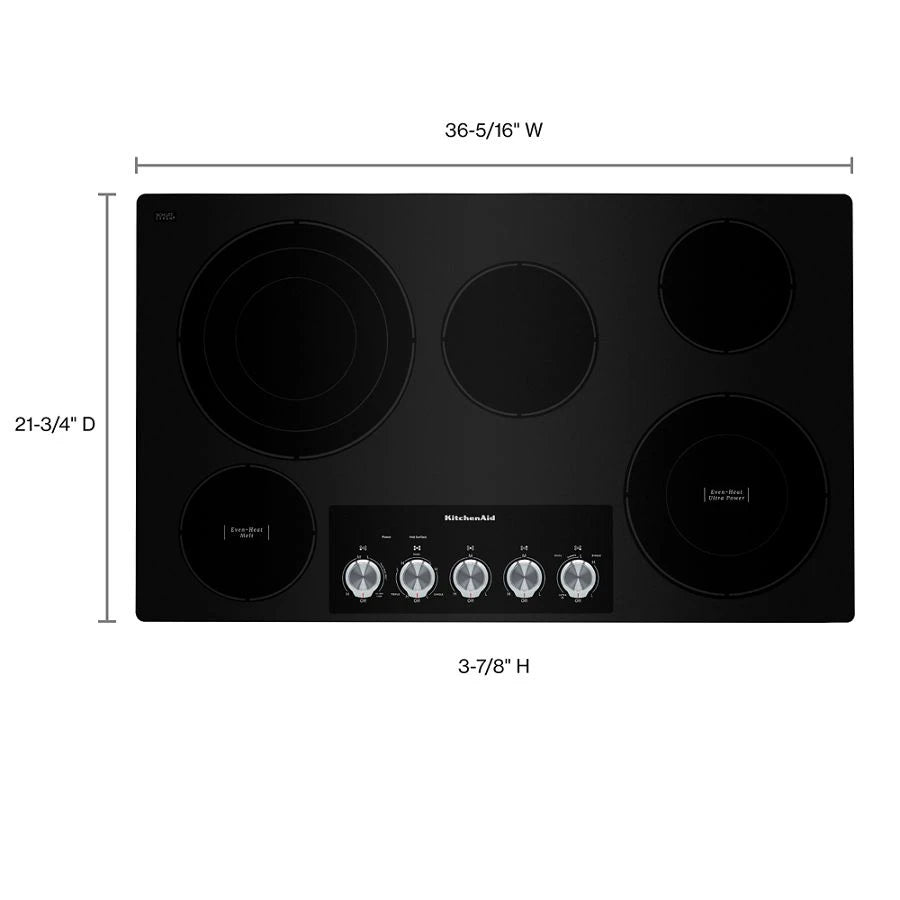

| Width | 36.31 in. |
| Height | 5.25 in. |
| Length | 21.75 in. |
| Weight | 56 lbs. |
| Carton Depth | 25 |
| Carton Height | 9 1/4 |
| Carton Width | 40 3/4 |
| Cutout Depth (in) | 20 3/8 |
| Cutout Width (in) | 34 9/16 |
| Gross Weight | 56 |
| Maximum Height | 5 1/4 |
| Net Weight | 51.0 |
| Cutout Depth Max(IN,inches) | 20.5625 |
| Cutout Depth Min(IN,inches) | 20.3750 |
| Cutout Depth(IN,inches) | 20.3750 |
| Cutout Width Max(IN,inches) | 35.5625 |
| Cutout Width Min(IN,inches) | 34.5625 |
| Cutout Width(IN,inches) | 34.5625 |
| Maximum Height(IN,inches) | 5.2500 |
| Net Weight(LB,pounds) | 51 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 9.2500 |
| Carton Width(IN,inches) | 40.7500 |
| Gross Weight(LB,pounds) | 56 |
| Number of Boxes | 1 |
| Shipping Width | 41.31 in. |
| Shipping Height | 10.25 in. |
| Shipping Length | 26.75 in. |
| Shipping Weight | 96 lbs. |
| Total of Shipping Weight | 96 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 2.4 ft³ |
| Dimensional Weight | 29.83 lbs. |
| Total of Cubes | 2.4 ft³ |
| Total of Dimensional Weight | 29.83 lbs. |
| Automatic Pan Detection | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-In Oven | Yes |
| LP Convertible | No |
| Power Outage Compatible | No |
| Cutout Depth | 20.375 |
| Cutout Depth Max | 20.563 |
| Cutout Depth Min | 20.375 |
| Cutout Width | 34.563 |
| Cutout Width Max | 35.563 |
| Cutout Width Min | 34.563 |
| carton depth | 25 |
| carton height | 9.25 |
| carton width | 40.75 |
| gross weight | 56 |
| net weight | 44 |
| Center Rear Element-Burner Power | 1, 800W |
| Center Rear Element-Burner Size | 8in. |
| Center Rear Element-Burner Type | Standard |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 1, 300W |
| Left Front Element-Burner Size | 6in. |
| Left Front Element-Burner Type | Even-Heat™ |
| Left Rear Element-Burner Power | 3000W/2200W/1100W |
| Left Rear Element-Burner Size | 12in./9in./6in. |
| Left Rear Element-Burner Type | Triple |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Power | 3, 200W |
| Right Front Element-Burner Size | 10in./6in. |
| Right Front Element-Burner Type | Dual |
| Right Rear Element-Burner Power | 1, 200W |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Standard |
| Downdraft Vent | No |
| Combination Match with Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Energy Star® Qualified | ENERGY STAR® Qualified |
