Sale price $2,249.10 Regular price $2,498.97 Save $249.87 / 9% OFF

Product Details for KitchenAid KCED606GBL

Technical Details

Controls

Control Location Right Side
Control Type Knobs
Infinite Heat Controls Yes

Cooktop details

Number of Open Bays N/A
Cooktop Surface Material Ceramic Glass
Digital Display No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Certifications

ADA Compliant No
UL Yes
Energy Rating (kWh/year) 195
prop65 Standard - Standard

Electrical

Power Cord Included No

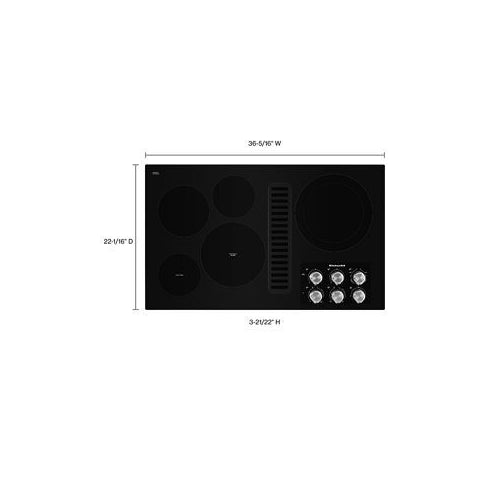

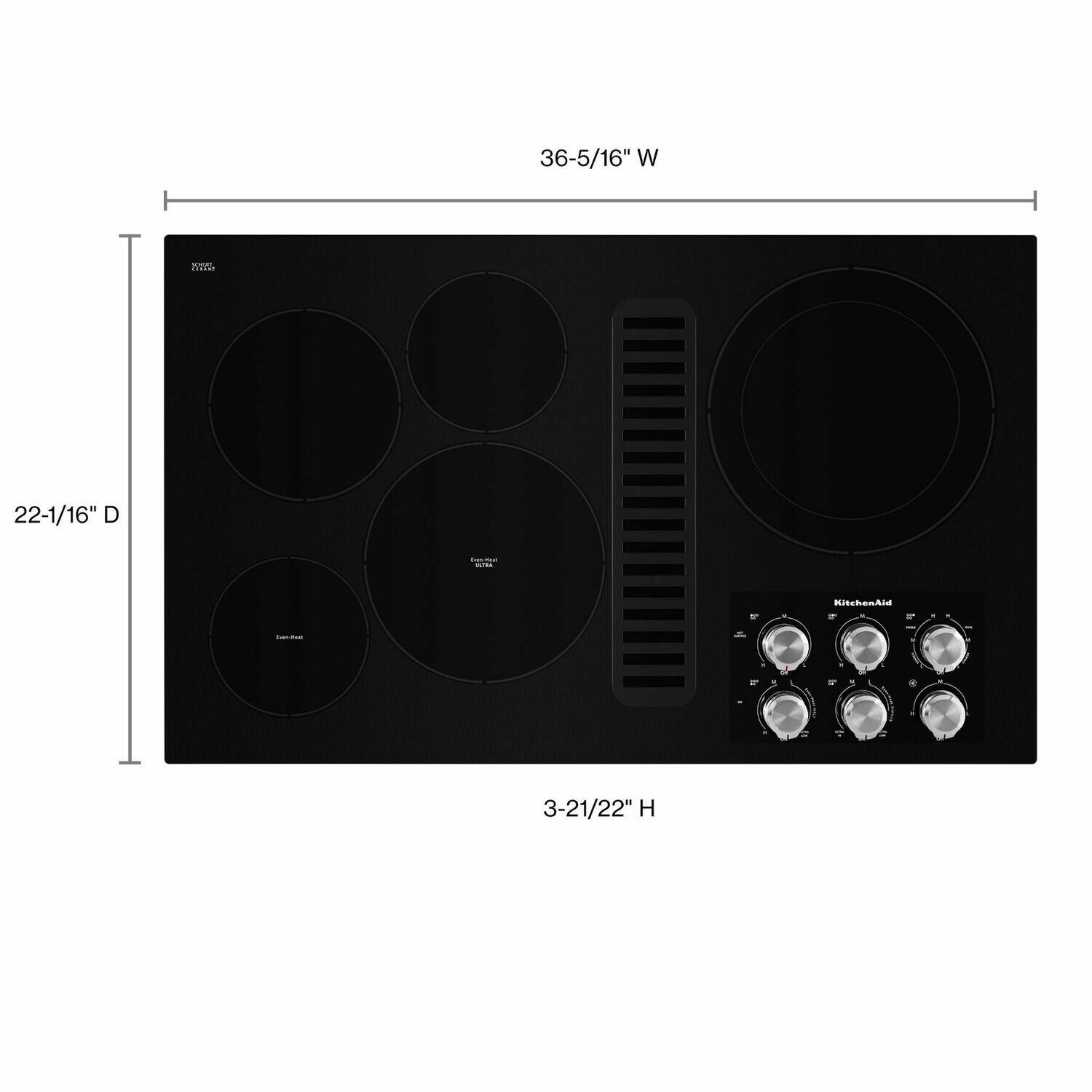

Dimensions & weight

Width 36.31 in.
Height 3.63 in.
Length 22.06 in.
Weight 70 lbs.
Carton Depth 26 7/16
Carton Height 23 13/16
Carton Width 41 1/2
Gross Weight 70
Net Weight 57.0
Cutout Depth(IN,inches) 21.1250
Cutout Width(IN,inches) 34.5625
Maximum Height(IN,inches) 18.7500
Net Weight(LB,pounds) 57
Carton Depth(IN,inches) 26.4375
Carton Height(IN,inches) 23.8125
Carton Width(IN,inches) 41.5000
Gross Weight(LB,pounds) 70

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 41.31 in.
Shipping Height 8.63 in.
Shipping Length 27.06 in.
Shipping Weight 110 lbs.
Total of Shipping Weight 110 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.68 ft³
Dimensional Weight 20.92 lbs.
Total of Cubes 1.68 ft³
Total of Dimensional Weight 20.92 lbs.

Details

Automatic Pan Detection No
Fuel Type Electric
Installs Over Built-In Oven No
LP Convertible No
Number of Vent Speeds 3
Power Outage Compatible No

Dimensions

Cutout Depth 21.125
Cutout Width 34.563
carton depth 26.38
carton height 23.78
carton width 41.5
gross weight 78
net weight 73

Element/burner details

Center Front Element-Burner Power 3, 200W
Center Front Element-Burner Size 10in.
Center Front Element-Burner Type Even-Heat™ Ultra
Center Rear Element-Burner Power 1, 200W
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Single
Cooktop Element Style Radiant
Cooktop Type Downdraft
Left Front Element-Burner Power 1, 300W
Left Front Element-Burner Size 6in.
Left Front Element-Burner Type Even-Heat™
Left Rear Element-Burner Power 1, 800W
Left Rear Element-Burner Size 8in.
Left Rear Element-Burner Type Single
Number of Cooking Element-Burners 5
Power Boost No
Right Rear Element-Burner Power 3, 000W
Right Rear Element-Burner Size 12in./9in.
Right Rear Element-Burner Type Dual-Stacked Burner

Ventilation details

CFM Motor Class 300
Downdraft Vent Yes

Product details

Energy Star® Qualified ENERGY STAR® Qualified

Description

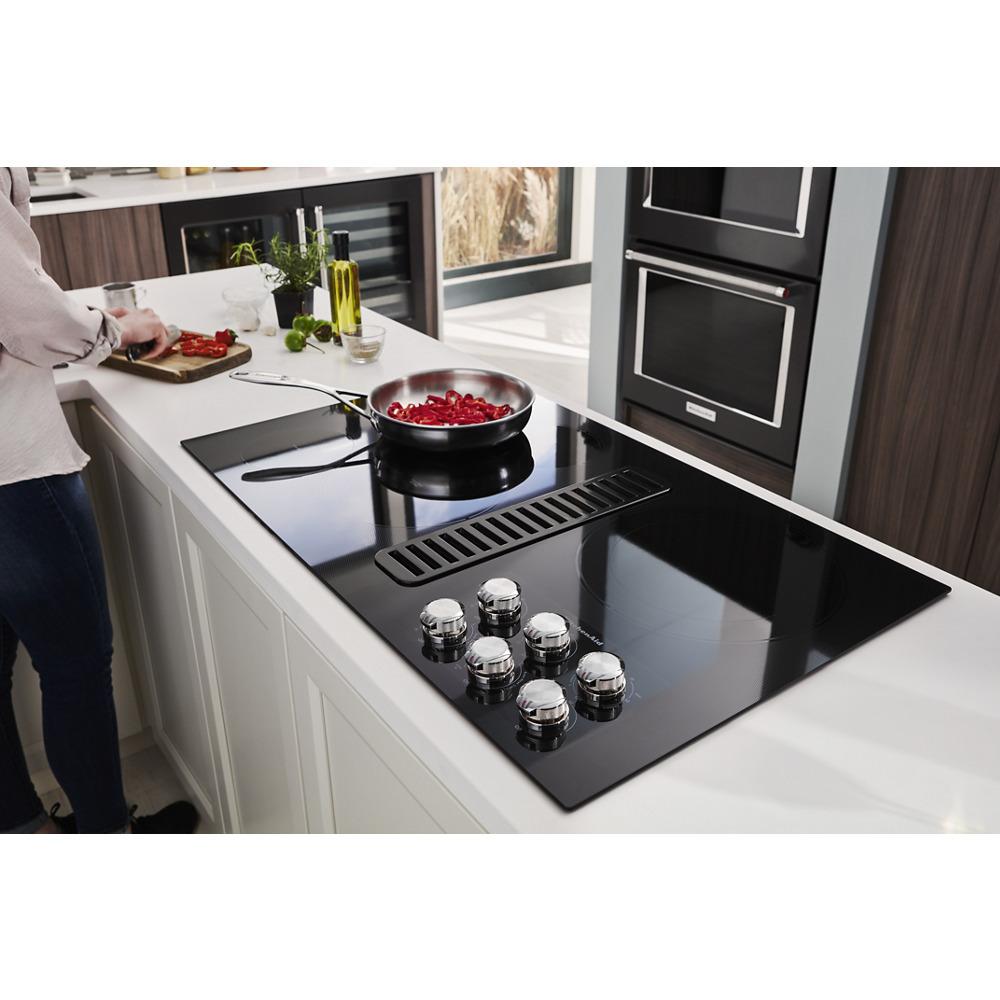

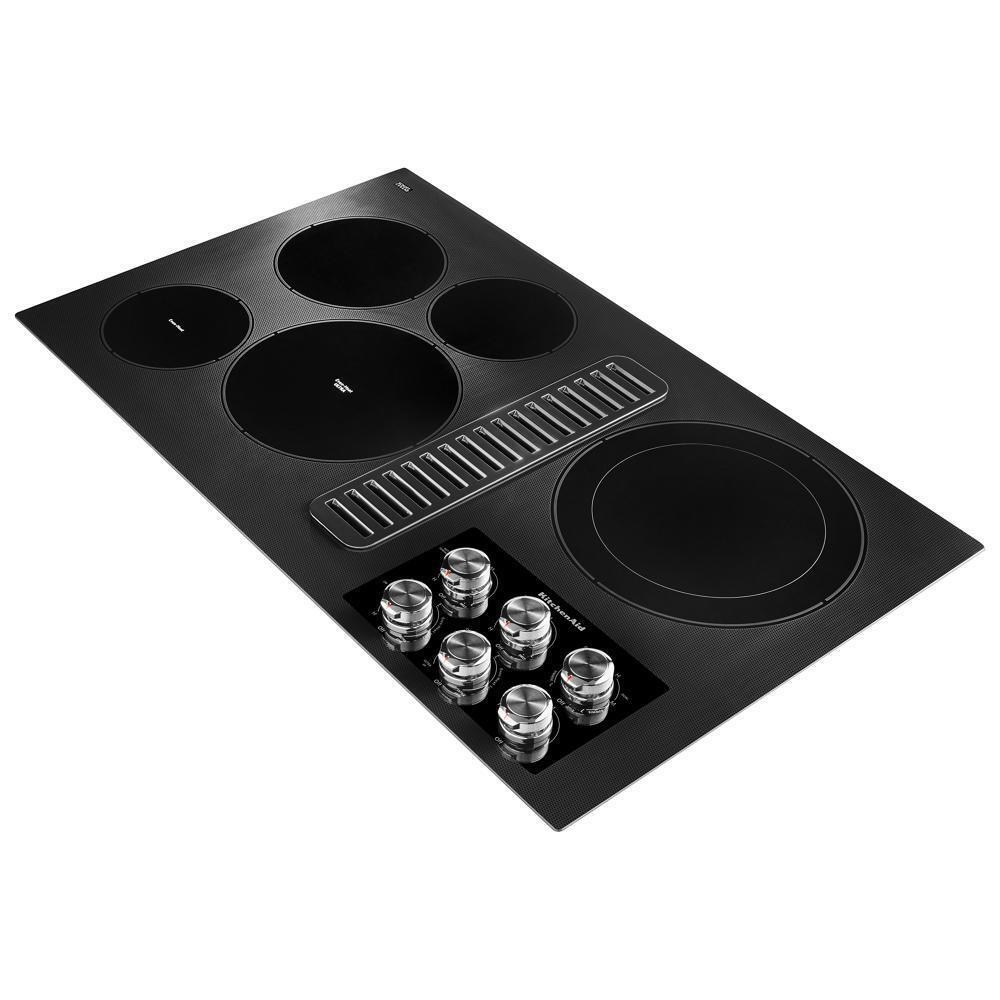

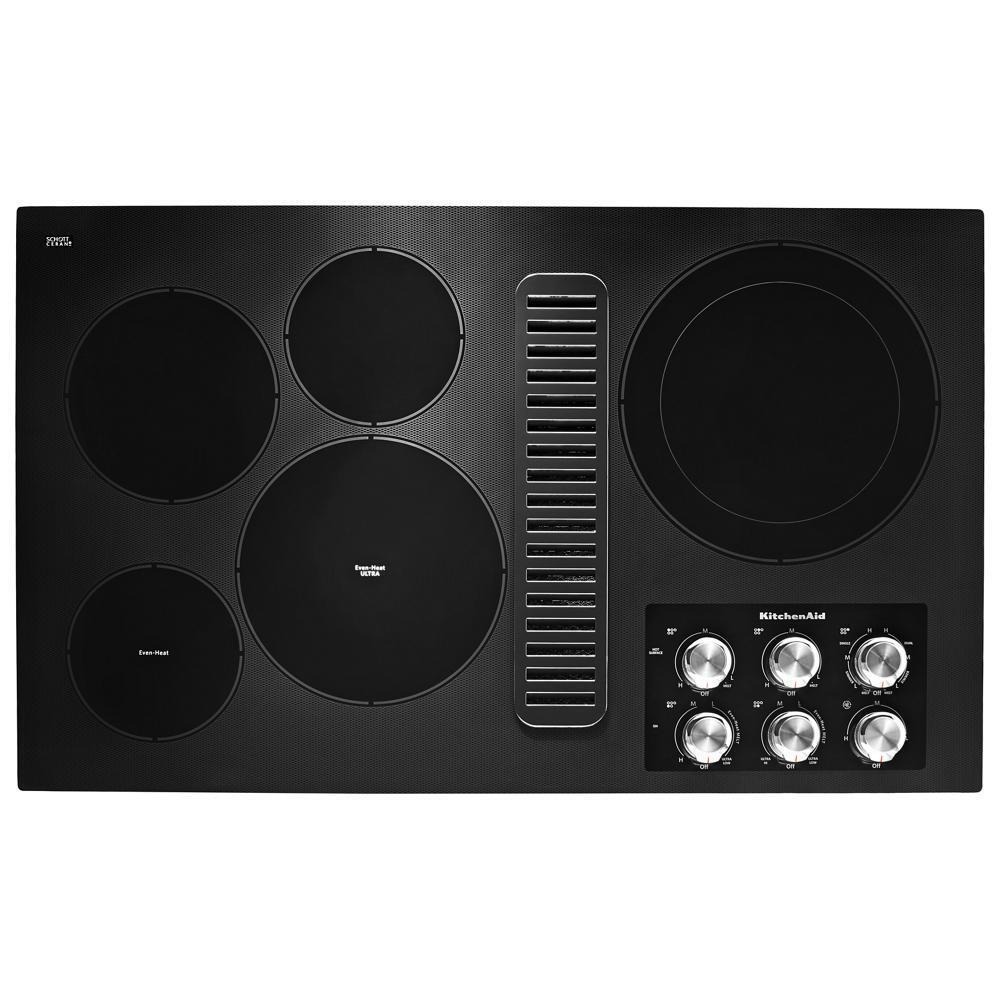

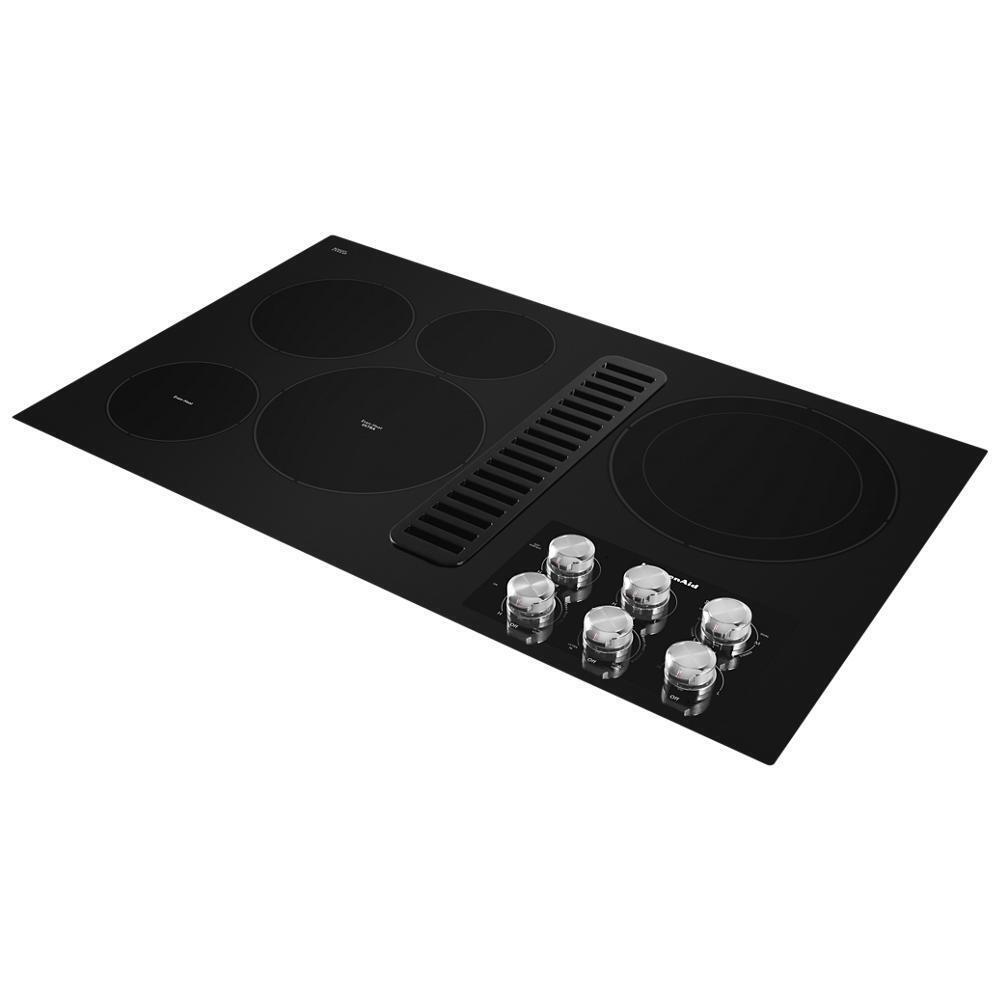

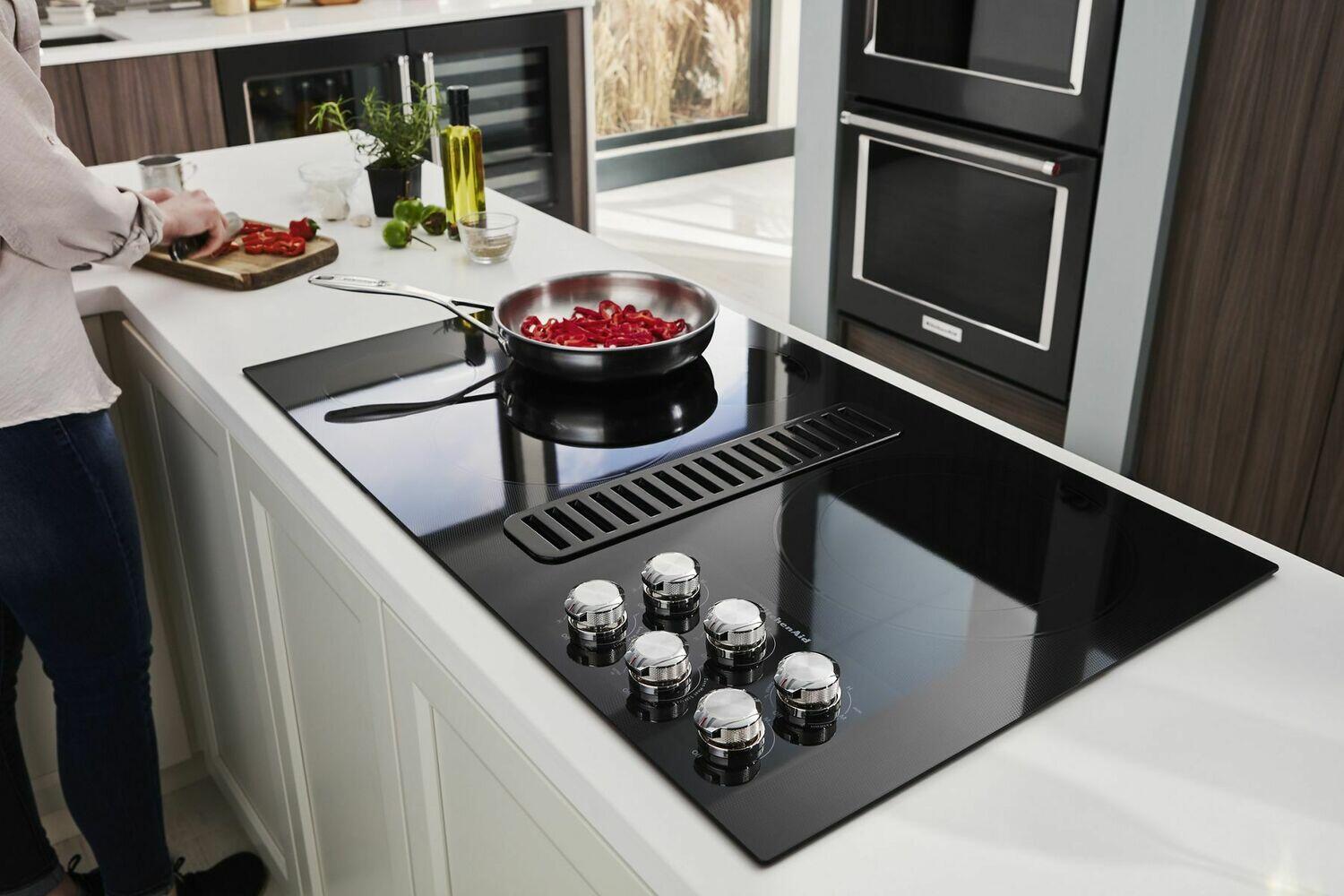

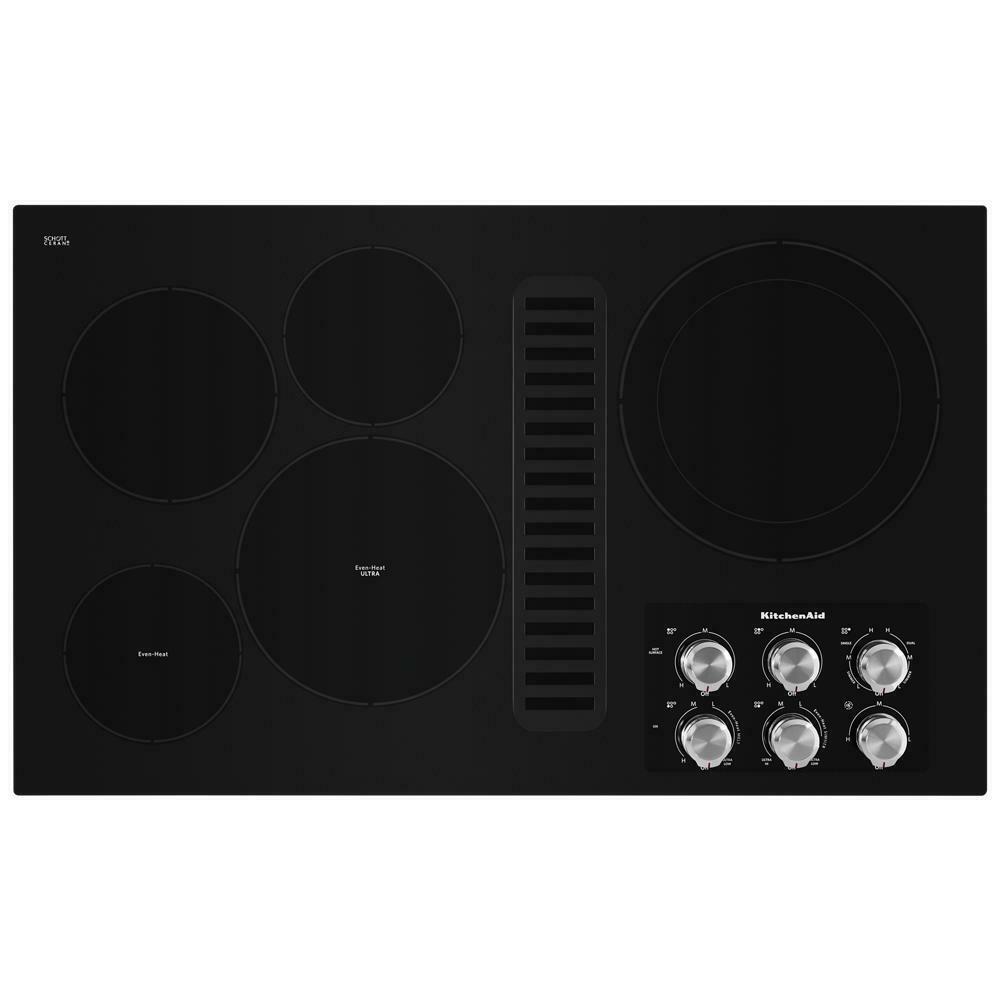

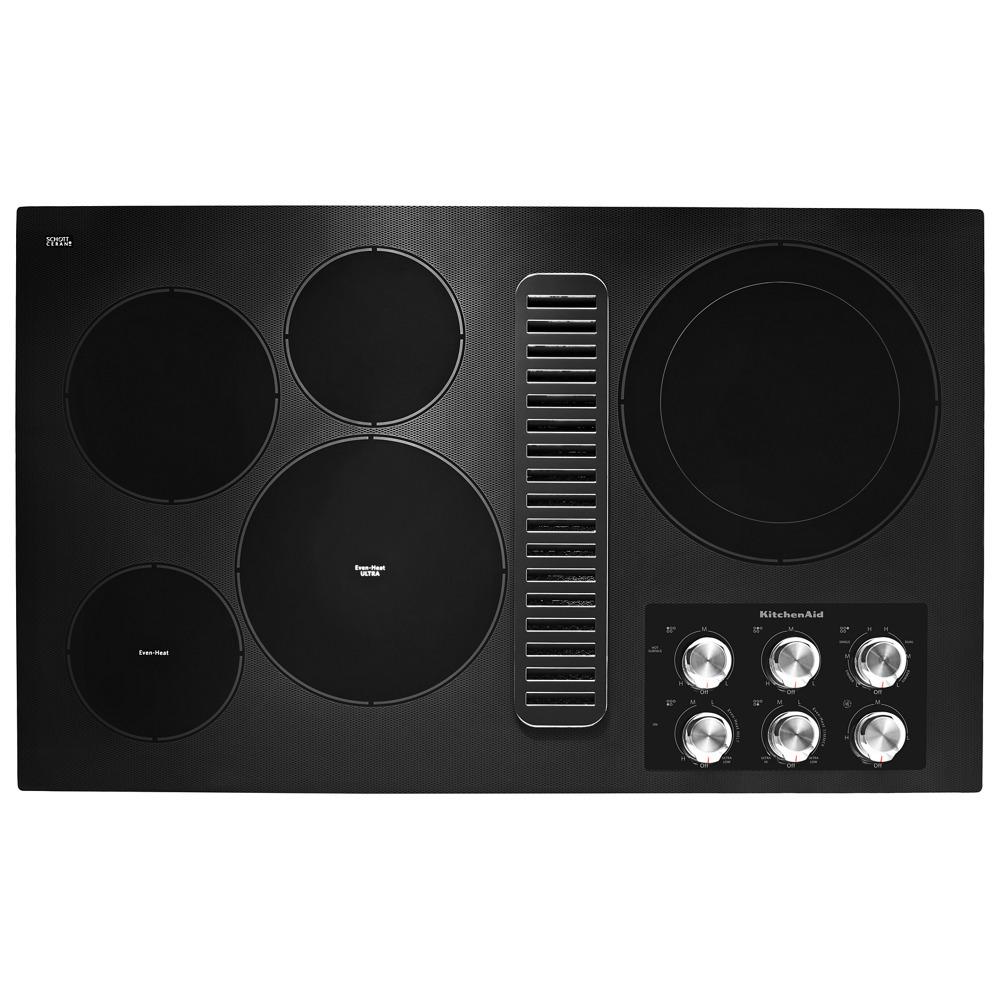

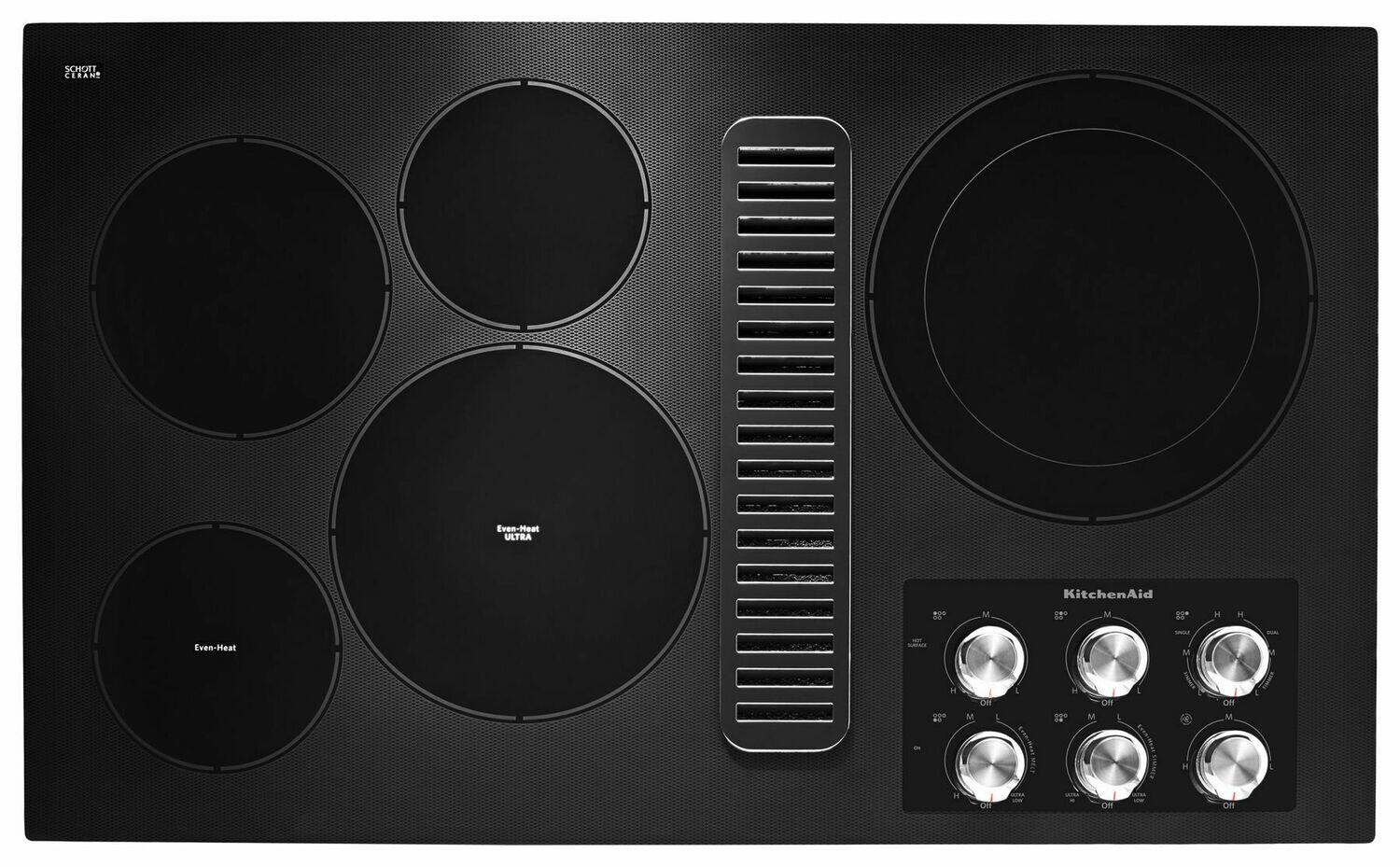

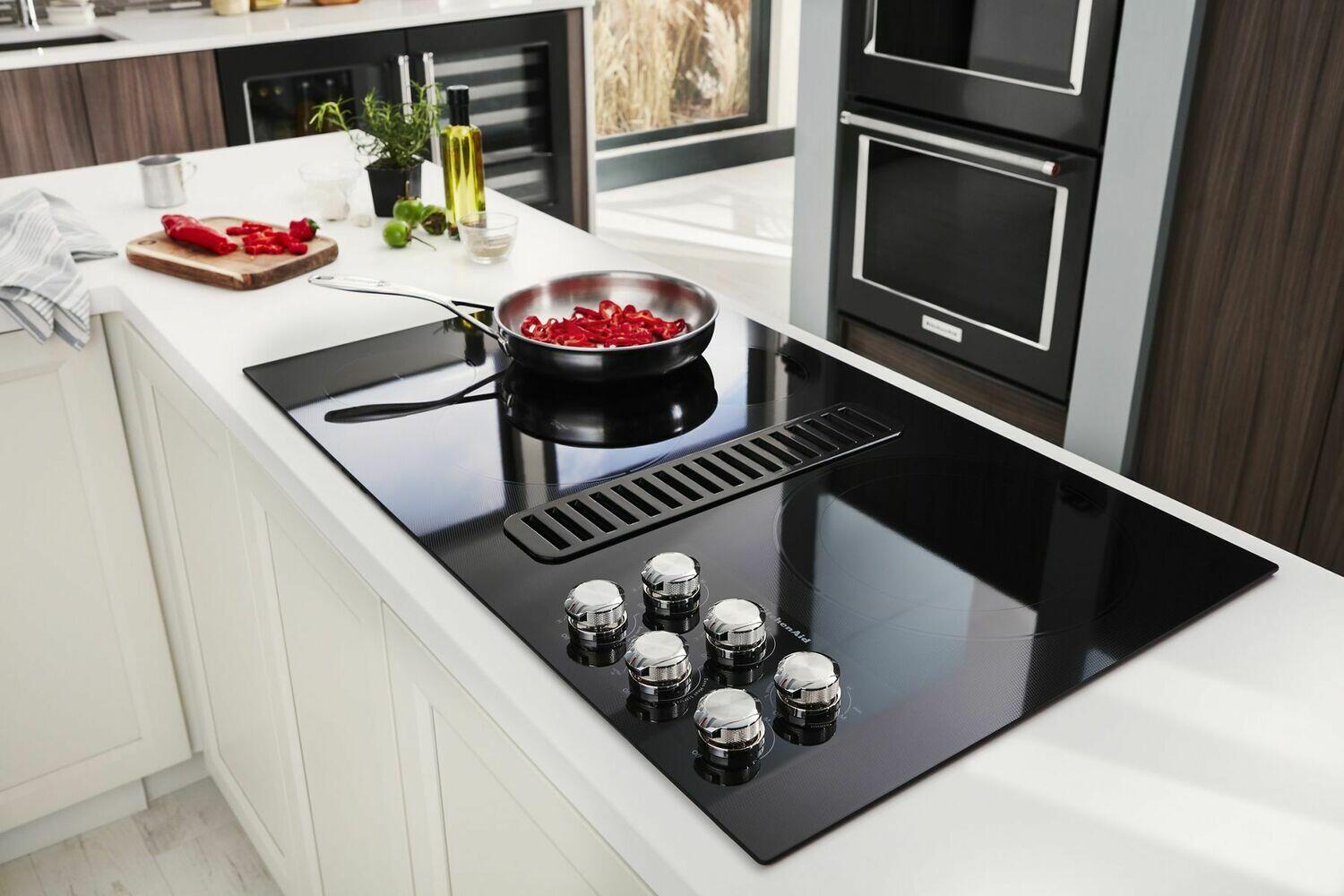

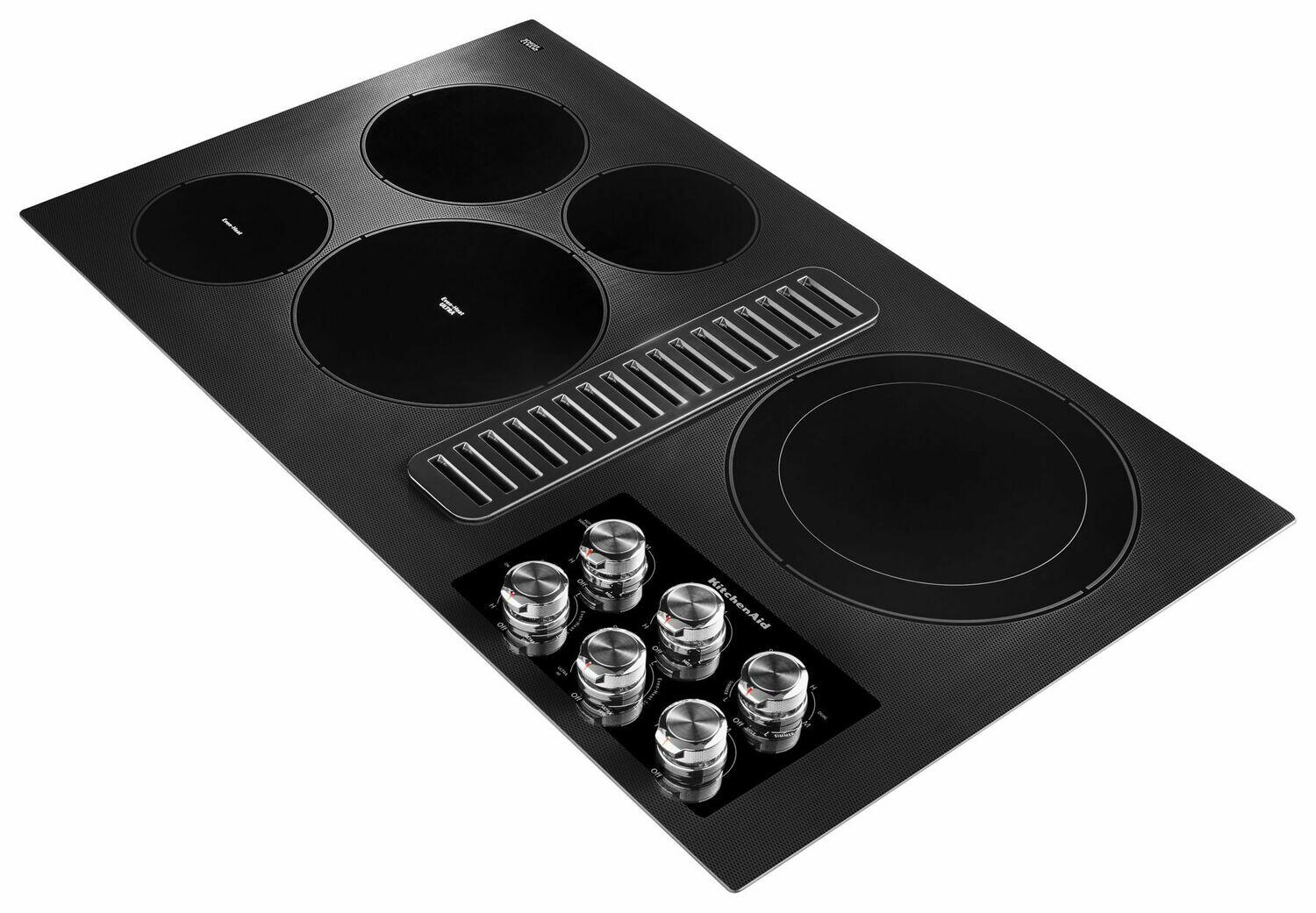

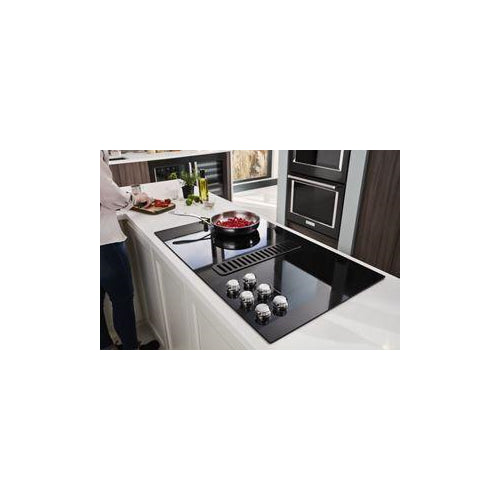

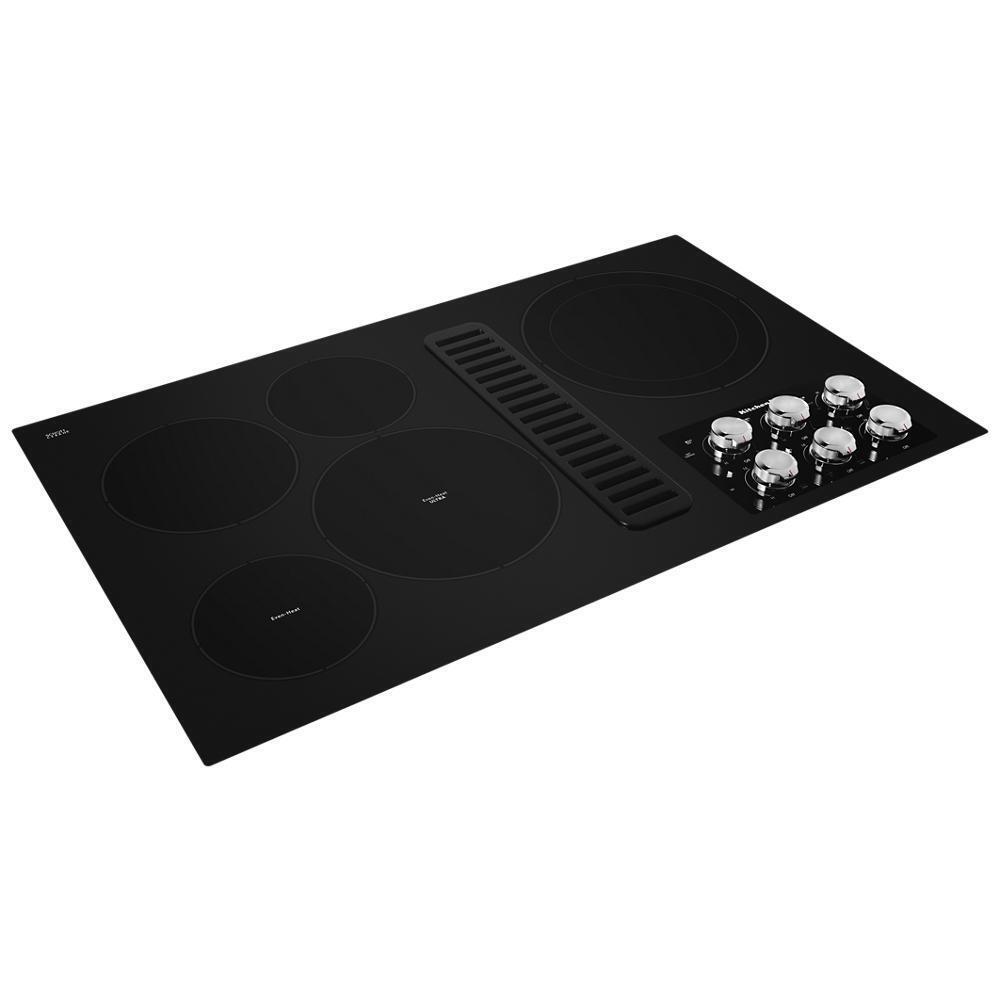

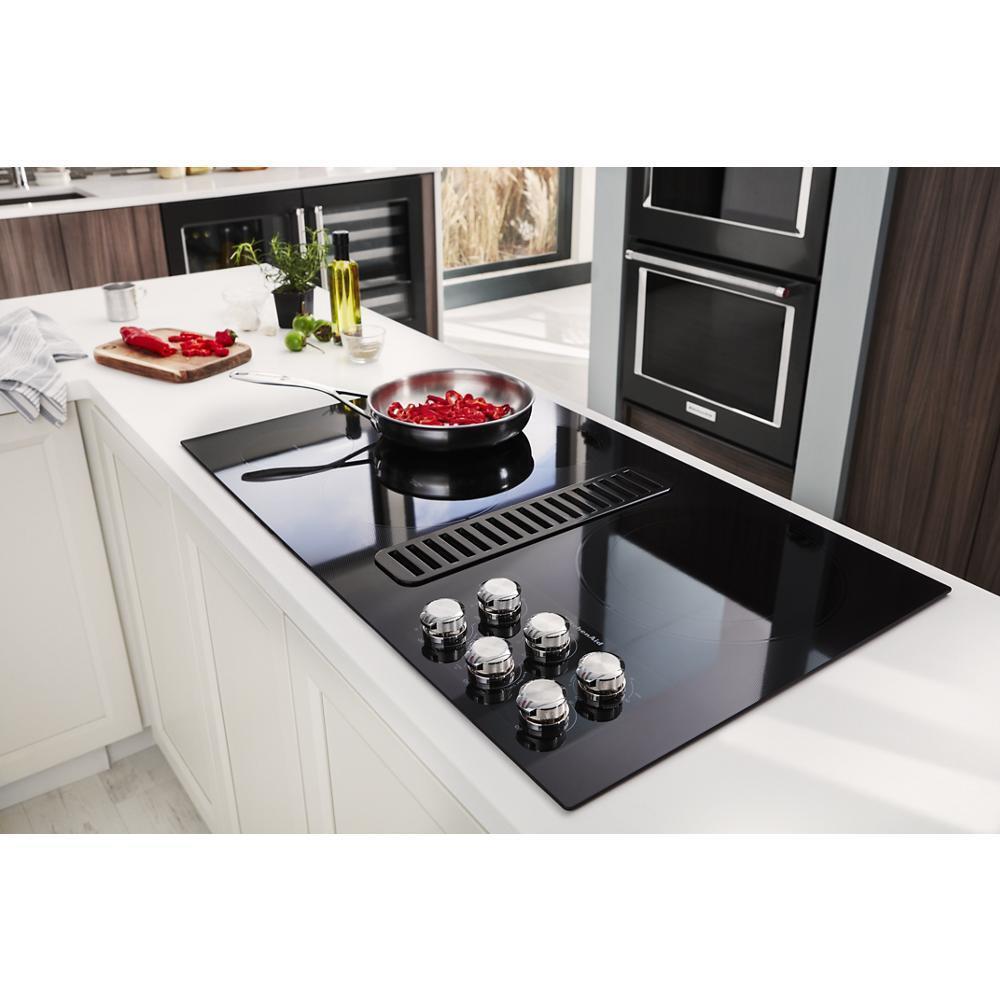

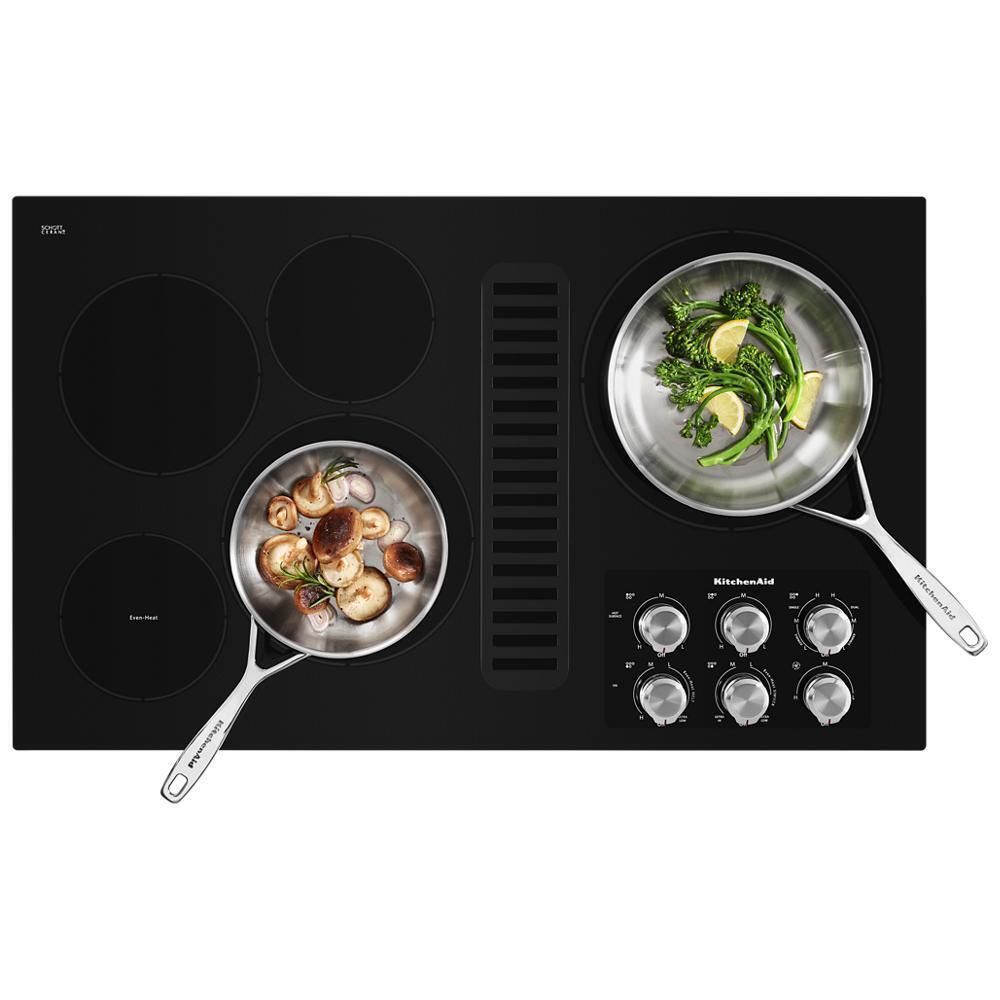

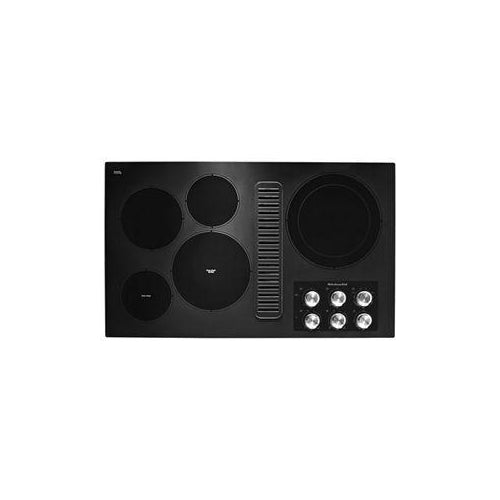

KitchenAid 36" Electric Cooktop with Downdraft Ventilation, 5 Even-Heat™ Elements, and Stainless Steel Knobs


Product Features

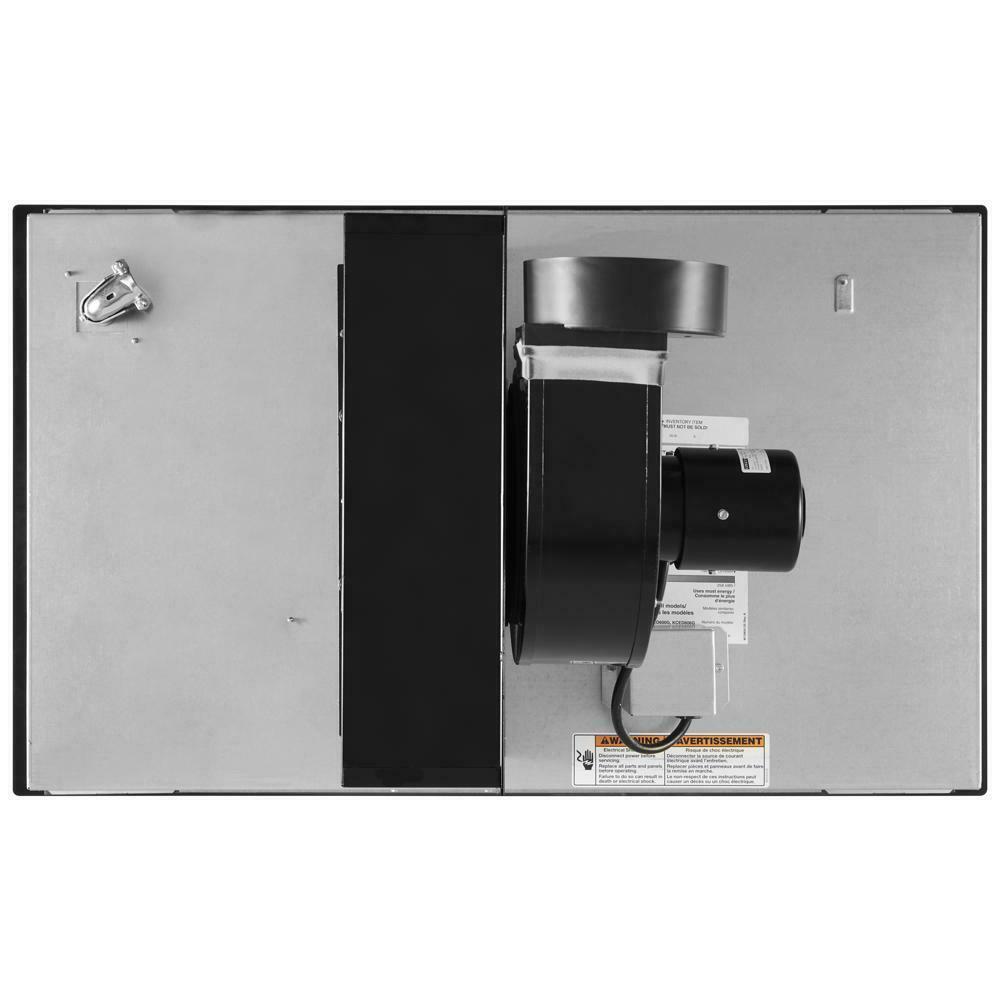

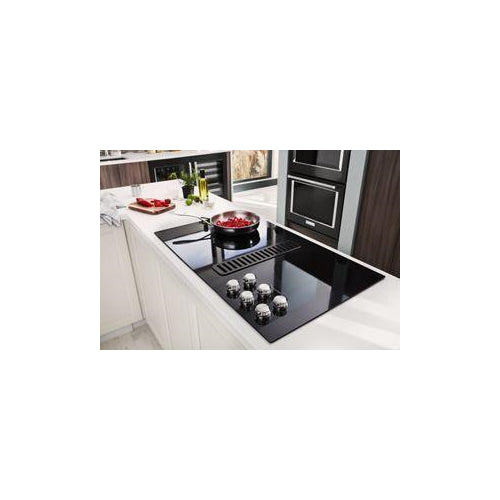

  • Downdraft Ventilation
    Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
  • Hot-Surface Indicator
    Provides a clear indication that lets you know if any cooking surface is on or still hot.
  • Pure Color Ceramic-Glass Surface
    Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

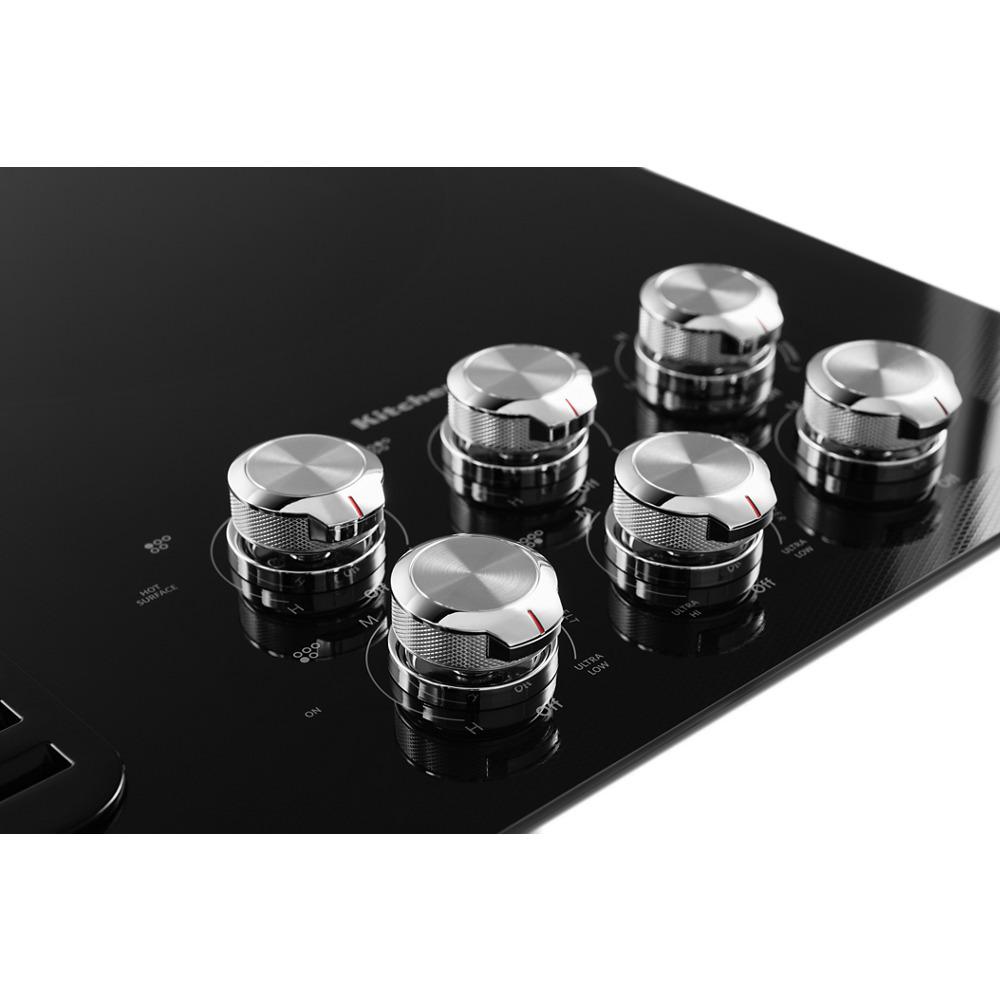

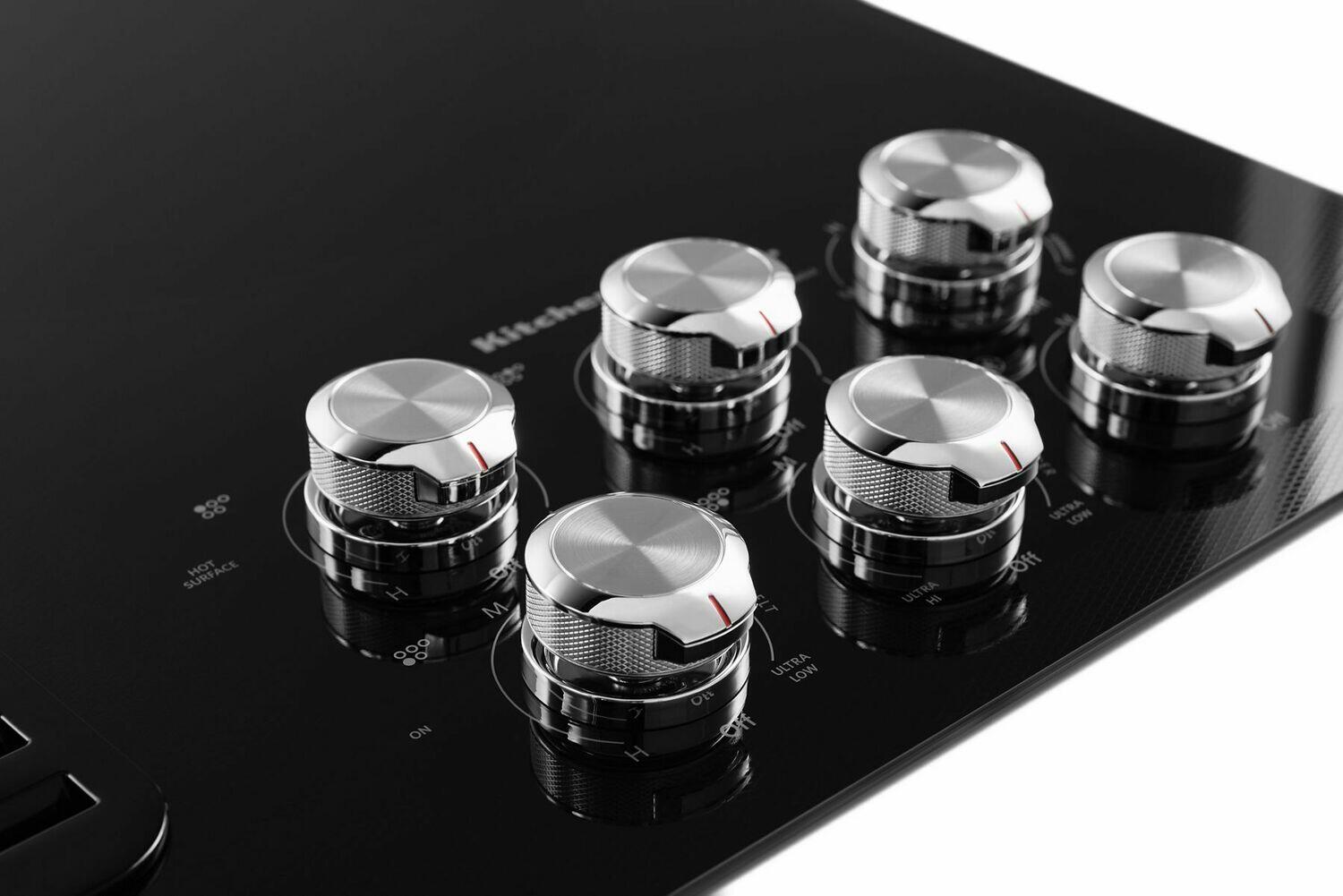

  • Stainless Steel Knobs
    Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.

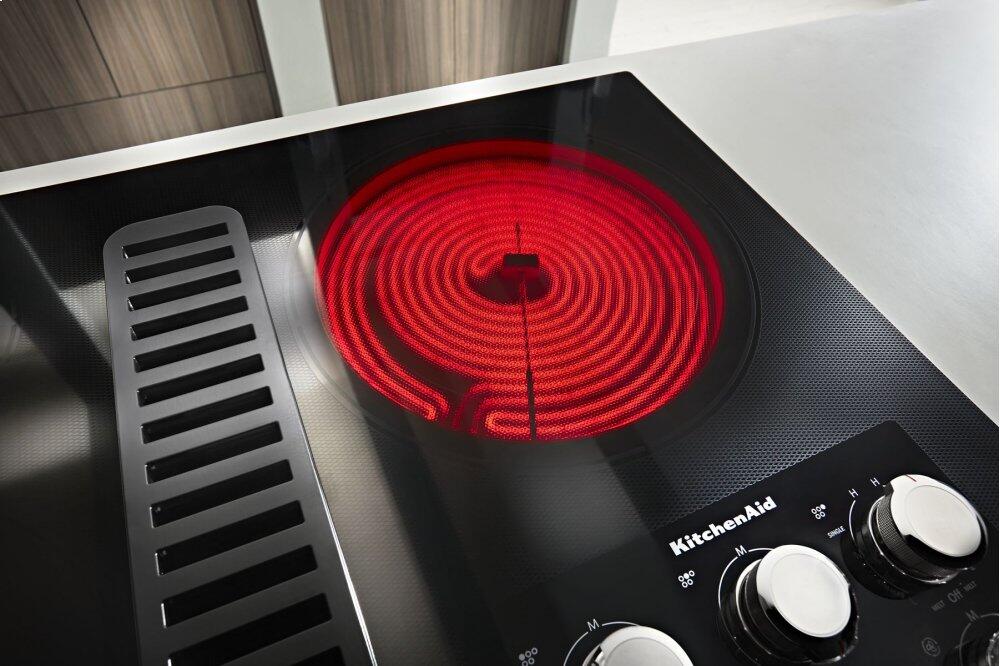

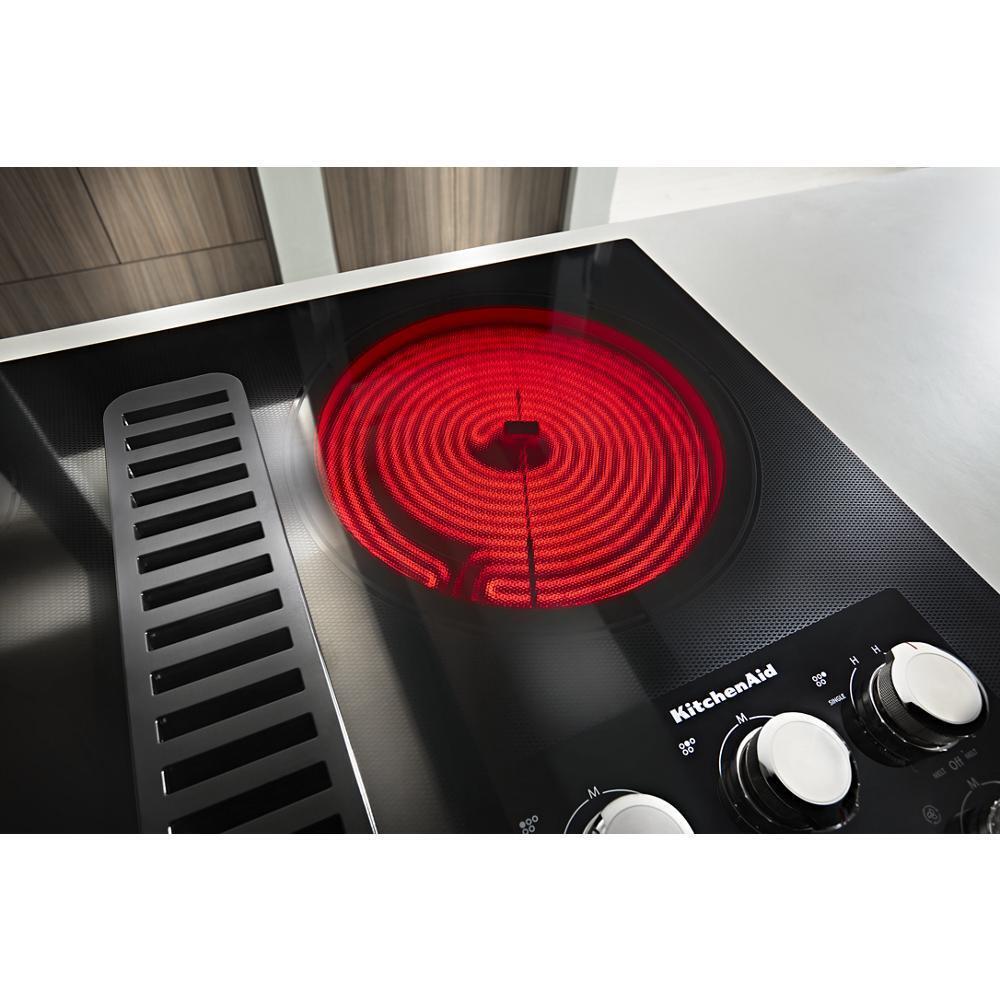

  • 8'' Round Element
    Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
  • 6'' Round Element
    Can reach a power output of up to 1200 watts to handle your daily cooking needs.
  • 300 CFM Exhaust Rating
    Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
  • 3-Speed Fan Control
    Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
  • 12''/9'' Double-Ring Element
    Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you’ll use only the 9-inch inner element.
  • Convertible to Duct-Free Ventilation
    Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
  • Power-On Indicator Light
    Lets you know at a glance when an element is on.

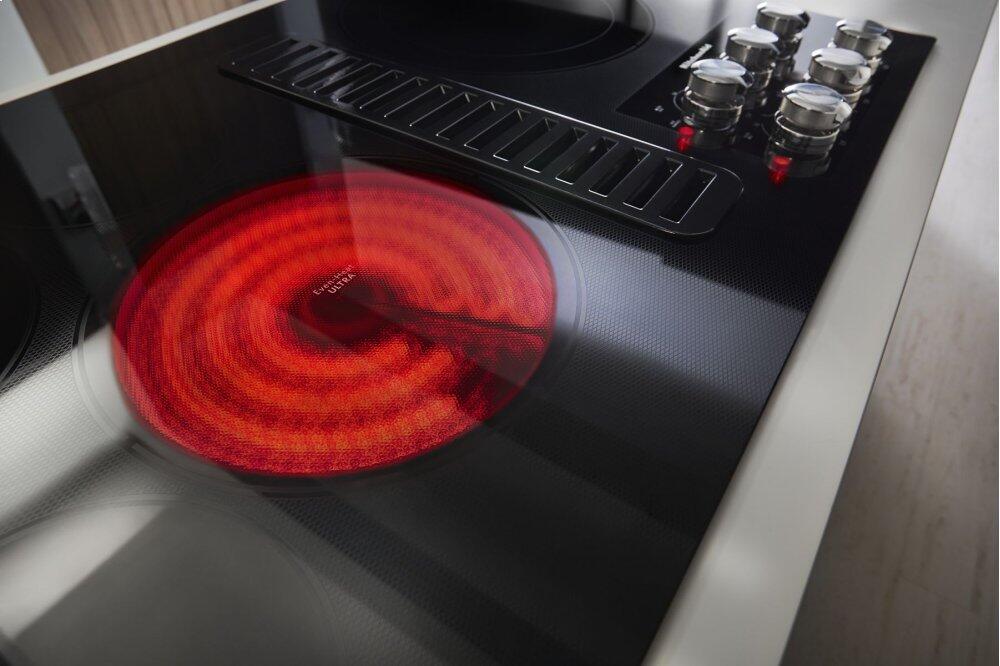

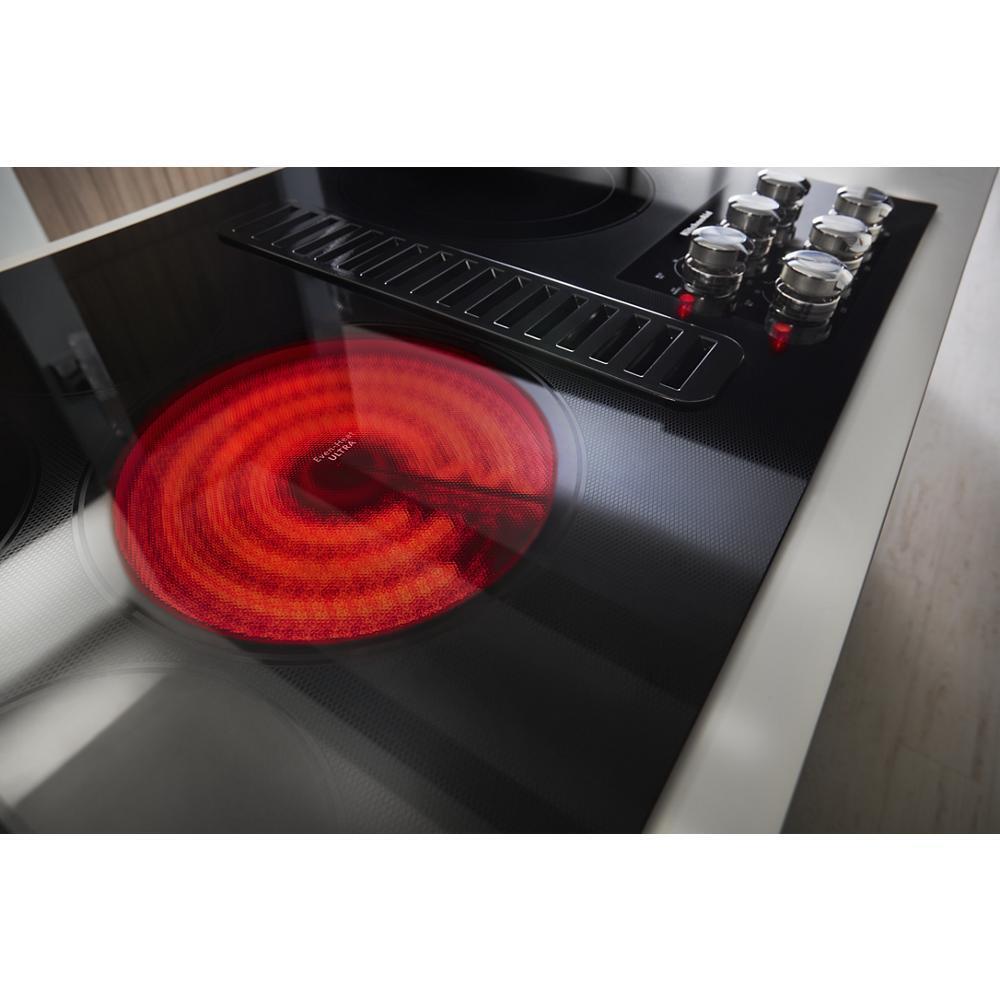

  • 10'' Even-Heat™ Ultra Element with Simmer Setting
    Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

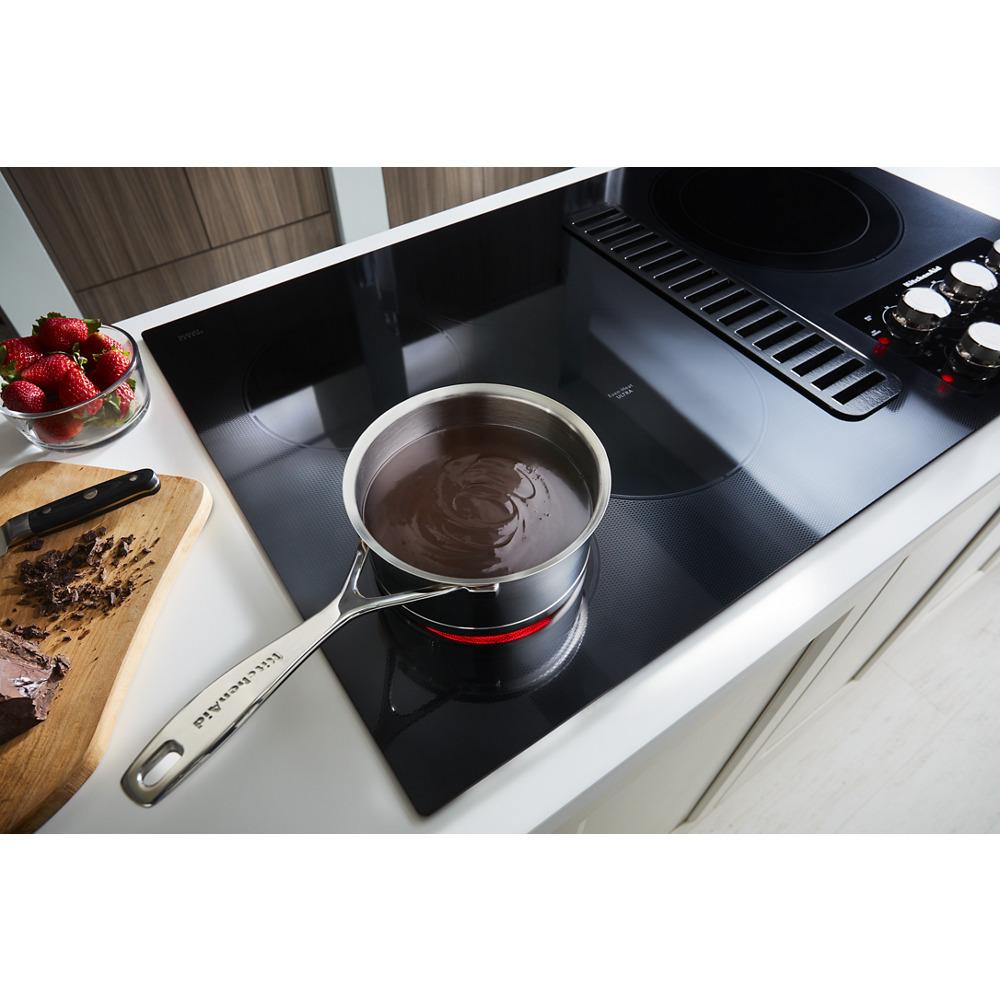

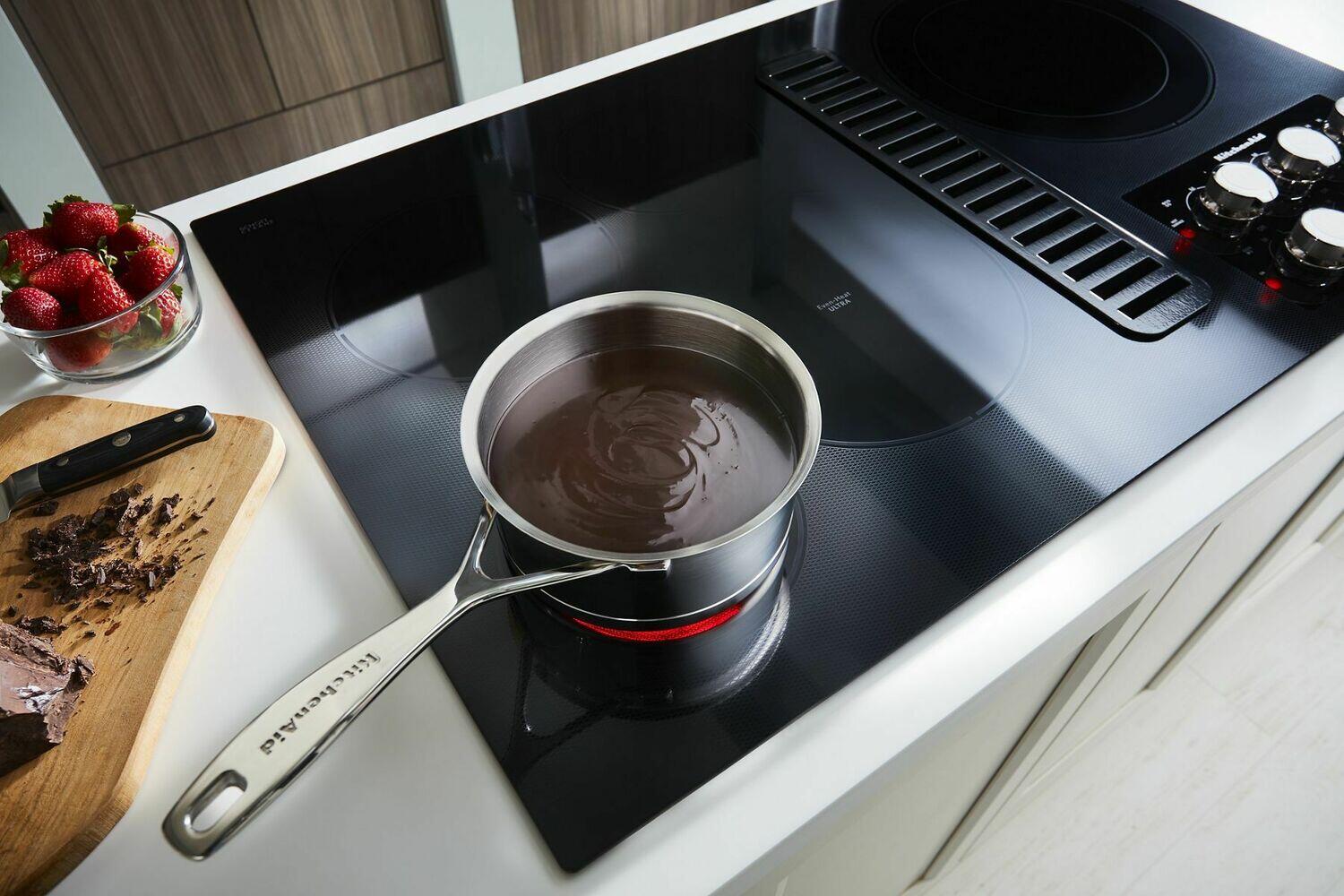

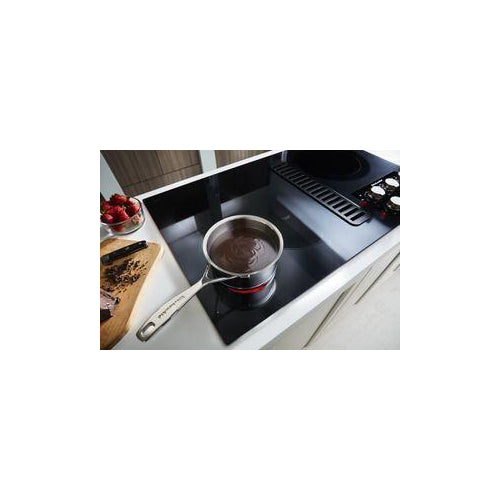

  • 6'' Even-Heat™ Element with Melt Setting
    Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
