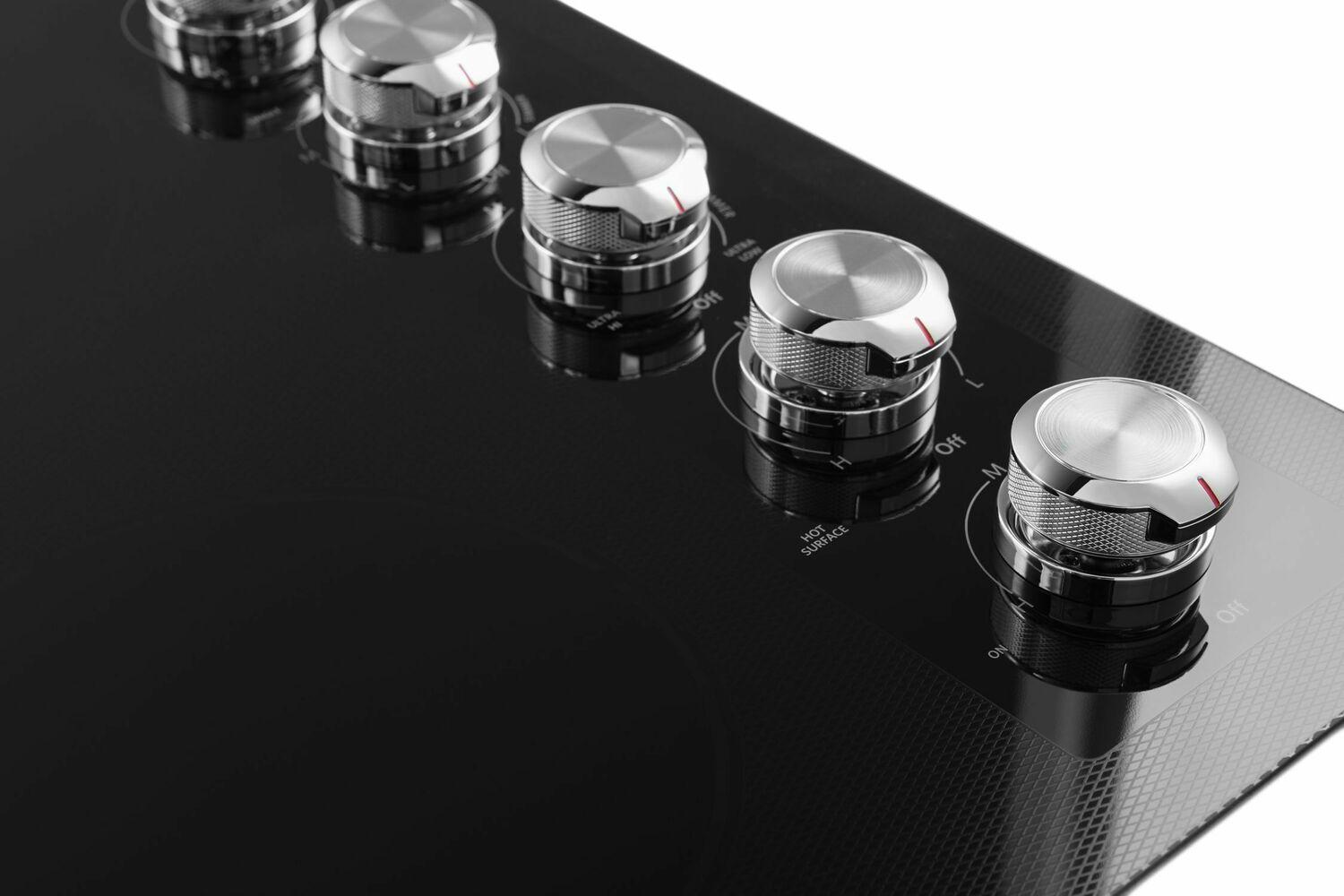

| Control Location | Right Side |

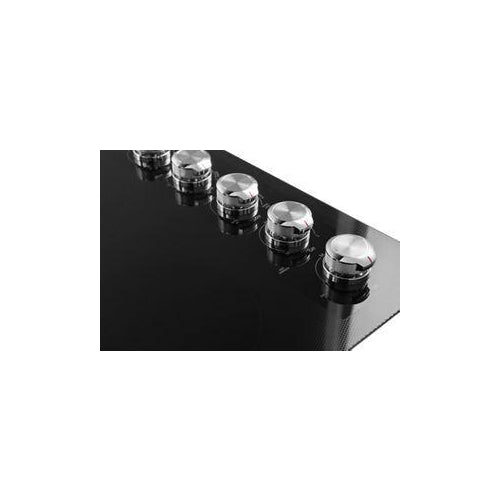

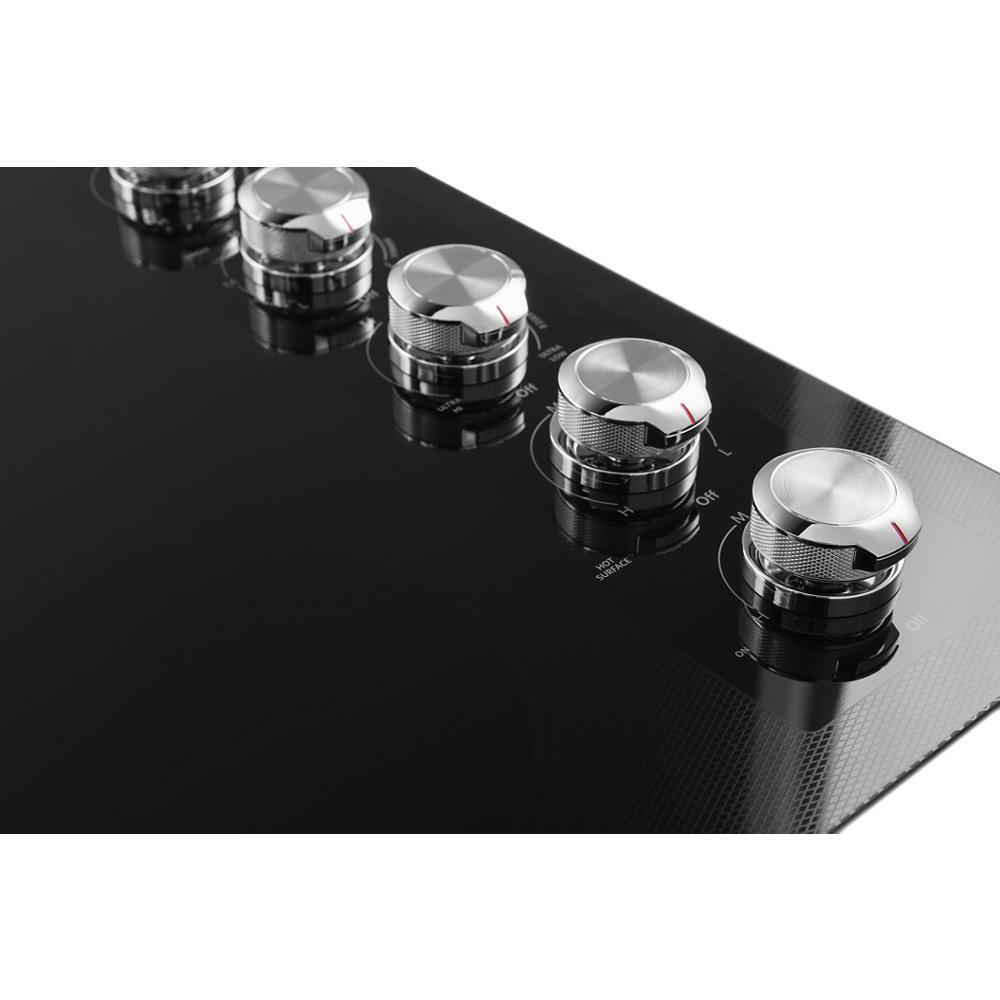

| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Number of Open Bays | N/A |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | No |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| ADA Compliant | No |
| UL | Yes |
| Energy Rating (kWh/year) | 195 |
| prop65 | Standard - Standard |
| Power Cord Included | No |

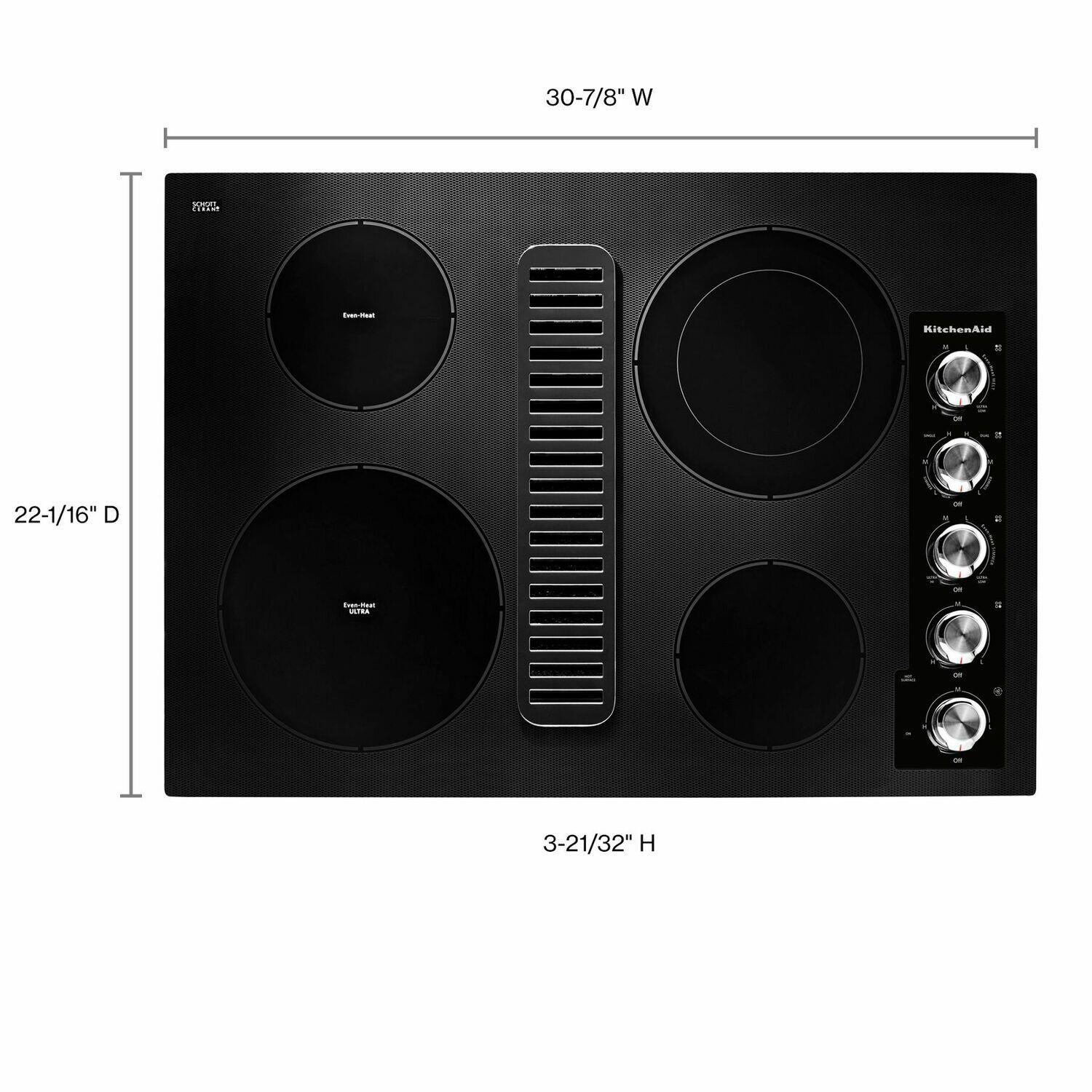

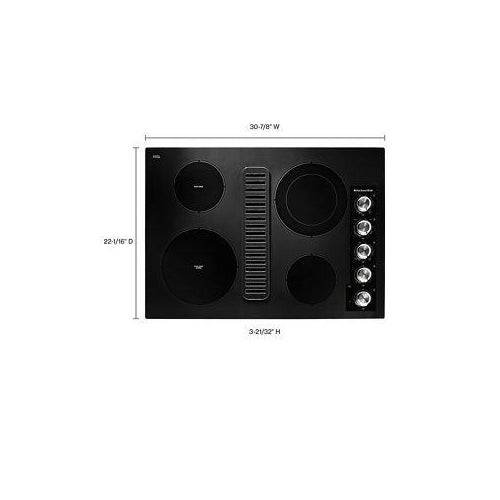

| Width | 30.88 in. |
| Height | 3.63 in. |
| Length | 22.06 in. |
| Weight | 62 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |
| Cutout Depth (in) | 21 1/8 |
| Cutout Width (in) | 28 3/4 |
| Gross Weight | 62 |
| Maximum Height | 18 3/4 |
| Net Weight | 50.0 |
| Cutout Depth(IN,inches) | 21.1250 |
| Cutout Width(IN,inches) | 28.7500 |
| Maximum Height(IN,inches) | 18.7500 |
| Net Weight(LB,pounds) | 50 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Gross Weight(LB,pounds) | 62 |
| Number of Boxes | 1 |
| Shipping Width | 35.88 in. |
| Shipping Height | 8.63 in. |
| Shipping Length | 27.06 in. |
| Shipping Weight | 102 lbs. |
| Total of Shipping Weight | 102 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 1.43 ft³ |
| Dimensional Weight | 17.76 lbs. |
| Total of Cubes | 1.43 ft³ |
| Total of Dimensional Weight | 17.76 lbs. |
| Automatic Pan Detection | No |
| Fuel Type | Electric |
| Installs Over Built-In Oven | No |
| LP Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |
| Cutout Depth | 21.125 |
| Cutout Width | 28.75 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 62 |
| net weight | 50 |

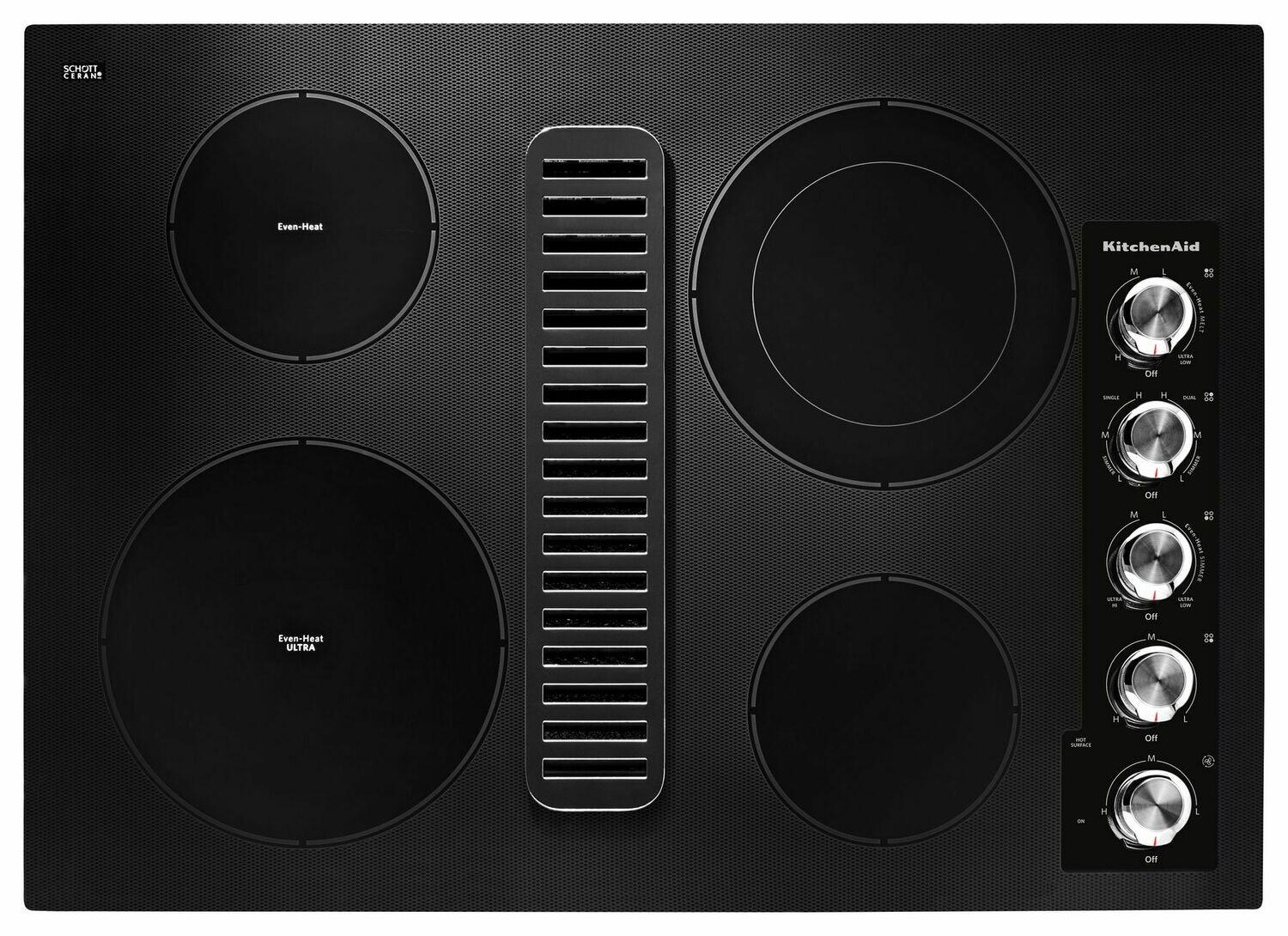

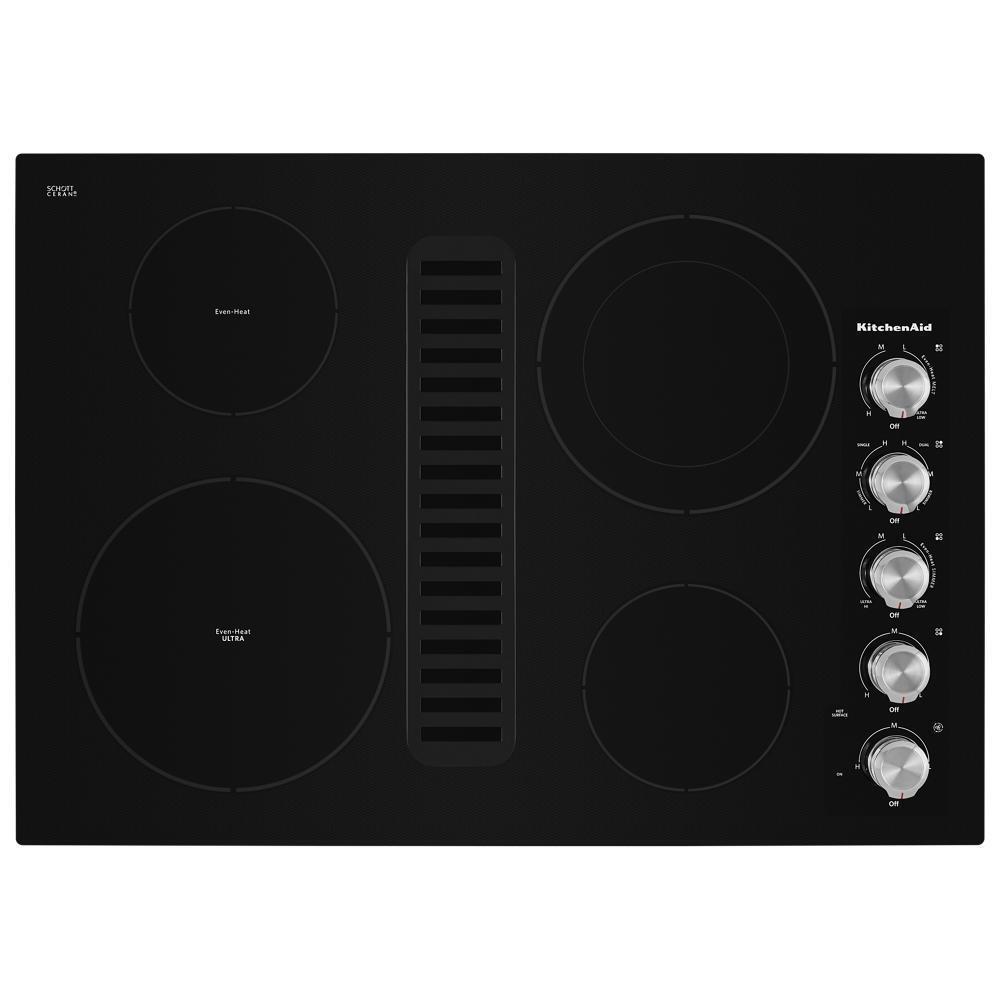

| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Power | 3, 200W |
| Left Front Element-Burner Size | 10in. |
| Left Front Element-Burner Type | Even-Heat™ Ultra |
| Left Rear Element-Burner Power | 1, 300W |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Even-Heat™ |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Power | 1200W |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Single |
| Right Rear Element-Burner Power | 3000W/1400W |
| Right Rear Element-Burner Size | 9in./6in. |
| Right Rear Element-Burner Type | Dual-Stacked Burner |
| Grate Details | Dishwasher Safe |

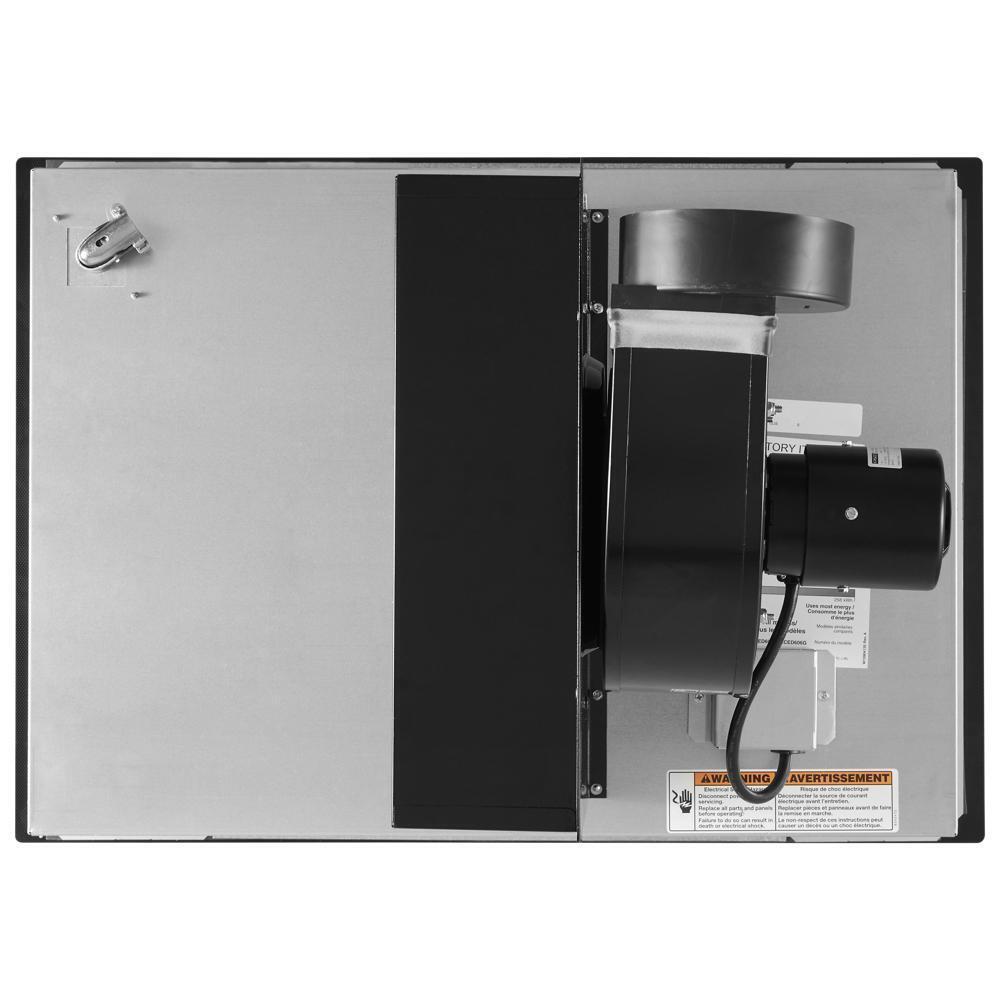

| CFM Motor Class | 300 |
| Downdraft Vent | Yes |
| Energy Star® Qualified | ENERGY STAR® Qualified |
