SKU: KBFN506ESS | UPC: 883049336886

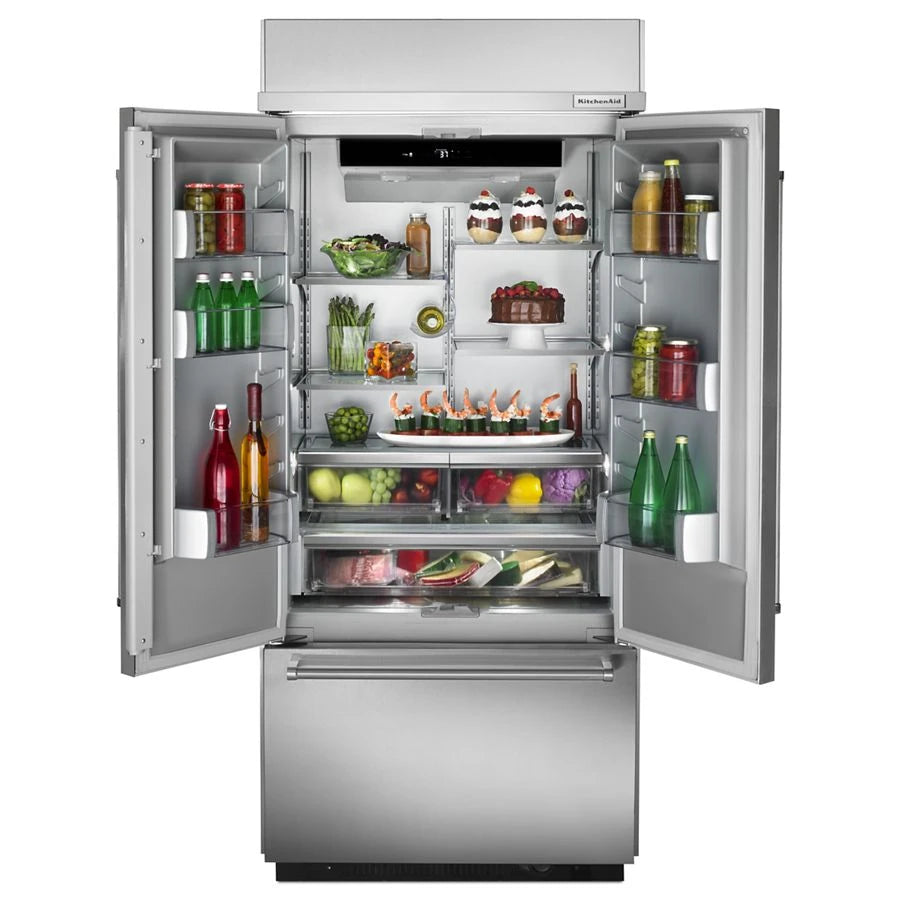

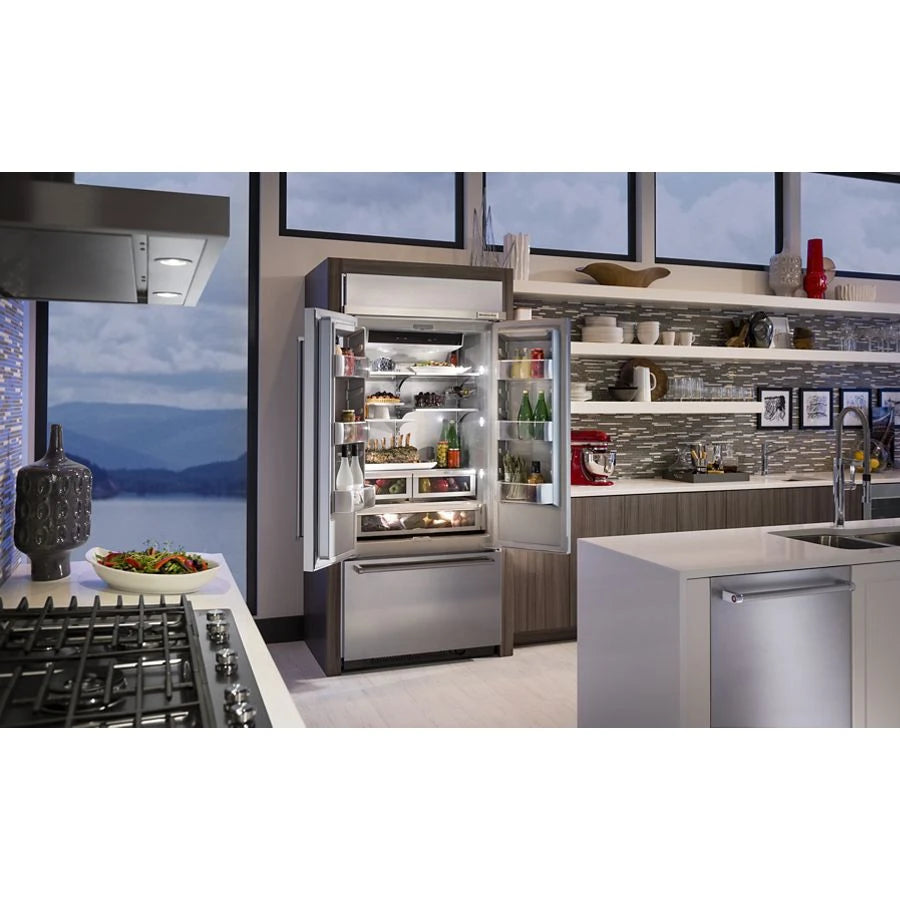

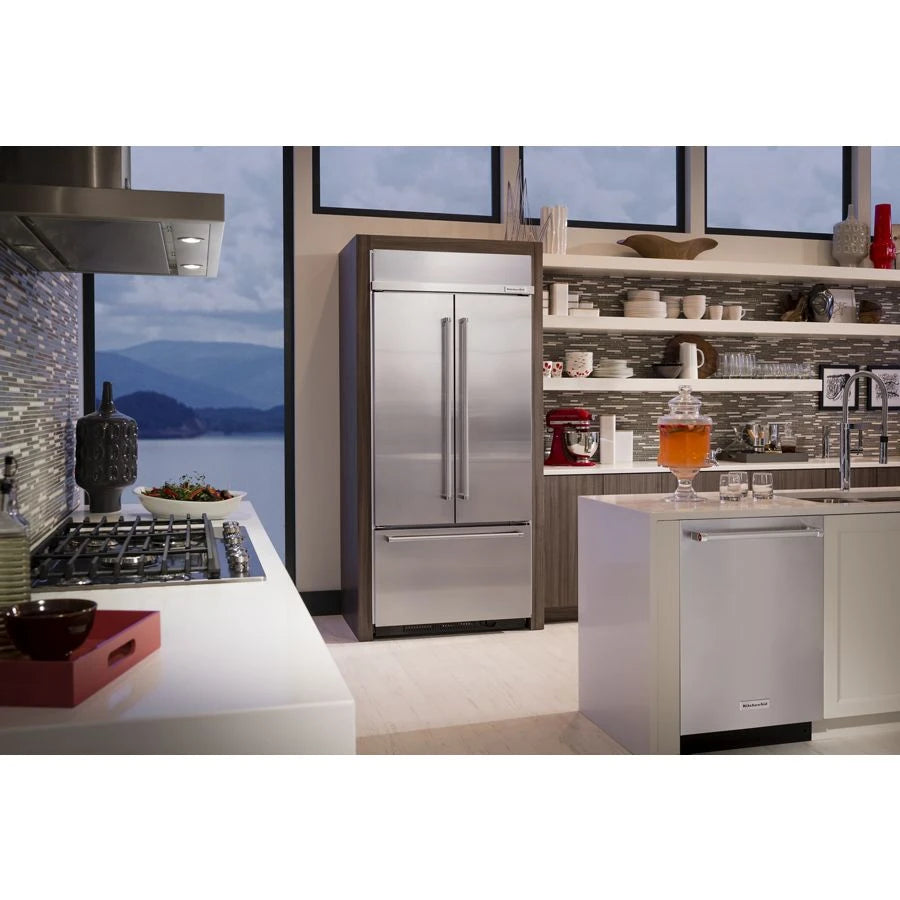

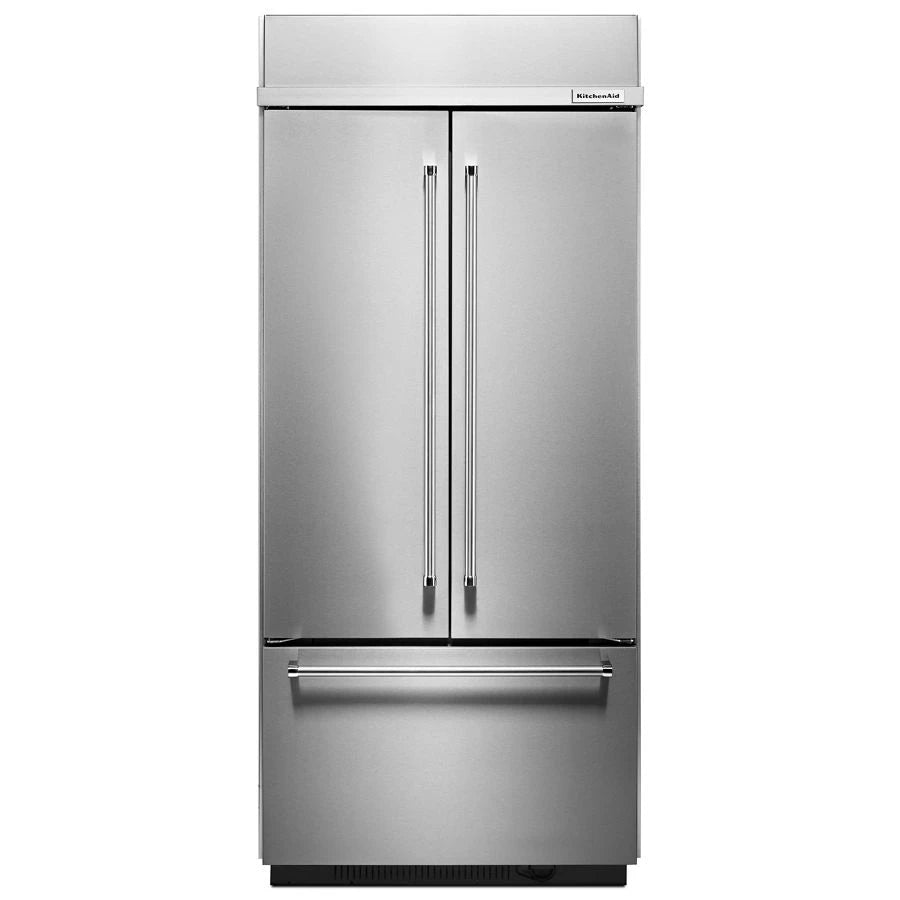

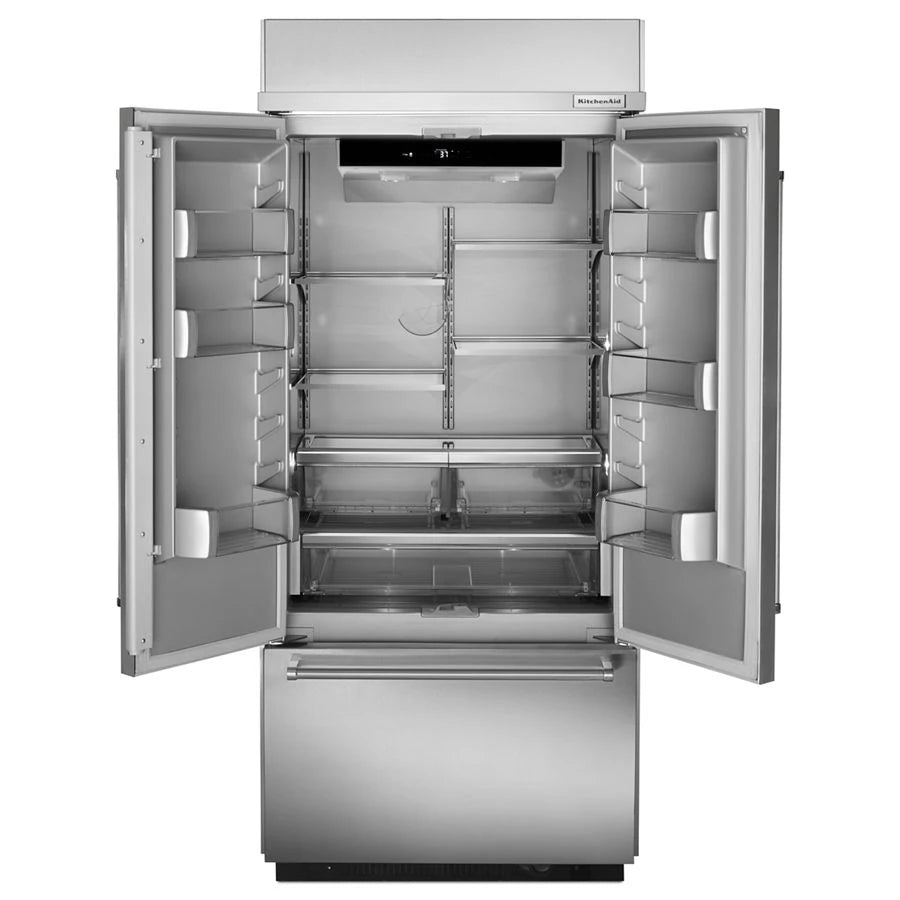

KitchenAid KBFN506ESS 20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design

20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design
20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design

Quick Specification More details

  • Width:
    36.25"
  • Depth:
    27.75"
  • Height:
    83.38"
  • Type:
    French Door Refrigerators

About this product

  • Automatic Ice Maker
  • LED Lighting
  • Intuitive Controls
  • Adjustable Spill-Resistant Glass Shelves
Summer Sale

SKU: KBFN506ESS | UPC: 883049336886

KitchenAid KBFN506ESS 20.8 Cu. Ft. 36" Width Built In Stainless Steel French Door Refrigerator with Platinum Interior Design

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    36.25"
  • Depth:
    27.75"
  • Height:
    83.38"
  • Type:
    French Door Refrigerators

About this product

  • Automatic Ice Maker
  • LED Lighting
  • Intuitive Controls
  • Adjustable Spill-Resistant Glass Shelves

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for KITCHENAID KBFN506ESS

Technical Details

Controls
Automatic Defrost Yes
Control Location Interior Up Front
Control Type Electronic
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Yes
Sabbath Mode Yes
Cooling Type Dual Evaporator

Certifications
Energy Rating (kWh/year) 656
UL Yes
CEE Tier Rating Not Rated
prop65 Standard

Dimensions & weight
Width 36.25 in.
Height 83.38 in.
Length 27.75 in.
Weight 550 lbs.
Cabinet Width (in) 35 1/4
Carton Depth 31 1/2
Carton Height 86
Carton Width 39
Cutout Depth (in) 24
Cutout Height (in) 83 1/2
Cutout Width (in) 35 1/2
Depth Closed Excluding Handles 25 1/8
Depth Closed Including Handles 27 3/4
Depth Excluding Doors 23 11/16
Depth With Door Open 90 Degree 41 1/4
Gross Weight 550
Height To Top Of Cabinet 83 3/8
Net Weight 525.0
Cabinet Width (IN,inches) 35.2500
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 83.5000
Cutout Width(IN,inches) 35.5000
Depth Closed Excluding Handles(IN,inches) 25.1250
Depth Closed Including Handles(IN,inches) 27.7500
Depth Excluding Doors(IN,inches) 23.6875
Depth With Door Open 90 Degree(IN,inches) 41.2500
Height To Top Of Cabinet(IN,inches) 83.3750
Net Weight(LB,pounds) 525
Carton Depth(IN,inches) 31.5000
Carton Height(IN,inches) 86.0000
Carton Width(IN,inches) 39.0000
Cutout Height Min(IN,inches) 83.5000
Gross Weight(LB,pounds) 550

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 41.25 in.
Shipping Height 88.38 in.
Shipping Length 32.75 in.
Shipping Weight 590 lbs.
Total of Shipping Weight 590 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 48.54 ft³
Dimensional Weight 603.42 lbs.
Total of Cubes 48.54 ft³
Total of Dimensional Weight 603.42 lbs.

Dimensions
Capacity(FT3,cubic feet) 20.81
Depth Closed Excluding Handles(IN,inches) 25.1250
Depth Excluding Doors(IN,inches) 23.6875
Depth With Door Open 90 Degree(IN,inches) 41.2500
Height To Top Of Cabinet(IN,inches) 83.3750
Cabinet Width 35.25
Cutout Depth 24
Cutout Height 83.5
Cutout Width 35.5
Depth Closed Excluding Handles 25.125
Depth Closed Including Handles 27.75
Depth Excluding Doors 23.688
Depth With Door Open 90 Degree 41.25
Dispenser Type No Dispenser
Freezer Capacity Volume 5.56
Height To Top Of Cabinet 83.375
Refrigerator Capacity Volume 15.25
Width Doors Open 90 Degrees 41.25
carton depth 31.5
carton height 86
carton width 39
gross weight 550
net weight 525

Dimension
Capacity (Cu Ft) 20.81
Depth Closed Excluding Handles 25 1/8
Depth Excluding Doors 23 11/16
Depth With Door Open 90 Degree 41 1/4
Height To Top Of Cabinet 83 3/8

Details
Installation Configuration Built-In
Refrigeration Configuration Refrigerator
Refrigerator Type Built-In French Door

Exterior details
Cabinet Finish Smooth
Counter Depth Yes
Door Style Flat
Hidden Hinge Yes
Reversible Door No

Filter details
Air Filter Indicator/Reset No
Fresh Flow Air Filter Included Yes
Water Filter Indicator/Reset Yes
Water Filter Location Exterior
Water Filter Part Number EDR3RXD1

Freezer details
Freezer Drawer/Basket 1 Full Width Lower Metal; 1 Half Width Upper Plastic
Freezer Lighting LED

Icemaker details
Icemaker Factory Installed
Icemaker Location Freezer

Refrigerator details
Humidity-Controlled Crispers 1 Full-Width; 2 Half-Width
Liner Finish Platinum
Number of Doors 3
Number of Interior Shelves 4
Refrigerator Door Bins 2 Half-Width Gallon; 4 Adjustable Full-Width
Refrigerator Lighting LED
Spill-Proof Glass Shelves 4 Adjustable Half Width

Product details
Energy Star® Qualified No

Description

Outside, this built-in stainless steel French door refrigerator will seamlessly integrate with your cabinetry. Inside, the Preserva® Food Care System features three technologies that work in concert to assure crisp produce and deliciously flavorful foods while helping to eliminate refrigerator odors and the beautiful glossy silver Platinum Interior Design sets off the metallic accents of the shelves, crisper and baskets.


Product Features

  • Automatic Ice Maker
    Ensures that you have a constant supply of ice for entertaining.
  • LED Lighting
    Uses less energy than incandescent bulbs. Multiple lights are purposefully placed throughout the refrigerator and freezer, making it easy to find items at a glance.

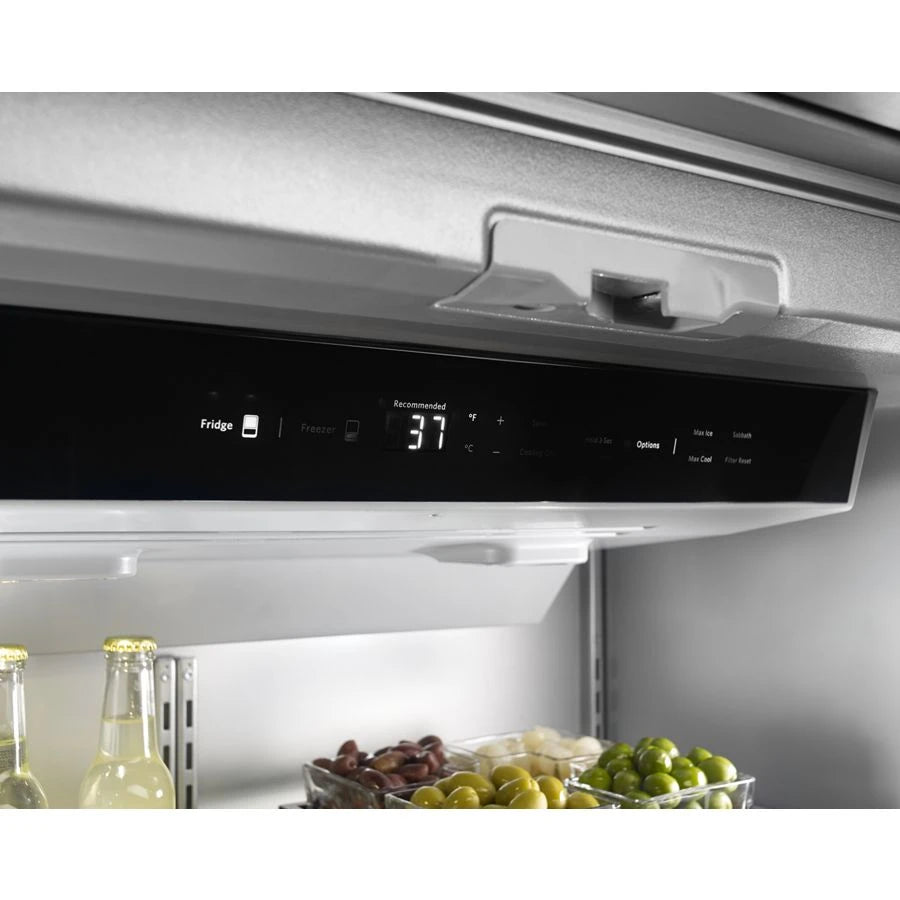

  • Intuitive Controls
    Intuitive controls make it easy to precisely adjust the temperature of both the refrigerator and freezer.
  • Adjustable Spill-Resistant Glass Shelves
    are easy to clean and help prevent messes from spilling over into other parts of the refrigerator. The shelf edges are nano-etched with a finely textured surface that helps contain spills, and lets you use the whole shelf from edge-to-edge.
  • Fit System Guarantee
    Ensures KitchenAid Brand Built-in Refrigerators will replace your existing cabinet cut-out of a standard comparable built-in refrigerator model that is 36", 42" or 48" inch wide or KitchenAid will provide up to $300 for a professional to adjust your cabinets.
  • Platinum Colored Interior with Metallic Accents
    Brings premium style inside the refrigerator to complement the quality ingredients you keep on hand. Sleek silver colored walls accented by metallic trim on shelves, drawers and door bins offer a step up from the standard white interior.
  • Preserva® Food Care System
    Two independent cooling systems provide a dedicated refrigeration unit to help keep food fresh longer, and a separate system for frozen food. The FreshFlow™ Air Filter helps minimize odors while the FreshFlow™ Produce Preserver helps delay over-ripening.
  • SatinGlide® System with Soft-Close
    Add a luxury experience to the crisper drawers. The ball bearing rollers and glides allow effortless in-and-out movement even when fully loaded.
