Sale price $8,549.10 Regular price $9,927.97 Save $1,378.87 / 13% OFF

Product Details for KitchenAid KBBR336SPS

Technical Details

Certifications

ADA Compliant Yes
CEE Tier Rating Tier I
Prop 65 Standard

Controls

Automatic Defrost Yes
Control Location Interior Up Front
Control Type Electronic
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Max Cool
Refrigerator Max Cool Yes
Sabbath Mode Yes

Details

Advance Foam Insulation 99.9% lower Global Warming Potential and Better Energy Performance
Installation Configuration Built-In
Installation Option Built-In
Refrigeration Configuration Refrigerator
Refrigerator Type Bottom Freezer
Door Style Configuration Bottom Freezer

Exterior details

Cabinet Finish Smooth
Door Style Flat
Hidden Hinge Yes
Base Grille Color Black
Cabinet Color Grey
Door Color Saturn Stainless
Door Finish Smooth
Handle Color Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle
Door Opening Direction Right

Filter details

Air Filter Part Number W10311524
Produce Preserver No

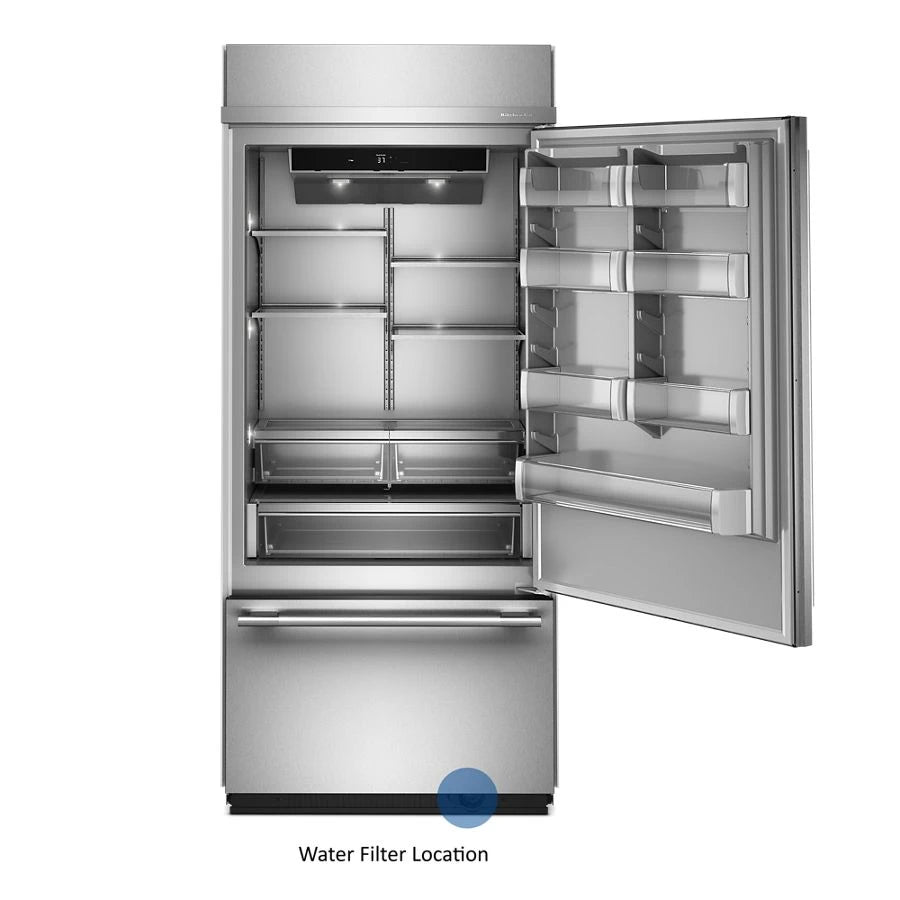

Water Filter Location Exterior

Freezer details

Defrost Type Automatic Defrost
Freezer Door Type Pull-Out
Freezer Fast Cool Yes
Freezer Lighting LED
Freezer Number of Shelves 0
Freezer Drawer/Basket 1 Full Width Lower Metal, 1 Half Width Upper Plastic

Icemaker details

Icemaker Factory Installed

Refrigerator details

Liner Finish Platinum
Number of Doors 2
Number of Interior Shelves 4
Number of Lights 8
Refrigerator Lighting LED
Spill-Proof Glass Shelves 4 Adjustable Full Width
Non Climate Control Drawers 1 Full Width, 2 Half Width
Refrigerator Door Bins 1 Full-Width Gallon, 2 Fixed Partial-Width, 4 Adjustable Full-Width

Smart compatibility

Smart Appliance No

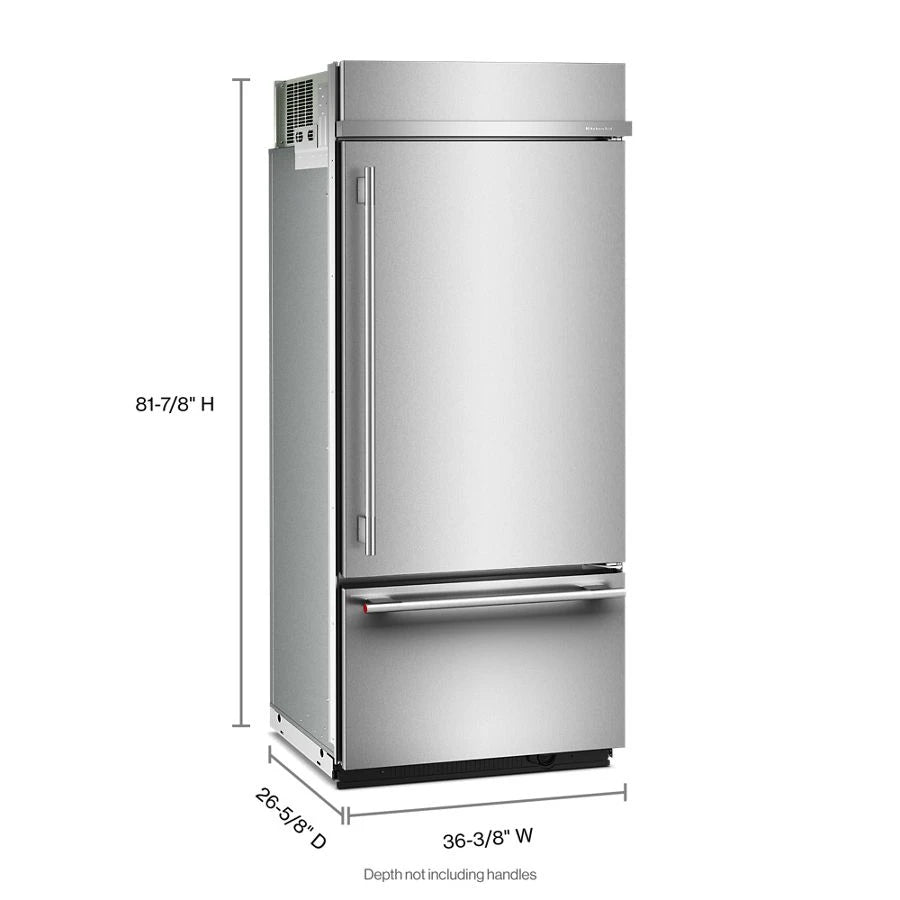

Dimensions

Cabinet Width 35-1/4 in
Capacity 20.8 cu. ft.
Cutout Depth 24 in
Cutout Height 83-1/2 in
Cutout Width 35-1/2 in
Depth 27-3/4 in
Depth Closed Excluding Handles 25-1/10 in
Depth Closed Including Handles 27-4/5 in
Depth Excluding Doors 23-7/10 in
Depth With Door Open 90 Degree 59 in
Freezer Capacity Volume 5.6 cu. ft.
Gross Weight 566-1/2 lbs
Height 81-7/8 in
Height To Top Of Cabinet 83-2/5 in
Net Weight 538-17/100 lbs
Refrigerator Capacity Volume 15.3 cu. ft.
Total Refrigerator Capacity Volume 20.9 cu. ft.
Width 36-37/100 in
Width Doors Open 90 Degrees 59 in

Dispenser details

Dispenser Type No Dispenser

Electrical

Amps 15
Volts 120

Description

This Built-In Bottom Mount Refrigerator elevates your style with a premium finish. Multiple Installation Options allow you to choose the installation style that fits your aesthetic: flush for a seamless look, overlay for a softly striking incorporated look or proud for a standout presence. Signature Platinum Interior wows with metallic accents. Preserva(TM)+ Food Care System has multiple evaporators to keep your food fresh.



Product Features

  • Adjustable Spill-Resistant Glass Shelves
    feature premium glass, offering edge-to-edge storage for whatever you need. Plus, its nano-etched edges help prevent spills from overflowing into other parts of your refrigerator, and its design allows you to remove them for easy cleaning. Sleek metallic trim on the front edges adds a striking accent.
  • Automatic Ice Maker
    ensures that you have a continuous supply of fresh, filtered ice for entertaining or everyday beverages and creations.
  • Fit System Limited Guarantee
    offers support if your NEW 36” or 42” built-in refrigerator doesn’t fit your existing cutout, you may get up to $500 for professional modifications. Existing cabinet modifications only. Exclusions apply. For Full terms and details visit https://www.kitchenaid.com/promotions/promotions.html
  • FreshFlow™ Air Filter
    deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.
  • Galloon Door Bins
    maximize storage with thoughtfully designed and adjustable bins, accommodating gallon jugs, large containers and bulky items with ease.
  • Intuitive Controls
    provide an easy-to-use touch pad control system that puts every refrigerator function right at your fingertips. Up-Front Temperature Controls make it easy to choose temperature settings, control the ice maker and check the status of the water filter.
  • Max Cool
    lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.
  • Max Freeze
    lets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.
  • Multiple Installation Options
    allow you to choose the installation style that fits your aesthetic: flush for a seamless look, overlay for a softly striking incorporated look or proud for a standout presence.
  • Personalized Door Stop
    tailors your refrigerator to suit your space by setting the door to stop at 90°, 110° or 130°. This prevents the door from swinging open too widely, giving you the flexibility to load or find ingredients without hitting counters or handles.

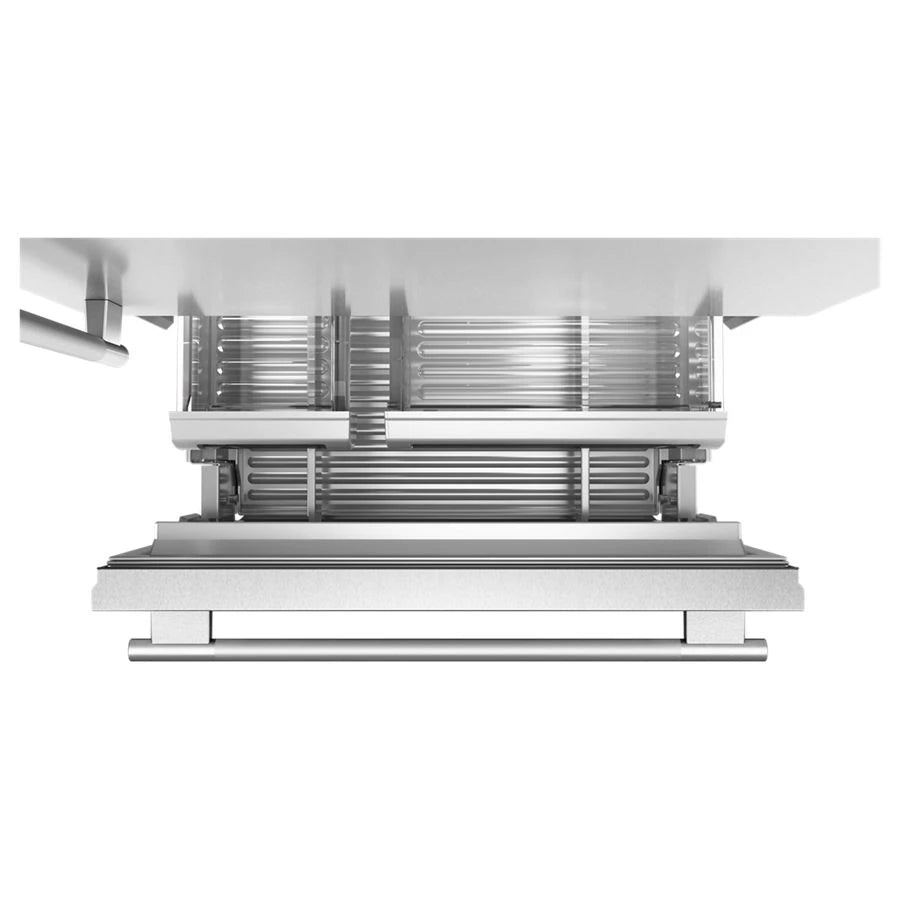

  • Preserva®+ Cooling System
    features two independent cooling systems that work together to keep the humidity at the right level to help keep all your produce fresh.
  • Produce Preserver
    helps delay over-ripening to extend freshness of fruits and vegetables. This replaceable filter for crisper drawers absorbs the ethylene gas produced as part of the natural ripening process for up to 6 months.
  • SatinGlide® Drawer System
    adds a smooth experience to the crisper drawers. Its ball-bearing rollers enhance the opening and closing experience every time, whether it is nearly empty or fully loaded.
  • Signature Platinum Interior
    wows from the inside out with premium craftsmanship and design. Metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.
  • Soft Self-Close Doors
    ensure doors close quietly and gently, helping to prevent slamming. Additionally, it enhances your cooking experience by automatically closing doors when left slightly ajar.
  • Ultra-Bright LED Lighting
    gradually brightens to fully illuminate the freezer and refrigerator, making it easy to find what you need.
  • PrintShield® Finish
    resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
