This Protection Plan includes:

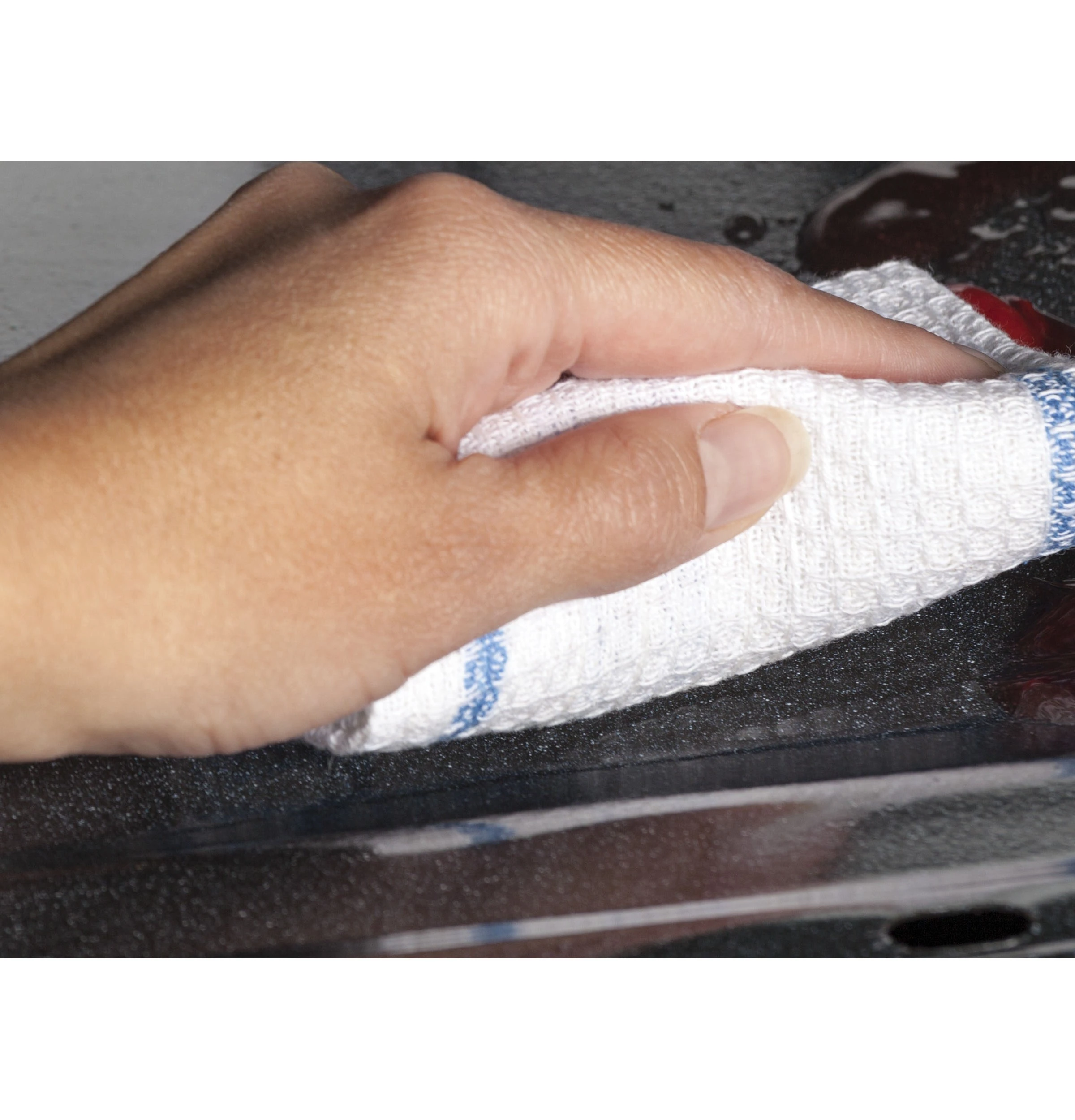

Smooth surface and rounded corners make clean-up quick and easy

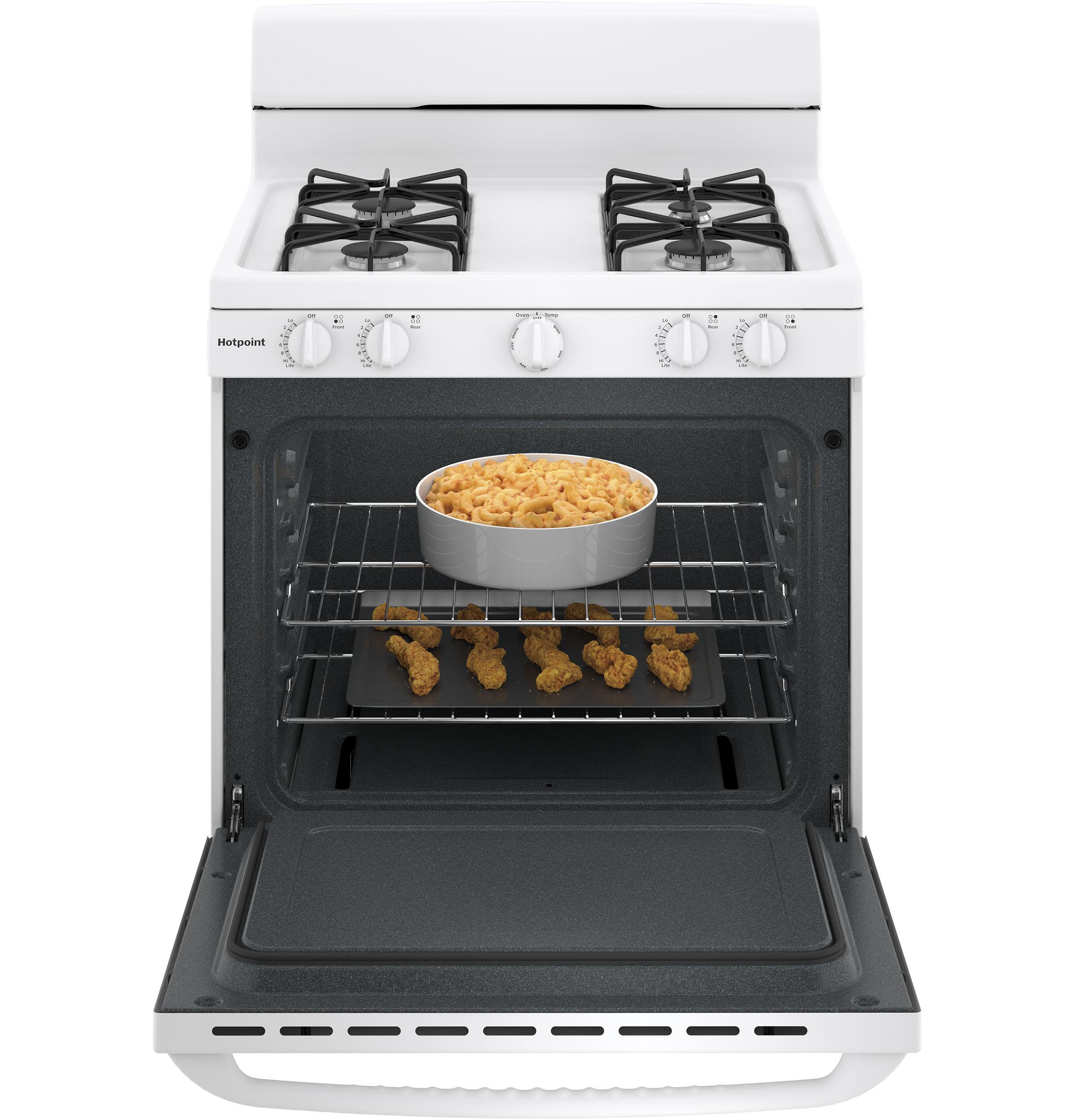

Enough room to cook an entire meal at once

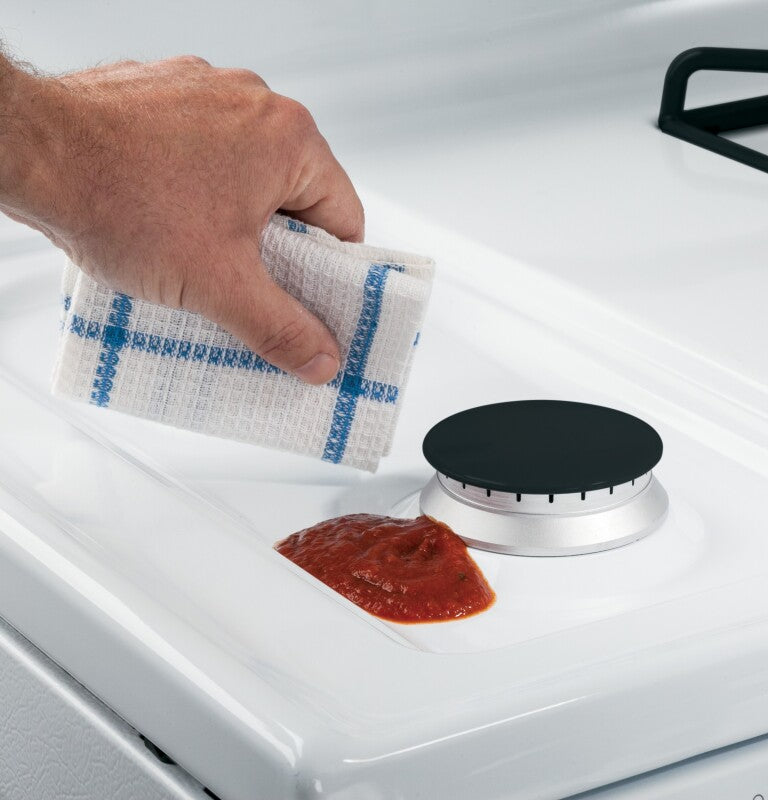

Contains spills and make cleaning quick and easy

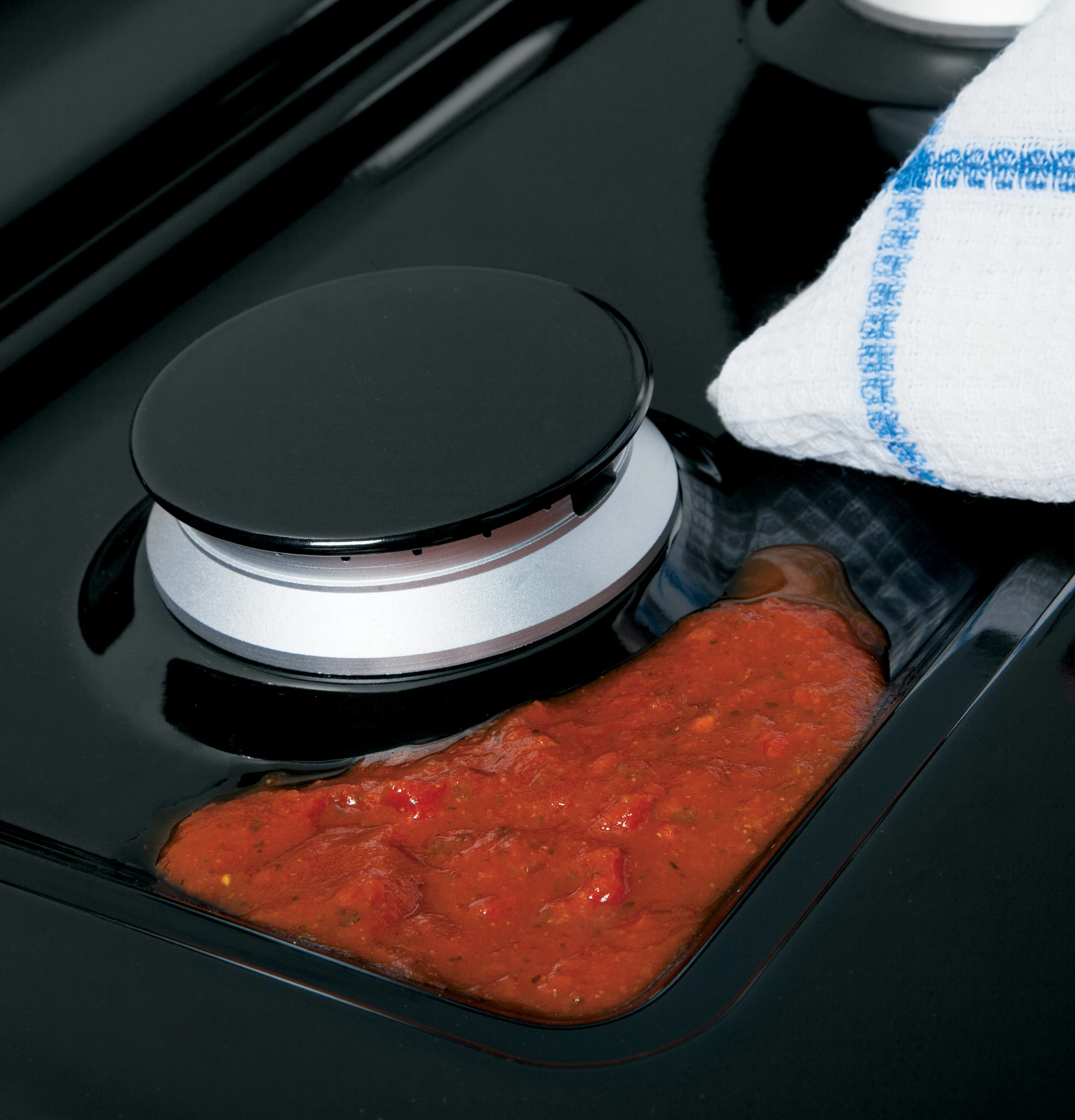

Raised edges contain spills, while the surface is easy to wipe clean

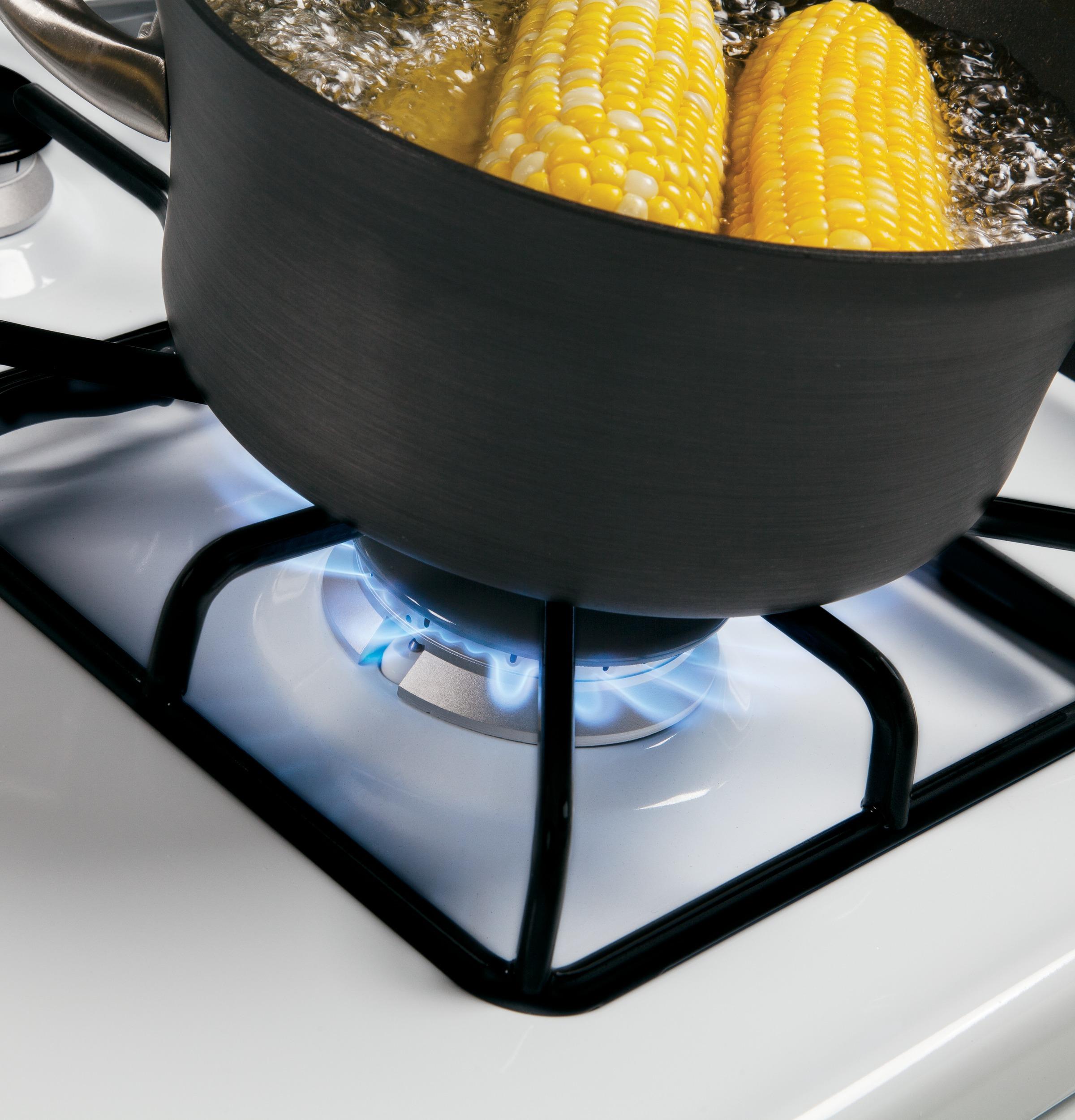

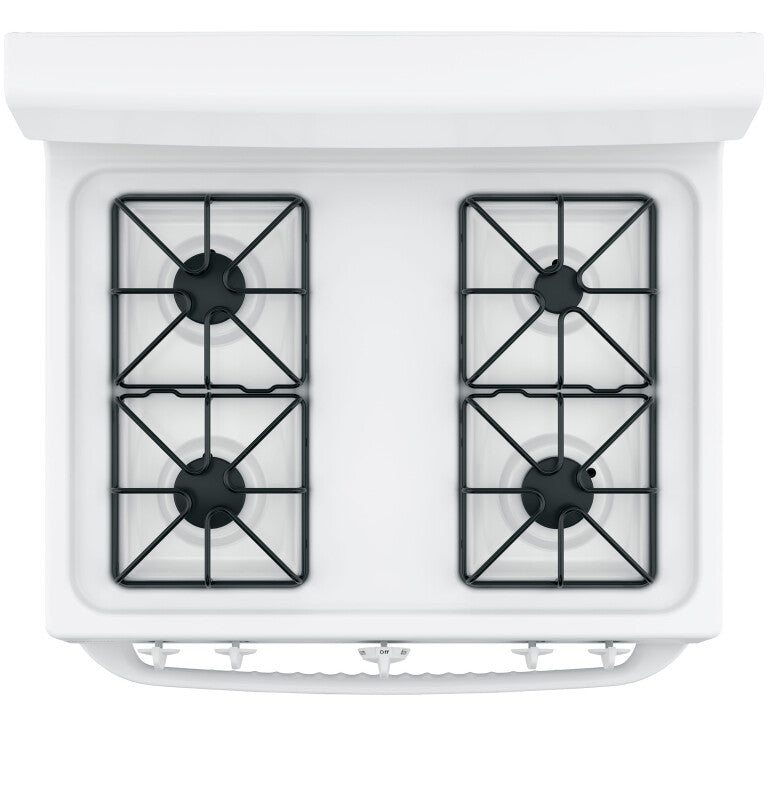

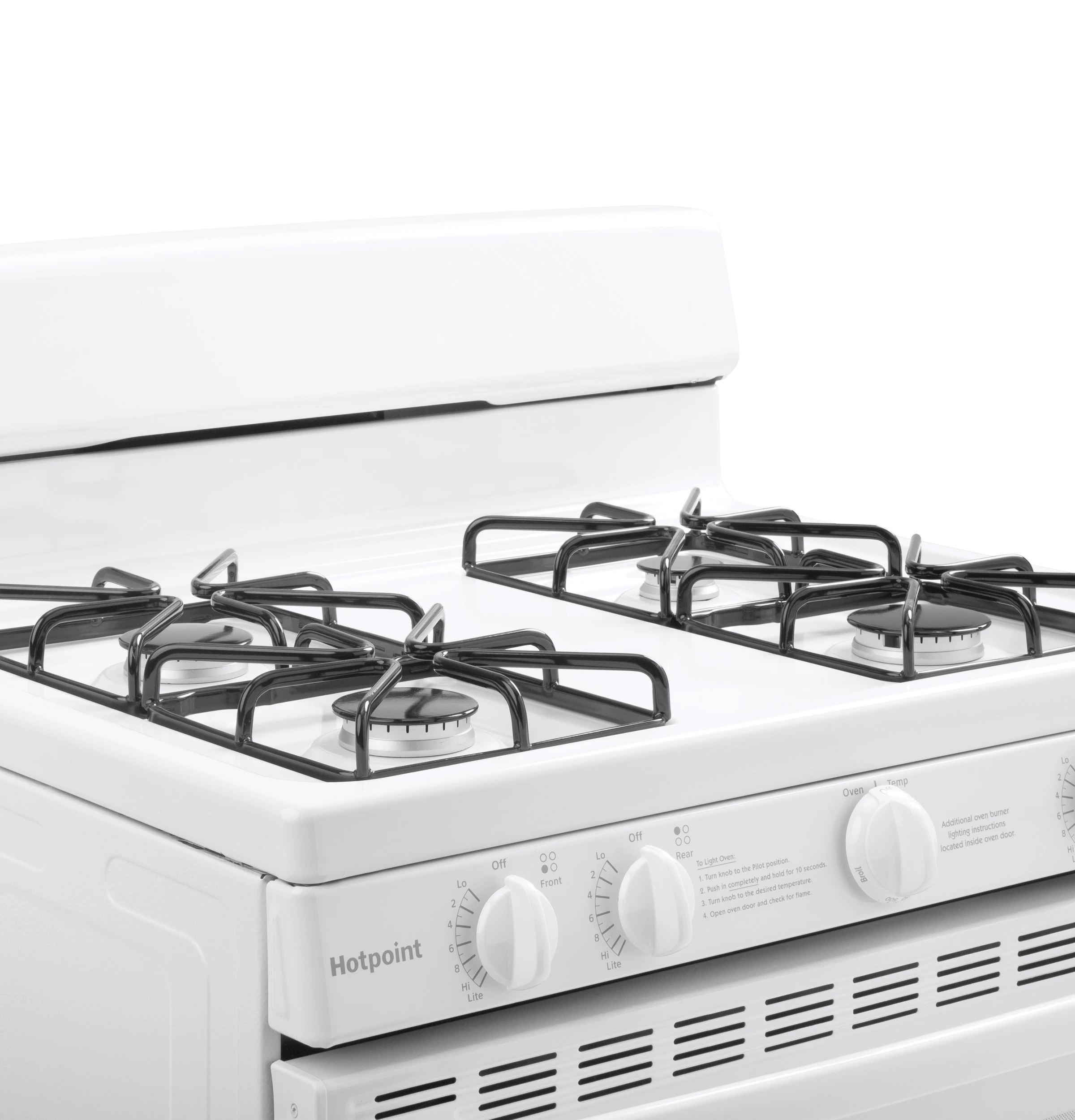

High-grade steel grates offer dependable, long-lasting performance
Feature a durable construction to help accommodate any size or type of cookware
Strong and long-lasting

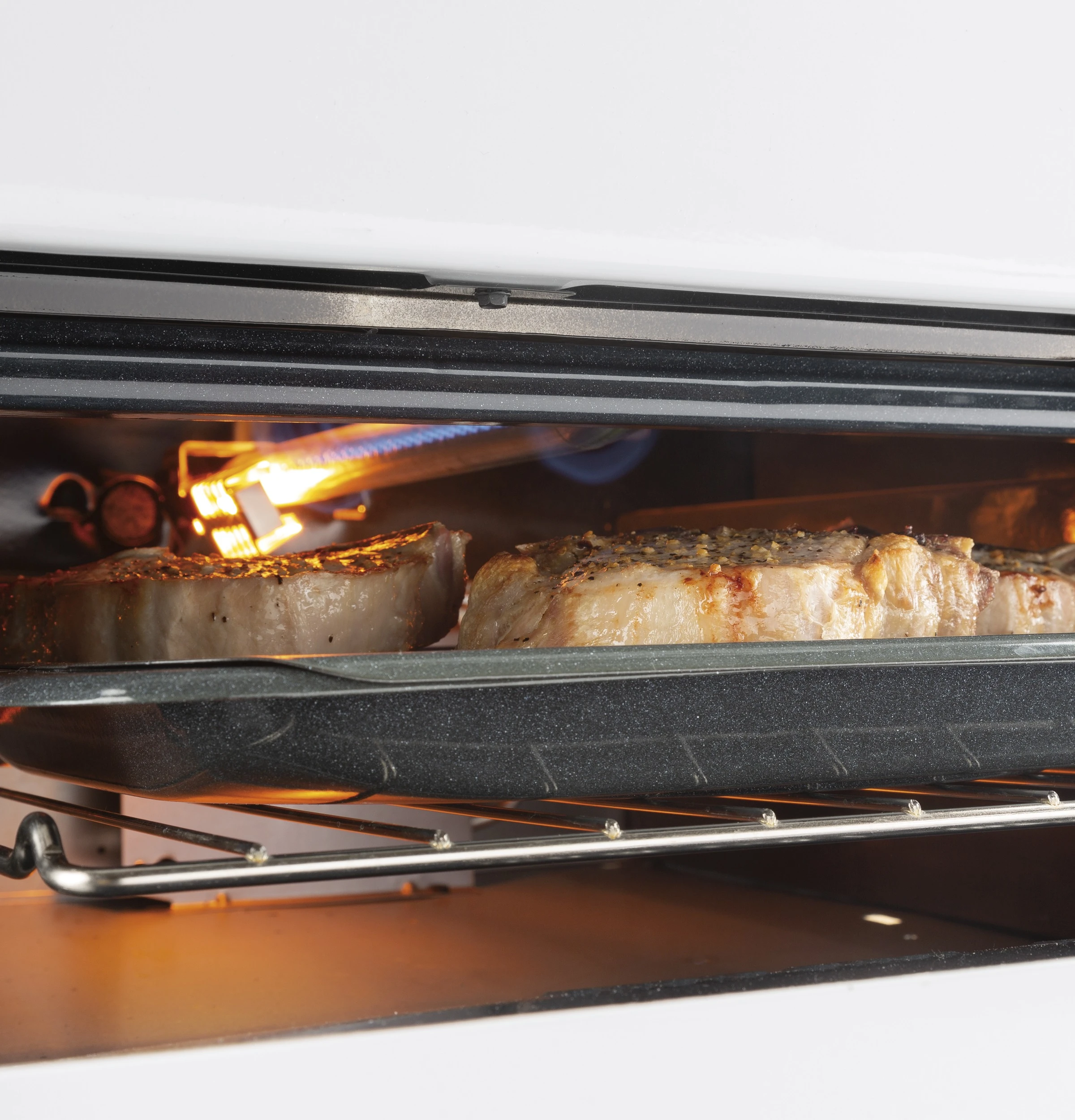

Achieve perfectly browned results

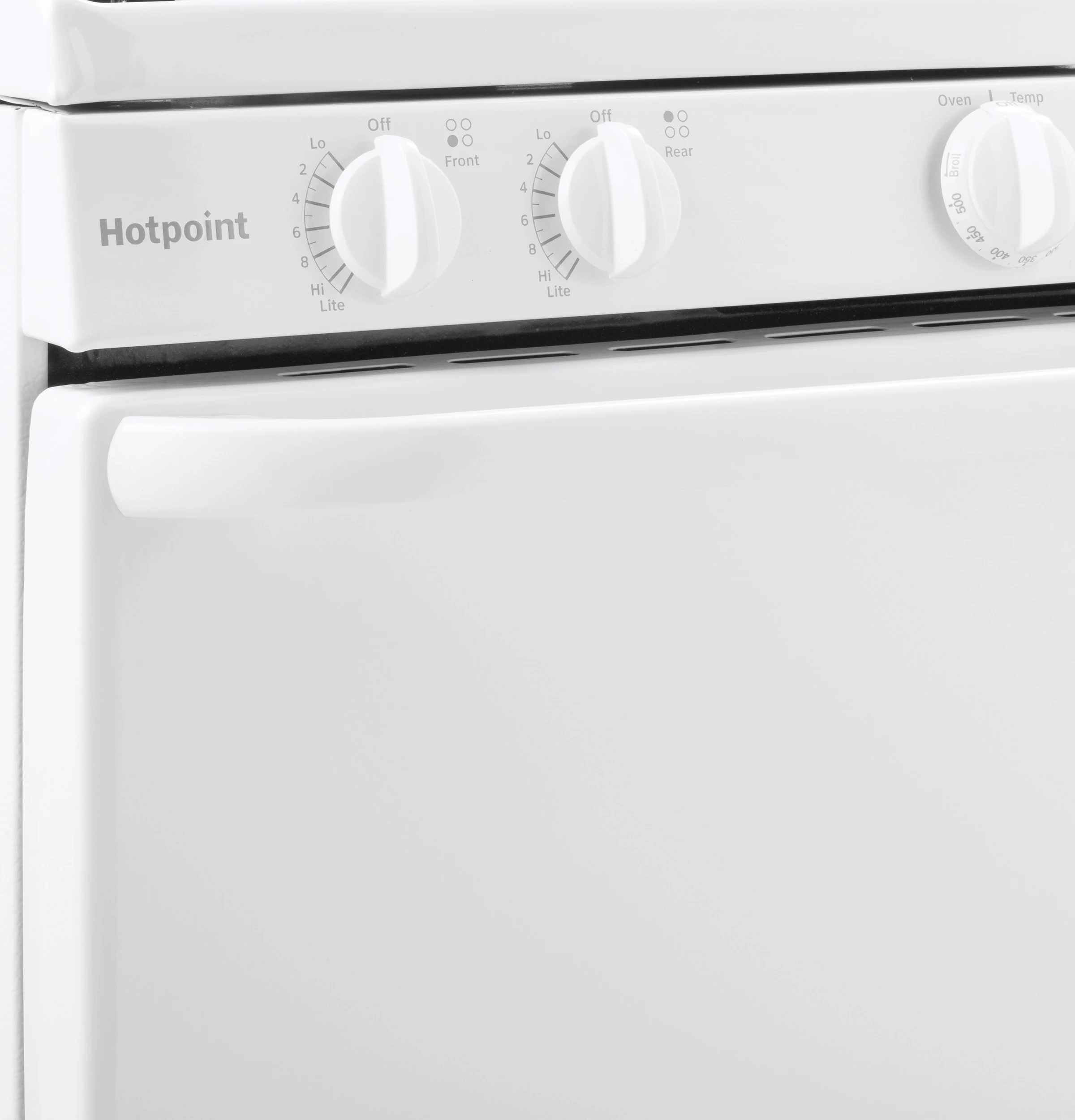

Features a classic design and easy cleanability
Smooth surface and rounded corners make clean-up quick and easy
Enough room to cook an entire meal at once
Contains spills and make cleaning quick and easy
Raised edges contain spills, while the surface is easy to wipe clean
High-grade steel grates offer dependable, long-lasting performance
Feature a durable construction to help accommodate any size or type of cookware
Strong and long-lasting
Achieve perfectly browned results
Features a classic design and easy cleanability
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 |
| APPEARANCE | |

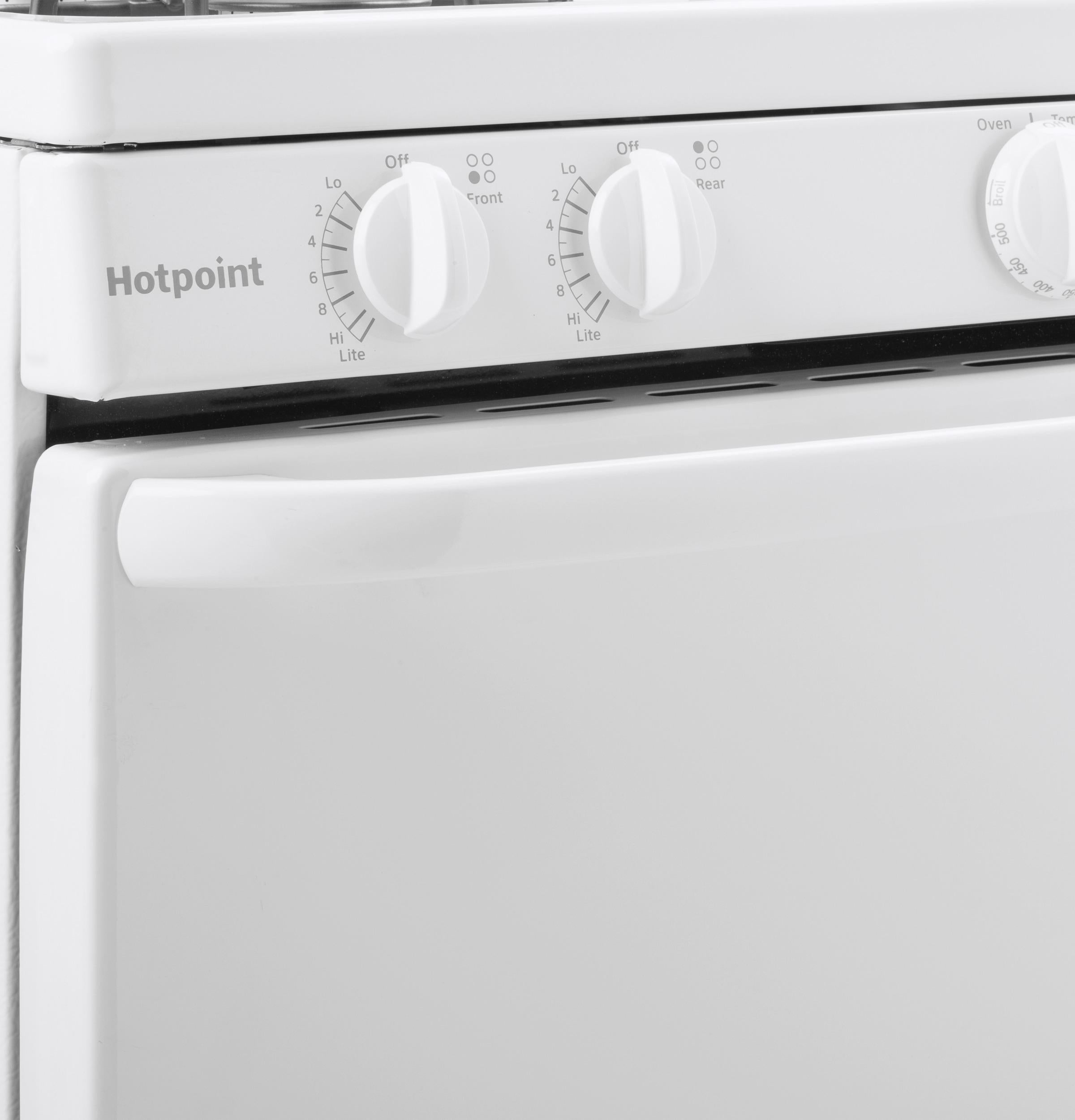

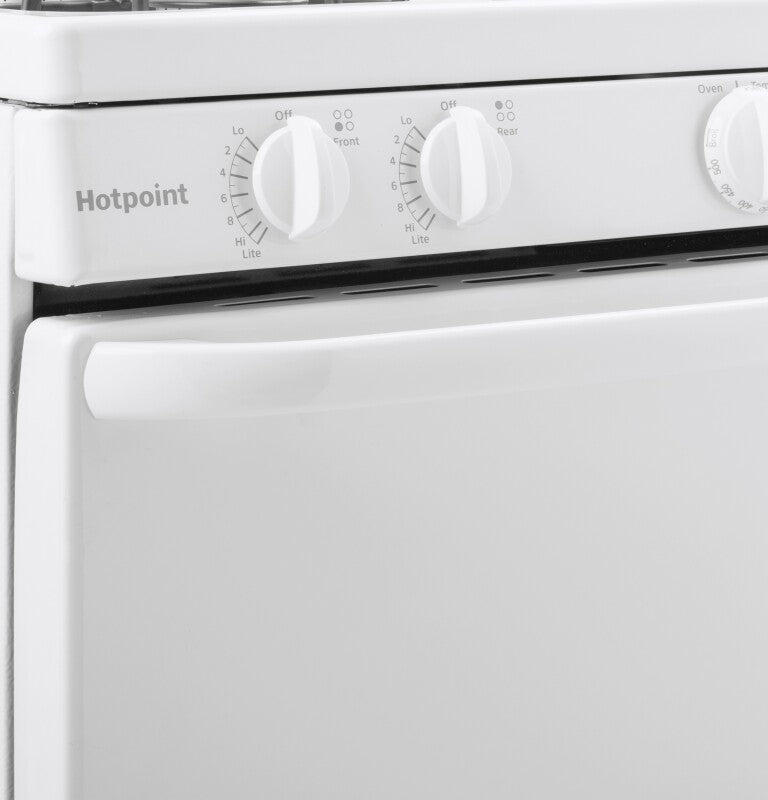

| Control Knobs | White |
| Handle | Color-Matched |
| Cooktop Burner Grate Color | Matte Black |
| Frameless Oven Door(s) | Black Porcelain-Enameled |
| Color Appearance | White |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 12.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120V ; 60Hz ; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| LP Conversion Kit | Included |

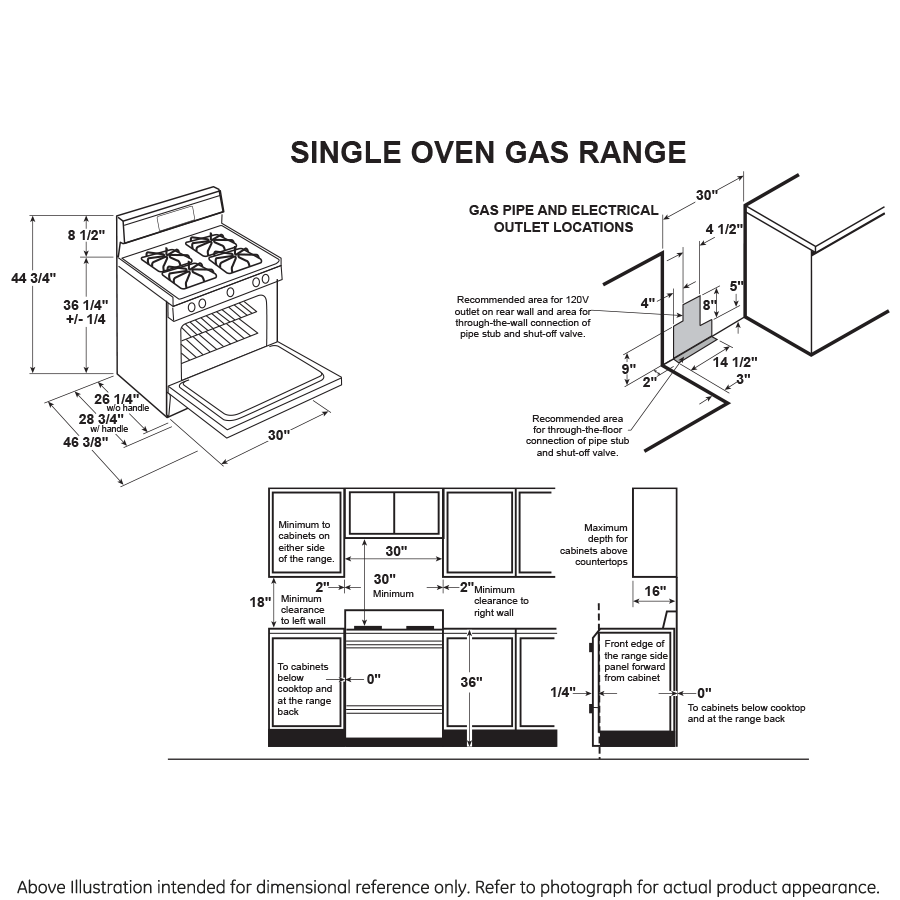

| WEIGHTS & DIMENSIONS | |
| Net Weight | 150.0 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Overall Depth | 28.75 |
| Depth with Door Open | 46.375 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30.0 |
| Overall Height | 44.75 |
| Approximate Shipping Weight | 170.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 12,500 BTU |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Sealed |

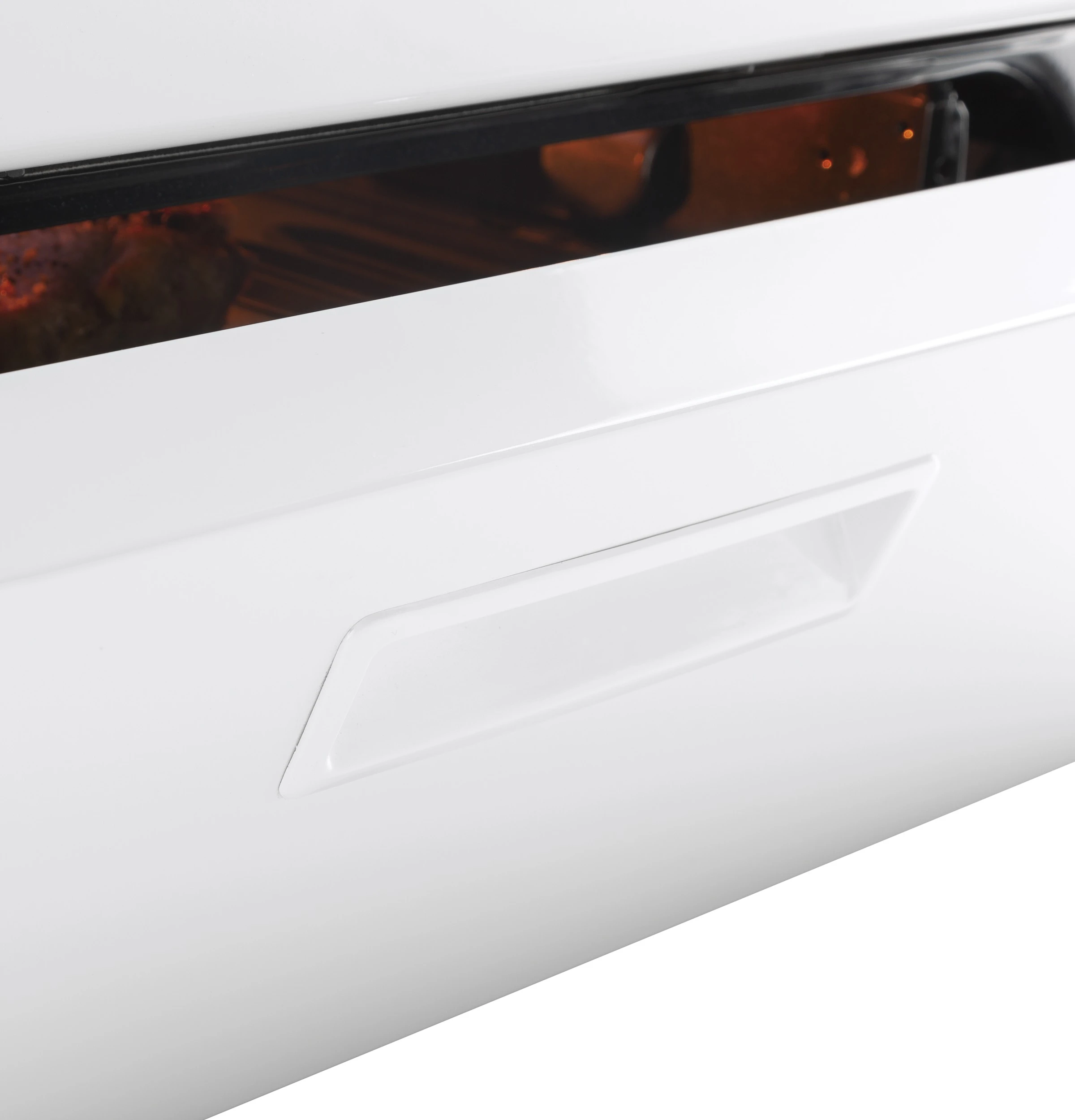

| Slide - Out Broiler Drawer | Drop Down Door |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Valves (Degree of Turn) | 140 |

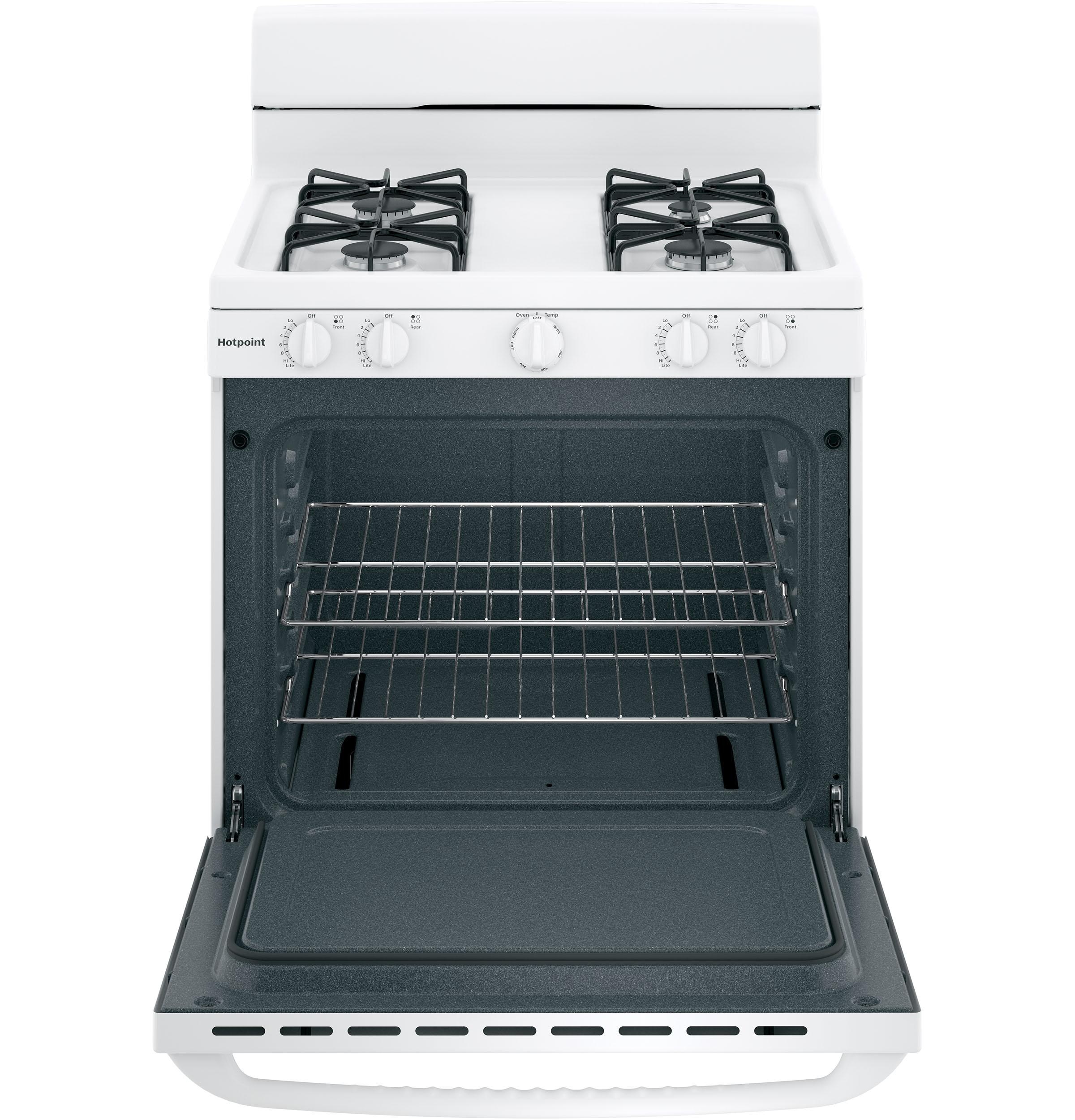

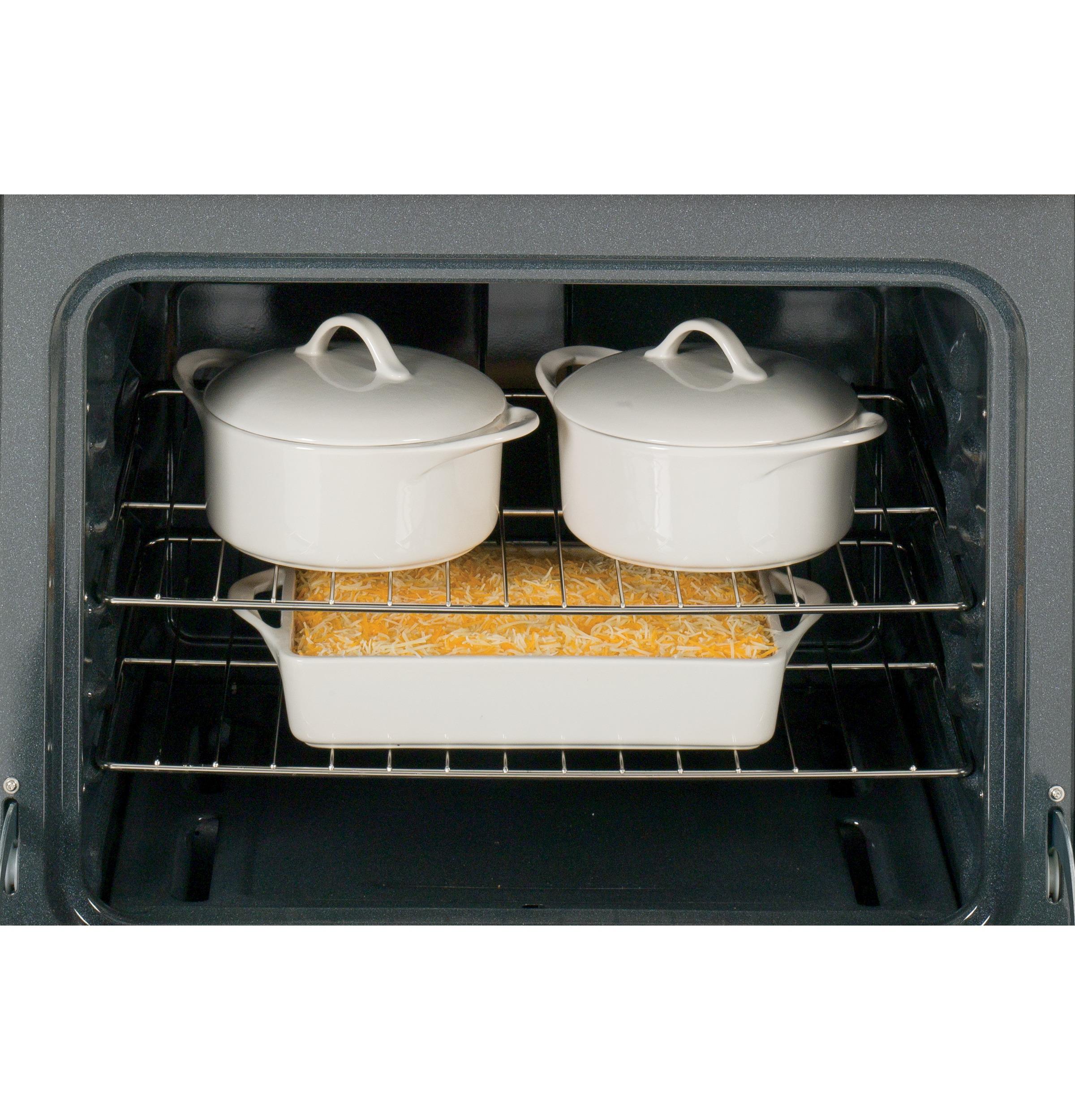

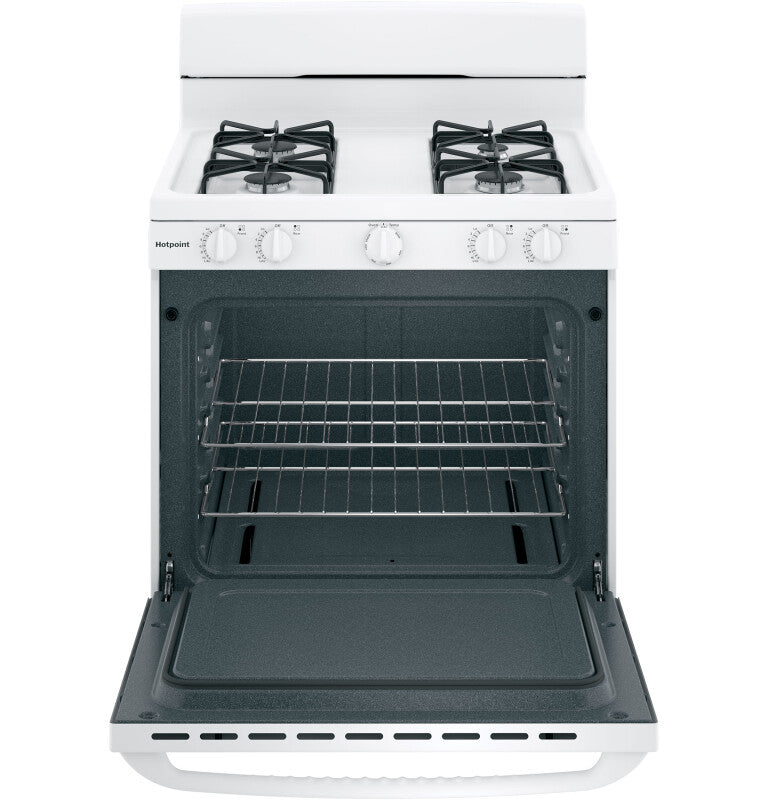

| Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |
| Removable One-Piece Drip Bowls | Optional Accessory |
| Fuel Type | Natural Gas (factory set) |
| Cooking Technology | Traditional |
| Cooktop Surface | Porcelain-Enamel |
| Configuration | Range with Broiler Drawer |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Burner - Left Front | 9,500 BTU |
| Cooktop Burner Grate Material | Heavy Steel |
| Ignition System | Electronic |
| Cooktop Type | Standard Grates |

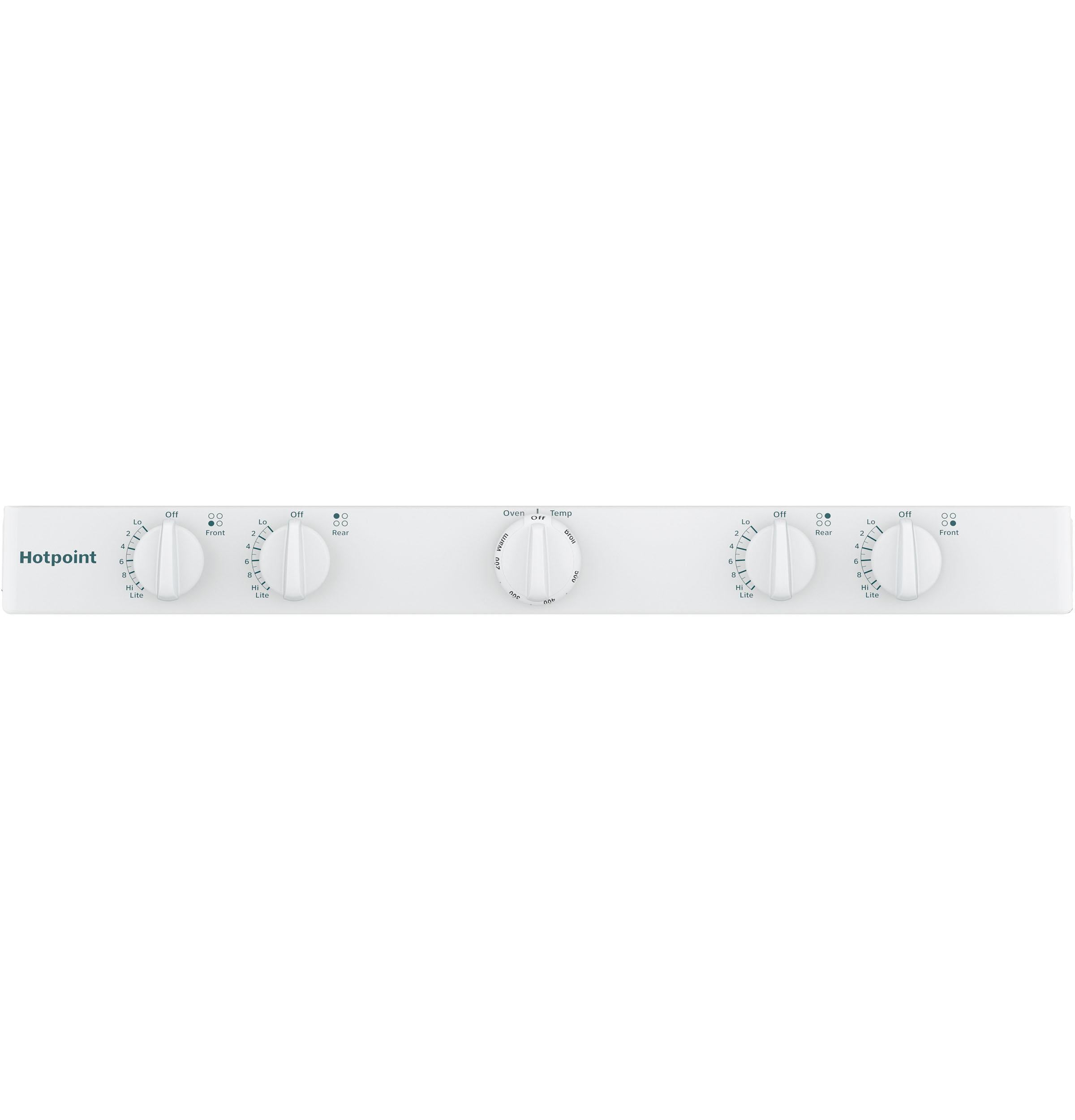

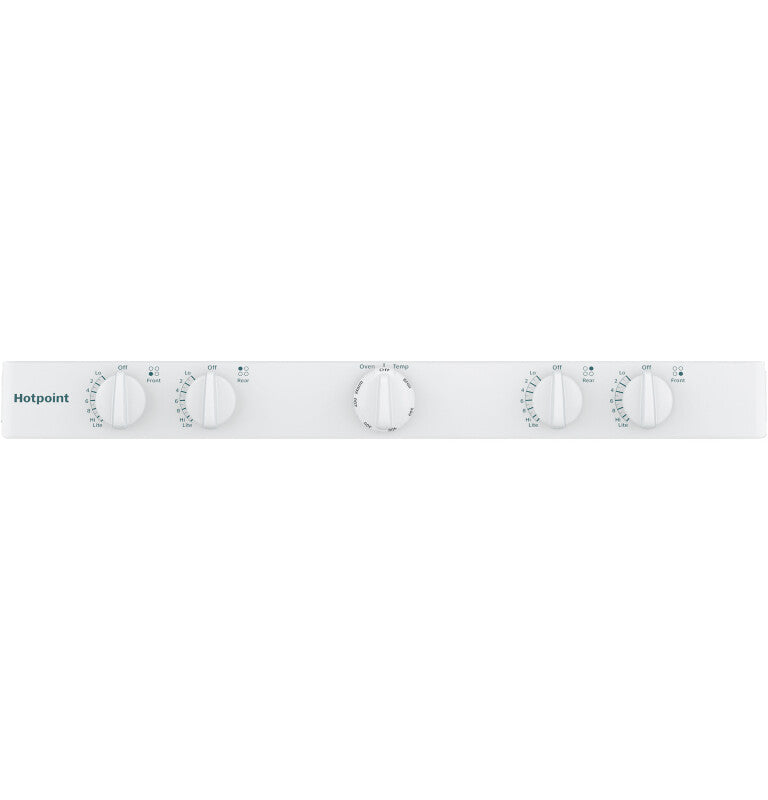

| Control Location | Front |
