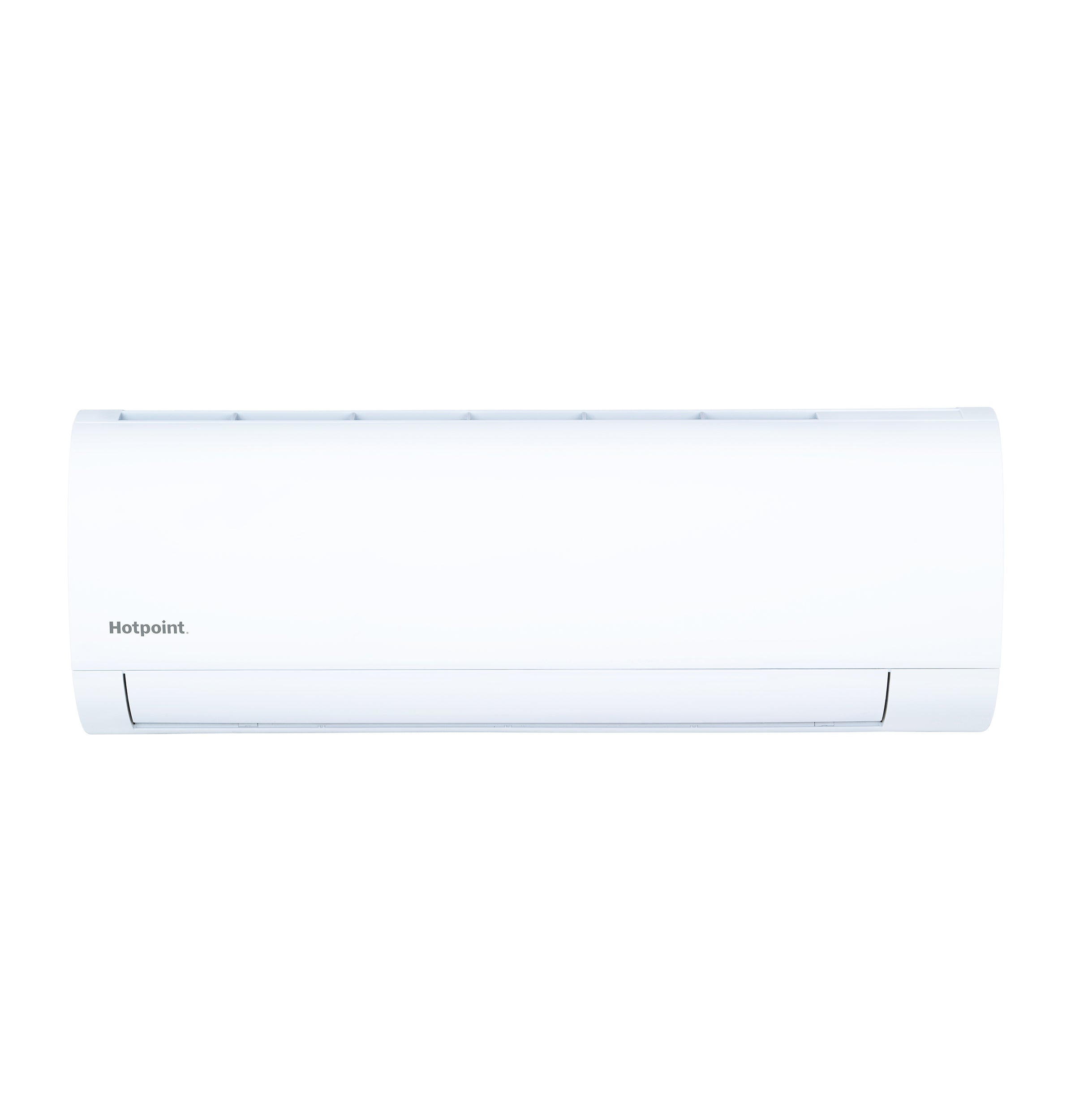

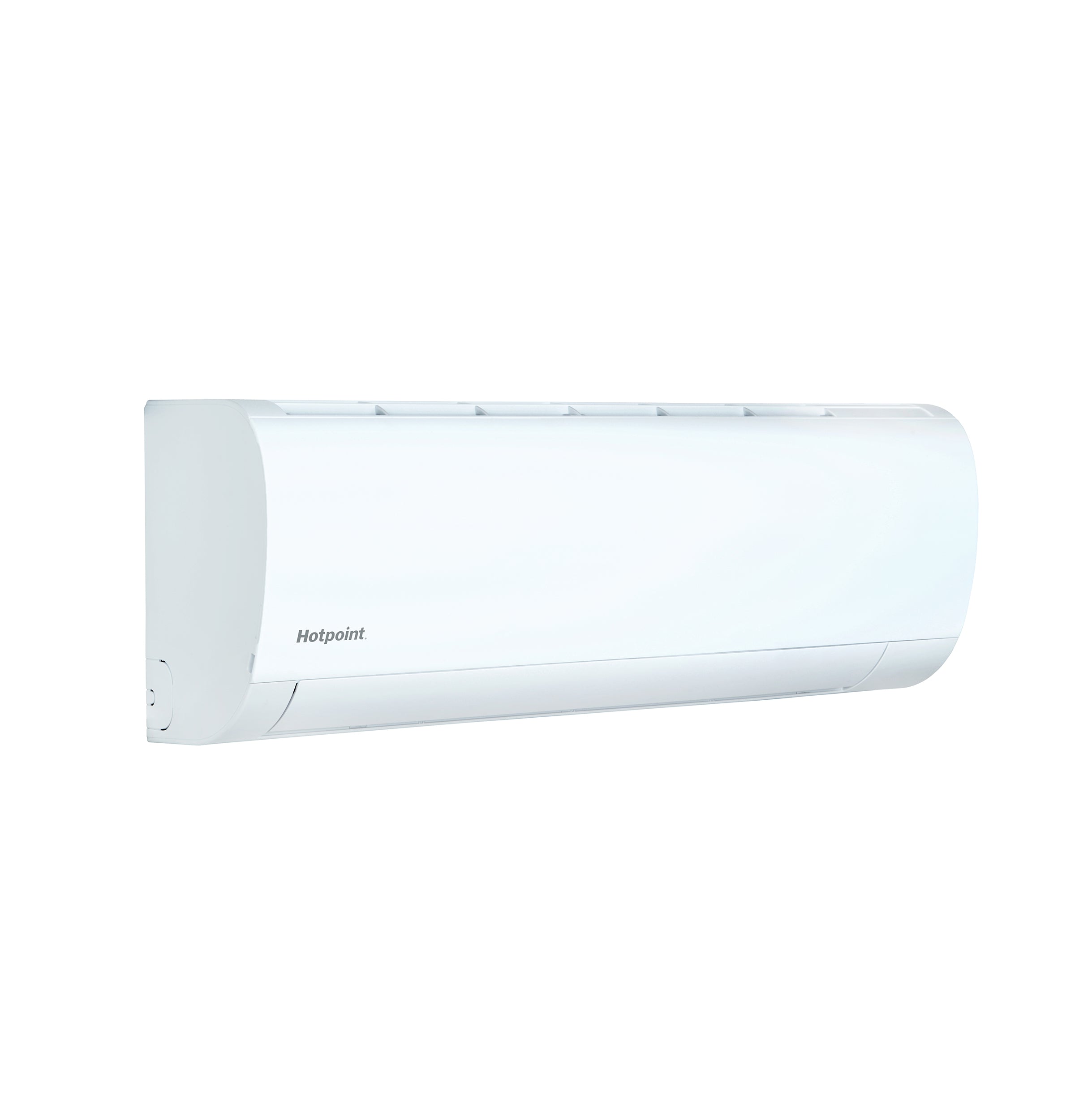

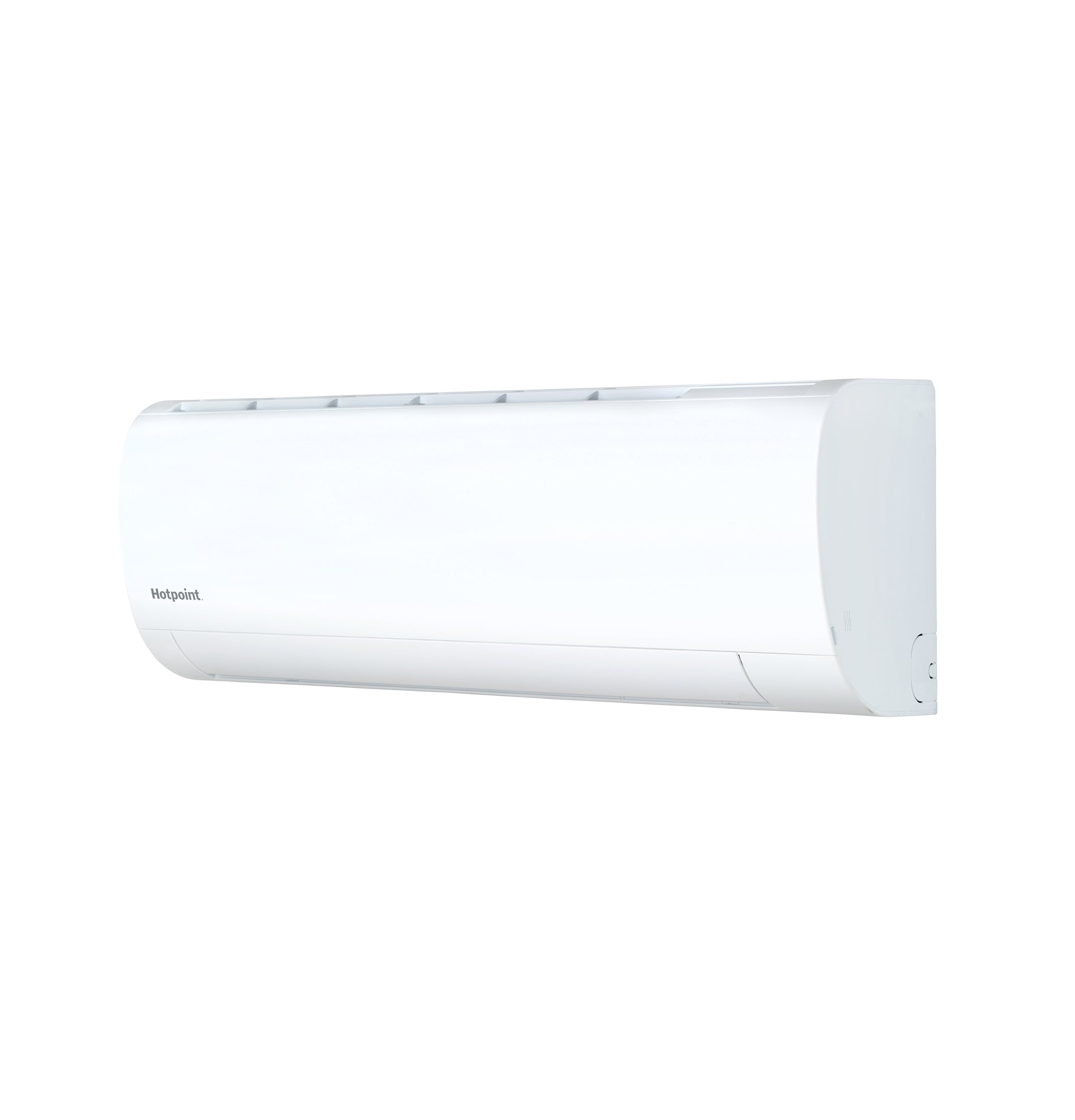

Product Details for Hotpoint HW18HN2DAA

Technical Details

Weights & dimensions

Overall Height 12.125 in
Overall Depth 8.5 in
Overall Width 34.5 in
Approximate Shipping Weight 28.22 lb
Suction O.D. Refrigerant Line 1/2"
Liquid O.D. Refrigerant Line 1/4"
Net Weight 21.83 lb

Features

Product Type Single Zone
System 18K Hotpoint
Unit Type Indoor
Series Hotpoint
Outdoor Model to Complete Single Zone System 1H18HN2DAA
Fan Speed Stages 5+ Auto
Style Highwall
Indoor Sound Level 31
Refrigerant Type R32

Power / ratings

Voltage/Hertz/Phase 208-230/60/1
Cooling Rated Capacity BTU/Hr 18,000

Other

Suction O.D. Refrigerant Line 1/2"
Liquid O.D. Refrigerant Line 1/4"

Dimensions & weight

Width 34.5 in.
Height 12.13 in.
Length 8.5 in.
Weight 21.83 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 39.5 in.
Shipping Height 17.13 in.
Shipping Length 13.5 in.
Shipping Weight 61.83 lbs.
Total of Shipping Weight 61.83 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.06 ft³
Dimensional Weight 25.58 lbs.
Total of Cubes 2.06 ft³
Total of Dimensional Weight 25.58 lbs.

Warranty

Parts (Compressor) 7 Year

Description

ODU Compatibility
Compatible with 1H18HN2DAA Outdoor Unit.

Efficient Operation
High-power turbo mode and warm start technology help heat and cool rooms more quickly, and an auto louver adjusts airflow upward when cooling and downward when heating.

Wi-Fi Connectivity
Hotpoint(R) systems connect seamlessly to the SmartHQ(TM) App from GE Appliances, giving homeowners more control over their comfort.

Easy to Install, Easy to Service
A mounting template and mounting plate with dimensions make installation a breeze, while an extended kickstand and easy-access control board let you service systems without removing casings. Plus, a two-way piping drain on the right and left sides makes installation easier and ensures units fit in more applications.

Federal & State Incentives
Eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers. All Hotpoint heat pumps are certified CEE Tier-2 except for 24K units installed in the South region. See CEE directory for qualifying models.

Worry-Free Warranty
Unlock a 10-year limited parts warranty with registration; see warranty documentation for complete information.

See specification guide for full heating, cooling, and system details.



Product Features

  • ODU Compatibility
    Compatible with 1H18HN2DAA Outdoor Unit.
  • Efficient Operation
    High-power turbo mode and warm start technology help heat and cool rooms more quickly, and an auto louver adjusts airflow upward when cooling and downward when heating.
  • Wi-Fi Connectivity
    Hotpoint systems connect seamlessly to the SmartHQ App from GE Appliances, giving homeowners more control over their comfort.
  • Easy to Install, Easy to Service
    A mounting template and mounting plate with dimensions make installation a breeze, while an extended kickstand and easy-access control board let you service systems without removing casings. Plus, a two-way piping drain on the right and left sides makes installation easier and ensures units fit in more applications.
  • Federal & State Incentives
    Eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers. All Hotpoint heat pumps are certified CEE Tier-2 except for 24K units installed in the South region. See CEE directory for qualifying models.
  • Worry-Free Warranty
    Unlock a 5-year limited parts and compressor warranty with registration; see warranty documentation for complete information.
  • See specification guide for full heating, cooling, and system details.
