| Parts | 2 Year |
| Labor | 2 Year |
| Overall Width | 26 in |
| Overall Height | 15.625 in |
| Overall Depth | 21.8125 in |
| Approximate Shipping Weight | 74 lb |
| Depth to Louvers | 5 in |
| Overall Height (Excludes Sleeve) | 14.875 in |
| Overall Depth (Excludes Sleeve) | 19.90625 in |
| Overall Width (Excludes Sleeve) | 24.8125 in |
| Net Weight | 74 lb |
| Louver Style | 6-Way |
| Control Type | Electronic |
| Fan Speed Selections | 3 Fan Only |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Product Type | Built-In |
| Refrigerant Type | R32 |
| Air Discharge | Over / Under |
| Filter Type | Washable |
| Style | Thru-Wall |
| Chassis Type | Slide-In |
| Plug Type | Parallel/Right Angle LCDI |
| Connected Capabilities | Google Home |
| WiFi Connect | Built-In |

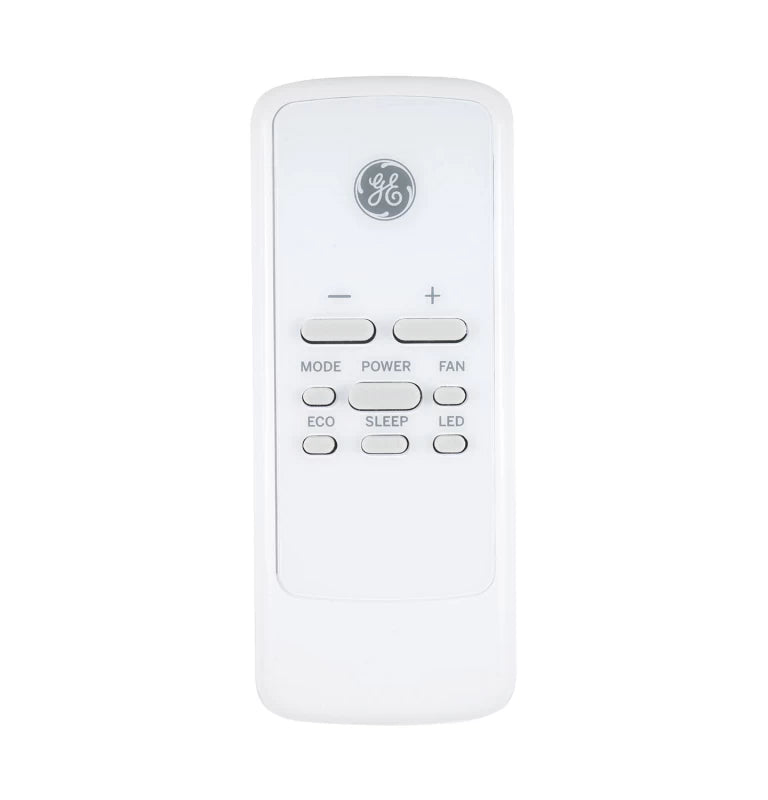

| Remote Control | Yes |
| Thermostat Type | Electronic Digital |
| Temperature Range | 60->85 F |
| Cord Length | 75" |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Cool Only |
| Room Air Conditioner Features | Smart Fan Switch |
| Filter Type | Tilt-Out |
| Airflow (cfm) Roomside | 250/230/210 |
| EER | 10.6 |
| Room Air Conditioner Features | Energy Saver |
| Fan Speed Selections | 3 Cooling |
| Filter Type | Rigid |
| Room Air Conditioner Features | Filter Reminder Function |
| Room Air Conditioner Features | Remote Control |
| Room Air Conditioner Features | Batteries Included |
| Connected Capabilities | Amazon Alexa |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Cooling - Rated Cooling Amps AHAM | 7.2 |
| Cooling - Watts | 780 |
| Voltage/Hertz/Phase | 115/60/1 |
| CEER | 10.6 |
| Hertz | 60 |
| Watts | 780 |
| Electrical Requirements | 115V |
| Wall Case | RAB46/47/48/26 Required At Additional Cost |
| Installation | Wall Mounted |
| Color Appearance | White |
| Cooling EER (BTUH / Watt) | 10.6 |
| Dehumidification (pts./hr.) | 1.9 |
| Cooling BTUH (MAX) | 8,300 Btu |
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 21.81 in. |
| Weight | 74 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 26.81 in. |
| Shipping Weight | 114 lbs. |
| Total of Shipping Weight | 114 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 5.13 ft³ |
| Dimensional Weight | 63.75 lbs. |
| Total of Cubes | 5.13 ft³ |
| Total of Dimensional Weight | 63.75 lbs. |
