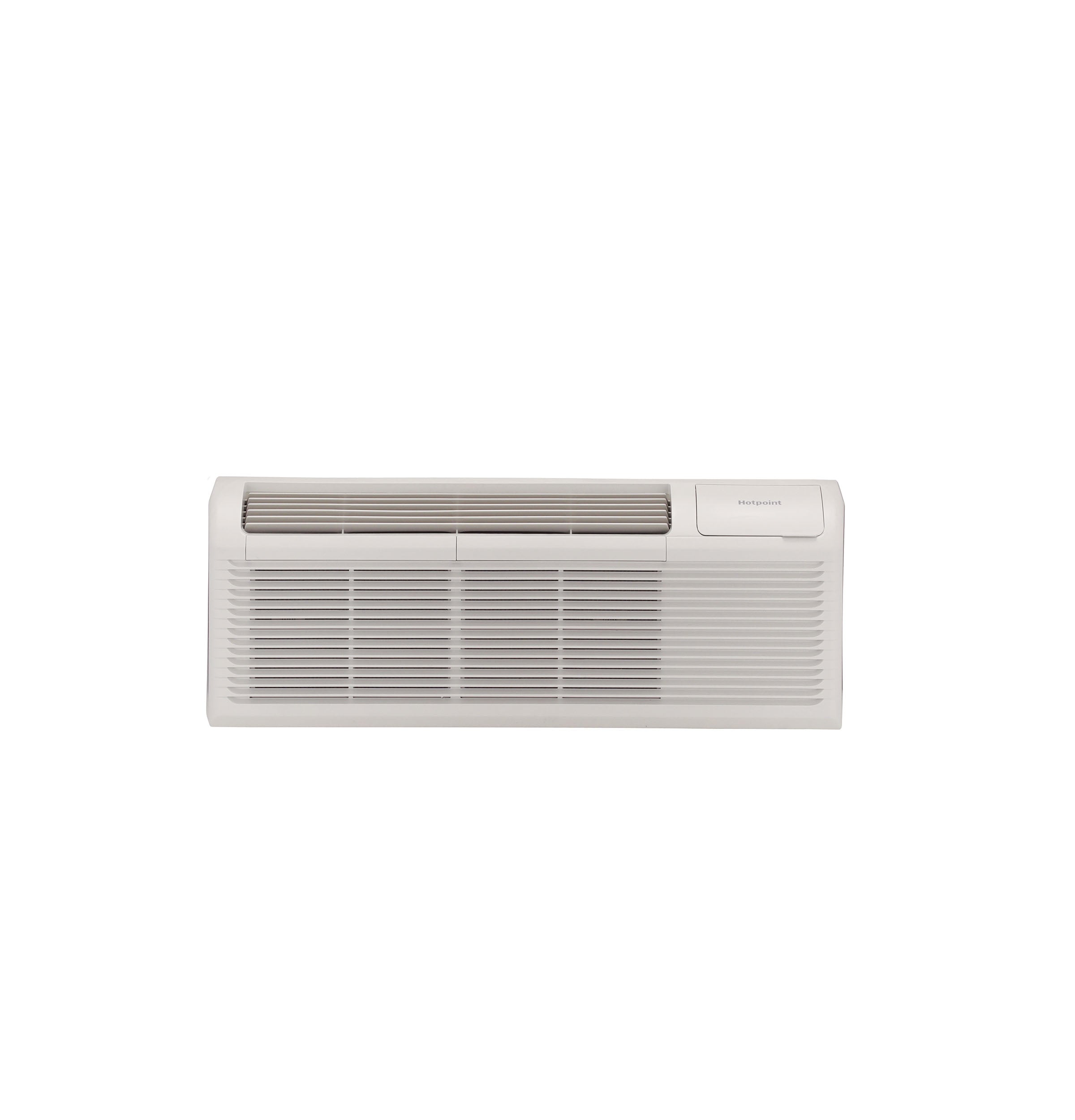

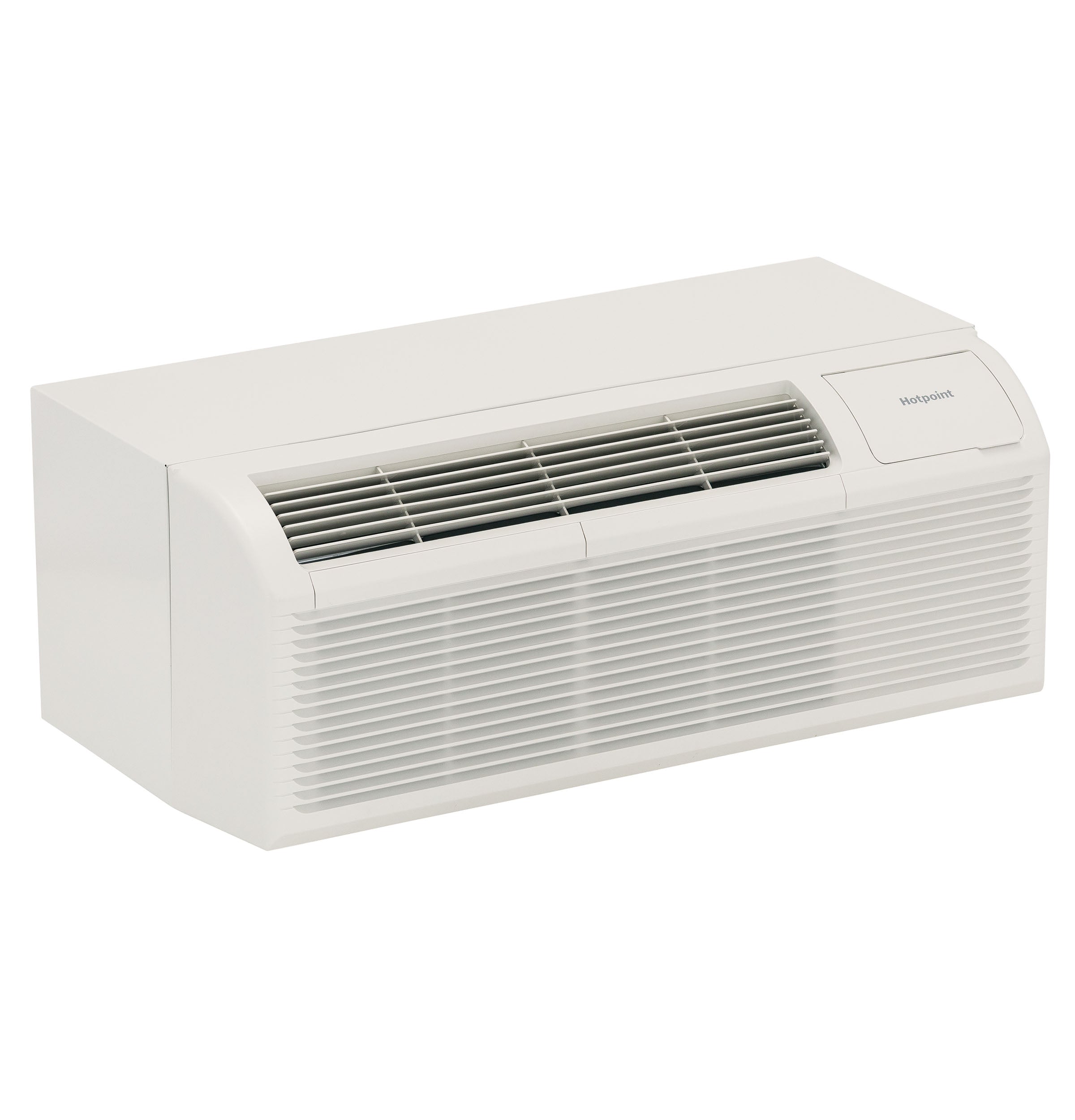

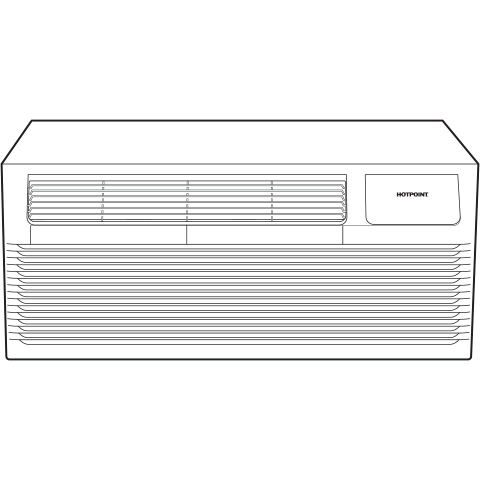

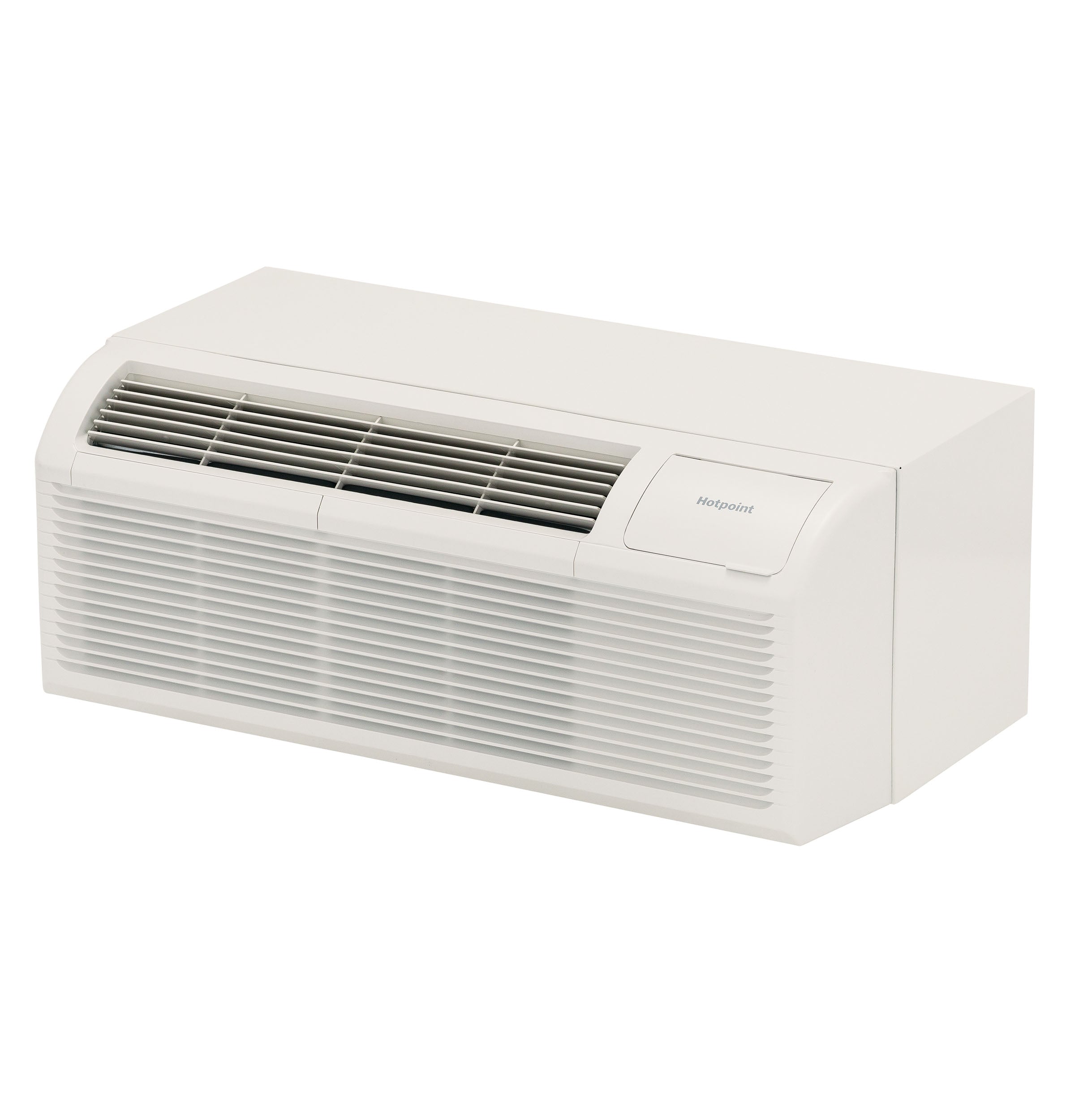

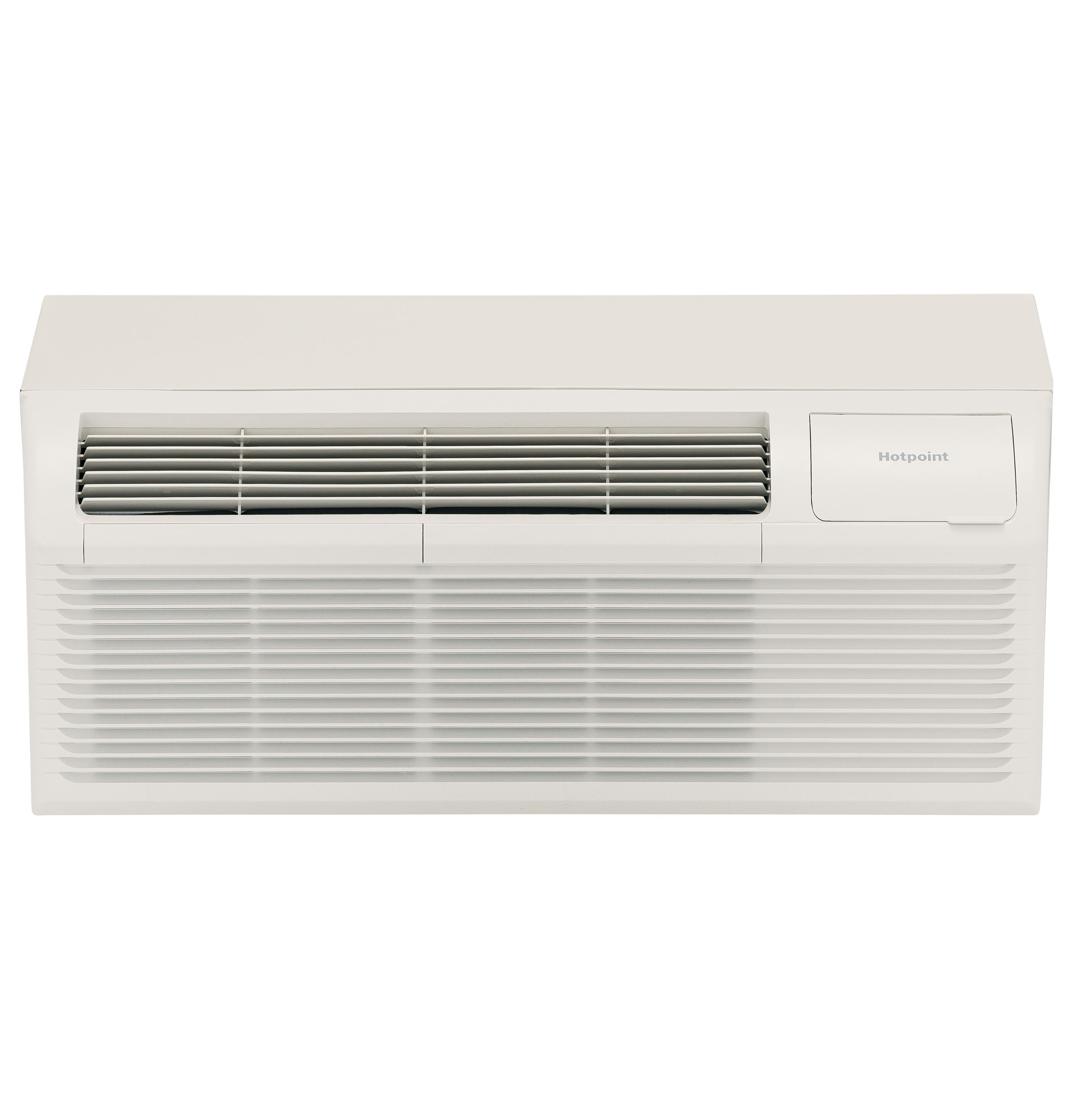

Hotpoint AH12H09E3B PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 265V, 20amp White
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for Hotpoint AH12H09E3B
Technical Details
Capacity
| Cooling BTUH (MAX) | 9000 Btu |
| Cooling EER (BTUH / Watt) | 11.3 |
| Heating - Reverse Cycle - BTUH | 8100 |
| Cooling BTUH (MIN) | 8800 Btu |
Features
| Control Type | Electronic |
| Fan Speed Selections | 3 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Manual Vent Control | Hidden |
| Refrigerant Type | R32 |
| "SmartFan" Fan Cycle | Yes |

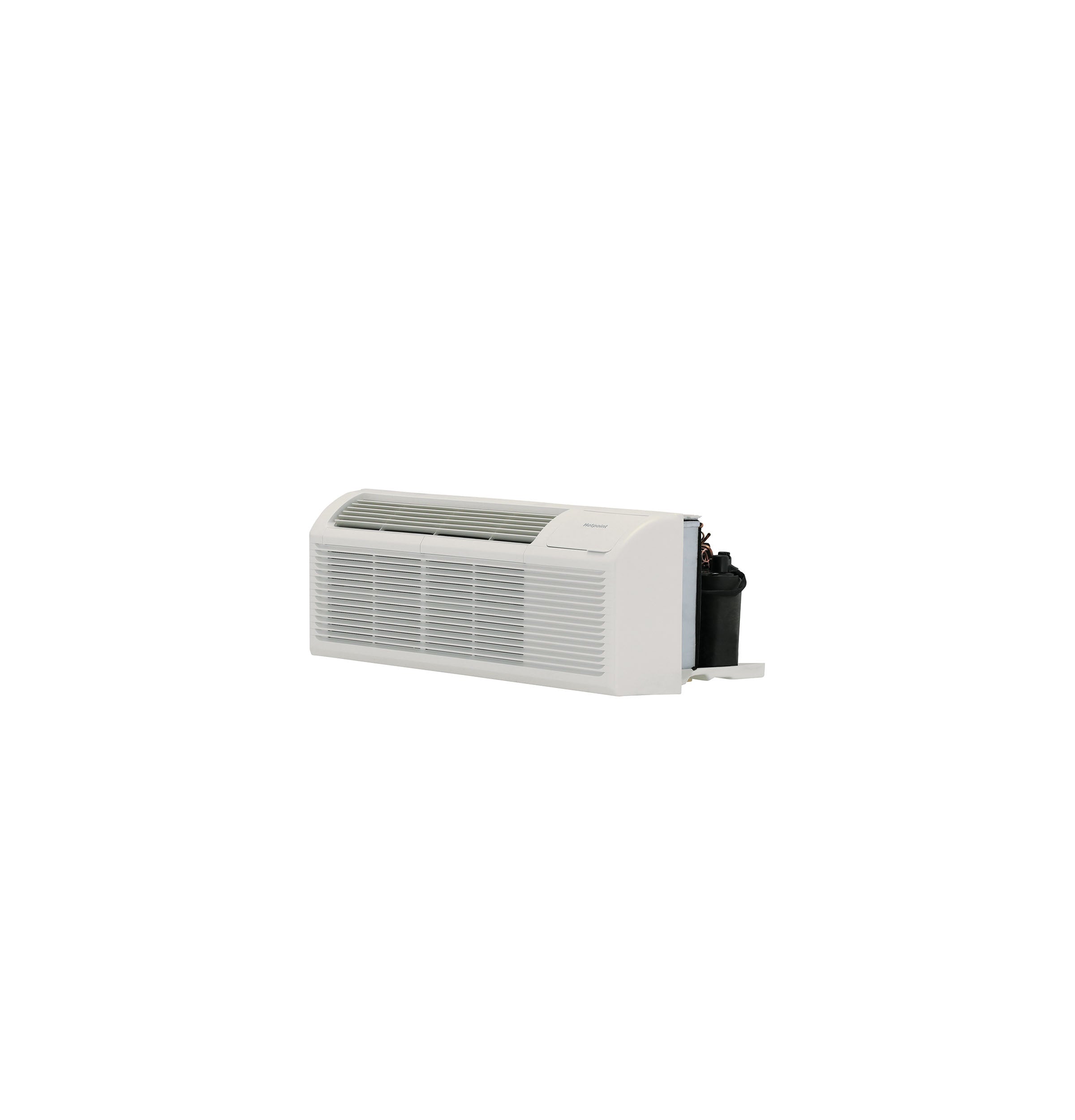

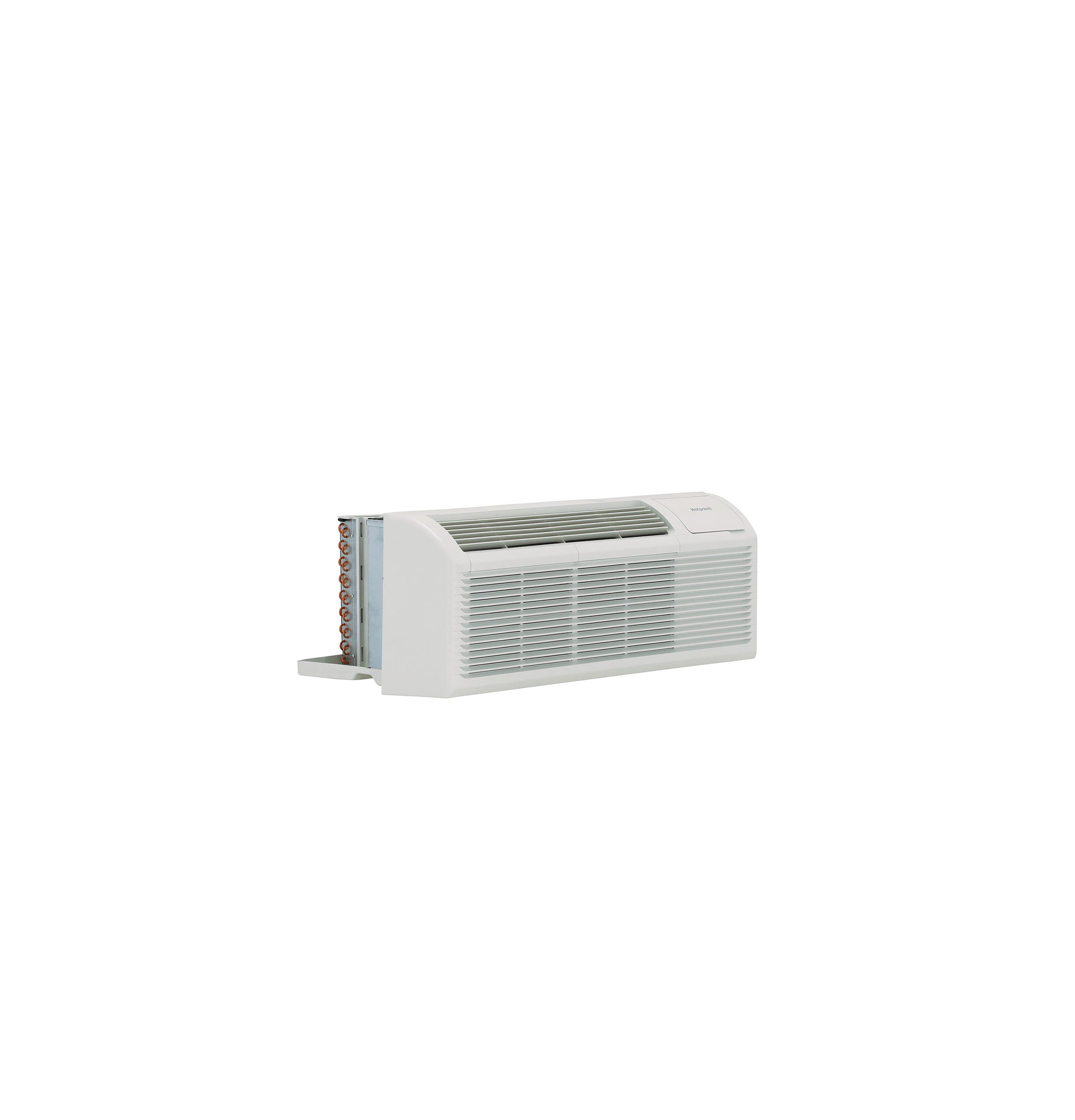

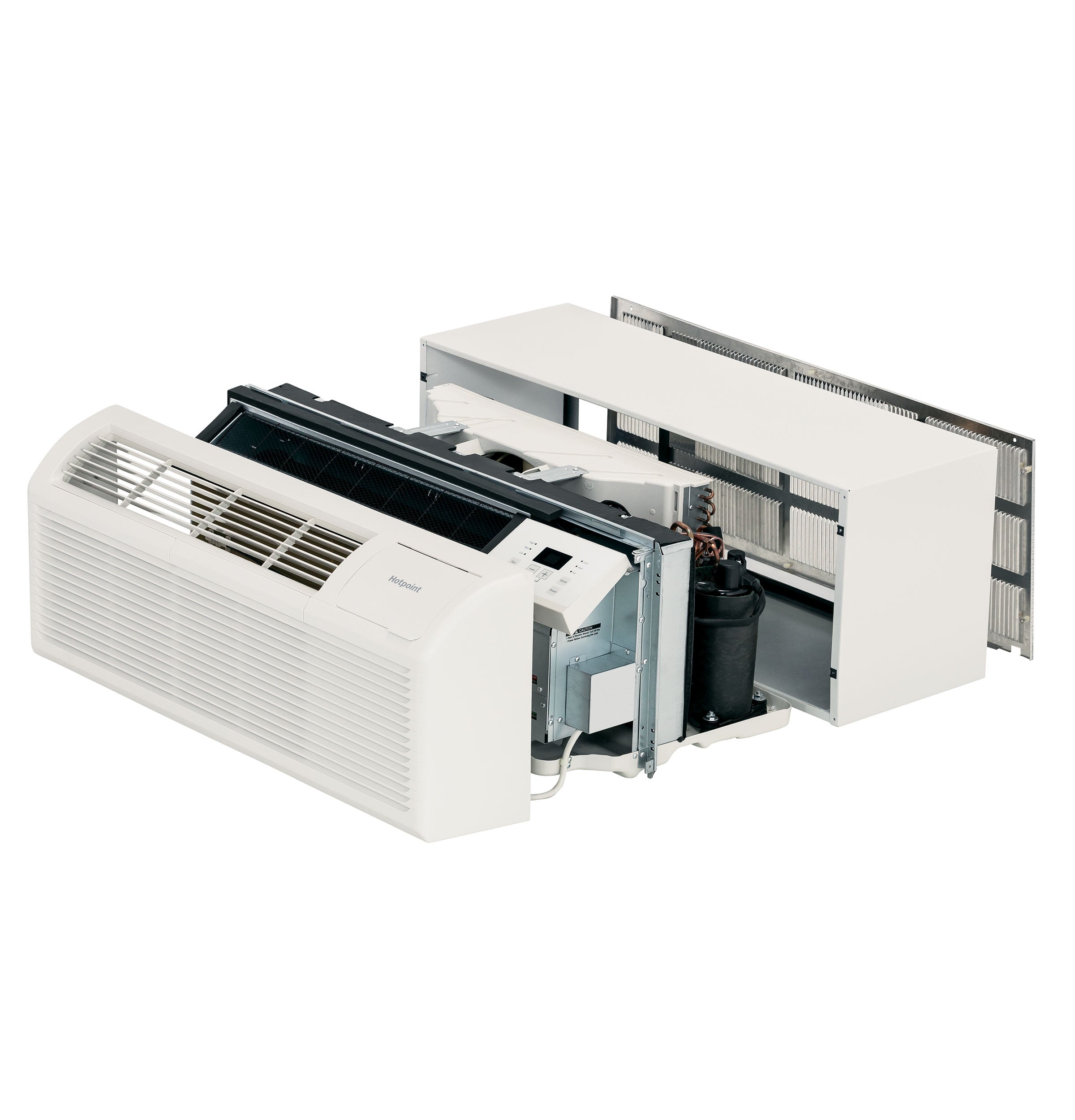

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Heat Pump | Yes |

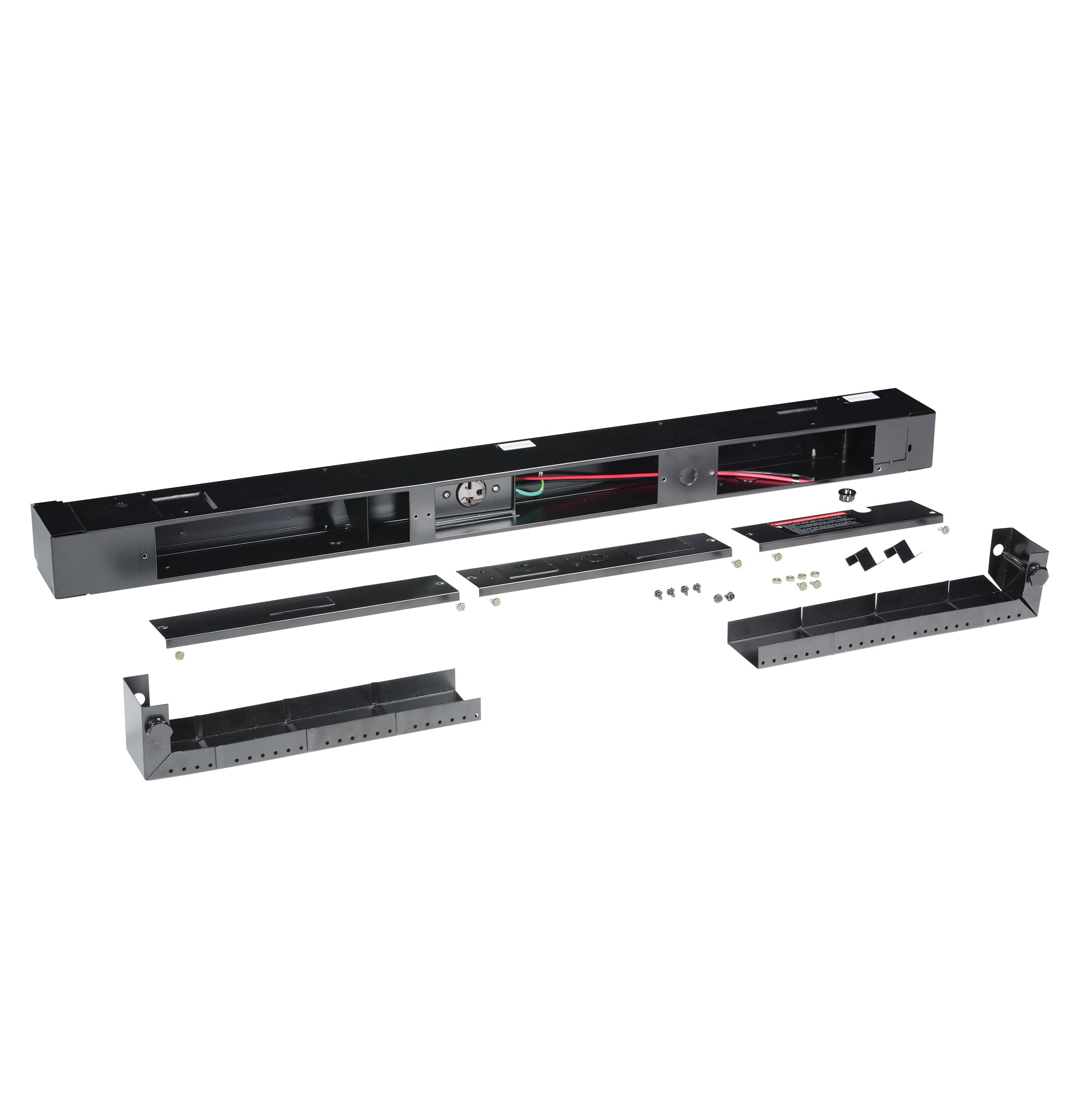

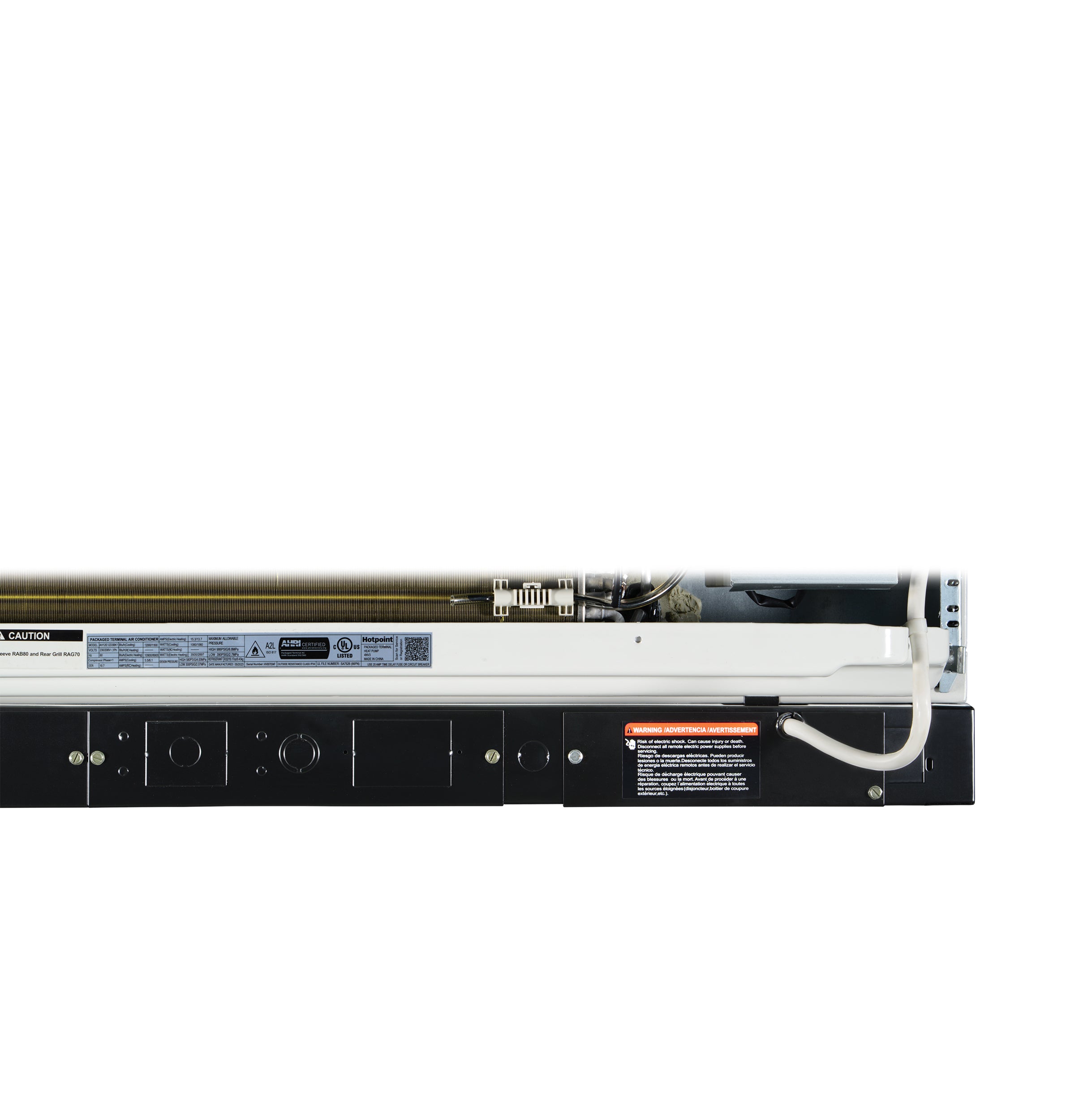

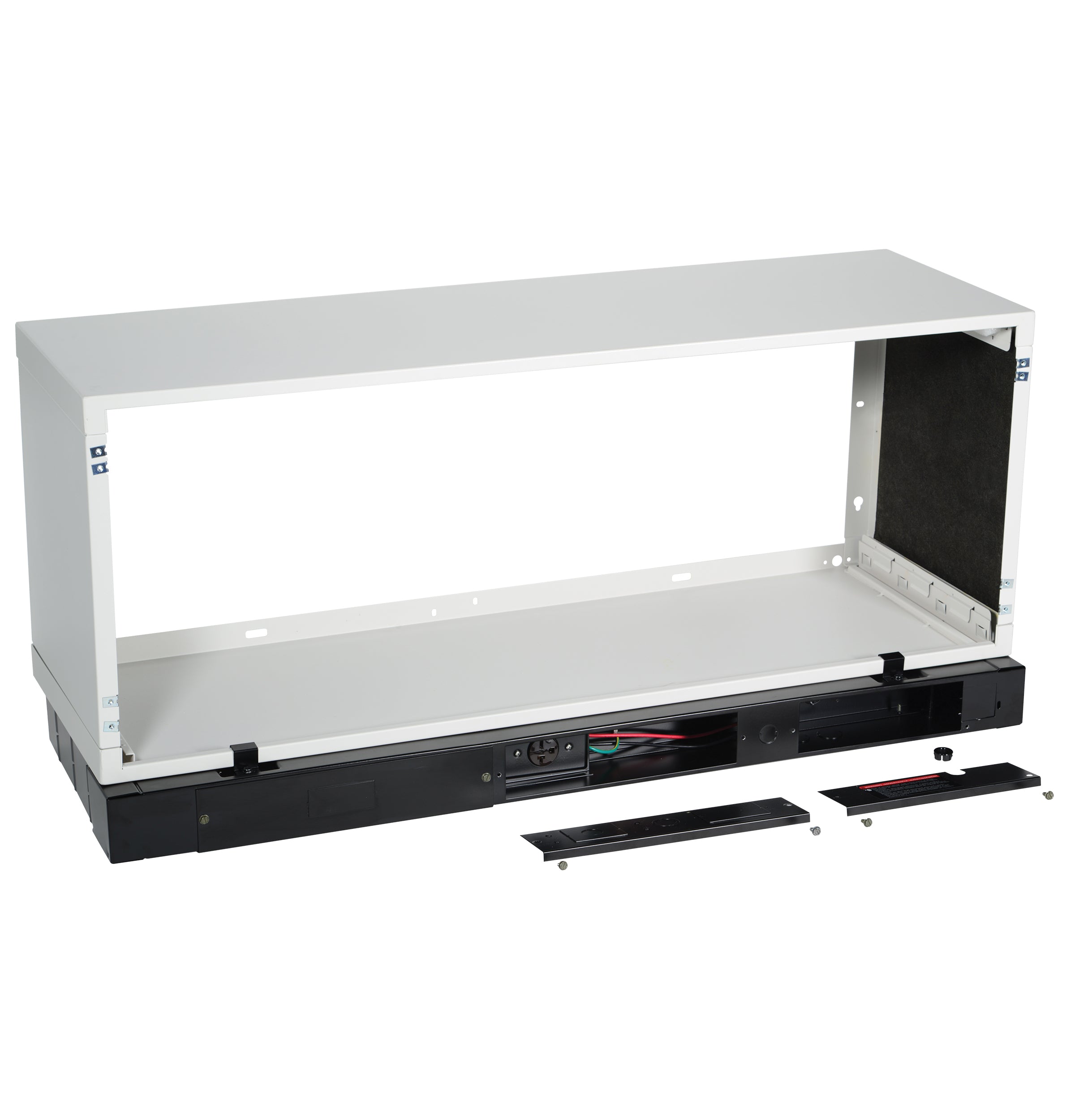

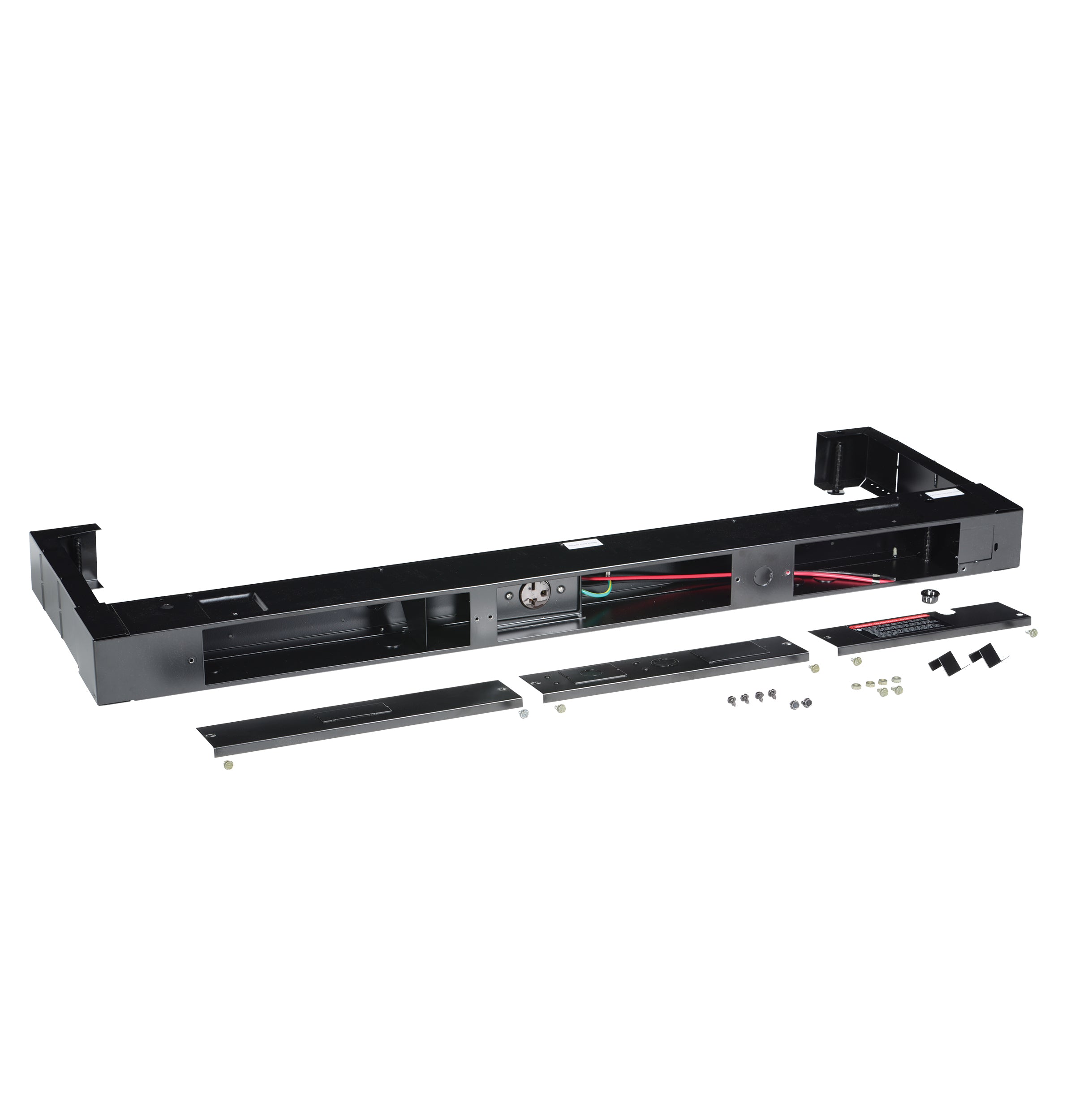

| Unit Features | Sub-Base required |
| Temperature Range | 62 - 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.3 |
| Outdoor Vent / Exhaust | Yes |

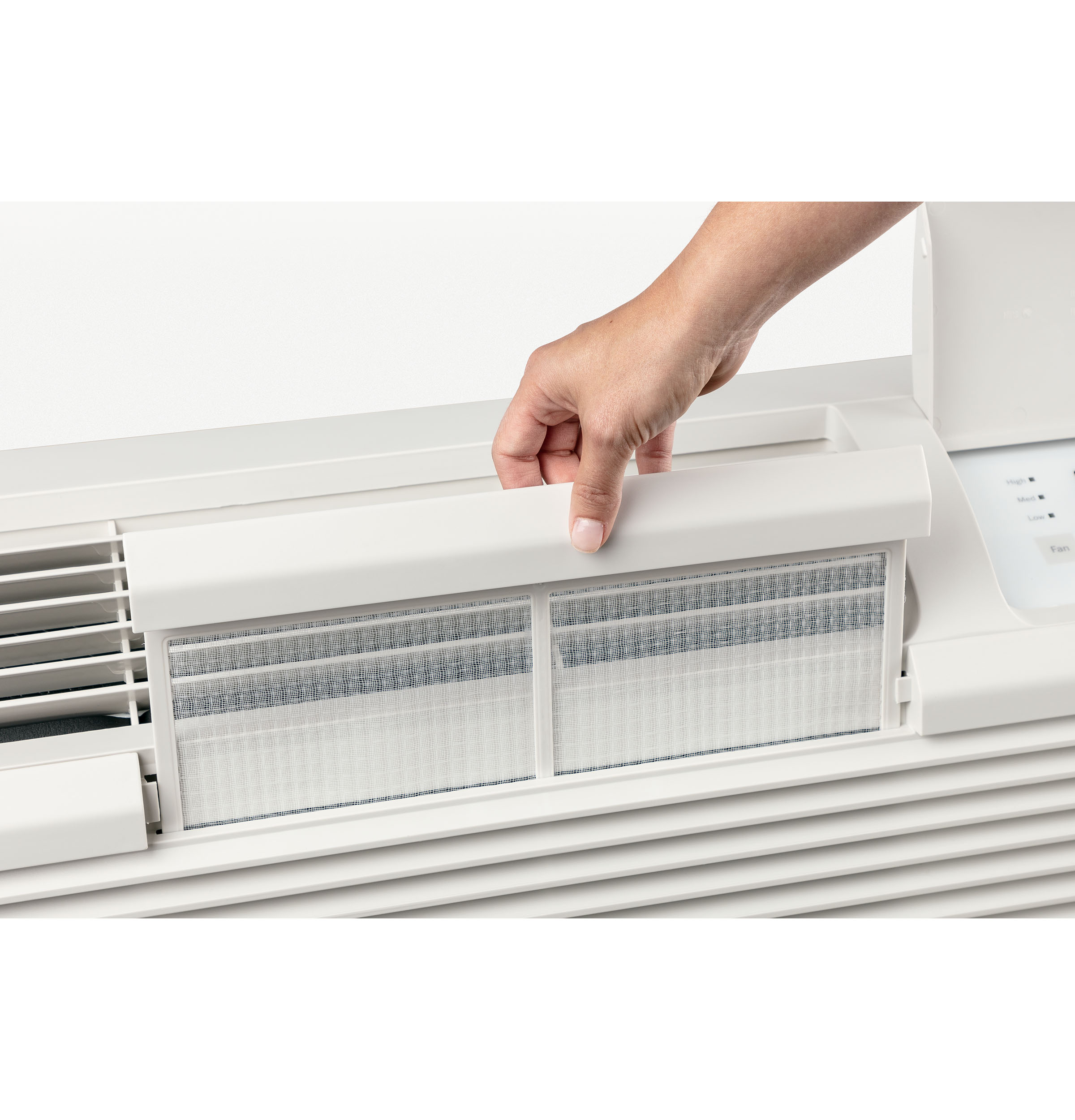

| Venting Features | Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |
Warranty
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
Power / ratings
| Heating - Reverse Cycle - Watts | 719 |
| Cooling - Amperes | 3.01 |
| Cooling - Watts | 796 |
| Heating - Reverse Cycle - Amps | 3.1 |
| Heating - Electric - Heater Watts | 3500 |
| Voltage (MAX) | 265 V |
| Heating - Electric - Heater Amps | 13.46 |
Appearance
| Installation | Through-the-Wall |
| Color Appearance | White |
Dimensions & weight
| Width | 42.4 in. |
| Height | 16 in. |
| Length | 20.9 in. |
| Weight | 102.5 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 47.4 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.9 in. |
| Shipping Weight | 142.5 lbs. |
| Total of Shipping Weight | 142.5 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 8.21 ft³ |
| Dimensional Weight | 102 lbs. |
| Total of Cubes | 8.21 ft³ |
| Total of Dimensional Weight | 102 lbs. |
Description
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

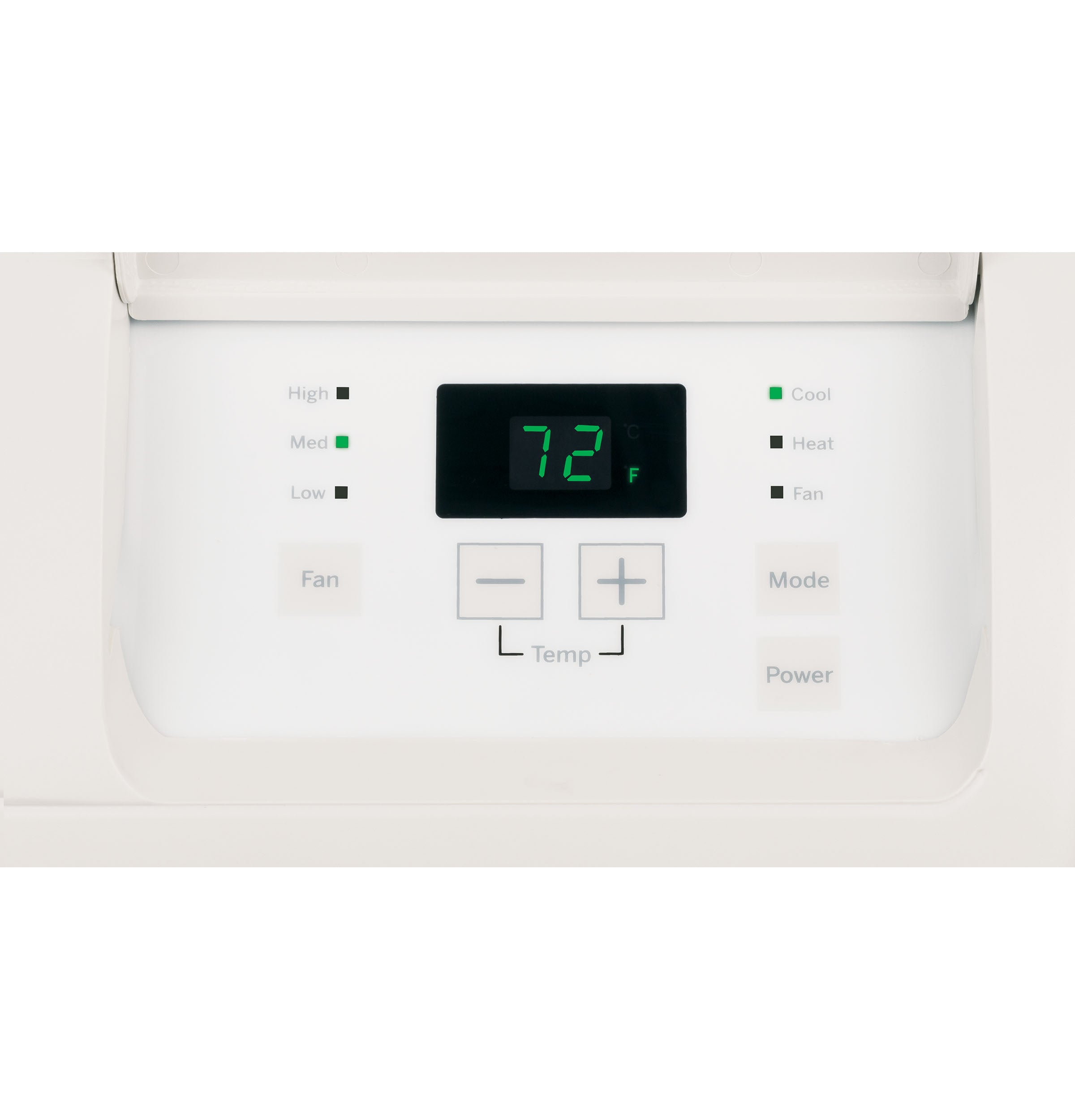

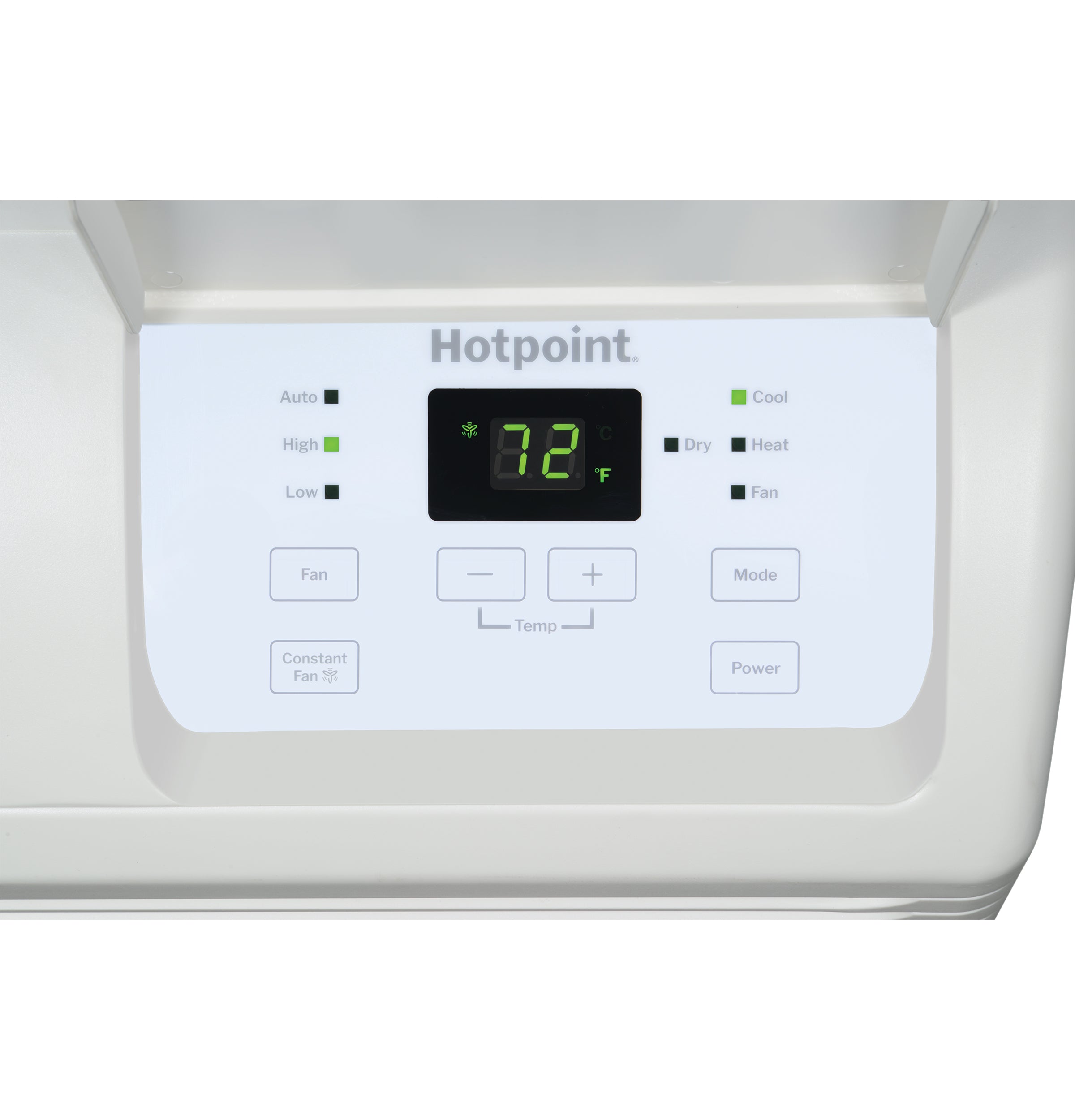

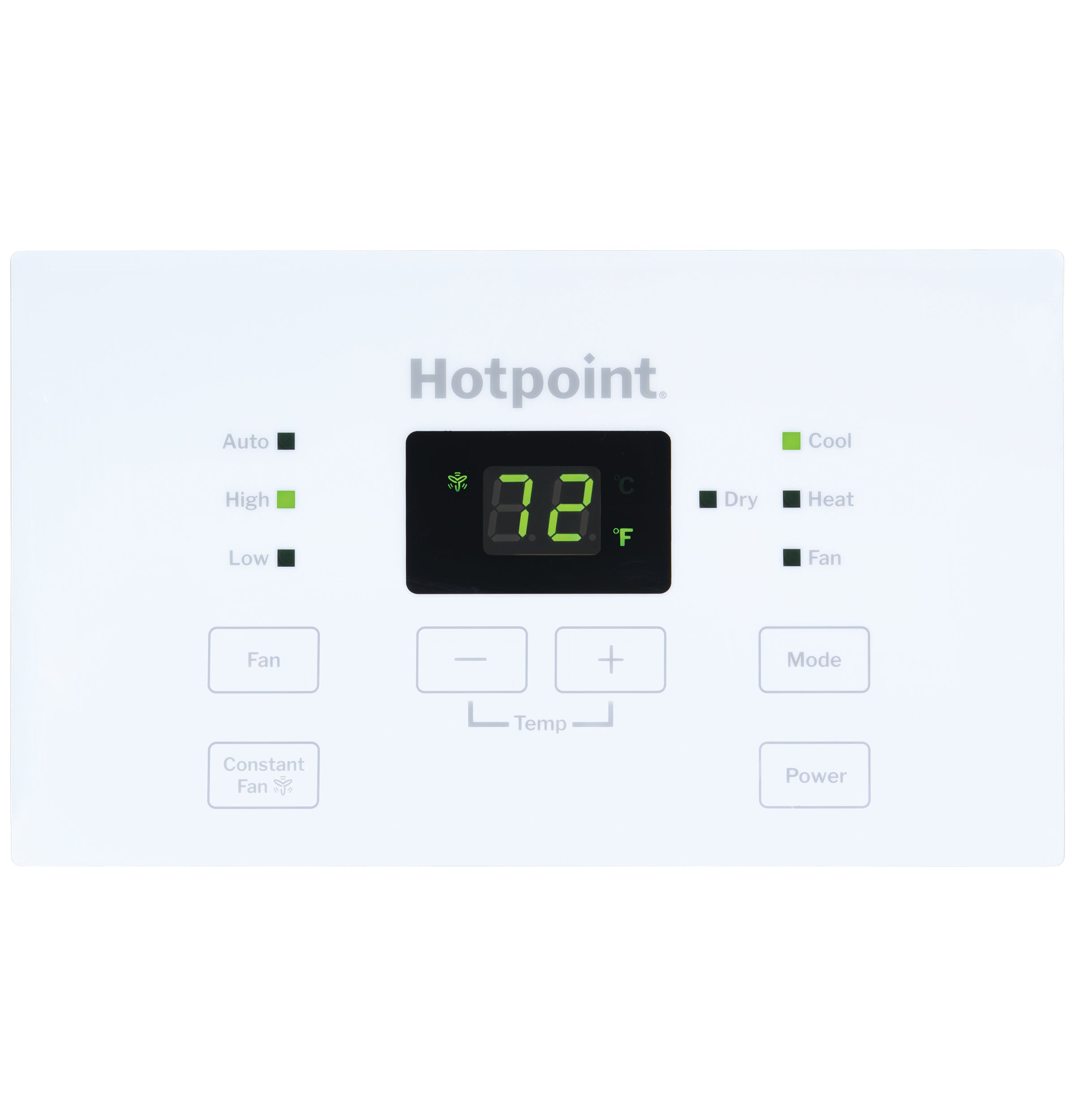

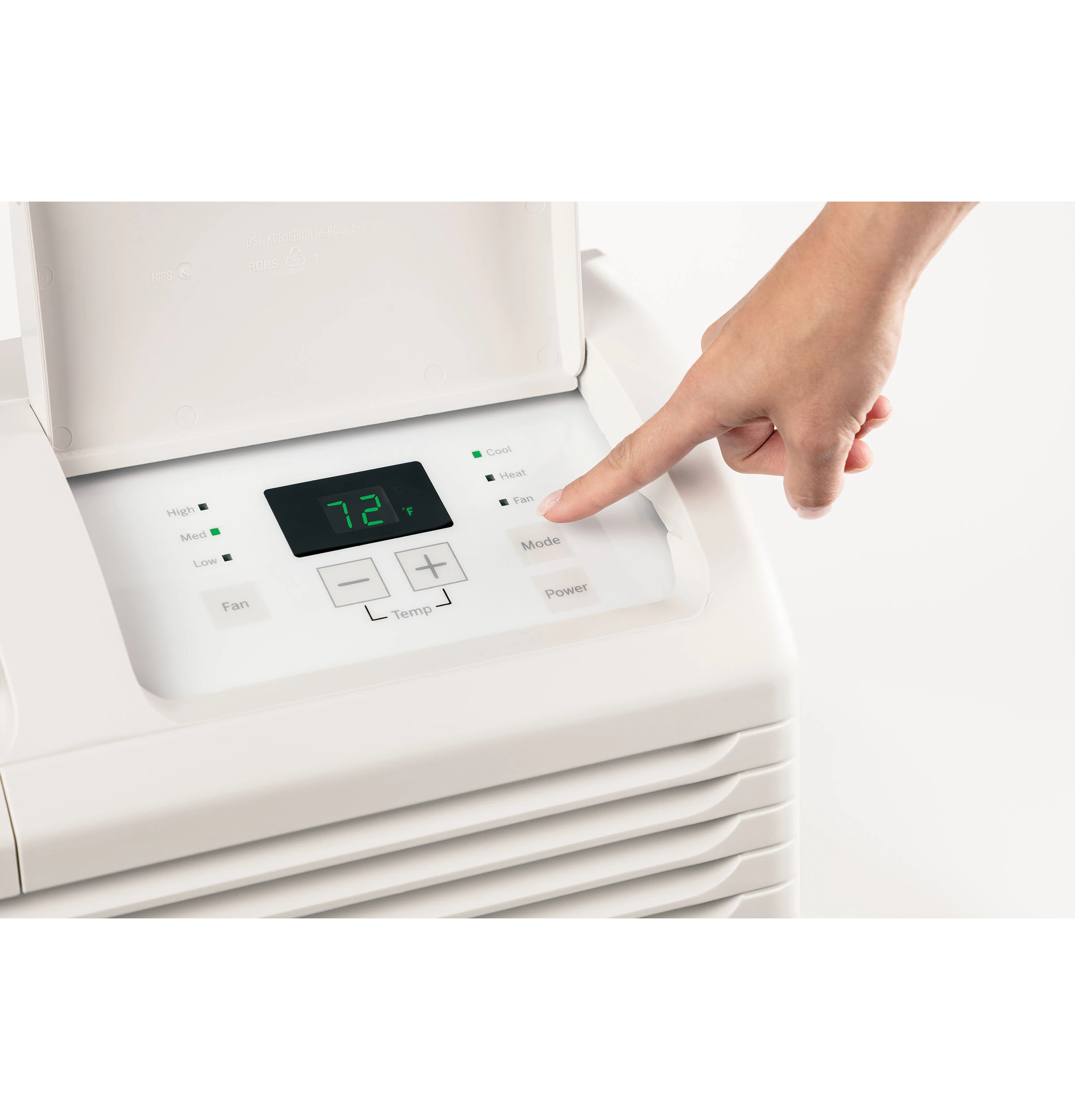

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

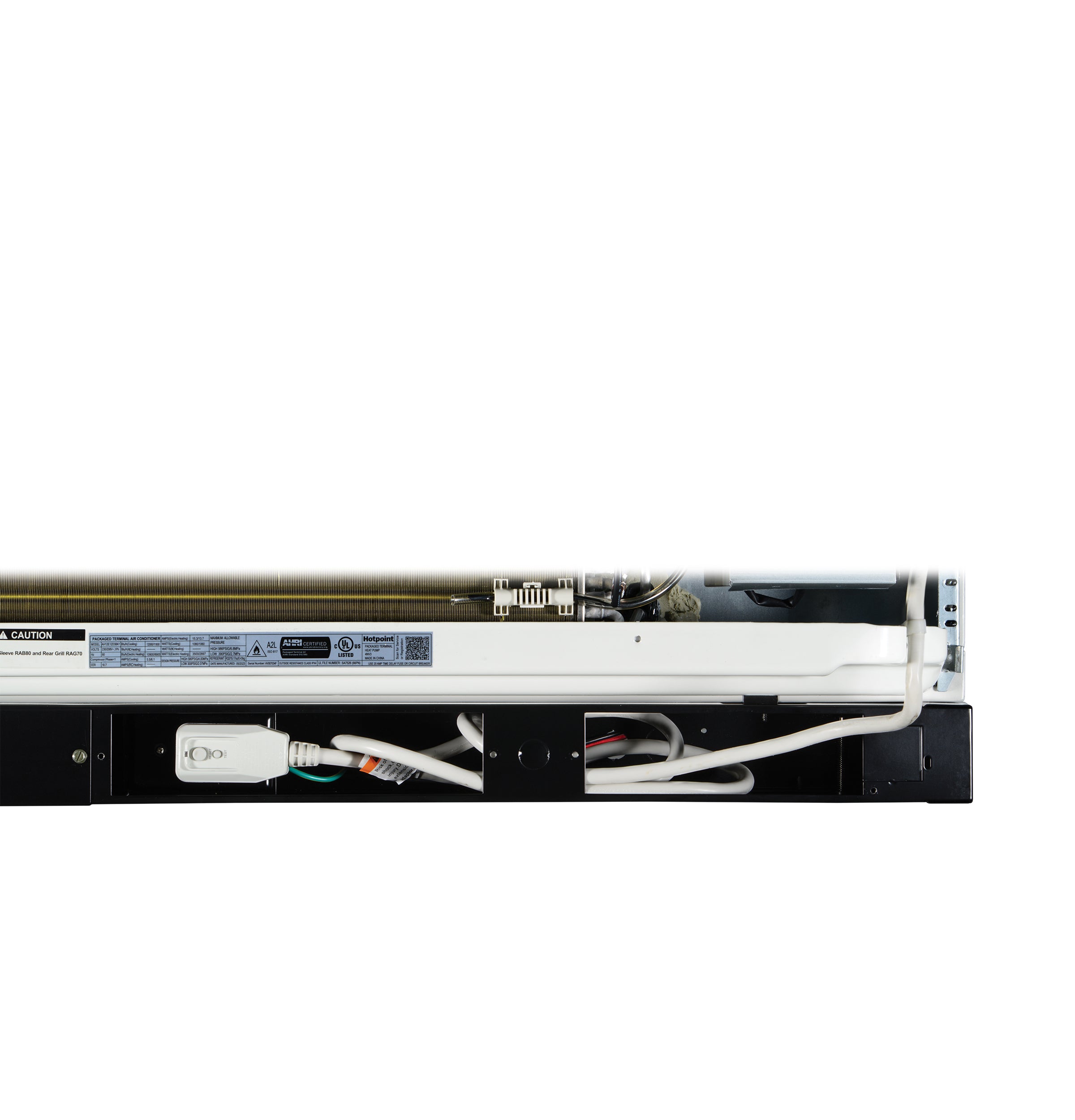

Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Heatpump models include staged heating
Tangential fan for air flow and smooth sound
Energy-efficient heat pump models available
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Heatpump models include staged heating
Tangential fan for air flow and smooth sound
Energy-efficient heat pump models available
Product Features
-
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort -
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition -
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls -
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system -
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode -
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand -
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network -
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation - Remote thermostat compatibility
- Works with central desk control systems
- Heatpump models include staged heating
- Tangential fan for air flow and smooth sound
- Energy-efficient heat pump models available
Manuals & Guides
Key Features
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
