SKU: AH12E15D3B | UPC: 084691923923

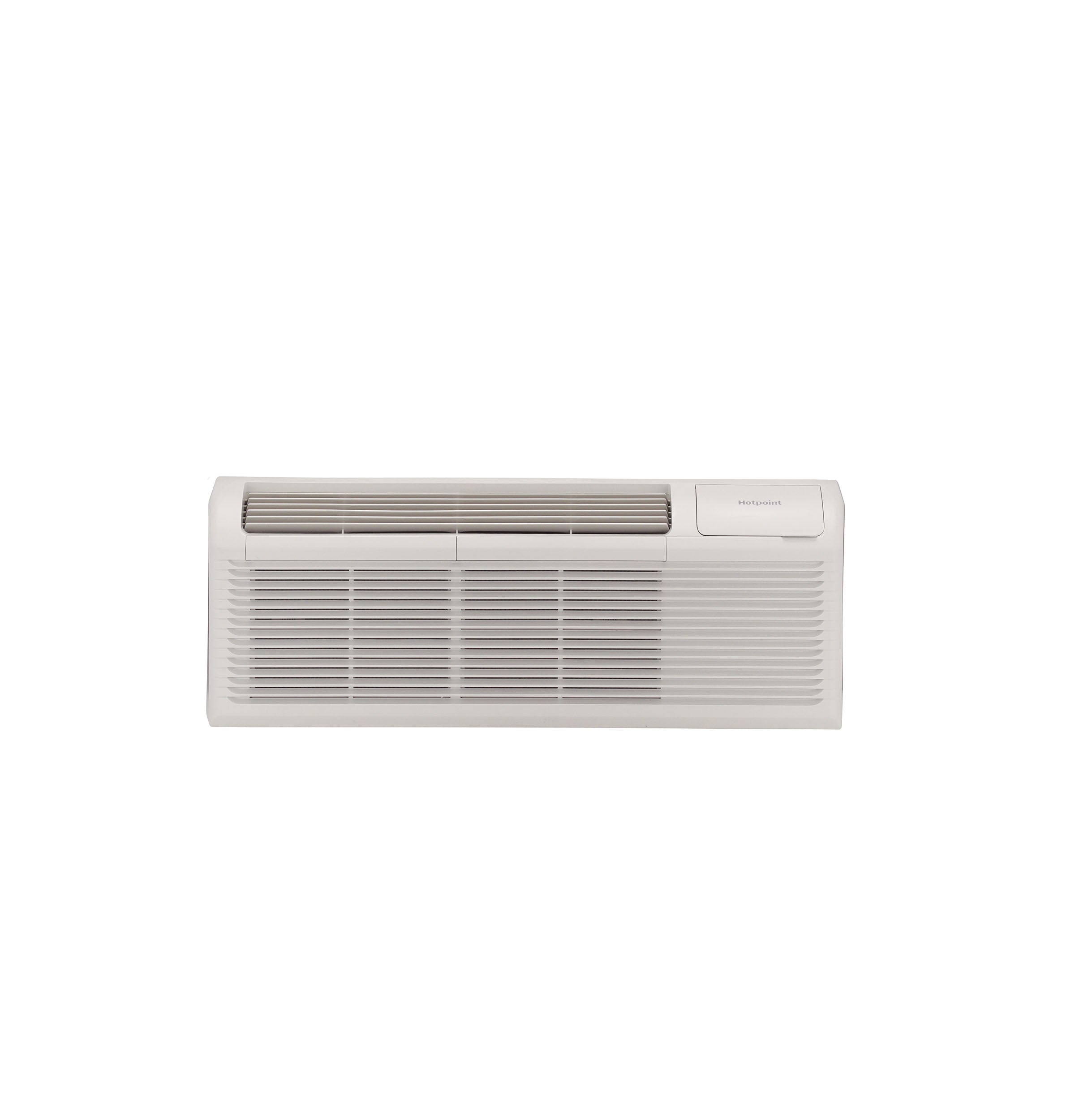

Hotpoint AH12E15D3B PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp White

PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp

Quick Specification More details

  • Width:
    42.4"
  • Depth:
    20.9"
  • Height:
    16"
  • Type:
    Wall Mount Air Conditioners
Summer Sale
Clearance

SKU: AH12E15D3B | UPC: 084691923923

Hotpoint AH12E15D3B PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp White

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    42.4"
  • Depth:
    20.9"
  • Height:
    16"
  • Type:
    Wall Mount Air Conditioners
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Hotpoint AH12E15D3B

Technical Details

Capacity
Cooling BTUH (MAX) 14500 Btu
CFM Indoor Fan Low 315
CFM Indoor Fan Medium 348
CFM Indoor Fan High 375
Cooling EER (BTUH / Watt) 9.7
Cooling BTUH (MIN) 14400 Btu

Features

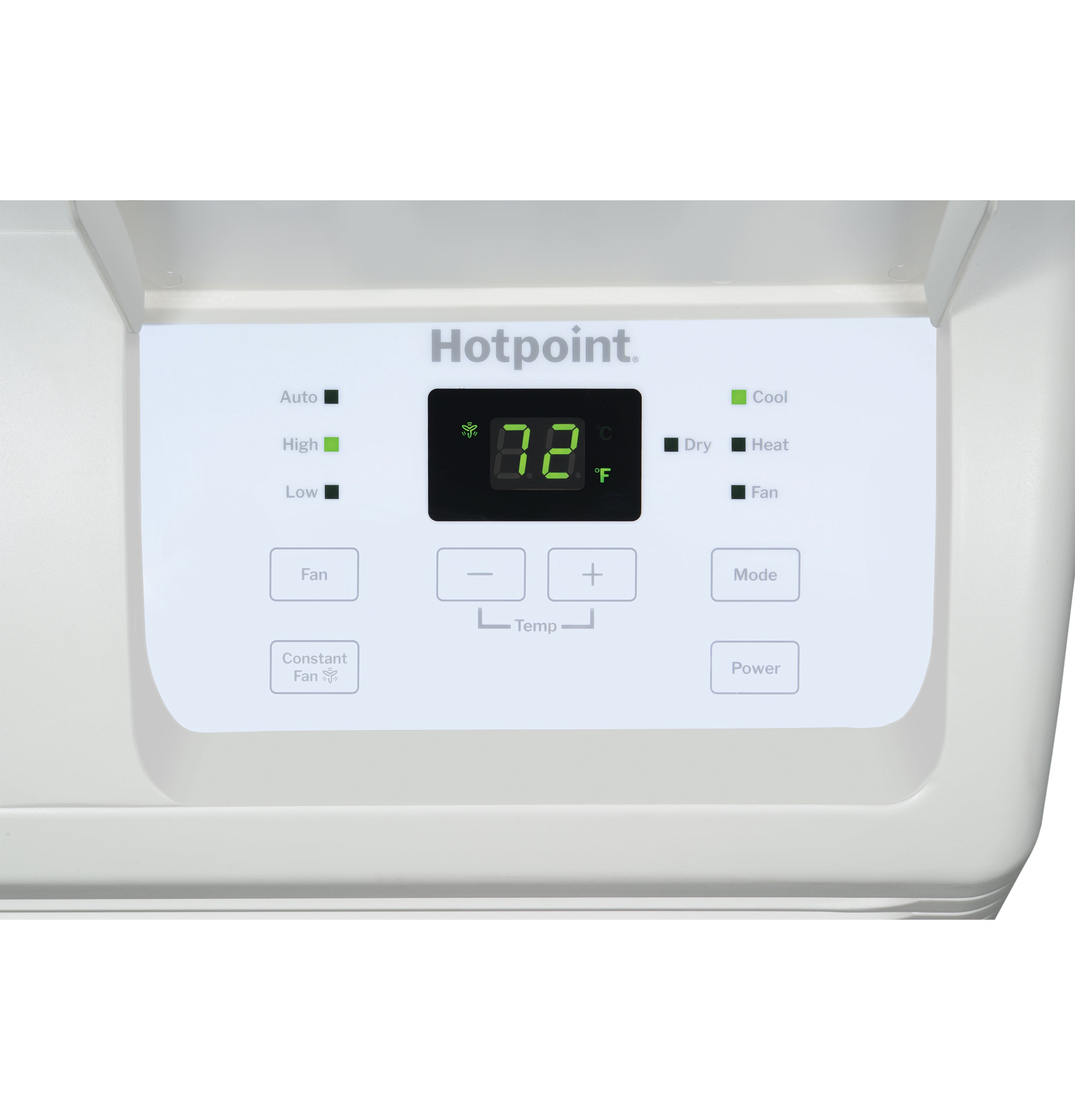

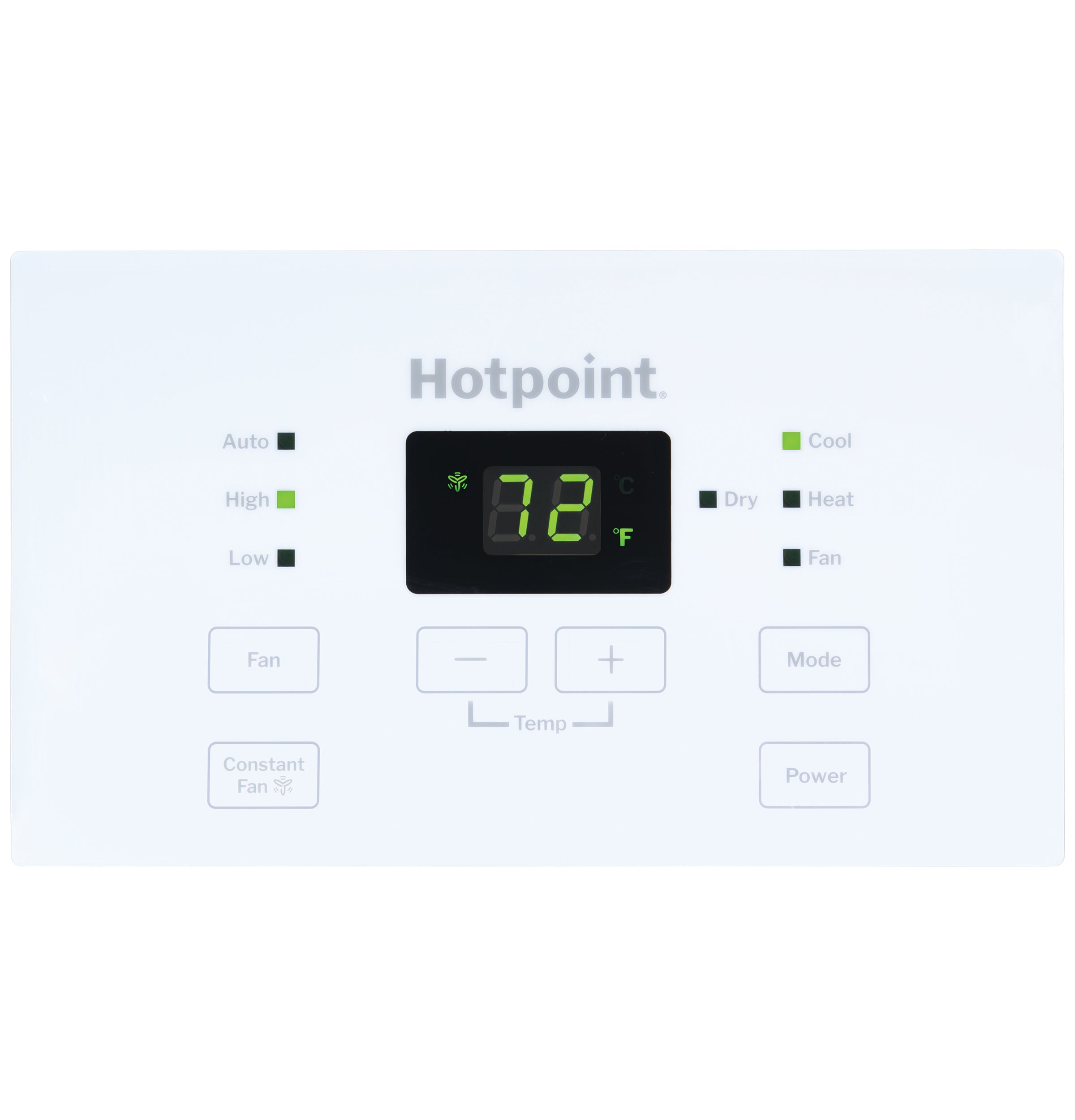

Control Type Electronic
Fan Speed Selections 3 Heating
Discharge Grille 2-position
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R32
Manual Vent Control Hidden
Chassis Type Slide-In
Fan Motor 2
"SmartFan" Fan Cycle Yes
Unit Features Remote Thermostat Compatibility
Heat - Cool Yes
Auto Power Recovery Yes
Outdoor Vent / Exhaust Yes
Venting Features Vent Air Filter
Rotary Compressor Yes
Temperature Range 62 - 80 F
Heating System Electric Resistance

Warranty
Warranty Notes See written warranty for full details
Parts Warranty Limited 5-year sealed refrigerating system
Labor Warranty Limited 5-year sealed refrigerating system

Appearance
Installation Through-the-Wall
Color Appearance White

Power / ratings
Cooling - Watts 1490/1480
Voltage (MIN) 208 V
Heating - Electric - Heater Watts 3535/2900
Voltage (MAX) 230 V
Cooling - Amperes 6.0/6.58
Heating - Electric - Heater Amps 15.3/13.7

Dimensions & weight
Width 42.4 in.
Height 16 in.
Length 20.9 in.
Weight 113.1 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 47.4 in.
Shipping Height 21 in.
Shipping Length 25.9 in.
Shipping Weight 153.1 lbs.
Total of Shipping Weight 153.1 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 8.21 ft³
Dimensional Weight 102 lbs.
Total of Cubes 8.21 ft³
Total of Dimensional Weight 102 lbs.

Description

Hotpoint(R) PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
