SKU: UR60BD4

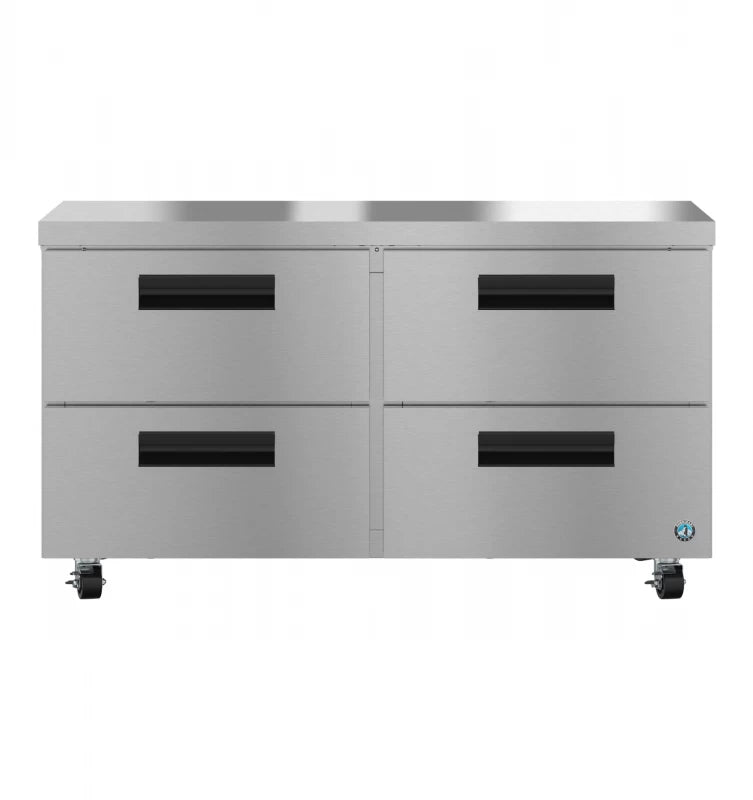

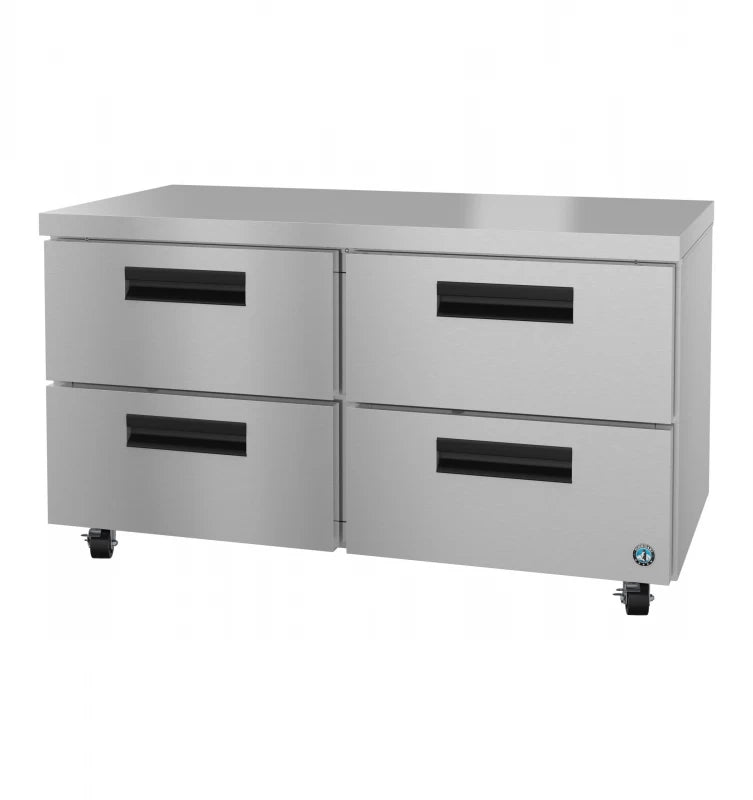

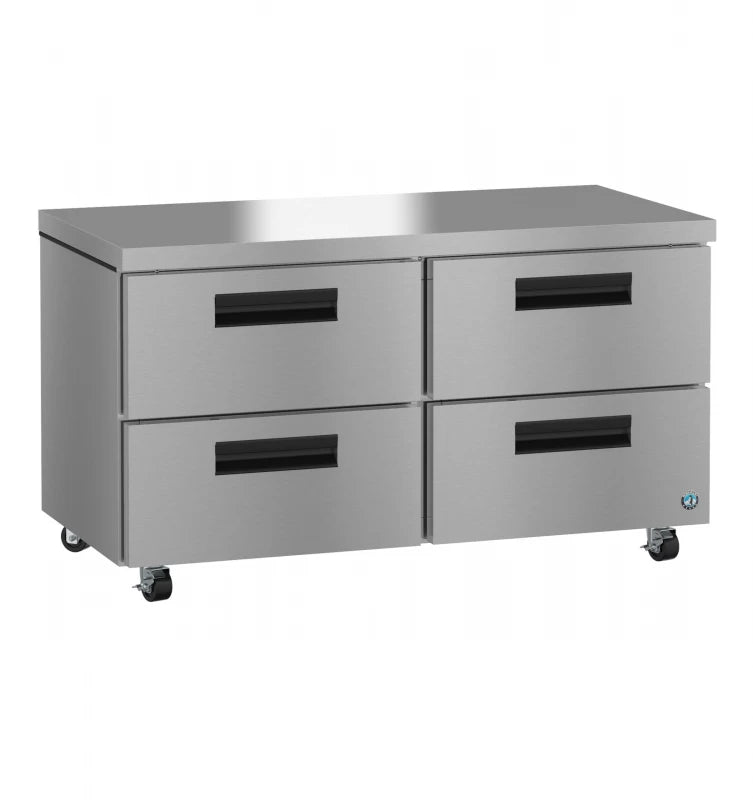

Hoshizaki UR60BD4 Refrigerator, Two Section Undercounter, Stainless Drawers Stainless Steel

Quick Specification More details

Width:
60"
Depth:
30"
Height:
33.75"
Type:
Beverage Centers

About this product

Innovative air distribution system distributes air evenly to maintain product temperature
Net capacity of 15.38 cubic feet
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior

Summer Sale

Clearance

SKU: UR60BD4

Hoshizaki UR60BD4 Refrigerator, Two Section Undercounter, Stainless Drawers Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
60"
Depth:
30"
Height:
33.75"
Type:
Beverage Centers

About this product

Innovative air distribution system distributes air evenly to maintain product temperature
Net capacity of 15.38 cubic feet
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior

Product Details for HOSHIZAKI UR60BD4

Technical Details

Dimensions & weight

Weight	346 lbs.
Width	60 in.
Depth	30 in.
Height	33.75 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	386 lbs.
Total of Shipping Weight	386 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.75 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 798 BTU/hr at 1/5 HP, Heat Rejection: 249 BTU/hr
Shipping Weight	346
Storage Specs	Nominal storage capacity: 17.55 ft3, Interior storage capacity: 15.38 ft3, Drawer opening: ” W x ” H, Depth with drawer fully extended: 52″ D, Drawers included: 4

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The UR60B-D4 Steelheart Series Undercounter two section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.38 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR60B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Innovative air distribution system distributes air evenly to maintain product temperature
Net capacity of 15.38 cubic feet
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handle
(4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
R290 refrigerant
Nominal Compres. of 798 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Automatic off-cycle defrost
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
