SKU: R1AFG

Hoshizaki R1AFG Refrigerator, Single Section Upright, Full Glass Door with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
34.5"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome door handle

Summer Sale

Clearance

SKU: R1AFG

Hoshizaki R1AFG Refrigerator, Single Section Upright, Full Glass Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
34.5"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome door handle

Product Details for HOSHIZAKI R1AFG

Technical Details

Dimensions & weight

Weight	350 lbs.
Width	27.5 in.
Depth	34.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	390 lbs.
Total of Shipping Weight	390 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.47 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 639 BTU/hr
Shipping Weight	350
Storage Specs	Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 57″ D, Shelves included: 3

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The R1A-FG Steelheart Series Upright single section refrigerator with a full glass door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R1A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome door handle
Lockable Full Glass Door
Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks

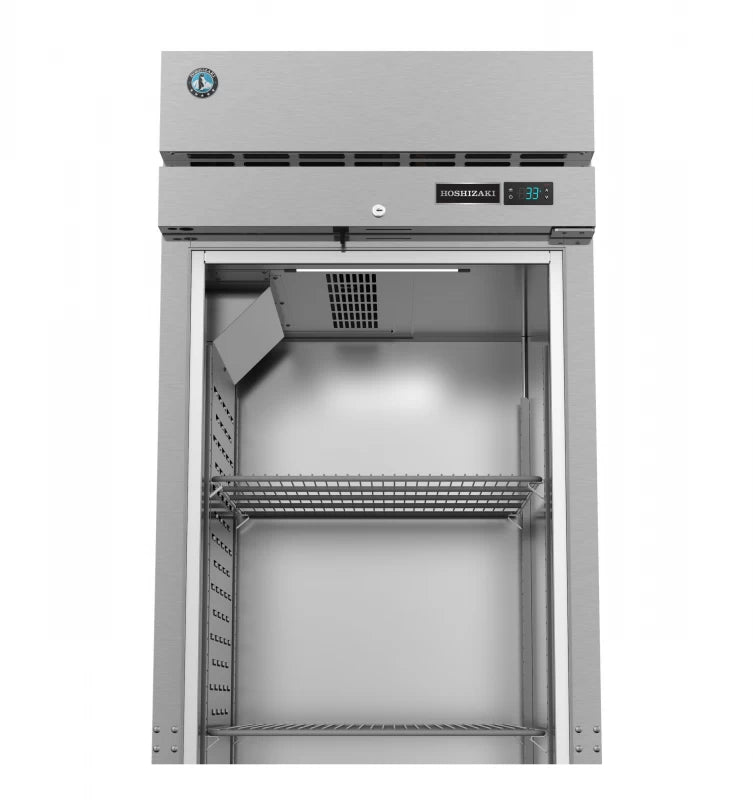

Interior LED light bars are vertically mounted on each wall
R290 refrigerant
Nominal Compres. of 770 BTU/hr at 1/4 HP
115v/60/1, 10 ft. cord and plug

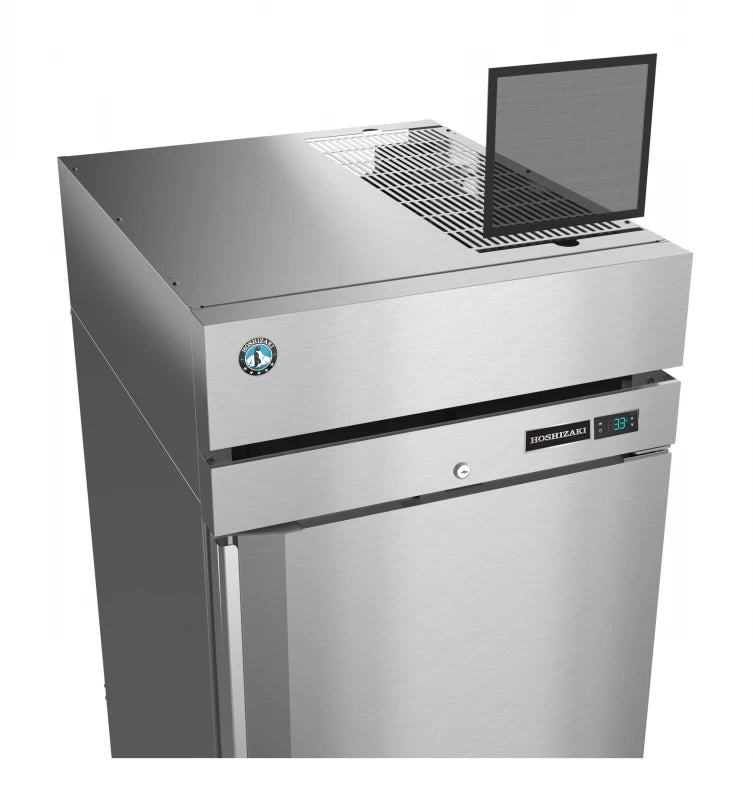

Top mounted energy efficient non-electric evaporation system

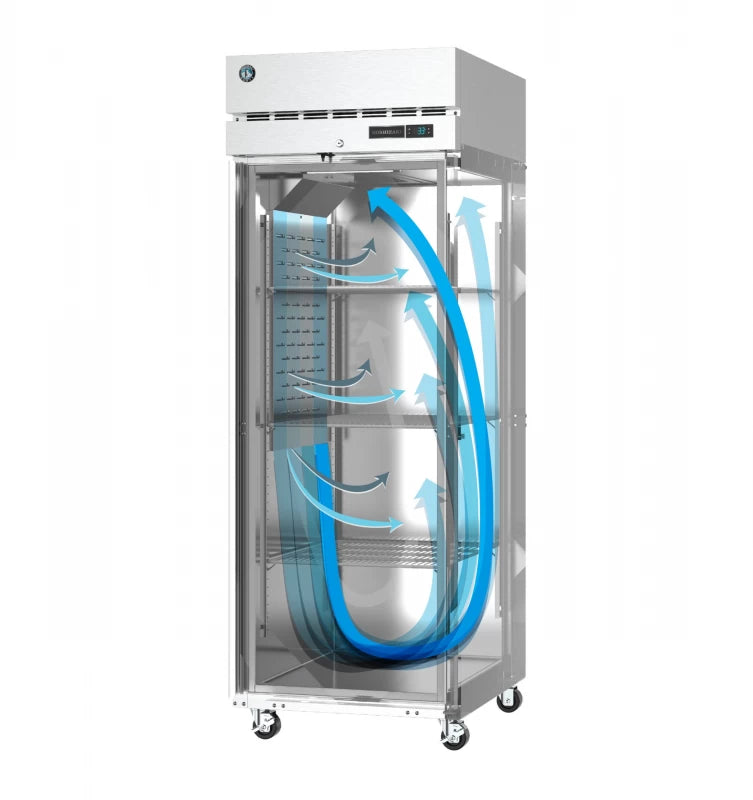

Unique “ducted” air distribution system
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
