SKU: R3AFG

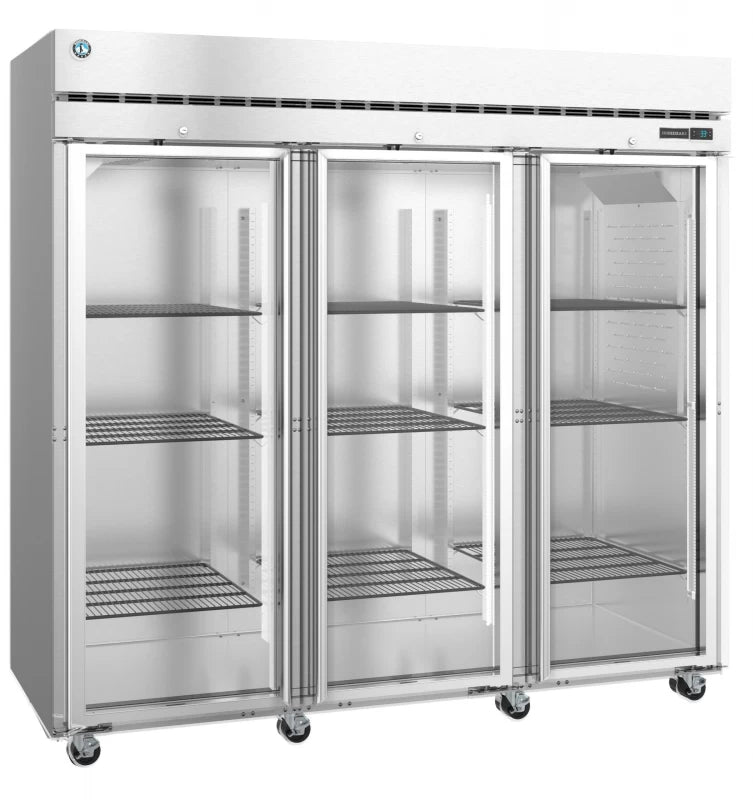

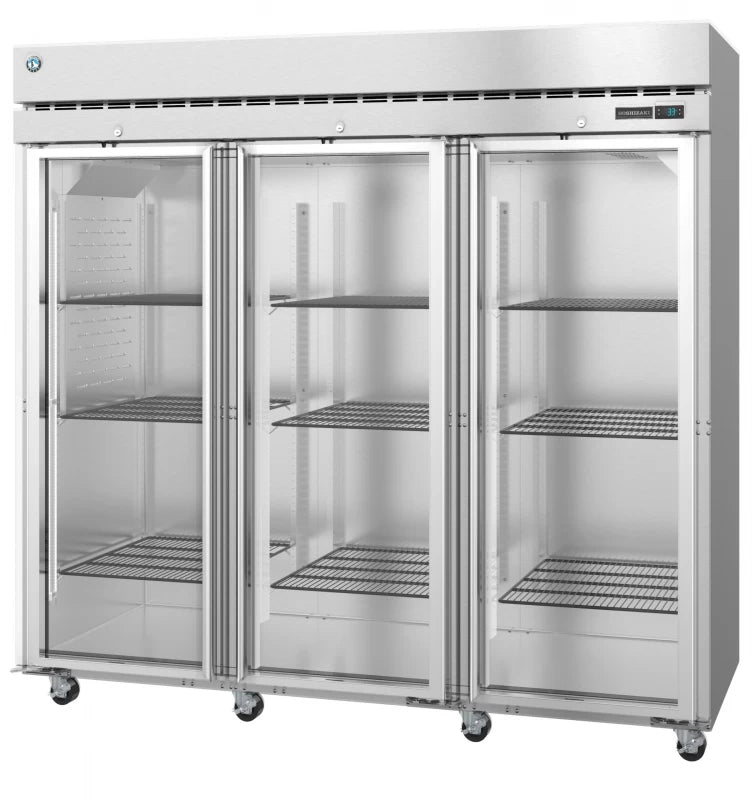

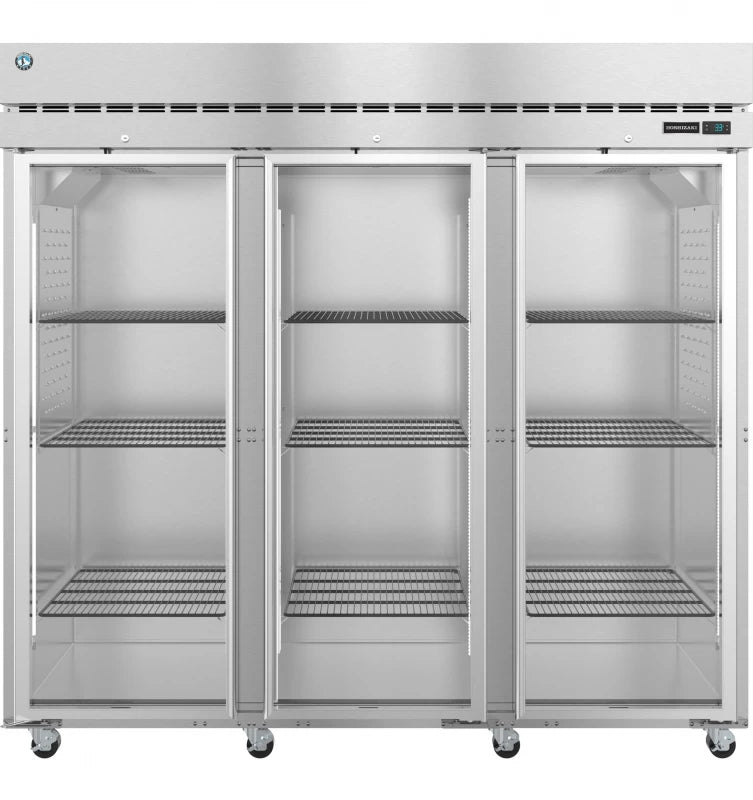

Hoshizaki R3AFG Refrigerator, Three Section Upright, Full Glass Doors with Lock Stainless Steel

Quick Specification More details

Width:
82.5"
Depth:
34.5"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Net capacity of 79.03 cubic feet
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
One piece, full door length, chrome door handle

Summer Sale

Clearance

SKU: R3AFG

Hoshizaki R3AFG Refrigerator, Three Section Upright, Full Glass Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
82.5"
Depth:
34.5"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Net capacity of 79.03 cubic feet
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
One piece, full door length, chrome door handle

Product Details for HOSHIZAKI R3AFG

Technical Details

Dimensions & weight

Weight	826 lbs.
Width	82.5 in.
Depth	34.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	866 lbs.
Total of Shipping Weight	866 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.5 kwh/day, Amperage: 9.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 1255 BTU/hr
Shipping Weight	826
Storage Specs	Nominal storage capacity: 80.71 ft3, Interior storage capacity: 79.03 ft3, Door opening: 21.75″ W x 57″ H, Depth with door fully extended: 59.25″ D, Shelves included: 9

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The R3A-FG Steelheart Series Upright three section refrigerator with full glass doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 79.03 cubic feet
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
One piece, full door length, chrome door handle
Lockable Full Glass Doors
Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
Interior LED light bars are vertically mounted on each wall
R290 refrigerant
Nominal Compres. of 770 BTU/hr at 1/4 HP
115v/60/1, 10 ft. cord and plug
Unique “ducted” air distribution system
ENERGY STAR® Qualified
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
