SKU: F1AFG

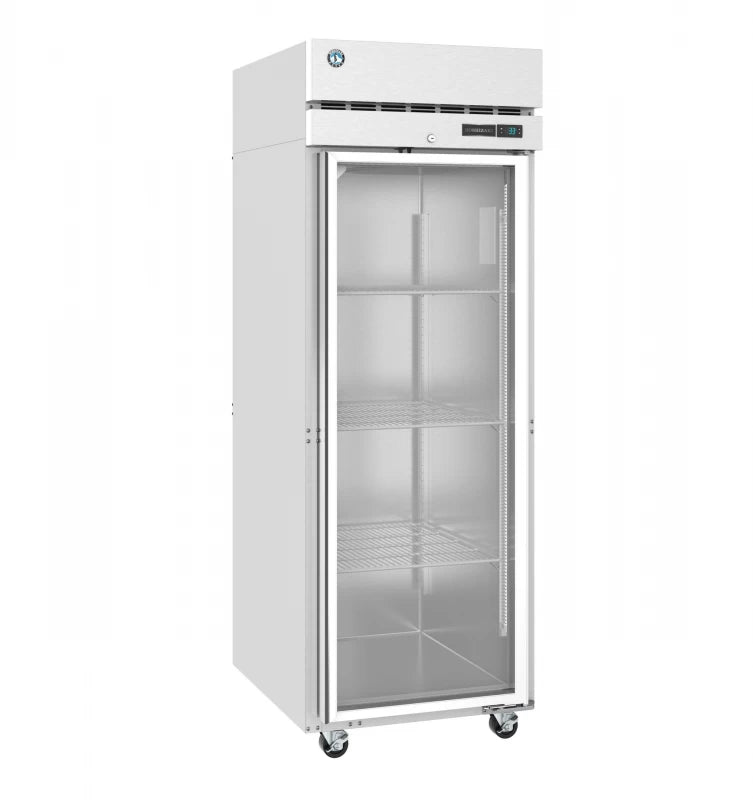

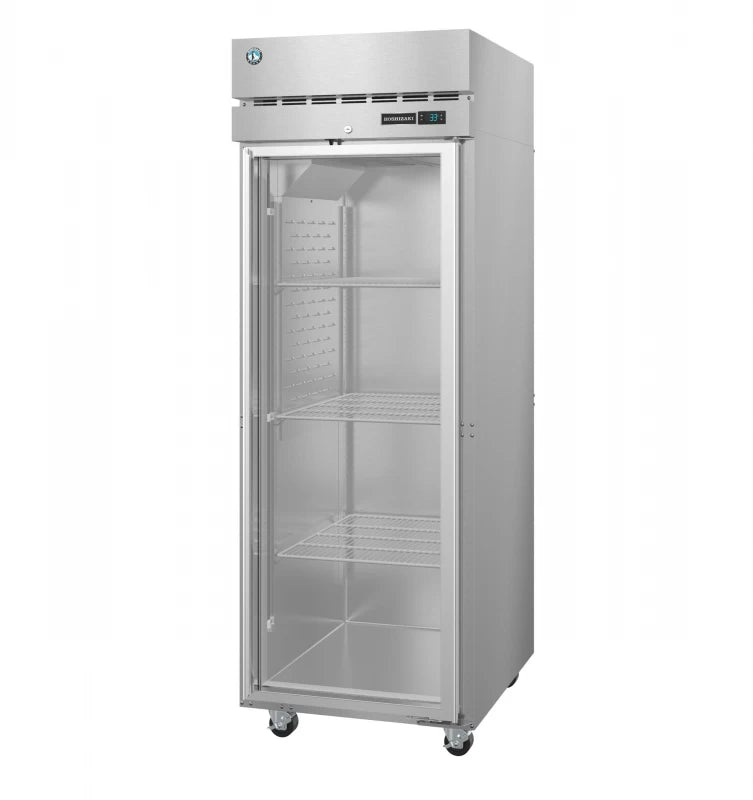

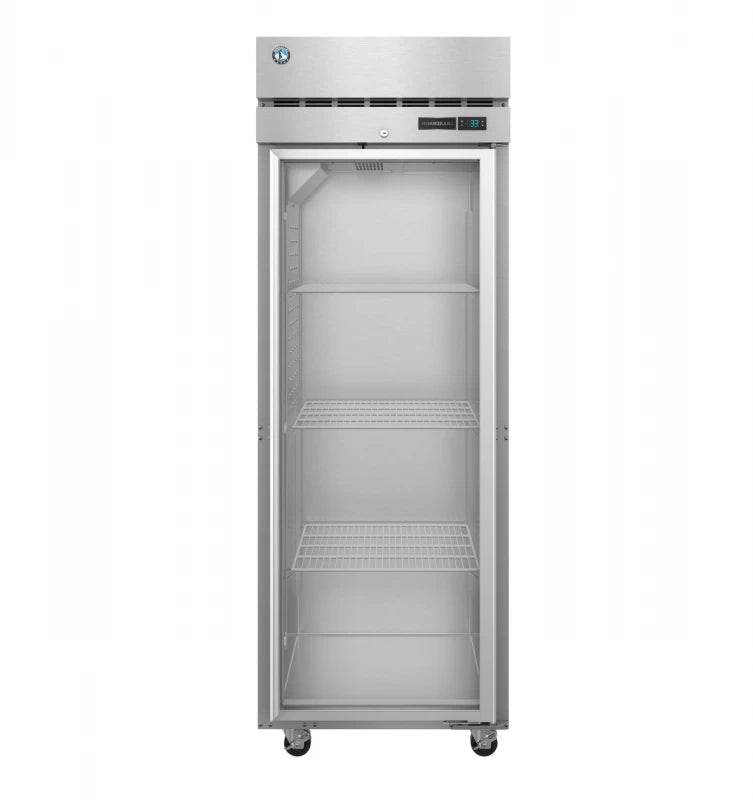

Hoshizaki F1AFG Freezer, Single Section Upright, Full Glass Door with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
34.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 23.1 cubic feet
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome handle
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

Summer Sale

Clearance

SKU: F1AFG

Hoshizaki F1AFG Freezer, Single Section Upright, Full Glass Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
34.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 23.1 cubic feet
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome handle
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

Product Details for HOSHIZAKI F1AFG

Technical Details

Dimensions & weight

Weight	380 lbs.
Width	27.5 in.
Depth	34.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	420 lbs.
Total of Shipping Weight	420 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 7.73 kwh/day, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 806 BTU/hr
Shipping Weight	380

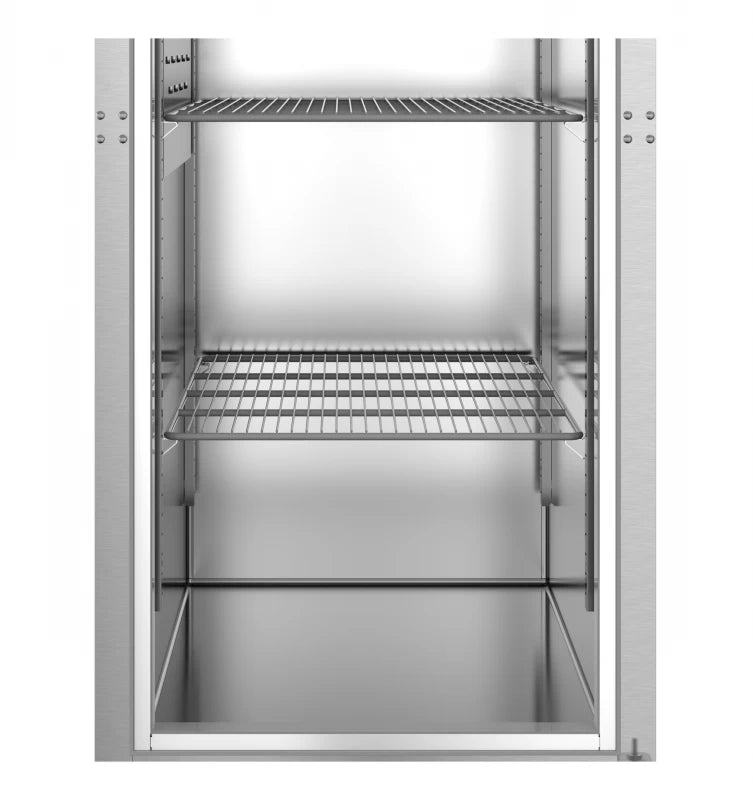

Storage Specs	Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 57″ D, Shelves included: 3

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The F1A-FG Steelheart Series Upright single section freezer with a full glass door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 23.1 cubic feet
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome handle
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Lockable Full Glass Door
Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks

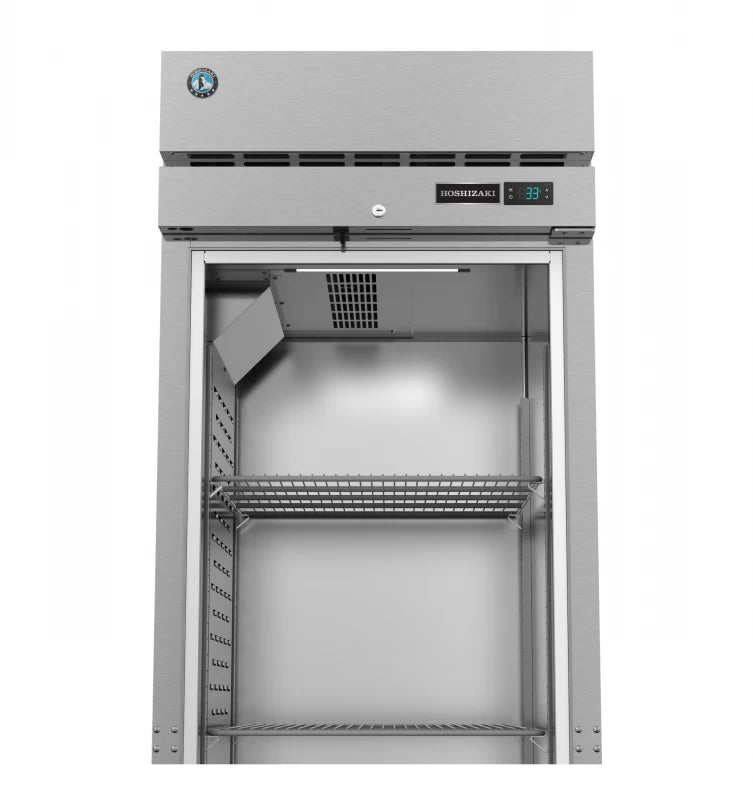

Interior LED light bars are vertically mounted on each wall
Nominal Compres. of 1425 BTU/hr at 3/4 HP
R290 refrigerant
115v/60/1, 10 ft. cord and plug

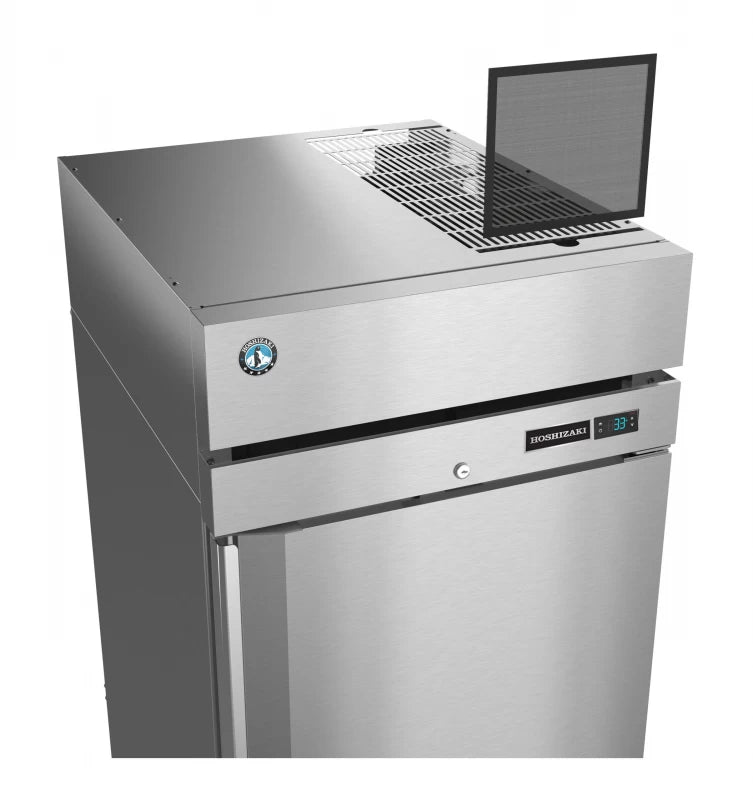

Top mounted energy efficient non-electric evaporation system

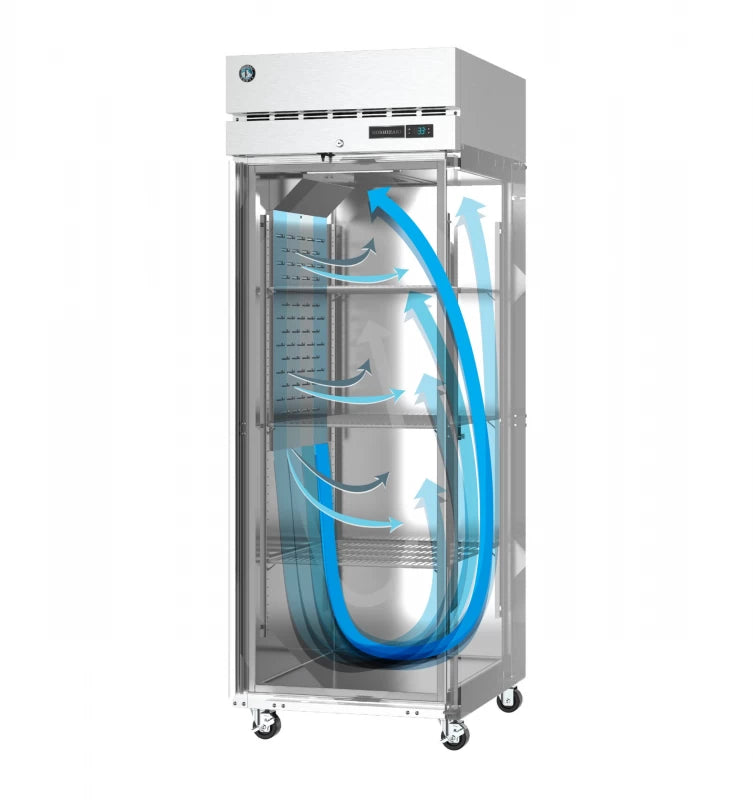

Unique “ducted” air distribution system
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
