SKU: R1AHS

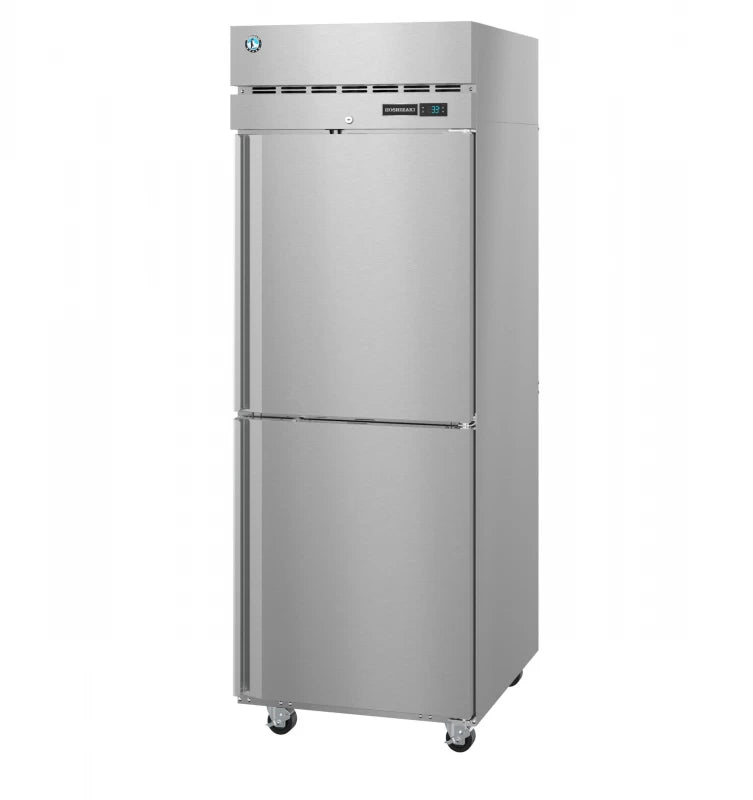

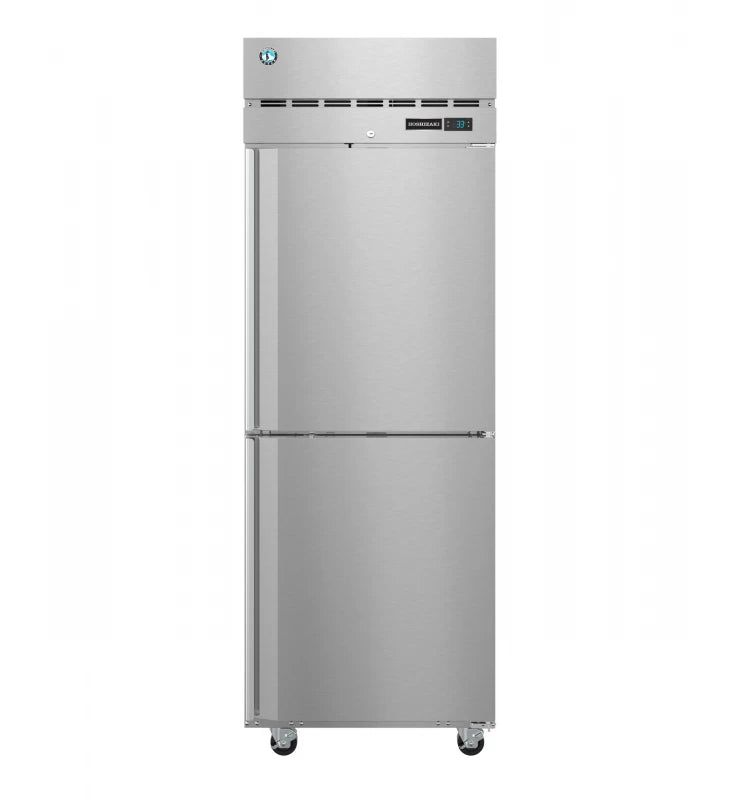

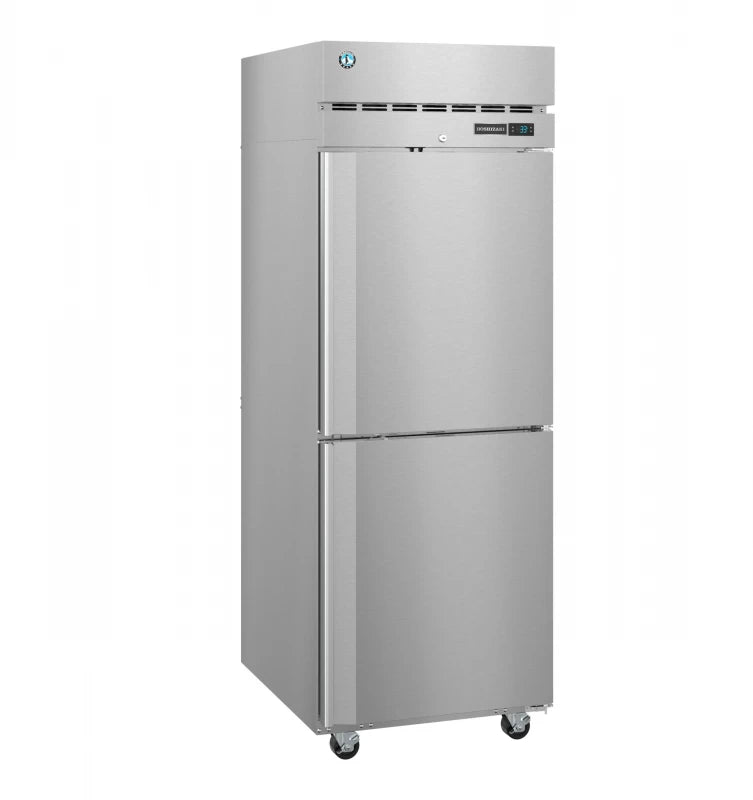

Hoshizaki R1AHS Refrigerator, Single Section Upright, Half Stainless Doors with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
33.5"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Net capacity of 23.1 cubic feet
Stainless steel exterior (front, sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
One piece, full door length, extruded aluminum flush mount door handle

Summer Sale

Clearance

SKU: R1AHS

Hoshizaki R1AHS Refrigerator, Single Section Upright, Half Stainless Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
33.5"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Net capacity of 23.1 cubic feet
Stainless steel exterior (front, sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
One piece, full door length, extruded aluminum flush mount door handle

Product Details for HOSHIZAKI R1AHS

Technical Details

Dimensions & weight

Weight	350 lbs.
Width	27.5 in.
Depth	33.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	390 lbs.
Total of Shipping Weight	390 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.25 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 317 BTU/hr
Shipping Weight	350

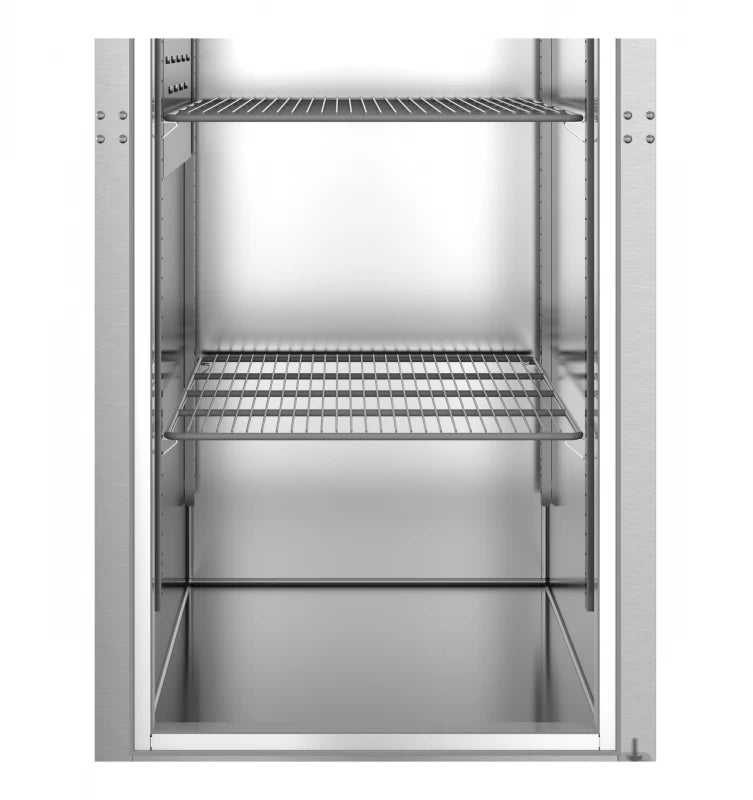

Storage Specs	Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 27.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 3

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The R1A-HS Steelheart Series Upright single section refrigerator with a half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R1A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 23.1 cubic feet
Stainless steel exterior (front, sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
One piece, full door length, extruded aluminum flush mount door handle
Lockable Half Stainless Doors

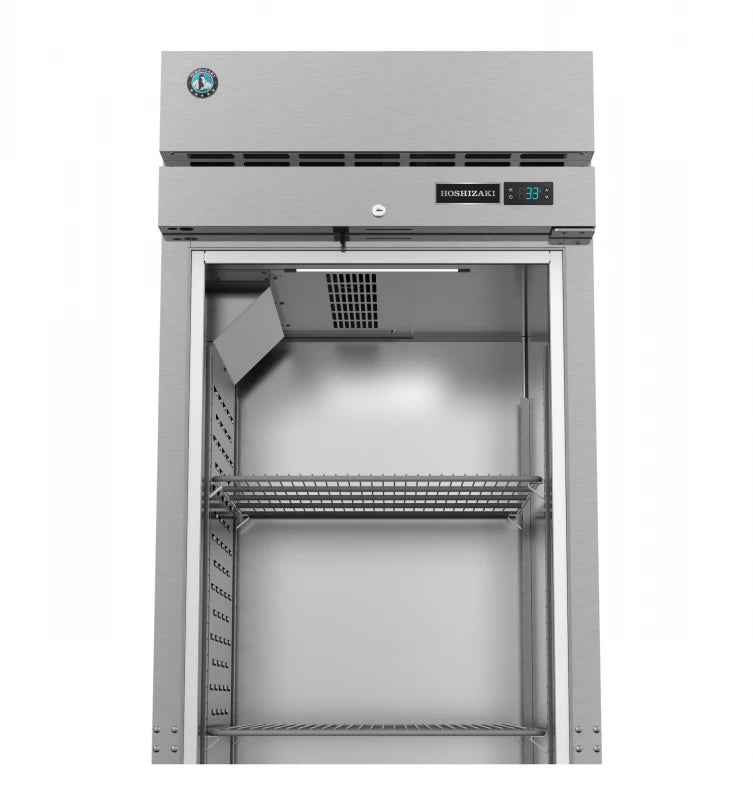

Interior LED light bar is mounted horizontally on the ceiling
R290 refrigerant
Nominal Compres. of 770 BTU/hr at 1/4 HP
115v/60/1, 10 ft. cord and plug

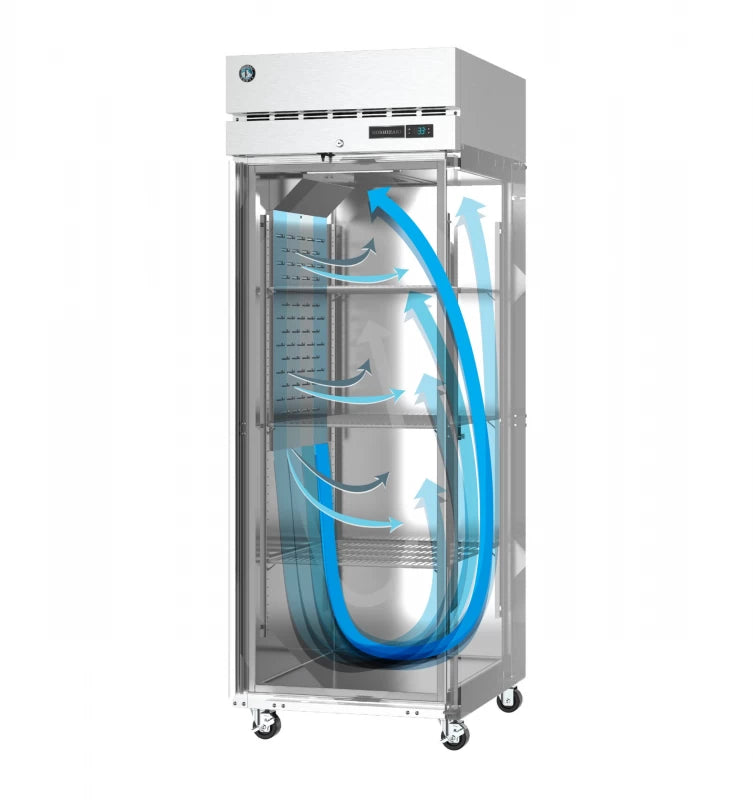

Unique “ducted” air distribution system
ENERGY STAR® Qualified
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
