SKU: PT1AFGFG

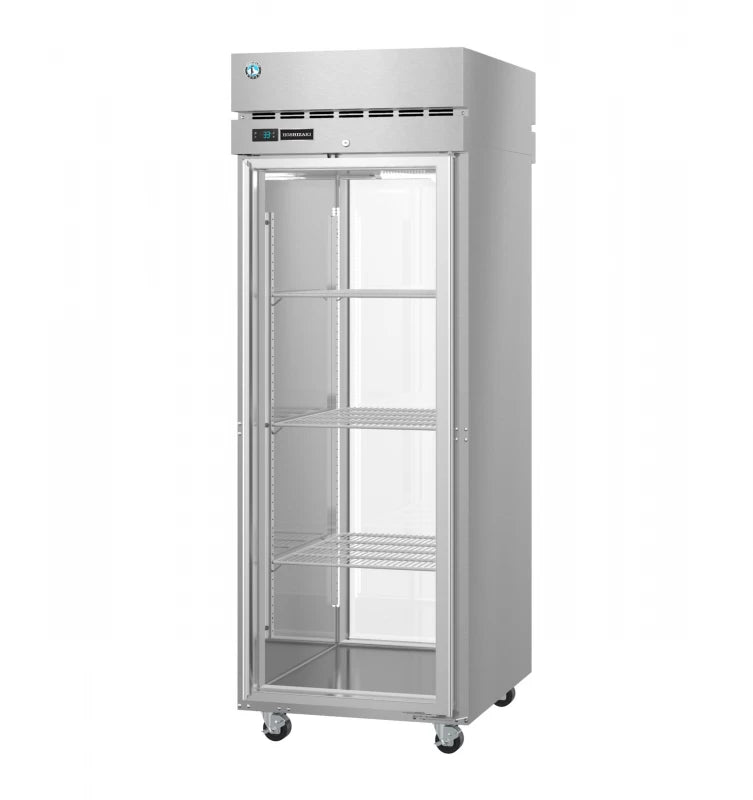

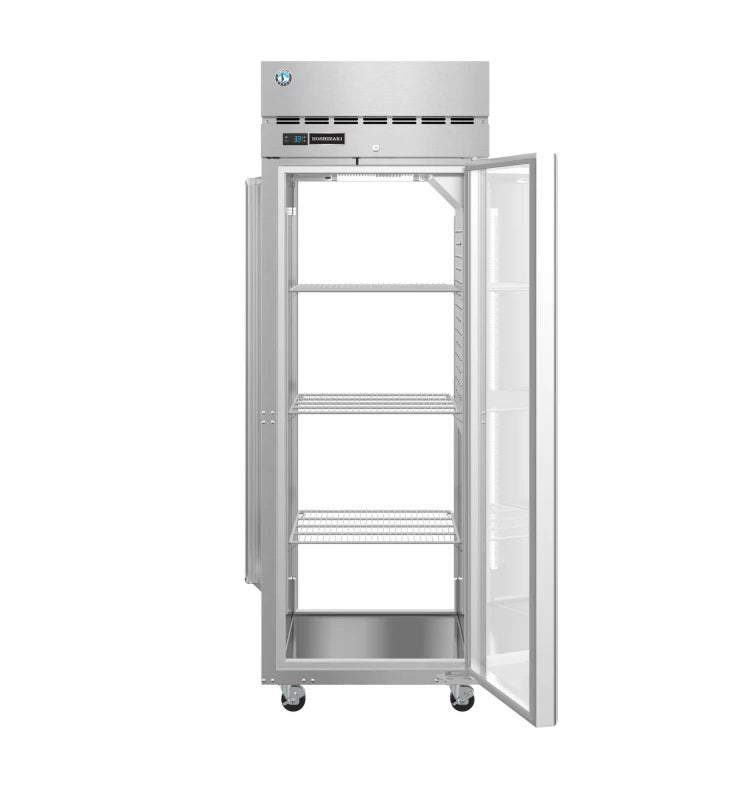

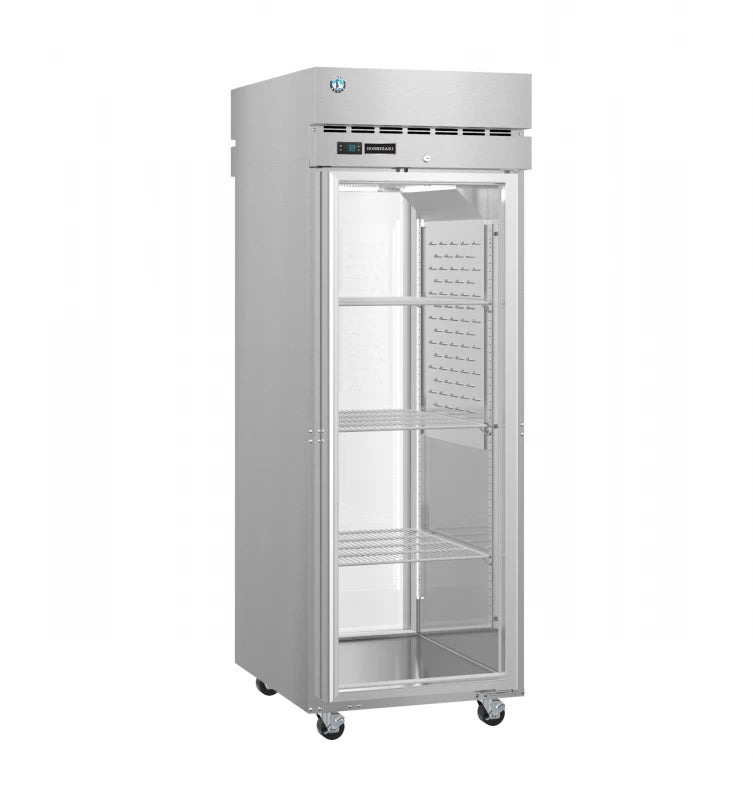

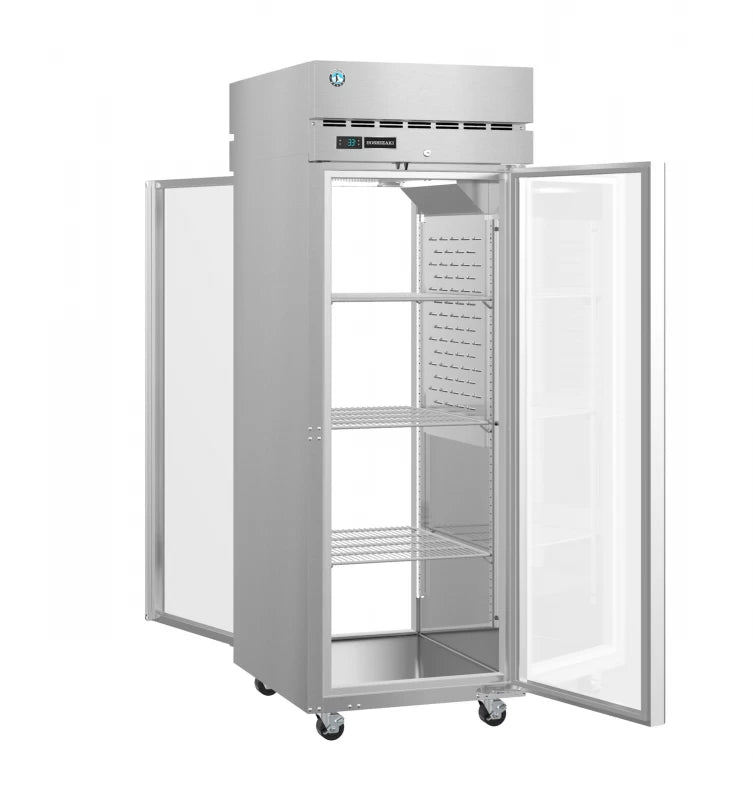

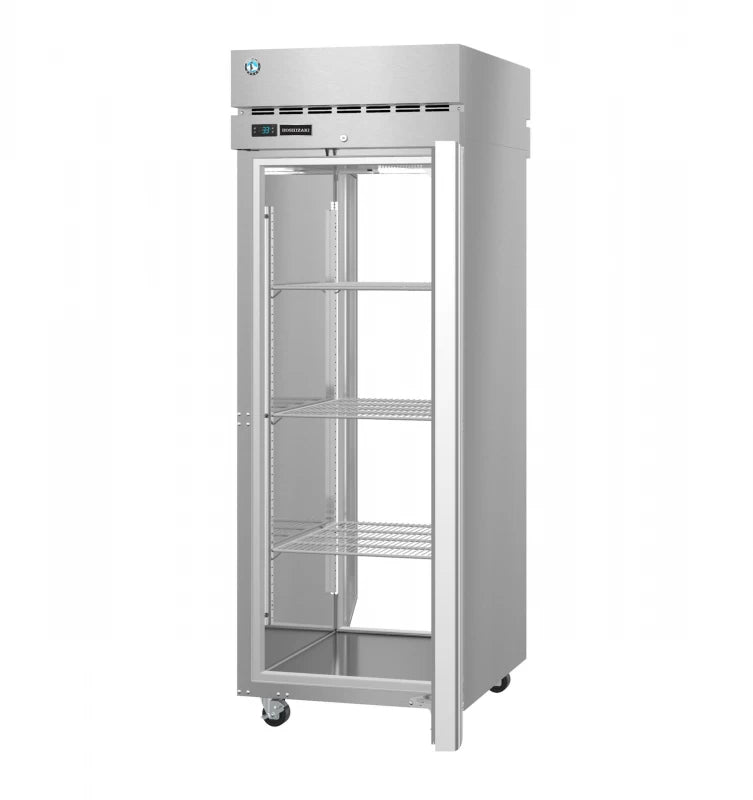

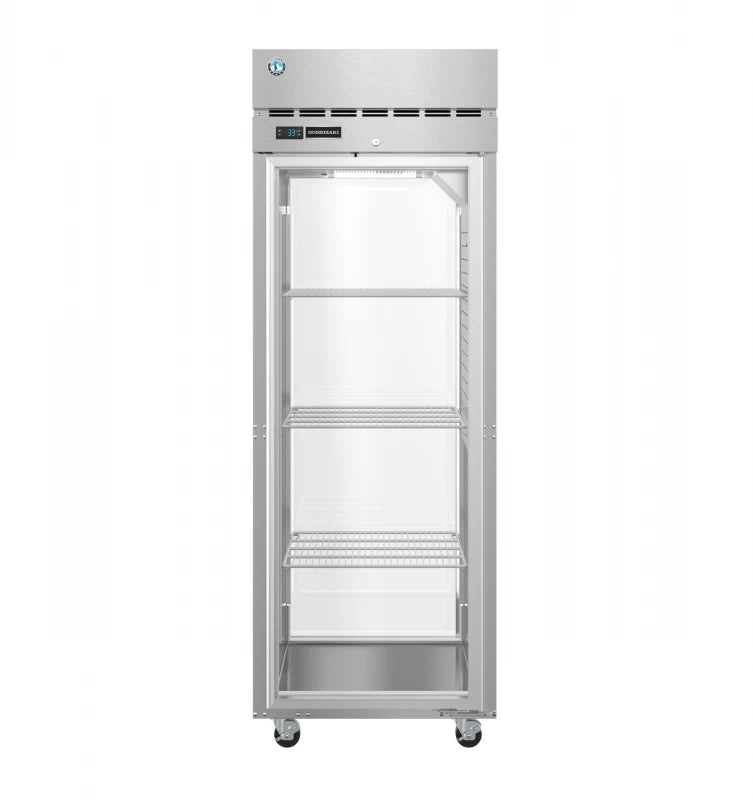

Hoshizaki PT1AFGFG Refrigerator, Single Section Pass Thru Upright, Full Glass Door with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
37.75"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Interior capacity of 24.2 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome door handle

Summer Sale

Clearance

SKU: PT1AFGFG

Hoshizaki PT1AFGFG Refrigerator, Single Section Pass Thru Upright, Full Glass Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
37.75"
Height:
79.5"
Type:
Specialty Refrigerators

About this product

Interior capacity of 24.2 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome door handle

Product Details for HOSHIZAKI PT1AFGFG

Technical Details

Dimensions & weight

Weight	367 lbs.
Width	27.5 in.
Depth	37.75 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	407 lbs.
Total of Shipping Weight	407 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.68 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 653 BTU/hr
Shipping Weight	367
Storage Specs	Interior storage capacity: 24.2 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with both doors fully extended: 82.5″ D, Shelves included: 3

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The PT1A-FG-FG Steelheart Series Pass Thru single section refrigerator with a full glass door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 24.2 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens. The PT1A-FG-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Interior capacity of 24.2 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
One piece, full door length, chrome door handle
Lockable Full Glass Doors
Interior LED light bars are vertically mounted on each wall and one along the ceiling
R290 refrigerant
Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
Nominal Compres. of 770 BTU/hr at 1/4 HP
115v/60/1, 10 ft. cord and plug
Top mounted energy efficient non-electric evaporation system
Unique “ducted” air distribution system
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
