SKU: KMS1122MLJ

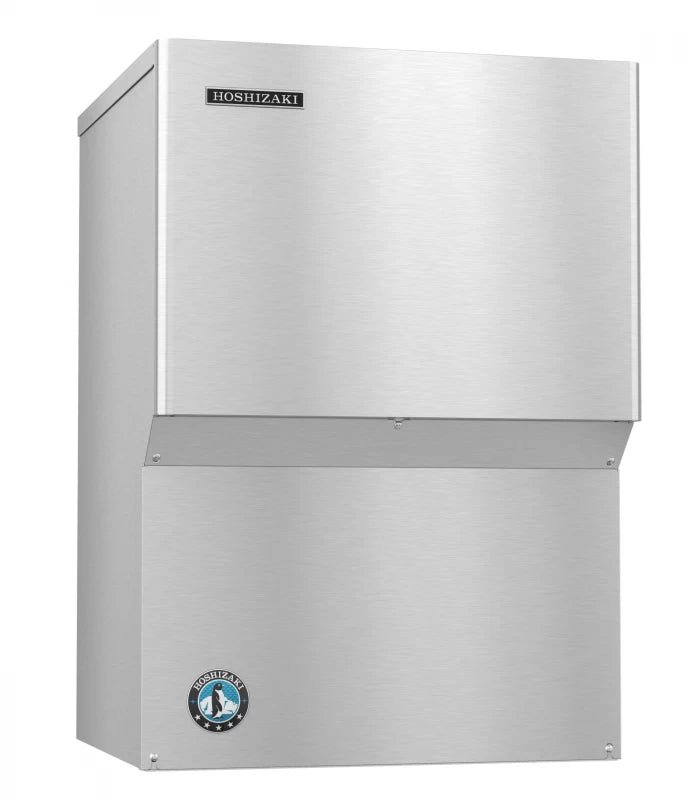

Hoshizaki KMS1122MLJ Crescent® Cuber Icemaker, Remote-cooled, Serenity Series Stainless Steel

Quick Specification More details

Width:
22"
Depth:
18.125"
Height:
31.25"
Type:
Ice Makers

About this product

Up to 1151 lbs of ice produced per 24 hours
Remote-cooled with SRK-12J
Durable stainless steel exterior

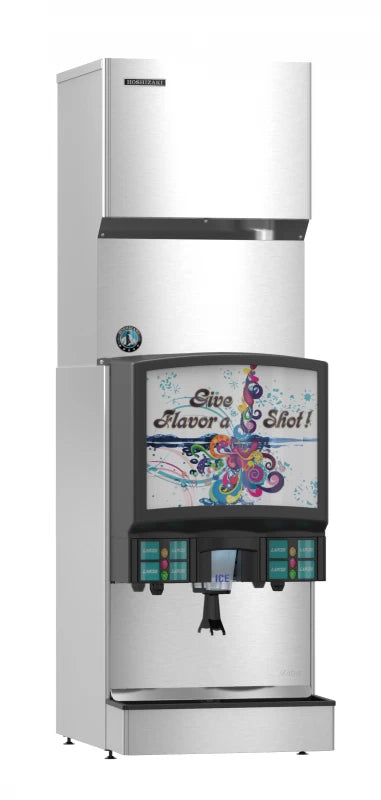

Compatible bins & dispensers, sold separately: Beverage Dispensers

Summer Sale

Clearance

SKU: KMS1122MLJ

Hoshizaki KMS1122MLJ Crescent® Cuber Icemaker, Remote-cooled, Serenity Series Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
18.125"
Height:
31.25"
Type:
Ice Makers

About this product

Up to 1151 lbs of ice produced per 24 hours
Remote-cooled with SRK-12J
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers

Product Details for HOSHIZAKI KMS1122MLJ

Technical Details

Product details

Utility Consumption	4.2 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J Remote Condenser), Amperage: 11.6, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 21300 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	145

Dimensions & weight

Weight	145 lbs.
Width	22 in.
Depth	18.125 in.
Height	31.25 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	185 lbs.
Total of Shipping Weight	185 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMS-1122MLJ is capable of producing approximately 1151 lbs of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-1122MLJ requires a Single phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J Remote Condenser) electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.

Product Features

Up to 1151 lbs of ice produced per 24 hours
Remote-cooled with SRK-12J
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers
Produces crescent shaped ice cubes
R-404A refrigerant (7.1 oz. / 200 g)
11.6 amps (20 Amp Max fuse)
4.2 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J Remote Condenser)
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
Heat Rejection: 21300 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
