Product Details for Hoshizaki DCM271BAHOS

Technical Details

Product details

Electrical Specs Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A
Utility Consumption 6.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3300 BTU/hr, Refrigerant Charge: R-404A, (14.8 oz. / 420
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight 154

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Source Calculation

Dimensions & weight

Width 16.625 in.
Depth 24.25 in.
Height 31.75 in.

Warranty

Parts 3 Years
Labor 3 Years

Description

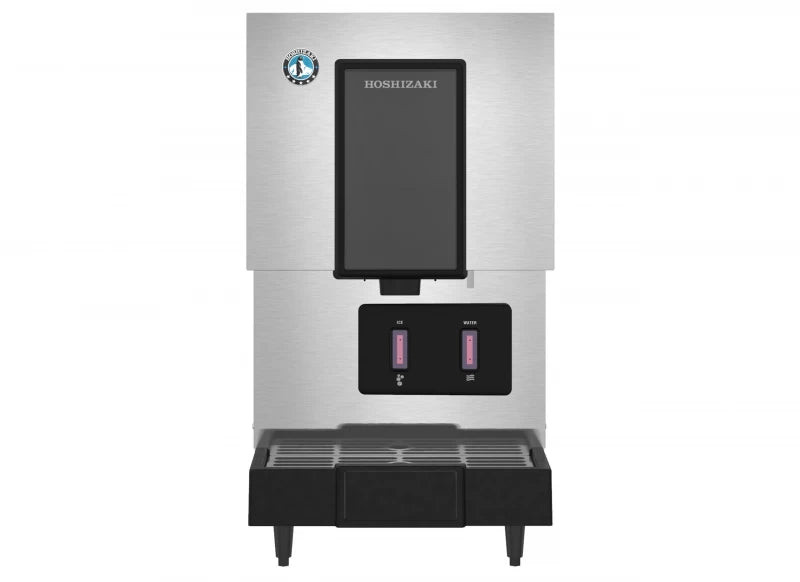

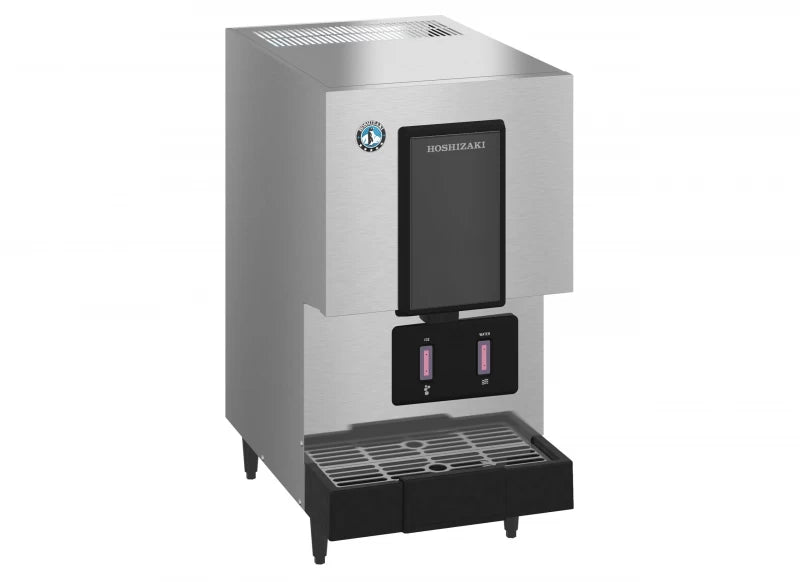

The DCM-271BAH-OS is capable of producing approximately 257 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
