SKU: KML325MWJ

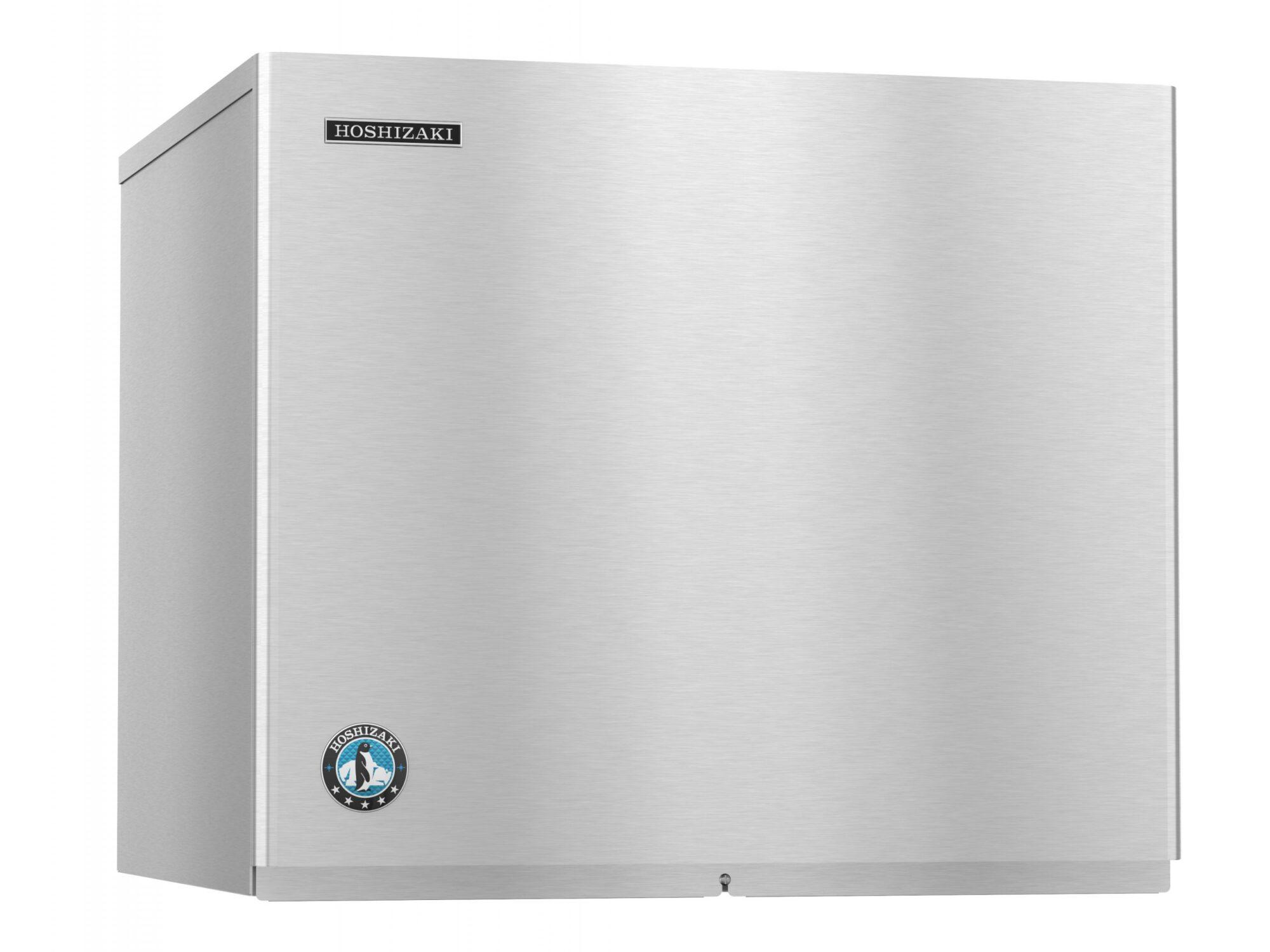

HOSHIZAKI KML325MWJ KML-325MWJ Crescent Cuber Icemaker, Water-cooled

Quick Specification More details

Width:
30.0 Inch
Height:
22.0 Inch
Type:
Ice Makers

About this product

Discontinued - Replaced by KMD-355MWJ
Dimensions: 30" W x 27-3/8" D x 22" H
Up to 385 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

SKU: KML325MWJ

HOSHIZAKI KML325MWJ KML-325MWJ Crescent Cuber Icemaker, Water-cooled

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30.0 Inch
Height:
22.0 Inch
Type:
Ice Makers

About this product

Discontinued - Replaced by KMD-355MWJ
Dimensions: 30" W x 27-3/8" D x 22" H
Up to 385 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Product Details for HOSHIZAKI KML325MWJ

Technical Details

Features

Discontinued - Replaced by KMD-355MWJ	Yes
Dimensions: 30" W x 27-3/8" D x 22" H	Yes
Up to 385 lbs of ice produced per 24 hours	Yes
Mount 2 units side-by-side for 2x the ice production	Yes
Produces crescent shaped ice cubes	Yes
Durable stainless steel exterior	Yes
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B	Yes
EverCheck(TM) alert system	Yes
CycleSaver(TM) design	Yes
R-404A refrigerant (1 lbs. 1.6 oz. / 500 g)	Yes
Heat Rejection: BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 104 - 127V	Yes
8.4 amps (15 Amp Max fuse)	Yes
4.51 kwh/100 lbs.@ 90/70	Yes
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Three Years: Parts & Labor warranty on entire machine.	Yes
Five Years: Parts & Labor warranty on evaporator.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	No
Smart Device	No

Dimensions & weight

Product Dimensions	30 in x 22 in x 27.38 in
Shipping Dimensions	0 in x 0 in x 0 in
Product Weight	185 lb
Shipping Weight	225 lb

Features

Discontinued - Replaced by KMD-355MWJ
Dimensions: 30" W x 27-3/8" D x 22" H
Up to 385 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
EverCheck(TM) alert system
CycleSaver(TM) design
R-404A refrigerant (1 lbs. 1.6 oz. / 500 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 104 - 127V
8.4 amps (15 Amp Max fuse)
4.51 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Description

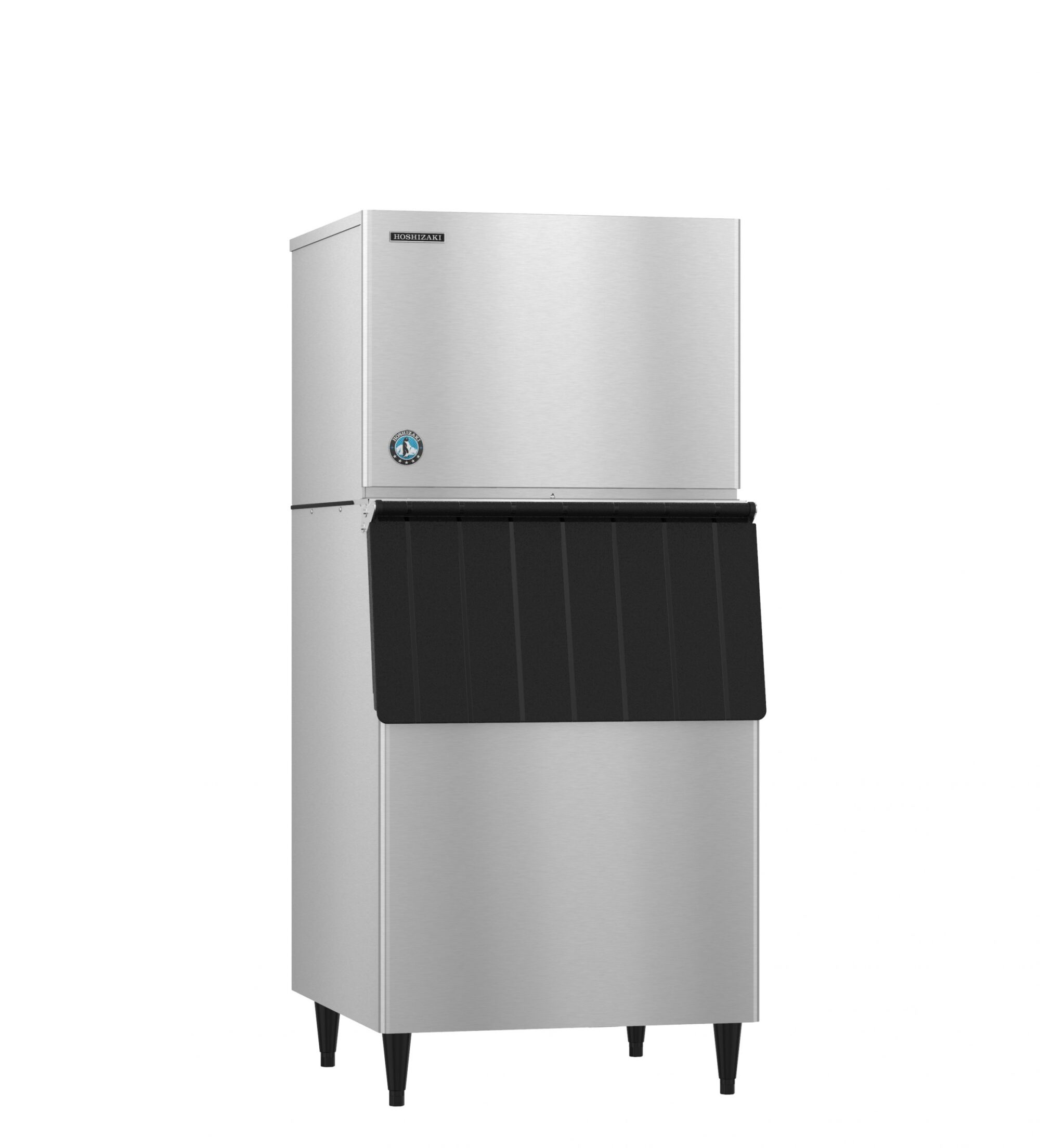

The KML-325MWJ is capable of producing approximately 385 lbs of crescent cubed ice, Mount 2 units side-by-side for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Low Profile Modular icemaker features a CycleSaver(TM) design and includes the EverCheck(TM) alert system making the unit energy efficient and simple to maintain. The KML-325MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.
