SKU: KMD705MAJ

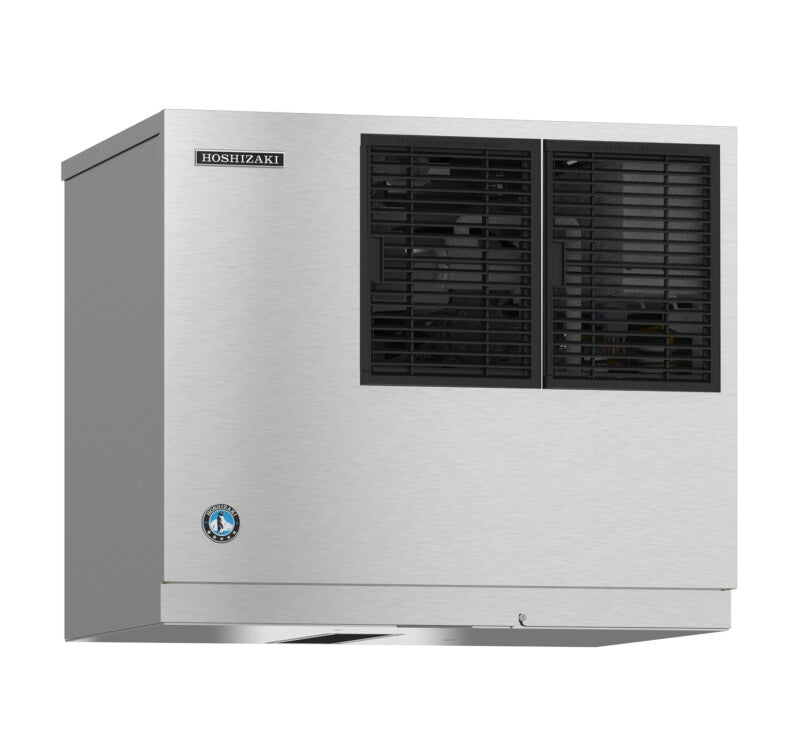

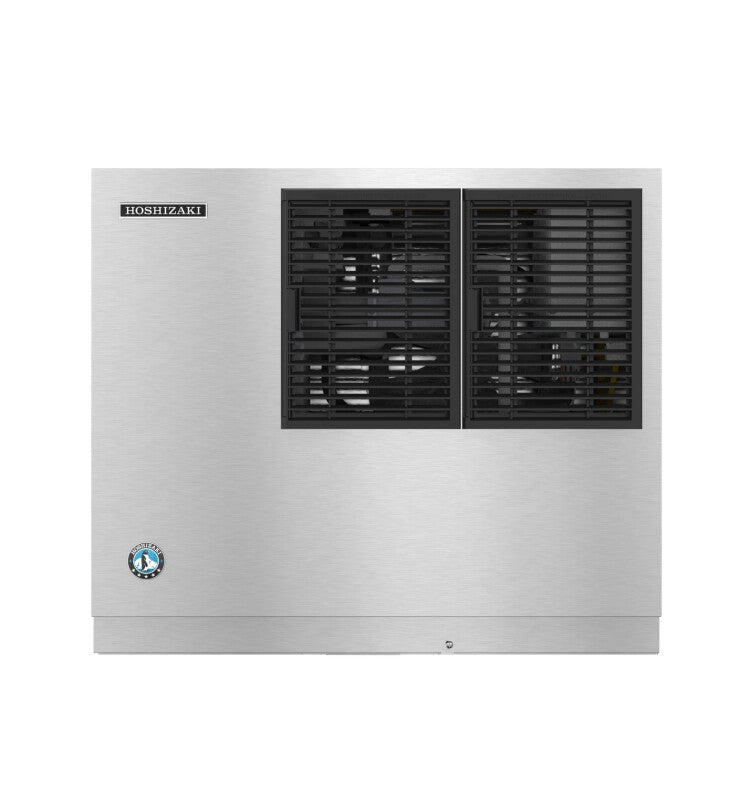

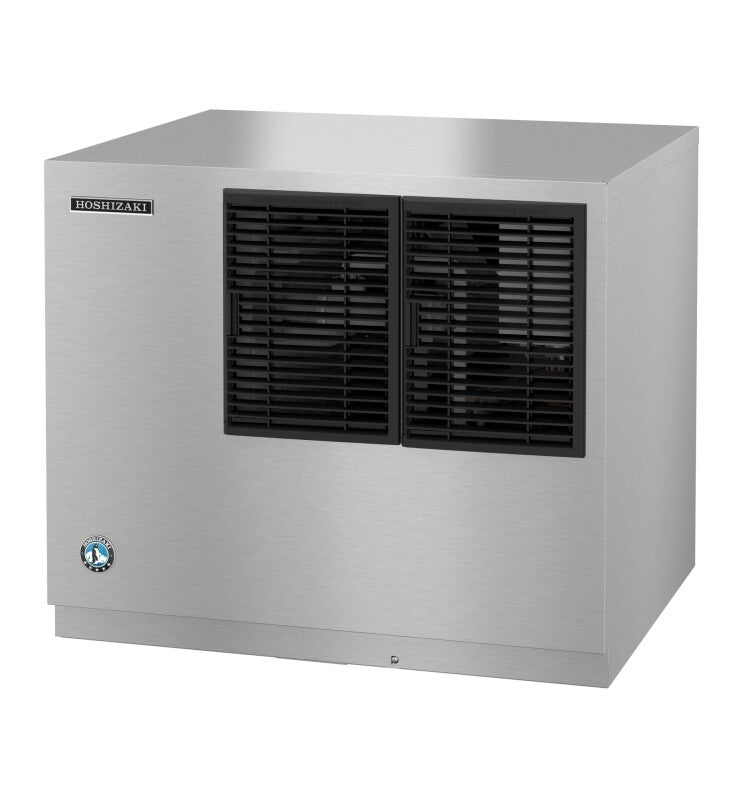

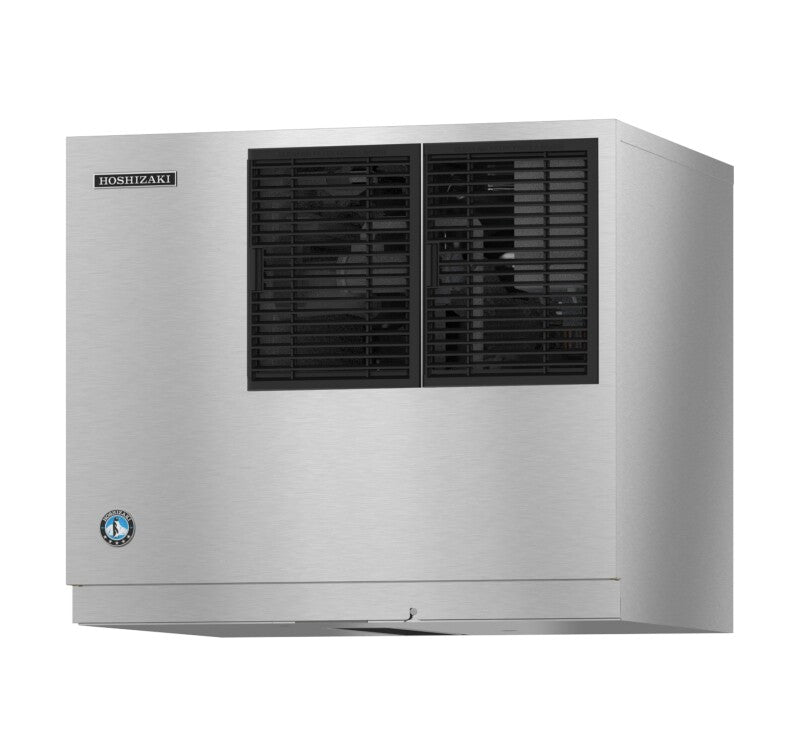

Hoshizaki KMD705MAJ Crescent® Cuber Icemaker, Air-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24"
Height:
26"
Type:
Ice Makers

About this product

Up to 721 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior

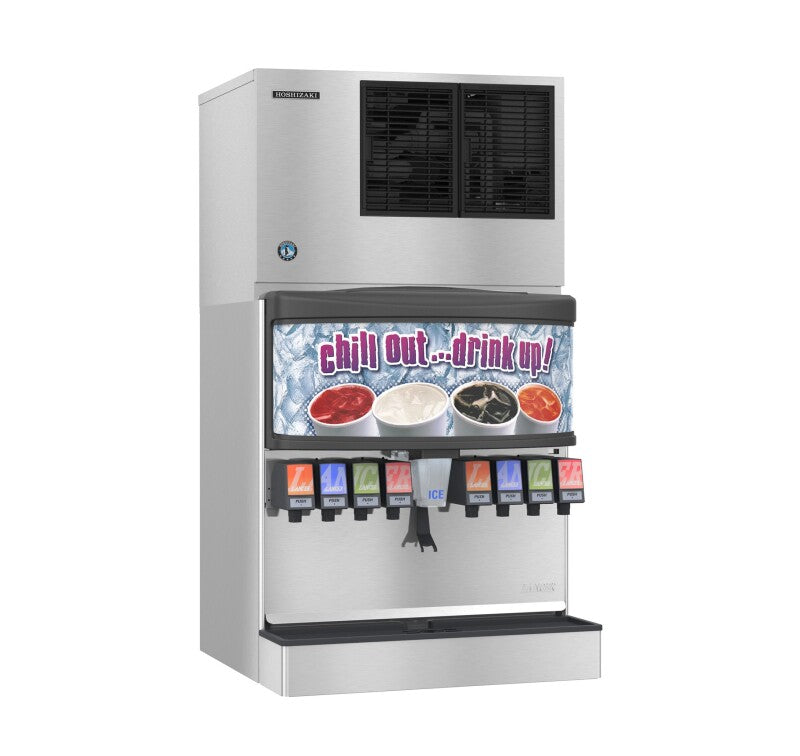

Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B

Summer Sale

Clearance

SKU: KMD705MAJ

Hoshizaki KMD705MAJ Crescent® Cuber Icemaker, Air-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24"
Height:
26"
Type:
Ice Makers

About this product

Up to 721 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B

Product Details for HOSHIZAKI KMD705MAJ

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 14.3, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.75 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9400 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 12.1 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	200

Dimensions & weight

Weight	200 lbs.
Width	30 in.
Depth	24 in.
Height	26 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	240 lbs.
Total of Shipping Weight	240 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMD-705MAJ is capable of producing approximately 721 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-705MAJ requires a 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.

Product Features

Up to 721 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
Produces crescent shaped ice cubes
Simple one-hour cleaning process
R-404A refrigerant (2 lbs. 12.1 oz. / 1250 g)
14.3 amps (20 Amp Max fuse)
4.75 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
Heat Rejection: 9400 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
