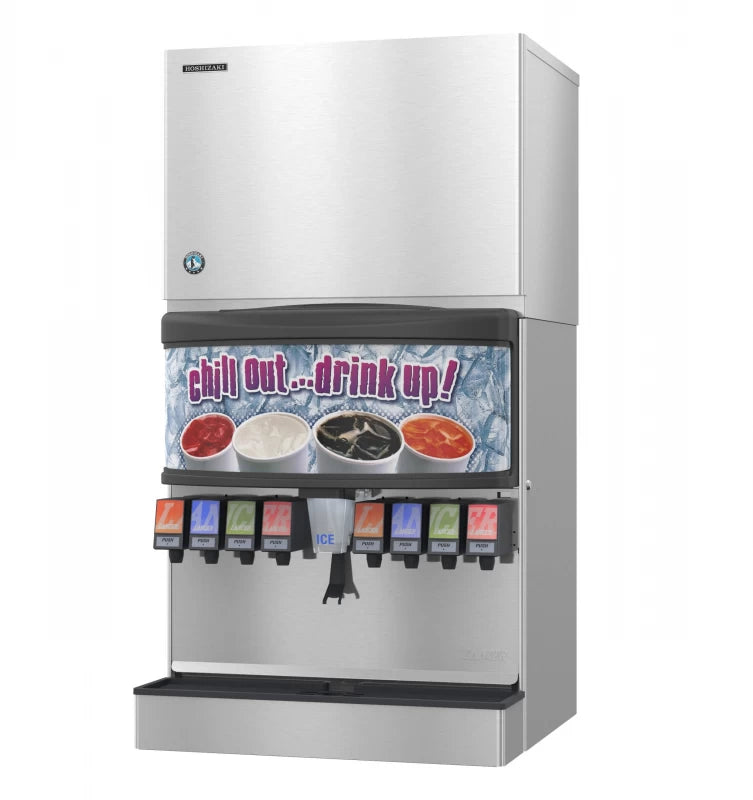

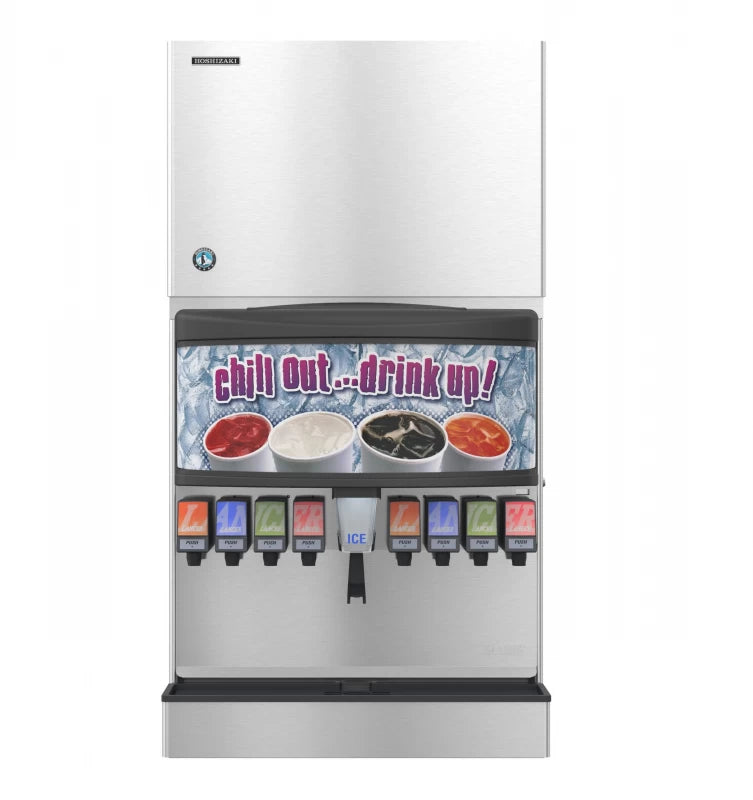

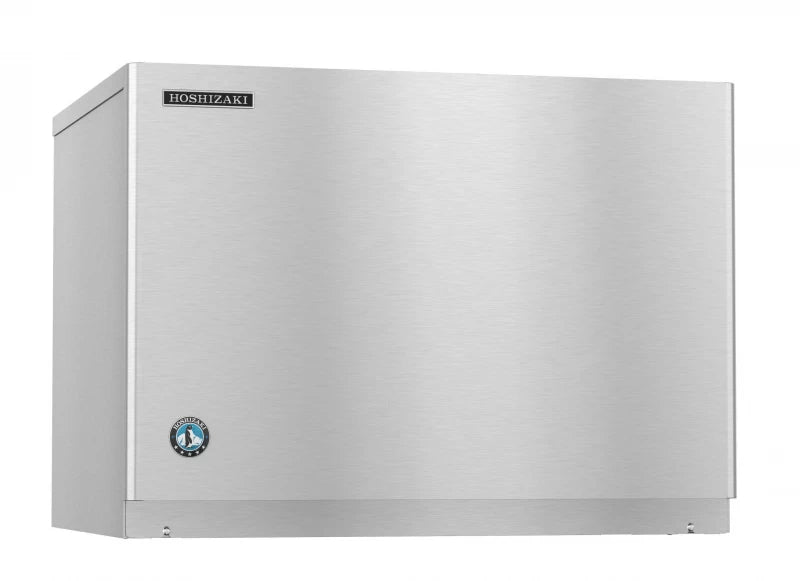

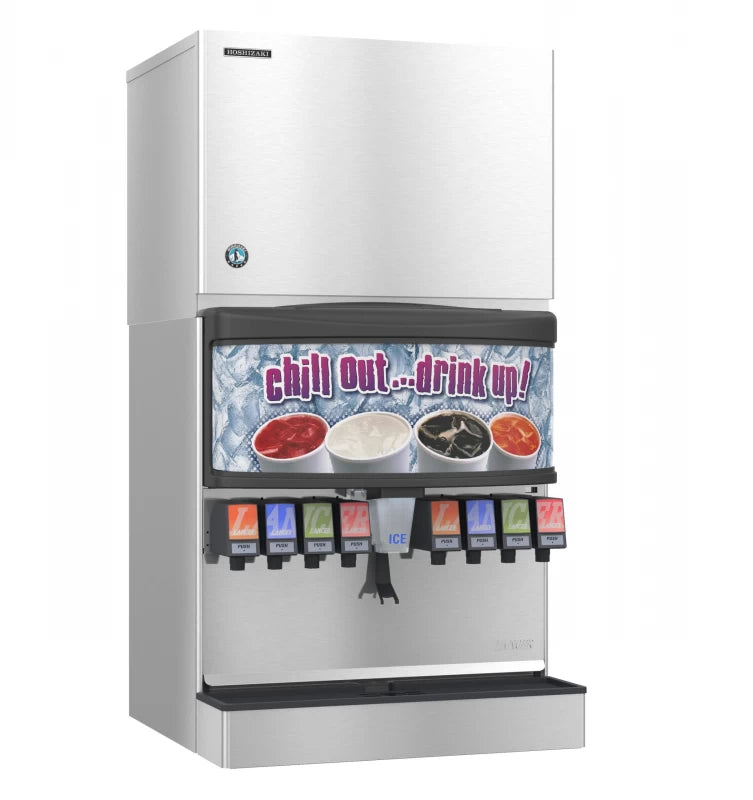

Hoshizaki KMD530MRJZ Crescent Cuber Icemaker, Remote-cooled Stainless Steel
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Product Details for HOSHIZAKI KMD530MRJZ
Technical Details
Product details
| Electrical Specs | Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.4, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 6.1 kWh per 100 lbs @ 90/70, 25 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 7670 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 15.7 oz. |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 170 |
Dimensions & weight
| Weight | 170 lbs. |
| Width | 30 in. |
| Depth | 24.25 in. |
| Height | 22.125 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 210 lbs. |
| Total of Shipping Weight | 210 lbs. |
| Source | Calculation |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
Description
The KMD-530MRJZ is capable of producing approximately 498 lbs of crescent cubed ice. Hoshizaki’s efficient stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-5FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-530MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.
Product Features
- Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
- Up to 498 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300
- R-404A refrigerant (1 lbs. 15.7 oz. / 899 g)
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 12.4 amps (20 Amp Max fuse)
- 6.1 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Five Years: Parts & Labor warranty on evaporator.
- Discontinued – Replaced by KMD-505MRJZ
- EverCheck™ alert system
- CycleSaver™ design
- Heat Rejection:7670 BTU/hr
- Three Years: Parts & Labor warranty on entire machine.
