SKU: KMD410MWJ

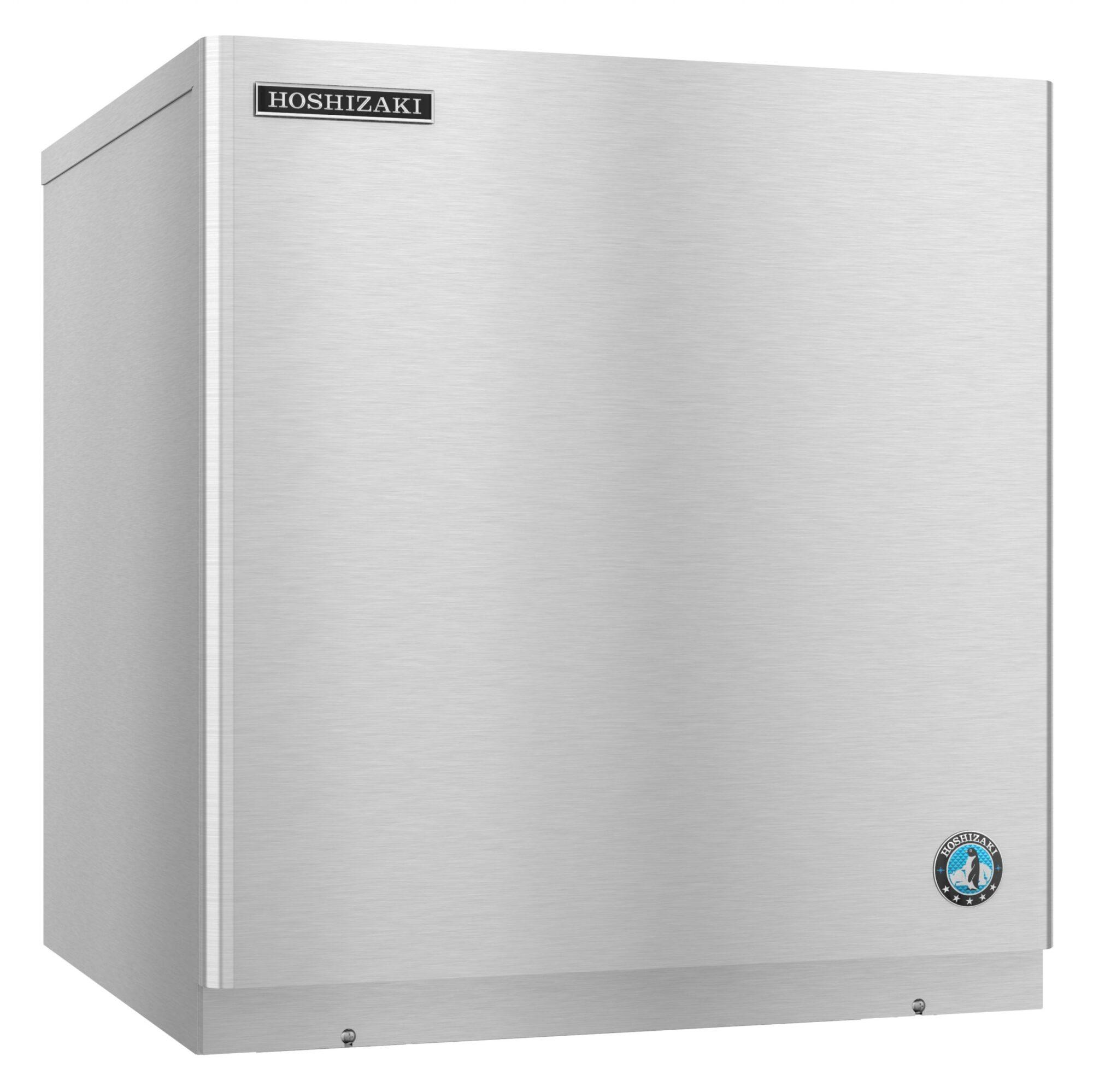

HOSHIZAKI KMD410MWJ KMD-410MWJ Crescent Cuber Icemaker, Water-cooled

Quick Specification More details

Width:
22.25 Inch
Height:
24.0 Inch
Type:
Ice Makers

About this product

Dimensions: 22-1/4" W x 24-1/8" D x 24" H
Up to 449 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

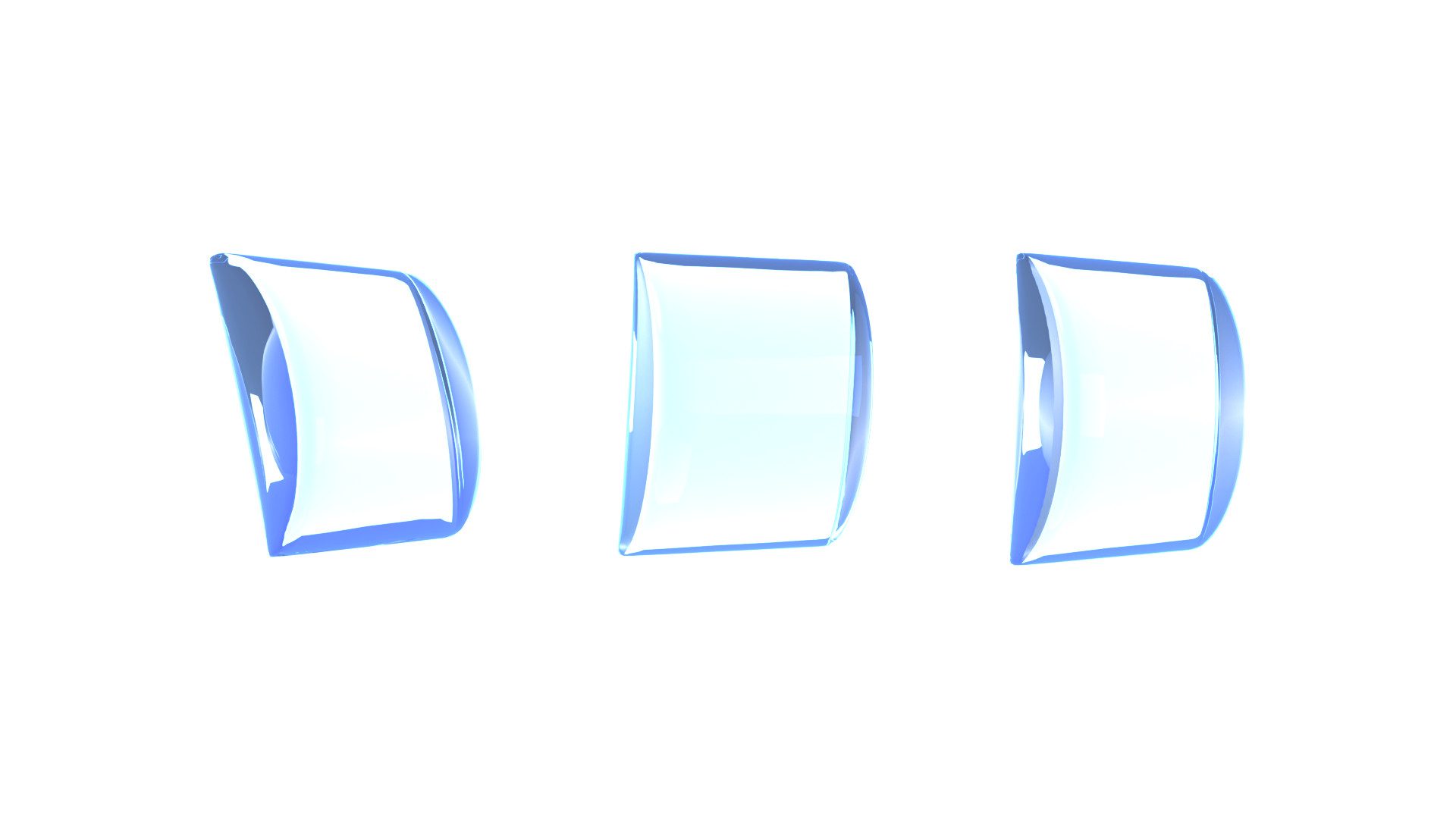

Produces crescent shaped ice cubes

SKU: KMD410MWJ

HOSHIZAKI KMD410MWJ KMD-410MWJ Crescent Cuber Icemaker, Water-cooled

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22.25 Inch
Height:
24.0 Inch
Type:
Ice Makers

About this product

Dimensions: 22-1/4" W x 24-1/8" D x 24" H
Up to 449 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes

Product Details for HOSHIZAKI KMD410MWJ

Technical Details

Features

Dimensions: 22-1/4" W x 24-1/8" D x 24" H	Yes
Up to 449 lbs of ice produced per 24 hours	Yes
Mount 2 units side-by-side for 2x the ice production	Yes
Produces crescent shaped ice cubes	Yes
Durable stainless steel exterior	Yes
Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H	Yes
EverCheck(TM) alert system	Yes
CycleSaver(TM) design	Yes
Stainless steel evaporator	Yes
R-404A refrigerant (14.1 oz. / 400 g)	Yes
Heat Rejection:6300 BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 104 - 127V	Yes
6.6 amps (20 Amp Max fuse)	Yes
4.1 kwh/100 lbs.@ 90/70	Yes
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Three Years: Parts & Labor warranty on entire machine.	Yes
Five Years: Parts & Labor warranty on evaporator.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	No
ADA Compliant	No
Smart Device	No

Dimensions & weight

Product Dimensions	22.25 in x 24 in x 24.13 in
Shipping Dimensions	0 in x 0 in x 0 in
Product Weight	155 lb
Shipping Weight	195 lb

Features

Dimensions: 22-1/4" W x 24-1/8" D x 24" H
Up to 449 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H
EverCheck(TM) alert system
CycleSaver(TM) design
Stainless steel evaporator
R-404A refrigerant (14.1 oz. / 400 g)
Heat Rejection:6300 BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 104 - 127V
6.6 amps (20 Amp Max fuse)
4.1 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Description

The KMD-410MWJ is capable of producing approximately 449 lbs of crescent cubed ice. Hoshizaki's efficient stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Water-cooled, Modular icemaker features a CycleSaver(TM) design and includes the EverCheck(TM) alert system making the unit energy efficient and simple to maintain. The KMD-410MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H. Please consult the Specification Sheet for additional details.
