SKU: KM901MRJZ

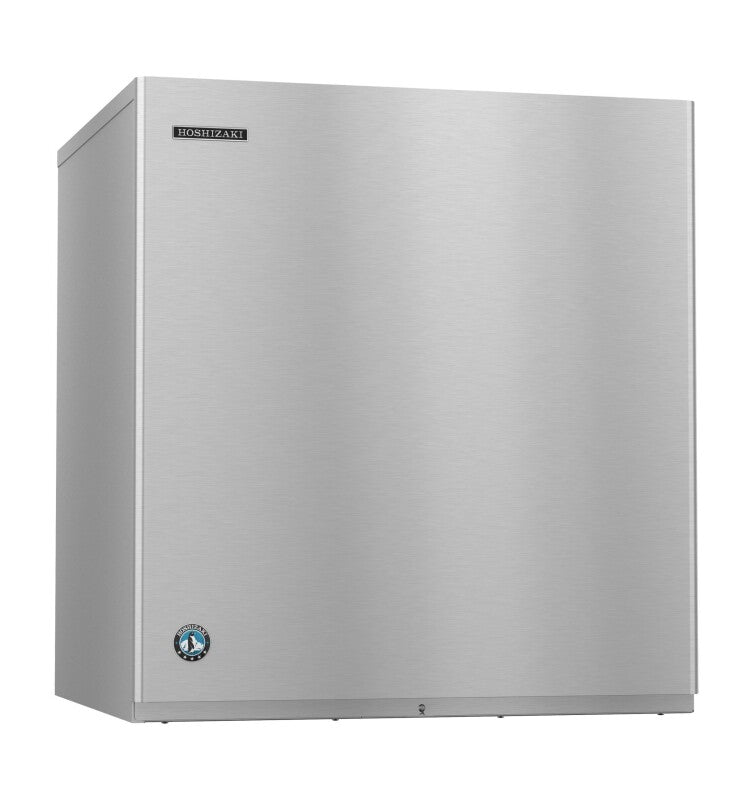

Hoshizaki KM901MRJZ Crescent® Cuber Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
32.5"
Type:
Ice Makers

About this product

Up to 900 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

Summer Sale

Clearance

SKU: KM901MRJZ

Hoshizaki KM901MRJZ Crescent® Cuber Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
32.5"
Type:
Ice Makers

About this product

Up to 900 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

Product Details for HOSHIZAKI KM901MRJZ

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.75 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 12500 BTU/hr, Refrigerant Charge: R-404A, (12 lbs. 5.5 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	255

Dimensions & weight

Weight	255 lbs.
Width	30 in.
Depth	27.375 in.
Height	32.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	295 lbs.
Total of Shipping Weight	295 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-901MRJZ is capable of producing approximately 900 lbs of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-901MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.

Product Features

Up to 900 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (12 lbs. 5.5 oz. / 6600 g)
12 amps (20 Amp Max fuse)
4.75 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
EverCheck™ alert system
CycleSaver™ design
Heat Rejection: 12500 BTU/hr
Dimensions: 30″ W x 27-3/8″ D x 32-1/2″ H
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
